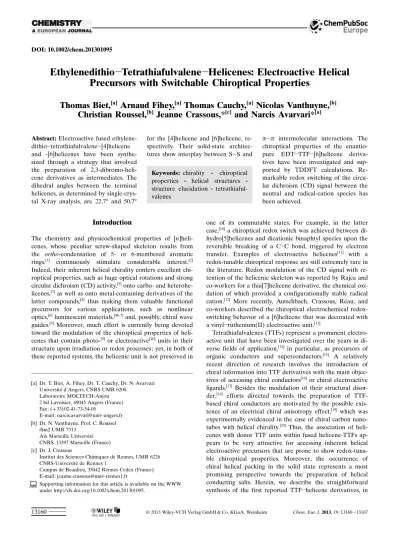

Ethylenedithio-Tetrathiafulvalene-Helicenes: Electroactive Helical Precursors with Switchable Chiroptical Properties

DOI: 10.1002/chem.201301095

Ethylenedithio Tetrathiafulvalene Helicenes: Electroactive Helical Precursors with Switchable Chiroptical Properties

Thomas Biet,

^[a]

Arnaud Fihey,

^[a]

Thomas Cauchy,

^[a]

Nicolas Vanthuyne,

^[b]

Christian Roussel,

^[b]

Jeanne Crassous,*

^[c]

and Narcis Avarvari*

^[a]

Introduction

The chemistry and physicochemical properties of [n]heli- cenes, whose peculiar screw-shaped skeleton results from the

ortho-condensation of 5- or 6-membered aromatic

rings,

^[1]

continuously stimulate considerable interest.

^[2]

Indeed, their inherent helical chirality confers excellent chi- roptical properties, such as huge optical rotations and strong circular dichroism (CD) activity,

^[5]

onto carbo- and heterohe- licenes,

^[3]

as well as onto metal-containing derivatives of the latter compounds,

^[4]

thus making them valuable functional precursors for various applications, such as nonlinear optics,

^[6]

luminescent materials,

^{[4b, 7]}

and, possibly, chiral wave guides.

^[8]

Moreover, much effort is currently being devoted toward the modulation of the chiroptical properties of heli- cenes that contain photo-

^[9]

or electroactive

^[10]

units in their structure upon irradiation or redox processes; yet, in both of these reported systems, the helicenic unit is not preserved in

one of its commutable states. For example, in the latter case,

^[10]

a chiroptical redox switch was achieved between di- hydro[5]helicenes and dicationic binaphtyl species upon the reversible breaking of a CC bond, triggered by electron transfer. Examples of electroactive helicenes

^[11]

with a redox-tunable chiroptical response are still extremely rare in the literature. Redox modulation of the CD signal with re- tention of the helicenic skeleton was reported by Rajca and co-workers for a thia[7]helicene derivative, the chemical oxi- dation of which provided a configurationally stable radical cation.

^[12]

More recently, Autschbach, Crassous, Rau, and co-workers described the chiroptical electrochemical redox- switching behavior of a [6]helicene that was decorated with a vinylruthenium(II) electroactive unit.

^[13]

Tetrathiafulvalenes (TTFs) represent a prominent electro- active unit that have been investigated over the years in di- verse fields of application,

^[14]

in particular, as precursors of organic conductors and superconductors.

^[15]

A relatively recent direction of research involves the introduction of chiral information into TTF derivatives with the main objec- tives of accessing chiral conductors

^[16]

or chiral electroactive ligands.

^[17]

Besides the modulation of their structural disor- der,

^[18]

efforts directed towards the preparation of TTF- based chiral conductors are motivated by the possible exis- tence of an electrical chiral anisotropy effect,

^[19]

which was experimentally evidenced in the case of chiral carbon nano- tubes with helical chirality.

^[20]

Thus, the association of heli- cenes with donor TTF units within fused helicene-TTFs ap- pears to be very attractive for accessing inherent helical electroactive precursors that are prone to show redox-tuna- ble chiroptical properties. Moreover, the occurrence of chiral helical packing in the solid state represents a most promising perspective towards the preparation of helical conducting salts. Herein, we describe the straightforward synthesis of the first reported TTFhelicene derivatives, in

Abstract:

Electroactive fused ethylene-

dithiotetrathiafulvalene[4]helicene and -[6]helicenes have been synthe- sized through a strategy that involved the preparation of 2,3-dibromo-heli- cene derivatives as intermediates. The dihedral angles between the terminal helicenes, as determined by single-crys- tal X-ray analysis, are 22.78 and 50.78

for the [4]helicene and [6]helicene, re- spectively. Their solid-state architec- tures show interplay between S···S and

p···p

intermolecular interactions. The chiroptical properties of the enantio- pure EDTTTF[6]helicene deriva- tives have been investigated and sup- ported by TDDFT calculations. Re- markable redox switching of the circu- lar dichroism (CD) signal between the neutral and radical-cation species has been achieved.

Keywords:

chirality

·

chiroptical properties

·

helical structures

·

structure elucidation

·

tetrathiaful- valenes

[a] Dr. T. Biet, A. Fihey, Dr. T. Cauchy, Dr. N. Avarvari Universit dAngers, CNRS UMR 6200

Laboratoire MOLTECH-Anjou 2 bd Lavoisier, 49045 Angers (France) Fax: (+33) 02-41-73-54-05

E-mail: narcis.avarvari@univ-angers.fr [b] Dr. N. Vanthuyne, Prof. C. Roussel

iSm2 UMR 7313 Aix Marseille Universit CNRS, 13397 Marseille (France) [c] Dr. J. Crassous

Institut des Sciences Chimiques de Rennes, UMR 6226 CNRS-Universit de Rennes 1

Campus de Beaulieu, 35042 Rennes Cedex (France) E-mail: jeanne.crassous@univ-rennes1.fr

Supporting information for this article is available on the WWW under http://dx.doi.org/10.1002/chem.201301095.

which ethylenedithiotetrathiafulvalene (EDTTTF) is fused onto [n]helicene (n= 4 or 6) units. This unprecedented family of TTF-based helical electroactive precursors pres- ents several remarkable features: 1) they allow access to hel- ical dithiolene intermediates through sequential functionali- zation of the helical backbone; 2) they shown redox-tunable chiroptical properties through the formation of stable radi- cal-cation species; and 3) they have huge potential for the preparation of crystalline helical conducting materials. Fur- thermore, this molecular engineering of helicene-fused TTF derivatives enables us to benefit from helicene chemistry to prepare extended

p-conjugated TTF derivatives with unpre-

cedented topology.

Results and Discussion

Synthesis and characterization: For the synthesis of the

TTF[n]helicene derivatives, we envisioned the construction of protected dithiolates

4 a,b

as key intermediates by first accessing unprecedented functional dibromo[4]- and [6]heli- cenes

3 a,b

(Scheme 1). These latter compounds were syn-

thesized by Wittig reactions between the in situ generated ylides from phosphonium salts

1 a,b

and the appropriate 3,4- dibromobenzaldehyde, thereby providing stilbenic deriva- tives

2 a,b

as

cis/trans

mixtures, which were subsequently employed in the classical oxidative photocyclization reac-

ACHTUNGTRENNUNG

tion.

^{[1a, 2]}

Notably, the photochemical process appeared to be highly stereoselective because the cyclization only occurred at one position.

[4]Helicene

3 a

was obtained as a pale-yellow oil, whereas 2,3-dibromo[6]helicene

3 b

was isolated as a white solid, for which suitable single crystals were obtained by recrystalliza- tion from a CH

2

Cl

2

/n-hexane (2:1) mixture. X-ray analysis shows that compound

3 b

crystallizes as a conglomerate,

^[21]

with each enantiomer crystallizing separately in the non-

centrosymmetric space group

P21

2

1

2

1

of the orthorhombic system.

^[22]

The helical curvature (hc), which represents the dihedral angle between the terminal helicene rings, is 47.98, which is within the usual range for [6]helicenes.

^{[3b, 4d]}

Nota- bly, the (M)-2-monobromo[6]helicene, which also crystal-

ACHTUNGTRENNUNGlizes in the P21

2

1

2

1

space group, presents a hc value of

52.38.

^[23]

The two enantiomers of compound

3 b

could be sep- arated by chiral HPLC, which allowed the assignment of their specific rotations ([a]

²⁵_D= ++2273ACHTUNGTRENNUNG

(1 %), [f]

²⁵_D= ++11035-

ACHTUNGTRENNUNG

(1 %)8 cm

²

dmol

¹

for compound (P)-3 b and the respective negative values for compound (M)-3 b); these values were in agreement with the absolute configurations and rotations as determined for the carbo[6]helicene and 2-bromo[6]heli- cene.

^[23]

However, the subsequent synthetic steps were per- formed on the racemate ((rac)-3 b). The Stille-type coupling reactions between compounds

3 a,b

and the Bu

₃

Snthiopro- pionitrile derivative

^[24]

afforded propionitrile-protected di- thiolates

4 a,b, which were further transformed, through

base-mediated deprotection followed by reaction with thio- phosgene, into helical dithiolethiones

5 a,b

and isolated as yellow solids. These latter compounds represent convenient

“half-TTF” precursors to access various TTFhelicenes, whereas the dithiolates that result from the deprotection of compounds

4 a,b

are also valu-

ACHTUNGTRENNUNG

able ligands for helical metal dithiolene complexes. The single-crystal X-ray structure of the functionalized [4]helicene

5 a

was determined for both enantiomers, because they formed a crystalline conglomer- ate by recrystallization from toluene. Accordingly, both com- pounds (M)-5 a and (P)-5 a crys- tallize in the monoclinic non- centrosymmetric space group

P2₁

, with one independent mol- ecule in the unit cell (Figure 1).

The hc is 26.68, which is a typical value for [4]helicenes, and the bond lengths and angles are within the usual range.

^[22]

The packing of the molecules is governed by

pp

interactions between the aromatic rings and also between the dithiolethione cycles, thus leading to the formation of stacks that interact laterally through short S···S interactions.

Although we were able to resolve compound

5 a

in the solid state through the formation of a conglomerate that consisted of equal amounts of

M

and

P

enantiomers, as indicated by the absence of any CD signal in the solid state, the low race- mization barrier did not allow for the resolution of [4]heli- cenes

^[25]

in solution by HPLC.

Then, “half-TTFs”

5 a,b

were engaged in the classical

phosphite-mediated heterocoupling reaction in the presence

of ethylenedithiodithiolone to afford the first examples of

TTFhelicenes (6 a,b), which were isolated as yellow solids

Scheme 1. Synthesis of TTFhelicenes6 aand6 b.

in their racemic form. Single crystals of TTF[4]helicene

6 a

were obtained by the slow diffusion of pentane into a solu- tion of the compound in THF. Different to precursor

5 a, for

which the crystallization as a conglomerate is probably trig- gered by the establishment of homochiral

pp

intermolecu- lar interactions between the helicene units, compound

6 a

crystallizes as a racemate in the monoclinic system with cen- trosymmetric space group

P21/n

and one independent mole- cule in the unit cell (Figure 2).

The TTF unit is folded along the S3···S4 hinge by 21.88 and the central C3=C4 bond length is 1.343(3) , both of which are characteristic of neutral TTF units, whilst the hc is 22.78, slightly lower than that of precursor

5 a. At the su-

pramolecular level, the formation of homochiral stacks is observed along the

b

direction, with the molecules interact- ing through

pp

and S···S interactions, whereas, along the perpendicular

a

direction, the

M

and

P

enantiomers alter- nate and interact through S···S interactions of length 3.71 .

^[22]

Once again, the low racemization barrier in com- pound

6 a

did not allow for its chiral resolution. On the con- trary, the separation of compound

6 b

into its

M

and

P

enan- tiomers was successfully achieved by HPLC over a chiral stationary phase (ee

>

99 %).

^[22]

These enantiomers show in- tense optical activity, according to the values of their specific and molar optical rotations ([a]

²⁵_D= ++2188ACHTUNGTRENNUNG

(1 %), [f]

²⁵_D= +13013ACHTUNGTRENNUNG

(1 %)8 cm

²

dmol

¹

for (P)-6 b, which was the first eluted enantiomer), which were of the same order of magni- tude as the carbo[6]helicene ([f]

²⁵_D= ++119508

cm

²

dmol

¹

).

^[5d]

The solid-state structure of the

M

enantiomer, for which suitable single crystals were grown by the slow diffusion of pentane into a solution of compound (M)-6 b in THF/

CH

2

Cl

2

(1:1), could be determined by X-ray diffraction anal- ysis. The compound crystallizes in the monoclinic non-cen- trosymmetric space group

C2, with one independent mole-

cule of the donor and half a molecule of THF in the asym- metric unit. The donor moiety is folded along both internal S···S hinges by 20.28 (S2···S4) and 23.58 (S1···S3), as often en- countered in the case of neutral TTFs, whilst the hc is 50.78 (Figure 3).

^[22]

At the supramolecular level, the molecules form chains that are stabilized by short S···S lateral interactions (3.47–

3.60 , Figure 4) and

pp

interactions between the aromatic helical units (3.47–3.68 ) along the

b

axis; these chains fur- ther interact along the

c

axis through

pp

interactions be- tween the helicenic units (3.40–3.62 ) and also through S···S van der Waals interactions (3.74 ). Moreover, some- what weaker

pp

interactions (3.62 ) are formed along the

a

direction, thus leading to an overall 3D network with channels running along the

b

axis that contain crystallized THF molecules.

^[22]

Thus, it is clear that the packing of TTF[n]helicenes results from the interplay between S···S and helical

pp

interactions and, therefore, this feature should also occur in the solid-state structures of the radical- cation species, thus leading, in the field of TTF-based crys- talline conductors, to unprecedented architectures in which the helical chirality is expressed in the packing.

Cyclic voltammetry measurements on compounds

6 a,b

show that they are both convenient precursors for the gener- ation of stable radical-cation salts, as suggested by the rever- sibility of the oxidation processes,

^[22]

whilst the oxidation po- tentials are within the normal range for EDTTTF donors (E

¹1/2=

0.54 and 0.68 V versus SCE for compound

6 a

and

E²1/2=

0.98 and 1.13 V versus SCE and for compound

6 b).

Figure 1. Molecular structures of enantiomeric compounds (M)-5 a(left) and (P)-5 a(right).

Figure 2. Molecular structure of EDTTTF[4]helicene 6 a; only the PenACHTUNGTRENNUNGantiomer is shown here.

Figure 3. Molecular structure of (M)-EDTTTF[6]helicene6 b.

J. Crassous, N. Avarvari et al.

UV/Vis and CD spectroscopy: UV/Vis spectra of both com-

pounds

6 a

and

6 b

show intense absorption bands between 250 and 370 nm, with the most-intense peak at 270–275 nm (e 4.7 10

⁴m¹

cm

¹

), owing to

pp* transitions of the heli-

cenic unit with contributions from TTF-based transitions (Figure 4). At lower energies,

there is an additional band cen- tered at 412 nm for compound

6 a

and at 436 nm for compound

6 b, with extinction coefficients

of

e=

5.7 10

³

(6 a) and 4.5 10

³m¹

cm

¹

(6 b), which may be ascribed to intramolecular charge transfer (ICT) from the TTF to helicene units. Circular dichroism spectra were record- ed for enantiomers of com- pound

6 b, which showed a per-

fect mirror-image relationship (Figure 5), with a first positive band at 333 nm and a second negative band at 260 nm for the

P

enantiomer (opposite signs for the

M

enantiomer), in agreement with the classical bisignated signal of [6]heli-

ACHTUNGTRENNUNG

cenes.

^{[3a, 5]}

Interestingly, the band at 436 nm, which is hy- pothesized as charge transfer from the TTF to helicene units, is CD active.

To assign and characterize the nature of the electronic transitions in the UV/Vis and CD spectra, theoretical calcu- lations were performed at the TDDFT/PBE0 level on the optimized geometry of compound (M)-6 b, and were found to be in excellent agreement with the X-ray structure.

^[22]

A first interesting observation concerns the composition of the frontier orbitals: The HOMO (p-type) is 92 % located on the EDTTTF moiety, whereas the LUMO (p*-type) is 92 % located on the helicene unit (Figure 5). Therefore, it is likely that an ICT might occur, which would correspond to a HOMO!LUMO excitation. Indeed, the calculated singlet electronic excitations show that the less energetic transition at 459 nm (21767 cm

¹

,

f=

0.125) describes the ICT from the TTF to the helicene unit; moreover, this transition is CD active and negative (R

=122 10⁴⁰

esu

²

cm

²

), in agreement with the experimental UV/Vis and CD spectra. The typical bisignated helicenic CD signal is also very well-reproduced by the calculations, with the negative-to-positive crossing point perfectly matching the experimental CD curve;

indeed, the corresponding transitions are mainly

pp* heli-

cene based, albeit with some contributions from the TTF unit.

^[22]

Most interestingly, upon oxidation of the TTF unit with one equivalent of NOSbF

6

, the ICT band at 436 nm completely vanishes, whilst the intense bands owing to heli- cene-based transitions are slightly red-shifted (Figure 6). No- tably, the oxidized species show a large band in the NIR region from 1080 to 720 nm, which very likely arises from HOMO1/HOMO2!SOMO transitions,

^[26]

which can be regarded as reverse ICT from the helicene (in the composi- tion of the quasi-degenerate HOMO1 and HOMO2, the

Figure 4. Packing diagram for compound (M)-6 b. Short S···S interactions

are highlighted in red (along thebaxis) and blue (along thecaxis). The helicene units formppinteractions along thebaxis.

Figure 5. a) Theoretical (red line) and experimental absorption spectra (black line, 5 10⁵m in CH2Cl2) of compound (M)-6 b(left) and theoretical (red line for (M)-6 b) and experimental CD spectra (black line for (M)-6 b, gray line for (P)-6 b; 5 10⁵m in CH2Cl2) of compound6 b (right). b) HOMO (left) and LUMO (right) of compound (M)-6 b(6-31+GACHTUNGTRENNUNG(2d,2p), isovalue: 0.05).

helicene unit is largely dominant)

^[22]

to the TTF unit. To check this assumption, TDDFT calculations were performed on radical-cation [(M)-6 b]

⁺C

with the PBE0 functional.

^[22]

As hypothesized, the lowest-energy transitions, amongst which the most-intense one at 1344 nm is negative in sign, are due to reverse ICT excitations from the helicene to the TTF unit. Thus, it is clear that the presence of the electroactive TTF unit that is fused to the helicene skeleton allows for the redox modulation of the chiroptical properties of the re- sulting assembly. Remarkably, the system is perfectly rever- sible over several cycles of electrochemical oxidation–reduc- tion processes (Figure 6), as illustrated by the variation in the CD spectrum at 306 nm, thus providing a very rare ex- ample of a helicene-based electrochemical chiroptical switch.

^[13]

Conclusion

In summary, the first tetrathiafulvalenehelicenes, which show a fused connection between the two units, have been designed, synthesized, isolated as their pure enantiomers in the case of the [6]helicenes, and characterized, including by single-crystal X-ray analysis. Their key synthetic intermedi- ates are protected helicenedithiolates, which show great potential as precursors for helical metaldithiolene com- plexes. This family of inherently helical TTFs opens the way for the preparation of conducting radical-cation salts with helical packing in the solid state, as a most promising per- spective in the field of chiral conductors. The excellent chi- roptical properties of the helicene skeleton are preserved in TTFhelicenes and they show redox modulation thanks to

the conjugation between the two units. Variation in the TTF and helicene units, as well as the connectivity between them, together with the preparation of crystalline radical- cation salts, is under study. In particular, the investigation of the dynamic chirality of the [4]helicene derivatives through the synthesis of [4]heliceneTTF[4]helicene or TTF [4]helicene derivatives that contain additional TTF-append- ed chiral groups as strategies for inducing more-intense redox modulation of the chiroptical signal is envisaged.

Experimental Section

General: Dry THF and diethyl ether were obtained from a solvent purifi- cation system (LC Technology Solutions Incorporated). NMR spectra were recorded on a Bruker Advance DRX 300 spectrometer at 300MHz for¹H and 75MHzfor¹³C nuclei. Chemical shifts are expressed in parts per million (ppm) downfield of external TMS. The following abbrevia- tions are used: s, singlet; d, doublet; t, triplet; m, multiplet. MS (MALDI-TOF) was performed on a Bruker Biflex-IIITM apparatus that was equipped with a 337 nm N2laser. Elemental analysis was performed on a Flash 2000 Fisher Scientific Thermo Electron analyzer. IR spectra were recorded on a Bruker FTIR Vertex 70 spectrometer that was equip- ped with a Platinum diamond ATR accessory. UV/Vis spectra were re- corded in solution on Lambda 19 or Lambda 250 Perkin Elmer spectrom- eters. Circular dichroism (CD) measurements were performed on a JASCO Corp. J-715 or J-810 apparatus (IFR140 facility, Universit de Rennes 1) that was adapted with an extended-wavelength option to 1100 nm for the NIR-CD experiments.

Synthesis of 2,3-bis(2’-cyanoethylsulfanyl)-benzo[c]phenanthrene (4 a):

2,3-Dibromobenzo[c]phenanthrene (3 a^[22], 500 mg, 1.30 mmol), [Pd-

ACHTUNGTRENNUNG

(PPh3)4] (150 mg, 10 % mol), and 3-(tributylstannylsulfanyl)propanenitrile (1.17 g, 3.11 mmol) were placed in a Schlenk tube and dissolved in dry toluene (20 mL). The reaction mixture was stirred for 2 days under an argon atmosphere at 1108C. After evaporation of the solvent and purifi- Figure 6. CD spectra of the (P)-(+)/(M)-() enantiomers of compound6 band of their one-electron-oxidized species in CH2Cl2(5 10⁵m) at room tem- perature. Insets show the NIR-CD spectra (5 10⁴min CH2Cl2; top) and redox chiroptical switching by CD at 306 nm for compound (M)-6 b(bottom).

J. Crassous, N. Avarvari et al.

cation by column chromatography on silica gel (CH2Cl2,Rf=0.2), com- pound4 awas obtained as a white solid (377 mg, 73 %) yield.¹H NMR (CDCl3, 300MHz):d=99.24 (s, 1 H), 9.00 (d,J=8.5 Hz, 1 H), 8.09 (d,J=

7.9 Hz, 1 H), 8.01–7.78 (m, 6 H), 7.71 (t,J=7.5 Hz, 1 H), 3.42–3.38 (t,J= 7.3 Hz, 2 H), 3.37–3.32 (t,J=7.3 Hz, 2 H), 2.84–2.79 (t,J=7.3 Hz, 2 H), 2.76–2.71 ppm (t,J=7.3 Hz, 2 H);¹³C{¹H} NMR (CDCl₃, 75MHz):d= 133.7, 133.4, 133.3, 132.4, 131.9, 131.5, 130.2, 129.8, 129.5, 128.9, 128.7, 128.4, 127.2, 126.9, 126.7, 126.6, 126.5, 126.2, 117.9, 117.8, 30.0, 29.2, 18.1, 18.0 ppm; MS (MALDI-TOF):m/z: 397.9 [M]⁺; elemental analysis calcd (%) for C24H18N2S2: C 72.33, H 4.55, N 7.03, S 16.09; found: C 72.73, H 4.43, N 6.96, S 15.90.

Synthesis of 2,3-bis(2’-cyanoethylsulfanyl)[6]helicene (4 b): 1,2-Dibro- mo[6]helicene3 a^[22](400 mg, 0.82 mmol), [PdACHTUNGTRENNUNG(PPh₃)₄] (95 mg, 10 mol %), and 3-(tributylstannylsulfanyl)propanenitrile (743 mg, 1.98 mmol) were placed in a Schlenk tube and dissolved in dry toluene (20 mL). The reac- tion mixture was stirred for 2 days under an argon atmosphere at 1108C.

After evaporation of solvent and purification by column chromatography on silica gel (CH2Cl2,Rf=0.2), compound4 b was obtained as a white solid (262 mg, 64 % yield).¹H NMR (CDCl3, 300MHz):d=8.08–7.99 (m, 7 H), 7.96 (d,J=8.0 Hz, 1 H), 7.93–7.85 (m, 2 H), 7.65–7.62 (m, 2 H), 7.38 (t,J=7.5 Hz, 1 H), 6.81 (t,J=7.7 Hz, 1 H), 3.23–3.07 (m, 2 H), 2.65–2.49 (m, 2 H), 2.36–2.12 ppm (m, 4 H);¹³C{¹H} NMR (CDCl3, 300MHz):d= 133.6, 133.5, 132.2, 131.8, 131.7, 131.6, 130.8, 130.7, 129.9, 129.5, 129.2, 128.1, 128.0, 127.9, 127.8, 127.7, 127.6, 127.5, 127.3, 127.2, 127.0, 126.8, 126.7, 126.2, 125.0, 123.7, 118.0, 117.8, 29.6, 29.0, 17.7, 17.5 ppm; MS (MALDI-TOF): m/z: 497.9 [M]⁺; elemental analysis calcd (%) for C32H22N2S2: C 77.07, H 4.45, N 5.62, S 12.86; found: C 77.35, H 4.38, N 5.52, S 12.36.

Synthesis of 2,3-dithiolethione-benzo[c]phenanthrene (5 a): 2,3-Bis(2’-cy- anoethylsulfanyl)-benzo[c]phenanthrene (4 a, 300 mg, 0.75 mmol) was placed in a Schlenk tube and then dissolved in dry THF (10 mL). Tetra- butylammonium hydroxide (1m in MeOH, 1.57 mL, 1.57 mmol) was added and the resulting solution was stirred for 1 h, during which time it gradually turned orange-red. Then, thiophosgene (58mL, 0.75 mmol) was added to the solution and the resulting yellow reaction mixture was stir- red for 2 h. After evaporation of solvent through a vacuum ramp and pu- rification by column chromatography on silica gel (n-hexane/CH₂Cl₂1:1, Rf=0.5), compound 5 a was isolated as a yellow solid (191 mg, 76 % yield). Single crystals suitable for X-ray analysis were obtained by recrys- tallization from toluene.¹H NMR (CD2Cl2, 300MHz):d=9.20 (s, 1 H), 9.00 (d,J=8.5 Hz, 1 H), 8.12–8.08 (m, 2 H), 7.98 (d,J=8.6 Hz, 1 H), 7.93–

7.85 (m, 3 H), 7.81–7.76 (t, J=7.6 Hz, 1 H), 7.73–7.69 ppm (m, 1 H);

13C{¹H} NMR (CDCl3, 75MHz): d=212.8, 139.7, 138.8, 133.7, 132.3, 131.4, 129.9, 129.2, 128.9, 128.6, 128.4, 127.1, 127.0, 126.7, 126.5, 126.4, 120.5, 120.1 ppm; MS (MALDI-TOF):m/z: 334.5 [M]⁺; elemental analy- sis calcd (%) for C19H10S3: C 68.23, H 3.01, S 28.76; found: C 68.04, H 2.99, S 28.33.

Synthesis of 2,3-dithiolethione[6]helicene (5 b): 2,3-Bis(2’-cyanoethylsul- fanyl)[6]helicene (4 b, 200 mg, 0.4 mmol) was placed in a Schlenk tube and dissolved in dry THF (10 mL). Tetrabutylammonium hydroxide (1m in MeOH, 834mL, 0.83 mmol) was added and the resulting solution was stirred for 1 h, during which time it turned orange-red. Then, thiophos- gene was added to the solution (31mL, 0.4 mmol) and the resulting yellow reaction mixture was stirred for 2 h. After evaporation of the sol- vent through a vacuum line and purification by column chromatography on silica gel (CH2Cl2,Rf=0.6), compound5 bwas obtained as a yellow solid (116 mg, 67 % yield). ¹H NMR (CD₂Cl₂, 300MHz): d=8.15–8.00 (m, 7 H), 7.95–7.90 (m, 3 H), 7.65 (s, 1 H), 7.54 (d,J=8.5 Hz, 1 H), 7.33 (t, J=7.5 Hz, 1 H), 6.76 ppm (t, J=7.7 Hz, 1 H); ¹³C{¹H} NMR (CDCl₃, 300MHz):d=213.4, 138.1, 138.0, 133.4, 132.1, 131.8, 131.6, 130.7, 129.1, 128.6, 128.2, 128.0, 127.9, 127.8, 127.7, 127.2, 127.1, 127.0, 126.8, 126.7, 126.3, 126.1, 124.9, 123.6, 120.2, 119.7 ppm; MS (MALDI-TOF): m/z:

434.7 [M]⁺; elemental analysis calcd (%) for C27H14S3: C 74.62, H 3.25, S 22.13; found: C 74.24, H 3.59, S 22.01.

Synthesis of ethylenedithio-tetrathiafulvalene[4]helicene (6 a): 2,3-Di-

ACHTUNGTRENNUNG

thiolethionebenzo[c]phenanthrene (5 a, 100 mg, 0.30 mmol) and an excess of 4,5-ethylenedithio-2-oxo-1,3-dithiole (200 mg, 0.96 mmol) were placed in a Schlenk tube under an argon atmosphere. Then, dry trimethylphos-

phite (10 mL) was added and the resulting mixture was stirred at 1108C for 4 h. After evaporation of the trimethylphosphite through azeotropic co-distillation with toluene ( 3) and purification by column chromatog- raphy on silica gel (CS2/cyclohexane 1:2,Rf=0.3), compound6 awas ob- tained as a yellow solid (86 mg, 58 % yield).¹H NMR (CDCl₃+CS₂1:1, 300MHz):d=8.96 (m, 2 H), 8.01 (m, 1 H), 7.91–7.61 (m, 7 H), 3.37 ppm (m, 4 H);¹³C{¹H} NMR (CDCl₃, 300MHz):d=135.7, 133.7, 132.2, 131.2, 130.1, 128.9, 128.8, 127.8, 127.41, 127.36, 126.8, 126.61, 126.58, 126.48, 126.2, 120.6, 119.9, 30.4 ppm; MS (MALDI-TOF):m/z: 493.8 [M]⁺; ele- mental analysis calcd (%) for C24H14S6: C 58.26, H 2.85, S 38.89; found:

C 57.77, H 2.80, S 38.52.

Synthesis of ethylenedithio-tetrathiafulvalene[6]helicene (6 b): 2,3-Di- thiolethione[6]helicene (5 b, 100 mg, 0.23 mmol) and an excess of 4,5-eth- ylenedithio-2-oxo-1,3-dithiole (150 mg, 0.72 mmol) were placed in a Schlenk tube under an argon atmosphere. Then, dry trimethylphosphite (10 mL) was added and the resulting mixture was stirred at 1108C for 4 h. After evaporation of the trimethylphosphite through azeotropic co- distillation with toluene ( 3) and purification by column chromatography on silica gel (CS2/cyclohexane 1:2,Rf=0.2), compound6 bwas obtained as a yellow solid (56 mg, 41 % yield). ¹H NMR (CDCl3+CS2 1:1, 300MHz):d=8.04–7.85 (m, 8 H), 7.77 (d,J=8.5 Hz, 1 H), 7.65–7.61 (m, 2 H), 7.45 (s, 1 H), 7.36 (t, J=7.6 Hz, 1 H), 6.81 (t, J=7.7 Hz, 1 H), 3.32 ppm (s, 4 H); ¹³C{¹H} NMR (CDCl3+CS21:1, 300MHz):d=137.8, 135.1, 134.9, 133.3, 132.0, 131.5, 131.4, 130.4, 129.5, 129.1, 128.4, 128.3, 128.2, 127.9, 127.6, 127.5, 127.3, 127.1, 127.0, 126.8, 126.3, 126.2, 125.4, 125.0, 123.9, 120.2, 119.5, 30.3 ppm; MS (MALDI-TOF):m/z: 594.0 [M]⁺; elemental analysis calcd (%) for C₃₂H₁₈S₆: C 64.61, H 3.05; found:

C 64.03, H 3.22.

X-ray structure determination: Details about the data collection and sol- ution refinement are given in Table 1. X-ray diffraction measurements were performed on a Bruker Kappa CCD diffractometer that was operat- ed with a MoKa(l=0.71073 ) X-ray tube and a graphite monochroma- tor. The structures were solved (SHELXS-97) by using direct methods and refined (SHELXL-97) by full-matrix least-square onF². All non-hy- drogen atoms were refined anisotropically. Hydrogen atoms were intro- duced at their calculated positions (riding model) and included in the structure-factor calculations but not refined.

CCDC-916287 ((M)-3 b), CCDC-916288 ((P)-3 b), CCDC-916289 ((M)- 5 a), CCDC-916290 ((P)-5 a), CCDC-916291 ((rac)-6 a), and CCDC- 916292 ((M)-6 b) contain the supplementary crystallographic data for this paper. These data can be obtained free of charge from The Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/data_request/cif.

Electrochemical studies: Cyclic voltammetry measurements were per- formed by using a three-electrode cell that was equipped with a platinum millielectrode (surface area: 0.126 cm²), a Ag/Ag⁺pseudo-reference elec- trode, and a platinum-wire counter electrode. Then, the potentials were re-adjusted with respect to the saturated calomel electrode (SCE). The electrolyte media comprised a 0.1 mol L¹ solution of (nBu)4NPF6 in CH2Cl2. All of the experiments were performed at RT at a scan rate of 0.1 V s¹. Experiments were performed on an EGG PAR 273A potentio- stat with positive feedback compensation.

Chiroptical redox switch by using electrochemistry: UV/Vis spectroelec- trochemistry (SEC) experiments were performed at 208C under an argon atmosphere in a homemade Optically Transparent Thin-Layer Electro- synthetic (OTTLE) cell by using a Varian CARY 5000 spectrometer and an EG&G PAR model 362 potentiostat. Pt mesh was used as the working electrode, Pt wire was used as the counter electrode, and Pt wire was used as a pseudo-reference electrode. The electrodes were arranged in the cell such that the Pt mesh was in the optical path of the quartz cell.

The anhydrous freeze-pump-thaw degassed solution of the sample and the electrolyte (0.2mnBu4NPF6) was transferred with a cannula under an argon atmosphere into a cell that had been thoroughly deoxygenated.

Stable isobestic points were observed during the oxidation or reduction processes. In every case, re-reduced or re-oxidized samples displayed no features other than those of the parent material in the spectroscopic region of interest.

Theoretical calculations: Starting from the X-ray data, the optimized ge- ometries were obtained by using the Gaussian 09 package at the DFT

level of theory.^[22]The PBE0 functional was used in all of the calcula- tions. TDDFT calculations were performed at the same level of theory on the equilibrium geometries. The rotatory strengths of the transitions, which can be used to characterize the circular dichroism spectra, were also determined.

Acknowledgements

This work was supported by the CNRS, the University of Angers, and the Ministry of Education and Research (grant to T.B.). I. Freuze and C.
