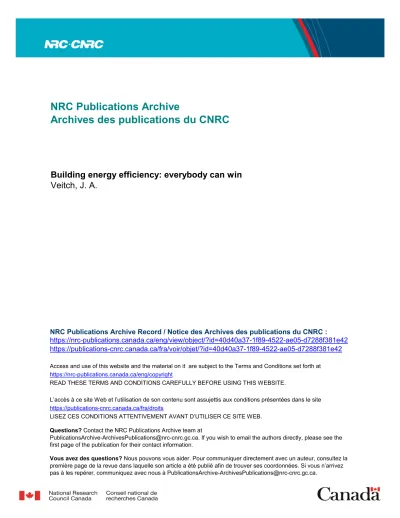

NRC Publications Archive Record / Notice des Archives des publications du CNRC :
https://nrc-publications.canada.ca/eng/view/object/?id=40d40a37-1f89-4522-ae05-d7288f381e42 https://publications-cnrc.canada.ca/fra/voir/objet/?id=40d40a37-1f89-4522-ae05-d7288f381e42 NRC Publications Archive
Archives des publications du CNRC
Access and use of this website and the material on it are subject to the Terms and Conditions set forth at
Building energy efficiency: everybody can win
http://irc.nrc-cnrc.gc.ca B u i l d i n g e n e r g y e f f i c i e n c y : e v e r y b o d y c a n w i n I R C - O R A L - 8 1 4 V e i t c h , J . A . A p r i l 2 5 , 2 0 0 7
The material in this document is covered by the provisions of the Copyright Act, by Canadian laws, policies, regulations and international agreements. Such provisions serve to identify the information source and, in specific instances, to prohibit reproduction of materials without written permission. For more information visit http://laws.justice.gc.ca/en/showtdm/cs/C-42
Les renseignements dans ce document sont protégés par la Loi sur le droit d'auteur, par les lois, les politiques et les règlements du Canada et des accords internationaux. Ces dispositions permettent d'identifier la source de l'information et, dans certains cas, d'interdire la copie de documents sans permission écrite. Pour obtenir de plus amples renseignements : http://lois.justice.gc.ca/fr/showtdm/cs/C-42
Building Energy Efficiency:
Everybody Can Win
Overview
• Introduction to NRC
• Why care about occupants?
National Research
Council Canada
• Developing and transferring knowledge to support innovation and commercialization
– 24 research institutes & programs – 1 institute for construction sector
• Network of technology advisors to support small business
– 260 industrial technology advisors in 90 communities
NRC Institute for
Research in
Construction
(NRC-IRC)
• Established 1947
• Guided by industry advisory board & 2 independent Commissions
• $30 million annual budget • 230 employees
• Post-Doctoral Fellows • Visiting Workers
NRC Construction
• Durability
• Sustainability • Safety
NRC-IRC Services
for Industry
• Research to address industry and government priorities • Support for building regulatory system
• Evaluation of innovative construction products
• Dissemination of technical knowledge • Decision tools
Support for Building
Regulatory System
• Partnership with provinces and territories
• Governed by Codes Commission (CCBFC)
• Brings research to bear on code development
• A new era
– Objective-based codes – Model energy code
Evaluation of
Innovative
Construction Products
• Canadian Construction Materials Centre (NRC-CCMC) • Canadian Infrastructure Technology Assessment
Centre (CITAC)
Objective
To provide a national evaluation service that facilitates market acceptance of innovative
products and systems nationally and internationally.
Research –
H
ealth and
Occupant
Research – Health and
Occupant Satisfaction
• Indoor Air Quality:
– Managing emissions of VOC’s
– Energy-efficient ventilation of houses
• Acoustics:
– Evaluation tools for open-plan offices – Speech in classrooms
• Lighting:
– Lighting quality
– Design tools: Daysim, LIGHTSWITCH, SkyVision – Individual control over lighting
Canadian Buildings
and Energy
• Buildings account for 35-40% of national energy consumption
• Commercial and institutional buildings contribute ~13% of greenhouse gas emissions and ~13% of total energy use
• Commercial building energy use increased 35% from 1990 to 2004
People in Buildings
•
P
eople spend 90% of
The Cost of Work
• People cost more than buildings by all estimates
Staff 82%
Equipment & Training 10%
3% Maintenance & Operations
5%
Building & Furnishings
Source: Brill, M., Weidemann, S., & BOSTI Associates. (2001). Disproving myths about workplace design. Jasper, IN: Kimball International.
Value of the
Investment
• In the USA, the cost of salaries and benefits taken together is $167/sf as compared to $0.36/sf for the lighting operating cost. Source: www.lightright.org
Importance of
Employee Satisfaction
Charles, K.E., Veitch, J.A., Farley, K.M.J., Newsham, G.R. (2003). Environmental Satisfaction in Open-Plan
Environments: 3. Further Scale Validation, Research Report, Institute for Research in Construction, National Research
Employee Attitudes
Carlopio, J. R. (1996). Construct validity of a physical work environment satisfaction questionnaire. Journal of Occupational
Business Performance
Harter, J. K., Schmidt, F. L., & Hayes, T. L. (2002). Business-unit-level relationship between employee satisfaction, employee engagement, and business outcomes: A meta-analysis. Journal of Applied Psychology, 87(2), 268-279.
Barriers to
Energy Efficiency
• Survey of US lighting industry showed lack of demand for energy-efficient products slowed sales
– Difficulty making economic case for increased first costs – Risks of problems for employees
• Survey of Canadian designers, engineers, facilities managers found high first costs, risks of novelty, and system complexity limited use of building automation systems
• Survey of lighting decision-makers in organizations showed they would make an investment in the work environment if it improved employee satisfaction
Individual Controls
and Energy
Several studies linking Individual control over lighting to energy savings of 10-40+%
On average, people choose lower light levels than recommended practice
Manual switching in response to daylight and occupancy
Several studies show satisfaction benefits
NRC-IRC has conducted 4 lab experiments and 1 field study on this topic
Individual Controls
Task Task Lighting Lighting Temperature Temperature ControlControl Ventilation ControlVentilation Control
Ventilation Ventilation Direction Direction Acoustic Acoustic Control Control Openable Openable Windows Windows
Individual Controls
• PC-based controls available for lighting and ventilation
• IR remote controls, wall-mounted controls
Benefits to Building
Manager
• Automated controls: occupancy sensing, daylight-linked dimming
• Integration with building energy management system • Load control
task light (undershelf), 2’ fixture, 17 W lamps (x6), non-dimmable Indirect (partition-mounted), 4’ fixture, 2-32 W lamps (x8), dimmable
Direct Parabolic (ceiling centre), 4’ fixture, 2-32 W lamps (x10), dimmable Direct Parabolic (ceiling perimeter), 4’ fixture, 2-32 W lamps (x10), dimmable
Lighting Quality
Project, Expt 2
LQ, Expt 2 Procedure
• LC participants adjusted lighting to their preferences at start of day
• NC participants got same lighting without knowing who set it • Participants worked for a day under lighting: 47 matched pairs • At end of day NC participants set lighting to their own
LQ, Expt 2 Results
• Overall, ratings of the quality of the lighting and satisfaction with the space were very high (4 out of 5)
• Having control didn't affect performance or satisfaction
• NC participants made less use of perimeter parabolics resulting in reduced VDT glare and lower LPD
Veitch, J. A., & Newsham, G. R. (2000). Exercised control, lighting choices, and energy use An office simulation experiment. Journal of
0 2 4 6 8 10 12 14 16 100 200 300 400 500 600 700 800
Desktop Illuminance (lux)
Frequency
LC NC
IES RP1
Veitch, J. A., & Newsham, G. R. (2000). Preferred luminous conditions in open-plan offices Research and practice recommendations. Lighting Research and Technology, 32, 199-212.
LQ, Expt 2
0 2 4 6 8 10 12 14 16 2.2 6.5 10.8 15.1 19.4 23.7
Lighting Power Density (W/m2)
Frequency LC NC ASHRAE 90.1 & Energy Code Mean = 14.3 W/m Mean = 14.3 W/m22 Savings = 10 Savings = 10--20%20%
LQ, Expt 2
Energy Use
Veitch, J. A., & Newsham, G. R. (2000). Preferred luminous conditions in open-plan offices Research and practice recommendations. Lighting Research and Technology, 32, 199-212.
LQ, Expt 2
Satisfaction Benefits
• Focus on NC participants
• New, categorical, independent variable:
– SAME, during day NC got within 100 lux of what they chose at end of day
– DIFF, during day NC got Edesk differing by
>100 lux, in either direction, from what they chose at end of day
Newsham, G. R., & Veitch, J. A. (2001). Lighting quality recommendations for VDT offices A new method of derivation. Lighting Research
DIFF SAME
LQ, Expt 2
Satisfaction Benefits
DIFF SAME DIFF SAME DIFF SAME
Newsham, G. R., & Veitch, J. A. (2001). Lighting quality recommendations for VDT offices A new method of derivation. Lighting Research
LQ Expt 2
Preferences
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0 200 400 600 800 Desktop Illuminance (lx)Fraction within 100 lx of preference
Newsham, G. R., & Veitch, J. A. (2001). Lighting quality recommendations for VDT offices A new method of derivation. Lighting Research
Controls Lab 1
Method
4.9m x 6.1m x 2.7m (16’ x 20’ x 9’) room 2.4m x 2.4m (8’ x 8’) cubicles Design 1 Design 2 Design 3 Design 4Controls Lab 1
Participants
• 118 participants
• 2 participants per session • 1 day exposure
• Random assignment to lighting designs • 1 of 4 initial lighting levels
– ~ 200, 400, 600, 800 lx (Designs 1-3) – ~ 150, 200, 250, 300 lx (Design 4)
Controls Lab 1
Schedule
Questionnaires (1) & Task Training
Morning Break
Tasks (1)
Lunch
Questionnaires (2) & Tasks (2)
Afternoon Break
Questionnaires (3) & Tasks (3)
Control Introduced
T1
T2
Controls Lab 1
Chosen Conditions
1 2 3 4 DESIGN 0 200 400 600 800 1000 1200 F IX _ D E S K Lighting Design D e s k top Illum inance , luxNewsham, G. R., Veitch, J. A., Arsenault, C., & Duval, C. (2004). Effect of dimming control on office worker satisfaction and performance. In Proceedings of the IESNA Annual Conference, Tampa, FL, July 26-28, 2004 (pp. 19-41). New York IESNA.
0 1 2 3 4 T1 T2 T3 Time of Day Mean Rating Lighting Satisfaction Glare Dissatisfaction Control introduced
Controls Lab 1
Lighting Satisfaction
• Similar effect on:
– Overall environmental satisfaction
– Session satisfaction – Self-assessed
productivity
Newsham, G. R., Veitch, J. A., Arsenault, C., & Duval, C. (2004). Effect of dimming control on office worker satisfaction and performance. In Proceedings of the IESNA Annual Conference, Tampa, FL, July 26-28, 2004 (pp. 19-41). New York IESNA.
Controls Lab 1
Lighting Satisfaction
• Not just having control, it’susing it to create preferred conditions
• Participants who made the biggest changes in light levels post-control were furthest from their own preferred luminous conditions pre-control; and, they will experience the biggest improvements in outcomes as a result 0 10 20 30 40 PADELTA_D(3) -4 -3 -2 -1 0 1 2 3 4 D _ L S A T r2 adj = 0.13
|Δ E
desk|
0.5Δ
Lighting Satisf
act
ion
Newsham, G. R., Veitch, J. A., Arsenault, C., & Duval, C. (2004). Effect of dimming control on office worker satisfaction and performance. In Proceedings of the IESNA Annual Conference, Tampa, FL, July 26-28, 2004 (pp. 19-41). New York IESNA.
Personal
Environmental
Controls
• Laboratory experiment -personal control over lighting and ventilation • Effects of control
• Effects of ramping (demand response) • Interactions
Personal
Environmental
Controls - Conditions
• Total flow rate ~350 ls-1, ~25% outdoor air
20 21 22 23 24 25 8:30 9:30 10:30 11:30 12:30 13:30 14:30 15:30 Time of Day Air Temperature ( o C) 0 100 200 300 400 500 600
Desktop Illuminance (lux)
Supply 24oC
Supply 18oC
Supply 18oC
Dim @ 75% Dim @ 75%
Personal
Environmental
Controls — Results
• Chosen lighting and ventilation conditions differed from the static settings for no-control participants
• ~10% reduction for lighting energy use; savings for ventilation system would depend on system configuration
0 5 10 15 0-100 100-200 200-300 300-400 400-500 500-600 600-700 700-800 Iluminance (lx) Frequency 0 5 10 15 0-5 5-10 10-15 15-20 20-25 25-30 30-35 35-40 40-45 45-50 Flow Rate (ls-1) Frequency
Personal
Environmental
Controls — Results
• Controls used 2-3 times per day, mostly in the morning • Controls were perceived as being easy to use
• Having control …
– improved environmental satisfaction
Personal
Environmental
Controls — Results
• Ramping did not affect environmental satisfaction, and the
changes were scarcely noticed; however, discomfort increased slightly with ramping
• No interaction - having control didn't change the response to ramping
• Guidelines for demand response: in a power emergency,the following changes shouldn't create undue hardship:
– Temperature change rates: ~0.5-1.0 oC/hr up to 25oC
– Lighting reductions by dimming: ~20% from 500 lux
• Extended to >40% if done slowly, and with no expectation
Newsham, G. R., Donnelly, C., Mancini, S., Marchand, R. G., Lei, W., Charles, K. E., & Veitch, J. A. (2006, August). The effect of ramps in temperature and electric light level on office occupants: A literature review and a laboratory experiment. In Proceedings of the 2006
ACEEE Summer Study on Energy Efficiency in Buildings (Pacific Grove, California, August 13, 2006) (pp. 4-252 to 4-264). Washington,
Base Case Best Practice
Best Practice +
Switchable Control Dimming Control
Light Right
Lighting Appraisals
Selected Office Lighting Survey results
(* Χ2 test shows p<.05)
Norm (%) BG - Afternoon Repeaters - PM
Overall, the lighting is comfortable 69 % Agree % Agree
Base Case 71 80
Best Practice 85*
Switching Control 81
Dimming Control 91* 98*
How does the lighting compare to similar workplaces in other buildings?
19 60 22 Worse - Same - Better Worse - Same - Better
Base Case 8 69 24 9 60 30
Best Practice 3 45 53*
Switching Control 9 52 39*
Dimming Control 7 43 50* 0 50 50*
Boyce, P. R., Veitch, J. A., Newsham, G. R., Jones, C. C., Heerwagen, J., Myer, M., et al. (2006). Lighting quality and office work Two field simulation experiments. Lighting Research and Technology, 38(3), 191-223.
Light Right Albany
Preferences
• Control used sparingly, but effectively.
– When they had control, most people used it once, near the start of the day, to choose a preferred condition.
0
100 200 300 400 500 600 700 800 900100011001200
Average Desktop Illuminance (lx) 0 10 20 30 40 C o u n t 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 P ro p o rti o n p e r B a r Mean desktop
Mean desktop illuminanceilluminance chosen by participants with
chosen by participants with
Dimming Control. Dimming Control. Cou n t Pr oportion Per Bar
Boyce, P. R., Veitch, J. A., Newsham, G. R., Jones, C. C., Heerwagen, J., Myer, M., et al. (2006). Occupant use of switching and dimming controls in offices. Lighting Research and Technology, 38(4), 358-378.
Light Right Albany
Effect of Control
Boyce, P. R., Veitch, J. A., Newsham, G. R., Jones, C. C., Heerwagen, J., Myer, M., et al. (2006). Lighting quality and office work Two field simulation experiments. Lighting Research and Technology, 38(3), 191-223.
BC Hydro
PowerSmart
Field Study
LS OS ICLS
OS
IC
BC Hydro PowerSmart
Energy Study
• Lighting power density of installed system is 45% lower
than that of a static conventional fluorescent lighting
system;
• The three controls combined saved an additional
42-47% in lighting energy use compared to installed system
used at full power; This translates into savings of 67-69
% compared to a conventional system;
• Average peak daily power demand was reduced by
similar amounts;
Galasiu, A. D., Donnelly, C. L., Newsham, G. R., Veitch, J. A., Sander, D. M., & Arsenault, C. D. (2007). Field evaluation of the Ergolight
lighting control system [Executive Summary] (NRC-IRC Client Report B3222-B3228.1). Ottawa, ON: NRC Institute for Research in
BC Hydro PowerSmart
Energy Study
If used on their own (versus system at full power):
•
Occupancy control average savings: 29-38%
•
Light sensor average savings: 10-20%
•
Individual control average savings: < 10%
•
Frequency-of-use of the individual control averaged
under 0.05 control actions/WS/day
Galasiu, A. D., Donnelly, C. L., Newsham, G. R., Veitch, J. A., Sander, D. M., & Arsenault, C. D. (2007). Field evaluation of the Ergolight
lighting control system [Executive Summary] (NRC-IRC Client Report B3222-B3228.1). Ottawa, ON: NRC Institute for Research in
BC Hydro PowerSmart
Energy Study
0.00 0.20 0.40 0.60 0.80 1.00 1.20 1.40 1.60 1.80 2.00 Conventional system
-full power (no controls) Ergolight - full power
(no controls) Ergolight - actual use
(with controls)
Workstation average daily energy use [kWh] 69%
42% 47%
Galasiu, A. D., Donnelly, C. L., Newsham, G. R., Veitch, J. A., Sander, D. M., & Arsenault, C. D. (2007). Field evaluation of the Ergolight
lighting control system [Executive Summary] (NRC-IRC Client Report B3222-B3228.1). Ottawa, ON: NRC Institute for Research in
BC Hydro PowerSmart
Lighting Appraisals
Direct only (parabolic)- ~70% Still uncomfortable- 30%
PERCENTAGE COMFORTABLE
D/I Dimmable - ~90% Still uncomfortable- 10% PERCENTAGE COMFORTABLE
Galasiu, A. D., Donnelly, C. L., Newsham, G. R., Veitch, J. A., Sander, D. M., & Arsenault, C. D. (2007). Field evaluation of the Ergolight
lighting control system [Executive Summary] (NRC-IRC Client Report B3222-B3228.1). Ottawa, ON: NRC Institute for Research in
BC Hydro PowerSmart
Satisfaction Results
Window Proximity Personal Control over Lighting Satisfaction with Ventilation Satisfaction with Lighting Satisfaction withPrivacy & Acoustics
Overall Environmental
Satisfaction
Job Satisfaction Organizational Commitment
Intent to Turnover
Galasiu, A. D., Donnelly, C. L., Newsham, G. R., Veitch, J. A., Sander, D. M., & Arsenault, C. D. (2007). Field evaluation of the Ergolight
lighting control system [Executive Summary] (NRC-IRC Client Report B3222-B3228.1). Ottawa, ON: NRC Institute for Research in
Conclusions - Lighting
• People prefer to have control over the physical environment • Control allows individuals to obtain the conditions they prefer
– May improve persistence on difficult tasks
• Having preferred conditions improves mood and satisfaction
• Individually-controllable workstation lighting saves an additional ~10% in energy consumption
Conclusions - General
• Satisfying occupants is important to decision-makers • Selling energy efficiency can't come at this expense • …and it doesn't have to!
Credits
• Research on lighting controls described here has been supported financially by
– Panel on Energy Research and Development – Public Works & Government Services Canada – Natural Resources Canada
– Light Right Consortium – BC Hydro
Contact Information
Jennifer A. Veitch, Ph.D.
NRC I nstitute for Research in Construction (NRC-I RC) National Research Council Canada
Building M-24, 1200 Montreal Road Ottawa, ON K1A 0R6 Canada
tel. + 1-613-993-9671 / fax + 1-613-954-3733 e-mail: jennifer.veitch@nrc-cnrc.gc.ca
http:/ / irc.nrc-cnrc.gc.ca/ ie
