Publisher’s version / Version de l'éditeur:
Journal of Membrane Science, 401-402, 15 May 2012, pp. 89-96, 2012-02-06
READ THESE TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS WEBSITE.
https://nrc-publications.canada.ca/eng/copyright
Vous avez des questions? Nous pouvons vous aider. Pour communiquer directement avec un auteur, consultez la
première page de la revue dans laquelle son article a été publié afin de trouver ses coordonnées. Si vous n’arrivez pas à les repérer, communiquez avec nous à PublicationsArchive-ArchivesPublications@nrc-cnrc.gc.ca.
Questions? Contact the NRC Publications Archive team at
PublicationsArchive-ArchivesPublications@nrc-cnrc.gc.ca. If you wish to email the authors directly, please see the first page of the publication for their contact information.
NRC Publications Archive
Archives des publications du CNRC
This publication could be one of several versions: author’s original, accepted manuscript or the publisher’s version. / La version de cette publication peut être l’une des suivantes : la version prépublication de l’auteur, la version acceptée du manuscrit ou la version de l’éditeur.
For the publisher’s version, please access the DOI link below./ Pour consulter la version de l’éditeur, utilisez le lien DOI ci-dessous.
https://doi.org/10.1016/j.memsci.2012.01.033
Access and use of this website and the material on it are subject to the Terms and Conditions set forth at
Chiral separation with molecularly imprinted polysulfone-aldehyde
derivatized nanofiber membranes
Sueyoshi, Yuuki; Utsunomiya, Akira; Yoshikawa, Masakazu; Robertson,
Gilles P.; Guiver, Michael D.
https://publications-cnrc.canada.ca/fra/droits
L’accès à ce site Web et l’utilisation de son contenu sont assujettis aux conditions présentées dans le site LISEZ CES CONDITIONS ATTENTIVEMENT AVANT D’UTILISER CE SITE WEB.
NRC Publications Record / Notice d'Archives des publications de CNRC:
https://nrc-publications.canada.ca/eng/view/object/?id=b7efc168-7dc6-4e45-a453-fa922aee9161
https://publications-cnrc.canada.ca/fra/voir/objet/?id=b7efc168-7dc6-4e45-a453-fa922aee9161
ContentslistsavailableatSciVerseScienceDirect
Journal
of
Membrane
Science
j our na l h o me p ag e :w w w . e l s e v i e r . c o m / l o c a t e / m e m s c i
Chiral
separation
with
molecularly
imprinted
polysulfone-aldehyde
derivatized
nanofiber
membranes
夽夽
Yuuki
Sueyoshi
a,
Akira
Utsunomiya
a,
Masakazu
Yoshikawa
a,∗,
Gilles
P.
Robertson
b,
Michael
D.
Guiver
baDepartmentofBiomolecularEngineering,KyotoInstituteofTechnology,Matsugasaki,Kyoto606-8585,Japan
bInstituteforChemicalProcessandEnvironmentalTechnology,NationalResearchCouncilofCanada,Ottawa,Ontario,CanadaK1A0R6
a
r
t
i
c
l
e
i
n
f
o
Articlehistory:
Received15December2011
Receivedinrevisedform25January2012 Accepted28January2012
Available online 6 February 2012 Keywords:
Electrospraydeposition Chiralseparation Membrane Molecularimprinting
Molecularlyimprintednanofiber membrane
Nanofiberfabric Opticalresolution
a
b
s
t
r
a
c
t
Molecularly imprinted membranes (MIPMs) and molecularly imprinted nanofiber membranes (MINFMs)were prepared from polysulfone with aldehyde (PSf-CHO-05 or PSf-CHO-10) and N-␣-benzyloxycarbonyl-d-glutamicacid(Z-d-Glu)orN-␣-benzyloxycarbonyl-l-glutamicacid(Z-l-Glu)as aprintmolecule.Thosetwotypesofmolecularlyimprintedmembrane,suchasMIPMsandMINFMs, incorporatedtheenantiomer,ofwhichabsoluteconfigurationwassameasthatoftheprintmolecule, inpreferencetothecorrespondingantipode.Inotherwords,themembranesimprintedbythed-isomer preferentiallyadsorbedthed-isomerandviceversa.Thosetwotypesofmembraneshowedchiral sep-arationabilitybymembranetransport.Againstexpectation,transportoftheenantiomerpreferentially adsorbedinthemembranewasretarded,inotherwords,theenantiomerlessadsorbedinthe mem-branewasselectivelytransported.Thefluxesthroughthemolecularlyimprintednanofibermembranes gaveonetotwoordersofmagnitudehigherthanthoseofusualmolecularlyimprintedmembranes with-outdepressionofpermselectivity.Thepresentstudydemonstratedthatmolecularlyimprintednanofiber membranegavehighfluxwithoutdepressionofpermselectivity.Abreakthroughinmembraneseparation wouldberealizedbyadoptingmolecularlyimprintednanofibermembranes.
© 2012 Elsevier B.V. All rights reserved.
1. Introduction
Membraneseparation(transport)isexplainedbyacoupleof mechanism,suchasincorporationofpermeantintoagiven mem-braneanddiffusion(migration)ofpermeantwithinthemembrane fromthefeedsidetothepermeateside [1–3].Inthecase of a membranetransportthroughanon-porousmembrane,such trans-port mechanism is called solution-diffusion mechanism, while thatthroughaporousmembrane,ifapproved,partition-diffusion mechanism.Diffusionofpermeantwithinthemembranewould bedominantlydeterminedbyitsdimensionand/orshape.From this,thecontrol ofpermselectivityby usingdifferencein diffu-sivity wouldbeintrinsically limited. Againstthis, incorporation ofpermeantintoagivenmembraneistheoreticallyexpectedto varyfromnaughttoinfinity.Inordertoimprovepermselectivity ofmembranes,introductionofmolecularrecognitionsites,which rigorouslydiscriminatethetargetsubstrateandothers,intoagiven membraneiscrucial.
Atime-consuming,costly,andawkwardexperimentalworkis requiredtointroducemolecularrecognitionsitesintopolymeric
夽 NRCCPublicationNo.53064. ∗ Correspondingauthor.
E-mailaddress:masahiro@kit.ac.jp(M.Yoshikawa).
membranes.Against this,molecularimprintingtechnique [4–7]
wouldintroducemolecularrecognitionsitesintopolymeric mem-braneswithoutsuchaneffortmentionedaboveandisperceived tobeoneofthemostfacilewaystogivepolymericmembranes substrate specificity [8–11]. Among molecularimprinting tech-niques, an alternative molecular imprinting is a facile way to introducemolecularrecognitionsitesintopolymericmembranes. Thealternativemolecularimprintingcanbetakenasanextension ofMichales’study[12],whichwasthefirstapplicationof molec-ularimprintingtomembraneseparation.Applyinganalternative molecularimprinting,anypolymericmaterials,suchassynthetic polymers [13], oligopeptide derivatives [14,15], derivatives of natural polymers[16], and naturalpolymers[17] were directly convertedintomolecularlyimprintedmembranes.Inmembrane separation,notonlypermselectivitybutalsofluxisanimportant membraneperformance.Inasense,thedevelopmentofseparation membraneswithhighfluxismoreimportantthanthatwithhigh permselectivity.However,inmembraneseparation,afluxandthe correspondingpermselectivityoftenshowatrade-offrelationship. Membranologistshaveperceivedthatitisanunsolvedproblem inmembraneseparationtosimultaneouslyenhancebothfluxand permselectivity.
Membraneformofnanofibermat,whichisfabricatedby elec-trospraydeposition,isexpectedtosolveatrade-offrelationship inmembraneseparation,sincenanofibermatsgivehighersurface
0376-7388/$–seefrontmatter © 2012 Elsevier B.V. All rights reserved. doi:10.1016/j.memsci.2012.01.033
90 Y.Sueyoshietal./JournalofMembraneScience401–402 (2012) 89–96
areaandhigherporosity[18–22].Electrosprayednanofiber mem-braneswithmolecularrecognitionsiteswerefirstfabricatedfrom polyallylamine and poly(ethylene terephthalate) adopting 2,4-dichlorophenoxyaceticacidasaprintmoleculebyanalternative molecularimprinting[23].Thisprovedthatanalternative molecu-larimprintingisasuitablemethodtoobtainnanofibermembranes bearingmolecularrecognitionsitesdirectlyfrompolymeric mate-rials.Simultaneouslyapplyinganelectrospraydepositionandan alternativemolecularimprinting,molecularlyimprintednanofiber membranescanbefabricatedfromjustpolymersolutionwitha printmoleculewithease.Nanofibermembraneswithmolecularly imprintednanoparticleswerealsofabricatedbyelectrospray depo-sitionofpoly(ethyleneterephthalate)andmolecularlyimprinted nanoparticles[24,25].Thosematerialswereapplicableto solid-phaseextractorandsensorchipforthedetectionofagiventarget molecule.
The recognition of a target molecule by nanofiber fabrics with molecular recognition sites corresponds to the incorpo-ration of the permeant into the membrane in a membrane transport system. If the membrane diffusion process within the membrane and dissociation of a target molecule from a molecularrecognitionsite or release of it from the membrane are accompanied with molecular recognition process, a mem-brane transport process witha higher flux would be attained. To this end, nanofiber membranes with molecular recognition sites, which are called molecularly imprinted nanofiber mem-branes,werefabricatedbysimultaneouslyapplyinganalternative molecular imprinting and an electrospray deposition [26–28]. Those studies revealed that molecularly imprinted nanofiber membranes gave high flux without depression of permselec-tivity. A breakthrough in membrane separation was attained, in other words,there wasfound one of promising and simple ways to solve a trade-off relationship in membrane separa-tion.
In theprevious study[26],molecularly imprinted nanofiber membranesfrompolysulfonewithcarboxylicacidasafunctional moietybearingoxygenatomwasinvestigated.Aldehydegroupis anotherfunctionalmoietybearingoxygenatom.Itisinterestingto studytheeffectoffunctionalmoietyonchiralseparationability. To this end, in the present study, polysulfone with aldehyde group (PSf-CHO) was adopted as membrane materials. In the presentstudy,molecularlyimprintednanofibermembranesand usual molecularly imprinted membranes were fabricated from PSf-CHOand printmolecule, suchas N-␣-benzyloxycarbonyl-d-glutamic acid (Z-d-Glu) or N-␣-benzyloxycarbonyl-l-glutamic acid (Z-l-Glu), and their membrane performances of adsorption selectivity, permselectivity, and flux were studied.
2. Experimental 2.1. Materials
Polysulfoneswithaldehyde(PSf-CHO),withdegreeof substitu-tionof0.50(PSF-CHO-05)and1.00(PSf-CHO-10)(Scheme1)were preparedbythemodificationofPSfUdelP-3500(BPAmoco)as reportedpreviously[29].
N-␣-benzyloxycarbonyl-d-glutamic acid (Z-d-Glu) or N-␣-benzyloxycarbonyl-l-glutamic acid (Z-l-Glu), purchased from WatanabeChemicalIndustries,Ltd.(Hiroshima,Japan),wasused asaprintmoleculewithoutfurtherpurification.d-Glutamicacid (d-Glu), l-glutamic acid (l-Glu), sodium azide, copper sulfate, and ethanol were obtainedfrom commercialsources and used as received. N,N-Dimethylformamide (DMF) and tetrahydrofu-ran(THF)werepurifiedbytheconventionalmethod[30].Water
Scheme1.Chemicalstructuresofpolysulfonewithaldehydegroup(PSf-CHO)and printmolecule(Z-d-GluorZ-l-Glu).
purifiedwithanultrapurewatersystem(SimpliLab,MilliporeS.A., Molsheim,France)wasused.
2.2. Preparationofmolecularlyimprintedmembranes
Usualmolecularlyimprintedmembraneswerepreparedfrom THFsolution,containingtheimprintingcomponents.Moleratio of0.50forprintmoleculetoconstitutionalrepeatingunitof PSf-CHOinthemembranepreparationprocesswasstudied.A200mg ofquantityofPSf-CHOandaprescribedamountofprintmolecule, Z-d-GluorZ-l-Glu,wasdissolvedin3.0cm3ofTHF.Theamountof Z-Gluwas61.61mgforthepreparationofmolecularlyimprinted membrane from PSf-CHO-05 and 59.78mg for that from PSf-CHO-10,respectively.TheTHFsolutionthuspreparedwaspoured into 89mm diameter flat laboratorydish, and the solvent was allowedtoevaporateatambienttemperaturefor24h.The result-ingmembranewasfurtherdriedat50◦Cfor2h.Afterdrying,the printmoleculewasextractedfromtheresultantmembranebya largevolumeof50vol.%aqueousethanolsolutionuntiltheprint moleculewashardlydetectableinaqueousethanolsolutionbyUV analysis.Inthepresentstudy,mostofaddedprintmoleculewas leachedfromthemembranes.
2.3. Fabricationofmolecularlyimprintednanofibermembranes Inthepresentstudy,themolecularimprintingratio,whichwas themoleratioofprintmoleculetoconstitutionalrepeatingunitof PSf-CHOinthemembranepreparationprocesswasfixedtobe0.50 sothattheresultscanbecomparedwiththoseofusualmolecularly imprintedmembranes.MixtureofDMFandTHF(DMF/THF=2/1 (vol./vol.))was adoptedas solventand the polymer concentra-tionwasfixedat12.0wt.%inthepresentstudy.EsprayerES-2000 (FuenceCo.Ltd.,Japan)wasadoptedastheelectrospray deposi-tiondevice.Polymersolutioncontainingeither oneoftheprint moleculeswaselectrosprayedatambienttemperatureusingan appliedvoltageof25kVformolecularlyimprintednanofiber mem-branesor15kVforcontrolnanofibermembranes.Thesyringeused inthepresentstudyhadacapillarytipof0.52mmdiameter.The feedingratewas3.0mm3forthemolecularlyimprintedmembrane and5.0mm3forthecontrolnanofibermembrane,respectively.A groundedaluminumfoilusedasacounterelectrodewasplaced 10cmfromthetipofthecapillary.
Themorphology,diameter,andthicknessoftheelectrosprayed nanofibermembranesweredeterminedwithHitachiS-3000 scan-ningelectronmicroscope(SEM).Asmallsectionofthemembrane was placed on the SEM sample holder. The fiber diameter of nanofibermembranewasdeterminedusingImageJsoftware pro-grambymeasuringatleast30fibersfromeachSEMimage. 2.4. Adsorptionselectivity
Themembranesampleswereimmersedinaracemicmixture ofGlu,whichwasthesameracemicmixturestudiedinthe mem-branetransportability(i.e.,a50vol.%aqueousethanolsolutionof racemicGlu,withconcentrationof1.0×10−3moldm−3)andthe mixturewasallowedtobeequilibratedat40◦C;0.02wt.%sodium azide was added asa fungicide. Quantitative measurements of aliquotsofthesolutionattheinitialstageandafterequilibrium hadbeenreachedweremadeusingHPLCemployingaChiralpak MA(+)column(50mm×4.6mm(i.d.))(DaicelChemicalInd.Ltd.). TheamountofGluinthesupernatantsubtractedfromtheamount initiallyinthesolutiongavetheamountofGluadsorbedinthe membrane.
TheadsorptionselectivitySA(i/j)isdefinedas SA(i/j)= (i-Glu)/(j-Glu)
[i-Glu]/[j-Glu] (1)
where(i-Glu)and[i-Glu]aretheamountofi-Gluadsorbedinthe membraneandconcentrationinthesolutionafterequilibriumhad beenreached,respectively.
2.5. Adsorptionisothermsofd-Gluandl-Glu
Themembranesampleswereincontactwithvarious concentra-tionsofpured-Gluorl-Glusolutionandallowedtobeequilibrated at40◦C.Thequantitativeanalysesweredoneasdescribedabove. TheconcentrationofGluin themembrane[i-Glu]m or[j-Glu]m (i=D,j=Lori=L,j=D)wasdeterminedadoptingtheamountof Gluadsorbedinthemembraneandthevolumeofmembranephase, includingthatofmembraneandthatofsolutioninthemembrane.
2.6. Enantioselectivemembranetransport
Amembranewithanareaof3.0cm2wastightlysecuredwith Parafilmbetween two chambersof a permeationcell. The vol-umeofeachchamberwas40.0cm3.AracemicGlusolutionwas placedintheleft-handsidechamber(L-side)anda50vol.% aque-ousethanolsolutionintheright-handsidechamber(R-side).Each concentrationofracemicGluwas1.0×10−3moldm−3.Transport experimentswerecarriedoutat40◦Cwithstirring.Analiquotwas drawnfromthepermeatesideateachsamplingtime.Theamount ofd-andl-Glu transportedthroughthemembranewere deter-minedbyHPLCasdescribedabove.
Theflux,J(molcmcm−2h−1),isdefinedas J=Qı
At (2)
whereQ[mol]istheamountoftransportedGlu,ı[cm]the mem-branethickness,A[cm2] theeffectivemembranearea,andt [h] meanstime.
Thepermselectivity˛i/jisdefinedasthefluxratio,Ji/Jj,divided bytheconcentrationratio[i-Glu]/[j-Glu]
˛i/j= Ji/Jj
[i-Glu]/[j-Glu] (3)
Fig.1.SEMimagesofZ-d-Gluimprintednanofibermembrane(MINFM-10-D)(a), controlnanofibermembrane(MINFM-10-C)(b),andZ-l-Gluimprintednanofiber membrane(MINFM-10-L)(c).
3. Resultsanddiscussion
3.1. Morphologyofmolecularlyimprintednanofibermembranes TheSEMimagesoftheelectrosprayednanofibermembranes formPSf-CHO-10areshowninFig.1.ThosefromPSf-CHO-05also
92 Y.Sueyoshietal./JournalofMembraneScience401–402 (2012) 89–96
gavesimilarSEMimages.Inallnanofibermembranesinthepresent study,beadsarehardlyobserved.
Table1 summarizesmembrane thicknessofeach membrane studiedinthepresentstudyandfiberdiameterofeachnanofiber membrane. In the membrane code, MINFM denotes “molecu-larly imprinted nanofiber membrane” and MIPM “molecularly imprintedmembrane”,respectively.Inthemiddletwodigitinthe membrane code,05 denotes that themembrane was prepared fromPSf-CHO-05,in otherwords,thedegree ofsubstitution of PSf-CHObeing0.50,and 10wasfromPSf-CHO-10,respectively. Asforthelastalphabetinthemembranecode,D,C,andLmean d-isomerimprinted,control,andl-isomerimprintedmembrane, respectively.
3.2. Adsorptionselectivity
Adsorptionselectivityofmolecularlyimprintedandmolecularly imprintednanofiber membranes wasstudied adopting racemic mixtureofGlu’sasmodelracemates.Resultsaresummarizedin
Table2.Asexpectedfrompreviousstudies[13–16,26,27],the mem-branes imprintedby Z-d-Glu,incorporated d-Gluin preference tothe corresponding l-Glu and vice versa. In other words,the membranesimprintedbythel-isomerpreferentiallyadsorbedthe l-isomer.Asanticipated,controlmembranes,whichwereprepared fromPSf-CHOwithoutprintmolecule,hardlyshowedadsorption selectivity.Fromtheseresults,itwasconcludedthatZ-d-Gluand Z-l-Gluworkedasaprintmoleculeinthepresentstudy,aswell. Theadsorptionselectivityofthepresent molecularlyimprinted membranesmightbeexpressedbymolecularrecognitionsitesin themembrane,whichwereconstructedbythepresenceofprint moleculeduringthemembranepreparationprocess.Inthenext section,substratespecificityofthosemolecularrecognitionsites wasstudied.
3.3. Adsorptionisotherms
Itisinterestingtostudythesubstratespecificityofthe molecu-larrecognitionsitesinthemolecularlyimprintedandmolecularly imprintednanofibermembranes.Tothisend,adsorptionisotherms ofd-Glu and l-Glu for thosemembranes wereinvestigated. As anexample,theadsorptionisotherms ofmolecularlyimprinted nanofibermembranesfromPSf-CHO-10areshowninFig.2.The adsorptionisothermofl-GlufortheZ-d-Gluimprintednanofiber membrane(MINFM-10-D)andthatof d-Gluforthe MINFM-10-Lare straight lines passingthrough origin,implying that those enantiomerswereadsorbedinthemembranewithoutanyspecific interactionwiththemembrane,inotherwords,thosewere non-specificallyadsorbedinthemembranes.Adsorptionisothermsfor othermembranes,suchasmolecularlyimprintednanofiber mem-branesfromPSf-CHO-05,andmolecularlyimprintedmembranes fromPSf-CHO-05and PSf-CHO-10, alsogave similaradsorption isothermsasshowninFig.2.
TheadsorptionisothermofGlunon-specificallyadsorbedinthe membranecanberepresentedbythefollowingequation:
[j-Glu]m=kA[j-Glu] (4)
where[j-Glu]mdenotes theconcentrationofj-Gluin the mem-brane,whichwasnon-specificallyadsorbedinthemembrane,kA isadsorptionconstant,and[j-Glu]meanstheconcentrationof j-Gluinthesolutionequilibratedwiththemembrane.Ontheother hand,theadsorptionisothermofd-GluinMINFM-10-Dandthat ofl-Glu inMINFM-10-L, whichwere preferentiallyadsorbedin themembrane, gave complicated profiles. Those isotherms are dualadsorptionisotherms,whichconsistofnon-specific adsorp-tionandadsorptiononthespecificrecognitionsites,whichwere
constructedduringthemembranepreparationprocessbythe pres-enceof a print moleculeof Z-d-Gluor Z-l-Glu.Theadsorption isothermforGluspecificallyincorporatedintothemembranecan berepresentedbythefollowingequation:
[i-Glu]m=kA[i-Glu]+KS[Site]0[i-Glu]
1+KS[i-Glu] (5)
where[i-Glu]mdenotes theconcentrationof i-Gluin the mem-brane,whichwasspecificallyincorporatedinthemembrane,KSis theaffinityconstantbetweenmolecularrecognitionsiteandi-Glu, [i-Glu]meanstheconcentrationofi-Gluinthesolutionequilibrated withthemembrane.
TwoparametersinEqs.(4)and(5),whichweredeterminedtofit eachadsorptionisothermbest,aresummarizedinTable3together withthoseforothersstudiedinthepresentstudy.Asforthe con-centrationofmolecularrecognitionsites,whichwereconstructed bytheprint molecules,inthemembrane, thoseformolecularly imprintednanofibermembranesareslightlylowerthanthosefor usualmolecularlyimprintedmembranes.Thisleadstothe spec-ulationthat the amountof print molecule, which workedas a printmoleculetomemorizemolecularmemoryduringmembrane preparationprocess,forthepreparationofmolecularlyimprinted nanofibermembranewasslightlylowerthanthatforusual molecu-larlyimprintedmembrane.Suchphenomenawerealsoobservedin thestudyofmolecularlyimprintednanofibermembranesfrom cel-luloseacetate(CA)[27].ComparingPSf-CHOmolecularlyimprinted nanofibermembraneswiththoseofCAones,moreamountofprint moleculeworkedwellintheelectrospraydepositionprocessof PSf-CHOthanthatofCA.Inthepresentstudy,smallamountofprint moleculewaselectrosprayedsolelytowardthecounterelectrodeof groundedaluminumfoilaccompanyingnoPSf-CHOmolecule.This mightbeduetothedifferenceinaffinityconstantKSforthose mem-branes.Moreprecisediscussionaboutthispointwillbedescribed later.
Inthepreviousstudy[27,31],theaffinityconstantwasobserved toincrease withthedecrease in molecularimprintingratio; in otherwords,atthelowermolecularimprintingratio,more func-tionalgroupsinthecandidatepolymerinteractedwithoneprint molecule,resultinginahigheraffinityconstant.Similar phenom-ena were also observed in the present study, and the affinity constants for the molecularly imprinted nanofiber membranes gavehighervaluesthanthoseoftheusualmolecularlyimprinted membranes.
Asdescribedintheintroduction,apartofthemotivationtostart thepresentstudywashowthedifferenceinfunctionalgroupwould affectthemembrane performances. Tothis end, in thepresent study,polysulfonewithaldehydegroup(PSf-CHO)insteadof car-boxylicacidwasadoptedasamembranematerial.Thedetermined parameters for adsorption equations for PSf-CHO molecularly imprintedmembranesareagainsummarizedinTable4together withthoseforPSf-COOHmolecularlyimprintedmembranes.Inthis table,theparametersforthemolecularlyimprintedmembranes fromPSf-CHO-10withDSof1.00aresummarized,sincethedegree ofsubstitutionofPSf-COOHmembranesbeing0.88[13].Inthe con-structionofmolecularrecognitionsitesfromPSf-COOH,carboxylic acidmoietyandsulfonegroupmightcontributetorecognize align-mentofthefunctionalmoietiesoftheprintmoleculeviahydrogen bond.InthecaseofPSf-CHO,justsulfonegroupmightcontributeto recognizethealignmentofthefunctionalmoieties.Ifsuch specu-lationmentionedaboveisaproperone,themolecularrecognition abilityoftheformedrecognitionsitesfromPSf-CHOislessthan thatfromPSf-COOH.Againstanticipation,theaffinityconstantsof PSf-CHOmembranewerehigherthanthoseofPSf-COOH.Inthe presentcase,shapememoryabilityofPSf-CHOshouldbebetter thanthatofPSf-COOH,whichmightbedominantlydependenton vander Waalsinteraction. Thisledtothedifferencein affinity
Table1
Membranethicknessandfiberdiameterofvariousmembranesinthepresentstudy.a
DS Membrane Membranethickness(m) Fiberdiameter(nm)
0.50 MINFM-05-D 200 269±170 MIPM-05-D 51 MINFM-05-C 175 564±333 MIPM-05-C 30 MINFM-05-L 129 280±218 MIPM-05-L 30 1.00 MINFM-10-D 135 177±64 MIPM-10-D 50 MINFM-10-C 50 189±85 MIPM-10-C 30 MINFM-10-L 100 165±105 MIPM-10-L 58
aMINFM,molecularlyimprintednanofibermembrane;MIPM,molecularlyimprintedmembrane.
Table2
Adsorptionselectivityofmolecularlyimprintedandmolecularlyimprintednanofibermembranes.a
DS Membrane (d-Glu)/mem.(mol/g-mem.) (l-Glu)/mem.mol/g-mem. SA(D/L) SA(L/D)
0.50 MINFM-05-D 2.26×10−4 1.63×10−4 1.39 0.72 MIPM-05-D 8.92×10−5 7.06×10−5 1.26 0.79 MINFM-05-C 1.48×10−4 1.48×10−4 1.00 1.00 MIPM-05-C 6.77×10−5 6.79×10−5 1.00 1.00 MINFM-05-L 1.44×10−4 1.85×10−4 0.78 1.28 MIPM-05-L 6.95×10−5 8.34×10−5 0.83 1.20 1.00 MINFM-10-D 3.03×10−4 2.31×10−4 1.31 0.76 MIPM-10-D 9.10×10−5 7.01×10−5 1.30 0.77 MINFM-10-C 1.97×10−4 1.97×10−4 1.00 1.00 MIPM-10-C 6.92×10−5 6.92×10−5 1.00 1.00 MINFM-10-L 2.61×10−4 4.10×10−4 0.64 1.57 MIPM-10-L 7.32×10−5 9.69×10−5 0.76 1.32
aMolecularimprintingratio,(Z-Glu)/(PSf-CHO)=0.50.

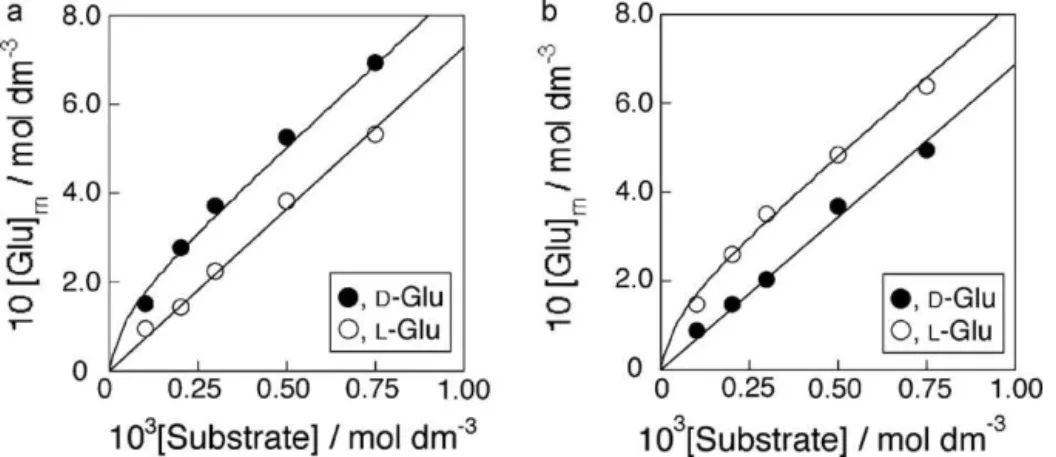

Fig.2.Adsorptionisothermsofd-Gluandl-GluinthenanofibermembraneimprintedbyZ-d-Glu(MINFM-10-D)(a)andthenanofibermembraneimprintedbyZ-l-Glu (MINFM-10-L)(b).
Table3
Parametersofadsorptionisothermsformolecularlyimprintedmembranes(MIPM)andmolecularlyimprintednanofibermembranes(MINFM).a Z-d-Gluimprintedmem. Z-l-Gluimprintedmem.
MIPM-10-D MINFM-10-D MIPM-10-L MINFM-10-L
kA 5.3×102 7.3×102 5.4×102 6.9×102
[Site]0(moldm−3) 2.0×10−1 1.5×10−1 1.6×10−1 1.5×10−1
KS(mol−1dm3) 1.3×104 2.2×104 1.7×104 2.0×104
Z-d-Gluimprintedmem. Z-l-Gluimprintedmem.
MIPM-05-D MINFM-05-D MIPM-05-L MINFM-05-L
kA 5.4×102 6.5×102 5.7×102 5.6×102
[Site]0(moldm−3) 1.5×10−1 1.5×10−1 1.6×10−1 1.4×10−1
KS(mol−1dm3) 1.4×104 1.9×104 1.4×104 1.8×104 aThemolecularimprintingratios(PrintMolecule)/(PSf-CHO),forthosemembraneswerefixedtobe0.50.
94 Y.Sueyoshietal./JournalofMembraneScience401–402 (2012) 89–96 Table4
Parametersofadsorptionisothermsformolecularlyimprintedmembranes(MIPM)fromPSF-CHO-10andPSf-COOH.a
Z-d-Gluimprintedmem. Z-l-Gluimprintedmem.
MIPM-10-D PSf-COOHb MIPM-10-L PSf-COOHb
kA 5.3×102 1.7×103 5.4×102 1.8×103
[Site]0(moldm−3) 2.0×10−1 4.2×10−1 1.6×10−1 4.2×10−1
KS(mol−1dm3) 1.3×104 7.9×103 1.7×104 7.9×103 aThemolecularimprintingratios(PrintMolecule)/(PSf-CHO)or(PrintMolecule)/(PSf-COOH),forthosemembraneswerefixedtobe0.50.
b DS=0.88;citedfromthepreviousstudy.
constantKS forthosetwotypesofmolecularlyimprinted mem-brane(Table5).
3.4. Chiralseparation
Fromtheadsorptionstudy,thosetwotypesofmembrane in thepresentstudywereexpectedtoshowchiralseparation abil-ity. To this end, chiral separation ability for those membranes wasinvestigated.Inthepresentstudy,concentrationgradientwas adoptedas a driving force for membrane transport. The trans-port of racemic Glu’s through the control membranes, suchas MIPM-10-Cand MIPM-05-C, washardlyobserved. Other mem-branes transported racemic mixture of Glu’s. As an example, time-transportcurvesofd-Gluandl-Gluthroughthemolecularly imprintednanofibermembranes,MINFM-10-DandMINFM-10-L, areshown inFig.3.Againstexpectation basedontheprevious results[26,27],MINFM-10-Dmembrane,whichwasimprintedby thed-isomerandpreferentiallyadsorbedthed-isomer,transported l-Gluinpreferencetothecorrespondingd-Gluandviceversa.Such transport phenomena were oftenobserved in chiral separation
[15,32–37].RetardedtransportofGlupreferentiallyincorporated intothemembranemightbebecauseofarelativelystrong interac-tionbetweenthemembraneandGluselectivelyadsorbed.
Inmembraneseparation,notonlypermselectivitybutalsoflux isanimportantmembraneperformance.Inasense,development ofamembranewithhighfluxismoreimportantthanthatwith highpermselectivity.Fromthisitisnecessarytocompare mem-braneperformancesofthepresentmembraneseachother.Inorder tocomparemembrane performanceofflux,themolarmobility, u(molcmcm−2J−1h−1),forGluforeachmembraneisasuitable parameter.FromNernst–Planckequation,afluxcanberepresented bythefollowingequation[38]:
J=−ucRT
dlnc dx + zF RT d dx +v
RT dP dx (6)whereJdenotesthesumofd-Gluandl-Glufluxes,cisthe concen-trationofeachGluinthefeedside,Rmeansuniversalgasconstant, T denotes absolute temperature, dc/dx is the concentration gradientatthatpoint,zisvalenceofpermeant,FmeanstheFaraday constant,d/dxdenoteselectricalpotentialgradientatthatpoint,
v
ispartialmolarvolumeofpermeant,anddP/dxisthepressuregradientatthatpoint,Inthepresentstudy,membranetransport experimentswerecarriedoutunderisothermalandisobar condi-tions;andaconcentrationgradientwasadoptedasadrivingforce formembranetransport.Fromthese,thefluxinthepresentstudy canberepresentedbyjustfirstterminEq.(6).Thereforethemolar mobilitywasdeterminedbythefollowingequation:
u=− J/cRT
d lnc/dx (7)
Themolar mobility isdefined as themobility and issimply thefluxperunitmembranearea,perunitmembranethickness, perunitconcentration,andperunitdrivingforce.Inthe calcula-tionofthechemicalpotentialduetotheconcentrationgradient, theconcentrationof Glu in thepermeateside wasdetermined tobe 1.0×10−8moldm−3,since thelowest limit of the detec-tionofGluinthepresentstudywastheconcentrationofaround 1.0×10−8moldm−3.Inthetable,arelativemobilityisalsoshown forconvenience.Intheupperpartofthetable,ofwhichdataare membraneperformancesforthemembranesfromPSf-CHO-10,the relativemolarmobility,whichisrelativetoMIPM-10-L,isgiven; andinthelowerpartofthetable,therelativemolarmobility,which isrelativetoMIPM-05-L,isalsogiven.
Fluxvaluesforthemolecularlyimprintednanofibermembranes wereonetotwoordersofmagnitudehigherthanthoseforusual molecularlyimprintedmembranes.Comparingwiththeprevious resultsof molecularly imprinted nanofiber membranes [26,27], thepresent nanofiber membranesgave similarmolar mobility. Inthecaseofmolecularlyimprintednanofibermembranesfrom
Fig.3. Time–transportcurves of racemic Glu’sthrough the molecularly imprinted nanofiber membranes,MINFM-10-D (a)and MINFM-10-L (b) ([d-Glu]L,0=
Table5
Resultsofchiralseparationwithmolecularlyimprintednanofibermembranes(MINFMs)andmolecularlyimprintedmembranes(MIPMs).
Membrane Z-d-Gluimprintedmembrane Z-l-Gluimprintedmembrane
˛L/D uc ˛D/L uc MINFM-10a 1.24 1.15×10−9 1.20 1.67×10−9 (28) (41) MIPM-10a 1.20 4.20×10−11 1.20 4.10×10−11 (∼1) (1) MINFM-05b 1.12 7.00×10−9 1.20 2.20×10−9 (231) (72) MIPM-05b 1.25 6.64×10−11 1.16 3.05×10−11 (2.2) (1)
aFiguresinparenthesesaretherelativevalues;theuvalueforMIPM-10imprintedbyZ-l-Glubeingsetasunity. bFiguresinparenthesesaretherelativevalues;theuvalueforMIPM-05imprintedbyZ-l-Glubeingsetasunity. c u=(−J/C)/(d/dx)[{(molcmcm−2h−1)/(molcm−3)}/(Jmol−1cm−1)=molcmcm2J−1h−1].
PSf-COOH, the molar mobility was determined to be around 5.3×10−9(molcmcm2J−1h−1).
The permselectivities for the present molecularly imprinted nanofiber membraneswere not sohighcomparingwith mem-branespreviouslyreported[39–41].Thepermselectivityisthought to be greatly dependent on adsorption selectivity. From this, enhancementofadsorptionselectivityisindispensablesothata givenmolecularlyimprintednanofibermembranecangivehigher permselectivity.Theremightbefollowing plausiblemethodsto enhancepermselectivity:(1)anincreaseinsurfacearea (surface-to-volumeratio)bynarrowingdiameterofmolecularlyimprinted nanofibermembrane,(2)localizationofmolecularrecognitionsites onthesurfaceofnanofiber,whichwouldbefabricatedbyadopting coaxial,two-capillaryspinneret[19,42–46],or(3)applyingahigher molecularimprintingratio.Thosethreetypesofmethodwilllead toanincreaseinconcentrationofmolecularrecognitionsiteinthe membrane.
In the membrane separation, a flux and the corresponding permselectivityoftenshowatrade-offrelationship.Againstthis,as reportedinthepreviousstudies[26,27],theenhancementofflux withoutdepressionofpermselectivitywasrevealedinthepresent study.Inotherwords,molecularlyimprintednanofibermembranes havepotentialtosimultaneouslyenhancethroughput(flux)and permselectivity.
4. Conclusions
Molecularly imprinted membranes (MIPMs) and molecu-larlyimprintednanofiber membranes(MINFMs) wereprepared from polysulfone with aldehyde (PSf-CHO-05 or PSf-CHO-10) and N-␣-benzyloxycarbonyl-d-glutamic acid (Z-d-Glu) or N-␣-benzyloxycarbonyl-l-glutamicacid(Z-l-Glu)asaprintmolecule. Those two types of molecularly imprinted membrane, such as MIPMsandMINFMs,incorporatedtheenantiomer,ofwhich abso-luteconfigurationwassameasthatoftheprintmolecule,in prefer-encetothecorrespondingantipode.Inotherwords,themembranes imprintedbythed-isomerpreferentiallyadsorbedthed-isomer andviceversa.Thosetwotypesofmembraneshowed permselectiv-ity.Againstexpectation,transportoftheenantiomerpreferentially adsorbedinthemembranewasretarded,inotherwords,the enan-tiomerlessadsorbedinthemembranewasselectivelytransported. Thiscanbeexplainedbyarelativelystronginteractionbetween membraneandtheenantiomerpreferentiallyincorporatedintothe membrane.The fluxesthoughthemolecularly imprinted mem-branesgave one totwoordersof magnitudehigherthan those of usualmolecularly imprintedmembraneswithout depression ofpermselectivity.Asprovedinthepreviousstudies,thepresent studyalsorevealedthat molecularlyimprintednanofiber mem-branesgavehighfluxwithoutdepressionofpermselectivity.The
emergenceofmolecularlyimprintednanofibermembranewould solveatrade-offrelationshipinmembraneseparation.
References
[1]H.Winston,K.K.Sirkar(Eds.),MembraneHandbook,Chapmann&Hall,New York,1992.
[2] M.Mulder,BasicPrinciplesofMembraneTechnology,KluwerAcademic Pub-lishers,Dordrecht,1996.
[3]R.W.Baker,MembraneTechnologyandApplications,2nded.,JohnWiley& Sons,WestSussex,2004.
[4] R.A.Bartsch,M.Maeda(Eds.),MolecularandIonicRecognitionwithImprinted Polymers(ACSSymposiumSeries703),ACS,Washington,DC,1998. [5]B.Sellergren(Ed.),MolecularlyImprintedPolymersMan-madeMimicsof
Anti-bodiesandtheirApplicationsinAnalyticalChemistry,Elsevier,Amsterdam, 2001.
[6]M.Komiyama,T.Takeuchi,T.Mukawa,H.Asanuma,MolecularImprinting, Wiley-VCH,Weinheim,2003.
[7]C.Alexander,H.S.Andersson,L.I.Andersson,R.J.Ansell,N.Kirsch,I.A.Nicholls, J.O’Mahony,M.J.Whitcombe,Molecularimprintingscienceandtechnology:a surveyoftheliteraturefortheyearsuptoandincluding2003,J.Mol.Recognit. 19(2006)106–180.
[8]M.Yoshikawa,in:R.A.Bartsch,M.Maeda(Eds.),MolecularandIonic Recogni-tionwithImprintedPolymers(ACSSymposiumSeries703),ACS,Washington, DC,1998,p.170.
[9]S.A.Piletsky,T.L.Panasyuk,E.V.Piletskaya,I.A.Nicholls,M.Ulbricht, Recep-torandtransportpropertiesofimprintedpolymermembranes—areview,J. Membr.Sci.157(1999)263–278.
[10] M.Yoshikawa,Molecularlyimprintedpolymericmembranes,Bioseparation10 (2002)277–286.
[11]M.Ulbricht,Membraneseparationsusingmolecularlyimprintedpolymers,J. Chromatogr.B804(2004)113–125.
[12]A.S.Michaels,R.F.Baddour,H.J.Bixler,C.Y.Choo,Conditionedpolyethylene asapermselectivemembrane,Ind.Eng.Chem.ProcessDes.Dev.1(1962) 14–25.
[13] M.Yoshikawa,J.Izumi,T.Ooi,T.Kitao,M.D.Guiver,G.P.Robertson, Car-boxylatedpolysulfonemembraneshavingachiralrecognitionsiteinduced byanalternativemolecularimprinting technique,Polym.Bull.40 (1998) 517–524.
[14]M.Yoshiakwa,J.Izumi,T.Kitao,S.Sakamoto,Molecularlyimprintedpolymeric membranescontainingDIDEderivativesforopticalresolutionofaminoacids, Macromolecules25(1996)8197–8203.
[15]M.Yoshikawa,J.Izumi,Chiralrecognitionsitesconvertedfromtetrapeptide derivativesadoptingracematesasprintmolecules,Macromol.Biosci.3(2003) 487–498.
[16]M.Yoshikawa,T.Ooi,J.Izumi,Alternativemolecularlyimprintedmembranes fromaderivativeofnaturalpolymer,celluloseacetate,J.Appl.Polym.Sci.72 (1999)493–499.
[17]M.Yoshikawa,K.Kawamura,A.Ejima,T.Aoki,S.Sakurai,K.Hayashi,K. Watan-abe,GreenpolymersfromGeobacillusthermodenitrificansDSM465—candidates formolecularlyimprintedmaterials,Macromol.Biosci.6(2006)2010–2215. [18]C.Burger,B.S.Hsiao,B.Chu,Nanofibrousmaterialsandtheirapplications,Annu.
Rev.Mater.Res.36(2006)333–368.
[19]A.Greiner,J.G.Wendorff,Electrospinning:afascinatingmethodforthe prepa-rationofultrathinfibers,Angew.Chem.Int.Ed.46(2007)5670–5703. [20]K.Yoon,B.S.Hsiao,B.Chu,Functionalnanofibersforenvironmental
applica-tions,J.Mater.Chem.18(2008)5326–5334.
[21]B.Chu,B.S.Hsiao,Theroleofpolymersinbreakthroughtechnologiesforwater purification,J.Polym.Sci.B:Polym.Phys.47(2009)2431–2435.
[22] S.Agarwal,J.H.Wendorff,A.Greiner,Chemistryonelectrospunpolymeric nanofibers:Merelyroutinechemistryorarealchallenge?Macromol.Rapid Commun.31(2010)1317–1331.
96 Y.Sueyoshietal./JournalofMembraneScience401–402 (2012) 89–96
[23]I.S.Chronakis,B.Milosevic,A.Frenot,L.Ye,Generationofmolecularrecognition sitesinelectrospunpolymernanofibersviamolecularimprinting, Macro-molecules39(2006)357–361.
[24]I.Chronakis,A.Jakob,B.Hagström,L.Ye,Encapsulationandselective recog-nitionofmolecularlyimprintedtheophyllineand17-estradiolnanoparticles withinelectrospunpolymernanofibers,Langmuir22(2006)8960–8965. [25]K.Yoshimatsu,L.Ye,J.Lindberg,I.S.Chronakis,Selectivemolecular
adsorp-tionusingelectrospunnanofiberaffinitymembranes,Biosens.Bioelectron.23 (2008)1208–1215.
[26] M.Yoshikawa,K.Nakai,H.Matsumoto,A.Tanioka,M.D.Guiver,G.P.Robertson, Molecularlyimprintednanofibermembranesfromcarboxylatedpolysulfone byelectrospraydeposition,Macromol.RapidCommun.28(2007)2100–2105. [27]Y.Sueyoshi,C.Fukushima,M.Yoshikawa,Molecularlyimprintednanofiber membranesfromcelluloseacetateaimedforchiralseparation,J.Membr.Sci. 357(2010)90–97.
[28] M.Yoshikawa,A.Tanioka,H.Matsumoto,Molecularlyimprintednanofiber membranes,Curr.Opin.Chem.Eng.1(2011)18–26.
[29] M.D.Guiver,H.Zhang,G.P.Robertson,Y.Dai,Modifiedpolysulfones.III. Syn-thesisandcharacterizationofpolysulfonealdehydesforreactivemembrane materials,J.Polym.Sci.A:Polym.Chem.39(2001)675–682.
[30] J.A.Riddick,W.B.Bunger,T.K.Sakano,OrganicSolvents,4thed.,JohnWiley& Sons,NewYork,1986.
[31]K.Taniwaki,A.Hyakutake,T.Aoki,M.Yoshikawa,M.D.Guiver,G.P. Robert-son,Evaluationoftherecognitionabilityofmolecularlyimprintedmaterials bysurfaceplasmonresonance(SPR)spectroscopy,Anal.Chim.Acta489(2003) 191–198.
[32]T. Kakuchi, T. Takaoka, K. Yokota, Polymeric chiral crown ethers. VI. Opticalresolutionof␣-aminoacidbypolymersincorporating 1,3:4,6-di-O-benzylidene-d-mannitolresidues,Polym.J.22(1990)199–205.
[33]T.Masawaki,M.Sasai,S.Tone,Opticalresolutionofaminoacidbyan enantios-electiveultrafiltrationmembrane,J.Chem.Eng.Jpn.25(1992)33–39.
[34]T.Aoki,S.Tomizawa,E.Oikawa,Enantioselectivepermeationthrough poly{␥-[3-(penramethyldisiloxanyl)propyl]-l-glutamate}membranes,J.Membr.Sci. 99(1995)117–125.
[35]S.Tone,T.Masawaki,K.Eguchi,Theopticalresolutionofaminoacidsbyplasma polymerizedterpenemembranes,J.Membr.Sci.118(1996)31–40. [36]M.Yoshikawa,J.Izumi,T.Kitao,Alternativemolecularimprinting,afacileway
tointroducechiralrecognitionsites,React.Funct.Polym.42(1999)93–102. [37] M.Yoshikawa,T.Fujisawa,T.Kitao,Molecularlyimprintedpolymeric
mem-braneshavingEFFderivativesasachiralrecognitionsite,Macromol.Chem. Phys.200(1999)1458–1465.
[38]S.G.Schultz,BasicPrinciplesofMembraneTransport,CambridgeUniversity Press,Cambridge,1980.
[39]N.M. Maier, W. Lindner, Chiral recognition applications of molecularly imprinted polymers: a critical review, Anal. Bioanal. Chem. 389 (2007) 377–397.
[40] R.Xie,L.-Y.Chu,J.-G.Deng,Membranesandmembraneprocessesforchiral resolution,Chem.Soc.Rev.37(2008)1243–1263.
[41] A.Higuchi,M.Tamai,Y.-A.Ko,Y.Tagawa,Y.-H.Wu,B.D.Frteeman,J.-T.Bing,Y. Chang,Q.-D.Ling,Polymericmembranesforchiralseparationof pharmaceuti-calsandchemicals,Polym.Rev.50(2010)113–143.
[42] Z.Sun,E.Zussman,A.L.Yarin,J.H.Wendorff,A.Greiner,Compoundcore–shell polymernanofibersbyco-electrospinning,Adv.Mater.15(2003)1929–1932. [43]D.Li,Y.Xia,Directfabricationofcompositeandceramichollownanofibersby
electrospinning,NanoLett.4(2004)933–938.
[44]S.Ramakrishna,K.Fujihara,W.-E.Teo,T.-C.Lim,Z.Ma,AnIntroductionto ElectrospinningandNanofibers,WorldScientific,NewJersey,2005. [45]D.Li,J.T.McCann,Y.Xia,Useofelectrospinningtodirectlyfabricatehollow
nanofiberswithfunctionalizedinnerandoutersurfaces,Small1(2005)83–86. [46]H.Matsumoto,A.Tanioka,Functionalityinelectrospunnanofibrous mem-branes based on fiber’s size, surface area, and molecular orientation, Membranes1(2011)249–264.
