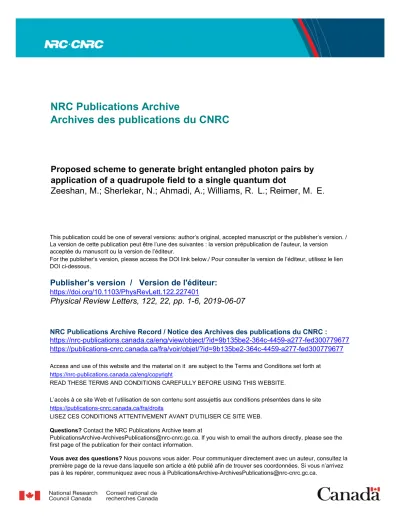

NRC Publications Archive
Archives des publications du CNRC
This publication could be one of several versions: author’s original, accepted manuscript or the publisher’s version. / La version de cette publication peut être l’une des suivantes : la version prépublication de l’auteur, la version acceptée du manuscrit ou la version de l’éditeur.
For the publisher’s version, please access the DOI link below./ Pour consulter la version de l’éditeur, utilisez le lien DOI ci-dessous.
https://doi.org/10.1103/PhysRevLett.122.227401
Access and use of this website and the material on it are subject to the Terms and Conditions set forth at
Proposed scheme to generate bright entangled photon pairs by
application of a quadrupole field to a single quantum dot
Proposed Scheme to Generate Bright Entangled Photon Pairs by Application
of a Quadrupole Field to a Single Quantum Dot
M. Zeeshan,1,* N. Sherlekar,1 A. Ahmadi,2 R. L. Williams,3and M. E. Reimer1 1
Institute for Quantum Computing and Department of Electrical and Computer Engineering, University of Waterloo, Waterloo, N2L 3G1, Canada
2
Institute for Quantum Computing and Department of Physics and Astronomy, University of Waterloo, Waterloo, N2L 3G1, Canada 3National Research Council of Canada, Ottawa, Ontario, Canada, K1A 0R6
(Received 6 September 2018; published 7 June 2019)
Entangled photon sources are crucial for quantum optics, quantum sensing, and quantum communi-cation. Semiconductor quantum dots generate on-demand entangled photon pairs via the biexciton-exciton cascade. However, the pair of photons are emitted isotropically in all directions, thus limiting the collection efficiency to a fraction of a percent. Moreover, strain and structural asymmetry in quantum dots lift the degeneracy of the intermediate exciton states in the cascade, thus degrading the measured entanglement fidelity. Here, we propose an approach for generating a pair of entangled photons from a semiconductor quantum dot by application of a quadrupole electrostatic potential. We show that the quadrupole electric field corrects for the spatial asymmetry of the excitonic wave function for any quantum dot dipole orientation and fully erases the fine-structure splitting without compromising the spatial overlap between electrons and holes. Our approach is compatible with nanophotonic structures such as microcavities and nanowires, thus paving the way towards a deterministic source of entangled photons with high fidelity and collection efficiency.
DOI:10.1103/PhysRevLett.122.227401
Quantum dots generate polarization entangled photons on demand via the biexciton-exciton cascade [1–4]. However, an energy splitting of the intermediate exciton states, known as the fine structure splitting (FSS), intro-duces a which-path information within the biexciton-exciton cascade and reduces the measured polarization entanglement[5,6]. This energy splitting can be caused by an asymmetric quantum dot shape [7,8], piezoelectric field [9], stress [10], and inhomogeneous alloying [11], which reduces the symmetry of the excitonic confinement potential.
Several quantum dot growth techniques have been developed[12–15]to minimize the FSS, but only a limited number of quantum dots on the sample will have an FSS close to zero. Therefore, postgrowth perturbation tech-niques are introduced to further reduce the FSS such as application of electric fields [16], strain fields [17], mag-netic fields[18,19], annealing[20], and by a combination of strain and an electric field [4,21]. Using strain was shown to be the most versatile approach in addressing the challenge of minimizing the FSS towards zero [22,23]. However, such postgrowth tuning techniques have not been implemented on quantum dots in photonic nanostructures such as nanowires [24,25]or micropillar cavities[26] for enhanced photon collection efficiency with near-unity single mode fiber coupling [27].
In this Letter, we propose to remove the FSS by applying a quadrupole electric field to a single quantum dot while
maintaining a high light extraction efficiency. Figure1(a)
shows a schematic view of the proposed device, with four gates surrounding a single quantum dot in a tapered nanowire waveguide. The tapered nanowire allows for a high light extraction efficiency, whereas the four gates remove the FSS by applying a quadrupole electric field. Using this quadrupole electric field we show that the FSS can be removed for any in-plane quantum dot dipole orientation without compromising the electron-hole (e-h) overlap. Maintaining this strong e-h overlap in a quadru-pole field is in stark contrast to previous electric field implementations to remove the FSS. In previous works,
Metal gates Nanowire Quantum Dot Dielectric (a) (b)
FIG. 1. Device design. (a) Schematic view of the proposed device architecture consisting of a single quantum dot in a standing nanowire, dielectric coating and four electrical contacts in-plane of the quantum dot. (b) Calculated far-field emission profile from the device using a finite-difference time-domain method in Lumerical, assuming an in-plane dipole on the nano-wire waveguide axis.
application of a lateral electric field resulted in the reduction of e-h overlap and a lower brightness of the quantum dot[28–31]. Finally, we emphasize that the quantum dot dipole orientation should be aligned with the applied lateral field to ensure zero FSS, whereas here we show that this is not necessary for the case of a quadru-pole field.
To exhibit the high light extraction efficiency of our proposed device, we show the calculated far-field emission profile in Fig. 1(b). This emission profile fits to a 2D Gaussian with near-unity overlap (R2¼ 99.6), thus dem-onstrating that the far field emission profile is not altered by the gates. The light extraction efficiency for the device is
calculated to be 35%, which can be tailored towards unity by optimizing the device architecture including the nano-wire shape, removing the dielectric and integrating a gold mirror at the nanowire base[32,33].
We now present the underlying theory for calculating the FSS. The breaking of the quantum dot spatial symmetry causes the coupling of electrons and holes via the electron-hole exchange interaction[5]. The electron-hole exchange interaction can be decomposed into two parts: short-range (within the Wigner-Seitz cell) and long-range (outside the Wigner-Seitz cell) [5]. The FSS is mainly determined by the long-range exchange interaction term[34],
δ ¼ Z Z d3r1d3r2ð½ϕh0ð⃗r2Þuv⇓ð⃗r2Þ½ϕe0ð⃗r2Þuc↑ð⃗r2ÞÞ e 2 4πϵϵ0j⃗r1− ⃗r2jð½ϕ h 0ð⃗r1Þuv⇑ϕe0ð⃗r1Þ½ϕe0ð⃗r1Þuc↓ð⃗r1ÞÞ; ð1Þ whereϕe
0ð⃗riÞ, ϕh0ð⃗riÞ are the wave functions for the lowest
electron and hole orbitals as a function of position,⃗ri. The Bloch functions of the conduction and valance band are ucsz, uvjz, respectively, with the spin of the electron
½sz¼ þ1=2ð↑Þ; −1=2ð↓Þ and heavy-hole ½jz¼ þ3=2ð⇑Þ;
−3=2ð⇓Þ resulting in two bright excitonic states of total angular momentum M¼ þ1ð↓; ⇑Þ and M ¼ −1ð↑; ⇓Þ. To carry out this calculation, we assume a 3D asymmetric parabolic quantum dot potential. In such a model, the ground state electron and heavy-hole wave functions can be modeled by a Gaussian,ϕe=h0 ð⃗rÞ ¼ ð1=π3=2lxe=hle=hy le=hz Þ1=2×
expf−1
2½ðx=le=hx Þ2þ ðy=le=hy Þ2þ ðz=le=hz Þ2g. Equation (1)
is solved analytically, giving FSS in terms of the relevant material properties, wave functions, and quantum dot geometry by the relation [34],
δ ¼ Kβξð1 − ξÞ γz ðleh y Þ3 ; ð2Þ where FSS ¼ 2jδj; K ¼ f3pffiffiffiπe2ℏ2Ep= ½ð4πϵ0Þ16 ffiffiffi 2 p
ϵm0ðEbgÞ2g, is a constant and is dependent
on the quantum dot material properties where Ep and Eb g
are the conduction-valence band interaction energy and bulk energy gap, respectively, and m0 is the free electron mass;β is the e-h wave function overlap (β ¼ jhΨhjΨeij2)
whereΨeandΨhare ground state electron and heavy-hole
wave functions;ξ ¼ ðleh
y =lehx Þ characterizes the hybridized
wave function elongation [35]; and the length parameters lehx;y are the spatial extents of the hybridized e-h wave
function (Ψeh ¼ ΨhΨe) along the x and y axis of the
quantum dot; andγzis the parameter for z confinement. For
a quantum dot where the height is much less than its diameter (i.e., dz≪ dx;y), the parameter for z confinement
(γz) equals 1.
This analytical expression implies that there are two main strategies to minimize the FSS. The first approach is to reduce the e-h overlap (i.e.,β) and the second strategy is to make the exciton wave function symmetric (i.e., tuneξ to 1). However, reducing β will affect the quantum dot brightness since it minimizes the recombination probability of the bright exciton state [29]. Hence, the favorable strategy involves the tuning of ξ without compromising the e-h overlap,β.
We calculate the FSS for a GaAs quantum dot with dot diameter of 30 nm and dot height of 3 nm. The dot is embedded in an Al0.33Ga0.67As nanowire shell (thickness of 110 nm), which is surrounded by an Al2O3dielectric layer (thickness of 150 nm). Finally, four gold electrical contacts (width of 200 nm) are defined in the plane of the quantum dot to apply a quadrupole electric potential. Refer to Fig. 1(a) for a schematic view of the proposed device architecture.
To demonstrate that the proposed device allows for FSS correction without compromising the quantum dot bright-ness, we have performed a numerical simulation using nextnano[36] to solve the two-dimensional Schrödinger-Poisson equation self-consistently using an effective mass approximation. The material parameters used for the GaAs quantum dot is listed in Table I. In our calculations we assume the ground state is pure heavy hole. This assumption is in line with previous theoretical and exper-imental results [37,38] where the ground state is domi-nantly heavy hole. Ignoring the third dimension is justified for strong confinement ðγz¼ 1Þ, where the dot height is
TABLE I. Material parameters for GaAs quantum dot. Eb
g (eV) Ep (eV) me (mo) mhh (mo) ϵ
1.519 23 0.067 0.5 12.5
much less than its diameter (i.e., dz≪ dx;y). In our simple
model, we only consider the geometric quantum dot asymmetry as this is typically the dominant source of FSS[39]. Thus, we have modified the quantum dot shape from a circle to an ellipse with 7% elongation along the major axis (i.e., Lx=Ly ¼ 1.07). The ground state electron
and heavy-hole wave functions are then computed from the solution of the two-dimensional Schrödinger-Poisson equa-tion from which we calculate the hybridized e-h wave function. Using Eq.(2)we then calculate the FSS. For this quantum dot elongation of 7%, the calculated FSS is 11 μeV, which is typical for quantum dots.
Figures 2(a) and 2(e) show a schematic view of the applied quadrupole electric potential for two different configurations. Configuration 2(a) corresponds to a posi-tive potential applied to the top and bottom gates, and a negative potential with the same magnitude applied to the left and right gates, while it is the opposite for configuration 2(e) with higher magnitude. Here, the solid blue and dashed red ellipses represent the single particle wave functions of the electron and hole, respectively, under the applied electric potential. The potential profile is plotted for these two configurations from the solution of the Schrödinger-Poisson equation in Figs. 2(b)and2(f). The black circles represent the GaAs quantum dot (smallest circle at center), Al0.33Ga0.67As nanowire (middle circle), and the Al2O3 dielectric shell (largest circle). The contour plot of the electric potential shows that it is zero inside of the quantum dot, which is essential for maintaining strong e-h overlap of the bright exciton state.
(a) (b) (c) (d)
(e) (f) (g) (h)
FIG. 2. Single particle wave functions with an applied quadrupole field. (a) Schematic view of applied quadrupole potential. We use the convention that the top and bottom gates are positive atþ0.5 V and the left and right gates are negative at -0.5 V. The electron wave function is shown schematically in solid blue and hole wave function in dashed red. (b) Calculated 2D electric potential for configuration (a). The black circles represent the edges of the dielectric (largest), nanowire (medium), and quantum dot (smallest). (c),(d) Calculated 2D probability density of electron (c) and hole (d) wave functions with configuration from (a). (e) Schematic view of applied quadrupole potential with polarities reversed with respect to (a) and magnitude increased to 0.7 V. (f) Calculated electric potential for configuration from (e). (g),(h) Calculated 2D probability density of electron (g) and hole (h) wave function with configuration from (e). Lx and Ly are the dimensions in the x and y direction of the simulated structure, whereasϵ is the degree of single particle wave function elongation of the electron and hole.
(a)
(b)
FIG. 3. (a) Calculated FSS (circles, left axis) and e-h overlap (stars, right axis) as a function of quadrupole potential. (b) Calcu-lated FSS (circles, left axis) and e-h overlap (stars, right axis) as a function of the lateral potential. Insets: Schematic view of applied quadrupole [in (a)] and lateral potential [in (b)]. The probability density of the electron (solid blue) and hole (dashed red) wave functions are schematically shown by the ellipses.
Figures2(c)and2(d)show the 2D probability densities of the ground state electron (jΨej2) and heavy-hole (jΨhj2),
respectively, for the applied potential configuration from Fig. 2(a). These plots have been fit with 2D Gaussian functions to extract the standard deviations along their major (σx) and minor (σy) axes, and to obtain the single particle
wave function elongation factor,ϵ ¼ σx=σy. We find that the hole wave function is stretched along the x axis (ϵ ¼ 1.17) and is perturbed much more than the electron wave function, which is slightly stretched along the y axis (ϵ ¼ 0.96). In contrast, Figs. 2(g) and 2(h) show the 2D probability densities of the electron and hole, respectively, for the applied potential configuration from Fig.2(e). These plots show an opposite trend to those in Figs.2(c)and2(d):jΨhj2
is now spread along the y axis (ϵ ¼ 0.90) instead of the x axis andjΨej2is spread along the x axis (ϵ ¼ 1.06) instead of the
y axis. The higher perturbation of the heavy-hole wave function is expected since heavy holes are much more localized than electrons due to their larger effective mass.
In Fig.3(a)we plot the calculated FSS (circles, left axis) as a function of the quadrupole potential (V), whereby a negative quadrupole potential of -0.5 V represents the configuration from Fig. 2(a) and a positive quadrupole potential of þ0.7 V represents the configuration from
Fig. 2(e). The trend demonstrates that the FSS can be tuned to zero by applying a quadrupole potential. The calculated e-h overlap for the quadrupole field is also shown in Fig. 3(a), represented by stars (right axis). Remarkably, the quadrupole field maintains near unity e-h overlap, with a value above 99% over the entire range of the applied field, thus conserving the quantum dot brightness. This desirable feature is in stark contrast to previous work where an applied lateral field was used and the e-h overlap had to be drastically reduced to remove the FSS[28–31].
To directly compare the two approaches (quadrupole and lateral electric field), we modeled the device under an applied lateral field with a positive potential on the left gate while keeping all other gates at zero potential [Fig.3(b)]. In this case, the FSS (circles, left axis) can be corrected for by applying V¼ 0.225 V, but the e-h overlap (stars, right axis) is reduced to 74% at this potential [Fig.3(b)], thus compromising the quantum dot emission brightness. We reemphasize that in the case of the lateral electric field the gates must be aligned along the quantum dot dipole orientation, otherwise the FSS cannot be removed.
The device architecture that we have modeled represents an ideal case where the four electrical gates are perfectly aligned along the quantum dot dipole orientation. In (a)
(c) (d) (e)
(b)
FIG. 4. Universal FSS tuning. (a) Schematic view of an applied asymmetric quadrupole potential. Inset: electron (solid gray) and hole (dashed gray) wave functions of a quantum dot with asymmetric axis aligned at an angleθ with respect to the gates along the x axis. (b) Calculated FSS as a function of quadrupole potential with the quantum dot major axis oriented at three different angles with respect to the gates along the x axis (θ ¼ 0°; 10°, and 20°). (c) Gray scale plot of FSS as a function of ΔVRLandΔVTBforθ ¼ 200. (d) High resolution gray scale plot of the zoomed-in region [white dotted line box from (c)] showing near-zero FSS. (e) Gray scale plot of e-h overlap as a function ofΔVRL andΔVTB forθ ¼ 200.
practical devices; however, the quantum dot asymmetric axis is randomly oriented from dot to dot. Moreover, there is also the challenge of fabricating the device with the required precision. In such cases, the quantum dot asym-metry will be misaligned with respect to the electrical gates. To model this misalignment, we have simulated two additional dipole orientations with the quantum dot major axis oriented at an angle of θ ¼ 10° and θ ¼ 20° with respect to the gates along the x axis [Fig.4(a)]. Figure4(b)
shows the calculated FSS as a function of quadrupole potential for θ ¼ 0°; 10°, and 20°. The minimum FSS is obtained for an applied quadrupole potential of V ¼ 0.5 V (forθ ¼ 100;200). Clearly, there exists a nonzero minimum bound to the FSS forθ ¼ 10° and θ ¼ 20°, whereas the FSS can reach zero for θ ¼ 0°
To reduce the minimum bound of the FSS further when the quantum dot dipole orientation is not aligned with the electrical gates (θ ¼ 200), we modify the applied quadru-pole potential by increasing the potential on the right gate by△VRL and decreasing the potential on the bottom gate
by △VTB. The calculated FSS is plotted as a function of
△VRL and△VTB in Fig. 4(c). In Fig.4(d)we zoom into
the region of the white dotted box of Fig. 4(c) and find near-zero FSS (0.05 μeV) at △VRL¼ 0.095 and
△VTB¼ 0.085 V.
The e-h overlap is also plotted as a function of△VRLand
△VTB in Fig.4(e). An overlap of 90% is obtained for the
modified quadrupole potential near-zero FSS. This high e-h overlap with close to zero FSS is desired for a high-efficiency entangled photon source with near-unity fidelity. In summary, we showed that an applied quadrupole field to a single quantum dot in a photonic nanowire results in zero FSS without compromising the quantum dot bright-ness. With our approach we envision high-efficiency entangled photon sources with near-unity fidelity are within reach. Such sources are the missing building block of quantum networks and can also be used as a new source in quantum communication, quantum sensing, quantum optics, and integrated quantum optics on a chip.
We would like to thank Stefan Birner for his help with nextnano and Andreas Fognini for scientific discussions. This research was undertaken thanks in part to funding from the Canada First Research Excellence Fund, NSERC Discovery Grant and Industry Canada.
*
