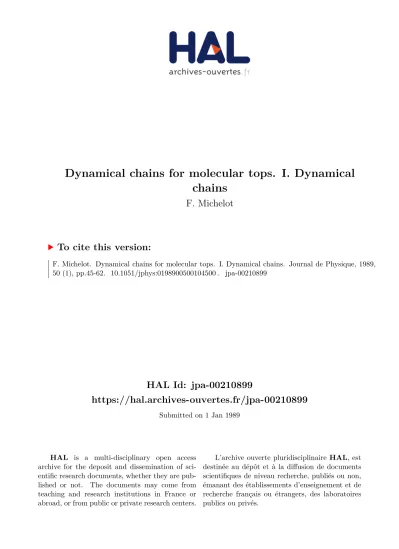

Dynamical chains for molecular tops. I. Dynamical chains

HAL Id: jpa-00210899

https://hal.archives-ouvertes.fr/jpa-00210899

Submitted on 1 Jan 1989

HAL is a multi-disciplinary open access archive for the deposit and dissemination of sci- entific research documents, whether they are pub- lished or not. The documents may come from teaching and research institutions in France or abroad, or from public or private research centers.

L’archive ouverte pluridisciplinaire HAL, est destinée au dépôt et à la diffusion de documents scientifiques de niveau recherche, publiés ou non, émanant des établissements d’enseignement et de recherche français ou étrangers, des laboratoires publics ou privés.

Dynamical chains for molecular tops. I. Dynamical chains

F. Michelot

To cite this version:

F. Michelot. Dynamical chains for molecular tops. I. Dynamical chains. Journal de Physique, 1989,

50 (1), pp.45-62. �10.1051/jphys:0198900500104500�. �jpa-00210899�

Dynamical chains for molecular tops.

I. Dynamical ^chains

F. Michelot

Laboratoire de Spectronomie Moléculaire et Instrumentation Laser, Unité de Recherche associée

au C.N.R.S., 6, ^bd Gabriel, ²¹¹⁰⁰ Dijon, ^France

Résumé.

Des chaînes dynamiques ^sont proposées pour l’étude des toupies moléculaires. Tous les calculs sont explicités dans la chaîne SU(4) ~ SO(4) ~ SU(2) ~ SU(2) qui convient, ^en première approximation, à l’étude des toupies sphériques. ^{Tous les} opérateurs rotationnels qui peuvent intervenir dans l’étude d’une molécule, ^sont construits par ^un produit ^tensoriel

«

étendu

formé à partir des éléments d’une base d’intégrité appropriée.

Abstract.

Dynamical ^{chains are} proposed ^{for the} study of molecular tops. ^{All the} computations

are performed within the chain SU(4) ~ SO(4) ~ SU(2) ~ SU(2) adapted ^{in first} approximation

to the study ^of spherical tops. Rotational operators involved in molecular spectroscopy problems

are obtained as a

streched

tensor product formed from members of an appropriate integrity

basis.

Classification

Physics ^Abstracts

31.00

02.10

1. Introduction.

The study ^{of rotors or} tops ⁱⁿ quantum mechanics is a very old subject (see [1, 2] ^{for a} large bibliography) ^{and the} geometrical invariance group of their Hamiltonian is well-known :

where LO (3 ) is the rotation group of the space-fixed ^frame (SFF) ; the other groups ^are those which leave the inertia ellipsoid invariant and goes from the rotation group MO (3 ) ^{of the top}

fixed frame when all principal ^moments of inertia are equal ^to D2 h ^when they ^are all different.

These various types ^of tops ^are encountered for instance in molecular spectroscopy ^when

the Hamiltonian is expressed in molecular coordinates [3, 4] ; ^{the axes} of the molecule fixed frame (MFF) ^{are chosen so that} they coincide with the principal ^{inertia axes} of the molecule in its equilibrium configuration. ^{In most} cases, the Hamiltonian of the corresponding rigid top may be taken ^as the zero-order rotational Hamiltonian. However to take intramolecular interactions into account, ^one introduces rotational operators ^{which are not} invariant in the groups given ⁱⁿ equation (1) ^{and even in some cases, for} instance when hyperfine interactions

[5] ^or intensities [6, 7] ^are considered, ^{one must} go outside the enveloping algebra ^{built from}

the generators of these groups.

JOURNAL DE

PHYSIQUE. -

50,

1,

Article published online by EDP Sciences and available at http://dx.doi.org/10.1051/jphys:0198900500104500

Up ^{to now these} problems have been solved individually ^{for each} type ^of top, ^the computations being mostly made in the Schrôdinger picture ; ^{we also note that} rotational and vibrational degrees of freedom are always ^treated differently.

In a previous paper [8], ^{we described an} algebraic approach ^to the vibrational spectra ^of molecules, here, ^we will extend this method to the case of molecular rotation. For this, ^we

introduce a dynamical algebra ^{for the} tops and realize it in terms of boson operators ;

different subduction chains are associated with the various tops. ^The first consequence is ^a uniform treatment of rotational and vibrational degrees of freedom. In addition all operators involving rotational variables are obtained as a « stretched » tensor product ^of suitably

defined elementary ^factors (or irreducible fundamental tensors) [9, 10, 11], ^{which assures that} only linearly independent ^{tensors are} considered.

Previous group theoretical treatments of tops ^{have been} proposed ^{and a brief review is}

necessary ^to emphasize ^{in which} respects ^our approach ^{differs. Two kinds of} studies have been performed ; ⁱⁿ [12, 13] ^an algebraic ^{treatment of} rigid tops ^is given ^{but it} is restricted to the degeneracy algebra and the construction of tensors in the enveloping algebra ^{is not}

considered.

The introduction of a dynamical algebra is necessary if ^{one wants to} include within the same

formalism all operators which may be involved in ^a given (molecular) problem ; obviously

these are not confined to those operators ^one may build from the generators ^{of the} degeneracy algebra. ^This point of view is adopted ⁱⁿ [14, 15] ^where dynamical algebras ^are proposed. ^{For a} rigid ^{rotator, as} appropriate ^{for the} study ^{of diatomic} molecules, ^one may ^use

0(3,1) [14] ^{or its} associated compact ^form 0(4) [16]. ^For symmetric tops ^an algebra

E 2(3), contracted form of 0(3, 2), is introduced. Alternatively, ^a systematic search for the invariants of the time-dependent Schrôdinger equation [15] ^{led to} 0(3, 2) ^{for the} rigid ^rotator

and SU(2, 2) ^{for the} symmetric top. These various non-compact algebras possess ^an irreducible representation (IR) ^{which covers the infinite set} of levels of the rigid system ^{and in} each case the matrix elements for the generators ^are given. ^{As noted} by ^{several authors} [14, 16-18] ^the requirements usually imposed ^{on the} dynamical algebra explain ^{that different}

solutions exist for the same physical problem. ^{But our} purpose is ^not just ^to propose ^{a new} subduction chain. Rather we look for a solution that :

a) simultaneously includes the three kinds of tops since there is a natural symmetry breaking ^{when one} goes from the spherical top ^{case to the} asymmetric ^{ones ;}

b) ^{admits an IR} TD, ^such that upon reduction ^to the degeneracy algebra ^{one obtains} only physical states ;

c) ^{allows us to} obtain the zero-order spectrum ^when only the first invariants of each element in the chain are retained ;

d) ^{allows an} easy construction of operators ^{of an} arbitrary degree ^with regard ^{to the} generators.

All these requirements ^{are not met} by previous studies ; ^for instance, ^the spherical top ^case

cannot be obtained from [14], ^{and in} [15], ^the SU(2, 2) algebra ^{includes ladder} generators ^of

half-integer ^{rank, so that the} representation space includes states which are not appropriate ^to

the description ^of top ^levels.

But is it necessary ^to go ^into the complexity ^of non-compact algebras ^{and to} give ^{a full}

treatment of a rigid top ? ^{Even if the} Hamiltonian of such a system is introduced as zero order rotational Hamiltonian in most molecular systems, allowing ^{thus in} principle ^{an infinite set of}

rotational sublevels (or ^J values), it is clear that the number of levels which can actually ^be

observed is finite. With the introduction of a compact dynamical algebra and thus of a finite

dimensional unitary IR, ^we will show in a second paper (II) that in fact we are closer to the

actual physical situation than with the ideal model ; ^{it is to} emphasize ^our point ^{of view that}

we use the expression dynamical ^{chain for a molecular} top.

Also, ^we point ^out that if the methods we use are of rather common practice in atomic and nuclear physics [17, 19-21] they ^have only recently ^been introduced in the field of molecular

physics [22-24]. ^{Yet, as we shall see,} they ^{allow us to recover and} generalize ^{standard results}

without any explicit coordinate representation.

The dynamical ^chains and the IR r D adapted ^{to the} study ^{of the various} types ^of tops ^are obtained in section 2. Sections 3 and 4 are devoted to the construction of the most general

tensor operator which may have ^non-zero matrix elements within fp ^{and to the} computation

of its reduced matrix elements. In those two sections only ^the theory ^{of Lie} algebras iand ^of

their representations is necessary ; if the results obtained depend ^{on the} particular ^{chain and}

IR chosen they ^are independent ^{of the} particular realization we have in mind. However, ^the

notations and phase conventions have been chosen so as to make easier the correspondence

with paper II where the application ^{to molecular tops is} considered.

2. Dynamical algebra for molecular tops.

We shall mainly ^{consider the most} degenerate ^case corresponding ^to spherical tops (Eq. (la)),

other ones being ^deduced through group-subgroup ^reduction.

We start from the well-known results [25, 26] ^{that the} generators associated with

Lo (3) ^x mO(3) span the Lie algebra SU(2) ED SU(2) isomorphic ^to SO(4) and that the Hamiltonian for a spherical top ^can be written as :

where the notation L, f ^{is used to} distinguish ^{when the} angular ^{momentum J is} projected ^on

the SFF axes (Lj,

Ji, ; ^i’

X, Y, Z) ^{or on the MFF axes} (fi = - Ji ; i

^{x, y,}

z), ^{with the standard} commutation relations :

As a result to each energy level is associated ^a unitary irreductible representation ^of SU(2) 0 SU(2) which may be denoted :

whether one uses the standard Cartan [pqj

Ul + j2, jl -7z] ^labels for the irreducible

representations ^of SO(4) ^{or the} SU(2) 0 SU(2) ^labels [17]. ^The degeneracy of each level is

(2 j + 1 )2.

For the present problem, ^a compact dynamical algebra ^is easily ^{found from the} branching

rules G:::> O(n) [27-29] which show that we may take G

U(4) ^{for which we have :}

where [NO ] represents ^a totally symmetric representation ^of U(4) ^and where p ^{takes the}

values N, N - 2 ... 1 or 0.

If we want only integer ^values for j (which ^are appropriate ^{for the rotor} levels), ^{we must}

choose N _{even ;} but the computations ^can be made for arbitrary ^{N : odd values of}

N lead to half-integer representations (k/2, k/2) (kodd) ^of SU(2) ^E9 SU(2) ^{which is}

consistent with the fact that the top eigenfunctions ^are found among the whole ’J) (j,j) ^>

representations ^of SU(2) E9 SU(2). ^This illustrates the main difference between our approach

and that realized in [15] ^for symmetric tops ; in the reduction of the representation space

To

[NO], ^{N even,} only physical ^states appear (or equivalently ^{our ladder} generators ^{will be} of integer ^{rank in} SU(2) (B SU(2)).

Also we note that in this case the hypothesis formulated in [30] ^which suggest ^{to take}

U(p ⁺ 1) ^{as a} dynamical algebra ^{for a} problem with p degrees ^{of freedom,} is verified.

However, ^{for a} rigid ^rotator (2 degrees ^of freedom), U(3) ^is only ^a double-jump dynamical algebra [16] ^and 0(4) ^the appropriate one-jump algebra.

In the reduction U (4) SU (4) ^and 0 (4) 1 SO (4), ^the representations [NO] ^and [pO]

remain irreducible, ^{also the} algebras SU(4) ^and SO(6) ^are isomorphic, ^{so the} dynamical ^chain

we shall use for spherical tops ^{is :}

At this point, several remarks can be made :

(i) ^{If in the} following, ^{we will use} equation (6) with the shorter notation SU (4) ZD ^SO (4 ) ^or

SU (4 )

^SU (2) ^{0 SU} (2), it is written to emphasize that it should not be confused with the chain :

used recently [31] in connection with the beta and gamma vibrations in deformed nuclei.

Also the same algebra SU (2) ^Q SU (2) ^$ U (1 ) ^denoted SO (4) Q) SO (2) ⁱⁿ [17] ^{is the}

maximal compact subalgebra ^{for the} hydrogen ^{atom, and is not} appropriate ^for rigid spherical tops.

(ii) On the other hand, this chain is quite analogous ^to that used in [32] for shell model calculations within the Wigner supermultiplet ^scheme.

The main differences lie in the realization of the Lie algebras (besides ^fermion operators

are used by ^{Hecht et al.} [32]) and in the representations considéred for state vectors as well ^as for operators.

(iii) The chains for other tops ^are obtained with the reduction SU(2) ⁰ SU(2) ::> SU(2) ^(B SO(2) ^for symmetric tops ^{and =3} SU(2) ^Q) D2 ^for asymmetric ^ones.

3. Construction of rotational operators.

3.1 KET AND TENSOR LABELLING.

Within the totally symmetric representation [NO]

(NO) ^of SU(4), ^kets symmetrized in the chain (6) will be denoted

since we have no missing ^label problem ; ^{M and K are the usual} SO(2) ^e SO(2) labels. For the highest weight ^{states in} SO(4) ^the abbreviated notation :

will be used

The possible symmetries ^{for tensor} operators which may have ^non-zero matrix elements within these states, ^are obtained from the standard product rules and given by :

whether one uses the Young partition ^notation [27, 28] ^{or the} Cartan-Weyl labelling [11] ; throughout Ô stands for repeated ^zero.

Upon reduction in SO(4) ^{of a} general (kok) representation ^of SU(4) ^a given representation (il, j2) ^{may occur several times ; this} multiplicity introduces an additional r label. So a general

tensor operator acting ^{within states} given by equation (7) ^and symmetrized ⁱⁿ SU(2) ⁰ SU(2)

may be denoted :

These operators which will represent rotational operators involved in molecular top Hamiltonians, lie in the enveloping algebra ^of SU(4) ; ^{so as to obtain} only linearly independent operators, ^{one must not} build them arbitrarily ^{from the} generators. ^{Rather one}

must look for a fundamental set of irreducible tensor operators [11], ^{which are not of the} general ^form (Eq. (10)), but such that any ^tensor in the enveloping algebra ^{can be obtained as}

a

streched » tensor product from members of this fundamental set. Besides, ^{since we are} working ^{in a chain, we} may ^use the elementary multiplets ^method [9, 10] ^{which allows us at}

the same time to solve the multiplicity problem.

An elementary factor is written by Sharp ^{et al.} [9] in the form (,k 1 À2 À3 ; 71/2) ^which symbolizes ^the highest weight component ^{of an} irreducible tensor operator :

The appropriate k 1, k 2, À 3, il, j2 values for the chain SU(4):::> SU(2) (D SU(2) ^are given ⁱⁿ [9]. ^{As we are in a} very degenerate ^case, simplifications ^{occur and the} only elementary ^factors

we need have the symmetry :

Thus the highest weight component ^{of a} general ^tensor (,k 1 0 Àg) r(j1’ j2 ) ^is uniquely ^defined by :

with :

where all coefficients a, b,

^are integers (-- 0) and with the condition that e or

f ^are equal ^{to zero. These} results, ^{as well as} the second member of equation (13) ^{are obtained}

with the property that, for powers of elementary factors, representation ^{labels are additive} (« ^streched

products). ^In particular ^{the kets} (Eq. (8)) ^{and their} conjugates ^are respectively represented by :

with with

which is consistent with equation (5). ^{Also, for the} special ^tensor, equation (10), ^with

ml = j1 and m2

j2, ^{we have in addition :}

hence

k (or D) is thus the degree ^with regard ^{to the} SU(4) generators. The reduction in SO(4) ^{of the}

first IRs (f2Of2 ) ^of SU(4) ^is given in table I. At this point, ^we may also ^note that the rotational operators involved in vibration-rotation Hamiltonians are all scalars in SFF ; ^{if we}

set j1

^{0 in} equations (14), (16), ^{we find that} they ^{will be} represented ^{as :}

with 2 b + f = n. For n fixed, f ^{takes the} values n, n - ^{2 ... 1 or} 0, ⁱⁿ _agreement ^{with the}

well-known reduction rule for the symmetrized power of identical fundamental represen- tations of SO(3) [33]. ^{We will see} in paper II how the operators (Eq. (17)) ^{are related to the}

usual tensor operators RD(O,K)(K == f ) ^{used in} spherical top ^studies [5, ^33, 34].

Hermitian operators ^{with a definite} symmetry ^with respect ^to time reversal and normalized

symmetrized ^kets will be constructed in the following ^sections. But, before, ^{we must find an} explicit realization of these elementary ^factors. Moreover, ^{we note} that, ^while defining ^these quantities, phase ^{choices must be made.} Throughout, ^{these have been fixed so that} they ^{be in} agreement ^{with the} phase conventions for rotational tensors and kets used in spherical top studies, ^{but could} be modified without difficulty.

3.2 REALIZATION OF ELEMENTARY FACTORS.

For the cases considered here, ^the SU(4) algebra may be realized with four boson creation ai ^and annihilation _ai operators

(i 1, - , 4 ) ^which satisfy ^{the usual} commutation relations :

The generators ^{of the} SO(4) subalgebra [35] may be expressed ^{in terms of two} commuting

angular ^{momenta, one for each} SU(2) algebra. ^{In view} of further applications these may be

identified with L and f (Eq. (3)), ^{which allows us to fix} immediately the variances of tensor

Table 1.

Reduction of ^the first (nOn) irreducible representations of SU(4) ⁱⁿ SO(4)

SU(2) ^Q SU(2).

(*) ^The corresponding expressions ^for tensors

obtained with equations (13), (26).

(**) ^{For each} SO(4) ^IR, only

powers

listed.

components ⁱⁿ agreement ^with previous conventions [5, 36]. The covariant components ^{of all} double tensors must satisfy :

In these equations ^the SU(4) ^{labels have been} omitted, ^{and we note} that these relations determine a tensor only ^{within an overall} phase.

The a; span the IR(1Ô) ^of SU(4) ^{and the} ai the IR(Ô1) contragradiente ^to (lÔ). Using ^the branding ^rules SU (4 ) 1 SO (4 ) [29] ^and equation (19) ^we obtain the first two elementary

factors (Eq. (12)) :

where el and y4 ^are phase factors. In a general way, for all the ^{tensors we} will build, only ^the highest weight component ⁱⁿ SU(2) ^ffi SU(2) ^{will be} given ; ^{others are} easily ^{deduced with} equation (19).

To get ^other elementary factors, ^we proceed by coupling ^{the first ones. The} symmetrized

square ^of (lÔ) = ^{(10) and {1110} = (01) gives} {20} = ^{(20) and {2220} = (02) respect-}

ively ; ^while ( lÔ ) ^{x {1110} gives the} adjoint representation {2110} = (101) and the scalar

one {0} = (0). Upon ^{reduction in} SO(4) ^{we obtain :}

The preceding products ^are multiplicity ^{free in} SU(4) ^{and the reduction in} SO(4) ^{is also} multiplicity ^{free. We can thus} perform ^the couplings ⁱⁿ SO(4) only (Appendix), ^which

amounts to fix the corresponding SU(4) > SO(4) ^{isoscalar factors to} unity :

We thus obtain the additional elementary ^{factors :}

Other tensors in equation (21) ^{do not} give elementary factors, ^as they ^are expressible ^as

«

streched

products of the first (Eqs. (20), (13)). ^The complete ^{set of} elementary factors, with their phases fixed, ^is gathered ^{in table} II ; ^{the other} components ^{of the} corresponding

tensors are obtained with equation (19).

.

(al ⁰ a ) (il, i2) Table II.

Elementary factors (o..)

(AIO A3) VI’ i2)

Table Il.

Elementary factors (Ik 10 ’k 3 i il j2)

^E

_{Il j2}

For completeness, ^we give below the full expressions ^{for the} SU(4) generators symmetrized

in SO(4) :

where we set Ni

at ai (i = 1,..., 4 ). The first six operators ^are SO(4) generators ^and up ^to

a phase factor identical to those given ⁱⁿ [12, 13] ; ^{the nine} remaining generators being ^ladder generators between the various IR of SO(4) contained in a given ^{IR of} SU(4).

3.3 COMMUTATION RELATIONS.

For the elementary factors, ^we only ^{have :}

all other commutators are zero. Those for the generators way be written :

Equations (25a-b-c) ^are just ^the symmetrized ^{form of} equation (3) ^since they only ^involve

the generators ^{of the} degeneracy algebra.

3.4 HERMITIAN OPERATORS AND TIME REVERSAL SYMMETRY. - Hamiltonian operators ^are usually built from Hermitian rotational and vibrational operators ^{and must be invariant} upon time reversal.

Using the well-known Wigner properties [37] ^for SU(2) tensors, extended ^to double tensors

[5], ^{we can} build Hermitian rotational tensors whose highest weight components ^are given by :

with e

0 or 1. Their behaviour _{upon time} reversal is determined from the relations :

and given by :

All these properties ^{have been} determined from the highest ^{or lowest} weight components

of various tensors ; since ^other components ^are generated from these with the standard relations (19), ^{this is} sufficient to assure that they satisfy :

°

3.5 SPECIAL CASE OF SUBGROUP SCALARS. - These are obtained from equations (13), (14), (15) with ji = j2

0 and thus of the general ^{form :}

since b

d within the totally symmetric representation ^of SU(4). ^Besides, straightforward computation ^{of the} SO(4) ^Casimir operators ^from equation (23) shows that :

where N is the linear invariant of U(4) ^{which is a constant} within the representation [NO].

These relations show first that we have no subgroup SU(2) ^x SU(2) scalars, besides the Casimir operators and their powers, in the SU(4) enveloping algebra. This is in agreement with the general ^theorem [11, 38] ^{which states that the number of} functionally independent subgroup ^{H scalar} operators, ^{in the} enveloping algebra ^{of a} group G, ^is twice the number of

missing labels in the reduction G 1 _{H ;} for the present ^{case, we have no} missing ^label.

Secondly, they ^{show that for} subgroup ^scalars built from Casimir operators, ^{we have three} possibilities :

which _{may be} related through equation (31) ^{and :}

But only ^the operator (Eq. (32a)) ^{is an} irreducible tensor in SU(4) ; ^{the third} possibility (Eq. (32c)) is that used in molecular studies [25, 33].

4. Symmetry adapted kets and reduced matrix elements.

4.1 ROTATIONAL BASIS KETS.

We start from the well-known realization for the totally

symmetric representation [NO] ^of SU(4) :

where JY’ _ (n 1 ! n2 ! n3 ! n4 ! )-1/2, ni ⁺ n2 ⁺ n3 ⁺ n4 = N and 10 > ^{is the vacuum state defined} by :

With the same phase conventions as those used in constructing ^tensor operators (Eq. (19))

covariant kets in the chain SU(4) =3 SU(2) ^(p SU(2) ^must satisfy :

From equations (5), (23), (35), ^{it is} easily ^{seen that the} highest ^{covariant states in} SU(4) ^for

fixed N are characterized by :

for

we thus have :

More generally for fixed N and J values (J : N/2 N/2-1

^{1/2 or} 0) ^the highest ^covariant

states in SU(2) ^Q+ SU(2) ^are determined by (Eqs. (23), (35)) :

With the conditions nl ⁺ n2 ⁺ n3 ⁺ n4 = N, n , ^0, it may be shown that the corresponding

kets are necessarily of the form (Eq. (8)) :

where we set p = N12 - J. The coefficients in equation (38) ^are obtained with either conditions :

and then normalized. The resulting ^states may be written :

Both equations ^are useful for further computations ; ^also equation (40.b) ^{shows that, in the}

present ^case, orthonormal state vectors may be built within the ^same scheme as that used for operators (Eq. (15), ^Tab. II). ^{From the} highest weight ^states (Eq. (40)), ^an arbitrary

normalized ket is obtained with repeated ^{use of ladder} operators (Eq. (35)) :

4.2 MATRIX ELEMENTS.

All computations might be made within SU(4) but this would

mean greater difficulties since we are considering general ^{tensors of} symmetry :

within the totally symmetric representation (NO]- {N0} ^of SU(4). This group is ^not simply

reducible and products {N0} ^x {2kkkO} ^{are not} multiplicity free. Some isoscalar factors and

6 - j symbols ^for SU(4) ^{have been} computed [32, 39] ^but mostly ^for special ^{cases or with}

subduction chains which differ from ours. For the time being, it is much simpler ^to perform ^all

the computations within the SO(4) subalgebra ^{which is} simply reducible and for which all the necessary symbols ^{are wellknown} (Appendix).

To compute all the matrix elements of a general ^tensor operator :

we only need the reduced matrix elements of elementary ^factors (Table II). ^{In fact,} general

formulas may be obtained for any powers of these elementary factors, ^which simplify ^the

determination of the reduced matrix elements of a general ^tensor operator.

Besides the realization which we choose for the elementary factors leads to :

So we are left with only four basic reduced matrix elements. The computations being

tedious but rather straightforward, ^we only ^state the results :

The expression ^for the reduced matrix elements of an arbitrary ^tensor (Eq. (26)) ^is given ⁱⁿ

the Appendix. ^As they ^{are of} particular importance, ^we give below the matrix elements of ladder generators appearing ⁱⁿ equation (23) ^{and of} subgroup ^{scalars :}

The usual expressions for the matrix elements of the SO(4) generators L("’) (’, 0) and

(ioi) ^{(0, 1)} are easily recovered with equations (23a-f), (35). ^For subgroup ^scalars (Eq. (32)),

we find : :

where R" (0, ⁰⁾ is given by :

5. Conclusion.

In paper II ^we will show how these results can be used in molecular spectroscopy ^{and how} they correlate with previous treatments (algebraic ^or not) of rotational dynamics. Obviously,

there will be a one-to-one correspondence ^{if one} restricts the analysis ^{to the} degeneracy algebra. The differences appear when one considers the ladder generators since these lead to a compact dynamical algebra ^{and hence to a} finite dimensional representation space.

Appendix.

In this section, ^we gather ^all the formulas which are used for tensor coupling and for the

computation ^{of matrix elements. When not necessary} SU(4) ^{labels are omitted.}

1. COUPLING COEFFICIENTS.

a) SO(4) coupling coefficients ^{in a} standard basis.

Most published SO(4) coupling

coefficients [17, ^25, 26] ^{are symmetry} adapted in the chain SO(4) :3 SO(3) ^{and thus differ}

from the ones we need which are first coefficients for the chain SO(4) -- SU(2) % SU(2) =3 SO(2) Q) SO(2). Keeping previous conventions [5, 36], ^the coupling ⁱⁿ SO(4) of covariant double-tensors is given by :

Where the F coefficients are a product ^{of two} SU(2) Clebsch-Gordan coefficients ; ⁱⁿ equation (A.1) ^tensor notation is used, which allows the Einstein summation convention to be

applied.

b) Symmetry adapted SO(4) coupling symbols.

^For problems encountered in molecular spectroscopy, ^as considered in part II, ^one needs double tensors and kets symmetrized ⁱⁿ SO(3) ^x SO(3) m SO(3) ^x G, ^{where G is a} point group.

These are obtained from the preceding (since SU(2) = SO(3)), through ^a unitary

transformation :

where p ^{is a} triple index p

(n, C, o- ) which labels SO(3) irreducible tensors and ket components in the chain SO(3) :D ^{G. The} missing ^label problem ^is solved, ^{i.e. the} unitary

transformation (k)G is determined, by ^the diagonalization ^{of the} appropriate subgroup ^scalar

built from the integrity basis for G scalars in the chain SO(3) zD ^G.

We then have :

where the coefficients :

are symmetry adapted Clebsch-Gordan coefficients.

Similar relations apply ^{within a chain} 0(3) ^x 0(3) :D 0(3) ^{x G} by introducing parity ^labels

in a consistent way. Such computations ^are commonly ^{used for} spherical tops [5, 33, 36, 40].

All phase conventions and appropriate 1 - j symbols ^can be found in these references.

2. WIGNER-ECKART THEOREM, REDUCED MATRIX ELEMENTS.

a) ^General formulas.

^{In the chain} SU(4) ::> SO(4) = SU(2) p SU(2), ^{we use the} Wigner-

Eckart theorem in the form :

Different phase conventions are taken for the two SU(2) algebras ⁱⁿ agreement ^with previous ^studies [5, 36]. ^{Also, in} equation (A.5), the notation for the SU(4) ^{labels is} simplified and abbreviated by ^a greek ^letter.

Likewise for a chain SO(3) ^x SO(3) :D SO(3) ^{x G, with} symmetry adapted ^kets (Eq.

(A.2)), ^{we have :}

where the F coefficients are symmetry adapted 3 j symbols.

For cases considered in this paper, ^we only need the reduced matrix element formula for ^a tensor product ^of operators defined upon the ^same space ; these ^are given by (Eq. (A.1)) :

b) ^{Reduced matrix elements} of rotational operators.

^{For these} operators, ^we necessarily

have [p ]

(f2 0 f2 ) ^{and we set :}

The choice of intermediate couplings ^is irrelevant since only « streched » products ^are

considered and the relations between the various indices is unambiguously ^defined through equations (15), (16).

The reduced matrix elements of these operators are non-zero only ^{if :}

and obtained with equation (A.7) ^{and the} expressions for the reduced matrix elements of powers of elementary ^factors given ⁱⁿ equations (42), (43). Taking ^{into account the condition}

that e or f equals ^{zero, we thus obtain :} - when e = f ^{= 0}

- when e = 0, f :0 0

- when e:0 0, f ^{= 0.}

The reduced matrix elements

are obtained from equation (A.11) multiplied by (-1 )e ^{and with the} correspondences :

References

[1] ^{EZRA, G.} S., Symmetry properties ^of molecules, ^{Lecture notes Chem. 28} (Springer Verlag, Berlin) (1982).

[2] ^{MCINTOSH, H. V.,} Group theory ^{and its} Applications, ^{Vol. II} (Academic ^{Press, New} York) (1971).

[3] BUNKER, ^P. R., Molecular Symmetry ^and Spectroscopy (Academic ^{Press, New} York) (1979).

[4] MICHELOT, F., ^Mol. Phys. ⁴⁵ (1982) 949 and 45 (1982) ^971.

JOURNAL DE

PHYSIQUE. -

50,

1,

[5] MICHELOT, ^{F., J. Mol.} Spectrosc. ¹⁰⁶ (1984) 77 and 107 (1984) ^160.

[6] HARTER, ^W. G., PATTERSON, C. W. and DA PAIXAO, ^F. J., ^{Rev. Mod.} Phys. ⁵⁰ (1978) ^37.

[7] LOETE, M., ^{J. Can.} Phys. ⁶¹ (1983) ^1242.

[8] MICHELOT, ^{F. and} MORET-BAILLY, J., ^J. Phys. ^{France 48} (1987) ^51.

[9] SHARP, R. T. and LAM, C. S., J. ^Math. Phys. ¹⁰ (1969) ^2033.

[10] ^{SHARP, R. T., Proc.} Camb. Phil. Soc. 68 (1970) ^571.

[11] GILMORE, ^{R. and} DRAAYER, ^J. P., J. ^Math. Phys. ²⁶ (1985) ^3053.

[12] GULSHANI, P., J. Can. Phys. ⁵⁷ (1979) ^998.

[13] BIEDENHARN, ^{L. C. and} LOUCK, J. D., Angular Momentum in Quantum Physics (Addison- Wesley, Reading) (1981).

[14] BOHM, ^{A. and} TEESE, R. B., ^{J. Math.} Phys. ¹⁷ (1976) ^94.

[15] ^{ANDERSON, R.} L., KUMEI, S. and WULFMAN, ^C. E., ^{J. Math.} Phys. ¹⁴ (1973) ^1527.

[16] MUKUNDA, N., O’RAIFEARTAIGH, ^{L. and} SUDARSHAN, ^{E. C.} G., Phys. Rev. Lett. 15 (1965) ^1041.

[17] ^{WYBOURNE, B.} G., Classical Lie Groups ^for Physicists (Wiley, ^New York) (1974).

[18] PERRIN, M., Thesis, University of Paris VII (1975).

[19] ^{JUDD, B. R., Second} Quantization and Atomic Spectroscopy (Johns Hopkins ^Press, Baltimore) (1967).

[20] IACHELLO, F., Interacting Bosons in Nuclear Physics (Plenum, ^New York) (1979).

[21] IACHELLO, F., Interacting Bose-Fermi Systems ^{in Nuclei} (Plenum, ^New York) (1981).

[22] ^VAN ROOSMALEN, ^O. S., IACHELLO, F., LEVINE, ^{R. D. and} DIEPERINK, ^{A. E.} L., ^{J. Chem.} Phys.

79 (1983) ^2515.

[23] KELLMAN, ^M. E., Chem. Phys. ^{Lett. 99} (1983) 437 and J. Chem. Phys. ⁸¹ (1984) ^389.

[24] BARUT, ^A. O., INOMATA, ^{A. and} WILSON, R., ^J. Phys. A ²⁰ (1987) ^4075.

[25] ^{JUDD, B. R.,} Angular ^Momentum Theory for Diatomic Molecules (Academic ^{Press, New} York) (1975).

[26] BIEDENHARN, ^L. C., ^{J. Math.} Phys. ² (1961) ^433.

[27] ^{KING, R.} C., ^J. Phys. A ⁸ (1975) ^429.

[28] BLACK, ^{G. R.} E., KING, R. C. and WYBOURNE, ^B. G., ^J. Phys. A ¹⁶ (1983) ^1555.

[29] ^{WYBOURNE, B.} G., Symmetry Principles ^{in Atomic} Spectroscopy (Wiley, ^New York) (1970).

[30] IACHELLO, ^{F. and} LEVINE, ^R. D., ^{J. Chem.} Phys. ⁷⁷ (1982) ^3046.

[31] PIEPENBRING, R., SILVESTRE-BRAC, B. and SZYMANSKI, Z., ^J. Phys. ^{France 48} (1987) ^577.

[32] ^{HECHT, K. T. and PANG, S. M., J. Math.} Phys. ¹⁰ (1969) ^1571.

[33] MORET-BAILLY, J., Cah. Phys. ¹⁵ (1961) ^237.

[34] ^{CHAMPION, J. P., J. Can.} Phys. ⁵⁵ (1977) ^1802.

[35] QUESNE, C., J. Phys. ^{A 18} (1985) ^2675.

[36] MICHELOT, F., BOBIN, ^{B. and} MORET-BAILLY, J., J. Mol. Spectrosc. ⁷⁶ (1979) ^374.

[37] ^{WIGNER, E. P., Quantum} Theory ^of Angular Momentum, Biedenharn and Van Dam eds.

(Academic ^{Press, New} York) (1965).

[38] ^{PECCIA, A. and} SHARP, ^R. T., ^{J. Math.} Phys. ¹⁷ (1976) ^1313.

[39] ALISAUSKAS, S., J. Phys. A ¹⁹ (1986) ^1761.

[40] ^{CHAMPION, J.} P., PIERRE, G., MICHELOT, ^{F. and} MORET-BAILLY, J., J. Can. Phys. ⁵⁵ (1977) ^512.
