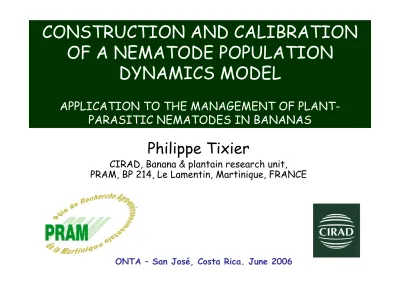

CONSTRUCTION AND CALIBRATION OF A NEMATODE POPULATION
DYNAMICS MODEL
APPLICATION TO THE MANAGEMENT OF PLANT-PARASITIC NEMATODES IN BANANAS
Philippe Tixier
CIRAD, Banana & plantain research unit,
PRAM, BP 214, Le Lamentin, Martinique, FRANCE
Why modelling population dynamics
of nematodes ?
·To formalize the nematologist knowledge
·To integrate multiple factors and processes
in interaction
·To catch the dynamical aspects
·To have a predictive tool (an in silico lab) ·To have a comprehensive approach of
complex systems
What makes modelling plant-parasitic
nematode dynamics difficult ?
·The difficulties to evaluate
nematode population size:
·Aggregative distribution
·Not always reliable counting methods
·The need to integrate numerous
factors with their own dynamics
·The need to have a mechanistic and
Objectives of a useful model
·To simulate at the field scale the evolution of
dynamics of plant-parasitic nematodes (in the
case of banana cropping systems : Radopholus
similis and Pratylenchus coffeae)
·To take into account : soil, climate, plant
characteristics, interaction among nematode species, different initial populations, effect of pesticide applications
Modelling framework
·Based on a global cropping system
model (SIMBA,)
·Specifically developed for bananas
·Developed on the Stella HPS®
plateform
SIMBA modelling framework
DECISION PROCESS GENERATOR
MULTICRITERION EVALUATION QUALITATIVE QUALITATIVE MODEL MODEL BIOPHYSICAL MODEL BIOPHYSICAL MODEL SOIL CLIMATE Pesticides risk Erosion risk Soil quality NEMATODES DYNAMICS SOIL COVER, STRUCTURE, NITROGEN… WATER BALANCE ECONOMIC RESULTS Profit margin AGRONOMIC PERFORMANCES Harvest dynamic ENVIRONMENTAL IMPACTS
Pesticides risk notes
Field scale Week step CROPS POPULATION GROWTH YIELD
Model assumptions
Life-cycle of nematodes :
1. mature after 3 weeks
2. after 6 weeks nematodes die
3. Carrying capacity depends on root
0 100 200 300 400 500 600 0 50 100 150 200 250
Young banana roots biomass (simulated)
weeks
Synchronized population Unsynchronized population
Model assumptions
Life-cycle of nematodes :
1. mature after 3 weeks
2. after 6 weeks nematodes die
3. Carrying capacity depends on root
biomass (Quénéhervé 1989, 1993; Sarah 1986)
4. ≠ species compete for the root
resource (Duncan and Ferris, 1982; Shoener, 1983; Cadet and Debouzie, 1990; Umesh et al., 1994)
Model assumptions
5.
Population growth follows logistics
functions
(Ganry, personal communication; Hugon etModel assumptions
Logistic function 0 20 40 60 80 100 120 0 10 20 t N K c.N.(K-N) N dN dt = Carrying capacityModel assumptions
5.
Population growth follows logistics
functions
(Ganry, personal communication; Hugon etal., 1984; Quénéhervé, 1988; Quénéhervé, 1989)
6.
Soil water content influence
growth rate
(Hugon et al., 1984; Mateille et al.,1988; Quénéhervé, 1988; Quénéhervé, 1989; Vilardebo, 1984)
7.
Quantity of nematicide in soil
influence the growth rate
(Cavelier, 1987;Model features
·Time step : 1 week
·Spatial scale : 1 plot ·Stock & flow model
·Inputs:
·climate,
·soil characteristics,
·Initial populations of each species
·Output:
Schematic of SIMBA-NEM
1
Cohort
Rs 1 CohortRs 2 CohortRs 3 CohortRs 4 CohortRs 5 CohortRs 6
Rs mature Root Biomass Nematicide Soil water content Cohort
Pc 1 CohortPc 2 CohortPc 3 CohortPc 4 CohortPc 5 CohortPc 6
Pc mature C Pc K Pc
1
C Rs K Rs Rs1 = (CRs * Rsmature) * ((KRs – Rstotal) / KRs)1 cohort represents of individuals of the same age (in week)
Schematic of SIMBA-NEM
0 0,5 1 0 0,5 1 Environmental factor Co rr ec ti ve c oef fi ci en t Optimal value Maximal reduction Maximal reductionModel calibration and testing
·Calibration & validation realized
with a wide range of field
experiments realized in Guadeloupe and Martinique 0 100 200 300 400 500 600 0 10 20 30 40 50 60 70 Week of simulation N em at od e popu la tion (p er g ram o f f resh ro ot bi om as s)
crspot 0,4 crspot 0,6 crspot 0,8 crspot 1,0
·Sensitivity
analysis on parameters and inputs
Some simulations
0 50 100 150 200 250 300 350 400 450 40 45 50 55 60 65 70 75 80Weeks since planting
Ne ma tode population (per gram of fresh root biomass) 0 50 100 150 200 250 300 350 400 R o ot biom as s (gr a m.m -2 )
Rs Field data Rs Simulation Root biomass
Nematicide applications Nematicide applications
Some simulations
0 100 200 300 400 500 600 20 40 60 80 100 120Weeks since planting
N ematode population (p er g ram of f res h r oot biom as s) 0 90 180 270 360 R o ot biomass (gra m .m -2 )
Rs simulation Rs field data 11 Pc simulation Pc field data 11 Root biomass
Nematicide application
What it permits to do ?
·Forecast when the populations
will growth
·Estimate the population level : nil,
low, medium, high
·Assess
ex-ante
the effect of theprevious crop in different environments
How to use SIMBA-NEM to help the
field management ?
100 120 140 160 180 200 220 0 10 20 30 40 50 60 70 80 90 100Week of nematicide application
M
ean nematode population (per gr
am of
fr
esh ro
ot biomass)
Future activities
·Implement different cultivars
and clones of banana Æ test scenarios
·Scaling down the model from the
field to the plant
·Integrate the contamination of
fields
·Takes into account the
interactions between nematodes and cover-crops…
