Quantum Tunneling
Philippe Ohresser, Hervé Bulou, S.S. Dhesi, C. Boeglin, Bence Lazarovits,
Emilie Gaudry, Idrissou Chado, J. Faeber, Fabrice Scheurer
To cite this version:
Philippe Ohresser, Hervé Bulou, S.S. Dhesi, C. Boeglin, Bence Lazarovits, et al.. Surface Diffusion of Cr Adatoms on Au(111) by Quantum Tunneling. Physical Review Letters, American Physical Society, 2005, 95, pp.195901. �10.1103/PhysRevLett.95.195901�. �hal-00978036�
Surface Diffusion of Cr Adatoms on Au(111) by Quantum Tunneling
P. Ohresser,1,* H. Bulou,2S. S. Dhesi,3,†C. Boeglin,2B. Lazarovits,4E. Gaudry,5I. Chado,6J. Faerber,2and F. Scheurer2 1
Laboratoire pour l’Utilisation du Rayonnement Electromagne´tique, UMR 130 CNRS-Universite´ Paris Sud, 91898 Orsay (France)
2Institut de Physique et Chimie des Mate´riaux de Strasbourg, UMR 7504 CNRS-Universite´ Louis Pasteur,
23 rue du Loess, 67034 Strasbourg (France)
3European Synchrotron Radiation Facility, BP 200, F-38043 Grenoble, France
4Center for Computational Materials Science, Technical University Vienna, Gumpendorferstrasse 1a, 1060 Wien (Austria) 5
Laboratoire de Mine´ralogie et Cristallographie de Paris, 4 place de Jussieu, 75252 Paris (France)
6Physikalisches Institut, Universita¨t Wu¨rzburg, Am Hubland, 97074 Wu¨rzburg, (Germany)
(Received 1 August 2005; published 1 November 2005)
The low-temperature surface diffusion of isolated Cr adatoms on Au(111) has been determined using nonperturbing x rays. Changes in the x-ray magnetic circular dichroism spectral line shape together with Monte Carlo calculations demonstrate that adatom nucleation proceeds via quantum tunneling diffusion rather than over-barrier hopping for temperatures <40 K. The jump rates are shown to be as much as 35 orders of magnitude higher than that expected for thermal over-barrier hopping at 10 K.
DOI:10.1103/PhysRevLett.95.195901 PACS numbers: 61.50.Ah, 66.10.Cb, 68.35.Fx, 68.43.Jk
Quantum tunneling is one of the most intriguing prop-erties of matter and fundamental in numerous phenomena in physics and chemistry. Among the most outstanding advances allowed by quantum tunneling, one finds atomic imaging [1] that led to atomic manipulation and the dis-covery of quantum mirages [2], and more recently, cascad-ing surface molecules used to operate elementary nano-scale computers [3]. Classically, a particle is trapped unless it gains enough energy to overcome the surrounding energy barrier, but quantum mechanically a particle can tunnel through the barrier provided that its de Broglie wavelength [4] is large enough. Since the de Broglie wavelength decreases with particle mass and temperature, surface quantum tunneling has so far been observed only for light particles. For instance, hydrogen and its isotopes, depos-ited on metal surfaces, exhibit a clear transition from thermal over-barrier hopping to quantum tunneling diffu-sion [5–9]. In principle, quantum tunneling diffudiffu-sion should be observable for much heavier surface adatoms, but this requires a low surface potential corrugation, a highly sensitive nonperturbing probe, and a surface evolv-ing at a detectable rate. Isolated surface adatoms, which nucleate to form stable clusters of several adatoms, provide an ideal system with which to study quantum tunneling.
Upon clustering, charge transfer and hybridization leads to distinct changes in electronic structure which can be determined using x-ray absorption spectroscopy (XAS). Unfortunately, subtle changes in spectroscopic measure-ments are often difficult to detect. However, x-ray mag-netic circular dichroism (XMCD), which measures the difference between two XAS spectra recorded with oppo-sitely polarized x rays, can detect unitary changes in sur-face adatom coordination [10,11] making it ideal to study surface diffusion. The reason for this is that XMCD in-volves selection rule governed transitions from core levels to unoccupied states just above the Fermi level. These unoccupied states are highly sensitive to the local atomic
coordination [12]. Whereas single 3d adatoms exhibit sharp multiplet peaks in the L2;3 XMCD spectrum [10],
coordinated adatoms exhibit much broader band structure features. Compared to diffusion coefficients measured us-ing field ion microscopy or scannus-ing tunnelus-ing microscopy [13], the benefit of XMCD is the large spatial averaging (105 m2) and the nonperturbative x-ray approach.
An Au(111) surface combines a low potential barrier height [14,15] and a close packed array of adsorption sites which should make quantum tunneling diffusion rates comparable to thermal diffusion rates at low temperatures. A collection of initially isolated adatoms, obtained by depositing minute amounts of Cr at 10 K, has a particular XMCD spectral line shape which can be changed by adatom aggregation via deposition of additional material [10,11]. On the other hand, the exact same changes in the XMCD line shape can be realized by measuring the system again after a few thousand seconds depending on the surface temperature. If the surface temperature is raised then the evolution of the line shape is faster, but exactly the same XMCD spectra are obtained.
In this Letter, we demonstrate surface quantum tunnel-ing diffusion of Cr adatoms on an Au(111) surface ustunnel-ing the time evolution of XMCD spectra measured at the Cr
L2;3edges. The changing line shape of the XMCD spectra
allows a Monte Carlo based analysis of the jump rates which are compared to theoretically calculated rates. The jump rates measured using XMCD are many orders of magnitude higher than those predicted by a thermal diffu-sion model, but close to those estimated using a quantum tunneling model.
The Au(111) surface was cleaned in situ by Ar ion
sputtering and annealing cycles at 1000 K in a ultra high vacuum chamber connected to a 7 T superconducting magnet chamber with cryopumping. After such a cleaning procedure the gold single crystal shows atomically flat terraces over several hundred nanometers, separated by
monoatomic steps, as checked by scanning tunneling mi-croscopy. Chromium was evaporated by electron beam heating of a Mo crucible containing high purity Cr crys-tallites. The evaporations were performed for various sub-strate temperatures ranging from 10 K to 300 K in the cryopumped magnet chamber under a pressure below 1 108Pa. The deposited amount of Cr was estimated with the XAS edge jump height of the Cr L2;3edges as discussed
in Ref. [16]. The XMCD experiments were performed on beam line ID08 at the European Synchrotron Radiation Facility (ESRF). The x-ray absorption spectra at the Cr L2;3
edges were recorded for left and right circularly polarized light with a 7 T applied magnetic field, parallel or antipar-allel to the light polarization vector. The XMCD spectra were recorded with the incoming light normal to the sur-face. A set of XMCD spectra for the two light helicities is measured in about 5 min. During the whole deposition-measure procedure the sample is mounted on a cryogenic sample holder with a cold reservoir at 4 K located in the gap center of the liquid helium surrounded superconduct-ing magnet.
As a function of Cr coverage and recording time after the deposition, different shapes of the Cr L2;3 XMCD
spectra are observed (Fig. 1). For a surface density of 0:05 atom=nm2 (0.004 atomic layers), random
deposi-tion simuladeposi-tions show that 99% of the adatoms are isolated
after deposition. The XMCD spectrum with characteristic multiplet features for a very low Cr surface density of 0:05 atom=nm2 differs notably from the spectrum
ob-tained for a full Cr atomic layer (14 atoms=nm2)
[Fig. 1(a)]. The XMCD spectrum obtained for the mono-layer situation is characteristic of highly coordinated Cr atoms and arises from the weak antiferromagnetic suscep-tibility of Cr. The atomiclike spectrum is in excellent agreement with atomic multiplet calculations [17] for iso-lated Cr atoms with a d5 electronic ground state
configu-ration [Fig. 1(a)].
The isolated character of the Cr adatoms is also con-firmed by the analysis of XMCD magnetization curves shown in Fig. 2, obtained by recording the maximum XMCD intensity as a function of the applied magnetic field. The vertical scale is rescaled in Bohr magnetons per atom by applying sum rules [18] to the complete XMCD spectrum, with the number of d holes being 5.43, obtained from electronic structure calculations. The mag-netization curve is well described by a Brillouin function representing the paramagnetic phase of a collection of isolated noninteracting adatoms. The total magnetic mo-ment extracted from a Brillouin function fit is m 4:5 0:4B per atom, in good agreement with fully relativistic electronic structure calculations using the embedding tech-nique within the Korringa-Kohn-Rostoker method [19] giving ms 4:45B and ml 0:02B for a single Cr atom in an fcc site on Au(111). In the low Cr coverage limit, the initial XMCD spectrum progressively loses its atomic character as a function of time due to aggregation of adatoms through surface diffusion. Figure 1(b) displays the changes in the XMCD measured for a surface density of 0:7 atom=nm2. Monte Carlo simulations show that for a
Cr density of 0:7 atoms=nm2 [Fig. 1(b)] a collection of
isolated adatoms evolves towards dimers and trimers which can be considered as stable [20,21]. The resulting XMCD spectrum has a shape identical to that recorded for a Cr monolayer. This shows that, within the experimental
FIG. 1 (color online). (a) XMCD spectra for a collection of isolated atoms (0:05 atom=nm2) and for a full monolayer Cr
film (14 atoms=nm2), deposited at 10 K. The continuous line
is a multiplet-based calculation for a single Cr atom with a d5
electronic configuration. (b) Time evolution of the XMCD for a surface adatom density of 0:7 atom=nm2 on Au(111)
depos-ited at 10 K. The line is a linear combination of the experimental atomic and bulklike XMCD spectra.
FIG. 2 (color online). XMCD magnetization curve recorded at the L3Cr edge at T 10 K for a collection of isolated Cr atoms.
The full line is a Brillouin function fit.
resolution, two types of XMCD spectra can be distin-guished, an atomiclike spectrum for isolated Cr atoms and a bulklike spectrum as soon as the Cr atoms aggregate to form dimers.
Alternative origins of the time evolution can be ruled out. A collection of isolated adatoms unexposed to the beam shows the same changes in the XMCD spectrum for a delayed first measurement implying that the x-ray beam is indeed nonperturbing. Surface contamination can definitely be excluded since: (i) The time-evolved XMCD spectra for single adatoms is identical to the spectrum for a clean Cr monolayer; (ii) Increasing the substrate tempera-ture from 10 K to 40 K significantly speeds up the time evolution of the XMCD spectra; (iii) No evolution is observed at low temperature for small clusters containing several tens of atoms deposited at higher temperatures. (iv) Exposure to several langmuirs of CO leads to spectra with pronounced multiplet structures, different from the time-evolved spectra.
An XMCD spectrum at a given time during diffusion can therefore be decomposed as a linear combination of atomic and bulk spectra [Fig. 1(b) middle spectrum, solid line]. This decomposition allows the ratio, R, of isolated Cr adatoms to the total number of Cr adatoms to be deter-mined during the diffusion process. This is illustrated in the inset of Fig. 3 for a 0:05 atom=nm2 surface atomic
density of Cr. The approach also allows R to be determined for different initial surface coverages. Figure 3 displays the coverage dependence of R calculated from the deconvolu-tion of the XMCD spectra recorded during the first 600 s after the end of the deposition. The proportion R obtained by a random walk simulation is also shown in Fig. 3 (lines) for two different numbers of Monte Carlo steps (NMC). The
as deposited Monte Carlo situation (NMC 0) does not fit
the experimental data, and 35 Monte Carlo steps are nec-essary to reproduce the experimental data points between 10 and 30 K. These 35 Monte Carlo steps correspond to the evolution of the system during the 600 s it takes to reliably record the first XMCD spectra. At 40 K, about 3500 Monte Carlo steps are needed. Above 40 K, the time evolution is too fast to be detected experimentally. In the temperature range from 10 to 30 K, the number of Monte Carlo steps necessary to reproduce the time evolu-tion of the system after 600 s is temperature independent, and therefore rules out any thermal activated effects. From the time evolution of R, via a scaling to the Monte Carlo number of steps, one deduces an average experimental jump rate (exp) of the Cr adatoms which is shown in
Table I. Also shown in Table I is the surface diffusion coefficient (Dexp) which is given by Dexp
3 p 4 r 2 0exp for
an fcc(111) surface, where r0is the lattice parameter which
is 2.86 A˚ for Au(111). The time dependence of R shows two different diffusion regimes for the Cr adatoms, a temperature independent one below 40 K and a tempera-ture dependent one above.
In the thermally activated regime, at 40 K, one can de-duce the energy barrier height, Ea, through the Arrhenius
formula [22,23] therm 0exp kEa BT (1) where kBis the Boltzman constant, T the temperature, 0is
a prefactor which contains dynamical quantities and therm
is the thermal jump rate. Typically 0 ’ 1012–1013 Hzfor
most surfaces [24]. The value of Eais found to be’100 15 meV, in excellent agreement with a theroretical value of 98 meV obtained via the nudged elastic band method in the framework of the modified embedded atom method [14,25– 27]. The parameters given in Refs. [26,27] for the gold and chromium potentials, respectively, have been used while the cross-potential between Au and Cr has been fitted with first-principles calculations. The value of Ea ob-tained is similar to those obob-tained on related systems [15]. The temperature independence of the experimental jump rate between 10 and 30 K is shown in Table I. These values show a striking contrast to the temperature dependence of a thermally activated jump rate. The temperature indepen-dent behavior of the site-to-site hopping rates below 40 K is a hallmark of a quantum tunneling process [7–9] imply-ing that classical thermally activated surface diffusion can be excluded as the origin of the Cr adatom diffusion in this temperature regime. Indeed, in the considered temperature range, the de Broglie wavelength of a Cr adatom B 2@=
3mkBT p
becomes comparable to the site separation distance (1 A), making quantum tunneling possible (@ is the reduced Planck constant and m the mass of the Cr atom). A full quantum treatment of the surface diffusion, taking into account the surface potential and its dynamical aspects [7], cannot be presented here. However, a useful
FIG. 3. Ratio R of the number of isolated Cr adatoms to the total number of deposited Cr atoms as a function of coverage, as determined from XMCD spectra for several coverages and temperatures. Lines represent Monte Carlo simulation of R for a random atomic deposition, NMC 0 (dashed line) and after
NMC 35 Monte Carlo steps (solid line) for a random atomic
diffusion. The error on the coverage is less than 10%. Inset: time evolution of R at 10 K for a 0.004 atomic layer Cr deposit (0:05 atom=nm2) (disks) and corresponding Monte Carlo
analytical formula for the tunneling jump rate can be derived for a one-dimensional parabolic double-well po-tential. For the fundamental energy level, the tunneling jump rate, tun, is approximated by [28]
tun 2! 3=2 2Ea @! s exp 2E@!a (2) with ! 2Ea=m b2 p
; b is the barrier width [b 0:8 A for Au(111)]. With Ea 100 15 meV, one obtains tun 106–102Hz. Although this model represents a
crude simplification, one can notice that the tunneling site-to-site hopping rate is more than 30 orders of magnitude larger than the thermal rate at 10 K, in far better agreement with the experimental values.
In summary, the sensitivity of XMCD to the surface atomic coordination has been used to study low-temperature diffusion of Cr adatoms on Au(111). The analysis of the time evolution of the XMCD spectra via Monte Carlo simulations has allowed the determination of the jump rates. In the thermally activated regime, (i.e., T > 40 K), the measured energy diffusion barrier is100 meV for Cr adatoms migrating on Au(111), in good agreement with the theoretical value. For T < 40 K, where the clas-sical description of thermal diffusion does not allow further adatom diffusion, the motion of Cr adatoms was observed over a time scale of several hundred seconds. This ex-tremely fast diffusion of Cr adatoms on Au(111) is attrib-uted to quantum tunneling.
We are grateful to N. B. Brookes for constant support on ID08 and to Professor M. F. Crommie, F. Bardou, C. Goyhenex, J. Repp, M. Romeo, D. Weinmann, and A. Boeglin for fruitful discussions. The work of B. L. was supported by the Center for Computational Materials Science (Contract No. GZ 45.531). The late Kenneth Larsson provided valuable insight into this work.
*Present address: Synchrotron SOLEIL, L’Orme des Merisiers, Saint Aubin, BP 48, F-91192 Gif sur Yvette, France.
Electronic address: philippe.ohresser@synchrotron-soleil.fr
†Present address: Diamond Light Source, Chilton, Didcot,
OX11 0QX, United Kingdom
[1] G. Binnig et al., Phys. Rev. Lett. 49, 57 (1982).
[2] H. C. Manoharan, C. P. Lutz, D. M. Eigler, Nature (London) 403, 512 (2000).
[3] A. J. Heinrich et al., Science 298, 1381 (2002). [4] L. de Broglie, Nature (London) 112, 540 (1923). [5] L. J. Lauhon and W. Ho, Phys. Rev. Lett. 85, 4566 (2000). [6] A. Yazdani, Nature (London) 409, 471 (2001), and refs.
therein.
[7] V. Pouthier and J. C. Light, J. Chem. Phys. 113, 1204 (2000).
[8] L. Y. Chen and S. C. Ying, Phys. Rev. Lett. 73, 700 (1994).
[9] T. R. Mattson, U. Engberg, and G. Wahnstro¨m, Phys. Rev. Lett. 71, 2615 (1993).
[10] P. Gambardella et al., Phys. Rev. Lett. 88, 047202 (2002).
[11] P. Gambardella et al., Science 300, 1130 (2003). [12] J. Sto¨hr, J. Electron Spectrosc. Relat. Phenom. 75, 253
(1995).
[13] J. Repp et al., Phys. Rev. Lett. 91, 206102 (2003). [14] H. Bulou and B. Lazarovits (unpublished). [15] S. Rohart et al., Surf. Sci. 559, 47 (2004). [16] P. Ohresser et al., Phys. Rev. B 62, 5803 (2000). [17] See, e.g., F. de Groot, Chem. Rev. 101, 1779 (2001). [18] B. T. Thole et al., Phys. Rev. Lett. 68, 1943 (1992);
P. Carra et al., Phys. Rev. Lett. 70, 694 (1993).
[19] See, e.g., P. Weinberger, Electron Scattering Theory for
Ordered and Disordered Matter (Clarendon, Oxford, 1990).
[20] J. A. Venables, G. D. T. Spiller, and M. Handbu¨cken, Rep. Prog. Phys. 47, 399 (1984).
[21] T. Jamneala, V. Madhavan, and M. F. Crommie, Phys. Rev. Lett. 87, 256804 (2001).
[22] S. Arrhenius, Z. Phys. Chem. (Leipzig) 4, 226 (1889). [23] T. Ala-Nissila, R. Ferrando, S. C. Ying, Adv. Phys. 51, 949
(2002).
[24] S. Ovesson et al., Phys. Rev. B 64, 125423 (2001). [25] H. Jo´nsson, G. Mills, and K. W. Jacobsen, in Classical and
Quantum Dynamics in Condensed Phase Simulations, edited by B. J. Berne, G. Ciccotti, and D. F. Coker (World Scientific, Singapore, 1998), p. 385.
[26] Byeong-Joo Lee et al., Phys. Rev. B 64, 184102 (2001). [27] Byeong-Joo Lee, Jae-Hyeok Shim, and M. I. Baskes, Phys.
Rev. B 68, 144112 (2003).
[28] E. Merzbacher, Quantum Mechanics (J. Wiley, New York, 1970).

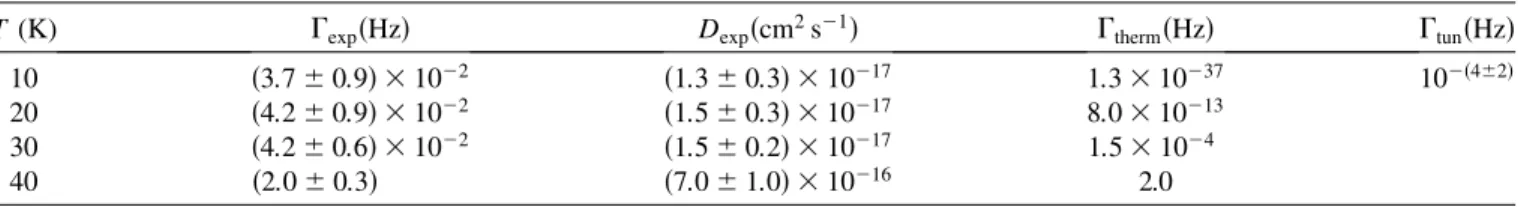

TABLE I. Experimental jump rates, exp, the corresponding diffusion coefficients, Dexp, and thermally activated diffusion jump
rates, therm, calculated for an energy activation barrier Ea 100 meV. The prefactor 0 is 5 1012 Hz. The tunneling jump rate,
tun, has been calculated for a one-dimensional parabolic double-well potential.
T (K) exp Hz Dexp cm2s1 therm Hz tun Hz
10 3:7 0:9 102 1:3 0:3 1017 1:3 1037 10 42
20 4:2 0:9 102 1:5 0:3 1017 8:0 1013
30 4:2 0:6 102 1:5 0:2 1017 1:5 104
40 2:0 0:3 7:0 1:0 1016 2.0
