R E V I E W
Open Access
Micro computed tomography for
vascular exploration
Lyubomir Zagorchev
1,2,3,4, Pierre Oses
5,6, Zhen W Zhuang
7, Karen Moodie
1,2, Mary Jo Mulligan-Kehoe
1,8,
Michael Simons
7, Thierry Couffinhal
5,6*Abstract
Vascular exploration of small animals requires imaging hardware with a very high spatial resolution, capable of differentiating large as well as small vessels, in both in vivo and ex vivo studies. Micro Computed Tomography (micro-CT) has emerged in recent years as the preferred modality for this purpose, providing high resolution 3D volumetric data suitable for analysis, quantification, validation, and visualization of results. The usefulness of micro-CT, however, can be adversely affected by a range of factors including physical animal preparation, numeri-cal quantification, visualization of results, and quantification software with limited possibilities. Exacerbating these inherent difficulties is the lack of a unified standard for micro-CT imaging. Most micro-CT today is aimed at particu-lar applications and the software tools needed for quantification, developed mainly by imaging hardware manufac-turers, lack the level of detail needed to address more specific aims. This review highlights the capabilities of micro-CT for vascular exploration, describes the current state of imaging protocols, and offers guidelines and suggestions aimed at making micro-CT more accurate, replicable, and robust.
Introduction
Micro Computed Tomography (micro-CT) presents unique opportunities for highly quantitative three dimensional imaging of models of disease implanted or induced in animal models. It is a structural imaging modality that can differentiate contrast-enhanced tissues or structures with high attenuation factors from non-enhanced soft tissues. Traditional use of micro-CT includes in vivo and ex vivo imaging applications such as screening for anatomical abnormalities and detection and quantification of anatomical changes in live animals or tissue samples removed from sacrificed animals. Micro-CT also plays an increasingly important role in the study of angiogenesis, a process that occurs naturally during development, tissue repair or abnormally in pathologic diseases.
Studying vascular development or the mechanisms of neovascularisation (angiogenesis, arteriogenesis or vascu-logenesis) and evaluating the effects of pro or anti-angiogenic strategies require complete and accurate ana-lysis of the neoformed vascular network. However,
methods of assessment, such as histology with confocal or two-photon microscopy, laser Doppler, microangio-graphy, fluorescent microspheres, magnetic resonance angiography, positron emission tomography, are not always precise or quantitative; they focus on a limited area of study, reveal capillary density primarily in 2 dimensions, and represent superficial blood flow (for details see review [1]). Currently, micro-CT is the only structural imaging modality that provides a high resolu-tion volumetric representaresolu-tion of vascular structures that directly reflects the level of angiogenesis or inhibi-tion/development of neo-vasculature. In combination with functional information from other imaging modal-ities such as fNMR, MicroPET, Ultrasound, or micro-scopy, micro-CT has the potential to advance the angiogenesis related research even further [2].
The spatial resolution of micro-CT volumes strictly depends on the X-ray source/detector geometry, which is dictated by the type of scanner. Currently, typical in vivomicro-CT scanners have resolutions ranging from 100 to 30 μm, while ex vivo scanners have resolutions from 30 to 1 μm.
In this review, mainly focused on micro-CT analysis of angiogenesis, we will describe standard protocols for animal preparation and the properties of contrast agents
* Correspondence: [email protected]
5
Inserm U828, Plateforme d’Innovation Biotechnologique de Xavier Arnozan, Université Victor Ségalen Bordeaux 2, Pessac, France
© 2010 Zagorchev et al; licensee BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/2.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
and vehicles to properly visualize vessels. The successive steps of image analysis, traps, and difficulties of quantifi-cation will be thoroughly detailed. Current limitations of micro-CT in vascular research will be addressed. We will also discuss other vascular applications and uses of micro-CT and perspective of its vascular application.
Standard protocols for animal preparation
As with all imaging methods, animal positioning and preparation (pressure and or volume of infused con-trast and solutions) should be as uniform as possible. In general, the animal is heparinized (100 IU/Kg ip) and deeply anesthetized (Ketamine/Xylazine 100 mg/ kg/10 mg/kg). The animal is fixed into position on its back. When filling vessels for hindlimb ischemia or flank tumor analysis, the chest is opened and a cannula is sutured into the descending aorta with the tip of the needle facing the tail. The inferior vena cava is cut to allow infused solutions to exit the body. When filling the aorta for imaging of vasa vasorum, we have found that placing the cannula into the left ventricle and into the ascending aorta followed by a suture to hold this in place and prevent contrast from leading backwards works well. It may be helpful to notch the cannula cir-cumferentially to hold the suture in place on the ves-sel. Filling of the heart vessels may be done by placing the cannula retrograde into the thoracic aorta. The contrast does not enter the left ventricle with an intact aortic valve, yielding a cleaner image. Saline solution (37°C, containing vasodilating agents such as adenosine and papaverin) is infused at 100 mmHg for 3 minutes to clear the specimen of blood and dilate the vessels to assist in maximum filling. At this point fixation with 2-4% paraformaldehyde may be desired. Fixation will allow for specimen preservation but may shrink vessels thus reducing filling of smaller vessels. The specimen is then ready for contrast infusion. Care should be taken to minimize bubbles in the fluid line as this may block filling of smaller vessels. For complete filling of vessels (arteries and veins), it is desirable to continue infusion of contrast past the point when it can be seen exiting the vena cava. If arterial filling alone is desired, it is necessary to administer a controlled volume of contrast agent and to use an agent that can be solidi-fied rapidly when the agent has filled the desired vas-culature. Also, it is important to limit the vessels that are damaged during animal preparation as the contrast will leak out of severed vessels changing the pressure and volume that are required for complete filling. Once the vasculature is filled and the contrast solidi-fied, the specimen can be imaged immediately. Alter-natively, the specimen may be placed in a suitable fixative (10% formalin, PFA Zinc, etc.).
Contrast agents
Unlike bony anatomy, blood vessels provide very little inherent contrast for micro-CT imaging. The implemen-tation of novel vascular contrast agents and vehicle has resulted in several new applications for micro-CT in the evaluation of micro vascular anatomy. Important func-tional and technical specifications of such contrast agents include high radio opacity, ease of manipulation and injection and physical properties adaptable to filling the desired vascular bed or organ.
Most clinical X-ray contrast agents are based on the element iodine. They are water soluble and therefore suitable for clinical radiography applications. Radiologi-cal contrast agents are water soluble solutions as well. One commonly used variety is based on a suspension of large insoluble particles of barium sulphate. The latter have better coating properties than the iodinated con-trast media, and tend to form thin layers spread over the lining of tubes. However, it has been proven that insoluble particles tend to settle quickly and impair con-trast homogeneity. This problem could be solved in part by using pulverized barium sulphate with 1 μm particles. Many other elements have higher atomic numbers than barium and can be used as contrast agents. Bismuth and lead (Pb) are good examples.
Contrast agents for ex vivo imaging
Viscosity is one of the most important properties of the vehicle, because it influences contrast agent behavior and its applications for micro-CT (see Additional file 1 and table S1 for more details). The contrast agent must completely fill the vascular network to allow a precise study of the microcirculation: the actual resolution of vessels imaged with micro-CT is in the range of 5 to 20 μm (i.e., the effective voxel size). Depending on the contrast properties (especially viscosity), penetration of the vehicle through the vessel tree could be limited. For example, in an arterial injection, increased viscosity lim-its vehicle penetration at the arteriolar level only (capil-laries are not filled). This aspect could be of great interest in arterial/venous delineation in micro-CT ana-lysis, as the vehicle does not flow freely through the capillary network and filled the vein system. Other criti-cal technicriti-cal specifications for an appropriate contrast agent include:
• Absence of diffusion out of blood vessel after ani-mal death.
• Limited medium shrinkage that could lead to ves-sel deformation or impaired quantification.
• Addition of inert dye, to provide delineation within the circulatory tree for microscopic vessel examina-tion and analysis.
• Ease of manipulation and injection in small animals.
• Homogeneity of contrast agent solution
Silicone rubber has been extensively used as a filling agent to study micro-vasculature, because of its inert properties. A lead-containing radiopaque silicone rubber called Microfil (Microfil, Flow Tech, Carver, MA) has been widely reported in micro-CT studies [3]. It has a low viscosity that allows it to fill completely the vascular compartments with little resistance [4,5]. Coming from different reports, this compound completely fills the arterial vasculature when perfused at physiological pres-sure and flows freely from the veins [6,7]. The hydro-phobic properties of silicone rubber keep it contained within the vascular compartment, and extravasation has only been reported in situations such as inflammation where physical leaks are present [6].
Neoprene latex 671 (Dupont de Nemours) is a liquid synthetic rubber composed of polychloroprene homopo-lymer with high tensile strength, high elongation, excel-lent film formation without curing, and considerable resistance to degradation from chemical or environmen-tal exposure. Because of its low viscosity, this compound fills the arterial vasculature down to 20 μm size vessels when it is perfused at physiological pressure. In our experiments, we never observed any extravasation of latex in tissue or any vessel damage due to neoprene polymerization [8].
Gelatin at 5 to 10% concentration has also been used as a vehicle compound with bismuth or barium sulfate [9,10]. This enabled complete filling of entire microvas-culature under physiologically relevant perfusion pres-sure [11]. Other groups have used Batson’s No. 17 polymethylmethacrylate with an added lead pigment [9].
Contrast agents for in vivo imaging
It is not uncommon for in vivo studies to take 30-120 minutes. Such long scan times necessitate either a long-circulating contrast agent or continuous infusion of con-trast material. Concon-trast agents used for in vivo imaging can be administered repeatedly to the animal, eliminat-ing the need to sacrifice and assay multiple animals at various time points in longitudinal studies.
Different groups report the use of conventional iodi-nated vascular contrast agent encapsulated within poly-ethylene glycol-stabilized liposomes, showing stable enhancement of the intravascular space for more than 3 hr [12]. The Fenestra product line is based on iodinated triglycerides contained in the lipophilic cores of oil-in-water lipid emulsions similar to the naturally-occurring chylomicron remnants. It provides long-lasting visualiza-tion of vascular systems with micro-CT. Others have used pluronic F127 and a naturally iodinated compound,
Lipiodol to form radiopaque nanoreservoir structures with good success [13].
Collectively, the vasculature can be efficiently explored with a combination of contrast agent and vehicle. Nota-bly, it should be pointed out that the ease of handling is another critical parameter. Investigators could modulate the viscosity of the injected compound depending on the target organ and the vascular bed that require filling.
Image analysis
With the help of contrast agents, micro-CT scanners provide high resolution structural 3D information of blood vessels and offer unique opportunities for ima-ging, quantification, and analysis of various vascular structures. A number of examples demonstrating the resolution and capabilities of micro-CT are shown in Figures 1 and 2. Image analysis of micro-CT involves techniques such as registration, segmentation, quantifi-cation, and visualization.
Image registration
Image registration computes a transformation or a deformation field that can be applied to one volume to align with another [14-18]. Specifically, functional ima-ging modalities such as microPET or SPECT reveal valuable insights into biochemical, physiological, and pharmacological processes in vivo. Their major limita-tion, however, is the lack of high spatial resolution and detailed anatomical or vascular information. This pro-blem that can be easily alleviated by using complemen-tary information provided by micro-CT and image registration. As illustrated in Figure 3, functional activity can be overlaid with structural information from micro-CT for more detailed analysis and validation of results.
Segmentation
Segmentation is an image processing technique that par-titions an image into meaningful regions or structures of interest. The goal of segmentation is to separate the image points representing a particular object from the rest of the image. Similar to registration, it is another fundamental machine vision task that prepares an image for subsequent quantification and analysis [18]. Among the most common applications of segmentation for micro-CT are studies aimed at anatomical structures, vasculature, and pathologic diseases.
The result of image segmentation is a set of image points representing one or multiple objects. The image points are clustered together based on some common property such as intensity or variation of its rate of change over an image region. Depending on the approach, segmentation could be performed directly on the raw image data or during its visualization and volume rendering. Depending on the user interaction
and implementation, it could be either manual or auto-matic. In manual segmentation, the user interactively traces contours in 2D micro-CT slices to delineate a region of interest and stack the 2D slices in 3D to form the segmented volume. Although this is a very robust approach that works well even with low image quality and little contrast between image structures, it is a tedious and time consuming task better suited for
convex or round shaped objects. An automated and robust approach to segmentation is required for more complex objects, such as blood vessels or vascular vessel trees. Thresholding is an image processing technique that tries to separate an object based on its intensity values by setting all image points below and/or above a threshold of certain intensity [18]. It is simple and works well if there is a sharp change of intensity on the

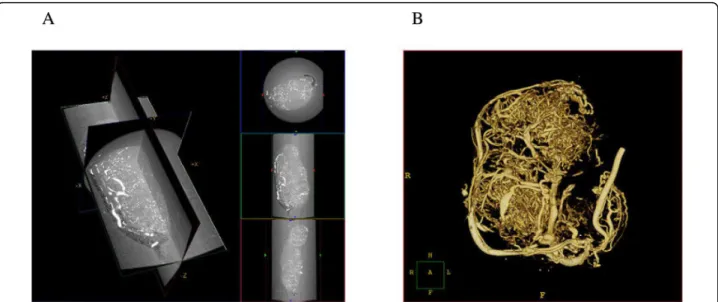

Figure 2 Examples of different micro-CT applications: A) atherosclerotic plaque and vasa vasorum in the descending aorta in mice, and B) vascular tree of a mouse kidney.
Figure 1 Micro-CT imaging of a pancreatic tumor vasculature. Micro-CT images of a pancreatic tumor harvested from the flank of an athymic mouse. The mouse was perfused with Microfil and imaged at 6.5 microns. A. Capillary blood vessels appear in white on the three orthogonal cross-sections of the volume. B) Surface rendering of the micro-CT volume.
boundary of the object and the surrounding image points. It is not very reliable in cases where the object’s intensity values merge with the background. One way to increase the contrast of blood vessels in micro-CT is to adjust the concentration of contrast agent. Denser con-trast agents result in higher intensity, which differenti-ates vessels from background, and vice versa. More complex techniques based on partial differential equa-tions modeling physical processes and deformable shapes have also been developed [18]. The best approach depends mainly on the quality of the micro-CT volume. Factors that should be considered are: how well the object of interest stands out from the back-ground, complexity of the structure of interest, reliability and repeatability of the approach.
Quantification
Since its introduction, software post processing for pre-clinical micro-CT has posed the widespread acceptance of the need for objective, accurate, and reproducible quantification of results rather than manual measurement.
General techniques for quantification of micro-CT volumes include combinations of morphometric and fractal analysis. Morphometry is the quantitative mea-surement of structures. Morphometric parameters such as volume, area, connectivity, thickness, and degree of anisotropy are standard for analysis of trabecular bone microstructure [19,20], and were recently applied for quantification of blood vessels [10,21-23]. The morpho-metric parameters are primarily computed after dimen-sional reduction of the 3D micro-CT volumes to 2D
sections [10,21,23]. Basic morphometric parameters, such as vessel volume, have also been computed directly from the 3D micro-CT volumes [22]. Depending on how the 2D sections are obtained, the resulting morpho-metric parameters can be used to reconstruct the mor-phometric parameters in 3D, which provides a 3D interpretation of the planar sections [23] or direct quan-titative measures from 2D [10,21]. The measurement of morphometric parameters is relatively simple and is generally carried out as an arithmetical operation over a thresholded binary image that yields information on the properties of the structure of interest.
Fractal analysis has also been used to quantify com-plex geometric structures in micro-CT volumes [24,25]. A fractal is a quantity that provides a measure of the “self-similarity” of an object at different scales. The more complex the object, the more space it fills. An excellent review of the technique is provided by Baish et al [26]. The calculation of the fractal dimension in micro-CT is straightforward and is performed by thresh-olding the micro-CT volume to segment out the object of interest and counting the number of voxels represent-ing the object at different scales. A multi-scale fractal analysis of microvascular networks in the brain showed that normal cortical vascular networks have scale-invar-iant fractal properties on a small local scale as described by Risser et al [27].
Quantification of neovasculature with Micro-CT
Development of therapeutic angiogenesis/arteriogenesis is a frequent goal for ischemic disease research pro-grams, therefore, effort has been put forward in recent years to develop various methods for quantification of
Figure 3 PET-CT image reconstruction: effect of image registration. Micro-CT combined with micro-PET before image registration (panel A) and after (Panel B).
neovascularization [21,22,28]. Radiological quantification of angiogenesis/arteriogenesis provides a significant improvement in the tools available for studying and understanding the mechanism of neovascularization. Unfortunately, as illustrated in Figure 4, commercially available in vivo contrast agents do not provide enough contrast necessary to visualize small angiogenic vessels, even at the high special resolution of in vivo micro-CT scanners. While in vivo experiments are a key goal in vascular imaging, ex vivo experiments at present result in much more meaningful data, a consequence of better contrast agents, longer acquisition times, and higher X-ray doses. Specimen micro-CT scanners have a high spatial resolution, which combined with ex vivo contrast agents provides a robust methodology for evaluation of intact vascular networks [21,22,29]. Although 3D locali-zation and visualilocali-zation are important, the power of vas-cular imaging methods lies in their quantitative analysis, which includes characterization and measurement of dif-ferent parameters, such as connectivity, anisotropy, thickness distribution, as well as cross-sectional area and volume.
2D serial section analysis
Due to large volume size (108-1010voxels), processing, transmitting, and archiving of micro-CT data as well as its intelligent analysis within a reasonable time frame is a real challenge. An efficient 2D serial section analysis method
was initially proposed by Li W, et al [21]. A global thresh-old to visualize 2D vasculature and eliminate bone using a modified Image Pro-Plus 5.0 algorithm (Media Cyber-netics, Silver Spring, MD) was applied to 500 serial slices from the upper limb and 250 serial slices from the lower limb to segment and expressed the data as vascular seg-ment number and volume. The algorithm was built within the AutoPro programming language (Visual Basic SAX engine) inside Image-Pro Plus. They summed up serial 2D imaging information to the 3D volume.
As illustrated in Figure 5, Zhuang and colleagues have successfully established the dynamic 3D geometry of the entire peripheral arterial tree in a mouse hindlimb [28]. The major focus now is to develop an automated algo-rithm to extract detailed morphometric data such as the diameters, area, number of vessels, and distributions of different size of vessels. Ideally, such methods for vascu-lar analysis of micro-CT would involve five principle steps: 1) segmentation of arteries from bone and con-taminated venous system; 2) re-creation of the 3D vas-cular tree according to a re-orientated central line along the long axis of the major vessels (femoral or anterior tibial artery); 3) evaluation of the mean diameter and cross-sectional area of the segmented branches in each slice; 4) estimation of the distribution of the diameter of blood vessels into different groups; and 5) computation of the total area and volume in the serial slices of both upper and lower limbs.

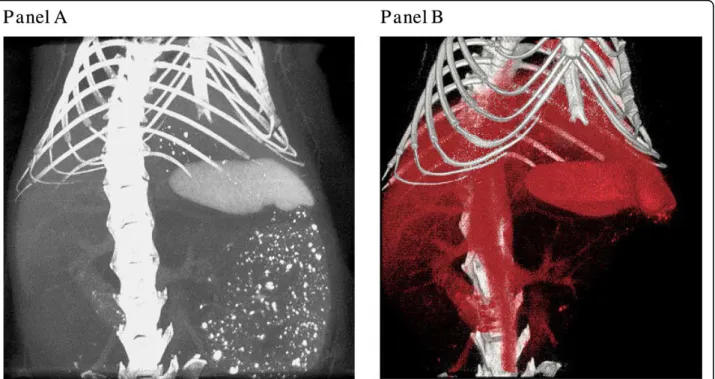

Figure 4 In vivo micro-CT of a mouse injected with 0.4 mL of Fenestra VC. A maximum intensity projection is shown in A and its volume rendering in B. The contrast is not sufficinet to visualize small vessels.
3D-based quantification
Quantitative methods for cancellous bone architecture have been used to evaluate the histomorphometric values of vascular networks [22]. These parameters include vessel volume, connectivity, number, thickness, thickness distribution, separation, and degree of antiso-tropy. Using this method, vessel volume can be com-puted based on the voxel size and the number of segmented voxels in the 3D image after application of the binarization threshold. It is really challenging to define the universal binarization threshold for all eva-luations within a study, which is highly dependent on the scanning resolution, imaging quality, and decalcifi-cation effect. If a value of the binarization threshold is set too high, smaller vessels will be erased from the image. In that case, the volume will be down-esti-mated. If a threshold is too low, vessels will appear
artifactually large and the volume will be over-estimated.
Connectivity is defined as the maximal number of branches that may be cut without separating the struc-ture. Connectivity can easily be calculated from a 3D dataset by using the Euler number [30]. As pointed out, the edge problem needs special attention in all quantifi-cations of connection and adjustment of the Euler num-ber might be necessary [30].
Vessel number, thickness (lumen diameter), thickness distribution, and separation can be calculated using a model-independent method for assessing thickness in 3D volumes [8,22,31]. This technique defines a local thickness at every voxel in the volume of interest (VOI) as the diameter of the largest sphere that both contains the voxel and is completely within the structure of inter-est. The average of the local voxel thicknesses yields the

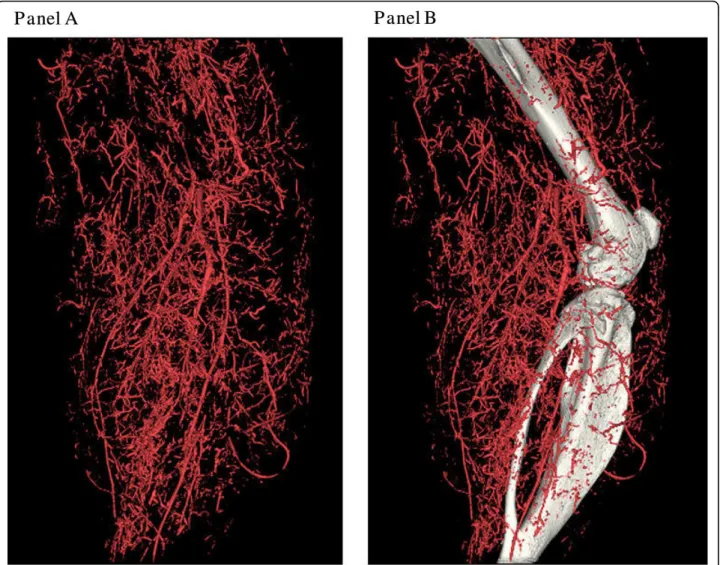

Figure 5 High-resolution micro-CT 3D volume rendering of ligated hindlimb filled by 30% bismuth. A. Vasculature has been extracted from the raw data at 24 μm resolution. There is trade-off between the field of view and the maximal resolution. B. Vascular tree has been overlapped by the skeleton system, which demonstrates the 3D relationship between them.
vessel thickness parameter and a similar calculation on the background voxels determines the vessel separation. To calculate vessel number, the segmented volume is skeletonized, leaving just the voxels at the mid-axes of vessels in the structure. Vessel number is defined as the inverse of the mean spacing between the mid-axes of the structures in the segmented volume.
Anisotropy describes the degree to which the direction of the segmented 3D vascular bed is oriented. It can be determined by the mean intercept length, the volume orientation, star volume and length distribution [30]. Duvall CL, et al [22] used eigen analysis to find the prin-cipal material directions from a local image neighbor-hood and determined the eigenvalues (ratio of the maximum and minimum radii of the ellipsoid) as described by Gundersen et al. [32]. It can be done at the scale of a group of vessels. A degree of anisotropy of 1.0 denotes that the vascular network is perfectly isotropic, and higher values of degree of anisotropy indicate that a structure contains a preferential material direction. In a recent contribution by Risser et al [33], anisotropy has been used to merge discontinuities in 3D images of vas-cular structures representing undesirable gaps in vascu-lar networks.
Although 3D data has a dimensional advantage over its 2D counterpart, there is very little, if any, commer-cially available software for real 3D quantification of blood vessels from micro-CT. Novel quantitative meth-ods and clear definitions of what needs to be quantified are yet to be developed. What we do know is that most of the currently available software tools are for quantifi-cation of bone, and before we use them for vascular exploration, we have to determine the extent to which the neovasculature is similar to the trabecular network of rod-like and plate-like structures.
Limitations of micro-CT in vascular research
Analysis and quantification
Micro-CT scanners that provide a resolution between 1 and 100 μm can be used for vascular research. If the imaging targets are small capillaries, scanners close to the 1 μm limit provide a significant advantage. Regard-less of the resolution, blood vessels in Micro-CT volumes cannot be differentiated from soft tissue with-out a contrast agent. Consequently, the use of the ima-ging modality is limited by the properties of the contrast agent (e.g. concentration, viscosity, opacity, etc.). A poorly chosen contrast agent will result in a low image quality that can be very difficult to analyze or quantify.
The main weakness of micro-CT for vascular research, however, is the lack of appropriate software tools for image analysis and quantification. This is partially due to the tortuous nature of blood vessels. For example, peripheral vasculature consists of a
combination of tree and arcade patterns. After ische-mia, angiogenesis and arteriogenesis form other pat-terns such as anastomoses and collaterals, which make the vascular tree even more complicated. In order to quantify collateral growth, scientists must be able to differentiate existing from newly grown vessels in 3D. This is not a trivial image processing task and new algorithms must be developed. Commercially available morphometric analysis tools for bone applications have found wide acceptance in the vascular community due to the lack of better alternatives. Those tools perform 2-D serial slice analysis of micro-CT along a given axis [10,19-21,23]. When applied to vascular micro-CT volumes, such tools usually output the number of blood vessels with a given diameter and volume. These results are conceptually inaccurate, because they depend upon the orientation of the sample and carry an unknown amount of error caused by the dimen-sional reduction. Depending on the orientation of the sample, estimation of vessel diameter from 2-D may not be possible, because vessels do not always appear as circles on planar sections. Such limitations raise ser-ious questions about the accuracy of serial 2-D slice analysis when applied to vascular micro-CT volumes.
Blood flow
Despite the recent development of morphometric data in the peripheral vasculature and hence the sophistica-tion of the resulting hindlimb models, a rigorous hemo-dynamic analysis of spatial perfusion of the skeleton muscle is still unattainable. The reason for the inaccessi-bility of such a model is the lack of quantitative data on the spatial relation between the skeleton muscle and the supplying vessels. Therefore, methods for reconstruction of the 3D branching pattern of the peripheral vessels for a spatial analysis of hindlimb blood flow are also very important.
Micro-CT and histology
Correlation of micro-CT data with optical microscopy may help in interpretation of biological results by using complementary information from the two imaging mod-alities. However, it is not always possible to perform microscopy on sections obtained from ex vivo samples previously imaged with micro-CT and correlate results. In addition, more careful inspection of micro-CT sec-tions imaged with a confocal microscope also indicates that not all blood vessels get filled with contrast (Figure 6). Depending on the type of contrast, the size of its particles, viscosity, and properties, different level of detail in micro-CT are obtained. A quantitative mea-sure that would indicate the amount of difference in blood vessel volume from micro CT and microscopy is needed.
Other vascular applications and uses of micro-CT
Neo-angiogenesis associated with more advanced stages of human atherosclerosis is found in plaque and the vasa vasorum [34]. Studies utilizing micro-CT and immunohistochemistry techniques demonstrate that the presence and extent of vasa vasorum correlate with atherosclerotic lesion size and lumen diameter in hypercholesterolemic animal models [35]; inhibition of neovascularization in the vasa vasorum is associated with reduced plaque progression [36].
Advancements in micro-CT technology and image reconstruction software have enabled more in depth exploration of the vasa vasorum to result in identifica-tion of anatomically different types of vasa vasorum and their origin, measurement of density, branching pattern and blood flow through the vasa vasorum (Figure 6) [4,37]. These advancements provide a means of examin-ing the role of the vasa vasorum in the context of
atherosclerosis, abdominal aortic aneurysm, restenosis following angioplasty, metabolic syndrome, type 2 dia-betes mellitus as well as studying the effects of drug-eluting stents [38].
Calcification or hemorrhage within the arterial wall during atherosclerosis process or tissue damage have been accurately assessed by micro-CT [39,40]. Basic micro-architectural structures of lungs and pulmonary-vascular system have been successfully visualized and quantitated in small rodent by micro-CT [41].
Perspective in micro-CT improvement
Single-energy micro-CT is still limited in cases where two different materials share similar grey-scale intensity values. Contrast among soft tissue components could be increased using the implementation of dual energy x-ray subtraction algorithms. X-ray diffraction technique, wide angle X-ray scattering, refraction-based imaging could

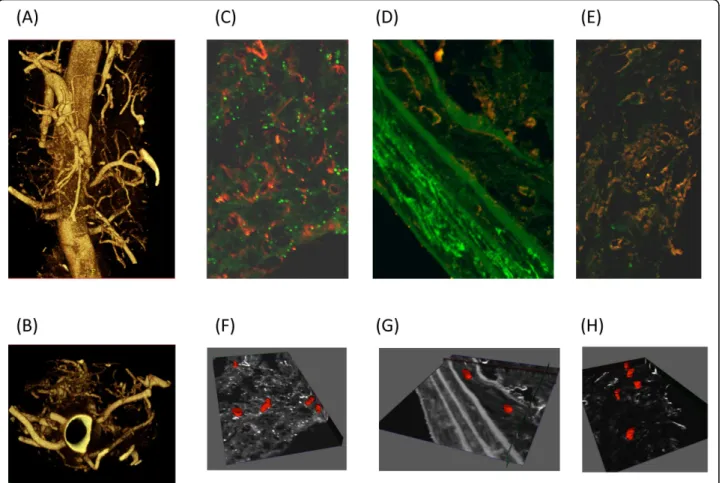

Figure 6 Imaging the vasa vasorum. Micro CT and confocal microscopy were used to image the vasa vasorum (A) Mice were anesthetized, heparinized and perfused. A silicone rubber compound, Microfil Blue, was infused through the aortic cannula. Descending aortas with a wide adventitial margin were removed after polymerization was complete, then scanned with a GE eXplore Locus SP microCT scanner at 6.5 micron resolution. Three-dimensional volumetric images were reconstructed from acquired two dimensional projections without averaging, yielding a final voxel size of 6.5 microns (B) Reconstructed images were rotated to obtain luminal images from mice. Descending aorta cross sections probed for smooth muscle actin (green) and lectin (red) were imaged by confocal microscopy (C) adventitia, (D) vessel wall, (E) plaque. To visualize blood vessels in the (F) adventitia, (G) vessel wall and (H) plaque the reconstructed Z-stacks were manually segmented to represent co-localized probes in consecutive axial slices. The obtained contours were modeled and stacked in 3-D for volumetric surface representation.
also increase the contrast [40,42]. Highest resolution with voxel < 1 μm3imaging cellular or sub-cellular feature can
be achieved with synchrotron radiation-based scanners (high energy and narrow bandwidth). The use of multi x-ray source/detector arx-ray scanners can increase scan speed for application to living animals [40].
Conclusion
Micro-CT is one of the most promising imaging modal-ities for vascular exploration. Its extremely high spatial resolution presents a unique opportunity for studying the structure, organization, and, to some extent, even the function of blood vessels. The imaging process is not straightforward and spans over a number of differ-ent areas ranging from animal handling and preparation to image processing and quantification. Successful Micro-CT imaging requires perfection at each step. Bet-ter contrast agents and delivery vehicles are needed for more detailed exploration of small angiogenic vessels. Robust image processing techniques that can facilitate accurate quantification of micro-CT data in 3D have to be developed. Correlation of microscopy with micro-CT for interpretation of results is also very important.
Additional file 1: Contrast agents for ex vivo and in vivo imaging. this paragraph gives more details on contrast agents properties and use than the section in the manuscript.
Click here for file
[ http://www.biomedcentral.com/content/supplementary/2040-2384-2-7-S1.DOC ]
