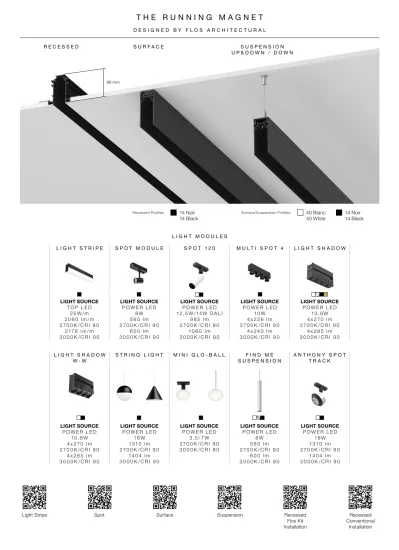

T H E R U N N I N G M A G N E T
D E S I G N E D B Y F L O S A R C H I T E C T U R A L
LIGHT SOURCE P O W E R L E D
3 , 5 / 7 W 2 7 0 0 K / C R I 8 0 3 0 0 0 K / C R I 8 0
LIGHT SOURCE P O W E R L E D
8 W 5 6 0 l m 2 7 0 0 K / C R I 9 0
6 0 0 l m 3 0 0 0 K / C R I 9 0 S P O T M O D U L E
LIGHT SOURCE P O W E R L E D
8 W 5 6 0 l m 2 7 0 0 K / C R I 9 0
6 0 0 l m 3 0 0 0 K / C R I 9 0 L I G H T S T R I P E
LIGHT SOURCE T O P L E D
2 5 W / m 2 0 6 0 l m / m 2 7 0 0 K / C R I 9 0
2 17 8 l m / m 3 0 0 0 K / C R I 9 0
S P O T 1 2 0
LIGHT SOURCE P O W E R L E D 12 , 5 W / 14 W D A L I
9 8 5 l m 2 7 0 0 K / C R I 9 0
10 6 0 l m 3 0 0 0 K / C R I 9 0
LIGHT SOURCE P O W E R L E D
10 W 4 x 2 2 6 l m 2 7 0 0 K / C R I 9 0
4 x 24 0 l m 3 0 0 0 K / C R I 9 0
LIGHT SOURCE P O W E R L E D
10 , 8 W 4 x 2 7 0 l m 2 7 0 0 K / C R I 9 0
4 x 2 8 5 l m 3 0 0 0 K / C R I 9 0
LIGHT SOURCE P O W E R L E D
10 , 8 W 4 x 2 7 0 l m 2 7 0 0 K / C R I 9 0
4 x 2 8 5 l m 3 0 0 0 K / C R I 9 0
M U L T I S P O T 4 L I G H T S H A D O W
L I G H T S H A D O W W - W
LIGHT SOURCE P O W E R L E D
16 W 13 10 l m 2 7 0 0 K / C R I 9 0
14 0 4 l m 3 0 0 0 K / C R I 9 0 LIGHT SOURCE
P O W E R L E D 16 W 13 10 l m 2 7 0 0 K / C R I 9 0
14 0 4 l m 3 0 0 0 K / C R I 9 0
M I N I G L O - B A L L
S T R I N G L I G H T F I N D M E
S U S P E N S I O N
A N T H O N Y S P O T T R A C K
S U R F A C E S U S P E N S I O N
U P & D O W N / D O W N R E C E S S E D
L I G H T M O D U L E S 86 mm
Recessed Profiles Surface/Suspension Profiles 14 Noir
14 Black 14 Noir
14 Black 40 Blanc
40 White
T H E R U N N I N G M A G N E T
Description
Système d’éclairage intérieur innovant en version encastré sur plafond en placo-plâtre, en surface ou suspendu, composé d’une série de rails magnétiques qui contiennent les modules d’éclairage LED.
Tous les profilés structurels de The Running Magnet sont fabriqués avec des profilés en aluminium extrudé blanc et noir, équipés d’une piste électrique graphite alimentée à 24V, sur laquelle tous les appareils sont installés par simple insertion magnétique.
La version suspendue est également disponible en éclairage indirect.
La gamme Running Magnet se compose de modules d'éclairage d'ambiance et d'accentuation avec différentes optiques ainsi que d'une sélection de luminaires décoratifs extraits et adaptés de FLOS Home Collection.
Les modules d’éclairage comportent un système de fixation magnétique qui permet une mobilité totale et une grande flexibilité. Tous les modules sont équipés d'un potentiomètre, réglable DALI ou Casambi selon ce qui est souhaité.
Contrôle
- Pour la gestion par protocole DALI, il est nécessaire de connecter le bus de données de contrôle directement au profilé.
- Pour gérer par Casambi (200 luminaires maximum), il est nécessaire de commander des luminaires en version Casambi qui sont compatibles avec tous les types de profilés du système. L'application FLOS Control® powered by Casambi pour appareils mobiles est également nécessaire (disponible sur Apple Store et Google Play).
Système Optique
Le module à lumière d’accent est disponible avec un optique intensif (spot lens) et des optiques extensifs (narrow et wide narrow lens).
Unité d’Alimentation
Source d’alimentation à distance en 24V non comprise.
Accessoires
- Différentes lentilles pour Spot Module et Multi Spot 4.
- Anneau externe anti-éblouissement pour Spot Module.
- Lentille ellipitique, flood et honeycomb pour Anthony Spot Track.
- Honeycomb et croix compris dans Spot 120.
Informations Complémentaires
La version encastrée est à installer exclusivement sur surfaces en placo-plâtre de 12,5mm d’épaisseur.
Le Running Magnet 2.0 est un système électrique alimenté en 24V et limité à un courant maximum de 8A et 185W pour éviter les surcharges.
Dès que l’on atteint 185W, établir une nouvelle connexion avec un profilé d’alimentation. Dans la version Up&Down, l’éclairage indirect et le rail électro-mécanique disposent chacun d’une alimentation indépendante.
Indice de protection IP20.
Peut être installé sur des surfaces normalement inflammables.
Conformité et Labels de Qualité
Luminaire conforme à la Norme Technique Européenne EN60598-1 et ses annexes.
Description
Innovative lighting system for indoor use, for surface, suspended or recessed mounting on plasterboard walls or ceilings, comprising a series of magnetic tracks that house the LED lighting modules.
The profile of all The Running Magnet structural tracks is extruded aluminum, painted black or white, housing a graphite electric track fed at 24V, on which all magnetic luminaries are installed simply by insertion.
Suspended track is also available with the option of indirect lighting.
The Running Magnet family is completed with ambient lighting units and accent units with different optics, as well as a selection of decorative luminaires taken and adapted from FLOS Home Collection.
The lighting modules incorporate a magnetic mounting system for total mobility and flexibility. All light modules are available with on board potentiometer, DALI dimmable option and Casambi.
Control
- To manage using DALI protocol, it is necessary to connect the control data bus directly to the profile.
- To manage using Casambi (Max. 200 luminaires) it is necessary to order fixtures in the Casambi version, these are compatible with all profiles available for the system.
The app FLOS Control® powered by Casambi for mobile devices is also necessary (available on Apple Store and Google Play).
Optic system
The accent light module is available with intensive optics (spot lens) and extensive optics (narrow and wide narrow lens).
Power Supply
Remote 24V power supply not included.
Accessories
- Different lenses for Spot Module and Multi Spot 4.
- Screening external ring for Spot Module.
- Elliptical, flood lens and honeycomb for Anthony Spot Track.
- Honeycomb and crosspiece included in Spot 120.
Additional Information
The Recessed version can only be installed on 12.5 mm thick plasterboard surfaces.
The Running Magnet 2.0 is a 24V electrical system limited to a maximum power current of 8A and 185W to avoid overloads.
After every 185W make a new connection with a feed unit profile.
In the Up&Down version indirect illumination and the electromechanical track are powered independently.
IP20 protection grade.
Suitable for installation on normally inflammable surfaces.
Compliance of Standards and Quality Marks EN60598-1 European Technical Standards and any subsequent additions.
H O W T O O R D E R
Surface installation
Recessed installation
Suspension Up&Down installation
Accessories Accessories
Accessories Suspension
Down installation RECESSED
PROFILE
Fixed ceiling kit
Surface rose
Surface rose
Recessed rose
Recessed rose
End cap 90º Corner
Inner corner Outer corner
Fixed
ceiling kit Adjustable ceiling kit
End cap 90º Corner
Inner corner
Electrical / mechanical joint
Electrical / mechanical joint
Electrical / mechanical joint
Electrical / mechanical joint
(Included) Electrical /
mechanical joint
SURFACE/SUSPENSION DOWN PROFILE
SUSPENSION UP&DOWN PROFILE
CHOOSE YOUR PROFILE
AND LENGTH COMPLETE WITH MOUNTING ACCESSORIES
Suspension kit
End cap
Intermediate suspension kit 90º Corner
1 2
35
35
35 35
86100100100
L: 1 / 1,5 / 2 / 2,5 / 3 m
L: 1 / 1,5 / 2 / 2,5 / 3 m L: 1 / 1,5 / 2 / 2,5 / 3 m
Included with feed profile
Included with feed profile
Included with profile
Included with profile
Electrical / mechanical joint Included with
feed profile
Surface installation Recessed installation
Suspension Down installation
Suspension Up&Down installation
General lighting
String Light
General lighting
Find Me Suspension
General lighting
Mini Glo-Ball
S/M
Anthony Spot Track
General lighting
Spot 120 Multi Spot 4
Light Stripe Spot Module
Light Shadow Light shadow W-W SELECT A LIGHT MODULE AND CONTROL OPTION
Surface power supply
Surface power supply Non Dimmable / Dali / Casambi
Non Dimmable / Dali / Casambi
Non Dim / Casambi
Dali
60W
60W
60W
60W
185W
185W
185W 120W
120W
120W
120W
60W / 120W 60W / 120W
200W
200W
200W
200W
200W
Remote power supply
Remote power supply
Remote power supply
Down instal. Up instal. Down instal. Up instal.
Remote power supply
4 T H E R U N N I N G M A G N E T
352
100
45 352
80
45
352
80
45
Non Dimmable / Dali / Casambi
S
Wall - Washer S/M
S/M/F/WF
S (select the driver with the appropriate power according to the needs of your project)
(select the driver with the appropriate power according to the needs of your project)
(select the driver with the appropriate power according to the needs of your project)
(select the driver with the appropriate power according to the needs of your project)
(select the driver with the appropriate power according to the needs of
your project)
(select the driver with the appropriate power according to the needs of
your project)
SELECT POWER SUPPLY AND CONTROL OPTION
3
06.1638.14 06.1643.14
06.1648.14
06.1650.14
06.1651.14
08.8865.14A 08.8866.14
08.8867.14
06.1639.14 06.1644.14
06.1641.14 06.1646.14
06.1640.14 06.1645.14
06.1642.14 06.1647.14
L: 1000 mm L: 1000 mm
L: 1500 mm L: 1500 mm
L: 2500 mm L: 2500 mm
L: 2000 mm L: 2000 mm
L: 3000 mm L: 3000 mm
L: 1 m / 1,5 m / 2 m / 2,5 m / 3 m L
52
125 35
86
12,5
150
150
80
80
150
150
T H E R U N N I N G M A G N E T R E C E S S E D — P R O F I L E S
Profile (mm)
2 3 4 1000 / 1500 2000 / 2500
3000
Quantities Ceiling Kit (units)
Feed Unit Profiles Intermediate Profiles
95
Profils
Profilé électromécanique pour installation encastrée dans les plafonds et les mûrs en placoplâtre.
Profilés linéaires disponibles en deux versions : profilés d'alimentation pour la connexion à un driver, et profilés intermédiaires. Les deux versions sont disponibles dans des longueurs de 1 à 3 m. Embouts de fermeture inclus avec les profilés d'alimentation.
Angles à 90 ° dans le même plan (élément symétrique pour angle gauche et droit), angles symétriques de 90° intérieurs et extérieurs dans différents plans. Prévus pour connexion au driver.
Kits de fixation fixes ou réglables (en option). Les kits de fixation au plafond permettent une installation sans utiliser de profilés de fixation en aluminium.
Recommandé dans les cas où le Running Magnet ne peut pas être installé avant le faux plafond en placo plâtre.
Angle 90°.
Angle extérieur.
Angle intérieur.
Les embouts de finition sont inclus dans tous les profilés d’alimentation. Ils doivent uniquement être commandés séparément si l’installation se compose exclusivement de profilés intermédiaires et alimentés par les angles.
Kit de fixation au plafond ajustable (en option). Kit de 2 unités.
Kit de fixation au plafond fixe (en option). Kit de 2 unités.
Adjustable ceiling kit (optional).
2 unit kit.
Fixed ceiling kit (optional).
2 unit kit.
End caps come complete with all the feed unit profiles. These should only be ordered separately if the installation is exclusively composed of intermediate profiles and fed by corners.
90° Corner.
Outer corner.
Inner corner.
Profiles
Electromechanical profile for recessed installation in plasterboard ceilings and walls.
Linear profiles available in two versions: power feed profiles for connecting to a driver, and intermediate profiles. Both versions available in lengths from 1 m to 3 m. Covers included with the power feed profiles.
90° corners available in the same plane (symmetrical element for left and right corners), symmetrical 90° inner and outer corners in different planes.
For connection to the driver.
Permanent or adjustable fastening kits available (optional). The fastening kits for the roof permit installing without using aluminimum fastening profiles.
Recommended for installations where the Running Magnet cannot be installed before the suspended plasterboard ceiling.
La hauteur minimale d’encastrement est de 121 mm.
The installation minimum height can not exceed 121mm.
