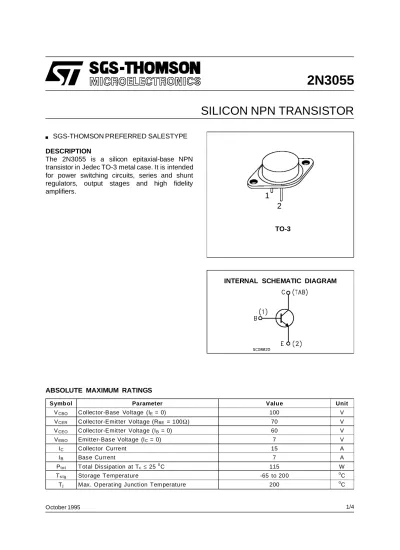

2N3055
SILICON NPN TRANSISTOR
SGS-THOMSON PREFERRED SALESTYPE
DESCRIPTION
The 2N3055 is a silicon epitaxial-base NPN transistor in Jedec TO-3 metal case. It is intended for power switching circuits, series and shunt regulators, output stages and high fidelity amplifiers.
INTERNAL SCHEMATIC DIAGRAM
October 1995
ABSOLUTE MAXIMUM RATINGS
Symb ol Parameter Valu e Unit
VCBO Collector-Base Voltage (IE= 0) 100 V
VCER Collector-Emit ter Voltage (RBE= 100Ω) 70 V
VCEO Collector-Emit ter Voltage (IB = 0) 60 V
VEBO Emitter-Base Voltage (IC= 0) 7 V
IC Collector Current 15 A
IB Base Current 7 A
Ptot T otal Dissipat ion at Tc≤ 25oC 115 W
Ts tg Storage Temperat ure -65 to 200 oC
Tj Max. O perat ing Junction Temperature 200 oC
1 2
TO-3
1/4
THERMAL DATA
Rthj -ca se Thermal Resistance Junction-case Max 1.5 oC/W
ELECTRICAL CHARACTERISTICS (T
case= 25
oC unless otherwise specified)
Symbo l Parameter T est Con ditio ns Min . T yp. Max. Uni t
ICEV Collector Cut -off Current (VBE= -1.5V)
VCE= 100 V
VCE= 100 V Tj= 150oC
1 5
mA mA ICEO Collector Cut -off
Current (IB= 0)
VCE= 30 V 0.7 mA
IEBO Emitter Cut- off Current (IC= 0)
VEB= 7 V 5 mA
VCEO (sus)∗ Collector-Emitt er Sustaining Voltage
IC= 200 mA 60 V
VCER(sus )∗ Collector-Emitt er Sustaining Voltage
IC= 200 mA RBE = 100Ω 70 V
VCE(sat)∗ Collector-Emitt er Sat uration Voltage
IC= 4 A IB= 400 mA IC= 10 A IB = 3. 3 A
1 3
V V
VBE∗ Base-Emitter Voltage IC= 4 A VCE = 4 V 1.5 V
hFE∗ DC Current Gain IC= 0.5 A VCE = 4 V Gr oup 4 IC= 0.5 A VCE = 4 V Gr oup 5 IC= 0.5 A VCE = 4 V Gr oup 6 IC= 0.5 A VCE = 4 V Gr oup 7 IC= 4 A VCE= 4 V
IC= 10 A VCE = 4 V
20 35 60 120
20 5
50 75 145 250 70
hFE1/hFE1∗ DC Current Gain IC= 0.5 A VCE = 4 V 1.6
fT Transition frequency IC= 1 A VCE= 4 V 2.5 MHz
Is /b∗ Second Breakdown Collector Current
VCE= 40 V 2.87 A
∗ Pulsed: Pulse duration = 300µs, duty cycle 1.5 %
2N3055
2/4
DIM. mm inch
MIN. TYP. MAX. MIN. TYP. MAX.
A 11.7 0.460
B 0.96 1.10 0.037 0.043
C 1.70 0.066
D 8.7 0.342
E 20.0 0.787
G 10.9 0.429
N 16.9 0.665
P 26.2 1.031
R 3.88 4.09 0.152 0.161
U 39.50 1.555
V 30.10 1.185
E
B
R
C D P A
G
N
VU O
P003N
TO-3 (H) MECHANICAL DATA
2N3055
3/4
