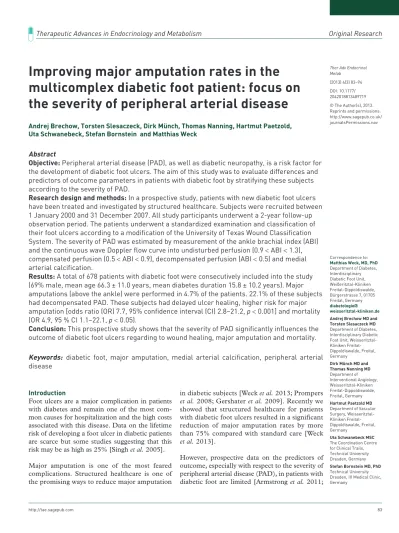

Improving major amputation rates in the multicomplex diabetic foot patient: focus on the severity of peripheral arterial disease

(1)

Ther Adv Endocrinol Metab

(2013) 4(3) 83 –94 DOI: 10.1177/

2042018813489719

Reprints and permissions:

http://www.sagepub.co.uk/

journalsPermissions.nav

Therapeutic Advances in Endocrinology and Metabolism Original Research

Introduction

Foot ulcers are a major complication in patients with diabetes and remain one of the most common causes for hospitalization and the high costs associated with this disease. Data on the lifetime risk of developing a foot ulcer in diabetic patients are scarce but some studies suggesting that this risk may be as high as 25% [Singh et al. 2005].

Major amputation is one of the most feared complications. Structured healthcare is one of the promising ways to reduce major amputation

in diabetic subjects [Weck et al. 2013; Prompers et al. 2008; Gershater et al. 2009]. Recently we showed that structured healthcare for patients with diabetic foot ulcers resulted in a significant reduction of major amputation rates by more than 75% compared with standard care [Weck et al. 2013].

However, prospective data on the predictors of outcome, especially with respect to the severity of peripheral arterial disease (PAD), in patients with diabetic foot are limited [Armstrong et al. 2011;

Improving major amputation rates in the multicomplex diabetic foot patient: focus on the severity of peripheral arterial disease

Andrej Brechow, Torsten Slesaczeck, Dirk Münch, Thomas Nanning, Hartmut Paetzold, Uta Schwanebeck, Stefan Bornstein and Matthias Weck

Abstract

Objective: Peripheral arterial disease (PAD), as well as diabetic neuropathy, is a risk factor for the development of diabetic foot ulcers. The aim of this study was to evaluate differences and predictors of outcome parameters in patients with diabetic foot by stratifying these subjects according to the severity of PAD.

Research design and methods: In a prospective study, patients with new diabetic foot ulcers have been treated and investigated by structured healthcare. Subjects were recruited between 1 January 2000 and 31 December 2007. All study participants underwent a 2-year follow-up observation period. The patients underwent a standardized examination and classification of their foot ulcers according to a modification of the University of Texas Wound Classification System. The severity of PAD was estimated by measurement of the ankle brachial index (ABI) and the continuous wave Doppler flow curve into undisturbed perfusion (0.9 < ABI < 1.3), compensated perfusion (0.5 < ABI < 0.9), decompensated perfusion (ABI < 0.5) and medial arterial calcification.

Results: A total of 678 patients with diabetic foot were consecutively included into the study (69% male, mean age 66.3 ± 11.0 years, mean diabetes duration 15.8 ± 10.2 years). Major amputations (above the ankle) were performed in 4.7% of the patients. 22.1% of these subjects had decompensated PAD. These subjects had delayed ulcer healing, higher risk for major amputation [odds ratio (OR) 7.7, 95% confidence interval (CI) 2.8–21.2, p < 0.001] and mortality (OR 4.9, 95 % CI 1.1–22.1, p < 0.05).

Conclusion: This prospective study shows that the severity of PAD significantly influences the outcome of diabetic foot ulcers regarding to wound healing, major amputation and mortality.

Keywords: diabetic foot, major amputation, medial arterial calcification, peripheral arterial disease

Correspondence to:

Matthias Weck, MD, PhD Department of Diabetes, Interdisciplinary Diabetic Foot Unit, Weißeritztal-Kliniken Freital-Dippoldiswalde, Bürgerstrasse 7, 01705 Freital, Germany diabetologie@

weisseritztal-kliniken.de Andrej Brechow MD and Torsten Slesaczeck MD Department of Diabetes, Interdisciplinary Diabetic Foot Unit, Weisseritztal- Kliniken Freital- Dippoldiswalde, Freital, Germany

Dirk Münch MD and Thomas Nanning MD Department of Interventional Angiology, Weisseritztal-Kliniken Freital-Dippoldiswalde, Freital, Germany Hartmut Paetzold MD Department of Vascular Surgery, Weisseritztal- Kliniken Freital- Dippoldiswalde, Freital, Germany

Uta Schwanebeck MSC The Coordination Centre for Clinical Trails, Technical University Dresden, Germany Stefan Bornstein MD, PhD Technical University Dresden, III Medical Clinic, Germany

(2)

Prompers et al. 2008]. Furthermore, there is no clear common definition of PAD which can be used to compare different groups of patients with diabetic foot. In particular subjects with medial arterial calcification (MAC) as an important subgroup of PAD are underrepresented or underre- ported in the literature [Faglia, 2011].

The aim of present study was therefore to obtain prospective data on outcome, especially major amputation, of individuals with a new diabetic foot ulcer in relation to the severity of PAD.

Study design and methods Design

We organized in 2000 a contract regulating the organization of structured care for subjects with diabetic foot in the region near Dresden in south- east Germany. Briefly, patients with diabetic foot were referred to the interdisciplinary diabetic foot

ward of the regional hospital (Weisseritztal- Kliniken Freital) by general practitioners, special- ized diabetic outpatient departments or other specialists. At the interdisciplinary diabetic foot ward, diagnostic procedures were carried out and treatment started. Thereafter, patients were transferred to a rehabilitation clinic. After discharge from rehabilitation, a diabetic outpatient department carried out 6-monthly checkups, including all necessary further individual interventions.

In order to achieve a standardized clinical procedure, all participating medical institutions share a common set of diagnostic and therapeutic algo- rithms (Figure 1). A handbook explaining the standards was available for all of the professionals involved [Weck et al. 2006]. All instances were subject to supervision by senior specialists in diabetes (M.W., T.S., U.D.). The inclusion of subjects with new foot ulcers was scheduled over a time frame of 8 years with a follow-up investiga- tion for each individual patient over 2 years.

Figure 1. Clinical pathway of diagnosis and treatment of diabetic foot during the disease management programme.

DOAP, diabetic osteoarthropathy; PTA, percutaneous transluminal angioplasty; TCC, total contact cast.

(3)

Study population and procedure

A total of 1475 subjects were hospitalized because of diabetic foot ulceration between 1 January 2000 and 31 December 2007. Of this group, 736 patients covered by insurance from AOK (Germany’s largest health insurance company) and presenting with a recently manifested foot ulcer were enrolled consecutively into this observational and prospective study. Exclusion criteria were acute myocardial infarction or stroke within the last 6 months, terminal renal failure or any kind of cancer. Based on these criteria, 58 subjects out of the group insured by AOK were excluded from the study. All other patients were covered by other health insurance companies.

Management of diabetic foot ulcer

All patients were treated according to our internal protocol [Weck et al. 2006] based on the International Consensus of the Diabetic Foot [Schaper et al. 2003, 2012] and the guidelines of the Working Group on Diabetic Foot of German Diabetes Association [Morbach et al. 2008], which include offloading, diagnosis and treatment of infection, assessment of vascular status, treatment of PAD and regular wound debridement.

Patients with PAD were seen by the interventional angiologist and the vascular surgeon. If vascular reconstruction or interventional radiologic procedures were not possible, prostaglandins, low-dose urokinase or autologous bone marrow derived mononuclear cells (intramuscular application) were applied in order to improve perfusion [Weck et al. 2008. 2011; Amann et al. 2009]

Patients were transferred to a rehabilitation centre when acute treatment of the diabetic foot was completed. At the rehabilitation centre, the treatment procedures of foot ulcers were continued and combined with an intensified education programme. The patients were discharged if the diabetic foot was healed completely or an outpatient

treatment was possible. Before discharge the subjects received definitive individual therapeutic footwear.

All subjects gave their written informed consent before participating in this study. The study was approved by the local ethics committee.

Potential predictive factors and comorbidities According to EURODIALE (European Study Group on Diabetes and the Lower Extremity) and other studies we evaluated the following parameters: sex; age at baseline; duration of diabetes;

HbA_1C; vibration perception and other parameters of peripheral polyneuropathy; parameters of cardiac autonomic neuropathy (CAN); background and proliferative retinopathy; renal impairment;

prior amputation; coronary artery disease; hypertension; dyslipidaemia; and smoking (Appendix A).

Ulcer characteristics

All patients underwent a standardized examination and classification of their foot ulcers according to a modification of the University of Texas Wound Classification System (Wagner–Armstrong System). The extent of the foot wound is graded as described by Wagner [Wagner, 1981] and the staging of the wound situation is described by Armstrong and colleagues [Armstrong et al. 1998].

This descriptive system classifies foot ulcers according to the categories extent, depth, infection and perfusion. The outcome, especially with respect to major amputation, appears to deteriorate with increasing grade and stage of the foot wounds.

Perfusion

The assessment of perfusion included as first line evaluation the palpation of pedal pulses and the measurement of the ankle brachial index (ABI) using a handheld Doppler device. With this procedure we classified PAD as in Table 1.

Table 1. Classification of PAD.

Measurement Classification

ABI > 0.9 Undisturbed perfusion

ABI 0.5–0.9 Reduced but compensated perfusion

ABI < 0.5 or absolute closing pressure < 50–70 mmHg Decompensated perfusion and CLI noncompressible limb vessels, ABI > 1.3 and/or

closing pressure > 200 mmHg MAC, mediasclerosis

ABI, ankle-brachial index; CLI, critical limb ischemia; MAC, medial arterial calcification.

(4)

Table 2. Baseline data (mean ± SD).

Male (n = 470) Female (n =2 08) Total (n = 678) P

Age (years) 64.4 ± 10.5 70.6 ± 11.1 66.3 ± 11.0 <0.001

Diabetes duration

(years) 15.2 ± 10.0 17.2 ± 10.7 15.8 ± 10.2 n.s.

HbA_1C (%) 7.9 ± 3.5 7.8 ± 1.8 7.9 ± 3.0 n.s.

BMI (kg/m²) 29.4 ± 5.3 30.2 ± 6.9 29.6 ± 5.8 n.s.

Blood pressure (mmHg)

systolic 139 ± 20 140 ± 22 139 ± 21 n.s.

diastolic 77 ± 11 76 ± 11 76 ± 11 n.s.

BMI, body mass index; n.s., not significant.

Because of false high ABI in subjects with MAC we used continuous wave Doppler sonography for more detailed analysis of perfusion. We considered compensated perfusion if the increasing wing of the Doppler curve was steeper than the decreas- ing wing. A gently inclining curve or flat curve was considered as decompensated perfusion or critical limb ischemia.

With these measures we subdivided the patients with diabetic foot into four categories:

1. Undisturbed perfusion

2. Disturbed but compensated perfusion

3. Decompensated perfusion and critical limb ischemia (CLI)

4. MAC

These categories were the basis for further analysis in addition to the modified University of Texas classification system.

Infection

Infection was diagnosed if two or more of the following signs were present: frank purulence; local warmth; erythema; lymphangitis; oedema; pain;

fever; and foul smell.

Evaluation of sensation

The evaluation of sensation (peripheral neuropathy, PNP) included measurement of vibration sensation (128 Hz tuning fork on dorsum of the hallux), tactile sensation (cotton wisp on dorsum of the foot) and blunt/sharp dis- crimination (dorsum of the foot). PNP was diagnosed if two or more of these tests were abnormal.

Statistical analysis

The calculations were performed using SPSS version 17.0 (SPSS Inc., IL, USA). Summary tabulations were presented by the number of observations, mean and standard deviation, for continuous variables, and by frequency and percentage per category for categorical data.

Comparison of means from two independent groups was performed using two-sample t-test.

Differences were considered statistically significant if p < 0.05.

The influence of the risk factors age, duration of diabetes, systolic and diastolic blood pressure, body mass index (BMI) and HbA_1c on perfusion was examined by one-way analysis of variance and then tested with a post hoc Student–Newman–

Keuls procedure. To assess the effect of perfusion on major amputation and wound healing, odds ratios (ORs) and their 95% confidence intervals (CIs) were calculated.

Results

Patient structure

A total of 736 subjects with newly detected diabetic foot, covered by the health insurance company AOK, were consecutively included into the study. Because of acute myocardial infarction or stroke within the last 6 months, terminal renal failure or any kind of cancer, 58 subjects were excluded from the study. Therefore, 678 subjects with diabetic foot ulceration were suitable for data analysis. The baseline data are shown at Table 2.

Men made up 69% of the patients. Female subjects were significantly older than male ones.

(5)

Detailed data on diabetic complications and comorbidities of the study group are given at the Appendix A. The prevalence of wound severity by ulcer grade and stage according to the modified University of Texas system is outlined in Table 3.

At admission to the structured care, about 77% of all lesions were found to penetrate to tendon, cap- sule, bone or joint, had a local necrosis, and were infected and ischemic (Wagner grade 2, 3 and 4, University of Texas stage D).

Clinical outcome

At discharge from the clinic about 30% of all foot wounds were healed. Another 52% of foot wounds were improved to modified University of Texas grade 1. At the 2-year follow-up examination 74%

of ulcers were healed completely and another 17%

were in modified University of Texas grade 1.

A total of 32 subjects with diabetic foot underwent major amputation (amputation above the ankle) during hospital treatment (major amputation rate 4.7%). During the 2-year follow up, 22 subjects (3.2%) underwent major amputation and 215 patients (31.7%) experienced minor amputations (distal of the ankle). This high–low amputation rate according to Wrobel and colleagues [Wrobel et al.

2006] was about 1:7, indicating a favourable result.

The mortality rate during hospitalization was 2.5% (n = 17). After 2 years, 20.9% (n = 143) had died.

PAD status

Only a minority of the study population had an undisturbed perfusion (n = 43, 6.3%), 41.3%

(n = 279) had disturbed but compensated perfusion, 22.1% (n = 150) had decompensated perfusion and CLI and 30.4% (n = 206) had the signs of MAC (Figure 2).

In the groups of patients with compensated and decompensated perfusion we performed 45 infrapopliteal bypass reconstructions and 81 iliacal or femoral arterial reconstructions. A total of 445 patients underwent percutaneous transluminal angioplasty (PTA) and another 116 patients were treated by prostaglandins, low-dose urokinase and ‘stem cells’.

Ulcer characteristics according to PAD status

The ulcer characteristics described by the modified University of Texas Wound Classification System and according to the PAD status are shown in Table 4.

Undisturbed perfusion was a very rare PAD status among our population with diabetic foot ulcers. With increasing severity of ulcer grade, however, we observed an increasing severity of PAD status with the highest percentage of decompensated perfusion and CLI at Wagner grade 4.

MAC was uniformly distributed at the different grades of ulcer severity according to Wagner.

Diabetic foot ulcer healing according to PAD status

When stratifying patients according to the severity of PAD, worse healing rates were observed with increasing severity of PAD: 45% of diabetic foot ulcers of subjects with undisturbed perfusion were healed at discharge from hospital; 28% subjects with disturbed but compensated perfusion;

12% of patients with decompensated perfusion and CLI; and 21% of subjects with MAC. The ulcer healing rate increased during the 2-year follow up but during follow up we observed the same pattern as at discharge from hospital, that is, worse healing rates with increasing severity of PAD, except MAC (Figure 3).

When stratifying patients with major amputations during hospitalization (n = 32; major amputation rate 4.7%) according to the severity of PAD, we observed no amputations in the Table 3. Prevalence of wound severity by ulcer

grade and stage (modified University of Texas Wound Classification System) at admission to the clinic, n = 678 (% of 678).

Modified University of Texas grade (Wagner)

1 2 3 4

University of Texas stage

A n 1 0 0 0

% (0.1)

B n 2 22 16 2

% (0.3) (3.2) (2.4) (0.3)

C n 12 36 9 4

% (1.8) (5.3) (1.3) (0.6)

D n 59 218 257 60

% (8.7) (32.1) (37.9) (8.8)

(6)

Table 4. Ulcer characteristics described by the Wagner grade and according to the PAD status of the diabetic foot subjects (n = 678).

PAD status Ulcer grading according to Wagner

n (%)* 1 (n = 74) 2 (n = 256) 3 (n = 282) 4 (n = 66)

Undisturbed perfusion 3 (4.1%) 22 (8.6%) 16 (5.7%) 2 (3.0%) Disturbed but compensated

perfusion 37 (50.0%) 105 (41.0%) 114 (40.4%) 23 (34.8%)

Decompensated perfusion and CLI 12 (16.2%) 49 (19.1%) 64 (22.7%) 25 (37.9%)

MAC 22 (29.7%) 80 (31.3%) 88 (31.2%) 16 (24.2%)

* Percentage of distinct PAD status according to the grading of the foot ulcer (Wagner).

CLI, critical limb ischemia; MAC, medial arterial calcification; PAD, peripheral arterial disease.

0 5 10 15 20 25 30 35 40 45

Undisturbed

perfusion Reduced but compensated

perfusion

Decompensated perfusion and

CLI

MAC

Percentage of total study population

Figure 2. Analysis of perfusion disturbances in the whole study population (n = 678).

CPI, critical limb ischemia; MAC, medial arterial calcification.

0 10 20 30 40 50 60 70 80

Undisturbed

perfusion Disturbed but compensated perfusion

Decompensated perfusion and

CLI Percentage of diabetic foot ulcers completely healed MAC

Discharge from hopsital 1-year follow up 2-year follow up

Figure 3. Percentage of ulcers completely healed according to PAD status at discharge from hospital and during 2-year follow up.

CPI, critical limb ischemia; MAC, medial arterial calcification; PAD, peripheral arterial disease.

(7)

group with undisturbed perfusion, 5 major amputations (15.6%) in subjects with disturbed but compensated perfusion, 19 major amputations (59.4%) in the group with decompensated perfusion and 8 major amputations (25%) in subjects with MAC.

In Table 5 potential risk factors of nonhealing and comorbidities of patients without PAD are compared with those with PAD. Subjects with diabetic foot ulcer and PAD were significantly older, had more severe and infected ulcers, and had a significantly higher proportion of diabetic nephropathy, hypertension and history of smoking.

The risk factors for major amputations are shown in Table 6. The only significant risk factor in these

study patients was decompensated perfusion/

CLI.

When stratifying mortality according to the PAD status we found the following data. Mortality in the group with undisturbed perfusion was 0%

during hospitalization and 5% during the 2-year follow up. In the group with compensated perfusion it was 2% during hospitalization and 24%

during the follow-up period. With decompensated perfusion and CLI it was 6% during hospitalization and 28.4% during the follow-up period and, in the group with MAC, it was 3% during hospitalization and 15.6% during the follow-up period.

The significant risk factors for 2-year mortality were age, compensated perfusion and decompensated perfusion/CLI.

Table 5. Potential predictive factors and comorbidities according to the PAD status of the patients.

Patients without PAD

(n = 43) Patients with PAD

(n = 635) p value

Age (years) 60.14 ± 9.43 66.69 ± 11.04 <0.001

Male 30 (69.8%) 440 (69.3%) 0.948

Deep and infected ulcer 0 (0.0%) 317 (49.9%) <0.001

Polyneuropathy (< 4/8) 14 (32.6%) 392 (61.7%) <0.001

CAN 14 (32.6%) 260 (40.9%) 0.278

Preproliferative

retinopathy 28 (61.1%) 490 (65.1) 0.072

Proliferative

retinopathy 3 (7.1%) 42 (6.6%) 0.926

Microalbuminuria

(30–300 mg per 24 h) 12 (27.9%) 177 (27.9%) 0.996

Proteinuria

(>1 g per 24 h) 0 (0.0%) 7 (1.1%) 0.489

Diabetic nephropathy 4 (9.3%) 178 (28.0%) <0.05

History of amputation 9 (20.9%) 207 (32.6%) 0.112

BMI (kg/m²) 28.8 ± 5.8 29.7 ± 5.8 0.358

Arterial hypertension 36 (83.7%) 591 (93.1%) <0.05

Hyperlipidaemia 25 (58.1%) 411 (64.7%) 0.383

Smoking 22 (51.2%) 203 (32.0%) <0.05

BMI, body mass index; CAN, cardiac autonomic neuropathy; PAD, peripheral arterial disease.

Table 6. Risk factors for major amputation.

OR 95% CI p

Age 1.04 1.00–1.08 0.09

HbA_1C 0.95 0.76–1.18 0.63

Decompensated perfusion 7.70 2.78–21.32 <0.001

MAC 2.61 0.84–8.14 0.10

CI, confidence interval; MAC, medial arterial calcification; OR, odds ratio.

(8)

Discussion

Prospective long-term studies regarding the outcome of a structured care of the diabetic foot are scarce, especially with a sufficient number of included patients. We therefore conducted this prospective observational study with an 8-year inclusion and a 2-year post-treatment observation period. The central objective of the main project, a dramatic reduction of major amputation in diabetic foot patients, was achieved by introducing structured care for the diabetic foot [Weck et al. 2013].

The number of amputations above the ankle was 4.7% at the end of hospital treatment and therefore very low compared with another regional hospital [Weck et al. 2013] and literature data [Prompers et al. 2008; Richard et al. 2011; Faglia et al. 2001; 2006; 2009; Gershater et al. 2009;

Uccioli et al. 2010]. An important limitation of our study regarding generalizability is that patients with acute ischemic events (myocardial infarction and stroke) and those with end-stage renal dis- eases were excluded. These are, of course, the subjects with worst prognosis regarding mortality and limb saving [Morbach et al. 2012].

Patients with diabetes and foot ulcer are suffering from a multiorgan disease with a complexity of factors related to outcome. PAD, infection of the foot and comorbidities are the most important factors predicting ulcer healing, major amputation and mortality. Therefore, we analysed these outcome predictors in a group of patients with diabetic foot ulcers successfully treated in a system of structured care.

PAD is one of the most important risk factors causing diabetic foot ulcers and in this way an important predictor of treatment outcome [Prompers et al. 2008; Pecoraro et al. 1990;

McNeely et al. 1995; Adler et al. 1999; Boyko et al. 1999; Faglia, 2011; Apelqvist et al. 2011;

Aerden et al. 2011; Game, 2012; Hanssen et al.

2012; Ince et al. 2007]. In our study cohort these data are reflected strikingly. Only 6.3% of subjects had normal ABI, 63% had PAD with an ABI

<0.9 and 30% had signs of MAC, another typical feature of macrovascular disease. In the EURODIALE study with 1229 subjects with diabetic foot, Prompers and colleagues [Prompers et al. 2007, 2008] diagnosed PAD by the means of ABI <0.9 in 49% of this study cohort.

According to age, diabetes duration, glucose control (HbA_1C) and sex distribution, the EURODIALE

cohort compares well with our study population.

The extremely low number of patients without restricted perfusion in our study population might be partly explained by the study design in that the subjects of this study are a hospital-based cohort.

In the French OPIDIA study [Richard et al.

2011], in 291 patients with diabetic foot, 50–62%

had PAD. The highest rates of PAD in diabetes foot subjects were reported from the Milan centre for diabetic foot with more than 80% having PAD [Faglia et al. 2001].

One of the largest and most comprehensive studies on outcome factors of diabetic foot comes from the Swedish centres in Lund and Malmö [Gershater et al. 2009]. A total of 2480 patients with diabetes and foot ulcer (Wagner grade 1–5) were prospectively followed and treated until healing was achieved or until death. According to the authors, 49% of the surviving patients had PAD and according to our calculation of the study data, about 11% had CLI. The primary healing rate of the whole cohort without amputation was 65%. The rate of proliferative retinopathy was extraordinary high at about 40%.

In the diabetic foot ulcers with PAD amputation was related to comorbidities, PAD and type of the ulcer. Age, sex, duration of diabetes, neuropathy, deformity and duration of ulcer or site of the ulcer did not evidently have an influence on the proba- bility of amputation.

PAD as a risk factor for diabetic foot ulcers is well-known and extensively discussed elsewhere [Holstein, 1984; Larsson et al. 1993; Boulton, 1996; Adler et al. 1999; Boyko et al. 1999; Faglia, 2011] but data on outcome such as ulcer healing, amputation and death are relatively scarce.

In the EURODIALE study [Prompers et al.

2008], ulcer healing rates were significantly worse in subjects with PAD (69%) compared with patients without PAD (84%). Moreover, the combination of PAD and infection had a major impact on healing rates.

In our cohort of subjects with diabetic foot we subdivided PAD according to the severity of the disease by ABI and the continuous Doppler curve form. At discharge from acute clinical treatment, 45% of ulcers with undisturbed perfusion were completely healed compared with 28% of subjects with disturbed but compensated perfusion,

(9)

12% in patients with decompensated perfusion and CLI, and 21% with MAC.

If we compare our 1-year follow-up data with the 1-year follow-up results of the EURODIALE population we had nearly the same results: completely healed ulcers in 78.8% of patients without PAD against 62.5% in subjects with different severity of PAD (OR 2.2; 95% CI 0.94–5.31;

p = 0.06).

One drawback of our study is that we did not use the PEDIS system for characterizing diabetic foot ulcers as in EURODIALE. We have used the modified University of Texas system for many years. With this wound classification system and the diagnostic tools for infection assessment (as described above), we observed extremely high rates of infected ulcers (University of Texas stage B and D); 91% of the ulcers were infected and 85% had a combination of PAD and infection, indicating a very bad initial wound and disease situation.

Data on the influence of the severity of PAD on major amputation rates in subjects with diabetic foot are extremely scarce. The most comprehensive and detailed data come from the Milan group [Faglia et al. 1998, 2001, 2006, 2009; Faglia, 2011]. The clinical pictures of PAD in patients with diabetes is characterized by the following facts [Faglia, 2011]

- The occlusive disease is common.

- The localization is mainly distal.

- Arterial wall calcification occurs frequently - Occlusion occurs more frequently than stenosis.

To our experience and from our data, MAC is a typical feature of macrovascular disease. Its pres- ence predisposes to a more severe PAD in the tibial and peroneal arteries, and is a strong predictor of cardiovascular morbidity and mortality in diabetics [Edmonds, 2000; Smith et al. 2008].

Moreover, MAC is present in approximately 40%

of diabetic patients with CLI [Faglia et al. 2006]

and an ABI >1.3 is indicative of excess mortality [Allison et al. 2008]. With respect to its pathogenesis there is a strong association between MAC and CAN in diabetic patients [Forst et al. 1995].

In our study population we found a high prevalence of subjects with ‘pure’ MAC without significant peripheral occlusive disease but we cannot exclude the possibility that there is a high

proportion of MAC in the groups of patients with decompensated perfusion and CLI. We strongly believe that MAC is under-recognized in diagnostic and therapeutic strategies in patients with diabetic foot and PAD. However, accurate diagnosis of the different clinical pictures of PAD is essen- tial for proper treatment and for prognosis with respect to limb salvage.

Moreover, the subjects of our study had an extremely high prevalence of CAN as measured by a standardized battery of tests of heart rate variability (Appendix A). According to literature data, CAN appears to be a predictor for poor clinical outcome, especially for mortality in diabetic subjects.

In our cohort of patients with diabetic foot we found a clear association between increasing severity of PAD and clinical outcome: worse ulcer healing rates; more major amputations; and higher mortality in these groups of patients. The association between MAC and clinical outcome is less clear.

No major amputation had to be carried out in diabetic patients with undisturbed perfusion. We believe that this can be an indicator for the effec- tiveness of our system of structured care of the diabetic foot. To our opinion and according to literature data, and by considering the severity of diabetic foot ulcer and the severity of PAD, the major amputation rates are generally low in this study and they are concentrated in those subjects with decompensated perfusion. This can and should be an indicator of the revascularization procedures we have described, including ‘stem cells’ and low-dose urokinase.

In the EURODIALE study [Prompers et al.

2008], a major amputation rate of 5.1% in 1229 patients was documented. Severe limb ischemia, as defined by an ABI of <0.5, was present in 12%

of these patients. In our study decompensated perfusion was found in 22% of all patients.

Faglia and colleagues [Faglia et al. 1998] addressed the problem of occlusive PAD in subjects with diabetic foot ulcers. From 1993 to 1995, 121 patients with diabetic foot were admitted consecutively to Milan University Hospital.

Angiography was carried out in 104 subjects.

The most interesting data in this study were the extraordinary high rate of occlusive arterial disease. Only one out of 104 subjects did not have

(10)

haemodynamically significant stenoses. Nearly half of the patients had stenoses in the popliteal and infrapopliteal axis only. Because neuropathy was also found to be very common (86.5%), the prevalent picture was neuroischemic diabetic foot. Similarly, more than 80% off all subjects in our study had neuroischemic diabetic foot. In 2009, the same group reported even more impres- sive data on 554 patients with CLI [Faglia et al.

2009]. In these patients, peripheral angioplasty (PTA) was performed in 75% and bypass graft (BPG) in 21%. Neither PTA nor BPG were possible in 5% of the subjects. The major amputation rate in this highly complicated group of patients was 13.4% (8% in PTA patients, 21% in BPG and 59% in the subgroup who received no revascularization). Comparable data were reported by Uccioli and colleagues [Uccioli et al. 2010].

It can be concluded from these studies, the EURODIALE [Prompers et al. 2008] and our data, that the degree of PAD has a significant effect on the outcome of diabetic foot.

Another study which compares well to our study design and cohort is the French OPIDIA study [Richard et al. 2011]. A total of 291 patients with diabetic foot were included, with grading and staging of the foot ulcer performed according to the University of Texas system. Age, sex distribution and diabetes duration also compared well. The percentage of PAD in the OPIDIA cohort was lower than in our group, but the description of PAD was less clear and conclusive. Revascularization procedures were performed much less than in our study cohort, but major amputation rates were comparable. Richard and colleagues [Richard et al. 2011]

concluded that the major amputation risk is increased in University of Texas stages C and D, indicating PAD and infection. More than 80% of the major amputations in our study were done for diabetic foot ulcers in Wagner grade 3 or more and all major amputations were carried out for ulcers in University of Texas stage C and D.

PAD is an important prognostic marker for mortality in diabetic patients [Faglia, 2011]. ABI <0.9 approximately doubles the risk of mortality and the risk is four-fold higher in patients with ABI values <0.6 [Ankle Brachial Index Collaboration, 2008]. The highest mortality rates were reported in patients in whom revascularization was not possible [Faglia et al. 2009]. MAC is indicative of excess cardiovascular mortality [Allison et al.

2008]. Faglia et al. [2009] reported a mortality rate of about 50% in diabetic patients with

CLI during a mean follow up of 5.93 years.

Nevertheless, data on the association between the severity of PAD and mortality in patients with diabetic foot are rare.

In our study cohort, total mortality was 2.4%

during hospital treatment, 11.1% died in the first year of follow up and 6.5% during the second year (20.0% 2-year mortality). We observed a clear correlation between the severity of PAD and mortality. The highest mortality was documented in the group with decompensated perfusion/CLI (28.4% during 2-year follow up).

We conclude that the severity of PAD has a significant influence on the outcome of the diabetic foot with respect to wound healing, major amputation and mortality in a system of structured care for the diabetic foot. Decompensated perfusion was the most important risk factor for outcome.

The prognosis for patients with diabetic foot ulcers and PAD, especially CLI, is dependent mainly on excellent diagnostic and therapeutic accuracy of the underlying macrovascular disease.

Centres for diabetic foot need to provide excellent revascularization strategies every time.

Appendix A. Diabetic complications of the subjects in the structured care programme for the diabetic foot (n = 678).

Parameter n (%)

VPT < 4/8 654 (95.6)

CAN 289 (42.3)

Retinopathy

Background 561 (82.0)

Proliferative 55 (8.0)

Microalbuminuria 269 (39.2)

Creatinine >130 µmol/l 104 (15.2)

Prior amputation 249 (36.4)

Toe 152 (22.2)

Transmetatarsal 34 (5.0)

Below the knee 40 (5.8)

Above the knee 23 (3.4)

CAD 567 (82.9)

Prior AMI 47 (6.9)

Prior stroke 51 (7.5)

Hypertension 621 (90.8)

Dyslipidemia 540 (78.9)

Smoking 231 (33.8)

AMI, acute myocardial infarction; CAD, coronary artery disease; CAN, cardiac autonomic neuropathy; VPT, vibration perception threshold.

(11)

Acknowledgements

The study was initiated by the Health Insurance Company AOK. Part of this work was presented as a poster at the 70th Scientific Sessions of the American Diabetic Association (25–29 June 2010, Orlando, FL, USA). The authors wish to thank the Health Insurance Company AOK for providing part of the patient relevant data and for encouraging this study.

Funding

This research received no specific grant from any funding agency in the public, commercial, or not- for-profit sectors.

Conflict of interest statement

The authors declare no conflicts of interest in preparing this article.

References

Adler, A., Boyko, E., Ahroni, J. and Smith, D.

(1999) Lower-extremity amputation in diabetes. The independent effects of peripheral vascular disease, sensory neuropathy, and foot ulcers. Diabetes Care 22:

1029–1035.

Aerden, D., Massaad, D., von Kemp, K., van Tussenbroek, F., Debing, E., Keymeulen, B. et al.

(2011) The ankle–brachial index and the diabetic foot:

a troublesome marriage. Ann Vasc Surg 25: 770–777.

Allison, M., Hiatt, W., Hirsch, A., Coll, J. and Criqui, M.

(2008) A high ankle-brachial index is associated with increased cardiovascular disease morbidity and lower quality of life. J Am Coll Cardiol 51: 1292–1298.

Amann, B., Luedemann, C., Ratei, R. and Schmidt- Lucke, J. (2009) Autologous bone marrow cell transplantation increases leg perfusion and reduces amputations in patients with advanced critical limb ischemia due to peripheral artery disease. Cell Transplant 18: 371–380.

Ankle Brachial Index Collaboration, Fowkes, F., Murray, G., Butcher, I., Heald, C., Lee, R.

et al. (2008) Ankle brachial index combined with Framingham Risk Score to predict cardiovascular events and mortality: a meta-analysis. J Am Med Assoc 300: 197–208.

Apelqvist, J., Elgzyri, T., Larsson, J., Löndahl, M., Nyberg, P. and Thörne, J. (2011) Factors related to outcome of neuroischemic/ischemic foot ulcer in diabetic patients. J Vasc Surg 53: 1582–1588.e2.

Armstrong, D., Cohen, K., Courric, S., Bharara, M.

and Marston, W. (2011) Diabetic foot ulcers and vascular insufficiency: our population has changed,

but our methods have not. J Diabetes Sci Technol 5:

1591–1595.

Armstrong, D., Lavery, L. and Harkless, L. (1998) Validation of a diabetic wound classification system.

The contribution of depth, infection and ischemia to risk of amputation. Diabetes Care 21: 855–859.

Boulton, A. (1996) The pathogenesis of diabetic foot problems: an overview. Diabet Med 13: 12–16.

Boyko, E., Ahroni, J., Stensel, V., Forsberg, R., Davignon, D. and Smith, D. (1999) A prospective study of risk factors for diabetic foot ulcer. The Seattle Diabetic Foot Study. Diabetes Care 22: 1036–1042.

Edmonds, M. (2000) Medial arterial calcification and diabetes mellitus. Z Kardiol 89: 101–104.

Faglia, E. (2011) Characteristics of peripheral arterial disease and its relevance to the diabetic population.

Int J Low Extrem Wounds 10: 152–166.

Faglia, E., Clerici, G., Clerissi, J., Gabrielli, L., Losa, S., Mantero, M. et al. (2006) Early and five- year amputation and survival rate of diabetic patients with critical limb ischemia: data of a cohort study of 564 patients. Eur J Vasc Endovasc Surg 32:

484–490.

Faglia, E., Clerici, G., Clerissi, J., Gabrielli, L., Losa, S., Mantero, M. et al. (2009) Long-term prognosis of diabetic patients with critical limb ischemia. A population-based cohort study. Diabetes Care 32:

822–827.

Faglia, E., Favales, F. and Morabito, A. (2001) New ulceration, new major amputation, and survival rates in diabetic subjects hospitalized for foot ulceration from 1990 to 1993: a 6.5-year follow-up. Diabetes Care 24: 78–83.

Faglia, E., Favales, F., Quarantiello, A., Callia, P., Clelia, P., Brombilla, G. et al. (1998) Angiographic evaluation of peripheral arterial occlusive disease and its role as a prognostic determinant for major amputation in diabetic subjects with foot ulcers.

Diabetes Care 21: 625–630.

Forst, T., Pfützner, A., Kann, P., Lobmann, R., Schäfer, H. and Beyer, J. (1995) Association between diabetic-autonomic-C-fibre-neuropathy and medial wall calcification and the significance in the outcome of trophic foot lesions. Exp Clin Endocrinol Diabetes 103: 94–98.

Game, F. (2012) Choosing life or limb. Improving survival in the multi-complex diabetic foot patient.

Diabetes Metab Res Rev 28(Suppl. 1):

97–100.

Gershater, M., Löndahl, M., Nyberg, P., Larsson, J., Thörne, J., Eneroth, M. et al. (2009) Complexity of factors related to outcome of neuropathic and neuroischaemic/ischaemic diabetic foot ulcers: a cohort study. Diabetologia 52: 398–407.

(12)

Hanssen, N., Huijberts, M., Schalkwijk, C., Nijpels, G., Dekker, J. and Stehouwer, C. (2012) Associations between the ankle-brachial index and cardiovascular and all-cause mortality are similar in individuals without and with type 2 diabetes: nineteen-year follow-up of a population-based cohort study. Diabetes Care 35: 1731–1735.

Holstein, P. (1984) The distal blood pressure predicts healing of amputations on the feet. Acta Orthop Scand 55: 227–233.

Ince, P., Kendrick, D., Game, F. and Jeffcoate, W.

(2007) The association between baseline

characteristics and the outcome of foot lesions in a UK population with diabetes. Diabet Med 24: 977–981.

Larsson, J., Apelqvist, J., Castenfors, J., Agardh, C.

and Stenström, A. (1993) Distal blood pressure as a predictor for the level of amputation in diabetic patients with foot ulcer. Foot Ankle 14: 247–253.

McNeely, M., Boyko, E., Ahroni, J., Stensel, V., Reiber, G., Smith, D. et al. (1995) The independent contributions of diabetic neuropathy and vasculopathy in foot ulceration. How great are the risks? Diabetes Care 18: 216–219.

Morbach, S., Furchert, H., Gröblinghoff, U., Hoffmeier, H., Kersten, K., Klauke, G. et al. (2012) Long-term prognosis of diabetic foot patients and their limbs: amputation and death over the course of a decade. Diabetes Care 35: 2021–2027.

Morbach, S., Müller, E., Reike, H., Risse, A.

and Spraul, M. (2008) Diagnostik, Therapie, Verlaufskontrolle und Prävention des diabetischen Fußsyndroms. Evidenzbasierte Leitlinie der Deutschen Diabetes-Gesellschaft. Update 2008. Berlin: Deutschen Diabetes-Gesellschaft. Available at: http://www.

deutsche-diabetes-gesellschaft.de/fileadmin/

Redakteur/Leitlinien/Evidenzbasierte_Leitlinien/

EBL_Fussyndrom_Update_2008.pdf [accessed 2 May 2013].

Pecoraro, R., Reiber, G. and Burgess, E. (1990) Pathways to diabetic limb amputation: basis for prevention. Diabetes Care 13: 513–521.

Prompers, L., Huijberts, M., Apelqvist, J., Jude, E., Piaggesi, A., Bakker, K. et al. (2007) High prevalence of ischaemia, infection and serious comorbidity in patients with diabetic foot disease in Europe. Baseline results from the Eurodiale study. Diabetologia 50:

18–25.

Prompers, L., Schaper, N., Apelqvist, J., Edmonds, M., Jude, E., Mauricio, D. et al. (2008) Prediction of outcome in individuals with diabetic foot ulcers:

focus on the differences between individuals with and without peripheral arterial disease. The EURODIALE Study. Diabetologia 51: 747–755.

Richard, J., Lavigne, J., Got, I., Hartemann, A., Malgrange, D., Tsirtsikolou, D. et al. (2011) Management of patients hospitalized for diabetic foot infection: results of the French OPIDIA study.

Diabetes Metab 37: 208–215.

Schaper, N., Andros, G., Apelqvist, J., Bakker, K., Lammer, J., Lepantalo, M. et al. (2012) Specific guidelines for the diagnosis and treatment of peripheral arterial disease in a patient with diabetes and ulceration of the foot 2011. Diabetes Metab Res Rev 28: 236–237.

Schaper, N., Apelqvist, J. and Bakker, K (2003) The international consensus and practical guidelines on the management and prevention of the diabetic foot.

Curr Diabetes Rep 3: 475–479.

Singh, N., Armstrong, D. and Lipsky, B.(2005) Preventing foot ulcers in patients with diabetes. J Am Med Assoc 293: 217–228.

Smith, C., Bilmen, J., Iqbal, S., Robey, S. and Pereira, M. (2008) Medial artery calcification as an indicator of diabetic peripheral vascular disease. Foot Ankle Int 29: 185–190.

Uccioli, L., Gandini, R., Giurato, L., Fabiano, S., Pampana, E., Spallone, V. et al. (2010) Long-term outcomes of diabetic patients with critical limb ischemia followed in a tertiary referral diabetic foot clinic. Diabetes Care 33: 977–982.

Wagner, F. (1981) The dysvascular foot; a system for diagnosis and treatment. Foot Ankle 2: 64–122.

Weck, M., Rietzsch, H., Lawall, H., Pichlmeier, U., Bramlage, P. and Schellong, S. (2008) Intermittent intravenous urokinase for critical limb ischemia in diabetic foot ulceration. Thromb Haemost 100:

475–482.

Weck, M., Schellong, S. and Panzner, I. (2006) Diagnostik und Therapie des diabetischen Fußes. Bremen:

UNI-MED.

Weck, M., Slesaczeck, T., Rietzsch, H., Münch, D., Nanning, T., Paetzold, H. et al. (2011) Noninvasive management of the diabetic foot with critical limb ischemia: current options and future perspectives.

Ther Adv Endocrinol Metab 2: 247–55.

Weck, M., Slesaczeck, T., Paetzold, H., Münch, D., Nanning, T., von Gagern, G. et al. (2013) Structured health care for subjects with diabetic foot ulcers results in a major reduction of amputation rates.

Cardiovasc Diabetol 12: 45. DOI: 10.1186/1475- 2840-12-45.

Wrobel, J, Robbins, J. and Armstrong, D. (2006) The high-low amputation ratio: a deeper insight into diabetic foot care? J Foot Ankle 45:

375–379.

Visit SAGE journals online http://tae.sagepub.com

SAGE journals
