Similitude: Decentralised Adaptation in Large-Scale
P2P Recommenders
Davide Frey, Anne-Marie Kermarrec, Christopher Maddock, Andreas Mauthe,
Pierre-Louis Roman, François Taïani
To cite this version:
Davide Frey, Anne-Marie Kermarrec, Christopher Maddock, Andreas Mauthe, Pierre-Louis Roman,
et al.. Similitude: Decentralised Adaptation in Large-Scale P2P Recommenders. 15th IFIP
Interna-tional Conference on Distributed Applications and Interoperable Systems (DAIS), Jun 2015, Grenoble,
France. pp.51-65, �10.1007/978-3-319-19129-4_5�. �hal-01138365v2�
Similitude: Decentralised Adaptation in
Large-Scale P2P Recommenders
Davide Frey1, Anne-Marie Kermarrec1, Christopher Maddock2,
Andreas Mauthe2, Pierre-Louis Roman3, and François Taïani3 1
Inria, Rennes, France
2
School of Computing and Communications, Lancaster University, UK
3 Université de Rennes 1, IRISA – ESIR, France
{davide.frey, anne-marie.kermarrec}@inria.fr {c.maddock1, a.mauthe}@lancaster.ac.uk {pierre-louis.roman, francois.taiani}@irisa.fr
Abstract. Decentralised recommenders have been proposed to deliver privacy-preserving, personalised and highly scalable on-line recommen-dations. Current implementations tend, however, to rely on a hard-wired similarity metric that cannot adapt. This constitutes a strong limitation in the face of evolving needs. In this paper, we propose a framework to develop dynamically adaptive decentralised recommendation systems. Our proposal supports a decentralised form of adaptation, in which in-dividual nodes can independently select, and update their own recom-mendation algorithm, while still collectively contributing to the overall system’s mission.
Keywords: Distributed Computing, Decentralised Systems, Collaborative Fil-tering, Recommendation Systems, Adaptation
1
Introduction
With the growth of the modern web, recommendation has emerged as a key ser-vice to help users navigate today’s on-line content. Designing highly scalable and privacy-preserving recommenders is hard, and one promising approach consists in exploiting fully decentralised mechanisms such as gossip [21, 5], or DHTs [29]. These decentralised recommenders, however, have so far used a mostly homoge-neous design. They typically rely on one similarity metric [30] to self-organise large numbers of users in implicit communities and offer powerful means to com-pute personalised recommendations. Figuring out the right similarity metric that best fits the needs of a large collection of users is, however, highly challenging.
To address this challenge, we explore, in this paper, how dynamic adapta-tion can be applied to large-scale decentralised recommenders by allowing each individual node to choose autonomously between different similarity metrics. Extending on earlier works in the field [19, 12], we propose several adaptation variants, and show how small changes in adaptation decisions can drastically im-pact a recommender’s overall performance, while demonstrating the feasibility of decentralised self-adaptation in peer-to-peer recommender systems.
Alice Bob Carl Dave Ellie Frank similarity measure
profile of Alice profile of Bob
recommendations
Fig. 1. Implicit overlay
exchange of neighbours lists neighbourhood optimisation 1 2 Alice Bob Carl Dave Ellie Frank
Fig. 2. Refining neighbourhoods
In the following, we motivate and present our work (Sec. 2 and 3), evaluate it (Sec. 4 and 5), before discussing related work (Sec. 6), and concluding (Sec. 7).
2
Background
Modern on-line recommenders [20, 11, 28, 22, 9] remain, in their vast majority, based around centralised designs. Centralisation comes, however, with two crit-ical drawbacks. It first raises the spectre of a big-brother society, in which a few powerful players are able to analyse large swaths of personal data under little oversight. It also leads to a data siloing effect. A user’s personal information becomes scattered across many competing services, which makes it very difficult for users themselves to exploit their data without intermediaries [31].
These crucial limitations have motivated research on decentralised recom-mendation systems [5, 7, 4, 25], in particular based on implicit interest-based overlays [30]. These overlays organise users (represented by their machines, also called nodes) into implicit communities to compute recommendations in a fully decentralised manner.
2.1 Interest-based Implicit Overlays
More precisely, these overlays seek to connect users4 with their k most similar other users (where k is small) according to a predefined similarity metric. The resulting k-nearest-neighbour graph or knn is used to deliver personalised rec-ommendations in a scalable on-line manner. For instance, in Figure 1, Alice has been found to be most similar to Frank, Ellie, and Bob, based on their browsing histories; and Bob to Carl, Dave, and Alice.
Although Bob and Alice have been detected to be very similar, their browsing histories are not identical: Bob has not visited Le Monde, but has read the New York Times, which Alice has not. The system can use this information to recommend the New York Times to Alice, and reciprocally recommend Le Monde to Bob, thus providing a form of decentralised collaborative filtering [13].
Gossip algorithms based on asynchronous rounds [10, 30] turn out to be par-ticularly useful in building such interest-based overlays. Users typically start with a random neighbourhood, provided by a random peer sampling service [17].
4
They then repeatedly exchange information with their neighbours, in order to improve their neighbourhood in terms of similarity. This greedy sampling pro-cedure is usually complemented by considering a few random peers (returned by a decentralised peer sampling service [17]) to escape local minima.
For instance, in Figure 2, Alice is interested in hearts, and is currently con-nected to Frank, and to Ellie. After exchanging her neighbour list with Bob, she finds out about Carl, who appears to be a better neighbour than Ellie. As such, Alice replaces Ellie with Carl in her neighbourhood.
2.2 Self-Adaptive Implicit Overlays
The overall performance of a service using a knn overlay critically depends on the similarity metric it uses. Unfortunately, deciding at design time which similarity metric will work best is highly challenging. The same metric might not work equally well for all users [19]. Further, user behaviour might evolve over time, thereby rendering a good initial static choice sub-efficient.
Instead of selecting a static metrics at design time, as most decentralised rec-ommenders do [5, 3, 4], we propose to investigate whether each node can identify an optimal metric dynamically, during the recommendation process. Adapting a node’s similarity metric is, however, difficult for at least three reasons. First, nodes only possess a limited view of the whole system (their neighbourhood ) to make adaptation decisions. Second, there is a circular dependency between the information available to nodes for adaptation decisions and the actual decision taken. A node must rely on its neighbourhood to decide whether to switch to a new metric. But this neighbourhood depends on the actual metric being used by the node, adding further instability to the adaptation. Finally, because of the decentralised nature of these systems, nodes should adapt independently of each other, in order to limit synchronisation and maximise scalability.
3
Decentralised Adaptation
We assume a peer-to-peer system in which each node p possesses a set of items, items(p), and maintains a set of k neighbours (k = 10 in our evaluation). p’s neighbours are noted Γ (p), and by extension, Γ2(p) are p’s neighbours’
neigh-bours. Each node p is associated with a similarity metric, noted p.sim, which takes two sets of items and returns a similarity value.
The main loop of our algorithm (dubbed Similitude) is shown in Alg. 1 (when executed by node p). Ignoring line 3 for the moment, lines 2-4 implement the greedy knn mechanism presented in Section 2. At line 4, argtopk selects the k nodes of cand (the candidate nodes that may become p’s new neighbours) that maximise the similarity expression p.sim items(p), items(q).
Recommendations are generated at lines 5-6 from the set itΓ of items of all
users in p’s neighbourhood (noted items Γ (p)). Recommendations are ranked using the function score at line 8, with the similarity score of the user(s) they are sourced from. Recommendations suggested by multiple users take the sum of all relevant scores. The top m recommendations from itΓ (line 6) are suggested
Algorithm 1 Similitude
1:in every round do
2: cand ← Γ (p) ∪ Γ2(p) ∪ 1 random node
3: adaptsim(cand)
4: Γ (p) ←
argtopk
q∈cand
p.sim items(p), items(q)
5: itΓ ← items Γ (p) \ items(p)
6: rec ←
argtopm
i∈itΓ
score i, p.sim, items(p), Γ (p)
7:end round
8:function score(i, sim, items, Γ )
9: returnX q∈Γ |i∈items(q) sim(items, items(q)) 10: end function Algorithm 2 Adaptsim 1: function adaptsim(cand) 2: top_sims ← argmax s∈SIM
avg4 eval_sim(s, cand)
3: if p.sim 6∈ top_sims then
4: p.sim ← random element from top_sims
5: end if
6: end function
7: function eval_sim(s, cand)
8: hiddenf← proportion f of items(p)
9: visiblef← items(p) \ hiddenf
10: Γf← argtopk q∈cand s visiblef, items(q) 11: itf← items Γf \ visiblef 12: recf ← argtopm
i∈itf score(i, s, visiblef
, Γf)
13: return S =|recf∩ hiddenf|
|recf|
14:end function
3.1 Dynamic Adaptation of Similarity
The adaptation mechanism we propose (adaptsim) is called at line 3 of Alg. 1, and is shown in Alg. 2. A node p estimates the potential of each available metric (s ∈ SIM , line 2) using the function eval_sim(s). In eval_sim(s), p hides a fraction f of its own items (lines 8-9) and creates a ‘temporary potential neighbourhood’ Γf for each similarity metric available (line 10, f = 20% in our
evaluation). From each temporary neighbourhood, p generates a set of recom-mendations (lines 11-12) and evaluates them against the fraction f of internally hidden items, resulting in a score S for each similarity s (its precision (Figure 5)). This evaluation is repeated four times and averaged to yield a set of the highest-achieving metrics (top_sims) (note that multiple metrics may achieve the same score). If the current metric-in-use p.sim is not in top_sims, p switches to a random metric from top_sims (lines 3-4).
After selecting a new metric, a node suspends the metric-selection process for two rounds during which it only refines its neighbours. This cool-off period allows the newly selected metric to start building a stable neighbourhood thereby limiting oscillation and instability.
3.2 Enhancements to Adaptation Process
We now extend the basic adaptation mechanism presented in Section 3.1 with three additional modifiers that seek to improve the benefit estimation, and limit instability and bias: detCurrAlgo, incPrevRounds and incSimNodes.
detCurrAlgo (short for “detriment current algorithm”) slightly detracts from the score of the current metric in use. This modifier tries to compensate for the fact that metrics will always perform better in neighbourhoods they have built up themselves. In our implementation, the score of the current metric in use is reduced by 10%.
incPrevRounds (short for “incorporate previous rounds”) takes into consid-eration the scores Sr−i obtained by a metric in previous rounds to compute a
metric’s actual score in round r, S?
r (Figure 3). In doing so, it aims at
reduc-ing the bias towards the current environment, thereby creatreduc-ing a more stable network with respect to metric switching.
incSimNodes (short for “incorporate similar nodes”) prompts a node to refer to the metric choice of the most similar nodes it is aware of in the system. This is based on the knowledge that similar metrics are preferable for nodes with similar profiles, and thus if one node has discovered a metric which it finds to produce highly effective results, this could be of significant interest to other similar nodes. The modifier works by building up an additional score for each metric, based on the number of nodes using the same metric in the neighbourhood. This additional score is then balanced with the average of the different metrics’ score (Figure 4).
4
Evaluation Approach
We validate our adaptation strategies by simulation. In this section, we describe our evaluation protocol; we then present our results in Section 5.
4.1 Data Sets
We evaluate Similitude on two datasets: Twitter, and MovieLens. The former contains the feed subscriptions of 5,000 similarly-geolocated Twitter users, ran-domly selected from the larger dataset presented in [8]5. Each user has a profile
containing each of her Twitter subscriptions, i.e., each subscribed feed counts as a positive rating. The MovieLens dataset [1] contains 1 million movie ratings from 6038 users, each consisting of an integer value from 1 to 5. We count values 3 and above as positive ratings. We pre-process each dataset by first removing the items with less than 20 positive ratings because they are of little interest to the recommendation process. Then, we discard the users with less than five remaining ratings. After pre-processing, the Twitter dataset contains 4569 users with a mean of 105 ratings per user, while the MovieLens dataset contains 6017 users with a mean of 68 ratings per user.
4.2 Evaluation Metrics
We evaluate recommendation quality using precision and recall (Figure 5). Pre-cision measures the ability to return few incorrect recommendations, while recall
5
An anonymised version of this dataset is available at http://ftaiani.ouvaton.org/ ressources/onlyBayLocsAnonymised_21_Oct_2011.tgz
S? r = Sr+ 5 P i=1 (0.5 − i 10) × S ? r−i
Fig. 3. Incorporating previous rounds
Sr,sim? = Sr,sim+ avg x∈SIM
(Sr,x) ×
|sim in Γ (p)| |Γ (p)|
Fig. 4. Incorporating similar nodes
P recision(ui∈ users) = |reci∩hidden|rec i| i|
Recall(ui∈ users) = |rec|hiddeni∩hiddeni| i|
Fig. 5. Precision and recall
Overlap(ui, uj) = |itemsi∩ itemsj|
Big(ui, uj) = |itemsj|
OverBig(ui, uj) = Overlap(ui, uj) + Big(ui, uj)
F rereJ acc(ui, uj) =
Overlap(ui,uj) |itemsi|+|itemsj|
Fig. 6. The four similarity metrics used
measures the ability to return many correct recommendations. In addition, we evaluate specific aspects of our protocol. First, we count how many nodes reach their optimal similarity metrics—we define more precisely what we understand by optimal in Section 4.5. Finally, we observe the level of instability within the system, by recording the number of nodes that switch metric during each round.
4.3 Simulator and Cross Validation
We measure recommendation quality using a cross-validation approach. We split the profile of each user into a visible item set containing 80% of its items, and a hidden item set containing the remaining 20%. We use the visible item set to construct the similarity-based overlay and as a data source to generate recom-mendations as described in Section 3. We then consider a recommendation as successful if the hidden item set contains a corresponding item.
In terms of protocol parameters, we randomly associate each node with an initial neighbourhood of 10 nodes, as well as with a randomly selected similarity metric to start the refinement process. At each round, the protocol provides each node with a number of suggestions equal to the average number of items per user. We use these suggestions to compute precision and recall. Each simulation runs for 100 rounds; we repeat each run 10 times and average the results. Finally, we use two rounds of cool-off by default.
4.4 Similarity Metrics
We consider four similarity metrics: Overlap, Big , OverBig and, FrereJacc [19], shown in Figure 6. These metrics are sufficiently different to represent distinct similarity choices for each node, and offer a representative adaptation scenario. Overlap counts the items shared by a user and its neighbour. As such, it tends to favour users with a large number of items. Big simply counts the num-ber of items of the neighbour, presuming that the greater the numnum-ber of items available, the more likely a match is to be found in the list. This likewise favours users with a larger number of items. OverBig works by combining Big and Overlap—thereby discrediting the least similar high-item users. Finally Frere-Jacc normalises the overlap of items by dividing it by the total number of items
of the two users; it therefore provides improved results for users with fewer items. FrereJacc6 consists of a variant of the well-known Jaccard similarity metric.
It is important to note that the actual set of metrics is not our main fo-cus. Rather, we are interested in the adaptation process, and seek to improve recommendations by adjusting the similarity metrics of individual nodes.
4.5 Static Metric Allocations
We compare our approach to six static (i.e., non-adaptive) system configurations, which serve as baselines for our evaluation. In the first four, we statically allocate the same metric to all nodes from the set of metrics in Figure 6 (Overlap, Big , OverBig , and FrereJacc). These baselines are static and homogeneous.
The fifth (HeterRand ) and sixth (HeterOpt ) baselines attempt to capture two extreme cases of heterogeneous allocation. HeterRand randomly associates each node with one of the four above metrics. This configuration corresponds to a system that has no a-priori knowledge regarding optimal metrics, and that does not use dynamic adaptation. HeterOpt associates each node with its opti-mal similarity metric. To identify this optiopti-mal metric, we first run the first four baseline configurations (static and homogeneous metrics). For each node, Het-erOpt selects one of the metrics for which the node obtains the highest average precision. HeterOpt thus corresponds to a situation in which each node is able to perfectly guess which similarity metric works best for itself.
5
Experimental Results
5.1 Static BaselineWe first determine the set of optimal metrics for each node in both datasets as described in Section 4.5. To estimate variability, we repeat each experiment twice, and compare the two sets of results node by node. 43.75% of the nodes report the same optimal metrics across both runs. Of those that do not, 35.43% list optimal metrics that overlap across the two runs. In total, 79.18% of nodes’ optimal metrics match either perfectly or partially across runs. Figure 7 depicts the distribution obtained in the first run for both datasets.
5.2 Basic Similitude
We first test the basic Similitude with no modifiers, and a cool-off period of two rounds. Figures 8 and 9 present precision and recall (marked Similitude (basic)). Figure 10 depicts the number of users selecting one of the optimal metrics, while Figure 11 shows the switching activity of users.
These results show that Similitude allows nodes to both find their optimal metric and switch to it. Compared to a static random allocation of metrics (HeterRand ), Similitude improves precision by 47.22%, and recall by 33.75%. A majority of nodes (59.55%) reach their optimal metrics, but 17.43% remain unstable and keep switching metrics throughout the experiment.
6
Big FrereJacc OverBig
Overlap MovieLens
Distribution of optimal metrics (percentage)
0 20 40 60 80 100 15.7624.2 75.31 81.4 15.8524.25 50.49 36.43

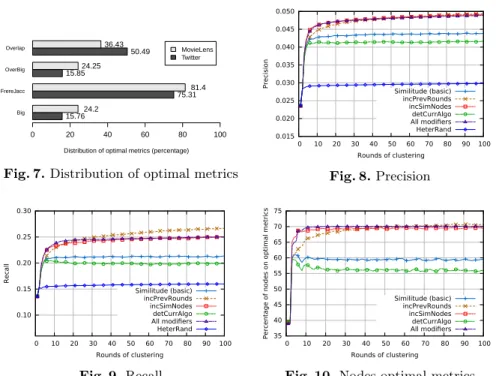

Fig. 7. Distribution of optimal metrics
0.015 0.020 0.025 0.030 0.035 0.040 0.045 0.050 0 10 20 30 40 50 60 70 80 90 100 Precision Rounds of clustering Similitude (basic) incPrevRounds incSimNodes detCurrAlgo All modifiers HeterRand Fig. 8. Precision 0.10 0.15 0.20 0.25 0.30 0 10 20 30 40 50 60 70 80 90 100 Recall Rounds of clustering Similitude (basic) incPrevRounds incSimNodes detCurrAlgo All modifiers HeterRand Fig. 9. Recall 35 40 45 50 55 60 65 70 75 0 10 20 30 40 50 60 70 80 90 100 Per
centage of nodes on optimal metrics
Rounds of clustering Similitude (basic) incPrevRounds incSimNodes detCurrAlgo All modifiers
Fig. 10. Nodes optimal metrics
5.3 Effects of the Modifiers
detCurrAlgo has a negative effect on every aspect: precision, recall, number of nodes on optimal metrics, and stability (Figures 8 through 11). Precision and recall decrease by 5.08% and 6.93% respectively compared to basic Similitude. At the same time, the final number of nodes on their optimal metrics decreases by 6.02%, and unstable nodes increase by 35.29%.
This shows that, although reducing the current metric’s score might intu-itively make sense because active metrics tend to shape a node’s neighbourhood to their advantage, this modifier ends up disrupting the whole adaptation pro-cess. We believe this result depends on the distribution of optimal metrics (Fig-ure 7). Since one metric is optimal for a majority of nodes, reducing its score only causes less optimal metrics to take over. It would be interesting to see how this modifier behaves on a dataset with a more balanced distribution of optimal metrics than the two we consider here.
incPrevRounds, unlike detCurrAlgo, increases precision by 12.57% and re-call by 24.75% with respect to basic Similitude, while improving stability by 55.92%. The number of nodes reaching an optimal metric improves by 18.81%.
As expected, incPrevRounds greatly improves the stability of the system; it even enhances every evaluation metric we use. The large reduction in the number of unstable nodes, and the small increase in that of nodes reaching their optimal metrics suggest that incPrevRounds causes nodes to settle on a metric faster,
whether or not that metric is optimal. One possible explanation is that, if one metric performs especially well in a round with a particular set of neighbours, all future rounds will be affected by the score of this round.
incSimNodes, like incPrevRounds, improves basic Similitude on every aspect. Precision increases by 11.91%, recall by 16.88%, the number of nodes on their optimal metrics by 16.53%, and that of unstable nodes decreases by 49.26%.
With this modifier, most of the nodes switch to the same similarity metric (FrereJacc). Since incSimNodes tends to boost the most used metric in each node’s neighbourhood, it ends up boosting the most used metric in the system, creating a snowball effect. Given that FrereJacc is the optimal metric for most of the nodes, it is the one that benefits the most from incSimNodes.
Even if completely different by design, both incPrevRounds and incSimNodes have very similar results when tested with Twitter. This observation cannot be generalised as the results are not the same with MovieLens (Figures 15 and 16). All modifiers activates all three modifiers with the hope of combining their ef-fects. Results show that this improves precision and recall by 29.11% and 43.99% respectively. The number of nodes on optimal metrics also increases by 32.51%. Moreover none of the nodes switch metrics after the first 25 rounds.
Activating all the modifiers causes most nodes to employ the metric that is optimal for most nodes in Figure 7, in this case FrereJacc. This explains why no node switches metrics and why the number of nodes reaching optimal metrics (70.15%) is very close to the number of nodes with FrereJacc as an optimal metric (75.31%). The difference gets even thinner without cool-off (Section 5.5): 73.43% of the nodes use their optimal metrics.
5.4 Weighting the Modifiers
We balance the effect of the two additive modifiers (incPrevRounds and inc-SimNodes) by associating each of them with a multiplicative weight. A value of 0 yields the basic Similitude, a value of 1 applies the full effect of the modifier, while a value of 0.5 halves its effect. We use a default weight of 0.5 for both of them because they perform best with this value when operating together.

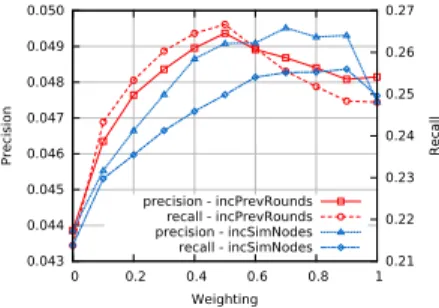

Figure 12 shows the precision and recall of incPrevRounds and incSimNodes with their respective weights ranging from 0 (basic Similitude) to 1, with a 0.1 step. incPrevRounds peaks at a weight of 0.5 even when operating alone, while incSimNodes peaks at 0.7, but it still performs very well at 0.5.
5.5 Varying the Cool-Off Period
As described in Section 3.1, the cool-off mechanism seeks to prevent nodes from settling too easily on a particular metric. To assess the sensitivity of this param-eter, Figures 13 and 14 compare the results of Similitude with all the modifiers, when the cool-off period varies from 0 (no cool-off) to 5 rounds.
Disabling cool-off results in a slight increase in precision (5.45%) and in recall (7.23%) when compared to 2 rounds of cool-off. Optimal metrics are reached by
0 20 40 60 80 100 0 10 20 30 40 50 60 70 80 90 100 Per
centage of nodes switching metrics
Rounds of clustering Similitude (basic) incPrevRounds incSimNodes detCurrAlgo All modifiers
Fig. 11. Switching activity
0.043 0.044 0.045 0.046 0.047 0.048 0.049 0.050 0 0.2 0.4 0.6 0.8 10.21 0.22 0.23 0.24 0.25 0.26 0.27 Precision Recall Weighting precision - incPrevRounds recall - incPrevRounds precision - incSimNodes recall - incSimNodes
Fig. 12. Weighting incPrevRounds and incSimNodes 0.020 0.025 0.030 0.035 0.040 0.045 0.050 0.055 0 10 20 30 40 50 60 70 80 90 100 Precision Rounds of clustering All modifiers - 0 cool-off All modifiers - 2 cool-off All modifiers - 5 cool-off
Fig. 13. Precision under different cool-off
0.12 0.14 0.16 0.18 0.20 0.22 0.24 0.26 0.28 0 10 20 30 40 50 60 70 80 90 100 Recall Rounds of clustering All modifiers - 0 cool-off All modifiers - 2 cool-off All modifiers - 5 cool-off
Fig. 14. Recall under different cool-off
3.73% more nodes, and much faster, attaining up to 73.43% nodes. Removing cool-off reduces a metric’s ability to optimise a neighbourhood to its advantage, as there is only a single round of clustering before the metric is tested again. While cool-off can offer additional stability in adaptive systems, the stability provided by the modifiers appears to be sufficient in our model. Cool-off, instead, leads metrics to over-settle, and produces a negative effect.
5.6 MovieLens Results

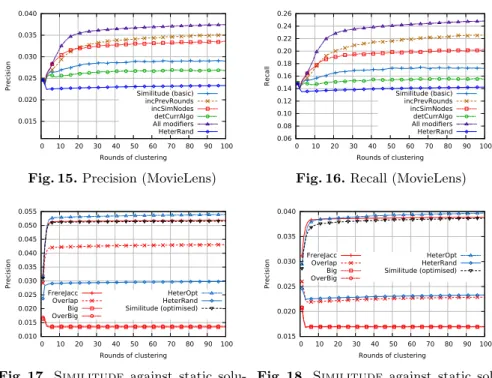

Figures 15 and 16 show the effect of Similitude on precision and recall with the different modifiers using the MovieLens dataset. The results are similar to those obtained with Twitter (Figures 8 and 9).
As with the Twitter dataset, basic Similitude outperforms HeterRand in precision by 24.52% and in recall by 21.02%. By the end of the simulations, 59.95% of the nodes reach an optimal metric and 15.73% still switch metrics.
The behaviour of the modifiers compared to basic Similitude is also sim-ilar. detCurrAlgo degrades precision by 7.58%, recall by 9.86%, the number of nodes on optimal metrics by 7.07%, and the number of nodes switching met-rics by 33.40%. incPrevRounds improves precision by 21.02%, recall by 31.19%, the number of nodes on optimal metrics by 20.52%, and the number of nodes switching metrics by 62.08%. incSimNodes improves precision by 15.75%, recall
0.015 0.020 0.025 0.030 0.035 0.040 0 10 20 30 40 50 60 70 80 90 100 Precision Rounds of clustering Similitude (basic) incPrevRounds incSimNodes detCurrAlgo All modifiers HeterRand
Fig. 15. Precision (MovieLens)
0.06 0.08 0.10 0.12 0.14 0.16 0.18 0.20 0.22 0.24 0.26 0 10 20 30 40 50 60 70 80 90 100 Recall Rounds of clustering Similitude (basic) incPrevRounds incSimNodes detCurrAlgo All modifiers HeterRand
Fig. 16. Recall (MovieLens)
0.010 0.015 0.020 0.025 0.030 0.035 0.040 0.045 0.050 0.055 0 10 20 30 40 50 60 70 80 90 100 Precision Rounds of clustering FrereJacc Overlap Big OverBig HeterOpt HeterRand Similitude (optimised)
Fig. 17. Similitude against static solu-tions (Twitter) 0.015 0.020 0.025 0.030 0.035 0.040 0 10 20 30 40 50 60 70 80 90 100 Precision Rounds of clustering FrereJacc Overlap Big OverBig HeterOpt HeterRand Similitude (optimised)
Fig. 18. Similitude against static solu-tions (MovieLens)
by 17.38%, the number of nodes on optimal metrics by 15.12%, and the number of nodes switching metrics by 28.61%.
All modifiers improves precision by 29.11%, recall by 43.99%, the number of nodes on optimal metrics by 32.51%, and there are no nodes switching metrics after the first 25 rounds. As with the Twitter dataset, activating all the modifiers makes all the nodes use the similarity metric which is optimal for the majority of the system: FrereJacc. The number of nodes reaching optimal metrics (79.44%) and the number of nodes with FrereJacc as optimal metric (81.40%) are almost identical. Without cool-off, Similitude even reaches 80.57% nodes on an optimal metric, getting even closer to that last number.
5.7 Complete System
We now compare the results of the best Similitude variant (all the modifiers and 0 cool-off, noted Similitude (optimised)) with the six static configurations we introduced in Section 4.5.
For the Twitter dataset, Figure 17 shows that our adaptive system out-performs the static random allocation of metrics by 73.06% in precision, and overcomes all but one static homogeneous metrics, FrereJacc, which is on par with Similitude (optimised). For the MovieLens dataset, Figure 18 shows very similar results where Similitude (optimised) has a higher precision than Het-erRand by 65.85%, is on par with FrereJacc, and has a slightly lower precision
than HeterOpt (−2.6%). Selecting FrereJacc statically would however require knowing that this metric performs best, which may not be possible in evolv-ing systems (in which FrereJacc might be replaced by another metric as users’ behaviours change).
5.8 Discussion
Similitude (optimised) enables a vast majority of the nodes (73.43% for Twit-ter, 80.57% for MovieLens) to eventually switch to an optimal metric, which corresponds to the number of nodes having FrereJacc as their optimal metric (Figure 7). By looking at these number, we can say that our system has the abil-ity to discover which metric is the best suited for the system without needing prior evaluation. While this already constitutes a very good result, there remains a difference between Similitude and HeterOpt (the optimal allocation of metrics to nodes), which represents the upper bound that a dynamically adaptive system might be able to reach. Although achieving the performance of a perfect system might prove unrealistic, we are currently exploring potential improvements.
First, incSimNodes could be reworked in order to have a more balanced behaviour to avoid making the whole system use only one similarity metric, even if it is the most suited one for the majority of the nodes. Next, we observe that nodes appear to optimise their neighbourhood depending on their current metric, as opposed to basing their metric choice on their neighbourhood. This may lead to local optima because metrics perform notably better in neighbourhoods they have themselves refined. Our initial attempt at avoiding such local optima with the detCurrAlgo proved unsuccessful, but further investigation could result in rewarding future work. For example, we are considering decoupling the choice of the metric from the choice of the neighbourhood. Nodes may compare the performance of metrics using randomly selected neighbourhoods, and then move to the clustering process only using the best-performing metric.
Finally, it would be interesting to see how detCurrAlgo, incSimNodes and more generally Similitude behave on a dataset with a more balanced distribu-tion of optimal metrics since their effects and results highly depend on it.
6
Related Work
Several efforts have recently concentrated on decentralised recommenders [14, 24, 2, 6, 27] to investigate their advantages in terms of scalability and privacy. Ear-lier approaches exploit DHTs in the context of recommendation. For example, PipeCF [14] and PocketLens [24] propose Chord-based CF systems to decen-tralise the recommendation process on a P2P infrastructure. Yet, more recent solutions have focused on using randomised and gossip-based protocols [5, 18, 4]. Recognised as a fundamental tool for information dissemination [16, 23], Gos-sip protocols exhibit innate scalability and resilience to failures. As they copy information over many links, gossip protocols generally exhibit high failure re-silience. Yet, their probabilistic nature also makes them particularly suited to applications involving uncertain data, like recommendation.
Olsson’s Yenta [26] was one of the first systems to employ gossip protocols in the context of recommendation. This theoretical work enhances decentralised recommendation by taking trust between users into account. Gossple [5] uses a similar theory to enhance navigation through query expansion and was later extended to news recommendation [7]. Finally, in [15], Hegedűs et al. present a gossip-based learning algorithm that carries out ‘random walks’ through a network to monitor concept drift and adapt to change in P2P data-mining.
7
Conclusion
We have presented Similitude, a decentralised overlay-based recommender that is able to adapt at runtime the similarity used by individual nodes. Similitude demonstrates the viability of decentralised adaptation for very large distributed systems, and shows it can compete against static schemes.
Although promising, our results shows there is still room for improvement. In particular, we would like to see how a dataset with a more balanced distri-bution of optimal metrics affects Similitude and its modifiers. We also think that the detCurrAlgo and incSimNodes modifiers could benefit from further im-provements, and thus bring the performance of Similitude closer to that of a static optimal-metric allocation.
Acknowledgements
This work was partially funded by the French National Research Agency (ANR) project SocioPlug - ANR-13-INFR-0003 (http://socioplug.univ-nantes.fr).
References
1. Movielens 1 million ratings dataset. http://grouplens.org/datasets/movielens. 2. Tribler. http://www.tribler.org.
3. X. Bai, M. Bertier, R. Guerraoui, A.-M. Kermarrec, and V. Leroy. Gossiping personalized queries. In EDBT’2010.
4. R. Baraglia, P. Dazzi, M. Mordacchini, and L. Ricci. A peer-to-peer recommender system for self-emerging user communities based on gossip overlays. J. of Comp. and Sys. Sciences, 2013.
5. M. Bertier, D. Frey, R. Guerraoui, A.-M. Kermarrec, and V. Leroy. The gossple anonymous social network. In Middleware’2010.
6. A. Boutet, D. Frey, R. Guerraoui, A. Jégou, and A.-M. Kermarrec. Privacy-Preserving Distributed Collaborative Filtering. In NETYS’2014.
7. A. Boutet, D. Frey, R. Guerraoui, A. Jégou, and A.-M. Kermarrec. WhatsUp Decentralized Instant News Recommender. In IPDPS, 2013.
8. J. Carretero, F. Isaila, A.-M. Kermarrec, F. Taïani, and J. M. Tirado. Geology: Modular georecommendation in gossip-based social networks. In ICDCS 2012. 9. A. S. Das, M. Datar, A. Garg, and S. Rajaram. Google news personalization:
10. A. Demers, D. Greene, C. Hauser, W. Irish, J. Larson, S. Shenker, H. Sturgis, D. Swinehart, and D. Terry. Epidemic Algorithms for Replicated Database Main-tenance. In PODC’87.
11. Facebook Inc. Facebook: Company info – statistics. https://newsroom.fb.com/ company-info/, March 2014. Accessed: 2014-05-13.
12. D. Frey, A.-M. Kermarrec, C. Maddock, A. Mauthe, and F. Taïani. Adaptation for the masses: Towards decentralized adaptation in large-scale p2p recommenders. In 13th Workshop on Adaptive & Reflective Middleware, ARM ’14.
13. D. Goldberg, D. Nichols, B. M. Oki, and D. Terry. Using collaborative filtering to weave an information tapestry. CACM, 1992.
14. P. Han, B. Xie, F. Yang, and R. Shen. A scalable p2p recommender system based on distributed collaborative filtering. Expert Systems with Applications, 2004. 15. I. Hegedus, R. Ormándi, and M. Jelasity. Gossip-based learning under drifting
concepts in fully distributed networks. In SASO 2012.
16. M. Jelasity, A. Montresor, and O. Babaoglu. T-man: Gossip-based fast overlay topology construction. Computer networks, 53(13):2321–2339, 2009.
17. M. Jelasity, S. Voulgaris, R. Guerraoui, A.-M. Kermarrec, and M. van Steen. Gossip-based peer sampling. ACM TOCS, 25, 2007.
18. A.-M. Kermarrec, V. Leroy, A. Moin, and C. Thraves. Application of random walks to decentralized recommender systems. In OPODIS’10.
19. A.-M. Kermarrec and F. Taïani. Diverging towards the common good: heteroge-neous self-organisation in decentralised recommenders. In SNS’2012.
20. J. A. Konstan, B. N. Miller, D. Maltz, J. L. Herlocker, L. R. Gordon, and J. Riedl. Grouplens: Applying collaborative filtering to usenet news. CACM, 1997. 21. V. Leroy, B. B. Cambazoglu, and F. Bonchi. Cold start link prediction. In
KDD’2010.
22. G. Linden, B. Smith, and J. York. Amazon. com recommendations: Item-to-item collaborative filtering. IEEE Internet Computing, 2003.
23. G. Mega, A. Montresor, and G. P. Picco. Efficient dissemination in decentralized social networks. In IEEE P2P 2011.
24. B. N. Miller, J. A. Konstan, and J. Riedl. Pocketlens: toward a personal recom-mender system. TOIS, 2004.
25. A. Moreno, H. Castro, and M. Riveill. Decentralized recommender systems for mobile advertisement. In Workshop on Personalization in Mobile Applications (PEMA’11), Chicago, Illinois, USA, Oct. 2011. ACM.
26. T. Olsson. Decentralised social filtering based on trust. In AAAI-98 Recommender Systems Workshop.
27. V. Schiavoni, E. Rivière, and P. Felber. Whisper: Middleware for confidential communication in large-scale networks. In ICDCS 2011, June 2011.
28. Y. Song, S. Dixon, and M. Pearce. A survey of music recommendation systems and future perspectives. In CMMR’2012.
29. J. M. Tirado, D. Higuero, F. Isaila, J. Carretero, and A. Iamnitchi. Affinity p2p: A self-organizing content-based locality-aware collaborative peer-to-peer network. Comp. Net., 54, 2010.
30. S. Voulgaris and M. v. Steen. Epidemic-style management of semantic overlays for content-based searching. In Euro-Par’05.
31. C.-m. A. Yeung, I. Liccardi, K. Lu, O. Seneviratne, and T. Berners-Lee. Decentral-ization: The future of online social networking. In W3C Workshop on the Future of Social Networking, 2009.
