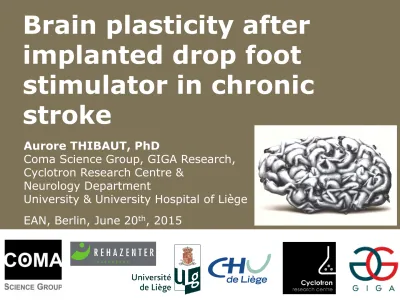

Brain plasticity after
implanted drop foot
stimulator in chronic
stroke
www.comascience.org
implantée chez le patient hémiplégique
External control unit
Microcontroller & transmitter
4-channels nerve stimulator Peroneal nerve
Drop foot stimulator
Receptor
www.comascience.org
disorders of consciousness | behavioural evaluation | electrophysiology | neuroimaging | methods, ethics & quality of life | perspectives
Methods
• Chronic stroke patients with drop foot • Rehazenter Lux (clinical tests) & ULg Be
(neuroimaging - EEG – PET – MRI)
• 21 patients included, 7 drop-out (stimulator issue) • 14 completed the study (5 wo, age: 47±12y, time
since insult: 2±1y, 7 lesion on the left) Clinical
tests Surgery EEG-PET-MRI Activation Clinical tests Clinical tests
Clinical tests EEG-PET-MRI Clinical tests -3 -2 -1 0 3 6 12 24 months
www.comascience.org
Clinical improvement
www.comascience.org
PET-scan: Analyses
18FGD-PET-scan at rest
Pre-post : n=14 – right stroke: n=7; left stroke: n=7 7 patients with right lesion were flipped
all patients: lesion on the left hemisphere
Normalization with « flipped template » Smoothing at 12 mm
www.comascience.org
Results: single subject
Lesion on the lefthypo before stim improvement DA
CS
SC
www.comascience.org
Results: single subject
Lesion on the rightBD
JR
SV
0.05 uncorr
www.comascience.org
Results: group
Hypometabolic areas
before activation 1 year later
0.05 FWE
Motor & premotor
www.comascience.org
Results: group
Increase - motor areas left&right - Left prefrontal No decrease Recovery uncorr 0.01 Recovery uncorr 0.001www.comascience.org
Results: group
0 20 40 60 80 100 120 healthy side 0 20 40 60 80 100 120 damaged sidebefore 1year later
Brain metabolism in premotor cortex (B6)
before 1year later
% of normal br ai n me ta bol ism
www.comascience.org
Analyses
• Power spectrum (delta, theta, alpha beta)
• Entropy
• Phase lag index Motor area
• High density (256 electrodes) • Resting state for 30 min, EO
www.comascience.org
Results: single subject
(right stroke)
Motor cortex delta alpha 1st exam 2nd exam difference
bet a al pha t he ta del ta
www.comascience.org
Results: group
n=9 Motor area Data flipped Left lesion 1st exam 2nd exam 1st ≠ 2ndwww.comascience.org
Conclusion
Clinical improvements correlates
• brain metabolism (PET-scan) in motor areas (damaged & contralateral hemisphere)
• cortical activity (EEG) in motor area (damaged hemisphere)
