Optimizing Rule Placement in Software-Defined
Networks for Energy-aware Routing
Frédéric Giroire, Joanna Moulierac, Truong Khoa Phan
To cite this version:
Frédéric Giroire, Joanna Moulierac, Truong Khoa Phan. Optimizing Rule Placement in
Software-Defined Networks for Energy-aware Routing. IEEE GLOBECOM, IEEE, Dec 2014, Austin Texas,
United States. �hal-01070576�
Optimizing Rule Placement in Software-Defined
Networks for Energy-aware Routing
Fr´ed´eric Giroire
COATI team-project
INRIA and I3S (CNRS/ UNS), France Email: frederic.giroire@cnrs.fr
Joanna Moulierac
COATI team-project
INRIA and I3S (CNRS/ UNS), France Email: joanna.moulierac@unice.fr
Truong Khoa Phan
COATI team-project
INRIA and I3S (CNRS/ UNS), France Email: truong khoa.phan@inria.fr
Abstract—Software-defined Networks (SDN), in particular OpenFlow, is a new networking paradigm enabling innovation through network programmability. Over past few years, many applications have been built using SDN such as server load balancing, virtual-machine migration, traffic engineering and access control. In this paper, we focus on using SDN for energy-aware routing (EAR). Since traffic load has a small influence on power consumption of routers, EAR allows to put unused links into sleep mode to save energy. SDN can collect traffic matrix and then computes routing solutions satisfying QoS while being minimal in energy consumption. However, prior works on EAR have assumed that the table of OpenFlow switch can hold an infinite number of rules. In practice, this assumption does not hold since the flow table is implemented with Ternary Content Addressable Memory (TCAM) which is expensive and power-hungry. In this paper, we propose an optimization method to minimize energy consumption for a backbone network while respecting capacity constraints on links and rule space constraints on routers. In details, we present an exact formulation using Integer Linear Program (ILP) and introduce efficient greedy heuristic algorithm. Based on simulations, we show that using this smart rule space allocation, it is possible to save almost as much power consumption as the classical EAR approach.
I. INTRODUCTION
Recent studies have shown that ICT is responsible for 2% to 10% of the worldwide power consumption [6]. As estima-tion, energy requirement for European telecommunication can reach 35.8 TWh in 2020 [3]. Backbone ISP networks currently consume around 10% of the total network power requirements and it can increase to 40% by 2017 [15]. Therefore the green networking has been attracting a growing attention during the last years (see the survey [2]). While the traffic load has a marginal influence, the power consumption is mainly due to active elements on IP routers such as ports, line cards, base chassis, etc. [16]. Based on this observation, the energy-aware routing (EAR) approach aims at minimizing the number of used network elements while all the traffic demands are routed without any overloaded links [6][10]. In fact, turning off entire routers can earn significant energy savings. However, it is very difficult from a practical point of view as it takes time for turning on/off and also reduces life cycle of devices. Therefore, as in prior work [5][9], we assume to turn off (or put into sleep mode) only links to save energy.
Software-defined networking (SDN) in general, and Open-Flow in particular [17], has been attracting a growing attention in the networking research community in recent years. In traditional networks, network devices such as routers and
switches act as “closed” systems. They work as “black boxes” with applications implemented on them. Users can only con-trol them via limited and vendor-specific concon-trol interfaces. Moreover, since the data plane (forwarding function) and control plane are integrated, it is difficult for current network infrastructure to evolve (e.g. to deploy new network protocols). SDN is a new networking paradigm that decouples the control plane from the data plane. It provides a flexibility to develop and test new network protocols and policies in real networks. Over past few years, many applications have been built using the OpenFlow API [17].
In this paper, we focus on one application of the OpenFlow, that is to use OpenFlow to minimize power consumption for an Internet Service Provider (ISP). As shown in literature, many existing works have used OpenFlow as a traffic engineering approach to deploy EAR in a network [11][24]. In these works, the flow table of each switch is assumed to hold an infinite number of rules. In practice, however, this assumption does not hold, and rule space becomes a significant bottleneck for large-scale SDN networks. It is because the flow table is implemented using Ternary Content Addressable Memory (TCAM) which is expensive and power hungry. Therefore, commodity switches typically support just from few hundreds to few thousands of entries [13][14][22]. Taking this limitation into account, we show that the rule space constraints are very important in EAR. An inefficient rule allocation can lead to an unexpected routing solution, causing network congestion and affecting QoS. In summary, we make the following contribu-tions:
• To our best knowledge, this is the first work that de-fines and formulates the optimizing rule space problem in OpenFlow for EAR using ILP.
• As EAR is known to be NP-hard [8], we propose heuristic algorithm that is effective for large network topologies. By simulations, we show that the heuristic algorithm achieves close-to-optimal solutions obtained by the ILP.
• Using real-life data traffic traces from SNDlib [20], we quantify energy savings achieved by our approaches. Moreover, we also present other QoS aspects such as routing length of EAR solutions.
The rest of this paper is structured as follows. We sum-marize related work in Section II. We present the ILP and heuristic algorithm in Section III. Simulation results are shown in Section IV. Finally, we conclude our work in Section V.

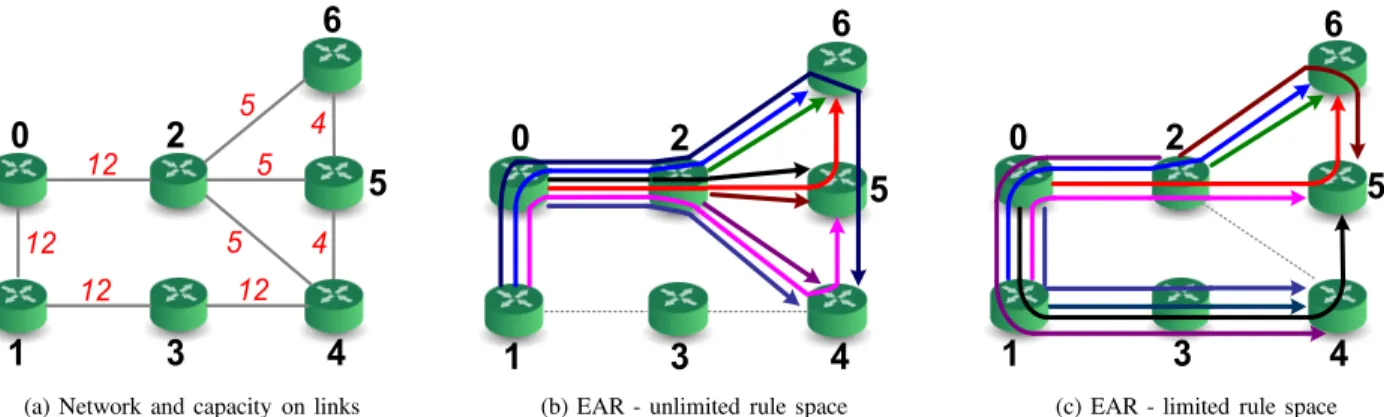

(a) Network and capacity on links (b) EAR - unlimited rule space (c) EAR - limited rule space
Fig. 1: Example of EAR with and without rule space constraints II. RELATEDWORK
A. Limited Rule Space in OpenFlow Switches
To support a vast range of network applications, OpenFlow rules are more complex than forwarding rules in traditional IP routers. For instance, access-control requires matching on source - destination IP addresses, port numbers and proto-col [4] whereas a load balancer may match only on source and destination IP prefixes [23]. These complicated matching can be well supported using TCAM since all rules can be read in parallel to identify the matching entries for each packet. However, as TCAM is expensive and extremely power-hungry, the on-chip TCAM size is typically limited. Many existing works in literature have tried to address this limited rule space problem. For instance, starting with OpenFlow v1.1 and beyond, rather than having one flow table, there is a pipeline made up of multiple flow tables. While this proposal can handle a large number of rules, it does add complexity to the standard [1]. The authors in [18] have proposed algorithms to reduce the number of rules needed to realize policies on a single switch. To the best of our knowledge, the closest papers to our work are [13] and [14]. These works present efficient heuristic rule-placement algorithms that distribute forwarding policies while managing rule-space constraints at each switch. However, they do not rely on the exact meaning of the rules and the rules should not determine the routing of the packet (e.g. access control rules) [14]. Therefore, these techniques cannot directly solve the rule-placement problem in EAR. In this work, we focus on EAR with OpenFlow where rules explicitly determine routing of traffic flows. Besides an exact formulation ILP, we also propose an efficient heuristic algorithm for large networks.
B. Energy Savings with OpenFlow
Starting from the pioneering work of Gupta [10], the idea of power proportionality has gained a growing attention in networking research area [2][6]. Since power consumption of router is independent from traffic load, people suggested putting network components to sleep in order to save energy. OpenFlow is a promising method to implement EAR in a net-work. Without setting entries manually, OpenFlow can collect traffic matrix, performs routing calculation and then installs new routing rules on routers. For instance, the authors in [11] have implemented and analyzed ElasticTree on a prototype testbed built with production OpenFlow switches. The idea is
to use OpenFlow to control traffic flows so that it minimizes the number of used network elements to save energy. Similarly, the authors in [24] have set up a small testbed using OpenFlow switches to evaluate energy savings for their model. OpenFlow switches have also been mentioned in existing work as an example of the traffic engineering method to implement the EAR idea [7]. However, as we can see, the testbed setups with real OpenFlow switches are quite small. For instance, in [11], 45 virtual switches onto two 144-port 5406 chassis switches are used; or in [24], there is a testbed with 10 virtual switches on a 48-port Pronto 3240 OpenFlow-enabled switch. We argue that when deploying EAR in real network topologies, much more real OpenFlow switches should be used and they have to handle a large amount of traffic flows. In this situation, limited rule space in switches becomes a serious problem since we can not route traffic as expected. Therefore, we present in next Section a novel optimization method to overcome the rule placement problem of OpenFlow for EAR.
III. OPTIMIZINGRULEPLACEMENT
Routing decision of an OpenFlow switch is based on flow tables implemented with TCAM. Each entry in the flow table defines a matching rule and is associated with an action. Upon receiving a packet, a switch identifies the highest-priority rule with a matching predicate, and performs the corresponding action. A packet that matches no rule is processed using the
default rule, which has the lowest-priority. Depending on appli-cations of OpenFlow, the default rule can be “drop packets” or “forward packets to the controller” over the OpenFlow channel. In this work, to avoid delay communication between routers and the centralized controller, we consider that the default rule is “forward packets to a default port” (without contacting the controller), and each switch has exactly one default port [19].
TABLE I: Traffic demands and routing solutions
Traffic demand Volume Routing solution Routing solution (Fig. 1b) (Fig. 1c) (0, 4) 1 0 - 2 - 4 0 - 1 - 3 - 4 (0, 5) 2 0 - 2 - 5 0 - 1 - 3 - 4 - 5 (0, 6) 2 0 - 2 - 5 - 6 0 - 2 - 5 - 6 (1, 4) 1 1 - 0 - 2 - 6 - 5 - 4 1 - 3 - 4 (1, 5) 3 1 - 0 - 2 - 4 - 5 1 - 0 - 2 - 5 (1, 6) 3 1 - 0 - 2 - 6 1 - 0 - 2 - 6 (2, 4) 1 2 - 4 2 - 0 - 1 - 3 - 4 (2, 5) 1 2 - 5 2 - 6 - 5 (2, 6) 1 2 - 6 2 - 6
! !
Fig. 2: Routing table at router 2 for routing of Fig. 1b We show in Fig. 1 how the limited rule space impacts EAR solution. Assume that there are 9 traffic demands with volumes as shown in Table I. The network topology and capacity on links are shown in Fig. 1a. For ease of reading, Table I also shows the routing of each traffic flow in Fig. 1b and Fig. 1c. These routing solutions are found by using the ILP in Section III.A. As the classical EAR approach, Fig. 1b shows an optimal solution since it satisfies capacity constraints and uses a minimum number of active links (7 links). It is noted that, as the objective of EAR is to minimize the number of used links, some traffic flows may be routed via long paths. For instance, the flow (1, 4) is routed via 5 hops while its shortest path is only 2 hops. One possible way to avoid this is to have some constraints that limit the stretch of the path of each flow.
Assume that the routing table of router contains rules which are the mapping of [(src, dest) : port-to-foward]. As the routing in Fig. 1b, the router 2 needs to forward 9 flows, hence a simple routing table can be as Fig. 2a. However, we can reduce the size of the routing table by using a default rule (Fig. 2b), or combining default rule and wildcards (Fig. 2c). Note that the rules [(0, 5): port-5] and [(0, 6): port-5] of Fig. 2b can not be combined as [(0, *): port-5]. Indeed, in this case, the flow (0, 4) will go to port-5 when it should go to port-4. In Fig. 2c, as the rule (1, 5) has higher priority than the rule (1, *), the flow (1, 5) is forwarded to port-4 while the flows (1, 4) and (1, 6) are forwarded to port-6 with the rule (1, *). Assume that we implement EAR on SDN network where each router can install at most 4 rules. As a result, the router 2 can install only 3 distinct rules and 1 default rule. However, as we have shown, the minimum routing table contains 5 rules (Fig. 2c). Therefore, in this situation, some flows need to be routed using the default port. For instance, if the flow(2, 6) in Fig. 2c goes to the default port-5, then the link(2, 5) will be overloaded. It is also easy to check that, when the rule capacity is equal to 4 and with a set of active links as in Fig. 1b, it is not possible to find a routing solution that satisfies both capacity constraints on links and rule space constraints on routers. However, if we consider the rule space constraints as inputs of the problem, we can find a feasible solution as Fig. 1c. Actually, since we add more constraints, the EAR with rule space is able to save
less energy with respect to the classical EAR. For instance, there is only 1 inactive link in Fig. 1c while we can turn off 2 links and save more energy in Fig. 1b.
As we have shown in this example, the limited rule space is very important in EAR. Inefficient rule placement can cause unexpected routing solution, and hence result in network con-gestion. To overcome this problem, we present in this section a precise formulation (Integer Linear Program) and heuristic approach for large networks. However, we note that the current algorithms can find optimal solution of energy consumption (or close-to-optimal if it is heuristic) if we consider the default rule but not the wild-card. If the rule space is scarce, we can apply the work of “compressing policy on a single switch” [18] as a post-processing step to further reduce the routing table size.
A. Integer Linear Program
We consider a backbone network as an undirected graph G = (V, E). The nodes in V describe routers and the edges inE present connections between those routers. We denote by Dst
the demand of traffic flow from node s to node t such that Dst ≥ 0, s, t ∈ V, s 6= t. We assume that the capacity of
links and the rule space at routers are constant. The objective is to find a feasible routing for all traffic flows, respecting the capacity and the rule space constraints and being minimal in energy consumption.
We first define the following notations and then formulate the problem as Integer Linear Program:
• D: a set of all traffic demands to be routed. • Dst∈ D: demand of the traffic flow from s to t.
• Cuv: capacity of a link(u, v).
• µ ∈ (0, 1]: maximum link utilization that can be tolerated. It is normally set to a small value, e.g. µ = 0.5.
• Cu: maximum number of rules can be installed at
routeru.
• N (u): the set of neighbors of u in the graph G. • xuv: binary variable to indicate if the link (u, v) is
active or not. • fst
uv: a flow(s, t) that is routed on the link (u, v) by
a distinct rule. We callfst
uv as normal flow.
• gst
uv: a flow(s, t) that is routed on the link (u, v) by a
default rule. gst
uv is called default flow to distinguish
from the normal flowfst uv .
• kuv: binary variable to indicate if the default port of
the router u is to go to v or not.
min X (u,v)∈E xuv (1) s.t. X v∈N(u) fst vu+ g st vu− g st uv− f st uv = −1 if u = s, 1 ifu = t, 0 else ∀u ∈ V, (s, t) ∈ D (2)
fst uv+ f st vu+ g st uv+ g st vu≤ 1 ∀(u, v) ∈ E, (s, t) ∈ D (3) X (s,t)∈D Dst(fuvst + f st vu+ g st uv+ g st vu) ≤ µCuvxuv ∀(u, v) ∈ E (4) X (s,t)∈D X v∈N(u) fuvst ≤ Cu− 1 ∀u ∈ V (5) X v∈N(u) kuv ≤ 1 ∀u ∈ V (6) gst uv≤ kuv ∀(u, v) ∈ E, (s, t) ∈ D (7) xuv, fuvst, g st uv, kuv∈ {0, 1} ∀(u, v) ∈ E, (s, t) ∈ D (8)
The objective function (1) minimizes the power consump-tion of the active links. The flow conservaconsump-tion constraints (2) express that the total flows entering and leaving a router are equal (except the source and the destination nodes). It is noted that a normal flow entering a router can become a default flow on outgoing link and vice versa. Constraints (3) ensure that a flow (s, t) on a link (u, v) cannot be both normal (fst
uv)
and default flow (gst
uv) at the same time. Constraints (4) are
capacity constraints. We consider an undirected link capacity model [21] in which the capacity of a link is shared between the traffic in both directions. This model is not common but it allows to reduce the number of variables without impacting the general idea of our proposal. Constraints (5) denote rule capacity constraints where we reserve one rule at each router to be the default rule. Constraints (6) and (7) are used to fix only one default port for each router.
B. Heuristic Algorithm
Since energy-aware routing problem is known to be NP-Hard [8], it is very challenging to find an exact solution. There-fore, we present in this section an efficient greedy heuristic for large networks. In summary, the heuristic algorithm works through two steps:
- Step 1: starting from the whole network, we compute a feasible routing which respects the capacity and the rule space constraints as described in Algorithm 1, 2 and 3. For each router u ∈ V , we keep the two sets Fu and Gu containing
normal and default flows, respectively. At the beginning of the algorithm, we are freely to assign distinct rules for flows (line 10 - Algorithm 1) until the routing table is full (|Fu| = Cu).
Then, we try to shrink it (line 9 - Algorithm 1) as Fig. 3 by setting the port that carries most of traffic flows as the default port. As a result, the number of installed rules is reduced and there is some more space to install new rules.
Fig. 3: Routing table at a router
! "
Fig. 4: Example of updating link weight
Algorithm 1: Finding a feasible routing
Input: An undirected graph G = (V, E), link capacity Ce∀e ∈ E, rule space capacity Cu ∀u ∈ V and a set of
demandsD.
Ouput:routing solution on graphG.
1 Residual capacityRe= Ce ∀e ∈ E; 2 Initially,Fu= ∅ and Gu= ∅ ∀u ∈ V ;
3 Creating directed graphG′= (V, E′) from G where
∀(u, v) ∈ E, we add both directions (u, v) and (v, u) to E′
(Fig. 4). Initial weight on link we= 1 ∀e ∈ E′; 4 whileDst∈ D has no assigned route do
5 find the shortest pathPst onG′ such that
Re≥ Dst ∀e ∈ Pst;
6 assign the routingPst to the demandDst; 7 updateRe:= Re− Dst ∀e ∈ Pst;
8 update link weights proportionally to the size|Fu|
as Algorithm 2;
9 if|Fu| == Cu, shrink table atu ∀u ∈ Pst; 10 updateFu andGu ∀u ∈ Pst using Algorithm 3; 11 end
12 return the routing (if it exists) assigned forD
- Step 2: remove in priority links that are less loaded (Algorithm 4). The aim of this step is to turn off the low loaded links and to accommodate their traffic on other links in order to reduce the total number of active links.
An example of computing link weights (Algorithm 2) is shown in Fig. 4. The link weight is used to perform rule-balancing between routers. Assume that the next demand is (A, D), then the routing solution using shortest path is (A, C, D). It is better than (A, B, D) since node C still has much more available rule space.
Algorithm 2: Updating link weight
Input:An undirected graphG = (V, E), a set of normal flows Fu ∀u ∈ V and a maximum value of rule space
capacityCmax= max(Cu) ∀u ∈ V .
Ouput:weight setting on links ofG′
.
1 Create a digraphG′= (V, E′) as Fig. 4. 2 for(u, v) in E′ do
3 compute rule utilization atv:
Uv= Cmax× |Fv|/Cv; 4 update wuv= max(Uv, 1); 5 end
Algorithm 3: UpdatingFuandGu
Input:An undirected graphG = (V, E), the shortest path Pst
found in Algorithm 1, the set Fu andGu ∀u ∈ Pst
and the default port of each router d(u) ∀u ∈ Pst.
Ouput:Updated sets ofFu andGu ∀u ∈ V . 1 foru ∈ Pst do
2 forv ∈ G.neighbor(u) do
3 if(u, v) ∈ Pst andv == d(u) then 4 Gu= Gu∪ guvst
5 else if(u, v) ∈ Pst andv 6= d(u) then 6 Fu= Fu∪ fuvst
7 end 8 end 9 end
Algorithm 4: Removing less loaded links
Input:An undirected graphG = (V, E), link capacity Ce
and residual capacity Re ∀e ∈ E.
Ouput:routing solution on a set of active links.
1 while edges can be removed do
2 remove the edgee that has not been chosen and has
smallest value Ce/Re;
3 compute a feasible routing with the Algorithm 1; 4 if no feasible routing exists, pute back to G; 5 end
6 return the feasible routing if it exists.
IV. SIMULATIONRESULTS
We solved the ILP model with IBM CPLEX 12.4 [12]. All computations were carried out on a computer equipped with 2.7 Ghz Intel Core i7 and 8 GB RAM. We consider real-life traffic traces collected from SNDlib [20]. To compare the optimal and the heuristic solutions, we use a small network as Atlanta network (V = 15, E = 22, |D| = 210). As mentioned in [13][14], the routing table can support from 750 to few thousands of rules. To show that this is a realistic problem, we use three of the largest network topologies in SNDlib: ta2 (Telekom Austria: V = 65, E = 108, |D| = 4160), zib54 (Zuse-Institut Berlin: V = 54, E = 81, |D| = 2862) and germany50 (V = 50, E = 88, |D| = 2450). In our test instances, five traffic matrices (D1 - D5) are used to represent daily traffic pattern (Fig. 5). Since traffic load is low, the traffic matrix obtained from SNDlib is considered asD1. To achieve a network with high link utilization, we scaleD1 with a factor of 1.5, 2.0, 2.5 and 3.0, and they form D2 - D5, respectively. Note that we can play with finer granularity traffic matrices by changing these factors.
A. Optimal vs. Heuristic Solutions
Assume that each router on the network has the same rule capacity represented by Cu= (p × |D|) where p ∈ (0, 1] and
|D| is the total demands. The value of Cu is varied as we
change the parameter p. Energy savings is computed as the number of links to sleep divided by the total number of links of the network (|E|).
As shown in Table 1 and Table 2, the ILP model can find solution for very limited rule space (p = 5%) while the

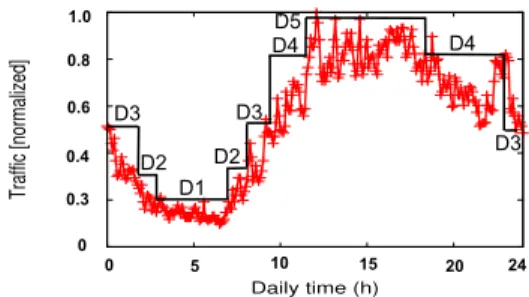

0 0.2 0.4 0.6 0.8 1 0 5 10 15 20 Traffic [normalized] Daily time (h)
Fig. 5: Daily traffic in multi-period
TABLE II: Atlanta network (optimal solution)
Rule capacity (p - %) energy savings (%) computation time (s)
5% 9 2200 10% 22.7 9000 20% 22.7 445 30% 22.7 540 40% 22.7 300 100% 22.7 400
TABLE III: Atlanta network (heuristic solution)
Rule capacity (p - %) energy savings (%) computation time (s)
16% 4.5 <10
20% 13.6 <10
30% 18.2 <10
40% 18.2 <10
100% 18.2 <10
heuristic algorithm needsp = 16% (if p is less than this value, no feasible solution can be found). Similarly, the heuristic algorithm is able to save less energy when p is small (e.g. p ≤ 16%). However, when the rule space capacity is large enough, e.g. p = 30%, the gaps between the optimal and the heuristic solutions are small. Moreover, the heuristic algorithm is better in computation time. For instance, the ILP model can take up to 9000 (s) to find solution while it is always less than 10 (s) for the heuristic algorithm.
B. Heuristic Solutions for Large Networks
1) Rule allocation at routers: We assume that all the routers have the same rule space capacity Cu = 750 [14].
As the EAR approach, we use the heuristic algorithm in [8] to represent the case where there is no limit of rule space. We run this algorithm on germany50, zib54 and ta2 networks to see if the rule space constraints are violated or not. As shown in Fig. 6a, Fig. 6b and Fig. 6c, most of the cases (except D5 of germany50 network), there are routers that use more than750 rules in their routing tables. In zib54 network (resp. ta2 network), from 6% to 11% (resp. 11% to 16%) of routers exceed their rule space capacities. In germany50 network, with theD5 traffic matrix, there is no router that uses more than 750 rules. For other traffic matrices, from2% to 10% of the routers are overloaded in rule space (Fig. 6a). Therefore, the limited rule space is really a problem in real networks. This problem is extremely important since we cannot route traffic as expected. The number of routers overloaded in rule space depends on the traffic matrix. However, an accurate explanation is difficult (e.g. less overloaded routers when traffic load is high) since the algorithm in [8] does not care at all about the rule capacity.
(a) Germany50 network (b) Zib54 network (c) Ta2 network

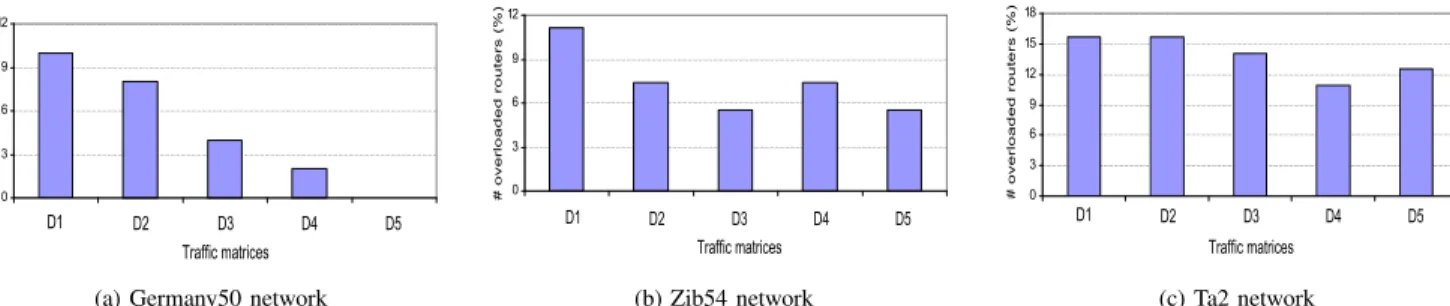

Fig. 6: Number of overloaded routers in the three networks with unlimited rule-space algorithm
0 20 40 60 80 100 0 20 40 60 80 100 120 140 160 fraction of nodes (%)
rule space utilization (%) CDF rule space - D1 matrix CDF rule space - D5 matrix
(a) Germany50 network
0 20 40 60 80 100 0 50 100 150 200 fraction of nodes (%)
rule space utilization (%) CDF rule space - D1 matrix CDF rule space - D5 matrix
(b) Zib54 network 0 20 40 60 80 100 0 50 100 150 200 250 300 fraction of nodes (%)
rule space utilization (%) CDF rule space - D1 matrix CDF rule space - D4 matrix
(c) Ta2 network
Fig. 7: CDF rule space utilization in the three networks with unlimited rule-space algorithm
To take a closer look at rule space allocation, we draw cumulative distribution function (CDF) for rule utilization at each router (Fig. 7a, Fig. 7b and Fig. 7c). When a rule space utilization is larger than100%, it means that the router has used more than 750 rules. Based on Fig. 6a, Fig. 6b and Fig. 6c, we can find the traffic matrices that cause the maximum and the minimum number of routers violating their rule space constraints. We call these traffic matrices as the max-over-rule and the min-over-rule, respectively. For instance, in case of germany50 network, D1 is the max-over-rule and D5 is the min-over-rule. For each network, we draw two CDFs of rule utilization for the max-over-rule and the min-over-rule cases. As shown in Fig. 7a, Fig. 7b and Fig. 7c, the CDF of rule space allocation of the two cases are quite similar. However we can see in the max-over-rule case, more fractions of routers are overloaded. For instance, in Fig. 7b, only89% of routers are less than100% rule space utilization in the max-over-rule case (D1), meanwhile it is94% of routers in the min-over-rule case (D5). In general, the larger the network is, the more rule space is needed at routers. For example, the maximum rule utilization of germany50, zib54 and ta2 networks are 165%, 220% and 310%, respectively.
2) Energy savings: We collect energy savings for each network in three cases: the minimum, the standard and the unlimited rule spaces. In the standard case, each router can install at most 750 rules (Cu= 750). To find the minimum rule
space, we reduce the value ofCuuntil we get a minimum value
ofCu for which it is possible to find a feasible solution. The
minimum values ofCufor germany50, zib54 and ta2 networks
are 227, 670 and 695, respectively. The unlimited rule space case is equivalent to the classical EAR model in which we do not consider at all rule space constraints at routers. In general, as shown in Fig. 8a, Fig. 8b and Fig. 8c, the larger the rule space at routers is, the more flexible routing solutions we have and more energy can be saved for the network. The
energy savings gap between the standard and the unlimited rule space cases is small. In some traffic matrices, both cases offer the same amount of energy savings. For instance in germany50 network, the standard and unlimited cases offer the same amount of energy savings. It means that if we use a smart rule allocation, it is possible to achieve equivalent energy savings as the classical EAR approach. The maximum energy savings gaps of the standard and the unlimited cases are3% and 5.6% for zib54 and ta2 networks, respectively. As expected, less energy is saved in the minimum rule space case as we do not have enough installed rules to route traffic in a better way. As shown in Fig. 8a, there is a big gap of the energy savings between the minimum and the standard cases. This can be explained as the difference between the minimum and the standard values ofCu in germany50 network is large.
3) Route length: Intuitively, EAR would affect the length of routing flows as we redirect traffic flows to minimize the number of active links. In Fig. 9a, Fig. 9b and Fig. 9c, we evaluate the impact of EAR on routing length with respect to the shortest path routing. For each traffic demand, we collect the length of its routing flow and the corresponding shortest path. We use the notation over-length to denote the difference (in number of hops) between the length of the routing solution and the shortest path. When over-length is equal to0, it means that the routing solution is exactly the shortest path. As shown in Fig. 9a, Fig. 9b and Fig. 9c, a large fraction of the demands follow their shortest paths. Indeed, in the heuristic algorithm, we use the shortest path to find routing solution. In germany50 and zib54, the maximum number of additional hops for a demand is 3 and 5 hops, respectively. The ta2 network is larger, up to 6 hops can be added to a demand, but it happens only for 1.4% of the demands. However, if latency is important, especially for sensitive delay applications such as voice or video streaming, we can add constraints to limit the route length so that it will not excess a predefined threshold value.
10 15 20 25 30 35 40 45 0 5 10 15 20 energy savings (%) daily time (h) unlimited rule space standard rule space minimum rule space
(a) Germany50 network
10 15 20 25 30 35 0 5 10 15 20 energy savings (%) daily time (h) unlimited rule space standard rule space minimum rule space
(b) Zib54 network 10 15 20 25 30 35 40 0 5 10 15 20 energy savings (%) daily time (h) unlimited rule space standard rule space minimum rule space
(c) Ta2 network
Fig. 8: Energy savings in daily time in the three networks
(a) Germany50 network (b) Zib54 network (c) Ta2 network
Fig. 9: Over-length of demands in the three networks
V. CONCLUSIONS
To our best knowledge, this is the first work considering rule space constraints of OpenFlow switch in energy-aware routing. We argue that, in addition to capacity constraint, the rule space is also important as it can change the routing solution and affects QoS. Based on simulations with real traffic traces, we show that our smart rule allocation can achieve high energy efficiency for a backbone network while respecting both the capacity and the rule space constraints.
