• Aucun résultat trouvé

X-ray evidence for CrBO<sub>3</sub>, VBO<sub>3</sub>, and TiBO<sub>3</sub> with calcite structure

N/A
N/A
Protected

Academic year: 2022

Partager "X-ray evidence for CrBO<sub>3</sub>, VBO<sub>3</sub>, and TiBO<sub>3</sub> with calcite structure"

Copied!
3
0
0

Texte intégral

(1)

Article

Reference

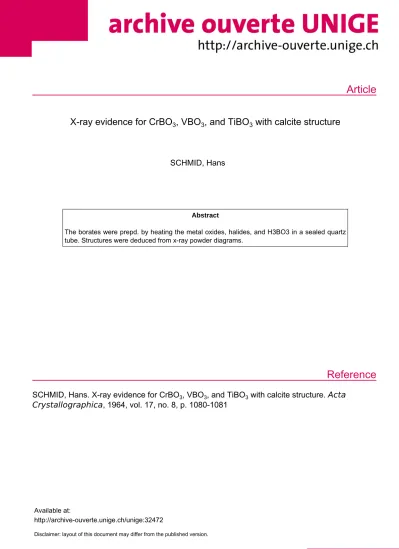

X-ray evidence for CrBO 3 , VBO 3 , and TiBO 3 with calcite structure

SCHMID, Hans

Abstract

The borates were prepd. by heating the metal oxides, halides, and H3BO3 in a sealed quartz tube. Structures were deduced from x-ray powder diagrams.

SCHMID, Hans. X-ray evidence for CrBO

3

, VBO

3

, and TiBO

3

with calcite structure. Acta Crystallographica , 1964, vol. 17, no. 8, p. 1080-1081

Available at:

http://archive-ouverte.unige.ch/unige:32472

Disclaimer: layout of this document may differ from the published version.

1 / 1

(2)

Reprinted f r o m Acta Crystallographica, V o l . 17, P a r t 8, August 1964

P B I N T E D I N D E N M A K K

Acta Cryst. (1964). 17, 1080

X - r a y evidence for CrBOg, V B O 3 and T i B O g w i t h calcite structure.

B y H . S C H M I D , Batteile Memorial Institute, International Division, Oeneva, Switzerland

{Received 31 March 1964) I n t h e course of p r e p a r a t i o n s of boracites b y gas phase

t r a n s p o r t reactions i n sealed q u a r t z tubes ( S c h m i d , 1964) we also o b t a i n e d several k n o w n a n d some n e w t r a n s i t i o n m e t a l borates via t h e gas phase.

H e r o w e w a n t t o r e p o r t o n a n e w c h r o m i u m , v a n a d i u m , and t i t a n i u m b o r a t e . T h e e x p e r i m e n t a l c o n d i t i o n s i n - d i c a t e d i n t h e f o U o w i n g are n o t o p t i m a l f o r b o r a t e f o r m a t i o n since t h e y w e r e chosen w i t h a v i e w t o o b - t a i n i n g boracites. Nonetheless t h e y m a y serve as a g u i d e :

T h e c h r o m i u m b o r a t e was o b t a i n e d as f o l l o w s : i n a sealed q u a r t z t u b e ( v o l u m e 0-08 1) t h r e e q u a r t z cruoibles c o n t a i n i n g 0-76 g BgOg, 0-3 g ( C r j O g + C r ) a n d 0-67 g C r C l j r e s p e c t i v e l y , were a r r a n g e d , one above t h e o t h e r , a n d 175 m g H j O i n t h e f o r m of H 3 B O 3 was placed i n

t h e c r u c i b l e c o n t a i n i n g C r j O g + C r . T h e sealed t u b e was h e a t e d i n a v e r t i c a l t u b u l a r f u r n a c e f o r f o u r days i n a s m a l l t e m p e r a t u r e g r a d i e n t ( r i~ 9 9 0 °C, ^ 2^ 1 0 0 0 °C) i n such a w a y t h a t t h e colder e n d of t h e t u b e was o n t o p . T h e c o o l i n g t o r o o m t e m p e r a t u r e t o o k 3 h o u r s . I n t h e c r u c i b l e , c o n t a i n i n g B j O g , C r - C l - b o r a o i t e h a d f o r m e d , a n d o n t h e w a l l s of t h e t u b e (coldest zone), hexagonal, grass-green platelets ( a b o u t 0-05 m m t h i c k a n d 0-5 m m i n d i a m e t e r ) were d e t e c t e d . T h e crystals c o u l d easily be d e t a c h e d b y d i s s o l v i n g t h e B 2 O 3 f i h n o n t h e t u b e w a l l i n b o i l i n g w a t e r .

T h e V a n a d i u m b o r a t e was f o r m e d as f o l l o w s : three q u a r t z crucibles c o n t a i n i n g 2-8 g B2O3, 1-34 g ( V 2 O 5 + 3 V ) a n d 2-54 g V C I 2 r e s p e c t i v e l y , were p l a c e d i n a q u a r t z

(3)

1 0 8 1 S H O R T C O M M U N I C A T I O N S

T a b l e 1 . Observed and calculated lattice spacings and visually estimated intensities for T i B O j , V B O 3 , C r B O j Indices refer to the t r i p l y p r i m i t i v e hexagonal cell.

(The lattice spacings should be compared w i t h those found b y Bernal, Struck & W h i t e for Feo.gGao.iBÖg: a n = 4-631 + 0-005, C H = 14-42 ± 0-01, aR = 5-496 Ä ; « = 49° 38')

T i B O , VBO3 C r B O ,

hkl do de lo do de io do de lo

102 3-548 3-554 45 3-449 3-465 50 3-438 3-462 55

104 2-737 2-740 100 2-641 2-655 100 2-631 2-648 100

110 2-336 2-335 30 2-284 2-286 25 2-277 2-286 18

113 2-113 2-113 60 2-056 2-062 50 2-049 2-061 45

202 1-950 1-9.50 42 1-905 1-909 35 1-896 1-908 20

204 1-774 1-777 25 1-732 1-733 32 1-724 1-731 18

116

108

1

1-698 1-701

1-692 1-650

1-631 1-650

1-630 50

40 1-644

1-621 1-648

1-624 50

212 1-480 1-497 5 1-464 1-465 25 1-465 1-465 40 20

214 1-415 1-414 10 1-380 1-381 30 1-380 1-380 28

1,0,10 208 1-370

1-398 1-370

5 1-347 1-327 1-348 1-328 25 1 1-339 1-323 1-341 1-324 5

1

80

300 10

119

j

1-349 1-351 1-348

j

40 1-320 1-306 1-320 1-306 70 35 1-320 1-301 1-320 1-301

1

80

0,0,12 1-242 1-242 30 1-194 1-193 60 1-187 1-187 60 10

2,0,10 1-200 1-200 10 1-162 1-160 20 1157 1-156 25

218 1-181 1-181 40

aji = 4 - 6 7 0 ± 0 - 0 0 8 A « H = 4-573 + 0-005 A a n = 4-573 ± 0 - 0 0 5 Ä C H = 14-90 ± 0 - 0 5 Ä C H = 14-32 ± 0 - 0 1 A C H = 14-23 ± 0 - 0 1 A O R = 5-65 A « E , = 5-453 A O R = 5-434 Ä

a = 48° 48' « = 49° 24' « = 49° 46'

t u b e (as above). T h e HaO-dosis w a s 4 5 m g . T h e sealed t u b e w a s heated f o r 1 2 hours i n a s m a l l g r a d i e n t ( 5 ° p e r 2 0 c m ) a t a b o u t 9 0 0 "C, t h e colder e n d b e i n g o n t o p . Cooling t o o k 2 hours. I n t h e qu.artz c r u c i b l e , o r i g i n a l l y c o n t a i n i n g B2O3, h e x a g o n a l r e d bro-vm ( i n t r a n s m i t t e d l i g h t ) platelets (dimensions l i k e those of t h e c h r o m i u m borate) h a d f o r m e d . N o b o r a c i t e w a s o b t a i n e d , b u t s m a l l V2O3 crystals h a d f o r m e d o n t h e w a l l s o f t h e t u b e .

T h e t i t a n i u m borate w a s o b t a i n e d as f o l l o w s : t h e three q u a r t z crucibles (as above) c o n t a i n e d 2 - 8 g BgOg, T 3 g T i O a n d 6 - 0 g T i l j respectively. T h e w a t e r dosis w a s 1 7 5 m g . T h e w h o l e t u b e w a s m a i n t a i n e d i s o t h e r m a l f o r 4 8 h o u r s a t 9 0 0 °C. Cooling t o o k 3 h o u r s . I n t h e c r u c i b l e , c o n t a i n i n g B2O3, h e x a g o n a l platelets, r e d b r o w n i n t r a n s m i t t e d l i g h t a n d greenish d a r k b r o w n as a b u l k i n reflected l i g h t , h a d f o r m e d . T h e c r y s t a l dimensions were like those of t h e c h r o m i u m c o m p o u n d .

C h r o m i u m Kx p o w d e r d i a g r a m s of a l l n e w phases a n d Cu /-Ca-Weissenberg p h o t o g r a p h s of t h e c h r o m i m n c o m - p o u n d were m a d e . W e c o u l d show t h a t a l l three c o m - potinds are i s o s t r u c t u r a l a n d belong t o t h e calcite t y p e , as do t h e reoently discovered i r o n borates w i t h t h e goneral f o r m u l a Fei^:j:M:jB03 ( B e r n a l , S t r u c k & W h i t e , 1 9 6 3 ) .

A l t h o u g h there w a s n o t s u f f i c i e n t substance f o r che- m i c a l analysis, t h e calculated a n d observed d-values a n d t h e v i s u a l l y e s t i m a t e d intensities (Table 1 ) , c o m p a r e d w i t h those of t h e i r o n b o r a t e , leave n o d o u b t t h a t w e

h a d t o d o w i t h t h e borates C r B O j , V B O 3 a n d T i B 0 3 . T h e meohanisms of t h e t r a n s p o r t o f t h e oxides are n o t y e t clear; p r o b a b l y halides a n d o x y h a l i d e s (c/. Schäfer, 1 9 6 2 ) of h i g h e r m e t a l v a l e n c y t h a n t w o , f o r m e d b y d i s p r o p o r t i o n a t i o n of t h e halides M X g , were i n v o l v e d . A s t o f u r t h e r e x p e r i m e n t a l d e t a i l s a n d a discussion of t h e B2O3 t r a n s p o r t , t h e c i t e d paper o n boracites s h o u l d be referred t o .

T h e synthesis p r i n c i p l e is q u i t e generally applicable t o borates, p r o v i d e d t h a t a suitable t r a n s p o r t r e a c t i o n of t h e i n v o l v e d m e t a l oxide c a n be f o u n d . A n e l a b o r a t i o n of t h e m e t h o d seems therefore v e r y p r o m i s i n g f o r o b - t a i n i n g b o t h Single crystals a n d y e t u n k n o w n c o m p o u n d s , e.g. A I B O 3 , G a B O s , etc.

T h e a u t h o r wLshes t o t h a n k G . K l i e g l f o r t h e ohemical p r e p a r a t i o n s .

R e f e r e n c e s

B E R N A L , I . , S T R U C K , C . W . & W H I T E , J . G . ( 1 9 6 3 ) .

Acta Cryst. 16, 8 4 9 .

S C H Ä F E R , H . ( 1 9 6 2 ) . Chemische Transportreaktionen.

W e i n h e i m .

S C H M I D , H . ( 1 9 6 4 ) . J . Phys. Chem. Solids. T o be p u b - iished.

Printed in Denmark at Fr. Baggea kgl. Hofbogtrykkeri, Copenhagen

Références

Documents relatifs

It is worth noting that the structure of MgCNi 3 is like that of fcc Ni except for three things: first, the C atom goes into an interstitial site, unoccupied in the fcc

Correlating the experimental data of hydroxyl radicals photogeneration with theoretical calculations results, it is evident that the increasing order of photocatalytic activity

L’archive ouverte pluridisciplinaire HAL, est destinée au dépôt et à la diffusion de documents scientifiques de niveau recherche, publiés ou non, émanant des

The accurate lattice parameters and the extremely small lattice strains of iron iodine boracite, Fe3B7013I, have been successfully measured over the paraelectric and the

L'observation au microscope à lumière polarisée met en évidence la structure générale des céramiques. La première observation remarquable est leur porosité très

The CeaRh2Ge2 structure is geometrically closely related to the YaCoaGa structure, one being a slab- stacking variant of the other (ignoring the different

Fitting these I-V characteristics using the vortex glass and the collective flux creep theories reveals a rapid change of the collective pinning energy U„suggesting that an

Evidence for a first-order electric-field-induced phase transition in P\1N crystals, from the disordered cubic phase to a polar trigonal 3m phase, has recently
