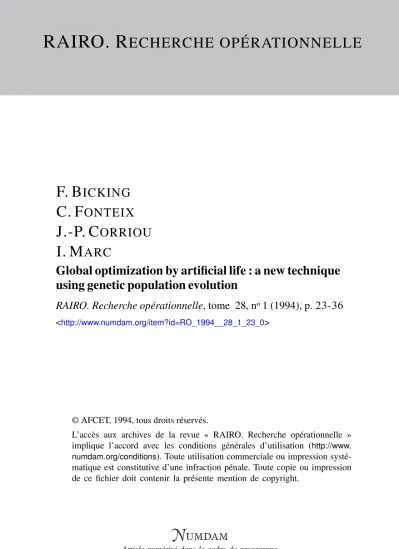

Global optimization by artificial life : a new technique using genetic population evolution

(1)

RAIRO. R ECHERCHE OPÉRATIONNELLE

F. B ÎCKING C. F ÔNTEIX J.-P. C ÔRRIOU I. M ÂRC

Global optimization by artificial life : a new technique using genetic population evolution

RAIRO. Recherche opérationnelle, tome 28, n^o1 (1994), p. 23-36

<http://www.numdam.org/item?id=RO_1994__28_1_23_0>

L’accès aux archives de la revue « RAIRO. Recherche opérationnelle » implique l’accord avec les conditions générales d’utilisation (http://www.

numdam.org/conditions). Toute utilisation commerciale ou impression systé- matique est constitutive d’une infraction pénale. Toute copie ou impression de ce fichier doit contenir la présente mention de copyright.

Article numérisé dans le cadre du programme Numérisation de documents anciens mathématiques

(2)

Recherche opérationnelle/Opérations Research (vol. 28, n° 1, 1994, p. 23 à 36)

GLOBAL OPTIMIZATION BY ARTIFICIAL LIFE: A NEW TECHNIQUE USING GENETIC POPULATION EVOLUTION (*)

by F. BICKING (1), C. FONTEIX (1), J.-P. CORRIOU (!) and I. MARC (l) (**)

Communicated by Jean ABADIE

Abstract. — In this paper, a new technique based on genetic algorithms principles is proposed for global optimizatïon problems. This optimîzation technique uses concepts front population genetics such as population size, birth, death, mutation. Its main characteristic is to perform the search by working on real variables. Following the algorithm description, experiments and results on a set of functions are provided. The ease of implementation of this new method makes it particularly useful

as a tool for nonlinear unconstrained and constrained optimization problems.

Keywords: Global optimization, stochastic method, probabilistic rules, population genetics.

Résumé. - Dans cet article, une nouvelle technique basée sur les principes des algorithmes génétiques est proposée pour traiter des problèmes d'optimisation globale. Cette technique d'optimisation utilise des concepts tirés de la génétique des populations tels que la taille de la population, la naissance, la mort, la mutation. Sa principale caractéristique est d'effectuer la recherche en opérant sur des variables réelles. Après une description de l'algorithme, des études de recherche d'optimum et leurs résultats sont présentés pour différentes fonctions. La facilité d'implantation de cette nouvelle méthode la rend particulièrement utile pour résoudre des problèmes d'optimisation nonlinéaire avec ou sans contraintes.

Mots clés : Optimisation globale, méthode stochastique, règles probabilistes, génétique des populations.

1. INTRODUCTION

With the advent of advanced computer architectures and emerging of new theoretical results, there is a growing interest in developing algorithms for

(*) Received April 1992.

(**) Author to whom all correspondence should be addressed.

C1) L.S.G.C., CN.R.S.-E.N.S.I.C.-E.N.S.A.I.A, 1, rue Grandville, B.P. 451, 54001 Nancy Cedex, France.

Recherche opérationnelle/Opérations Research, 0399-0559/94/01/$ 4.00

(3)

2 4 F. BicKiNG et al

nonlinear optimization problems. A large number of optimization problems can be written in the following form:

Mm{f{x)\ x E X} where X C Rⁿ ; ƒ : Rⁿ -+ R X= {x e Rn\lj < Xj < ty, j = l, 2,..., n;

0*0*0 <hi k = 1, 2,..., m}

where Zj and M/ are respectively the lower and upper bounds for xy. It assumes that n> m, the Ij and u;- are known and lj<Uj for ; = 1, 2, ..., n. Note that ƒ is not required to be convex, differentiable, continuous or unimodal. This kind of problems can be solved with différents approaches: deterministic or stochastic, according to the classification adopted by most authors.

Among deterministic approaches» Floudas étal [1, 2] distinguish covering methods, branch and bound methods, cutting plane methods, interval methods, trajectory methods and penalty methods. Among probabilistic methods, they distinguish random search methods [3], clustering methods [4], methods based on statistical models of objective functions [5, 6].

Rinnooy Kan and Timmer [7] prefer to this classical distinction into deterministic and stochastic approaches the following classification based on the philosophy of the respective methods: partition and search, approximation and search, global decrease, improvement of local minima, enumeration of local minima.

It will be shown in the following that genetic algorithms are clearly a stochastic approach which can be seen as a random search method. It is more difficult to incorporate genetic algorithms in Rinnooy Kan and Timmer [7] classification, however they have links with a global decrease method with respect to the best generated point.

Genetic algorithms constitute a class of optimization algorithms. This class of algorithms is distinguished firom other optimization techniques by the use of concepts from population genetics to perform the search [8, 9], A genetic algorithm créâtes a collection of initial points in the search space and makes it evolve by genetic operators such as sélection, recombination, mutation and crossover. The four characteristics of these algorithms are the following:

- parameters are coded in fixed length strings that assume an implicit parallelism;

- the search is performed with a population of points, not with a single one;

- probabilistic rules are used to make the population evolve;

Recherche opérationnelle/Opérations Research

(4)

GLOBAL OPTIMIZATÏON BY ARTMCIAL LIFE 25

- no information about the function is required, for example continuity, derivability, convexity,...

In this paper, a new technique for global optimization based on genetic concept is presented. The proposed technique uses actual values of the parameters while genetic algorithms use coded parameters. Our technique works also with genetic operators to perform the search. The overall approach is stochastic in nature, which makes theoretical analysis quite difficult, especially with regard to issues about the global convergence. Therefore the behavior is characterized computationally through a series of experiments.

We first describe the proposed Global Optimization through Artificial Life technique (GOAL). Then, the experiments on a set of test functions selected from the literature for their difficulty and the results are provided.

2. DESCRIPTION OF THE ALGORITHM

As mentioned earlier, in this approach, we use genetic concepts. Like genetic algorithms, our method considers simultaneously many points from the search space by generating populations of points and tests each point independently. At each itération, called a génération, a new population is generated and tested. Probabilistic rules are used to guide the search. Our algorithm requires only information concerning the quality of the solution (objective function value). With probabilistic rules, a random choice is efficiently introduced in the exploitation of knowledge to locate near optimal solutions rapidly.

The philosophical principle can lead to a qualitative understanding of the algorithm. The proposed algorithm opérâtes with a set of vectors which represents a population of individuals. The phenotype of an individual is given by a real vector x with x G X. Each component of x is called a gene.

The algorithm can be described by a five-tuple (N, L, M, G, S):

- N: Population size.

The population size affects both the performance and the efficiency of the algorithm. It generally behaves poorly with very small populations, because the population provides an insufficient sample size for the search.

A large population is more likely to contain représentative individuals and discourages premature convergence to suboptimal solutions but requires more évaluations per génération, possibly resulting in a slow rate of convergence.

- L: Number of genes.

vol. 28, n° 1, 1994

(5)

2 6 F. BiCKiNG et al

This parameter dépends on the characteristics of the function to optimize (L = dim(x), x E X).

- M: Mutation rate.

Mutation is a secondary search operator which increases the variability of the population and prevents complete loss of "genetic material" through sélection and recombination. Approximately, MxN mutations occur per génération. The mutation rate value is chosen equal to 0.01, near the value met in natural processes.

- G: Génération patrimony.

The génération patrimony détermines the population ratio which remains unchanged at each génération.

- S: strategy.

The population evolves génération after génération under the application of evolutionary rules called genetic operators. The used strategy influences the sélection process. Different stratégies might have been used; in partieular, in genetic algorithms, the pure sélection strategy is often encountered where each individual in the current population is reproduced in proportion to the individuals performance. In the present case, only the elitist strategy is retained: at each génération,NxG individuals are unchanged andNx (1-G) are eliminated; these latter will be replaced by new individuals.

The search is done by N active individuals» each of them being described by its vector of gènes or phenotype

x' = (x\, 4 , . . . , 4 ) (s G X) and ƒ(<),

its objective function. First, the algorithm créâtes at random an initial population of N individuals satisfying ail eventual constraints. In the évaluation process, the objective function is computed for each individual and the extrema values i^Min and #Max are stored (£fMin=Min {ƒ Çx*)} and i/^Max = Max {ƒ (x¹)} for i = l , 2,..., N).

The population is next sorted in increasing order by ƒ (x1) if a minimization is operated (respectively decreasing order in case of maximization) and a sélection is made. Only a population ratio is selected using the génération patrimony. The N x G first individuals will survive and participate to the création of a new génération. So G is chosen to select individuals as severely as possible without destroying the diversity of the population too much.

The elitist strategy guarantees that the best individual of a population Pt

survives in P^+i.

(6)

GLOBAL OPTMZATION BY ARTIFICIAL LIFE 27

In the reproductive stage, two individuals among the NxG selected are chosen at random to create a new individual (a child), ^(Nx G<k<N) by a random combination of the parents genes. This new individual is tested with respect to all constraints with must be satisfied; if not, it is rejected and another child is created. This child can mutate with the mutation rate M.

The mutation operator sélects at random one gene j that undergoes a random change (Ij < x^ < UJ). Next, the objective fonction value of this child is computed. Another sélection is made: the child that satisfies ƒ (x*)<#Max is accepted, otherwise another birth takes place. The reproductive stage runs until k-N, so the population is entirely reconstructed and the search scheme is iterated.

In order to verify the convergence of the algorithm, the following fitness index was defined:

ffMin - f l y * g + 1 = fit(p;)

W h e r e , NxG

% — 1

If the best NxG individuals (subpopulation P[) converge to the found minimum (#MinX fit(-P/) will tend to 1. It ensures the convergence to a minimum without knowing whether it is a local or a global one.

The conditions to stop the search are

|#Max - #Min| < £ and fit(Pt') « 1.

The first condition assumes that the entire population has converged to a solution and the second one that this point is the best minimum found during the run. This means that e is an important factor for the search. If e is very small, the search goes on and a better minimum (hopefully the global one) can be located due to the mutation process, otherwise the found solution is likely to be a local minimum.

Due to the elistist strategy, the next génération will have a minimal fonction value (//MÛI) lower or equal to the previous one. So, génération after génération, the population will converge to a solution which will be the best found during the search.

The algorithm is summarized by the block diagram (fig. 1).

vol 28, n° 1, 1994

(7)

28 F. BICKING et al

verified conditions

STOP ) - * — <^EvaluatiorT

( SOLUTIONS )

Reproductive stage to create new

génération

Figure 1. - Block diagram of the algorithm.

3. EXPERIMENTS AND RESULTS

Several functions taken from the literature have been tested with the proposed optimization technique. The complexity of a function optimization problem dépends on the number of local minima and their distnbution and the search domain defined by the constraints.

The first and simple example is presented to show the algorithm behavior in the search space. The second one is the Rosenbrock's 4-dimensional function, the third one is subjected to nonlinear constraints, the fourth one is used extensively in the Genetic Algorithms community. The two last are used in "mainstream" optimization and are multimodal.

For all runs, the mutation rate M is fixed equal to 0.01 and the used strategy is elitist, e is chosen equal to 10"8.

Example 1: The first experiment concerns a simple unimodal function with explicit constraints but présents a real interest to visualize the algorithm convergence.

Min { ƒ (ar, y) = 1 + (5 - x - y)12 , (1 - x + yf +

16 ^{0 <} x,y < 7

(8)

GLOBAL OPTIMIZATION BY ARTMCIAL LIFE 29 The global minimum is located at (x=3, y-2) with an objective function value of 1. Figure 2 shows the algorithm behavior and the search domain is also presented with the contours of f(x,y).

The initial population is scattered (fig. 2 a). The successive populations are presented génération after génération (L e. figure 2 b corresponds to

Figure 2. - Behavior of the algorithm for example l (successive populations for générations 1 to 6).

vol. 28, n° 1, 1994

(9)

génération 2, figure 2 c to génération 3 and so on). The points are progressively concentrated to a particular région of the search space where the minimum is located (figure 2 / corresponding to génération 6). The next générations bring a further accuracy which is not distinguishable on a drawing.

The global minimum was located in 12 générations with N-500 and G = 0.2, L being fixed equal to 2.

Example 2: This experiment is to minimize the Rosenbrock's 4-dimensional function:

M i n { f { i

= 100 (xi - # i )2+ ( l - X!)2 + 90 ( 4 - xs)2 + (1 - x3)2

+ 10.1 \{x2 - l )2 + (a* - l)2] + 19.8 (x2 - 1)(£4 - 1)}

The global minimum / = 0 is located at (1, 1, 1, 1). The algorithm was tried with two populations sizes N= 100 and N=500,L=4, and a génération patrimony equal to 0.2. The variations of N and G influence only the number of générations needed to reach the solution but not the quality of the solution, the global optimum being located at each run. For G = 0.2 and N= 100, 318 générations were neded instead of only 25 for N=500.

Example 3: This experiment is to minimize the following function subject to two nonlinear constraints [2].

Min{ƒ (yi,î/2) = -yi ~ yi) with the search domain: 0 < y\ < 3 and 0 < Î/2 £ 4

subject to constraints:

yi < 2 + 2y\ - 8yf + Sy\

y2 < Ay\ - 32y? + 88y? - 96yi + 36

The feasible région consists of two disconnected subregions (fig. 3 a). The global solution ƒ=-5.50796 occurs at yx = 2.3295 (point C on figure 3 b).

The proposed algorithm located the global minimum aty\=23295 with an objective value of -5.50797. The optimum was detected in 24 générations with 7^=500, G = 0.2, L being fixed equal to 2 and 50 générations for

G = 0.2

(10)

GLOBAL OPTMIZATION BY ARTMCIAL LIFE 31

lio n

o

,. _«A O O-

e

b °

QO

-0.5 - 1 -1.5 - 2 -2.5

- 5 -3.5 - 4 - 4 5 - 5 -5.5

•

• -

i

\ 1 /

\l

_V

A 1.01

\

ao s.(

i i i '

\ ^

\ /

\ \ /

B \ / C

Figure 3. - (a) Feasible région for example 3; (b) Optimal solution of example 3.

Example 4: This function was suggested by De Jong [10]

M i n { / (x,y) = 100 (x2 - y2)2 + (1 - xf }; -2.048 < x,y < 2.048 This fonction (fig. 4) is nonconvex and has its global minimum ƒ = 0 at (1,1). For all runs with different population size, the proposed algorithm has located the global optimum as shown in table.

vol. 28, n° 1, 1994

(11)

TABLE

Influence of the population size N and the génération patrimony G on the number of générations.

N 500 500 50 50

G 0.2 0.5 0.2 0.5

Générations 14 200 22 391

2 - 2

Figure 4. - Function of example 4.

Example 5: This function was suggested by Griewangk [11]

r io io Ï

-600 < x< x% < 600

The global minimum / = 0 is located at Jct-=O, i = l , 2,..., n. The local minima are located approximately at

Xk — ±kirVï, i = 1,2,..., n, fe — 0 , 1 , 2 , 3 , . . .

In ten dimensions, there are four suboptimal minima f(x) « 0.0074 at x « (±7r, ±7T >/2,0,..., 0 ) . For all runs, the proposed algorithm has located

(12)

GLOBAL OPTIMIZATION BY ARTIFICIAL LIFE 33 the global optimum. In ten dimensions, with N=500, the number of necessary générations was 35, respectively 65, resp. 124 with G equal to 0.2, resp.

0.5, resp. 0.7.

Example 6: This function was proposed by Schwefel [12].

Mini ƒ (x) = J2~

^{Xl sin}

(VW\) ?; -500 < Xi < 500

The global minimum is at x,-=420.9687, i = l , 2, ..., n (fig. 5). The local minima are located at the points x^ = (vr (0.5 + /c))2, k = 0, 2, 4, 6 for the positive directions of the coordinate axis and xj- = — (TT(0.5 + k))2, k = 1, 3, 5. Points with x,-=420.9687, i=l,2,..., n, Ï^J, JC/=-302.5232, give the second best minimum-far away from the global minimum. For all runs with N=500 and G = 0.2, the proposed algorithm has located the global optimum in 52 générations. For N=500 and G = 0.5, 196 générations were necessary to reach the solution. To emphasize the efficiency of the algorithm when faced to a multimodal function, two additional cases on the present two-dimensional function have been studied in detail; in these particular studies, the initial population has been randomly generated in a restricted area far from the optimum.

-400

-200

200

400

Figure 5. - Two-dimensional version of function of example 6.

vol. 28, n° 1, 1994

(13)

Case a: the generating domain for the initial population was —500 < Xi <

—400 to be compared to the search domain: —500 < x{ < 500. At each génération, the centroid for the population has been represented on figure 6 (contours of the function). The numbers on figure 6 indicate the génération in question. It can be seen that during the évolution towards the optimum which is reached after 42 générations, the centroid undergoes phases of

"accélération" and "décélération": sometimes, it seems to be trapped in a local minimum before emerging towards a new position. The population size was # = 5 0 0 and G = 0.2.

400

200

-200 -

-400 •

-400 400

Figure 6. - Contours for function of example 6 and different ways to reach the optimum.

Case b: the generating domain for the initial population was - 1 0 0 < Xi < 100. Near the génération 10, the centroid évoluâtes slowly around the point (80, 420) (fig. 6), then near the génération 20 around the point (-302, 420) which is a second-order local minimum (Min2). It extirpâtes itself only at the génération 40 where it évoluâtes quickly towards the searched minimum reached after 64 générations. The population size was only AT=50, with G = 0.2.

(14)

GLOBAL OPTIMIZATION BY ARTMCIAL LIFE 35

4. CONCLUSION

In this paper, a new and original method for function optimization problems is proposed. It uses concepts of genetics to perform the search. lts main originality is the use of actual values of parameters instead of coded ones as usually used in genetic algorithms. The main operating parameters to be defined for the algorithm in a given optimum search are the population size, the number of genes, the mutation rate, the génération patrimony.

The algorithm strategy is elitist, i. e. only the best points are retained. The method has been tested on several cases of nonlinear unconstrained and constrained optimization problems. A fitness index has been defined to serve as an indicator for convergence. Even when the test function presented pronounced extrema and when the initial population was confined near a local extremum, at the end, the global optimum was always located. Though the global convergence cannot be proved, the expérience gained through many complex optimization problems makes us think that the algorithm is both robust and powerful.

Further work may be done along the following main research directions:

first development of additional properties that can increase the computational efficiency and secondly application of this method in various domains as an optimization tooi.
