Atomic scale investigations on CdxZn1–xSe quantum
dots: Correlation between the composition and emission
properties
H. Benallali, T. Cremel, K. Hoummada, Dominique Mangelinck, R. André, S.
Tatarenko, Kuntheak Kheng
To cite this version:
H. Benallali, T. Cremel, K. Hoummada, Dominique Mangelinck, R. André, et al.. Atomic scale investi-gations on CdxZn1–xSe quantum dots: Correlation between the composition and emission properties. Applied Physics Letters, American Institute of Physics, 2014, 105 (5), pp.053103. �10.1063/1.4891635�. �hal-01221881�
Appl. Phys. Lett. 105, 053103 (2014); https://doi.org/10.1063/1.4891635 105, 053103
© 2014 AIP Publishing LLC.
Atomic scale investigations on Cd
x
Zn
1−x
Se
quantum dots: Correlation between the
composition and emission properties
Cite as: Appl. Phys. Lett. 105, 053103 (2014); https://doi.org/10.1063/1.4891635
Submitted: 30 April 2014 . Accepted: 13 July 2014 . Published Online: 05 August 2014
H. Benallali, T. Cremel, K. Hoummada, D. Mangelinck, R. André, S. Tatarenko, and K. Kheng
ARTICLES YOU MAY BE INTERESTED IN
Band parameters for III–V compound semiconductors and their alloys Journal of Applied Physics 89, 5815 (2001); https://doi.org/10.1063/1.1368156
Multidimensional quantum well laser and temperature dependence of its threshold current Applied Physics Letters 40, 939 (1982); https://doi.org/10.1063/1.92959
Statistical correction of atom probe tomography data of semiconductor alloys combined with optical spectroscopy: The case of Al0.25Ga0.75N
Atomic scale investigations on Cd
xZn
12xSe quantum dots: Correlation
between the composition and emission properties
H. Benallali,1,a)T. Cremel,2K. Hoummada,1D. Mangelinck,1R. Andre,2S. Tatarenko,2 and K. Kheng2
1
Aix-Marseille Universite, IM2NP-CNRS, Case 142, 13397 Marseille Cedex 20, France 2
University of Grenoble Alpes, F-38000 Grenoble, France; CEA, INAC, F-38054 Grenoble, France; and CNRS, Inst. NEEL, F-38042 Grenoble, France
(Received 30 April 2014; accepted 13 July 2014; published online 5 August 2014)
Atom probe tomography and photoluminescence spectroscopy have been used to study CdxZn1xSe quantum dots embedded in a ZnSe layer grown on a (001) GaAs substrate. Atom probe tomography analyses show significant cadmium incorporation in the center of the dots surrounded by poor cadmium region. These measurements illustrate that the maximum cadmium concentration in the quantum dots is significantly higher than the concentration estimated by transmission electron microscopy. The composition and size of quantum dots obtained by atom probe tomography have been used to calculate the transition energies including excitonic and strain effects.VC 2014 AIP Publishing LLC. [http://dx.doi.org/10.1063/1.4891635]
CdSe/ZnSe quantum dots (QDs) have attracted much in-terest due to their possible application in optoelectronics.1In the 90s, the basic application for CdSe/ZnSe QDs was con-nected to short wave emitters and manufacturing of QDs laser. Recently, CdSe QDs have gained more interest as sources of single photon operating at room temperature.2 II–VI self-assembled QDs such as CdSe/ZnSe are promising system for single-photon emission in the blue–green range.3 The optical properties of QDs systems depend on many pa-rameters such as morphology, chemical composition, and chemical environment.4 In contrast to III-V materials like InAs/GaAs, the formation of CdSe QDs differs significantly from the Stransky-Krastanov growth mode5 so that inter-diffusion and/or segregation phenomena based on Cd-Zn exchange6,7may take place in the QD formation mechanism. In order to obtain specific properties, comprehensive nanoscale information about the dots and their surroundings are required. However, the chemical analysis of embedded QDs is challenging. Transmission electron microscopy (TEM) can give first estimation of the degree of intermixing between CdSe and ZnSe layers. The key strength of TEM is that it can directly visualize the atomic structure of a mate-rial, and a recent approach has aimed at analyzing the CdSe QDs composition using the change in lattice parameters in high resolution TEM (HRTEM) images.8,9This is an indirect method to derive information about composition. On the other hand, the strength of Atom Probe Tomography (APT) is its ability to give directly information about the 3D com-position of all chemical elements at atomic scale.10 Thus, APT has been used recently to investigate the composition of III-V QDs,11 II-VI layers, and II-VI/III-V interface at atomic scale.12
In this paper, we investigate the chemical composition and sizes of CdxZn1xSe QDs embedded in ZnSe by APT and we correlate these measurements to their emission energy in photoluminescence (PL) spectra.
The sample presented in this study is composed of a sin-gle CdSe QD plane inserted between ZnSe barriers grown by molecular beam epitaxy (MBE). First, 60 nm thick ZnSe buffer layer was grown at 280C on a (100) GaAs substrate. Then 3 monolayers (MLs) of CdSe were deposited on the ZnSe layer by atomic layer epitaxy (at 280C). To induce the 2D–3D transition of the strained CdSe layer, amorphous selenium was first deposited at low temperature (10C) and then desorbed by heating up to 240C where spotty 3D RHEED (reflection high-energy electron diffraction) patterns appear and typically indicate QD formation.13 Finally, the CdSe QD layer was capped with 40 nm ZnSe layer (grown in two steps: 2 min at 240C then 5 min at 280C). Details of the growth method can be found in Ref.13.
Prior to APT analysis, low-temperature (10 K) photolu-minescence and micro-photoluphotolu-minescence measurements were performed on the sample. For APT analysis, a 100 nm thick Ni protection layer was deposited by physical vapor deposition. The samples were shaped into tips along the (001) growth direction using the lift-out technique and the annular milling method with a Ga focused ion beam. The specimen preparation was performed in a FEI Helios dual-beam–Focused ion beam (FIB) and APT measurements in a LEAP 3000X HR microscope. This microscope is equipped with a pulsed-laser source (k¼ 532 nm, pulse duration 10 ps, spot size <5 lm). The analysis conditions and specimen preparation techniques were carefully determined in order to optimize the APT analysis. In particular, reducing the laser energy and increasing the evaporation rate and/or the tip shape allow us to obtain good stoichiometry for semiconduc-tor compounds by minimizing the molecular ions formation and by taking into account the peaks overlapping. APT measurements were carried out at 23 K under a pressure below 5 1011 Torr and using a picosecond laser pulse with energy of 0.004 nJ and 100 kHz laser repetition. During the analysis, an evaporation rate of 0.002 ions per pulse was kept constant. The 3D reconstruction was carried out by using the shank-based algorithm14–16 in the IVAS commer-cial software, a field factor of 3.3 and an evaporation field of
a)
hammouda.benallali@im2np.fr
0003-6951/2014/105(5)/053103/4/$30.00 105, 053103-1 VC2014 AIP Publishing LLC
23 V/nm to provide flat interface and layer thicknesses close to value measured by TEM.
Figure 1(a) shows the 90 90 100 nm3 volume obtained by the reconstruction of APT data, in which the layers of ZnSe and CdSe are clearly visible on the GaAs sub-strate. From the atom distribution in this 3D-volume, a 15 nm diameter cylinder perpendicular to the ZnSe/CdSe interface was used to extract a one dimensional (1D) mean concentra-tion along the axe of the reconstructed volume (Fig. 1(b)). The small diameter (15 nm) helps to reduce the effects of cur-vature in the reconstruction and the misalignment of the cylin-der, both of which could result in loss of accuracy for the characterization of the CdSe layer. This 1D composition pro-file shows that the average composition of ZnSe is in very good agreement with the 50:50 stoichiometry. The mean com-position of Cd measured in CdxZn1xSe layer corresponds to x¼ 0.37, and the layer thickness is about 3–4 nm. The Se con-centration is constant through all the II-VI layer meaning that Zn and Cd substitute each other as expected.
From the APT measurements, two dimensional (2D) map-ping has also been extracted to show Cd atoms lateral distribu-tion in the CdxZn1xSe layer. Figure2shows the 2D maps of the Cd concentration obtained by integrating (a) over 3 nm along the z-direction (growth direction) in a 50 50 3 nm3 slice, (b) over 3 nm along the x direction in a 3 44 24 nm3 slice, and (c) over 15 nm along the x direction in a
15 44 24 nm3slice. These 2D-mapping shows clearly var-iations of the Cd concentration within the CdxZn1xSe layer: small rich regions are surrounded by poor regions. Cd-rich regions are attributed to CdxZn1xSe QDs while Cd-poor regions correspond to the wetting layer. The lateral surface of QDs in the (x,y) plane varies between 16 and 35 nm2. Figures 2(b)and2(c)also show an inhomogeneous Cd distribution in a slice along the (in-plane) x-direction. Figure2(b)is a 3-nm-in-depth profile (integration over 3 nm) and displays the local Cd concentration in a 2D (x,z) plane. We observe that the QD lat-eral size is5–10 nm. If we consider now the 15-nm-in-depth profile of Fig.2(c), we observe that the averaging of Cd con-centration over 15 nm gives the impression of having larger (20 nm) QD lateral size. This latter 2D profile is similar to the contrast in TEM images17and shows that TEM analysis in this case can lead to an overestimation of the lateral size.
The 2D Cd concentration maps in Fig.2only give an av-erage concentration of the CdxZn1xSe QDs (integration
FIG. 1. (a) Reconstructed volume 90 90 100 nm3, showing the ZnSe/
CdSe/ZnSe layers on top of the GaAs substrate. The 3D atom map shows the abrupt interface between layers. (b) Concentration profile measured inside a cylinder of 15 nm diameter in the reconstructed volume above, along the growth direction z; the average concentration of Cd is about 0.37 in the CdxZn1xSe layer.
FIG. 2. (a) 2D map concentration obtained from 3 nm slice through the CdZnSe layer along the growth direction, (b) 2D map obtained from 3 nm slice through the CdZnSe layer perpendicular to growth direction. (c) 2D map obtained from 15 nm slice through the CdZnSe layer perpendicular to growth direction. The color range goes from blue (poor Cd concentration) to red (high Cd concentration).
over the thickness of a slice). In order to obtain more accu-rate concentration in a QD, we make use of 1D profiles across the QDs. Figure3shows two examples of 1D profiles generated along the z-axis using 3 nm diameter cylinders (cylinders are shown and labeled in Fig.2(a)). The Cd con-centration in the CdxZn1xSe layer depends on the actual position of the intersecting cylinder. For instance, cylinder no. 6 intersects the Cd richest QD with a maximum Cd con-tent of x¼ 0.65 6 0.04. On the other hand, cylinder no. 7 intersects a thinner and Cd-poor region with a typical Cd content of x¼ 0.26 6 0.04 (profile 2 in Fig. 3) which is attributed to the wetting layer. Altogether, six QDs were identified in the volume of Fig.1 (see Fig. 2(a)) and their characteristics are listed in TableI. We use 1D profiles to determine the Cd concentration and the height of QDs and 2D maps for their lateral dimensions. The maximum Cd con-centration in the QDs and their height are displayed in Table I: they vary from 0.39 to 0.65 and from 2.1 to 1.4 nm, respec-tively. The average concentration (x), height (h), width (w), and length (l) of QDs are estimated to be x¼ 0.50, h¼ 1.6 nm, w ¼ 3.7 nm, and L ¼ 6.3 nm with the correspond-ing standard deviation of 0.096, 1.5 nm, 0.74 nm, and 1.4 nm. We want to emphasize that the APT ability of 3D local chemical analysis provides more accurate value for size and Cd concentration within the QDs. Though TEM analysis has not been carried out in our sample, we note that the analysis of the composition dependent contrast in high resolution TEM of a similar sample (QDs formed with 3 ML of CdSe
but with a different growth method)6gives estimates of QD diameter of about 5–10 nm and Cd concentration above 40%. These results are consistent with our results (though we can find significantly higher Cd concentration) but they much less accurate since in TEM measurements the concen-tration is measured through the thickness of the lamella.
To summarize this part, APT measurements do not show evidence for pure CdSe regions within our QDs sample but some Cd/Zn intermixing. This intermixing can be due to Cd/Zn interdiffusion or segregation of Cd during the growth. More precisely, TEM measurements on a sample grown by the same method, but without the cap ZnSe barrier, have shown the formation of the pure CdSe islands before the encapsulation by the second ZnSe barrier.17This shows that the Cd/Zn intermixing is due segregation effect during the overgrowth of the second barrier.18 Note that similar inter-mixing has been also observed for InAs/GaAs QDs.19–21By revealing the 3D distribution of the constituent elements of the CdxZn1-xSe QDs with atomic scale measurements, we have determined composition and size of individual QDs with Cd composition ranging from 39% to 65% in QDs rich regions) and 26% in the so called wetting layer (Cd-poor region). These parameters strongly affect the optical proprieties since the CdxZn1xSe composition gives the band gap and the QD sizes define the confinement energies and Coulomb interaction.
In this paragraph, we want now to correlate the QD characteristics measured by APT with their emission proper-ties. The inset of Fig.4shows the PL spectrum of an ensem-ble of QDs at 10 K, excited by a cw 488 nm laser with an incident power of 200 lW focused with a microscope
FIG. 3. 1D Cd composition profiles from two different regions in the CdZnSe layer using a 3 nm diameter cylinder. The two regions are indicated by circle nos.1 and 2 in Fig.2(a). Profile 1 corresponds to Cd rich (QDs) region, and profile 2 corresponds to cadmium-poor region (wetting layer).
TABLE I. Characteristics of the QDs found in the 3D volume in Fig.1(a): The concentration and the height were deduced from 1D profiles using 3 nm cylinder and the width and lengths from 2D maps. Sizes are FWHM of the concentration profiles.
Cd concentration (%) Height (nm) Width (nm) Length (nm)
QD1 39 2.09 3 7 QD2 55 1.4 5 7 QD3 58 1.32 3 8 QD4 40 1.7 4 4 QD5 45 1.6 3 7 QD6 65 1.4 4 5

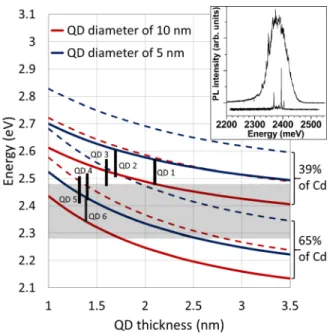

FIG. 4. PL transition energies as a function of the QD thickness. Two sets of four curves are displayed; the higher set corresponds to a Cd concentration of 39% and the lower set to 65% of Cd. Solid (dashed) curves are the transi-tion energies with (without) excitonic and strain effects. Blue (red) curve is the transition energies for QD diameter of 5 nm (10 nm). Within the 5–10 nm diameter, the expected transition energies are represented by verti-cal black rectangles for each QD whose thickness and composition has been measured by APT. The inset shows the PL spectra of an ensemble of QDs, and of a few QDs PL measured on a mesa of about 100 nm lateral size. The PL energy distribution is displayed by the shaded area in the figure. 053103-3 Benallali et al. Appl. Phys. Lett. 105, 053103 (2014)
objective (N.A.¼ 0.4, approximately 1 lm-diameter spot). The PL signal is distributed over a range of energy from 2.28 to 2.48 eV. In order to check the consistency of the APT analysis with the PL measurements, we first calculate the confinement energy of an electron and a hole assuming a lat-eral cylindrical shape for the QD using the effective mass model (with finite barrier and Ben Daniel-Duke boundary conditions22,23 for the wave functions). We applied a quad-ratic band gap variation as a function of the Cd alloy composition
EgðxÞ ¼ x EgCdSeþ ð1 xÞ EgZnSe b x ð1 xÞ:
We used the following experimental values: bowing parame-ter b¼ 0.35 eV, energy gaps EgCdSe¼ 1.765 eV and EgZnSe¼ 2.82 eV, taken from Refs.24–26, effective masses along [100] me*¼ 0.12 and mhh*¼ 0.9 for CdSe,27 me*¼ 0.145 and mhh*¼ 1.04 for ZnSe.28A linear interpola-tion from the binary materials values was used to determine the alloy effective masses. The main confinement energy is given by the QD thickness (size along the growth axis z). We calculated the lateral confinement29 of the QDs for two diameters of 5 and 10 nm to cover the QDs lateral size distri-bution and we obtained values of 160 and 54 meV, respec-tively. In Figure 4, dashed lines display the calculated transition energies as a function of the QD thickness, taking into account the alloy concentration and the lateral confine-ment. This calculation does not take into account the exciton effect and gives, as expected, transition energies higher than the experimental PL energy distribution illustrated by a shaded area in Figure4.
We used the software Nextnano30 to compute both the exciton effect and the strain effect induced by the lattice mis-match between ZnSe and the QD ternary alloy CdxZn1xSe. Strain depends on the Cd concentration and we computed values of4 and 25 meV for the extrema Cd concentra-tions of 39% (QD1) and 65% (QD6), respectively. Besides, the exciton binding energy depends on the QD diameter. Thus, for QDs diameter of 5 and 10 nm, we computed values of87 and 69 meV by calculating in both cases the aver-age exciton binding energy over the QDs thickness measured by APT. In Figure 4, solid lines correspond to transition energies taking into account strain and exciton effects. Similar calculations have been performed for the other QDs (QD2–QD 5) according to their thickness and Cd concentra-tion. The vertical black rectangles correspond to each QD transition energy and show the energy dispersion as a func-tion of the QD diameter from 5 to 10 nm.
We observe that within the 5–10 nm lateral size confine-ment, the calculated transition energies of the QDs are included in the PL energy distribution, except for QD no. 2. This latter QD is composed of 40% of Cd, a concentration close to the 26% of the wetting layer. Thus, the carriers photo-created in such a QD are rather shallowly confined and can easily escape (by tunneling through the wetting layer) to a larger QD where they recombine.
In summary, APT provides a powerful 3D characteriza-tion of CdxZn1xSe quantum dots at the atomic scale. This study has revealed the variability of dot size and shape, the
complexity of their chemistry, and a strong intermixing between the Cd and the Zn in the quantum dots. The compar-ison between the PL emission energy and the calculation of the transition energies including excitonic and strain effects shows that the PL measurements and the APT study are quantitatively consistent.
The authors gratefully acknowledge Eva Monroy and Jo€el Cibert for fruitful discussions. This work was supported by the French National Research Agency (ANR project Magwires ANR-11-BS10-013).
1T. Passow, H. Heinke, J. Falta, K. Leonardi, and D. Hommel,Appl. Phys.
Lett.77, 3544 (2000).
2
O. Fedorych, C. Kruse, A. Ruban, D. Hommel, G. Bacher, and T. K€ummell,Appl. Phys. Lett.100, 061114 (2012).
3H. Lohmeyer, C. Kruse, K. Sebald, J. Gutowski, and D. Hommel,Appl.
Phys. Lett.89, 091107 (2006).
4
A. P. Alivisatos,Science271(5121), 933 (1996).
5
D. Litvinov, A. Rosenauer, D. Gerthsen, P. Kratzert, M. Rabe, and F. Henneberger,Appl. Phys. Lett.81,640 (2002).
6T. Passow, K. Leonardi, H. Heinke, D. Hommel, D. Litvinov, A.
Rosenauer, D. Gerthsen, J. Seufert, G. Bacher, and A. Forchel,J. Appl. Phys.92, 6546 (2002).
7T. Passow, H. Heinke, T. Schmidt, J. Falta, A. Stockmann, H. Selke, P.
Ryder, K. Leonardi, and D. Hommel,Phys. Rev. B64,193311 (2001).
8
N. Peranio, A. Rosenauer, D. Gerthsen, S. V. Sorokin, I. V. Sedova, and S. V. Ivanov,Phys. Rev. B61, 16015 (2000).
9D. Litvinov, A. Rosenauer, D. Gerthsen, and N. Ledentsov,Phys. Rev. B
61, 16819 (2000).
10
A. Cerezo, D. Gibuoin, S. Kim, S. J. Sijbrandij, F. M. Venker, P. J. Warren, J. Wilde, and G. D. W. Smith, J. Phys. IV France06, C5–205 (1996).
11M. M€uller, A. Cerezo, G. D. W. Smith, L. Chang, and S. S. A. Gerstl,
Appl. Phys. Lett.92, 233115 (2008).
12
H. Benallali, K. Hoummada, M. Descoins, P. Rueda-Fonseca, L. Gerard, E. Bellet-Amalric, S. Tatarenko, K. Kheng, and D. Mangelinck, Scr. Mater.69(7), 505 (2013).
13
I. C. Robin, R. Andre, H. Mariette, S. Tatarenko, Le Si Dang, J. Bleuse, E. Bellet-Amalric, and J. M. Gerard,Nanotechnology16, 1116 (2005).
14F. Vurpillot, B. Gault, B. P. Geiser, and D. J. Larson, Ultramicroscopy
132, 19(2013).
15
E. A. Marquis, B. P. Geiser, T. J. Prosa, and D. J. Larson,J. Microsc.241, 225 (2011).
16M. K. Miller and M. G. Hetherington,Surf. Sci.246, 442 (1991). 17I.-C. Robin, R. Andre, C. Bougerol, T. Aichele, and S. Tatarenko,Appl.
Phys. Lett.88, 233103 (2006).
18
T. Passow, K. Leonardi, H. Heinke, T. Schmidt, J. Falta, A. Stockmann, H. Selke, and D. Hommel,Physica E13, 1208 (2002).
19Z. R. Wasilewski, S. Fafard, and J. P. McCaffrey,J. Cryst. Growth
202, 1131 (1999).
20
N. Grandjean, J. Massies, and O. Tottereau, Phys. Rev. B55, R10189 (1997).
21C. Priester and M. Lannoo,Appl. Surf. Sci.
123–124, 658 (1998).
22
J. W. Conley, C. B. Duke, G. D. Mahan, and J. J. Tiemann,Phys. Rev.
150, 466 (1966).
23D. J. BenDaniel and C. B. Duke,Phys. Rev.152, 683 (1966).
24A. G. Areshkin, G. S. Pecar, G. N. Polisskii, T. B. Popova, L. G. Suslina,
and D. L. Fedorov, Sov. Phys. Solid State 28, 2109 (1986).
25
H. C. Poon, Z. C. Feng, Y. P. Feng, and M. F. Li,J. Phys.: Condens. Matter7, 2783 (1995).
26W. Shan, J. J. Song, H. Luo, and J. K. Furdyna,Phys. Rev. B
50, 8012 (1994).
27
Y. D. Kim, M. V. Klein, S. F. Ren, Y. C. Chang, H. Luo, N. Samarth, and J. K. Furdyna,Phys. Rev. B49, 7262 (1994).
28M. Isshiki,J. Cryst. Growth
86, 615 (1990).
29
N. C. Constantinou and B. K. Ridley,J. Phys.: Condens. Matter1, 2283 (1989).
30S. Birner, T. Zibold, T. Andlauer, T. Kubis, M. Sabathil, A. Trellakis, and
P. Vogl,IEEE Trans. Electron Devices54, 2137 (2007).
