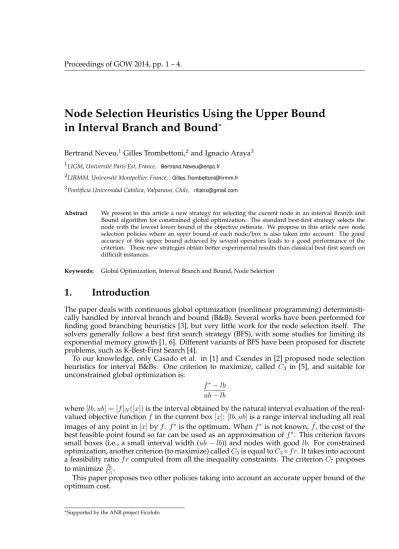

Proceedings of GOW 2014, pp. 1 – 4.
Node Selection Heuristics Using the Upper Bound in Interval Branch and Bound
∗Bertrand Neveu,1Gilles Trombettoni,2and Ignacio Araya3
1LIGM, Université Paris Est, France, Bertrand.Neveu@enpc.fr 2LIRMM, Université Montpellier, France, Gilles.Trombettoni@lirmm.fr 3Pontificia Universidad Católica, Valparaiso, Chile, rilianx@gmail.com
Abstract We present in this article a new strategy for selecting the current node in an interval Branch and Bound algorithm for constrained global optimization. The standard best-first strategy selects the node with the lowest lower bound of the objective estimate. We propose in this article new node selection policies where anupper bound of each node/box is also taken into account. The good accuracy of this upper bound achieved by several operators leads to a good performance of the criterion. These new strategies obtain better experimental results than classical best-first search on difficult instances.
Keywords: Global Optimization, Interval Branch and Bound, Node Selection
1. Introduction
The paper deals with continuous global optimization (nonlinear programming) deterministi- cally handled by interval branch and bound (B&B). Several works have been performed for finding good branching heuristics [3], but very little work for the node selection itself. The solvers generally follow a best first search strategy (BFS), with some studies for limiting its exponential memory growth [1, 6]. Different variants of BFS have been proposed for discrete problems, such as K-Best-First Search [4].
To our knowledge, only Casado et al. in [1] and Csendes in [2] proposed node selection heuristics for interval B&Bs. One criterion to maximize, called C3 in [5], and suitable for unconstrained global optimization is:
f∗−lb ub−lb
where[lb, ub] = [f]N([x])is the interval obtained by the natural interval evaluation of the real- valued objective functionf in the current box[x]: [lb, ub]is a range interval including all real images of any point in[x]byf. f∗ is the optimum. Whenf∗is not known,f, the cost of thee best feasible point found so far can be used as an approximation off∗. This criterion favors small boxes (i.e., a small interval width (ub−lb)) and nodes with good lb. For constrained optimization, another criterion (to maximize) calledC5is equal toC3×f r. It takes into account a feasibility ratiof rcomputed from all the inequality constraints. The criterionC7 proposes to minimize Clb
5.
This paper proposes two other policies taking into account an accurate upper bound of the optimum cost.
∗Supported by the ANR project Ficolofo
2 Bertrand Neveu, Gilles Trombettoni, and Ignacio Araya
2. Standard Interval B&B
An interval[xi] = [xi, xi]defines the set of realsxi s.t. xi ≤xi ≤xi. Abox[x]is a Cartesian product of intervals[x1]×...×[xi]×...×[xn].
The paper deals with continuous global optimization under inequality constraints defined by: minx∈[x]f(x)subject tog(x) ≤ 0, wheref :Rn → Ris the real-valued objective function andg : Rn → Rm is a vector-valued function. x = {x1, ..., xi, ...xn} is a vector of variables varying in a domain/box[x].xis said to befeasibleif it satisfies the constraints.
A standard interval (or spatial) B&B scheme for continuous constrained global optimization (also known as nonlinear programming) is described in algorithms below. The B&B maintains two main types of information during search: f, which is the cost of the best feasible pointe found so far, andfminthe minimum value of the lower boundslb([x])of the boxes/nodes[x]
to explore. In other terms, in every box[x], there is a guarantee that no feasible point exists with a cost lower thanlb([x]).
Let us first ignore the bold-faced instructions corresponding to the new strategy and de- tailed in Section 3. The algorithm is launched with the setgof constraints, the objective func- tionf and with the initial box put into a list B of boxes to be handled. obj is the required precision on the objective cost and is used as stopping criterion. We add a variablexobjin the system (the vectorxof variables) corresponding to the image (cost) of the objective function, and a constraintf(x) =xobj. The criterion generally used in existing interval B&Bs is denoted
IntervalBranch&Bound(B,g,f){ While (B6=∅andfe−fmin> obj){
criterion := criterionChoice(LBBox, UBBox, UBProb) [x]:= bestBox (B, criterion);B:=B\[x]
([x]1,[x]2):= bisect ([x])
[x]1:= Contract&Bound([x]1,g,f) [x]2:= Contract&Bound([x]2,g,f) B:=B∪{[x]1}∪{[x]2}
fmin:= min[x]∈Blb([x]) }
}
Contract&Bound([x],g,f) { UBBox :=fe−obj+0.1obj
g0:=g∪ {xobj≤UBBox} [x]:= contraction([x],g0,f) if ([x]6=∅){
(xub, cost):= FeasibleSearch([x],g0) if (cost<f)e {
fe:= cost
ub([x]):=ef−obj
} } Return[x]
}
in this paper by LBBox. It consists in selecting a node/box[x]with a minimum lower bound estimate of the objective function (lb([x])). The selected box[x]is then split into two sub-boxes [x]1and[x]2along one dimension (selected by another and more studied branching heuristic).
Both sub-boxes are then handled by the Contract&Bound procedure.
A constraint xobj ≤ UBBox is first added to the system for decreasing the upperbound of the objective function in the box. This aims at finding a solution better than the current best feasible point. The procedure then contracts the handled box without loss of feasible part. In other words, some infeasible parts at the bounds of the domain are discarded by constraint programming (CP) and convexification algorithms. Since this contraction works on the extended box including the objective variablexobj, it may improve both bounds of the objective on the current box.
The last part of the procedure carries out upperbounding.FeasibleSearchcalls one or several heuristics searching for a feasible point that improves the best cost found so far.
Note that the search tree is traversed in best-first order so that an exponential memory may be required to store the nodes to handle.
3. New Strategies Using Upper Bounds
In optimization, the selection of the next node to expand is crucial for obtaining a good per- formance. The best node we can choose is such that it will improve the most the upperbound.
Indeed, the upperbound improvement reducesgloballythe feasible space due to the constraint:
Node Selection for Interval B&B 3
xobj ≤ fe. There exist two phases in a branch and bound: a phase where we try to find the optimal solution, and a second phase where we prove that this solution is optimal, which re- quires us expand all the remaining nodes. Therefore the node selection matters only in the first phase.
We define new strategies aggregating two criteria for selecting the current box:
1. LBBox: The well known criterion used by BFS and minimizinglb([x])(for all boxes[x]
in the set B). This criterion is optimistic since we hope to find a solution with cost fmin, in which case the search would end. For each box, lb([x]) is computed by the Contract&Bound procedure and the computed value labels the node stored into the set Bof boxes.
2. UBBox: This criterion selects the node having the smallest goal upperbound. Thus, if a feasible point was found inside this box, it would more likely improve the best cost found so far.
The UBBox criterion is symmetric to the LBBox one: for every box,ub([x])is computed by the Contract&Bound procedure and labels the node before storing it in the setB of boxes. In particular, constraint programming techniques like 3BCID [7] can improveub([x])by discard- ing small slices at the upper bound of[xobj](shaving process).
We think that a key of success of the UBBox criterion is that it evaluates more accurately the objective upperbound than the natural interval evaluation would do (i.e.,ubcomputed by [lb, ub] := [f]N([x])).
We propose two main ways to aggregate these two criteria.
LB+UBBox. This strategy selects the node [x] with the lowest value of the sumlb([x]) + ub([x]). This corresponds to minimizing both criteria with the same weight, i.e. minimizing the middle of the interval of the objective estimate in the box.
Alternating both criteria. In this second strategy, the next box to handle is chosen using oneof the two criteria. A random choice is made by thecriterionChoicefunction at each node selection, with a probability UBProb of choosing UBBox. If UBBox (resp. LBBox) is chosen and several nodes have the same cost ub([x]) (resp. lb([x])), then we use the other criterion LBBox (resp. UBBox) to tie breaks.
Experiments showed that the performance is not sensitive to a fine tuning of the UBProb parameter provided it remains between 0.2 and 0.8, so that the parameter has been fixed to 0.5.
The experiments in Section 5 highlight the positive impact of this criterion on performance.
These results suggest that it is important to invest both in intensification (UBBox) and di- versification (LBBox). In other words, the use of a second criterion allows the search to avoid the drawback of using one criterion alone, i.e. (for LBBox) choosing promising boxes with no feasible point and (for UBBox) going deeply in the search tree where only slightly better solutions will be found trapped inside a local minimum.
3.1 Details on the criterion UBBox
All candidate boxes in the setB, have a UB label depending on the best cost found so far (fe) when the boxes were handled by Contract&Bound. All labels fall in four main cost ranges cat- egories given byfeand explaining with which priority the boxes are chosen using the UBBox criterion. The label is:
1. lower thanfe−obj if the contraction procedure reduced the maximum estimate of the objective in the box,
2. equal tofe−obj, if the box is a descendant of the box containing the current best feasible pointfe,
3. equal tofe−0.9objif the box was handled after the last update of best cost, 4. greater thanfe−0.9obj in the remaining case.
4 Bertrand Neveu, Gilles Trombettoni, and Ignacio Araya
As shown in the Contract&Bound pseudocode, the additional term0.1obj allows penal- izing the boxes that are not issued by a bisection from boxes where the current best feasible point was found.
4. Implementation of the Set
Bof Boxes
The setB was initially implemented by a heap structure ordered on the LBBox criterion. The implementations1-05keeps this unique data structure for taking into account the two criteria in the randomized strategy, but the node selection using UBBox comes at a linear cost in the numberN of nodes. In practice, this takes about 10% of the total cost whenN exceeds 50,000.
We have then built a variants1-05-01changing dynamically the probability UBProb in the following way: UBProb= 0.5ifN ≤50,000and UBProb= 0.1ifN >50,000.
Finally, we tried a cleaner implementation, s2-nodiv, with two heaps, one for each crite- rion. All the operations are then inlog2(N), except for the heap filtering process launched occasionnally during search. (This “garbage collector” is performed in all our implementa- tions and removes fromBall the nodes withlb([x])>fe.)
The s2-nodiv implementation brings less diversification than the first one which recon- structs the heap at each criterion change. Indeed, there often exist several nodes with the same UBBox and LBBox values, so it is useful to periodically rebuild the data structures randomly for breaking the ties. So we propose variants that use a second parameter corresponding to a diversification period. We obtained good results by fixing it to 50 in the s2-50variant or 100 in the s2-100variant, the first parameter UBProb being still fixed to 0.5. To be fair, we also applied the first strategy with the minUB+LB aggregative criterion running heap filtering every 100 nodes (s0-100).
5. Experiments
We have run experiments on 82 problems, issued from the series 1 and 2 of the Coconut bench- mark. The best strategiess2-50 ands2-100obtain a gain of about 40% w.r.t. the total time and 23% on average, meaning that greater gains are obtained on difficult problems.
6. Summary
The node selection policy is a promising line of research to improve performance of interval B&B. We have obtained good results by taking into account for each node a lower bound but also an upper bound, provided that this upper bound is made accurate by box contraction op- erations, by a random selection between both criteria and by a work on heap data structures.
In a short term, we are going to investigate how relevant components of criteria proposed by Markot and al. in [5] can improve the current policies, especially the feasibility ratio.
References
[1] L.G. Casado, J.A. Martinez, and I. Garcia. Experiments with a New Selection Criterion in a Fast Interval Optimization Algorithm.Journal of Global Optimization, 19:247–264, 2001.
[2] T. Csendes. New Subinterval Selection Criteria for Interval Global Optimization.Journal of Global Optimization, 19:307–327, 2001.
[3] T. Csendes and D. Ratz. Subdivision Direction Selection in Interval Methods for Global Optimization. SIAM Journal on Numerical Analysis, 34(3), 1997.
[4] A. Felner, S. Kraus, and R. E. Korf. KBFS: K-Best-First Search. Annals of Mathematics and Artificial Intelligence, 39, 2003.
[5] M.C. Markot, J. Fernandez, L.G. Casado, and T. Csendes. New Interval Methods for Constrained Global Optimization.Mathematical Programming, 106:287–318, 2006.
[6] J. Ninin and F. Messine. A Metaheuristic Methodology Based on the Limitation of the Memory of Interval Branch and Bound Algorithms.Journal of Global Optimization, 50:629–644, 2011.
[7] G. Trombettoni and G. Chabert. Constructive Interval Disjunction. InProc. CP, volume 4741 ofLNCS, pages 635–650. Springer, 2007.
