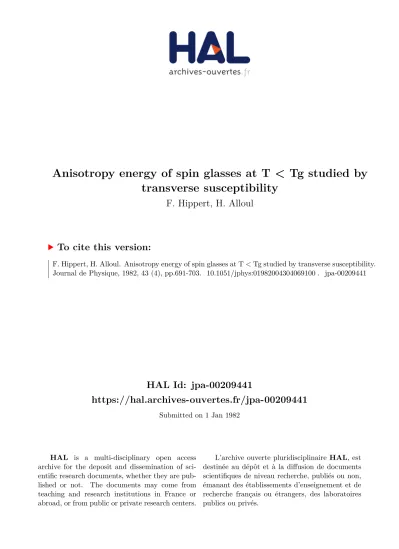

HAL Id: jpa-00209441
https://hal.archives-ouvertes.fr/jpa-00209441
Submitted on 1 Jan 1982
HAL is a multi-disciplinary open access archive for the deposit and dissemination of sci- entific research documents, whether they are pub- lished or not. The documents may come from teaching and research institutions in France or abroad, or from public or private research centers.
L’archive ouverte pluridisciplinaire HAL, est destinée au dépôt et à la diffusion de documents scientifiques de niveau recherche, publiés ou non, émanant des établissements d’enseignement et de recherche français ou étrangers, des laboratoires publics ou privés.
Anisotropy energy of spin glasses at T < Tg studied by transverse susceptibility
F. Hippert, H. Alloul
To cite this version:
F. Hippert, H. Alloul. Anisotropy energy of spin glasses at T < Tg studied by transverse susceptibility.
Journal de Physique, 1982, 43 (4), pp.691-703. �10.1051/jphys:01982004304069100�. �jpa-00209441�
Anisotropy energy of spin glasses at
T Tg studied by transverse susceptibility
F. Hippert and H. Alloul
Laboratoire de Physique des Solides (*), Université Paris-Sud, 91405 Orsay, France
(Reçu le 18 septembre 1981, révisé le 16 dicembre, accepté le 18 dgcembre 1981)
Résumé.
2014Nous avons étudié les propriétés d’anisotropie des verres de spin CuMn, AgMn, CuMnAux, AuFe, à
T Tg par des mesures de susceptibilité transverse (~) en présence d’un champ statique H0 // z (Ho ~1 kG) et en
champ nul. Nous démontrons que, en présence d’une aimantation rémanente 03C3 créée initialement suivant z, la
réponse du système de spins à un petit champ transverse ( z) met en jeu une rotation collective des spins qui est
entièrement caractérisée, dans la limite des faibles deviations, par la donnée d’un champ d’anisotropie macroscopi-
que HA. A une température donnée l’énergie d’anisotropie K
=03C3HA ne dépend pas de 03C3. K décroît légèrement
avec la température dans la zone étudiée T ~ Tg/3. Pour T ~ Tg une valeur unique de K rend compte des expé-
riences de ~, RMN, et RPE (en présence de rémanence comme dans l’état obtenu après refroidissement en champ nul). Lorsqu’un renversement de 03C3 peut être induit par application d’un champ H0 négatif, l’analyse des valeurs de ~ pour les deux orientations de 03C3, ainsi que les etudes de cycles d’hystérésis, suggèrent que l’énergie d’anisotropie
totale est la somme d’une contribution uniaxiale et d’une contribution unidirectionnelle. L’énergie d’anisotropie
par atome augmente comme la concentration c en Mn dans les verres de spin CuMn et AgMn et croit linéairement
avec la concentration x en Au dans les alliages ternaires CuMnAux, en accord qualitatif avec les prévisions théo- riques.
Abstract.
2014We have investigated the anisotropic properties of CuMn, AgMn, CuMnAux, AuFe spin glasses at
T Tg by performing transverse susceptibility (~) measurements in zero and small (~ 1 kG) static field H0 //z. We
demonstrate that, in presence of a remanent magnetization 03C3 initially developed along z, the response of the spin system to a small transverse ( z) field involves a collective rotation of the spins which is fully characterized by a macroscopic anisotropy field HA for small deviations. At a given temperature the anisotropy energy K
=03C3HA
is found independent of 03C3. A slight decrease of K with temperature is evidenced in the investigated range T ~ Tg/3.
At T ~ Tg the same value for K is found to explain ~, NMR and ESR (both in presence of remanence and in the
zero field cooled state). In cases where 03C3 can be reversed by the application of a negative field Ho, analysis of ~
data in the states with 03C3 up and down, in addition to hysteresis cycles studies, suggests that the total anisotropy
energy might be the sum of uniaxial and unidirectional contributions. The anisotropy energy per atom is found to
scale as the Mn concentration c in CuMn and AgMn and to increase linearly with the Au concentration x in ternary alloys, in qualitative agreement with theoretical predictions.
Classification
Physics Abstracts
75.40
1. Introduction.
-In a magnetic alloy such as
CuMn the disorder of atomic positions of Mn magne-
tic impurities, in addition to the oscillatory depen-
dence of the exchange RKKY interaction [1] with
Mn-Mn distance, prevents any kind of long range
magnetic order at T = 0. However well below a
characteristic temperature Tg(- I Ja 1/kB), the Mn spins appear to freeze in the random directions of their local fields, in the so called spin glass state, as evidenced by impurity Mossbauer spectra [2] and host NMR [3,
4]. Whether this freezing is a progressive phenomenon
or a new kind of phase transition, as suggested by the
existence of a sharp cusp in the low frequency a.c.
susceptibility at Tg [5, 6], is still an open question [7, 8].
As long as no external field has been applied no macroscopic magnetization can be detected in such a spin glass. However, when cooling the sample through Tg under a magnetic field H,, // z which is then reduced to zero, a remanent magnetization a /’ He is obtain-
ed [9], which decays roughly logarithmically with
time [10, 11]. Existence of remanence and magnetic
after effects have been commonly interpretated within
a highly inhomogeneous picture [10, 12], by analogy
Article published online by EDP Sciences and available at http://dx.doi.org/10.1051/jphys:01982004304069100
with the Neel model for a collection of isolated ferro-
magnetic particles.
At T T i’ 6 is found to remain in the direction of the cooling field Hc. The corresponding anisotropy
of the system which, as the remanence properties,
does not depend upon the direction of H, with respect
to the crystalline axis [13], has been probed by study- ing the response of the spins to the r.f. field in a NMR experiment. The NMR data on the Cu nearest peigh-
bours of a Mn impurity [4] revealed that the electronic
spins respond collectively to a small external field.
The anisotropy forces are characterized by a single macroscopic field HA // z which depends strongly
upon 6. These results, as well as the detection of sharp hysteresis loops [14, 15], imply a rigid body descrip-
tion of the spin system for small applied fields, at variance with the inhomogeneous description needed
to describe the construction of a in large applied
fields [10]. The parameter measured in a NMR experi-
ment, namely the enhancement factor of the r.f. field,
is an indirect determination of the transverse (-L z) magnetization due to the collective rotation of the electronic spins. One can as well directly measure
the transverse magnetization [16] or the low frequency susceptibility (xl). We indeed checked the identity
between HA values deduced from NMR and xl
experiments [17]. This anisotropy also induces a shift of the ESR line, either in presence of remanence [18],
or in the zero field cooled (ZFC) state [19, 20].
In this paper [21] we intend to present a series of extensive xl measurements which allows :
-
the analysis of the relationship between ESR
and X, data,
-
the clarification of the properties of the aniso- tropy energy K = cHA and especially its variations
with remanence, temperature and the nature of the system,
-
an insight into the microscopic origin of the anisotropy in spin glasses.
This paper is organized along the following lines.
First, in section 2, we establish that a model based on
the assumption of strongly coupled spins perfectly explains the response of the spin system to a small
transverse field. In section 3, the dependence of K
upon Q at a given temperature is investigated by analysing Q and Xj_ data on the same CuMn sample
for identical cooling processes. We then examine the relationship between ESR and X, in section 4 and the temperature dependence of K in section 5.
The link between the small angle behaviour and the hysteresis loops is discussed in section 6 while the
scaling of K with Mn concentration, and its variation with the addition of non magnetic Au impurities, are analysed in section 7. The microscopic coupling at the origin of this anisotropy, as well as the properties of
the macroscopic anisotropy energy, are discussed in section 8.
2. Transverse susceptibility of a spin glass.
-Let us
assume that, for T much smaller than T 91 the electronic spins in a spin glass are frozen along their randomly
distributed local fields and that, in presence of a rema-
nence a initially developed along z, they respond collectively to a small field. In this picture a single parameter, the angle 0 between a and z, is required
to fully characterize the magnetic state. Let us describe
the anisotropy forces by an uniaxial anisotropy
energy EA = (K/2) sin2 0. In presence of a transverse
(± z) field h, the total energy of the spin system is given by :
The equilibrium value of 0, in the limit of small devia-
tions, is given by 0,,q = h/HA where HA = Kla is the anisotropy field. Due to the rotation of the remanence_
a transverse magnetization uhjHA appears. Besides
this collective motion slight distortions of the distribu- tion of local fields do exist, as in an antiferroma- gnet [22]. They are responsible for the non zero iso- tropic susceptibility (/;sJ of the ZFC spin glass at
T = 0. As long as we can assume that the response of the spins in presence of remanence is the sum of the two previous contributions, i.e. x;so is not modified
by the existence of a, the total transverse susceptibility
will be given by :
This assumption is reasonable as the existence of 6, which never exceeds 5 % of the saturated high field magnetization of the alloy, is not expected to drasti- cally modify the distribution of local fields. When a
positive static field Ho is applied along z, equation (2)
is modified into :
We have performed xl measurements by a mutual
inductance technique. The cooling field H,, as well as Ho, were produced by a horizontal magnet (Hma. =
13 kG, see figure 1). The magnitude of the vertical a.c.
field h ( v 5 300 Hz) does not exceed 1 G while HA was
never found smaller than 300 G. Therefore the small
angle approximation is fully justified. In order to use
the same samples in ESR, NMR and xl experiments
we have produced foil samples about 40 pm thick.
They have been annealed, in a good vacuum at
500 °C for about one hour, in order to eliminate
stresses due to the rolling process. A well characterized
metallurgical state is then obtained, which indeed was
found to exhibit the same anisotropy properties as the original bulk sample.
In order to analyse the xl data it is necessary to
check the validity of the previous decomposition of xl
Fig. 1.
-Geometry of the transverse susceptibility experi-
ment.
into two independent terms. Let us consider for the time being the susceptibility Xiso involved in equa- tion (3) as an unknown parameter Xo which can be
deduced, as well as HA, from an analysis of xl versus
Ho (see Fig. 2). When (XIXO) >> 1 the fit to equa- tion (3) is not very sensitive to the exact value of Xo.
However when Xl./ Xo 1 any error in the determi- nation of xo yields a curvature in the plot (xl - xo)-1
versus Ho. Then xo is determined with an accuracy
Fig. 2.
-Transverse susceptibility data versus Ho. The
range of negative Ho has been limited in order to avoid a
reversal of « (see section (6)). On one hand xl data have been plotted versus H 0 and the best fit to a hyperbola has been
indicated which corresponds to HA
=870 G and a field independent contribution xo
=9.7 x 10- 5 emu/g identical
to the isotropic susceptibility Xis. as directly measured in the
ZFC state. On the other hand we have plotted (xl - Xir 1,
i.e. the inverse of the transverse susceptibility due to a rotation, versus Ho.
of about 10 % and is always found to agree with the
isotropic susceptibility measured in the zero field
cooled state. This is indeed coherent with the facts that :
- x;so does not depend appreciably upon the static field Ho in our experimental conditions : T Tg and I Ho I I kG [17, 5],
-
the longitudinal susceptibility in presence of
remanence is found to coincide with Xi,,. within a good
accuracy - 5 %; the initial slopes of magnetization
curves are indeed known to be identical whatever
Q [16,15].
We have therefore systematically measured Xiso in the ZFC state and plotted (åX)-1 = (xl - Xiso)-1
versus Ho. In the case of figure 2 for the CuMn 4.7 % (Tg ’" 30 K) at T = 4.2 K in presence of a saturated
remanence, the straight line fitting the data yields from equation (3) 820 G HA 950 G. We have taken
care to start the xl measurements at sufficiently long
time (one hour) after reducing H, to zero in order to
minimize the variations of r during the time of the
experiment. The validity of equation (3) is confirmed
as the inverse slope of the straight line fitting the data
in figure 2, (2.95 ± 0.22).10-1 emu/g, coincides with
a = (2.7 ± 0.1).10-1 emu/g, directly measured in the
same conditions. Therefore equation (3) with a well
defined value for HA perfectly explains the response of the spins to a small transverse field at T Tg.
All the remanence is involved in the rotation pro-
cess. At this step we cannot assert from xl data alone whether all the Mn spins are involved in the collective rotation. Some Mn spins, bearing negligible resultant magnetization, might indeed be excluded. However
analysis of the intensity of NMR signals [3, 4] revealed
that the fraction of spins which participate to the
collective rotation certainly exceeds 50 % (’).
It is well known that HA strongly depends upon the
magnetothermal history of the sample [4]. At a given temperature, larger HA values are associated with smaller remanences. The anisotropy energy K = aHA might a priori vary with remanence, cooling process and temperature. In a first step let us consider the
dependence of K upon Q at a given temperature.
3. Dependence of K upon a at a given temperature T Tg.
-As all the remanence is involved. in the rotation process the anisotropy energy can be equi-
(1) Let us recall here the arguments developed in refe-
rences [3, 41 to reach this conclusion. The fraction of spins
involved in the NMR signal does not vary by more than a
factor 2 whatever the Q value and the temperature in the range 0 T Tg/3. As for T Tg nearly all the Mn spins
are frozen and therefore contribute to the ZFC signal, the experimental accuracy allows then to conclude that more
than 50 % of the spins are involved in the collective rotation
detected for non zero remanence.
Fig. 3.
-Transverse susceptibility due to a rotation in zero
applied static field, A/(0), plotted versus the square of the remanent magnetization in a logarithmic scale. A x(0) and Q
are measured after identical magnetothermal history at a
time t after reduction of He to zero. The corresponding rema-
nence curves are shown in the insert. A straight line with slope unity fits the data, which demonstrates that
does not depend upon at a given temperature.
valently determined according to equation (2) as
K = A x(0) H1 or K = u2[AX(O)]-t, where
Ax(0) = xl - x;so in zero applied static field. The last formulation is the only available when HA is very large (practically HA larger than a few kG), as a direct deter- mination of HA from the variation of AX versus Ho
becomes inaccurate. In order to clarify the dependence
of the anisotropy energy upon the magnetic state we
have therefore performed systematically xl and a mea- surements on the same CuMn samples after identical
magneto-thermal histories. In both experiments, the
external fields have been applied during the same time,
decreased at the same speed, and Ax(0) and a have
been measured at the same moment of their time evo-
lution. All the magnetization measurements have been
performed by an extraction method in Grenoble, in col-
laboration with J. J. Pr6jean. The data for A x(0) and u, concerning the 4.7 % sample at 4.2 K for various
cooling processes, are summarized in figure 3. The
variations of Ax(0) versus U2 in a logarithmic scale
fit a straight line of slope unity. This demonstrates that the anisotropy energy K = U2[LBX(0)]-1 does
not depend upon a at a given temperature. This result
Fig. 4.
-log J (filled symbols) and log [AX(O)] III (empty symbols) in arbitrary units versus log t. Origin of time is
taken when the cooling field has been decreased to zero.
Parallel straight lines can fit the time variations of both
quantities.
is strictly demonstrated only for J values larger than
one tenth of the saturated remanence. Its validity for
lower Q values cannot be checked from xl experi-
ments with our experimental set up. From the straight
line drawn in figure 3 we obtain K = 220 erg/g for the CuMn 4.7 % at T = 4.2 K.
Let us focus our attention on the two data points corresponding to the highest values on figure 3.
They have been measured at t = 5 min. and t = 45 min.
after cooling the sample under 13 kG. The complete
time evolution of both Q and Ax(0) during the first
45 min. is detailed in figure 4 where log J and log [AX(O)]’I’ are plotted versus log t. The important
feature is that parallel curves fit the time variations of both quantities. This means that ex(0) is proportional
to (J2(t), without any assumption on the exact function a(t) [23]. In other terms HA varies in time like (J-I.
Therefore time variations of xl are by no means negli- gible, especially when T is not very low compared to Tg. This has lead us to take severe precautions, all along this work, in order to ensure that J does not
vary during the measurements of xi versus Ho.
Therefore, at a given temperature T T g’ a well-
defined anisotropy energy K characterizes the aniso- tropy of the system. The transverse response of the
spins is also probed at higher frequencies (- 55 MHz)
in NMR experiments [4]. We have checked in many cases, as in reference [17] that K values deduced from xl and NMR experiments perfectly coincide. At this stage it seems rather important to clarify whether the
same values of K also explain ESR data.
4. Comparison between ESR and Xl. data.
-Let us briefly summarize the experimental situation concern- ing ESR data. We shall in a first step distinguish
between two opposite limits. First an ESR mode has been detected in presence of a high (saturated) rema-
nence, in nearly zero applied field for a suitable choice
of the frequency of the spectrometer [18]. The reso-
nance, is then entirely associated with the remanent
magnetization. It is found to behave quite similarly
to a ferrimagnetic resonance in presence of an uniaxial
anisotropy, fitting in first approximation
In this picture the zero field resonance frequency COA
provides a determination of the anisotropy field. In an opposite limit, ESR has been observed in a ZFC
sample in fields low enough to only induce negligible
remanence [19]. Data for various concentrations yield
then a non zero resonance frequency when Ho -1- 0
and fit OJ = ayHo + m(0) for small Ho with a close to 1/2.
While the resonance in presence of remanence
is fairly easily understood by analogy with a ferri- magnet, interpretation of the ESR in the limit of
vanishing a requires a detailed analysis of equations
of motion in the spin glass state.
This has been done by Schultz et al. [19] (and by
Saslow [24, 25] using slightly different methods) in the
framework of a macroscopic model based on the following free energy :
where M is the total magnetization. n is a unit vector
which allows to characterize the rotation of the spin system and which is aligned along a in presence of
remanence. The two first terms of equation (4) repre- sent the magnetic free energy associated with the non remanent part of the magnetization when keeping
the possibility of two different values of the suscepti- bility along and perpendicular to n. We shall here-
after indeed assume, in agreement with experimental
results in CuMn (see section 2), that xo = XII = Xi,..
The third term of equation (4) is the Zeeman coupling
The last one modelises the anisotropy energy, N
being a fixed unit vector directed along the anisotropy
axis. In presence of remanence and in zero external field the minimum of the free energy is given by
n = N and M = Qn. In this case N is the direction z
of the cooling field and equation (4) is therefore
exactly the free energy implicitely used in section 2.
This can be easily seen as, writing for example
with
in presence of the static field H = Ho N + hu, where
u is a unit vector -1 N, we indeed obtain the trivial identity Mo = x;so H, and
which, in the limit of small 0 yields equation (3) [26],
that is :
Equations of motion for M and n, and then resonance
frequencies, have been derived from equation (4) by Schultz et al. [19] neglecting dissipation processes.
In the limit X" = xa = x;so their result for the two resonance modes is given by :
for arbitrary cooling conditions. Let us focus our
attention on the mode labelled + which is the one
usually observed up to now. In the limit of high rema-
nence, when the conditionv/k-/--xi7. a/xi.,. is satisfied, equation (6) yields
Table I.
-Comparison between values of K deduced from ESR and xl data on the CuMn 4.7 % sample. In the first columns, we have indicated the parameters of the ESR experiments : cooling process, temperature, remanence, isotropic susceptibility. From the resonance frequency in zero external field, we deduced a value for K, using equa-
tion (6), which is compared with K deduced from xl data at the same temperature.
(a) The error bars on a have been slightly increased in order to include time variations, as the time at which the
resonance has been observed is not known accurately.
Assuming moreover a >> XHO equation (7) becomes m/y = Ho + K/Q, i.e. a ferrimagnetic like mode. On the other hand, for vanishing 0’, equation (6) is sim- plified into :
which provides an initial slope + 1/2 in the plot w/ y
versus Ho while m(0)/y = (KIX)11’. This mode pre- sents a strong analogy with the resonance in an anti- ferromagnet at T 0 0 as derived by Keffer and Kittel [27].
As long as (1 and x;so can be measured independently
in the same conditions, K is the single parameter involved in the previous theory. Comparison of xl and ESR experiments therefore provides a fundamen-
.
