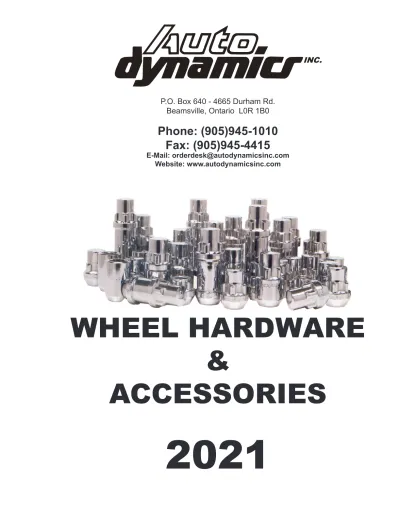

WHEEL HARDWARE & ACCESSORIES

WHEEL HARDWARE

&

ACCESSORIES

P.O. Box 640 - 4665 Durham Rd.

Beamsville, Ontario L0R 1B0

Phone: (905)945-1010 Fax: (905)945-4415

E-Mail: [email protected] Website: www.autodynamicsinc.com

2021

STANDARD ACORN

BULGE ACORN

Thread Size Pack of 4 Bulk of 50

7/16 1002-4 1002

1/2RH 1004-4 1004

12mm x 1.25 1006-4 1006

12mm x 1.50 1007-4 1007

12mm x 1.75 1012-4 1012

14mm x 1.50 1009-4 1009

BULGE ACORN (LONG)

ACORN STYLE LUG NUTS

Thread Size Pack of 4 Bulk of 50

7/16 1902-4 1902

1/2RH 1904-4 1904

1/2LH 1905-4 1905

12mm x 1.25 1906-4 1906

12mm x 1.50 1907-4 1907

12mm x 1.75 1912-4 1912

14mm x 1.50 1909-4 1909

Thread Size Pack of 4 Bulk of 50

1/2RH 1904L-4 1904L

9/16 1910L-4 1910L

12mm x 1.50 1907L-4 1907L

12mm x 1.75 1912L-4 1912L

14mm x 1.50 1909L-4 1909L

14mm x 2.00 1914L-4 1914L

14mm x 2.00 (2.5”) 1914XL-4 ---

BULGE ACORN **BLACK**

BULGE ACORN (LONG) **BLACK**

Thread Size Pack of 4 Bulk of 50

1/2RH 1954BK-4 1954BK

12mm x 1.25 1956BK-4 1956BK

12mm x 1.50 1957BK-4 1957BK

Thread Size Pack of 4 Bulk of 50

9/16 1910LBK-4 1910LBK

14mm x 1.50 1909LBK-4 1909LBK

14mm x 2.00 1914LBK-4 1914LBK

ACORN STYLE LUG NUTS CONT..

ET CONICAL SEAT BULDGE STYLE

Thread Size Pack of 4 Bulk of 50

1/2RH (1.44” Length) 7804-4 7804 1/2RH (1.80” Length) 7804L-4 7804L 12mm x 1.25 (1.80” Length) 7806L-4 7806L 12mm x 1.50 (1.44” Length) 7807-4 7807 12mm x 1.50 (1.80” Length) 7807L-4 7807L 14mm x 1.50 (1.70” Length) 7809-4 7809 14mm x 1.50 (1.88” Length) 7809L-4 7809L

OPEN END BULGE ACORN

Thread Size Pack of 4 Bulk of 50

7/16 1102-4 1102

1/2RH 1104-4 1104

9/16 1116-4 1116

12mm x 1.25 1106-4 1106

12mm x 1.50 1107-4 1107

12mm x 1.75 1112-4 1112

14mm x 1.50 1109-4 1109

14mm x 2.00 1114-4 1114

DUPLEX ACORN

DUPLEX ACORN (EXTRA LONG)

Thread Size Pack of 4 Bulk of 50

1/2RH 3004-4 3004

9/16 3010-4 3010

5/8 3030-4 ----

14mm x 1.50 3009-4 3009

14mm x 2.00 3014-4 3014

Thread Size Pack of 4 Bulk of 50

1/2RH 3204-4

9/16 3210-4

14mm x 2.00 3214-4 3214

9/16 (3”) 3310-4

DUPELEX BULGE ACORN

Thread Size Singles

9/16 3910-1

14mm x 1.50 3909-1

ACORN STYLE LUG BOLTS

CONICAL SEAT LUG BOLTS

Thread Size Pack of 4 Bulk of 50

12mm x 1.25 C970-4 C970

12mm x 1.50 C951-4 C951

14mm x 1.25 C969-4 C969

14mm x 1.50 C955-4 C955

14mm x 1.50 (38mm Thread) C955XL-4 C955XL

SPECIALTY / OEM LUG NUTS

27mm Thread Length

9/16” Acorn OEM Dodge 7/8 Hex 7110-4 7110

14mm x 1.50 OEM 7/8 Hex 7169-4 7169

12mm x 1.50 GM Lug w/External Threads 98-0016-4 98-0016 14mm x 1.50 GM Lug w/External Threads 98-0019-4 98-0019

14mm x 2.00 Ford Black O.E.M 98-0027-4 98-0027

Description Pack of 4 Bulk of 50

Description Pack of 4 Bulk of 50

Description Pack of 4 Bulk of 50

98-0016 98-0019

14mm x 1.50 OEM 7/8 Hex 7169BK-4 7169BK

*BLACK*

Description Pack of 4 Bulk of 50

SPLINE DRIVE TUNER ACORN (6 Spline)

SPLINE KEY

98-0360-1 (Single) 98-0360 (10 Pack)

SPLINE DRIVE LUG NUTS

Thread Size Pack of 4 Bulk of 50 Pack of 4 Bulk of 50

7/16 98-0362-4 98-0362 --- ---

1/2 98-0364-4 98-0364 98-0364BK-4 98-0364BK

12mm x 1.25 98-0366-4 98-0366 98-0366BK-4 98-0366BK 12mm x 1.50 98-0367-4 98-0367 98-0367BK-4 98-0367BK

DUPLEX SPLINE DRIVE TUNER ACORN

SPLINE KEY

98-0410-1 (Single Duplex 7 Spline) C7303B-1 (Black Duplex Key 6 Spline)

Thread Size Pack of 4 Bulk of 50 Pack of 4 Bulk of 50

9/16 98-0420L-4 98-0420L 98-0420LBK-4 98-0420LBK 14mm x 1.50 98-0419L-4 98-0419L 98-0419LBK-4 98-0419LBK 14mm x 2.00 98-0418L-4 98-0418L 98-0418LBK-4 98-0418LBK

**CHROME** **BLACK**

**CHROME** **BLACK**

OPEN END SPLINE DRIVE TUNER (6 Spline)

Thread Size Pack of 4 Bulk of 50

1/2 98-0364OE-4 98-0364OE

12mm x 1.25 98-0366OE-4 98-0366OE

12mm x 1.50 98-0367OE-4 98-0367OE

Duplex

14mm x 2.00 98-0418OE-4 98-0418OE

14mm x 1.50 98-0419OE-4 98-0419OE

9/16 98-0420OE-4 98-0420OE

SPLINE KEY

98-0360-1 (Single Standard) 98-0410-1 (Single Duplex)

SPLINE DRIVE TUNER BOLTS (7 Spline)

12mm x 1.25 C7206-4 C7206 C7206BK-4 C7206BK 12mm x 1.50 C7207-4 C7207 C7207BK-4 C7207BK 14mm x 1.25 C7212-4 C7212 C7212BK-4 C7212BK 14mm x 1.50 C7209-4 C7209 C7209BK-4 C7209BK

SPLINE KEY

98-0350-1 (Single) 27mm Thread Length

( 7 Spline ) ( 6 Spline )

Thread Size Pack of 4 Bulk of 50 Pack of 4 Bulk of 50

**CHROME** **BLACK**

TUNER STYLE LUG NUTS

TUNER ACORN STYLE

SOCKET KEY

98-0110-1 (Single)

Thread Size Pack of 4 Bulk of 50

7/16 98-0112-4 98-0112

12mm x 1.25 98-0116-4 98-0116

14mm x 2.00 98-0118-4 98-0118

12mm x 1.50 (1.75”) 98-0117L-4 98-0117L

TUNER DUPLEX ACORN STYLE

DUPLEX SOCKET KEY

98-0210-1 (Single)

Thread Size Pack of 4 Bulk of 50

14mm x 2.00 98-0218L-4 98-0218L

TUNER ET STYLE

Thread Size Pack of 4 Bulk of 50

1/2 98-0154GA-4 98-0154GA

7/16 98-0152GA-4 98-0152GA

12mm x 1.50 98-0157GA-4 98-0157GA

SOCKET KEY

98-0110GA-1 (Single)

TUNER LUG BOLTS

SOCKET KEY

98-0110-1 (Single)

Thread Size Pack of 4

12mm x 1.50* 98-0170-4

*Thread Length is 24mm

STANDARD MAG

SHORT SHANK MAG

CRAGAR / WELD

KEYSTONE

Style Pack of 4 Bulk of 100

Standard Mag 1/8 772-4 772

Style Pack of 4 Bulk of 100

Style Pack of 4 Bulk of 100

Cragar Center for 14mm 791-4 791

Cragar Offset 780-4 780

Style Pack of 4 Bulk of 100

Keystone Offset 778-4

CRAGAR MAG S/S STANDARD MAG MAG STYLE LUG NUTS / WASHERS Thread Size

Pack of 4 Bulk of 50

1/2RH 8204-4 8204

12mm x 1.50 8207-4 8207

7/16 8502-4 8502

1/2” RH 8504-4 8504

1/2” LH 8505-4 8505

12mm x 1.50 8507-4 8507

14mm x 1.50 (Duplex Size) 8509-4 8509

Thread Size

Pack of 4 Bulk of 50

WELD MAG

1/2RH 8854-4 8854

12mm x 1.50 8857-4 8857

Thread Size

Pack of 4 Bulk of 50

Thread Size Pack of 4 Pack of 4 Black

7/16 510-100

1/2RH 510-101 20405BK

12mm x 1.25 510-102

12mm x 1.50 510-103 20705BK

12mm x 1.75 510-128

14mm x 1.50 510-104

ACORN STYLE LOCK

WHEEL LOCKS

Thread Size Pack of 4

7/16 61205

12mm x 1.25 61605

12mm x 1.50 61705

MAG STYLE LOCK

OPEN END BULDGE STYLE LOCK

Thread Size Pack of 4 Pack of 4 Black

1/2RH 510-129

9/16 510-123 20105LBK

14mm x 1.50 510-104L 20905LBK

14mm x 2.00 510-130 20145LBK

DUPLEX ACORN STYLE LOCK

Thread Size Pack of 4

7/16 510-114

1/2RH 510-115

LONG MAG DUPLEX STYLE LOCK

Thread Size Pack of 4

7/16 510-118

1/2RH 510-119

12mm x 1.25 510-120

12mm x 1.50 510-121

12mm x 1.75 510-132

14mm x 1.50 510-122

14mm x 2.00 510-131

TUNER ACORN STYLE LOCK

Thread Size Pack of 4

12mm x 1.25 510-107

VALVE STEMS

DISC BRAKE SPACERS

Desc. Pack of 4 Bulk 100 Chrome Hex Caps 507-4 507 Chrome Flat Top 519-4 519

4 lug 110/4.25/4.5 601-2 1/4”

5 lug 4.5/4.75/5 602-2 1/4”

5 & 6 lug, 5.5/135mm 603-2 1/4”

5 lug 150 10-1369-2 1/4”

8 lug 6.5/170/180 604-2 1/4”

5 lug, 100-115mm 605-2 1/4”

4 & 5 lug, 100-120mm 606-2 1/8”

4 & 5 lug, 100-120mm 608-2 1/3”

Description Pkg 2 Thickness Desc. Pack of 4 Bulk 100

Rubber C508-4 C508

Desc. Pack of 4 Bulk 100 Rubber TPMS C508TPMS-4 C508TPMS

Desc. Pack of 4 Hide-a-Vlave Set 515-4

WHEEL ACCESSORIES

Desc. Pack of 4 Bulk 100 Rubber/Chrome 504-4 504

Desc. Pack of 4 Bulk 100 Chrome Bolt-in 501-4 501

DERBY CAPS

Part # Diameter Lug Description Height Type Chrome Stainless Steel

126 126SS 3.18 5 Lug 4 1/2”-5” B.C. 4.09 Closed 131 131SS 3.18 5 Lug 4 1/2”-5” B.C. 4.09 Open 127 127SS 4.25 5&6 Lug 5 1/2” B.C. 4.15 Closed 128 128SS 4.25 5&6 Lug 5 1/2” B.C. 4.12 Open 129 ---- 4.82 8 Lug 6 1/2” B.C. 4.14 Closed 130 130SS 4.82 8 Lug 6 1/2” B.C. 4.83 Open 132 132SS 4.90 8 Lug 6 1/2” B.C. 5.82 Closed

WHEEL ACCESSORIES

PUSH-THRU CAPS

71-1014C (Chrome Steel)

Disk Brake Style Ralley Cap w/Bowtie

71-1014S (Stainless Steel)

Disk Brake Style Ralley Cap w/Bowtie

71-1000C (Chrome Steel) Ralley Style Cap w/Bowtie 71-1000S (Stainless Steel) Ralley Style Cap w/Bowtie 71-1013 (Chrome Plastic)

Derby Ralley Cap Plain no Logo 71-1002C (Chrome Steel)

Ralley Style Cap Plain no Logo 71-1002S (Stainless Steel) Ralley Style Cap Plain no Logo Part # Diameter Lug Description Height Type Black Stainless Steel Chrome

101B 101SS 3.28 5 Lug 4 1/2”-5” B.C. 3.50 Closed 102B 102SS 102 4.25 5&6 Lug 5 1/2” B.C. 4.26 Closed 104B --- 4.25 5&6 Lug 5 1/2” B.C. 4.26 Open 111B 111SS 111 5.11 8 Lug 6 1/2” B.C. 4.86 Closed

TRAILER EZ-LUBE CAPS

Part # Diameter Lug Description Height Type 104EZ-60C 4.25 5 & 6 5 1/2” B.C. 4.12 Open w/Cap 105EZ-60C 4.90 8 6” B.C. 4.32 Open w/Cap 106EZ-60C 3.19 5 4 1/2”-5” B.C. 3.60 Open w/Cap

RALLY CAPS

HCR503M-4 66.06mm / 57.10mm 66-5710 66.60mm / 57.10mm 67-5410 67.00mm / 54.10mm 67-5610 67.00mm / 56.10mm 67-6010 67.00mm / 60.10mm 67-6410 67.00mm / 64.10mm HCR616M-4 67.00mm / 65.07mm 72-5410 72.62mm / 54.10mm 72-5610 72.62mm / 56.15mm 72-5710 72.62mm / 57.10mm 72-5960 72.62mm / 59.60mm 72-6010 72.62mm / 60.10mm 72-6340 72.62mm / 63.40mm 72-6390 72.62mm / 63.90mm 72-6410 72.62mm / 64.10mm 72-6510 72.62mm / 65.10mm 72-6610 72.62mm / 66.10mm 72-6660 72.62mm / 66.60mm 72-6710 72.62mm / 67.10mm 72-7010 72.62mm / 70.10mm 72-7030 72.62mm / 70.30mm HCR18-4 72.62mm / 71.50mm 73-5410 73.00mm / 54.10mm 73-5610 73.00mm / 56.10mm 73-5710 73.00mm / 57.10mm HCR121-4 73.00mm / 58.50mm 73-5960 73.00mm / 59.60mm 73-6010 73.00mm / 60.10mm 73-6340 73.00mm / 63.40mm 73-6390 73.00mm / 63.90mm 73-6410 73.00mm / 64.10mm 73-6510 73.00mm / 65.10mm 73-6610 73.00mm / 66.10mm 73-6660 73.00mm / 66.60mm 73-6710 73.00mm / 67.10mm 73-7010 73.00mm / 70.10mm 73-7030 73.00mm / 70.30mm 73-7050 73.00mm / 70.50mm

74-5410 74.00mm / 54.10mm 74-5610 74.00mm / 56.10mm 74-5710 74.00mm / 57.10mm 74-5960 74.00mm / 59.60mm 74-6010 74.00mm / 60.10mm 74-6340 74.00mm / 63.40mm 74-6390 74.00mm / 63.90mm 74-6410 74.00mm / 64.10mm 74-6510 74.00mm / 65.10mm 74-6610 74.00mm / 66.10mm 74-6660 74.00mm / 66.60mm 74-6690 74.00mm / 66.90mm 74-6710 74.00mm / 67.10mm 74-7030 74.00mm / 70.30mm 74-7050 74.00mm / 70.50mm 74-7150 74.00mm / 71.50mm 74-7260 74.00mm / 72.60mm 78-6610 78.00mm / 66.10mm 78-6656 78.00mm / 66.56mm 78-7030 78.00mm / 70.30mm 78-7150 78.00mm / 71.50mm 78-7256 78.00mm / 72.56mm 78-7410 78.00mm / 74.10mm 87-7810 87.00mm / 78.10mm HCR1021-4 87.20mm / 78.00mm 108-1000 108.00mm / 100.00mm 108-7810 4.25” / 3.07” (Chevy) 108-8710 108.00mm / 87.10mm 110-7810 110mm / 78.10mm

Plastic Nylon Hub Centric Rings (Pack of 4)

Part # O.D. / I.D. Part# O.D. / I.D.

HUB CENTRIC RINGS WHEEL ACCESSORIES

14” Round 2” Aftermarket & OE All 14” 71-3000-14 15” Round 1 1/2” Ribbed Aftermarket 15x5, 15x6, 15x7 71-3005-15TRIB 15” Round 2” OE 15x5, 15x6, 15x7 71-3000-15 15” Round 3” Aftermarket 15x8, 15x10 71-3002A 15” Step 2 1/2” (GM-OE) Aftermarket 15x7 71-3001-15

15” Round 2 1/2” Aftermarket 71-3001-15R

16” Round 2” Aftermarket 16x7, 16x8 71-3000-16

STAINLESS STEEL TRIM RINGS (Sets of 4)

Size Style Depth Application Part # (Set of 4)

BILLET WHEEL ADAPTERS

1.25” Thick

1.25” 5x4.5 5.4.5 71.5mm 12mm x 1.50 125-5450-5450 1.25” 5x4.5 5.4.5 71.5mm 1/2” RH 125-5450-5450-04 1.25” 5x4.75 5-4.5 74.1mm 12mm x 1.50 125-5475-5450 1.25” 5x4.75 5x4.75 74.1mm 12mm x 1.50 125-5475-5475 1.25” 5x5 5x5 78.1mm 12mm x 1.50 125-5500-5500 1.25” 5x5 5x5 78.1mm 1/2” RH 125-5500-5500-04 1.25” 5x5.5 5x4.5 77.8mm 12mm x 1.50 125-5550-5450 1.25” 5x5.5 5x4.75 77.8mm 12mm x 1.50 125-5550-5475

1.25” 5x5.5 5x5 125-5550-5500

1.25” 5x5.5 5x5.5 108mm 1/2” RH 125-5550-5550 1.25” 5x5.5 5x5.5 108mm 14mm x 1.50 125-5550-5550-09 1.25” 5x150 5x150 110mm 14mm x 1.50 125-5150-5150 1.25” 6x135 6x135 87mm 14mm x 2.00 125-6135-6135 1.25” 6x5.5 6x5.5 108mm 14mm x 1.50 125-6550-6550 1.25” 8x170 8x170 125mm 14mm x 1.50 125-8170-8170 1.25” 8x170 8x170 125mm 14mm x 2.00 125-8170-8170-11 1.25” 8x180 8x180 124.1mm 14mm x 1.50 125-8180-8180 1.25” 8x6.5 8x6.5 125.1mm 14mm x 1.50 125-8650-8650

1.50” Thick

1.50” 5x4.5 5x4.5 74.1mm 12mm x 1.50 150-5450-5450 1.50” 5x5 5x5 78.1mm 1/2” RH 150-5500-5500-04 1.50” 5x5 5x5.5 12mm x 1.50 150-5500-5550 1.50” 5x5.5 5x5.5 108mm 1/2” RH 150-5550-5550 1.50” 5x5.5 5x5.5 108mm 14mm x 1.50 150-5550-5550-09 1.50” 5x5.5 5x5.5 108mm 9/16” RH 150-5550-5550-10 1.50” 6x135 6x135 87mm 14mm x 2.00 150-6135-6135 1.50” 6x5.5 6x5.5 108mm 14mm x 1.50 150-6550-6550 1.50” 8x6.5 8x6.5 125.1mm 14mm x 1.50 150-8650-8650 1.50” 8x170 8x170 125.1mm 14mm x 2.00 150-8170-8170 1.50” 8x180 8x180 124.1mm 14mm x 1.50 150-8180-8180

2.00” Thick

2.00” 5x4.5 5x4.5 74.1mm 12mm x 1.50 200-5450-5450 2.00” 5x4.5 5x4.5 74.1mm 1/2” RH 200-5450-5450-04 2.00” 5x5 5x5 78.1mm 1/2” RH 200-5500-5500-04 2.00” 5x5.5 5x5.5 108mm 1/2” RH 200-5550-5550 2.00” 5x5.5 5x5.5 108mm 14mm x 1.50 200-5550-5550-09 2.00” 5x5.5 5x5.5 108mm 9/16” RH 200-5550-5550-10 2.00” 5x150 5x150 110mm 14mm x 1.50 200-5150-5150 2.00” 6x135 6x135 87mm 14mm x 2.00 200-6135-6135 2.00” 6x5.5 6x5.5 108.1 14mm x 1.50 200-6550-6550 2.00” 8x6.5 8x6.5 125.1mm 14mm x 1.50 200-8650-8650 2.00” 8x170 8x170 125.1mm 14mm x 1.50 200-8170-8170 2.00” 8x170 8x170 125.1mm 14mm x 2.00 200-8170-8170-11 2.00” 8x180 8x180 124.1mm 14mm x 1.50 200-8180-8180 2.00” 8x200 8x200 142.1mm 14mm x 1.50 200-8200-8200 Thick Vehicle Wheel Bore Stud Size Part # (Each)

WHEEL MEASURMENT TOOLS

Slide Rule Bolt Circle Gauge C402 Description Part #

TOOLS

Extension Wrench 1/2” Drive with

3/4” and 13/16” Deep Thinwall #410 Sockets

Description Part #

3/4” Thin Wall Socket 410-3 13/16” Thin Wall Socket 410-4 7/8” Thin Wall Socket 410-5 Description Part #

WHEEL INSTULATION TOOLS

Folding Lug Wrench

21mm,13/16” & 7/8 Hex #403 Sockets

Description Part #
