hemodynamics predictions for single ventricle palliation.

Daniele Schiavazzi, Grégory Arbia, Catriona Baker, Anthony Marcus

Hlavacek, Tain-Yen Hsia, Alison Marsden, Irene Vignon-Clementel

To cite this version:

Daniele Schiavazzi, Grégory Arbia, Catriona Baker, Anthony Marcus Hlavacek, Tain-Yen Hsia, et al.. Uncertainty quantification in virtual surgery hemodynamics predictions for single ventricle palliation.. International Journal for Numerical Methods in Biomedical Engineering, John Wiley and Sons, 2015, pp. e02737. �hal-01244427�

Int. J. Numer. Meth. Biomed. Engng.2010; 00:1–29

Published online in Wiley InterScience (www.interscience.wiley.com). DOI: 10.1002/cnm

Uncertainty quantification in virtual surgery hemodynamics

predictions for single ventricle palliation

D. E. Schiavazzi

, G. Arbia

, C. Baker

, A. M. Hlavacek

, T. Y. Hsia

, A. L. Marsden

,

I. E. Vignon-Clementel

for the Modeling of Congenital Hearts Alliance (MOCHA)

Investigators

1_{Mechanical and Aerospace Engineering Department, University of California, San Diego, CA, USA} 2_{Great Ormond Street Hospital for Children and UCL Institute of Cardiovascular Science, London, UK}

3_{Department of Pediatrics, Medical University of South Carolina, Charleston, SC, USA} 4_{INRIA Paris-Rocquencourt and Sorbonne Universit´es UPMC Paris 6, Paris, France}

SUMMARY

The adoption of simulation tools to predict surgical outcomes is increasingly leading to questions about the variability of these predictions in the presence of uncertainty associated with the input clinical data. In the present study we propose a methodology for full propagation of uncertainty from clinical data to model results that, unlike deterministic simulation, enables estimation of the confidence associated with model predictions. We illustrate this problem in a virtual Stage II single-ventricle palliation surgery example. First, probability density functions (PDFs) of right pulmonary artery (PA) flow split ratio and average pulmonary pressure are determined from clinical measurements, complemented by literature data. Starting from a 0D semi-empirical approximation, Bayesian parameter estimation is used to find the distributions of boundary conditions that produce the expected PA flow split and average pressure PDFs as pre-operative model results. To reduce computational cost, this inverse problem is solved using a Kriging approximant. Second, uncertainties in the boundary conditions are propagated to simulation predictions. Sparse grid stochastic collocation is employed to statistically characterize model predictions of post-operative hemodynamics in models with and without PA stenosis. The results quantify the statistical variability in virtual surgery predictions, allowing for placement of confidence intervals on simulation outputs. Copyright c 2010 John Wiley & Sons, Ltd.

Received . . .

KEY WORDS: uncertainty quantification; Fontan palliation surgery; single-ventricle congenital heart disease; sparse grids; inverse Bayesian parameter estimation; virtual surgery

1. INTRODUCTION

The maturity of cardiovascular simulation tools has significantly increased in recent years, offering new insight into disease progression and new capabilities for prediction of physiologic response to

∗_{Correspondence to: Alison L. Marsden, MAE Department, University of California at San Diego, La Jolla, California} 92093. Email: amarsden@eng.ucsd.edu

surgical procedures and treatments [1]. Modern cardiovascular simulation tools now incorporate the fluid dynamic response of vessels with deformable walls (see, e.g., [2,3]), account for the effects of the global circulation in patients (see, e.g., [4]) and can be combined with optimization tools to improve surgical planning and medical device design [5]. Significant research has also focused on growth and remodeling of arterial vessels in response to altered mechanical loads [6, 7, 3]. Moreover, continued improvements in both the resolution of medical images and segmentation algorithms are progressively reducing the time and manual labor needed to create three-dimensional anatomic models. Despite these improvements, predictions from cardiovascular simulation are almost uniformly presented in terms of deterministic results, with few publications (see, e.g., [8]) reporting confidence levels or sensitivities associated with these predictions.

Given the myriad uncertainties associated with cardiovascular simulations stemming from clinical and medical imaging data acquisition, physiologic and inter-patient variability, and modeling assumptions, including these sources of uncertainty and quantifying their propagation will increase trust in simulation results, enabling greater impact on clinical decision making.

Recent methodological advances now allow for efficient solution of both inverse and forward problems in Uncertainty Quantification (UQ), where the inverse estimation problem requires sampling from an unknown distribution ρ(β) using m point realizations {ρ(βi), i = 1, . . . , m}

and the forward problem requires efficient computation of the distributionρ(y), i.e., the stochastic response of the modely = G(β)with random inputsβdistributed asρ(β).

Multiple approaches have been proposed to sample from unknown posterior distributions of random parameters, formulated as the Bayesian conjunction of likelihood and prior knowledge [9, 10, 11]. Due to its simple implementation and generality, the Markov Chain Monte Carlo (MCMC) method has been widely adopted in this context [12,13] and various approaches have been proposed to reduce its random walk behavior, with consequent reduction in the number of simulations needed for convergence.

Monte Carlo Sampling (MCS) was one of the first approaches introduced to solve the forward problem in UQ [14]. While appealing for high-dimensional problems, its convergence is typically slow for a moderate number of random inputs [15] and alternative techniques are generally preferred, especially when the calls to the deterministic solver are computationally expensive. Improvements in convergence can be achieved by the stochastic finite element method [16], where intrusion into existing solvers allows simultaneous determination of physical unknowns and stochastic expansion coefficients. In this study, however, we focus on non-intrusive approaches, for their flexibility and ease of implementation. Collocation of a set of stochastic PDEs at the zeros of tensor product orthogonal polynomials (so-called stochastic collocation, SC) was proposed in [17, 18] and extended in [19, 20] to adaptive and anisotropic tensor spaces, respectively. It is also well known [21] that the use of families of polynomials orthogonal with respect to the probability measure of the random inputs can provide up to exponential convergence in characterizing the probability measure of a sufficiently smooth stochastic response. Convergence of polynomial representations has also been addressed in the context of so-called generalized polynomial chaos expansion (gPC) [22]. Non-intrusive propagation schemes have been applied to a stochastic response of interest characterized by sharp gradients or discontinuities. In this context, multi-element polynomial chaos approaches [23] have been proposed together with simplicial discretizations [24], fomulations based on Pade’ approximants [25] and others. As an alternative

to numerical integration on multi-variate grids, computation of the pseudo-spectral stochastic coefficients using sparsity promoting greedy heuristics has been proposed in [26]; extensions to multiresolution representations are discussed in [27].

A few prior studies have begun to account for clinical data uncertainties in cardiovascular simulation. Sparse grid SC was used in [28] to solve the stochastic differential equations governing the propagation of blood pressure in a realistic one-dimensional CFD model of the human circulation. A robust optimization algorithm, combining the surrogate management framework (SMF [29]) with SC on adaptive sparse grids, was applied in [30] to parameterized models of bypass graft anastomoses, and in [31] to several cardiovascular simulation examples. A similar approach was also applied [32] to growth and remodeling predictions in arteries. A systematic application of SC is discussed in [33] where numerical experiments of increasing complexity were performed to quantify the impact of log-normally distributed input random inflow, boundary distal resistances, and vessel cross sectional area on blood pressures and flow rates at locations of interest.

In the above studies, the PDFs of the stochastic inputs were selected a priori, i.e., they were only partially inferred by the process of acquiring data in clinical practice. This should instead, in our opinion, be the starting point of any quantification of confidence in the results of patient-specific cardiovascular simulations. For example, input distributions of resistance or compliance elements in 0D circulation networks should be inferred from distributions in the clinical data determined from the patient’s pathology and physiology. This will enable improved quantification of PDFs and correlations of input random boundary conditions, in contrast to the typical assumption of independence and identical distribution. Finally, we note that strategies combining clinical data assimilation with physics-informed Navier-stokes constraint have been proposed in [34]. Another example is provided in [35] where visco-elastic support constants are inferred from clinical image data for a coupled fluid-structural model of the human aorta.

While applicable to other problems and disciplines, the present study is motivated by the pressing need for uncertainty quantification in multiscale models of single ventricle palliation [36, 37]. Complex cardiac malformations, such as Hypoplastic Left Heart Syndrome or Tricuspid Atresia, are characterized by the existence of only one functional ventricle and treated with a staged surgical transition to the Fontan circulation [38]. As a direct transition to the Fontan circulation is contra-indicated in the neonatal period due to high pulmonary vascular resistance, a three staged palliation is usually adopted, which allows the heart and lungs to progressively adapt to the new physiological paradigm: Norwood or BT shunt procedure (stage I), superior cavopulmonary connection (SCPC stage II, bi-directional Glenn or hemi-Fontan surgeries) and Fontan completion (stage III, lateral tunnel or extracardiac conduit). Numerical simulations were previously performed for a cohort of patients to understand the hemodynamic consequences of performing Stage II surgery with and without combined left pulmonary artery LPA arterioplasty on the resulting RPA/PA flow split ratio, average pulmonary pressure and mean pressure drop across the stenosis [39]. The boundary conditions for these simulations were determined using preoperative clinical data affected by uncertainty. In this study, we use the single ventricle example to present a framework for uncertainty quantification in cardiovascular simulations. For computational convenience, we break this question into two successive steps. The first step, formulated as an inverse problem, uses Bayesian inference and surrogate modeling to determine the sets of outlet boundary conditions matching the preoperative PDFs. The second step propagates these uncertainties through to

simulation predictions using sparse grid stochastic collocation to determine the first two statistical moments for simulation outputs of interest.

While the individual steps of the proposed approach (e.g., Kriging, MCMC estimation, forward uncertainty propagation with stochastic collocation on sparse grids, etc.) are not new, a novel combination of inverse estimation and forward uncertainty propagation is proposed in this study, and then applied in detail to determine confidence of results in virtual surgery. This goes beyond prior applications of uncertainty in cardiovascular simulation, where an assumption of i.i.d. random inputs is often made without any direct physiological or clinical motivation, leading to an increase of the total uncertainty in the system. In the proposed approach, the distributions of uncertain inputs (boundary resistances in the selected application) are instead estimated directly from the available clinical data and their random uncertainties. The other methodological interest of this paper is the selection of tools in the context of three-dimensional Computational Fluid Dynamics able to maintain the computational cost acceptable.

The main context of this work is verification & validation of translational models with indirect clinical utility given by the ability to improve the statistical significance of conclusions drawn from numerical simulations. Direct clinical use of patient-specific simulations (e.g., as complementary clinical examinations) is also possible to compare, for example, the hemodynamic effects of alternative surgical choices. In this context, quantification of confidence in the predictions will constitute an indispensable aid to draw significant conclusions.

The paper is organized as follows. The clinical history of patient MUSC2 is summarized in Section 2. This section also describes the four CFD models used to investigate pre- and post-operative surgical conditions for this patient. Section3is devoted to quantifying the target PDFs of right flow split ratioρ(fs)and average pulmonary pressureρ(pav)from patient-specific clinical data. Section4discusses estimations of the distributions of pre-operative boundary resistances from

ρ(fs)and ρ(pav), followed by forward propagation to virtual surgery results using SC. Finally, confidence intervals on global and local hemodynamic quantities are presented in Section 5and discussed in Section6.

2. CLINICAL DATA AND MODEL CONSTRUCTION

2.1. Patient data

One patient, MUSC2, was recruited at the Medical University of South Carolina. This patient was diagnosed with Hypoplastic Left Heart Syndrome (HLHS) with mitral and aortic valve stenosis. A 3.5 mm right-modified Blalock-Taussig shunt (rmBTS) was inserted with the Norwood procedure. Development of central PA stenosis was observed following Stage I surgery. At 5 months of age, with a BSA of 0.3 m2, the patient underwent Stage II surgery with augmentation of the central PA using pulmonary homograft. Pressure catheter and MRI flow measurements were acquired 1.5 months prior to surgery under the same general anesthetic. All imaging and clinical data was acquired in accordance with institutional review board guidelines.

2.2. Model creation

Three patient-specific models were created to simulate pre-operative stage I hemodynamics, and predict the outcome of Stage II surgery. A baseline geometry for model A was obtained using semi-automatic segmentation from the pre-operative (stage I) MRI scans. Stage II hemi-Fontan geometries with and without LPA stenosis were successively created through virtual surgery, resulting in models B and D. Note that models B and C share the same geometry, but different boundary conditions were applied to investigate how open-loop or closed-loop formulations affect the simulation results. The three-dimensional geometries for the four models are illustrated in Figure1.

2.3. Boundary conditions

Steady flow, open loop boundary conditions were applied to models A and B, with input flow rate of9.3ml/s prescribed at the shunt/SVC inlet and boundary resistances applied to each outlet.

Pulsatile closed loop boundary conditions were applied to models C and D. A lumped parameter network (LPN) model of the Stage II circulation was formulated as a system of algebraic and ordinary differential equations (ODEs) characterizing an assembly of resistance, compliance and inductance elements, consistent with an electrical circuit analogy. Five main circuit blocks are included characterizing the heart, systemic (i.e., upper and lower body) and pulmonary (i.e., left and right) circulations. Time-varying activation functions model atrial and ventricular contraction while non-linear diodes mimic atrio-ventricular and aortic valves. The lower body circulation model includes the kidneys, liver and intestine together with a venous valve in the leg block. Coronary circulation, gravity and respiratory effects were neglected [40]. A semi-automatic registration was performed to identify the parameters of the LPN model, as discussed in our previous work [36,37] to match pre-operative clinical data. Equivalent pulmonary RCR blocks for models C and D were determined by combining sets of outlet boundary resistances with pulmonary morphometry data [41, 8]. Table I summarizes the geometry and boundary conditions used for the four models employed in the present study.

2.4. Solution of the 3D Model

Simulations were performed using a custom three-dimensional Streamline Upwind Petrov-Galerkin (SUPG) finite element Navier Stokes solver from the SimVascular project [42], implicitly coupled to the LPN network using Neumann boundary conditions at all inlets and outlets [4]. Implementation of resistance boundary conditions for open-loop models follows the coupled multi-domain method discussed in [43]. Blood was assumed to be Newtonian with a density of 1060 kg/m3and a dynamic viscosity of 0.004 Pa·s, and rigid vessel material properties were assumed. Stabilization was applied at coupled velocity-pressure surfaces to prevent numerical divergence due to backflow [44]. The discrete algebraic system of equations was solved iteratively using a bipartitioned algorithm with a dedicated preconditioner [45].

2.5. Output quantities of interest

We consider a bounded three-dimensional region Γ ⊂_R3 _{containing a subset of the human} vasculature, with piecewise smooth boundary ∂Γ and parameterized in space and time by the

A

B

C

D

Pre-Op Post-Op Puls With Stenosis Puls No Stenosis

Shunt/SVC Inflow [mL/s]

Three-dimensional model Inflow

(b)

Figure 1. (a) Pre- and post-operative model configurations. Model A is a stage I pre-operative model with resistance boundary conditions (BC) and prescribed shunt inflow. Model B is a stage II post-operative model with resistance BC and prescribed SVC inflow. Model C is a stage II post-operative model (same geometry as model B) with closed loop BCs. Model D is a stage II post-operative model with closed loop BCs and augmented LPA stenosis. (b) Volumetric flow rate through SVC/shunt for the four models. An error bar of one standard deviation is shown for pulsatile simulations (models C and D) indicating the variation in the

mean flow rate due to uncertainty in the pulmonary RCR blocks.

Model A Model B Model C Model D

Geometry Pre-op Post-op with stenosis Post-op with stenosis Post-op without stenosis BC Outlet resistance Outlet resistance Closed Loop Closed Loop

Simulation Steady state Steady state Pulsatile Pulsatile

Table I. Geometry, boundary conditions and type of simulation for the models considered in the present study.

coordinatesx ∈_R3and scalart ∈_R+. The vectorsQ(t) ∈Rn= (Q1(t), Q2(t), . . . , Qn(t)),P(t) ∈ Rn = (P1(t), P2(t), . . . , Pn(t)) represent flow rates and pressure at each outlet ∂Γi, i ∈ J =

{1, . . . , n}. If we denote asp(x, t)andv(x, t)the pressure and velocity field in∂Γi, respectively, the above quantities are obtained as:

Qi(t) = Z ∂Γi [v(x, t) · ni] d ∂Γi, and Pi(t) = 1 |∂Γi| Z ∂Γi p(x, t) d ∂Γi, (1)

whereni is the outward normal to∂Γi (assumed planar) and|∂Γi|its area. Notation is simplified in the following sections not explicitly reporting time dependence for these quantities. Left and right outlets are identified using the two index sets Jl= {l1, l2, . . . , lnl} ⊂ J and Jr=

{r1, r2, . . . , rnr} ⊂ J, with Jl∩ Jr= ∅. The total flow rate through left and right pulmonary

branches is given by ql and qr, while pl and pr denote the associated average pressures. These quantities are calculated as follows:

ql= X j∈Jl Qj, qr= X j∈Jr Qj, pl= 1 nl X j∈Jl Pj, pr= 1 nr X j∈Jr Pj. (2)

RPA/PA flow split ratio (fs), average pulmonary pressure (pav) and pressure drop (δp) are then obtained as: fs= qr ql+ qr , pav = 1 2(pl+ pr) , δp = |pl− pr|. (3)

Outlet resistances are defined using the vector R ∈_Rn_{= (R}

1, R2, . . . , Rn) = ((P1−

Pa)/Q1, (P2− Pa)/Q2, . . . , (Pn− Pa)/Qn)withPa being the atrial pressure.

Assuming all other boundary and initial conditions to be fixed, a CFD analysis defines a relationship between values of boundary resistances and outlet flow and pressure. In the following sections, we will define a forward problem that determinesfs,pav andδpfromR, and an inverse problemthat determinesRgivenfs,pav andδp. Formally, we can introduce a non-linear operator

G :_Rn _→

R3, and express the foward (F) and inverse (I) problems as:

F :    fs pav δp   = G(R), I : R = G −1    fs pav δp    (4)

3. ASSESSMENT OF CLINICAL DATA UNCERTAINTY

Systematic errors in repeated clinical measurements affect numerical predictions and should be clearly associated with simulation results. It is therefore important to realistically estimate appropriate error distributions for the clinically measured quantities of interest, i.e., mean pulmonary pressure (pav), RPA/PA pulmonary flow split ratio (fs), and model geometry.

3.1. Pulmonary pressure measurements

Mean PA pressure for patient MUSC2 was determined indirectly, via measurement of the pulmonary venous wedge pressure (PVWP).

Indirect assessment is a common practice in cases where it is difficult or risky to access the PAs with a catheter. For patients post Stage I single ventricle palliation surgery with aortopulmonary bypass, for example, the pulmonary arteries can only be reached by inserting a catheter through the BT shunt. This is a small cross-sectional area conduit carrying the entire pulmonary blood supply, and partial occlusion with a catheter can cause hypoxia and other severe complications.

There are various possible sources of errors in the acquisition of mean PVWP. Catheters equipped with an inflatable balloon are routinely used to provided adequate wedging. Partial vein occlusion with end-hole catheters may result in errors related to the difference between static and dynamic pressures. For single ventricle patients, respiration affects venous return [46]. As end-expiration correlates well with atmospheric pleural pressure, PVWP measurements should use end-expiratory breath hold. For patients with aortopulmonary shunts, however, errors in PVWP related to the respiration are mitigated by the arterial nature of the pulmonary veins (PV) traces and associated lower compliance.

While adequate wedging and proper accounting of the effects of respiration should produce accurate PVWP measurements, correlation between pav and PVWP may still be affected by the patient’s physiology. For example, heart rate may affect the difference between PA and PV pressure

due to a selective damping action of the capillary vascular bed [47]. The vascular bed also reacts to changes in the flow conditions due to wedging, with consequences on the agreement between sequential PA-PV pressure measurements. Finally, partial occlusion of the shunt may induce falsely lowpav and affect the correlation with PVWP.

The relation between PVWP andpav is investigated in [47,48] for single-ventricle patients and in [49] for children with shunt-dependent pulmonary blood flow. Good agreement between PVWP and pav is reported in [48] where differences of −0.15 ± 1.31 mmHg are observed for patients with BT shunt not affected by pulmonary hypertension. In [47], the correlation between PVWP and pulmonary arterial pressure (PAP) was found to be affeted by the measured pressure range, with PVWP significantly understimating PAP above18mmHg.

For patient MUSC2, measured left PVWP was13.0mmHg, right upper PVWP was11.0mmHg and left lower PVWP was 12.0 mmHg. Based on the above data, a value of 12.0 mmHg was clinically reported for both left and pulmonary arteries, with a maximum associated error of 1.0

mmHg, which is compatible with literature values. Because pulmonary stenosis can significantly affect the distribution of pressure in the PAs, we accounted for effects of proximal and distal stenosis in the pulmonary arteries by rounding the mean pulmonary pressure variance to 3.0 mmHg2 (standard deviation of 1.73 mmHg).

3.2. Flow split measurement

Various sources of errors in estimation of blood velocity through phase-constrast MRI (PC-MRI) are discussed in the literature [50]. First, the cross section of the vessel of interest should be compatible with the characteristics of the PC-MRI scanner, where an in-plane resolution of 1.0-1.3 mm and a slice thickness of 5.0 mm are typically used for children. Changes in size of the pulmonary arteries may not be negligible with the heart cycle and should also be considered. In this regard, prior studies on small animals reported a change in the PA cross sectional area of about 12% [51]. For patient MUSC2, both the diameter of the BT shunt (3.5 mm) and the size of the LPA subject to stenosis are close to the limit of 3 cells across in diameter and 8 cells in cross section as discussed in the literature [50]. Partial volume effects due to cells containing both blood and vessel wall may also be responsible for decreased accuracy in the flow measurements.

High velocity/turbulent flow produces signal loss which negatively affects the flow measurement through the PAs. Peak velocities were observed for patient MUSC2 equal to 43 cm/s for the RPA and 65 cm/s for the LPA. Higher velocities and more flow in the LPA may therefore lead to signal loss with possible underestimation of the clinically acquired flow rate. Also, prior studies have reported inter-observer errors in pulmonary artery MRI flow measurements in the range of 5-10%, with variation in cardiac output with repeated measurements reported in the range of±6%.

For patient MUSC2 the measured flow was 4.5 ml/s for the RPA, and 5.23 ml/s for the LPA, resulting in a RPA/PA flow split ratio of 0.46 and total flow through the BT shunt equal to 9.73 ml/s. Similarly, measured flow rates in the pulmonary veins were 4.51 ml/s for the RPV, 5.88 ml/s for the LPV, with flow split ratio equal to 0.43 and total flow 10.39 ml/s. Flow due to development of collateral circulation was not observed. The final distribution was selected by accounting for 10% error in the measured arterial flow split due to the size of the PAs near the anastomisis with the shunt, comparable with the resolution of the PC-MRI scan. Moreover, a right skew was assigned to the RPA/PA flow split distribution as arterial flow in the LPA was likely underestimated due to signal

loss. The mode of the distribution (i.e, the most likely flow split associated with the maximum of the PDF) was set to0.43due to the higher reliability of venous flow measurements for this patient.

3.3. Geometry

The geometry of the shunt/SVC-PAs junction was not parameterized in the current study. However, it is useful to discuss possible geometrical errors to better understand differences between clinically measured and simulated hemodynamics. Analyzing three model configurations (pre-operative, post-operative with LPA stenosis and post-post-operative without LPA stenosis) will provide further insight on the effects of geometry perturbations on our numerical results.

The pre-operative shunt-PAs junction model was reconstructed from three-dimensional steady-state free precession images and MR angiograms with resolution of0.391 mm× 0.391mm× 1

mm and1.0mm× 1.0mm× 2mm, respectively, acquired at the diastasis point (mid-diastole). MR anatomical measurements are routinely confirmed with two-dimensional planar black blood MR images (with resolution of 1.042 × 1.042mm2 _{and4mm slice thickness) used to enhance vessel} lumen contrast. For the MUSC2 patient, both shunt and central PA stenoses were further observed using fluoroscopy images from the catheterization lab, providing measures of shunt and PAs to the nearest0.2to0.3mm.

Turbulence or high velocities in the flow may affect the measurements making the BT shunt or PA stenoses appear smaller than they are. This seems to affect the present case where high velocities and mixing are observed in the anastomosis region.

3.4. Final distribution of clinical data

From the above discussion, the error distributions associated to fs and pav were determined as follows. The distribution ρ(fs) was selected as a skewed Gaussian distribution with range

[0.41, 0.55]and mode equal to0.43. This is characterized by three parametersξ(location),ω(scale) andα(shape) in the expression [52]:

ρ(fs) = 1 ωπe −(fs−ξ)2 2ω2 Z α(fs−ξ_ω ) −∞ e−t22 dt (5)

The parametersξ,ωandαwere identified through Simulated Annealing with constraintsµ(fs) −

2.0 σ(fs) = 0.41,µ(fs) + 2.0 σ(fs) = 0.55, andarg maxfsρ(fs) = 0.43, leading toξ = 0.423,ω =

0.053andα = 4.0. The symbolsµ(·)andσ(·)denote mean and standard deviation, respectively. A Gaussian distribution was selected forρ(pav)with mean value of12.0mmHg and standard deviation equal to √3 = 1.73 mmHg. These distributions are illustrated in Figure 2. Finally, we note that the above distributions were assumed to be Gaussian, and that moments or other characteristics (e.g., mean value, mode, variance and skewness) were chosen to be consistent with clinical data availability for the specific patient pathology, clinical experience and findings in the literature.

0.0 2.0 4.0 6.0 8.0 10.0 12.0 14.0 0.3 0.4 0.5 0.6 0.7 PDF

RPA/PA Flow Split Target RPA/PA flow split distribution

(a) 0.00 0.05 0.10 0.15 0.20 0.25 4 6 8 10 12 14 16 18 20 PDF mPAP Target mPAP distribution

(b)

Figure 2. Selected distributions of (a) RPA/PA flow split ratioρ(fs)and (b) mean pulmonary arterial pressure

(mPAP)ρ(pav).

4. UNCERTAINTY ANALYSIS

4.1. Applicability of the proposed approach to other fields

The general applicability of the proposed approach to problems other than single-ventricle virtual surgery is discussed in this section. The exercise of determining the probability distributions of specific measurements, can certainty be performed in other application areas, and such quantities may actually be more readily available in other settings. These tools could be applied to other problems in cardiovascular disease, for example when the uncertainty relates to a measured flow rate at the outlet of a vascular model or pressures are acquired under uncertainty. In all these case an important common feature is that clinical data are quantities that relate to model outputs (i.e., flow split or average pressure over a region, etc.), not inputs.

Once the target uncertainty is assessed, Bayesian parameter estimation (discussed in a clinical context in Section 4.5) can be performed with arbitrary models. However, difficulties may arise related to possible non identifiable parameters or excessive computational cost. Non identifiability (see, e.g., [53]) is typically associated with over-parameterization, i.e., inability of learning the distributions of a large number of parameters under data scarcity. In other words, equally likely solutions to a given problem may arise, without the ability to assess their difference from the available data. Identifiability depends on the parameterization of the model and, in a Bayesian context, the amount of prior information at hand. For problems that are not identifiable, an analysis of the Fisher information matrix may be useful in detecting unimportant parameters or the presence of non identifiable combinations in the neighborhood of specific parameter combinations, but other approaches to detect local or global identifiability may be used. The proposed application of inverse estimation for virtual surgery discussed in Section4.5is not affected by this issue as illustrated in the MCMC results of Figure7.

Conversely, we propose a solution to the problem of an expensive model solution in Section4.4, by replacement with an inexpensive Gaussian process interpolant. This lightweight surrogate does not need to be accurate for all the possible values of the inputs, but only in the region of interest, i.e., input values generating model solutions sufficiently close to the collected data. Similar Kriging

models have been used to accelerate optimization in a wide range of engineering applications and uncertainty analysis [30,32].

At this point, forward uncertainty propagation can be performed in full generality (with non-intrusive approaches directly applicable to existing solvers), with the only additional complication of properly transforming the MCMC input parameter samples, e.g., as realizations from an i.i.d. random vector. This is discussed in Section4.6for the proposed application to virtual surgery.

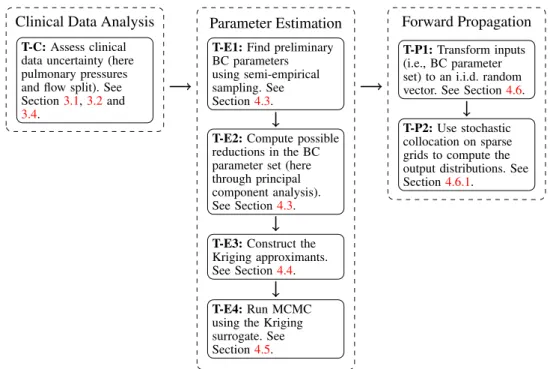

4.2. Section outline

After selecting clinically appropriate distributions for fs and pav in Section3.4, two main steps are needed to propagate this uncertainty to virtual surgery simulation outputs. First, boundary conditions need to be tuned to identify parameters that produce the distributions of clinical data

ρ(fs)and ρ(pav)identified for the pre-operative model. In other words, we aim to determine the joint distribution ρ(R) and covarianceCR such that the flow split ratio and average pulmonary pressures resulting fromG(R)match the clinical data distributionsρ(fs)andρ(pav). We formulate this as an inverse problem using MCMC to computeρ(R)andCR, as discussed in section4.5.

Second, we need to propagate the uncertainty in the random vectorRto statistically characterize virtual surgery outputs. This step employs SC as discussed in Section 4.6. Finally, we stress that every solution of the forward problem (i.e. 3D multiscale simulation) is expensive, therefore the number of evaluations ofG(R)needs to be kept to a minimum throughout both inverse and forward propagations. One approach is to construct a surrogate model that approximatesGsufficiently well for the range of boundary resistances associated with non zeroρ(R), as discussed in the next section.

4.3. Construction of a surrogate model forfsandpav: semi-empirical sampling

Initial samples in the region of non-negligible ρ(R) are determined using a semi-empirical approximation based on a 0D fluid dynamics model that mimics G−1, starting from sets of fs andpav compatible with the clinical data. Depending on how detailed this model is and how many samples are available, our approximation ofG−1can be progressively refined. A first basic approach to generate samples, is to assume a constant pressure pav throughout the SVC-PA junction, and determine the components ofQfrom the following expression:

Qi=

QinSi(δi,rfs+ (1 − δi,r)(1 − fs)) P

j Sjδi,j

(6)

whereδi,j= 1if outletsi, j ∈ Jlori, j ∈ Jr, otherwiseδi,j= 0andδi,r = 1if outleti ∈ Jr, zero otherwise. The vectorS = (S1, S2, . . . , Sn)contains the surface area of each outlet. The underlying assumption in the derivation of Equation (6) is that the volumetric flow rate is proportional to the surface area at each outlet. Once the flow rates are determined, the vectorRcan be defined using the expression:

Ri= (pav− Pa)/Qi ∀ i ∈ {1, 2, . . . , n} (7) The approximation in (6) is evident as no major pressure losses due to friction in the 3D model nor minor losses due to RPA and LPA stenoses are considered. A straightforward improvement accounts for minor pressure losses due to stenosis in the LPA and RPA, respectively, distal and proximal to the anastomosis between the rmBTS and PAs. To quantify the relationship between pressure losses

and blood velocity in the region affected by hypoplasia, we adopt the formulation discussed in [54]: ∆ps= µLs32 Sv2 D2 vSs2 V + 0.76 ρ  Sv Ss − 1 2 V2, (8)

which quantifies the minor pressure loss through a cylindrical vessel with diameterDvand areaSv affected by a discrete stenosis with lengthLsand minimal areaSs. The quantitiesµandρdenote blood viscosity and density, respectively. If we assume∆pl

sand∆prsto represent the pressure losses through LPA and RPA stenosis, respectively, the resistances on the left and right PAs are equal to:

Rli= pav− 0.5∆pls− Pa Qi , Rri = pav+ 0.5∆pls− Pa Qi (9)

when only the stenosis in the LPA is taken into account and

R_il=pav− 0.5(∆p l s− ∆prs) − Pa Qi , Rr_i =pav+ 0.5(∆p l s− ∆prs) − Pa Qi (10)

accounting for both LPA and RPA stenosis. The initial samples were obtained by selecting a set of pairs (fs, pav) belonging to the region of interest in the flow split - average pressure plane. Rather than adopting uniform or stratified sampling (see, e.g., [55]), we preferred to determine these locations on a two-dimensional sparse grid assembled from nested univariate quadrature rules. An order 7 grid was selected consisting of 65 points. Examples of two-dimensional quadrature grids suited for uniform [56] and Gaussian [57] probability measures, respectively, are illustrated in Figure3. We determined65sets ofn = 20resistances for the pre-operative model using expression (9) and another 65sets using expression (10). After performing m = 130 model evaluations, the values of fs and pav were computed and compared to the initial sparse grid locations. Figure 4 shows the agreement between desired and computed values for these two quantities.

Results are reported for both semi-empirical formulations with stenosis in the LPA only and both LPA and RPA. Inclusion of RPA stenosis improves the accuracy in the proposed 0D semi-empirical formulation for increasing RPA/PA flow split ratios and for average pulmonary pressures (Figures4aand4b). Figure4cquantifies the unsteadiness in computing the pre-operative RPA/PA flow split ratio by plotting the 90% confidence interval for this quantity, i.e.,2 · 1.645 · σfs, where

σfs=

_Rt

max

t0 [fs(t) − µfs]

2_dt1/2_andσ

fs,µfsrepresent the standard deviation and time-averaged

values for the RPA/PA flow split ratio, respectively. The quantitytmaxdenotes the total simulation time andt0was selected to exclude the initial transient.

The amount of flow through the LPA affects σfs, and lower values of RPA/PA ratios produce

oscillations with amplitude of 0.03 − 0.04. This phenomenon, which is mainly produced by the geometrical complexity of the flow domain, will be further discussed when assessing the accuracy for distributions of pre-operative simulation outputs.

Denoting R = {Ri_{, i = 1, . . . , m} as the sets of resistances used as pre-operative simulation} inputs, we can form their empirical covariance matrixCRusing the following expression:

CR(i, j) =

1 m − 1(R

i

-5.0 -3.0 -1.0 1.0 3.0 5.0 -5.0 -3.0 -1.0 1.0 3.0 5.0 β₂ β₁ 0.0 0.2 0.4 0.6 0.8 1.0 0.0 0.2 0.4 0.6 0.8 1.0 β₂ β₁

Figure 3. Two-dimensional quadrature grids suited for (left) Gaussian [57] and (right) uniform [56] probability measures. 0.4 0.5 0.6 0.7 0.8 0.9 0.4 0.5 0.6 0.7 0.8 0.9

Simulated RPA/PA Flow split ratio

Target RPA/PA Flow split ratio

0D - LPA stenosis 0D - RPA and LPA stenosis

(a) 6.0 8.0 10.0 12.0 14.0 16.0 6.0 8.0 10.0 12.0 14.0 16.0 Simulated mPAP [mmHg] Target mPAP [mmHg] 0D - LPA stenosis 0D - RPA and LPA stenosis

(b) 0.020 0.025 0.030 0.035 0.040 0.045 0.050 0.30 0.35 0.40 0.45 0.50 0.55 0.60

RPA/PA Flow split ratio - 90% CI range

RPA/PA Flow split ratio - Mean value (c)

Figure 4. Discrepancy between values of (a) flow split ratios and (b) average pressures used as inputs of the semi-empirical approximation and obtained as a result of the pre-operative model. (c) The degree of unsteadiness is represented by plotting the 90% confidence interval vs. the average RPA/PA flow split ratio.

As expected, the resistances inRbelong to a two-dimensional manifold generated byr1, r2∈R20, i.e., the eigenvectors of CR associated with non-zero eigenvalues. All other resistances can be obtained from linear combinations of r1 and r2 using coefficients β1 and β2. This reduces the dimensionality of the space of outlet resistances fromn = 20to only two variables, namelyβ1and

β2, a direct consequence of assuming only right flow split ratio and average pressures as independent variables in our 0D semi-empirical formulation. This is physically consistent with the fact that there are two main mechanisms to change the resistances and produce an effect on the average pressure and flow split ratio in the shunt-PA junction model. The first mechanism is to increase or decrease left and right pulmonary resistances simultaneously, thus mainly impacting the average pulmonary pressure. The second mechanism is to change the relative difference between left and right pulmonary resistance, keeping the same total value, which directly affects flow split ratio. Other variations outside the above patterns produce minor effects onfsandpav, primarily affecting the relative distribution to individual branches. To better illustrate this point, Figure 5aplots the average left vs. right pulmonary pressures for all 130simulations. The sparse grid in Figure 3is reproduced in Figure5a, rotated 45 degrees. This confirms the correlation between the independent variables of our semi-empitical approximationfsandpav and variations in the left and right pre-operative pumonary artery pressures, respectively. Finally, Figure5bshows that pressure values are

nearly uniform across outlets in all simulations, confirming that average pressure at the outlets is sufficiently well approximated by the sample mean.

-5.0 -4.0 -3.0 -2.0 -1.0 0.0 1.0 2.0 3.0 4.0 -8.0 -6.0 -4.0 -2.0 0.0 2.0 4.0 6.0

Left pulmonary pressure - Average [mmHg]

Right pulmonary pressure - Average [mmHg] Right-Left Pulmonary Pressures Correlation

(a) 6 7 8 9 10 11 12 13 14 1 2 3 4 5 6 7 8 9 10 11 Outlet pressure [mmHg] Outlet n. LPA - Outlet Pressure Distribution

0 200 400 600 800 1000 1200 1400 1600 1800 1 2 3 4 5 6 7 8 9 1011

Outlet Flow Rate [mm

3/s]

Outlet n. LPA - Outlet Flow Rate Distribution

(b)

Figure 5. (a) Left vs. right average outlet pressures for 130 pre-operative simulations with boundary resistances determined through the proposed semi-empirical 0D approach. (b) Pre-operative flow rates and

pressures at LPA branch outlets.

4.4. Construction of a Kriging surrogate

From the results of the pre-operative simulations, and after a principal component analysis ofR, we have determinedmevaluations of a relationshipG˜i:R2→R, i = 1, 2, 3 mapping realizations of the coefficientsβj= (β₁j, βj₂), j = 1, . . . , minto values for the right pulmonary flow splits (i = 1), average pressures (i = 2) and mean pressure drop across the LPA (i = 3). The next problem we need to address is how to determine the joint distribution ρ(β)that generates the distributions of interest forfs,pavandδp. Monte Carlo strategies have proven successful to solve inverse Bayesian estimation problems (see,e.g., [58]) but they generally require a significant number of evaluations for

˜

Gi. To overcome this problem, thus significantly reducing the computational burden of estimating

ρ(β), we replacedG˜iwith a Kriging surrogate. Consider the generic quantityyj∈R withy1= fs,

y2= pav, ory3= δpandy = (y1, y2, y3). Kriging selects a surrogate model for each variableyj(β) from a stochastic process that satisfies the following linear regression model:

yj(β) = p X

i=1

ci,jφi(β) + ej(β), j = 1, 2, 3. (12)

where the regression error is assumed to be a Gaussian process with zero mean and covariance

Cej(ej(β

i

), ej(βk)) = Cej(θ, kβ

i

− βkk). Among the covariance models proposed in the literature (see, e.g. [59]), we adopt the typical choice of an exponential covariance formulation with

Cej(θ, kβ

i

− βkk) =Qm

l=1exp(−θlkβ i

− βkk). Our generic simulation result yj is affected by intrinsic unsteadiness and therefore our covariance model was selected to guarantee the fastest possible decay to a smooth mean polynomial trend. Accordingly, a family of second order polynomial functions was selected forφi(β), i = 1, . . . , p. The vector of parametersθis determined using maximum likelihood estimation and the coefficientsci,j, i = 1, . . . , pby solving a generalized least squares problem with a possibly dense correlation matrix. We refer the interested reader to

[60] for an in-depth discussion on the theoretical background and computational implementation of Kriging. Figure 6 shows a graphical representation of the Kriging surrogates for the three quantities of interest. Finally, we note that a combination of Kriging surrogates and derivative-free

(a) (b) (c)

Figure 6. Graphical representation of the two-dimensional Kriging surrogates for right flow split ratio (left), mean pulmonary pressure (centre) and RPA/LPA pressure discrepancy (right).

optimization has proven successful in robust optimization of virtual surgery scenarios [29,61,62].

4.5. Inverse Bayesian analysis and MCMC

We formulate our estimation problem for a generic scalar model resultyj using the following non-linear statistical model:

yj= ˜G∗j(β) + ej (13)

and assume each error componentej to be Gaussianly distibuted with zero mean and varianceσ2j. In (13) the symbolG˜∗_j referes to the Kriging surrogate forG˜j. We use MCMC (see, e.g., [63,58]) to sample from the posterior distributionρ(β|y)defined as:

ρ(β|y) = ρ(y|β)ρ(β)

ρ(y) (14)

Due to the non-linearity in G˜∗_j and the consequent non-Gaussianity in the likelihoodρ(y|β) we adopted a Metropolis-Hastings sampler [9] with a symmetric multivariate Gaussian trial distribution. In practice, samples belonging to the posteriorρ(β|y)are progressively generated according to a Markov Chainβk, k = 1, . . . , kmax, where the probability of transition to a new pointβk+1from

βkis: ρM H = min  1,ρ(β k+1 |y) ρ(βk|y)  (15)

Figure 7shows the MCMC tracings, ergodic statistics and marginal PDFs for all accepted βk. Both distributions are unimodal and good mixing can be observed from MCMC traces. Satisfactory convergence can also be observed from plots of ergodic mean and standard deviation. It should also be noted that, in general,β1andβ2resulting from MCMC are correlated.

To verify that we had obtained the correct estimation ofρ(β1, β2), we determined the histograms offs andpav resulting from applying the Kriging model to the acceptedβk MCMC samples. As expected, we retrieved backρ(fs)andρ(pav)as defined in Section3, and shown in Figure2. We

-30 -20 -10 0 10 20 30 40 50 0 10000 20000 30000 β1 , β2 MCMC Runs (a) -20 -15 -10 -5 0 5 10 15 0 10000 20000 30000 β1 , β2 MCMC Runs Mean β1 Mean β2 Std. dev. β1 Std. dev. β2 (b) 0.00 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.08 -30 -20 -10 0 10 20 30 40 50 PDF β₁, β₂ (c)

Figure 7. Results of the MCMC simulations. (a) Traces ofβk. The picture shows a good mixing of samples for the two distributions. (b) Plots of ergodic average and standard deviation forβ1andβ2. (c) Resulting

marginal PDFs ofβ1andβ2.

thus confirmed that we had obtained a distribution of boundary resistances that correctly reproduced the known distribution of clinical data.

To summarize, in this section we have discussed an MCMC approach to sample fromρ(β1, β2) such that forward propagation of associated boundary resistances provides pre-operative model results compatible withρ(fs)andρ(pav).

4.6. Forward propagation to multiscale model results

After obtaining the distributions of outlet resistances, parametrized throughβ1andβ2, we proceeded to propagate them forward to the results of our four CFD simulations. Consider a complete probability space (Ω, F , P) in which Ω is the sample space, F is a σ-algebra of possible events, and P denotes a probability measure on F. The input uncertainty is characterized by the vector of independent random variables β = ( ˆˆ β1, ˆβ2), where each random variableβˆi: Ωi→

Σi≡ [−∞, +∞] has distribution ρ( ˆβi). In the following we assume a Gaussian distribution for the generic βˆi. Let Γ ⊂RD, D ∈N, be the spatial domain with boundary ∂Γ. The quantities

x ∈ Γ and t ∈ [0, T ] represent the spatial and temporal variables, respectively. We consider the problem of computing expectations (in particular first and second order moments) of the solution

u(x, t, β) : Γ × [0, T ] × Σ →_Rh_{,h ∈}

N, to our stochastic CFD problem. These expectations, for a particular location in space x∗ and time t∗, can be computed through numerical integration as follows: E h u(x∗, t∗, ˆβ)i= Z Σ u(x∗, t∗, ˆβ)ρ( ˆβ) dΣ ≈ ng X i=1 u(x∗, t∗, ˆβi) wi V h u(x∗, t∗, ˆβ) i = Z Σ n u(x∗, t∗, ˆβ) −_E h u(x∗, t∗, ˆβ) io2 ρ( ˆβ) dΣ ≈ ng X i=1 n u(x∗, t∗, ˆβi) −_Ehu(x∗, t∗, ˆβi)io 2 wi, (16)

where V[·] denotes the variance operator and wi, i = 1, . . . , ng are the integration weights. The numerical integrals in (16) result in accurate estimates for a sufficiently smoothu(x∗, t∗, ˆβ), i.e.,

this solution can be approximated sufficiently well by only the first few terms of the following expansion: u(x∗, t∗, ˆβ) = p X i=1 ciHi( ˆβ) (17)

for an arbitrary spatial locationx∗and timet∗.

In (17) the family of tensor product polynomialsHi( ˆβ)is selected to be orthogonal with respect to the distributionρ( ˆβ), i.e.,R_ΣHi( ˆβ) Hj( ˆβ)ρ( ˆβ) dΣ = 0, ifi 6= j. The input random vectorβˆ needs to be introduced, asβ(resulting from MCMC estimation) contains, in general, non-normalized (i.e. with zero average and unit variance) and correlated random variables. The burn-in (selected as 10% of the samples) is first removed and the empirical covariance matrixCβcomputed and factorized in the formCβ= STS, whereSis the upper triangular Cholesky factor. The intermediate decorrelated random vectorβ¯is then computed asβ = S¯ −Tβand independence is achieved by truncation to the first two moments, i.e.,µ( ¯β1),µ( ¯β2),σ2( ¯β1),σ2( ¯β2).

4.6.1. Integration on Smolyak sparse grids Selection of the numerical integration scheme, i.e., the set of points{ ˆβk, k = 1, . . . , ng} to be used in (16) constitutes the next step of our analysis. Following the Smolyak construction [64], the integration grid consists of a partial tensorization of univariate nested quadrature rules. Consider an n-dimensional function f ( ˆβ1, . . . , ˆβn) : Σ ⊂ Rn →R where the stochastic domain Σ = Σ1× · · · × Σn is generated by Cartesian products of one dimensional intervals. Define Σj as the interval resulting from keeping all dimensions fixed exceptβj. A univariate nested quadrature rule of orderqis defined as follows:

Z Σj f ( ˆβ1, . . . , ˆβj, . . . , ˆβd)ρ( ˆβj) dΣj≈ nq X i=1 f ( ˆβ1, . . . , ˆβji, . . . , ˆβd) wi= Qqj[f ] N_jk[f ] = Qk+1_j − Qk j
[f ] where Q0_j[f ] = 0. (18)

By tensorization of nested univariate quadrature formulae, we assemble the Smolyak quadrature rule by writing: Sk[f ] =Nk1 1 ⊗ · · · ⊗ N kd d  [f ] and Z Σ f ( ˆβ) ρ( ˆβ) dΣ ≈ X |k|<q+n−1 Sk[f ], (19) where |k| =Pn

i=1ki. The truncation of ρ( ¯β) to a multivariate Guassian distribution allows the quadrature locations {βˆi, i = 1, . . . , ng} to be selected according to well known formulae, but unfortunately the support of the distribution becomes infinite. Thus, values of resistances determined by first de-normalization β¯i= µ( ¯βi) + ˆβiσ( ¯βi), and then correlation with S−1 and linear combination Rk=Pd

j=1 βjrj may become negative and therefore not acceptable as boundary conditions. To overcome this problem, the standard Gaussian distribution ρ( ˆβ) is truncated to the interval[−4, 4] × [−4, 4]and a Gauss-Legendre sparse grid is used. To make sure that a unit constant function is correctly integrated over this interval for any order of the sparse grid,

we also modify the integration weights such that: ng X i=1 wi d Y j=1 1 √ 2 πe −( ˆ βi_j)2 2 = 1. (20)

4.6.2. Computing marginal distributions for models results In this section we discuss possible strategies to determine marginal distributions for the quantities of interest from pre- and post-operative model solutions at the ng input quadrature locations. A combined Monte Carlo and interpolation strategy is used. Interpolation can be perfomed by Kriging as discussed in Section4.4

or alternatively using numerical integration to compute the coefficients of a multivariate Legendre polynomial expansion: f ( ˆβ) ρ( ˆβ) ≈ p X i=1 αiLi( ˆβ), αi= hf ( ˆβ) ρ( ˆβ), Li( ˆβ)i = Z Σ f ( ˆβ) Li( ˆβ) ρ( ˆβ) dΣ, (21)

where the orthogonality of the polynomial familyLi( ˆβ)with respect to the uniform probability measure is used. Both approaches lead to very similar results for all models considered in this study.

4.7. Computational tasks and associated cost

A graphical layout for the tasks discussed in the previous sections is illustrated in Figure8. The initial clinical data manipulation task (i.e., T-C) is not computationally expensive; only optimization (performed using Simulated Annealing) was required to identify the parameters of the flow split skewed Gaussian distribution, as discussed in Section3.4. Interrogation of the 0D surrogate model to determine the setRand its principal component analysis (i.e., T-E1 and T-E2) can also be performed at a reduced cost with many, freely available, software libraries.

The task of constructing the Kriging pre-operative model approximant is computationally expensive as it requires multiple model evaluations. Note that the number of model evaluations is the main contributor to computational cost as expressed in TableII, where this quantity is reported to illustrate the overall cost of the proposed approach. For task T-E3 we performed 65+65 model evaluations using outlet resistances determined through two 0D models accounting for stenosis in the LPA only and both LPA and RPA. Note that the number of required model solutions in this tasks is problem dependent and mainly affected by the smoothness of Gi(β). An additional 65 model evaluations were used for forward uncertainty propagation using the pre-operative model to check the agreement between computed and prescribed clinical output distributions, as shown in Figure9. This cost was added to TableII, even if not strictly necessary.

Finally, forward propagation was performed using 65 post-operative model solutions. We also note that the total execution time for simultaneous solution of multiple computer models results in only a modest increase in wall clock time in modern computer clusters with respect to a single model evaluation, subject to resource availability. In our application, we ran 65 simulations simultaneously using a large parallel cluster through the XSEDE program.

T-C: Assess clinical data uncertainty (here pulmonary pressures and flow split). See Section3.1,3.2and 3.4.

Clinical Data Analysis

T-E1: Find preliminary BC parameters using semi-empirical sampling. See Section4.3.

T-E2: Compute possible reductions in the BC parameter set (here through principal component analysis). See Section4.3.

T-E3: Construct the Kriging approximants. See Section4.4.

T-E4: Run MCMC using the Kriging surrogate. See Section4.5.

Parameter Estimation

T-P1: Transform inputs (i.e., BC parameter set) to an i.i.d. random vector. See Section4.6.

T-P2: Use stochastic collocation on sparse grids to compute the output distributions. See Section4.6.1.

Forward Propagation

Figure 8. General outline of the various tasks proposed and associated section number in the manuscript. Specific to the proposed application to single-ventricle pathologies are the relevant clinical data and the type

of boundary conditions (BC) for the 3D CFD simulations.

Task name Number of deterministic model solutions used in this study

T-E3 65 Pre-operative model solutions for 0D model with stenosis only on LPA. T-E3 65 Pre-operative model solutions for 0D model with stenosis both on RPA and LPA. T-E3 65 Pre-operative model solutions to check the agreement between clinical and

computed distributions.

T-P2 65 Post-operative model solutions for every configuration (open loop, closed loop, with and without LPA stenosis).

Total ∼390 for all pre- and post-operative models in the present study.

Table II. Cost of computationally intensive tasks.

5. RESULTS

5.1. Uncertainties in global circulation hemodynamic indicators

The agreement betweenρ(fs)andρ(pav)resulting from the preoperative model and those selected in Section3.4should be discussed first, as this step determines the sets of resistances used for all other models. Figure9shows good agreement between the desired and computed distributions, in particular for the average pulmonary pressure, comfirming the trend discussed in Figure4. While the accuracy of the Kriging surrogate could be further improved by iteratively training with additional realizations{βj_{, j = 1, . . . , n}

g}and associated pre-operative simulations results, Figure4cshows that the maximum accuracy in the RPA/PA flow split ratio is directly related to the instrinsic unsteadiness in the simulations. In the lower range of admissible flow split ratios the variability of this result (quantified in time using a 90% confidence interval) is equal to0.03 − 0.04. Therefore, in this case, iterative refinements of the Kriging approximant will likely not lead to better agreement

between target and simulated pre-operative distributions of fsandpav. Convergence ofρ(fs)and

ρ(pav)to the target distributions for increasing sparse grid orders is also shown in Figure9.

0.0 2.0 4.0 6.0 8.0 10.0 12.0 14.0 0.20 0.30 0.40 0.50 0.60 0.70 0.80 PDF

Right PA Flow Split GP - MCMC Target 0.0 0.1 0.1 0.2 0.2 0.2 4 6 8 10 12 14 16 18 20 PDF

Average Pulmonary Pressure [mmHg] GP - MCMC Target 0.0 2.0 4.0 6.0 8.0 10.0 12.0 14.0 0.30 0.35 0.40 0.45 0.50 0.55 0.60 PDF

Right PA Flow Split Target MCS SG - Order 3 SG - Order 5 SG - Order 7 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 7 8 9 10 11 12 13 14 15 16 PDF

Average Pulmonary Pressure [mmHg] Target

MCS SG - Order 3 SG - Order 5 SG - Order 7

Figure 9. Distributions of fs (top left) and pav (top right) resulting from the preoperative model using

resistance distributions identified through inverse Bayesian estimation. The convergence in the first two moments for increasing sparse grid orders is also shown (bottom).

Changes infs,pav andδpfor all models A, B, C, D are illustrated in Figure10. The RPA flow split ratio decreases as a consequence of virtual hemi-Fontan surgery. This is mainly explained by the change in the model geometry and marginally related to the choice of boundary conditions downstream of the pulmonary artery branches. A change from imposed inlet flow and resistance boundary conditions to a coupled closed-loop LPN model with pulmonary morphometry-based RCR blocks does not produce a noticeable difference in this quantity. Augmentation of the LPA stenosis leads to an increase in the mean LPA flow split ratio, as expected, also producing an increase in the variance.

The average pulmonary pressure is not strongly affected by the local geometry of the shunt/SVC-PA junction. The role played by the boundary LPN model is more relevant in this case, as this prescribes pressure-flow relationships at all inlets and outlets. The smaller variance in average pressure for models C and D confirms that changes in pulmonary RCR blocks produce a smaller effect if embedded in a global circulation model.

The mean pressure drop shows a significant reduction with Stage II surgery, after removal of the high dissipation in the region downstream of the BT shunt. A further reduction in mean pressure drop with model C is observed, which can be explained by the smaller inlet flow associated with a coupled LPN circulation. Finally, by applying arterioplasty to the LPA,δpis greatly reduced. The small variance associated with this situation also highlights the robustness of this prediction.

-2.0 0.0 2.0 4.0 6.0 8.0 10.0 12.0 14.0 0.1 0.2 0.3 0.4 0.5 0.6 PDF

Right PA Flow Split

Target Pre Op Model Post Op Model Puls No Stenosis Model Pul With Stenosis Model

0.0 0.1 0.1 0.2 0.2 0.2 0.3 0.3 0.4 0.4 6 7 8 9 10 11 12 13 14 15 16 PDF

Average Pulmonary Pressure [mmHg]

Target Pre Op Model Post Op Model Puls No Stenosis Model Pul With Stenosis Model

0.0 0.5 1.0 1.5 2.0 2.5 0 1 2 3 4 5 6 7 PDF

Mean RPA to LPA Pressure Drop [mmHg]

Pre Op Model Post Op Model Puls No Stenosis Model Pul With Stenosis Model

(a) (b)

Figure 10. Distributions offs,pavandδpfor all and post-operative models. Target distributions for

pre-operativefsandpavare also indicated using dashed lines. For clarity, only the first two statistical moments

are represented. Values of 90% confidence intervals are also reported in TableIII.

An alternative visualization of the results associated to fs, pav and δpis shown in Figure 11, where changes in the 3D model power losses are also included.

0.2 0.25 0.3 0.35 0.4 0.45 0.5

Pre-Op Post-Op Puls With

Stenosis Puls NoStenosis

RPA:LPA Flow Split Ratio [%]

RPA Flow Split Ratio

8 9 10 11 12 13 14

Pre-Op Post-Op Puls With

Stenosis Puls NoStenosis

Average Pressure [mmHg] Average Pressure 0 1 2 3 4 5 6

Pre-Op Post-Op Puls With

Stenosis Puls NoStenosis

Pressure Drop [mmHg]

RPA:LPA Pressure Discrepancy

0 0.5 1 1.5 2 2.5 3 Puls With

Stenosis Puls NoStenosis

Power Loss [mW]

Power Loss Across Three-dimensional Model

Figure 11. Alternative visualization of changes infs,pav,δpand power loss for models A,B,C,D. Error bars

5.2. Uncertainties in local hemodynamics

Before presenting the uncertainty in local hemodynamic results, including pressures, velocities and wall shear stresses, we briefly address the accuracy associated with computing their statistical moments. Figure12shows average values and standard deviations of the above quantities computed using plain Monte Carlo from all results or resulting from (16) for sparse grid orders3and5. The three approaches generate similar results, suggesting that the variation of local quantities can be well captured with a relatively small integration order.

(a) (b)

(c)

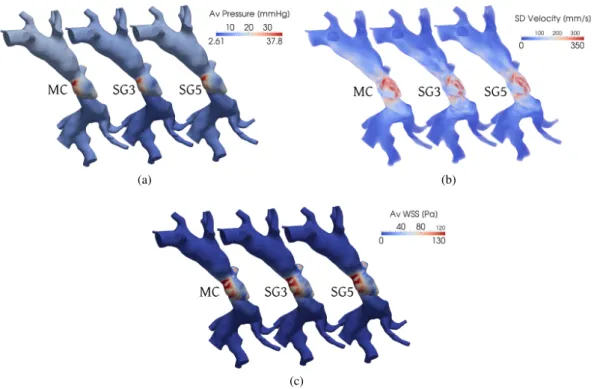

Figure 12. Statistics of local hemodynamic results in terms of pressures, velocities and wall shear stresses resulting from straightforward Monte Carlo average or numerical integration using increasing sparse grid

orders.

Large average pressures at the anastomosis between the shunt and PAs are observed in Figure12

and result from the high velocity jet exiting from the shunt and impinging on the PA vessel walls. Also, changes in boundary resistance induced by clinical variability cause significant pressure changes in this region, producing standard deviations higher than 2.0 mmHg. Post-operatively, average pressures are mainly affected by the transition from open-loop to closed-loop boundary conditions, leading to both a lower average pressure and variance. The mean pressure drop across the LPA for the various models is consistent with the global results illustrated in Figure10.

The high dissipation region downstream of the shunt-PA anastomosis is clearly observed by examining the velocity field in Figure 14. The high δp observed in the pre-operative model is therefore only partially caused by the distal LPA stenosis. The accuracy in capturing the geometry of this region may also help to explain the differences in pressure drop between clinical observations and pre-operative model results.

(a) (b)

Figure 13. (a) Average values and (b) standard deviations of local pressure results (in mmHg). Contours are limited to 16.0 mmHg and 2.0 mmHg for maximum average pressure and standard deviation, respectively.

Post-operatively, the open-loop model shows higher velocities in the jet across the stenosis as a result of a larger SVC inflow. The open loop model also leads to higher variability in the velocity field downstream of the LPA stenosis.

(a) (b)

Figure 14. (a) Average values and (b) standard deviations of blood velocity results (in mm/s).

Wall shear stresses are extremely high in the region downstream of the shunt and greatly reduced after hemi-Fontan surgery, as shown in Figure15. Differences in SVC inflow are responsible for the observed decrease in WSS comparing model B to C. Finally, wall shear stress is significantly reduced with arterioplasty, as expected.

6. DISCUSSION

We have presented a general framework (see discussion in Section 4.1) for propagation of uncertainties in clinical data to uncertainties in model parameters, and ultimately simulation output predictions. The proposed strategy allows for reporting of confidence intervals on the results, which can aid in clinical decision making and quantify trust in simulation outputs. Additionally, the quantification of uncertainty in the results induced by variability in the boundary conditions enables direct comparison of modeling practices.

While some have criticized the use of LPN models due to the large number of parameters required, this work shows that the number of parameters itself is not responsible for increasing the overall

(a) (b)

Figure 15. (a) Average values and (b) standard deviations of wall shear stress results (in Pa). The maximum value for the average and standard deviation of the wall shear stress is set to 20 mmHg and 15 mmHg,

repsectively.

uncertainty in the results. In practice, LPN parameters are chosen to match clinical data following a set of rules, and therefore should not be assumed as independent variables. On the other hand, the inclusion of the most important parameters (those significantly affecting the hemodynamic response) is a prerequisite to properly estimating their marginal contributions.

This improved perspective on cardio-vascular (CV) simulation results is achieved at the expense of an increase in the overall computational cost, as shown in Table II. In our case, determination of the initial 0D semi-empirical surrogate for MCMC required 130 solutions of the pre-operative steady state model. In the uncertainty propagation stage, the pre-operative model was solved 65 times subject to various sets of boundary resistances to check the expected resulting distributions. Finally, 65 solutions of the other three models were required for the selected maximum sparse grid order. While this is an increase over the deterministic case, further improvements in efficiency may be possible in the future and it is clear that statistical results are a necessity for future clinical adoption of these tools.

Changes in the confidence associated with systemic hemodynamic indicators are illustrated in TableIII. Stage II surgery with arterioplasty produces a noticeable average increase in LPA flow. However, the removal of the stenosis increases the sensitivity of the flow split ratio due to a variation in outlet resistances. Thus uncertainty of our simulation predictions is increased following LPA plasty, making a clinical determination from this result less certain. The opposite trend is observed for the pressure difference between RPA and LPA whose estimate becomes extremely precise after post-operative augmentation of the LPA.

In addition to reporting confidence intervals, UQ assessment of confidence in simulation results may also shed light on why certain stages of single-ventricle surgery seem to be associated with large physiological variability. In our study, a large variance in pressures and velocities at the shunt-PA junction for Stage I is observed; this observation is in agreement with the well known clinical observation that Stage I physiology is particularly delicate. However, a deterministic inlet flow rate was assumed at the shunt, leaving a comprehensive exploration of the variability of systemic hemodynamic quantities to future study.

The clinical estimation ofδp, distributed around an average value of1.0mmHg, does not seem to agree well with pre-operative simulation results. This can be seen both in Figure10where average RPA/LPA pressure drop was observed around4.93 ± 0.66 mmHg and in Figure16, where values

of δpare reported from the130 pre-operative simulations with boundary resistances determined through semi-empirical sampling. Only simulations with right pulmonary flow splits and average pressures compatible with clinically observed ρ(fs)and ρ(pav)are considered in Figure 16. The resulting δpare contained in the interval[3.67, 6.10], with lower values obtained for higher flow splits. One possible explanation is that values of clinical flow splits determined through PC-MRI may have been underestimated. This is likely due to both the high velocities and associated variances (see Section5.2) at the shunt-PA junction that may produce signal loss during clinical acquisition. A further explanation relates to the uncertainty in model geometry due to the reasons expressed in Section3.3. Peak velocities of 43 and 65 cm/s were observed at Stage I for the RPA and LPA, respectively. These velocities are smaller than those obtained through CFD simulation, consistent with the above observations. Note that the proposed framework allows for stronger statements on the agreement between simulated and measured data than those possible using deterministic results. TableIIIsummarizes our findings. The average values for the three quantities of interest decrease from model A through D, and the change in boundary conditions seems to significantly affect mPAP andδpacross the LPA, but has limited consequence on the RPA/PA flow split ratio. Uncertainties in RPA/PA flow split increase with LPA plasty, while smaller standard deviations result for mean and pressure drop estimates.

Change in the presented results due to a different solver formulation (e.g., finite volume or finite differences instead of finite elements) is, in our opinion, mitigated by two factors. First, it is important to perform preliminary mesh adaption/refinement based on error indicators to minimize discretization errors independently of the underlying numerics. This, together with the convergence properties of the chosen numerical approach should guarantee satisfactory agreement between different solvers (see, e.g., [65]). Second, distributions of resistance boundary conditions are determined (using Kriging plus MCMC) in order to match the expected clinical targets, independently of the model formulation. This should shift the differences between alternative modeling approaches to differences in the adopted boundary conditions, leaving the final predictions marginally affected.

We recognize several limitations to our study, mostly related to various sources of uncertainty that should be added to the proposed framework. First, the effects of geometrical model uncertainty need to be investigated. This is also particularly relevant in virtual surgery applications, where the final post-operative anatomy may be differently implemented by different surgeons and therefore subject to additional uncertainty. We made a choice to focus this paper on uncertainty related to the clinical acquisition of hemodynamics data and how this propagates to the model predictions. Deformable wall simulations (including uncertainty on material properties) will also provide improved accuracy. While we recognize that considering all possible sources of uncertainty is a very challenging task, inclusion of contributions from segmented geometry and material properties will be an important step forward to understand how the uncertainty in these factors affects the outputs.

Second, computations have been presented for coupled 0D-3D models where only variations in equivalent pulmonary RCR blocks were considered. Random inputs for other LPN parameters (resistances, capacitances and inductances) should also be inferred from the available clinical data, as well as all assumptions used to assign relative values of LPN parameters. Third, the proposed framework should be applied to multiple patients to better characterize inter-patient variability of global and local hemodynamic statistics. Finally, physiologic variation is a formidable source of
