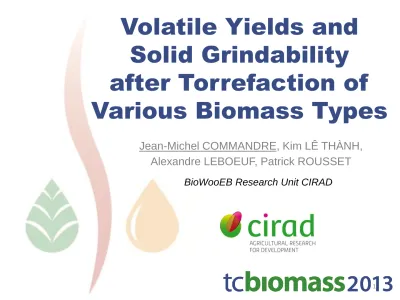

Volatile Yields and
Solid Grindability
after Torrefaction of
Various Biomass Types
Jean-Michel COMMANDRE, Kim LÊ THÀNH, Alexandre LEBOEUF, Patrick ROUSSET
BioWooEB Research Unit CIRAD
Drying
Pelletization
The process: from biomass to fuel
Feedstock / process interface
Syngas (H2, CO)
Lignocellulosic Biomass
Pretreatment Gasification
Post-treatment Synthesis Collection
• Liquid fuel (Diesel
Fischer-Tropsch, methanol)
• Gaseous fuel (SNG, H2)
High feedstock variability Crucial issue for process industrialization! Suitability feedstock / process?
Grinding Pyrolysis Torrefaction
Torrefaction
Biomass torrefaction
• Smooth thermal transformation under inert atmosphere
– T = 200-300°C
– Residence time = 15 min – several hours – Atmospheric pressure Torrefied biomass C6H8O3 +moisture~3% Biomass C6H9O4 + moisture~20% Volatile matter: • Gas (CO, CO2)
• Condensable species (H2O, acids…)
• Solid properties get more coal-like
─ Decrease of H/C and O/C
─ Hydrophobic nature
─ Higher energy content
─ Improved grindability and powder flowability
Suitable for entrained flow gasification
Between drying and pyrolysis
4. CONCLUSION 3. SOLID GRINDABILITY
1. INTRODUCTION 2. PRODUCTS YIELDS
Biomasses
Biomass Proximate analysis
(wt. %) Ultimate analysis (wt. % daf) LHV Moisture Ash (db) VM (db) FC (db) N C H O (MJ/kg db) Pine 11.9 0.3 85.2 14.5 0.2 49.7 6.1 44.0 18.1 Miscanthus 8.2 2.2 80.9 16.9 0.3 49.2 6.2 44.3 18.0 Wheat straw 9.0 6.4 73.5 20.2 1.0 49.9 6.1 43.0 18.4 Poplar 9.0 3.4 81.0 15.6 0.2 51.0 5.9 42.8 18.4
Pine Miscanthus Wheat straw Poplar
> Sampling according to XP CENT/TS 14786
> Grinding ≈ cm
Objective and working plan
Objective:
Characterization of products released during torrefaction of various biomass nature:
Products mass balance Solid grindability
Working plan:
Torrefaction experiments in lab-scale reactor
Grindability tests on raw and torrefied biomasses
4. CONCLUSION 3. SOLID GRINDABILITY
1. INTRODUCTION 2. PRODUCTS YIELDS
Lab-scale tests:
Products mass balance
The lab-scale device ALIGATOR
Temperature 250°C Gas atmosphere N2
Gas flow 100 mL.min-1
Pressure atmospheric Sample mass ~1.5 g
> Samples dried at 105°C according to XP CEN/TS 14774
4. CONCLUSION 3. SOLID GRINDABILITY
2. PRODUCTS YIELDS
1. INTRODUCTION
0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
Pine Miscanthus Wheat straw Poplar
Condensable gas Non condensable gas Torrefied solid
Global mass balance
Torrefied solid
Non condensable gas
Condensable gas
• Global distribution depends on nature of biomass
Higher mass loss for agricultural by-products and SRC
• For all biomass types: Volatile species are mainly condensable
Closure: 95 - 100%
Mass balance: Volatile species
• Water and dry condensable: difference softwood/agricultural biomass
• CO: high content for agricultural by-products
Litt: CO2 <= decarboxylation of acid groups
CO ? Not clearly explained; catalytic reaction between CO2 and C?
0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
Pine Miscanthus Wheat straw Poplar
Dry condensable species Water CO2 CO 4. CONCLUSION 3. SOLID GRINDABILITY 2. PRODUCTS YIELDS 1. INTRODUCTION 9
Mass balance: Volatile species
• CO/gas ratio increases with ash content
Mineral matter catalytic effect
0% 5% 10% 15% 20% 25% 30% 0% 1% 2% 3% 4% 5% 6% 7% C O /(C O +C O 2) m ass ra ti o Ash content (wt%) 10
Mass balance: dry condensable species
0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%Pine Miscanthus Wheat straw Poplar
Others Propionic_acid 2-Propanone,1-hydroxy-Glycolaldehyde_dimer furfural 2-furanmethanol Formic_acid Formaldehyde Acetic_acid Acetaldehyde
Impact on torrefaction cleaning step!
Acetic acid ~50% except for softwood (~ 20%)
Formaldehyde and glycolaldehyde not in wheat straw Propionic acid only in pine and wheat straw
Furanmethanol not in pine
Propanone high in wheat straw and absent in poplar Furfural in all biomasses
Closure: 33 - 66% 4. CONCLUSION 3. SOLID GRINDABILITY 2. PRODUCTS YIELDS 1. INTRODUCTION 11
• Ratios H/C and O/C are similar for all raw biomasses, except for poplar
• Torrefied solids have lower ratios than raw biomasses
Torrefied solid composition
1,00 1,10 1,20 1,30 1,40 1,50 1,60 0,40 0,50 0,60 0,70 A tomic H/C Atomic O/C raw pine torrefied pine raw miscanthus torrefied miscanthus raw wheat straw torrefied wheat straw raw poplar
torrefied poplar
Van Krevelen diagram
Torrefied solid: energy yield
0% 20% 40% 60% 80% 100% 16,5 17,0 17,5 18,0 18,5 19,0 19,5 20,0 20,5 21,0 Ener gy yiel d ( %) LHV (M J/kg d af ) LHV raw LHV Torrefied Energy yield (Arias, 2008) Energy yield (%)• LHV similar for raw biomasses ; LHV increases after torrefaction
• Highest energy yield for pine
4. CONCLUSION 3. SOLID GRINDABILITY
2. PRODUCTS YIELDS
1. INTRODUCTION
Grindability tests
Grinding device
• Ball mill • Protocol volume of biomass: 50 cm3 grinding time: 1 min
20mm 50mm
Particle size distribution
• Sieving following standard NF EN 15149 • Low weight sieves of = 60mm 6 sieves from 1mm to 50µm 60mm 4. CONCLUSION 3. SOLID GRINDABILITY 2. PRODUCTS YIELDS 1. INTRODUCTION 15
Torrefaction protocol
Torrefaction temp. (°C) Mass loss (wt. %) Pine 275 17.0 Miscanthus 250 16.9 Wheat straw 240 17.2 Poplar 245 17.6Objective:
To assess influence of nature of biomass on grindability mass loss 17% for all biomasses
Adjustment of torrefaction temperature
Relative grinding energy
Assumptions:
Proportional to surface created
Particles are spherical
Same density whatever particle size
Relative grinding energy = Cumulative mass fraction 1
Particle size distribution
• Smaller particle sizes after torrefaction than raw biomass
• Large fraction of torrefied particles suitable to gasification
0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% 10 100 1000 Cumu la tiv e p article siz e d is tribu tion (%) dp (µm) Raw Pine Raw Miscanthus Raw Wheat Straw Raw poplar
Torrefied Pine
Torrefied Miscanthus Torrefied Wheat Straw Torrefied poplar
Typical process particle size
20-35% 50-70% 4. CONCLUSION 3. SOLID GRINDABILITY 2. PRODUCTS YIELDS 1. INTRODUCTION 17
Relative grinding energy
• Torrefaction: energy by factor 2-3 at 300µm except for wheat straw (1.4)
1 10 100 10 100 1000 R e la tiv e grind in g e n e rgy (-) dp(µm) Raw Pine Raw Miscanthus Raw Wheat straw Raw Poplar Torrefied Pine
Torrefied Miscanthus Torrefied Wheat straw Torrefied Poplar
Typical process particle size
2.9-4.4 1.4-2.1
Conclusion
Properties of products released during torrefaction of various biomasses?
• Torrefaction improves biomass grindability:
Grinding energy significantly reduced by torrefaction
Trend less marked for wheat straw
• Gaseous products composition depends on nature of biomass
To be considered for cleaning step
Interesting for species valorization in biorefinery process
What’s next?
• Tests on other samples
• Pilot scale tests continuous torrefaction
• Comparison of grindability tests with measures on grinding energy at large scale • Improvement of condensable species quantification
4. CONCLUSION 3. SOLID GRINDABILITY 2. PRODUCTS YIELDS 1. INTRODUCTION 19 All biomasses???
depend on nature of the relevant species for chemical valorization
