Nature of the singlet and triplet excitations mediating thermally activated delayed
fluorescence
Olivier, Y.; Yurash, B.; Muccioli, L.; D'Avino, G.; Mikhnenko, O.; Sancho-García, J. C.; Adachi,
C.; Nguyen, T. Q.; Beljonne, D.
Published in:
Physical Review Materials
DOI:
10.1103/PhysRevMaterials.1.075602
Publication date:
2017
Document Version
Publisher's PDF, also known as Version of record Link to publication
Citation for pulished version (HARVARD):
Olivier, Y, Yurash, B, Muccioli, L, D'Avino, G, Mikhnenko, O, Sancho-García, JC, Adachi, C, Nguyen, TQ & Beljonne, D 2017, 'Nature of the singlet and triplet excitations mediating thermally activated delayed fluorescence', Physical Review Materials, vol. 1, no. 7, 075602.
https://doi.org/10.1103/PhysRevMaterials.1.075602
General rights
Copyright and moral rights for the publications made accessible in the public portal are retained by the authors and/or other copyright owners and it is a condition of accessing publications that users recognise and abide by the legal requirements associated with these rights. • Users may download and print one copy of any publication from the public portal for the purpose of private study or research. • You may not further distribute the material or use it for any profit-making activity or commercial gain
• You may freely distribute the URL identifying the publication in the public portal ?
Take down policy
If you believe that this document breaches copyright please contact us providing details, and we will remove access to the work immediately and investigate your claim.
Center for Organic Photonics and Electronics Research (OPERA) Kyushu University 744 Motooka, Nishi, Fukuoka 819-0395, Japan (Received 25 April 2017; published 27 December 2017)
Despite significant efforts, a complete mechanistic understanding of thermally activated delayed fluorescence (TADF) materials has not yet been fully uncovered. Part of the complexity arises from the apparent dichotomy between the need for close energy resonance and for a significant spin-orbit coupling between alike charge-transfer singlet and triplet excitations. Here we show, in the case of reference carbazole derivatives, that this dichotomy can be resolved in a fully atomistic model accounting for thermal fluctuations of the molecular conformations and microscopic electronic polarization effects in amorphous films. These effects yield electronic excitations with a dynamically mixed charge-transfer and localized character, resulting in thermally averaged singlet-triplet energy differences and interconversion rates in excellent agreement with careful spectroscopic studies. DOI:10.1103/PhysRevMaterials.1.075602
Thermally activated delayed fluorescence (TADF) has opened a new paradigm for organic light-emitting diodes with the promise of internal quantum yields exceeding the 25% spin statistical limit while using light-element singlet emitters [1–3]. TADF relies on a triplet-to-singlet energy up-conversion mechanism, also referred to as reverse intersystem crossing (RISC), for recycling the (75%) nonemissive triplet excitons that would otherwise be lost as heat. Yet, because of the weak spin-orbit coupling (VSOC) in organic conjugated
compounds, this conversion can only be achieved by bringing the lowest energy singlet (S1) and triplet (T1) excitations into
tight resonance [4–6]. The original chemical design strategy proposed by Adachi and colleagues for TADF emitters is based on partitioning hole and electron densities over different spatial regions of the same molecule in order to minimize the energy splitting, EST, between S1 and T1 [7]. Though
multiple successful efforts have been reported on the synthesis of a wide range of architectures with reduced ESTshowing
TADF behavior, the nature of the electronic states involved in the RISC process and the underlying TADF mechanisms have remained elusive so far. The earlier view that singlet-triplet interconversion proceeds between pure charge-transfer triplet (3CT) and singlet (1CT) excited states has been recently challenged by Monkman and co-workers, who have invoked the role of a locally excited triplet state (3LE) vibronically coupled to3CT in promoting RISC [8]. The most stringent argument against a pure CT-like mechanism relates to El-Sayed’s empirical rules for VSOC, forbidding (R)ISC between
electronic states of similar nature such as π -π * CT states [9]. RISC could also be promoted by hyperfine coupling (HFC) but recent electron paramagnetic resonance measurements showed that VSOC drives spin relaxation [10] and that HFC is only
active when ESTis lower than 1 cm−1[11].
Here, we resolve the ambiguity about the nature of the electronic excitations mediating TADF through a combined
computational and experimental study of two prototype compounds [Fig.1(c)] [3], namely 1,2-bis(carbazol-9-yl)-4,5-dicyanobenzene (2CzPN) and 1,2,3,5-tetrakis(carbazol-9-yl)-4,6-dicyanobenzene (4CzIPN). Our computational approach builds on complementary techniques that account for the effect of a complex realistic environment on electronic excitations, thereby avoiding a priori assumptions on their nature. By combining molecular dynamics (MD) simulations to sample positional and conformational degrees of freedom, microelectrostatic (ME) calculations to assess electrostatic interactions with the polarizable environment [12,13], and a previously validated Tamm-Dancoff density functional theory (TDA-DFT) approach to compute singlet and triplet excitation energies [14], wavefunctions, and VSOC matrix, we show
that (i) the adiabatic electronic excited states relevant for (R)ISC have a strongly mixed CT-LE character, with the amount of mixing fluctuating in time as the molecules explore the conformational space around their equilibrium structures; (ii) the instantaneous VSOC scales with the amount of LE
admixture into S1and T1wave functions, and it is minimized
for EST= 0 eV, namely at the crossing between S1 and
T1 potential energy surfaces corresponding to full CT state configurations; and (iii) the computed (R)ISC rates obtained by applying nonadiabatic transition theory on the basis of the configurationally averaged VSOC and MD/ME reorganization
energies are in excellent agreement with experimental data. We start our theoretical investigations with a conforma-tional analysis of the two molecules in their bulk amorphous phase [15]. The torsion angles of the electron-donating car-bazole units with respect to the central electron-withdrawing dicyano-substituted phenylene core [Fig.1(a)], which dictate their mutual electronic coupling, show broad distributions, typical of amorphous structures. The MD torsion angle distribution is bimodal for 2CzPN with peaks around 60° and 120°, while these merge to form a broad massif centered
Y. OLIVIER et al. PHYSICAL REVIEW MATERIALS 1, 075602 (2017)

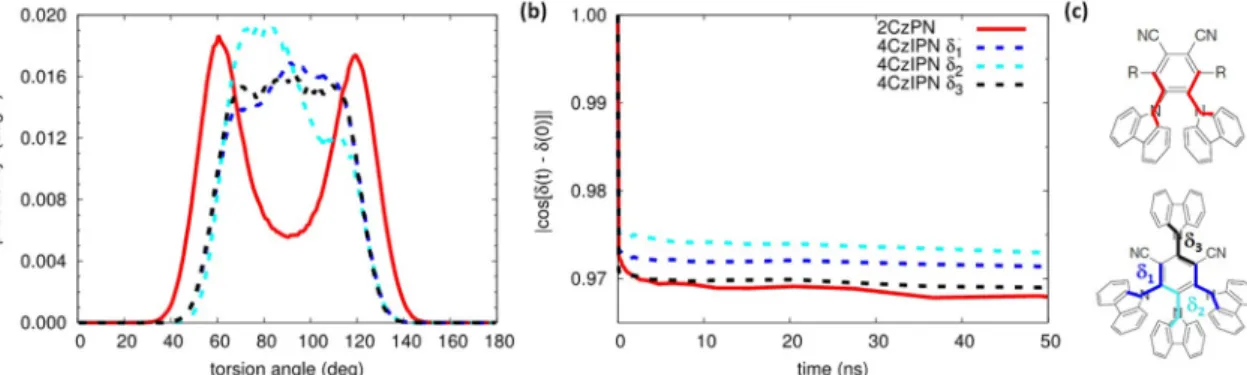

FIG. 1. (a) Torsion angle distributions for 2CzPN (red solid line) and for 4CzIPN (δ1 blue dashed line, δ2 cyan dashed line, δ3 black
dashed line). (b) Autocorrelation function of the different torsion angles. (c) 2CzPN and 4CzIPN chemical structures and the color for the corresponding torsion angles.
around 90° in 4CzIPN. Thus, in 4CzIPN we expect on average weaker donor-acceptor interactions and, as a result, more limited CT-LE mixing compared to 2CzPN. Importantly, the examination of the autocorrelation functions of torsion angles show two decay time scales: a short one below 1 ns, corresponding to the oscillation of the dihedral angles around their equilibrium positions, and a long one beyond 1 μs [Fig. 1(b)]. In view of the large difference between the timescales for fluctuations in dihedral angles (on the order of 10–15 degrees) and for the (R)ISC process, the molecules likely explore a large portion of the torsion potential energy surface before (R)ISC takes place. In other words, and as also suggested by Di et al. [16], in the pure solid phase of the carbazole-based molecules studied here, we expect (R)ISC to be a dynamic process gated by conformational fluctuations.
Electron and hole density plots, calculated at the DFT level upon photoexcitation, confirm segregation of the frontier molecular orbitals over the donor (D) and acceptor (A), respectively, which prefigures low-energy CT excitations [Fig.2(a)]. To quantitatively assess the CT character in the adiabatic states, we refer to the φS index, which measures the overlap between the hole and electron densities in the attachment/detachment formalism [17]. φS evolves in space and time along with the modulation of the D-A coupling induced by the combined torsion angles around the multiple D-A single bonds and ranges from 0 in a purely (ionic)
CT-like transition to 1 for a (covalent) localized excitation [18,19]. TDA-DFT calculations performed on single molecule geometries extracted along the MD runs yield conformational distributions of vertical excitation energies, wave functions, and electron-hole overlaps for the bulk phase. In particular, we find a EST average value of 0.19 eV in 2CzPN, exceeding
the corresponding value of 0.06 eV in 4CzIPN (TableI). Out of all configurations sampled, 3% and 11% correspond to the population of molecules with EST kBT for 2CzPN and 4CzIPN, respectively [Fig. 2(b)]. The larger EST in
2CzPN (compared to 4CzIPN) mirrors the larger difference in φSbetween S1and T1in that molecule; more specifically, it
originates from the higher covalent character of T1(TableI).
Not surprisingly, in both compounds the S1 state exhibits a
broader energy distribution compared to T1(Fig. S1 and Table
S1 of the Supplemental Material [20]), a result of its larger and more dynamic CT character (as evidenced by the φS values in Table I) [21]. This arises because exchange interactions stabilize localized triplets more dramatically than their singlet counterparts, thereby prompting a more intimate LE-CT mixing in the triplet manifold. Overall, the lowest electronic excitations in the two carbazole derivatives are neither CT nor LE, but a dynamic mixture of both configurations. The smaller
φS values in 4CzIPN compared to 2CzPN stem from the combined effect of the increased dihedral angles that decouple the peripheral donor moieties from the central acceptor core,
FIG. 2. (a) Hole and electron densities calculated in the attachment/detachment formalism for T1 and S1 excited states for 2CzPN and
4CzIPN. (b) Distributions of ESTfor 2CzPN (red) and 4CzIPN (blue). Solid and dashed lines correspond to results obtained with the PBE0
functional within the Tamm-Dancoff Approximation in the absence of polarizable environment and accounting for local dielectric effects, respectively.
together with an increased hole delocalization associated with the presence of 4, instead of 2, carbazole units. As a matter of fact, the inverse participation ratios calculated on the basis of changes in electrostatic potential charges between the ground and excited states indicate that the hole is confined on a single carbazole unit in 2CzPN, whereas in 4CzIPN it spreads over multiple carbazole (Figure S3 [20]), in line with the interpretation of pump-probe transient absorption spectroscopy data in Refs. [22,23].
Because of their partial CT character, one can anticipate that singlet and triplet excitation energies in the 2CzPN (and 4CzIPN) bulk are sensitive to solid-state electronic polarization effects, with a differential that directly reflects the relative magnitude of the CT contribution to their wave functions. Here, we adopt an atomistic ME scheme where excited molecules are embedded in a dielectric environment described as a set of classical point charges and anisotropic polarizabilities, accounting for both electrostatic (S) and induction (I ) contributions. The polarization energy (P =
S+ I) quantifies the environmental contribution to S1and
T1 energies. The average polarization energies are computed
to be∼−0.25 eV (−0.20 eV) and −0.17 eV (−0.16 eV) for the S1(T1) excited states of 2CzPN and 4CzIPN, respectively
(Table I). The broad polarization energy distributions (Figs. S4–S6 [20]) reflect the mixed CT-LE character of the excitations, with occurrences at large (small) values corresponding to high (low) CT admixture. Despite the lower CT character of S1and T1in 2CzPN compared to 4CzIPN, both
the electrostatic and induction components of the polarization energy are substantially larger. This results from the higher noncentrosymmetric character of the charge distribution in the former molecule, as demonstrated by the calculated excited-state electric dipoles (Fig. S7 [20]). Because they have a similar nature, nearly equivalent electronic polarization effects are predicted for the singlet and triplet excitations in 4CzIPN, which are stabilized by about the same energy such that
ESTremains essentially unaffected with respect to the value
in the absence of a polarizable environment (see Table I). The situation is different for 2CzPN where the more CT-like singlet excited state undergoes a larger solid-state polarization energy compared to its triplet excited state, which in turn translates into a reduced EST value (by 25% from 0.19 to
0.14 eV as shown in TableI). Thus, the dielectric differential energy stabilization mechanism tends to compensate for the differences in the excited-state energies in the absence of a polarizable environment, a product of different CT-LE admixing in S1 and T1. The fraction of conformers that now
display ESTvalues lower than kBT rises from 3% (11%) in
the absence of a polarizable environment to 11% (27%) when accounting for local dielectric effects in 2CzPN (4CzIPN). Interestingly, some of these effects are large enough to reverse the typical ordering of excited states, resulting in negative
EST values. Earlier works by van Voorhis and co-workers
[24,25] have also pointed to negative ESTvalues, though this
was observed for donor-acceptor intermolecular complexes and deemed to originate from enhanced kinetic exchange.
Eventually, matrix polarization effects could significantly impact EST and, thus, the kinetics of the whole TADF
process, a strategy that has not been fully explored yet. In TADF, spin mixing between nearly degenerate singlet and triplet states is mediated by VSOC. According to El-Sayed’s
rules, to a first-order approximation, VSOC is expected to be
vanishingly small between singlet and triplet states of the same configuration, e.g. when both S1 and T1originate from
π-π * CT transitions [9]. In contrast, second-order nonadia-batic contributions involving higher-lying localized excitations result in non-negligible values of VSOC [18,26–29]. While
the relevant adiabatic states in 2CzPN and 4CzIPN involve a truly mixed CT-LE character induced by vibronic coupling in both the singlet and triplet manifolds, which precludes the use of perturbation theory and requires a higher level of theory as employed above, VSOCis notoriously small in organic
molecules and, as such, it can be treated as a perturbation. We have thus computed VSOCmatrix elements between S1and T1
by applying the zeroth-order regular approximation (ZORA) [30–32] to the full Breit-Dirac relativistic equation for a subset of 200 molecules from the MD simulations.
In line with the perturbative prescription, VSOCturns out to
be extremely small, in the range of tenths of meV. Despite these small values there is a clear correlation with EST
[Fig. 3(a)]. In accordance with El Sayed’s rules, VSOC is
vanishingly small in the case of nearly degenerate S1 and
T1where both excitations are mostly CT-like and thus share a similar nature (i.e., φSvalues). The VSOCsurges monotonically
with increasing EST, mimicking the increased contribution
of localized excitations to the wave functions. This is supported by the computed difference in φS between singlet and triplet states, i.e., φS= φS(T1)− φS(S1) [Fig.3(b)].
At this point, one can infer that RISC in these materials results from the interplay between two opposing effects: the reduced EST translates into low energy barriers for the
upconversion process, but it also concomitantly reduces VSOC.
Both magnitudes fluctuate in response to the conformationally mediated D-A interactions over time scales that are short in comparison to the (R)ISC rate. This is better appre-hended by disentangling the dynamic and static contributions
Y. OLIVIER et al. PHYSICAL REVIEW MATERIALS 1, 075602 (2017)
FIG. 3. Spin-orbit coupling VSOCas a function of (a) ESTand (b) φSin 2CzPN (blue data) and 4CzIPN (red data).
(see Supplemental Material [20]) to both EST and VSOC.
In practice, the dynamic contribution is obtained from simu-lations where individual molecules are tracked in time over a given interval, τ , and the static one by difference with respect to the full simulations (averaging over both time and space coordinates) [13]. Considering a cutoff value of 20 ns for τ , we find that the dynamic component accounts for more than 80% of the EST variance for both 2CzPN and
4CzIPN, supporting the view that the interconversion process is dynamic (Table S3 [20]). Therefore, each molecule explores its available configurational space during (R)ISC and, thus, the time-dependent VSOC and ESTessentially gate the spin
conversion.
To properly take into account such gating effects in the calculations, it is important to probe the time evolution of the relevant electronic states as they interact with their phonon baths. Here, we directly probe ESTand singlet/triplet
wave function fluctuations along all classical nuclei degrees of freedom sampled during the MD trajectory (Figures S8 and S9). Besides providing configurationally averaged VSOC
and EST, this approach also gives access to the outer
sphere contribution to the reorganization energy, λout. In this
framework, λout for (R)ISC can indeed be evaluated as the
dynamic component of the EST distribution accounting
for the variation in EST due to molecular vibrations (i.e.,
torsional modes) and can be expressed in the classical limit as
(σESTdyn )2 2kBT [33].
We evaluate the (R)ISC rates using nonadiabatic transition theory framed in the semiclassical Marcus rate expression [34]:
|k(R)ISC| = 2π ¯h |VSOC 2|√ 1 4π λoutkBT × exp −(λout± |EST|)2 4λoutkBT , (1)
where vertical bars denote time-averaged values and the+ (−) sign is associated with kRISC (kISC). The various parameters
entering the rate equation together with the calculated rates are listed in Tables Iand S4. Our calculations yield|EST|
identical to the space-averaged EST for both compounds
and λout of 31 (121) meV in 4CzIPN (2CzPN). Besides
showing a reduced EST, 4CzIPN also features a smaller λout,
both results being consistent with the more similar nature of the S1 and T1 excited states in that molecule. Thermalized
VSOC values for the two molecules are of the same order of magnitude, though smaller in 4CzIPN (0.017 meV) than in 2CzPN (0.054 meV), in line with the S1and T1φSdifference in 2CzPN. Overall, the absolute values for the rates in the two molecules are mostly determined by the activation energies, with the reduced |EST| and λout magnitudes in 4CzIPN
turning into larger|kRISC|.
Before closing this theoretical section, we comment on the approximation that only classical vibrational degrees of freedom are treated explicitly in our model. In view of their similar nature, we do not expect polaronic effects induced by high-frequency quantum vibrations to significantly affect the
relative energetics of the electronic states, but we cannot rule
out a possible influence on the wave functions, and thus VSOC,
as concluded from a very recent theoretical study [35]. In a first attempt to include such polaronic effects, we optimized the geometry of the 4CzIPN molecule in its S1and T1electronic
state and used this relaxed structure for VSOCcalculations. The
results in Table S2 (see Supplemental Material [20]) indicate that polaronic effects slightly increase the CT character in the lowest adiabatic states and tend to slow down (R)ISC.
In order to corroborate the theoretical results, we also undertook an experimental investigation into 4CzIPN. (Much of the subsequent analysis could not be performed on 2CzPN, because no ordinary biexponential decay was found, as shown in Fig. S15 [20]). The rates of ISC and RISC were assessed by comparing the photoluminescence (PL) decay of a 4CzIPN film with that predicted by an analytical model which describes the interplay of all of the photophysical processes that occur in TADF materials (Fig. S13 [20]) [36,37]. In this scheme, the rates of prompt kpand delayed fluorescence kdare given by
kp,d = 1 2{(k S+ kT )± (kT − kS)2+ 4k ISCkRISC}, (2)
where kS and kT represent the sum of the rates for decay pathways that originate in the singlet state and triplet state, respectively.
Using as initial boundary condition that only singlets are directly excited, i.e., [S1]= [S1]0 and [T1]0= 0 and
simplifying the rate equations based on the very different 075602-4
FIG. 4. (a) Calculated PL decays for neat 4CzIPN films, with kISC= 2.6 × 106s−1, compared to the experimentally measured PL decay.
(b) Arrhenius plot of the rate of reverse intersystem crossing (kRISC) in 4CzIPN. From the slope of the linear fit, a ESTof 42 meV is extracted.
lifetimes of singlets and triplets, we obtain kRISCas
kRISC=
k2
d− kpkd
kISC+ kd− kp
. (3)
Using the theoretical value corrected for polaronic effects of 2.6 × 106 s−1 for k
ISC and the experimental values of
kp and kd, we obtain from Eq. (3) a value of 5.9 × 105s−1for k
RISC, which is very close to the theoretical value of
6.6 × 105s−1(Table S4 [20]). In order to assess the validity of particular values of kISCand kRISC, we calculated the theoretical
PL decay by using our experimental value for kp and the theoretical value of kd. The calculated PL decay was then compared to the experimental PL decay, showing excellent agreement [Fig.4(a)]. We note that the ISC and RISC rates predicted and measured here are also fully consistent with photoluminescence quenching experiments that provide an independent estimate for the spin conversion rates together with singlet and triplet exciton diffusion coefficients [38].
In order to experimentally determine ESTin 4CzIPN, we
first estimated the temperature dependence of kRISCusing the
following equation [36,39]: kRISC(T )= kp(T )kd(T ) kISC × d(T ) p(T ) , (4)
where kISC is assumed to be temperature independent (and
equal to the theoretical value of 2.6× 106 s−1) and
p( d) is the quantum yield of prompt (delayed) fluorescence. The method used to determine the prompt and delayed rates and quantum yields is described in the Supplemental Material [20]. Then, the natural logarithm of kRISC(T ) was plotted against
the inverse temperature [Fig.4(b)] according to the Arrhenius equation: kRISC(T )= γ exp −EST kBT , (5)
where γ is a preexponential factor. A EST estimate of
42 meV was obtained for 4CzIPN in line with our theoretical predictions [average value of 60 meV and most probable value of 17 meV; see Table S4 in [20] and Fig.2(a)].
To conclude, we presented a full atomistic picture of carbazole-based TADF compounds, accounting for the interplay between conformational, positional, and electrostatic effects on their lowest singlet and triplet excited states, which quantitatively reproduces results from experimental photoluminescence studies. We showed that the electronic states involved in (R)ISC comprise a mixture of localized and charge-transfer contributions that vary with chemical structure and dynamically evolve following the changes in the molecular conformation and local dielectric environment. Indeed these dynamical effects allow meeting the two apparently incompat-ible conditions for an efficient TADF: a large CT component to reduce ESTand a significant localized component to prompt
spin-orbit coupling. Besides the already very vivid interest for new generations of TADF molecular emitters, this study opens up new possibilities in terms of the design of material hosts, as the intimate host-guest interactions will ultimately dictate the amplitude and dynamics of both conformational and electrostatic effects and hence triplet-to-singlet conversion rates.
The work in Mons was supported by the Programme d’Excellence de la Région Wallonne (OPTI2MAT project), the European Union’s Horizon 2020 research and innovation program under Grant Agreement No. 646176 (EXTMOS project), and FNRS-FRFC. Computational resources were pro-vided by the Consortium des Équipements de Calcul Intensif (CÉCI), funded by the Fonds de la Recherche Scientifiques de Belgique (F.R.S.-FNRS) under Grant No. 2.5020.11, as well as the Tier-1 supercomputer of the Fédération Wallonie-Bruxelles, infrastructure funded by the Walloon Region under Grant Agreement No. 1117545. B.Y. and T.Q.N. thank the Department of the Navy, Office of Naval Research (Award No. N00014-14-1-0580) for support. L.M. acknowledges funding by the French national grant ANR-10-LABX-0042-AMADEus managed by the National Research Agency under the initiative of excellence IdEx Bordeaux program (reference ANR-10-IDEX-0003-02). G.D. acknowledges support from EU through the FP7-PEOPLE-2013-IEF program (Project No. 625198).
