WYSIWIB: A Declarative Approach to Finding
Protocols and Bugs in Linux Code
Julia Lawall, Julien Brunel, René Hansen, Henrik Stuart, Gilles Muller
To cite this version:
Julia Lawall, Julien Brunel, René Hansen, Henrik Stuart, Gilles Muller. WYSIWIB: A Declarative
Approach to Finding Protocols and Bugs in Linux Code. 2008. �hal-00294004�
WYSIWIB: A Declarative Approach to Finding Protocols and Bugs
in Linux Code
Julia L. Lawall,
1Julien Brunel,
1Ren´e Rydhof Hansen,
2Henrik Stuart,
1Gilles Muller
31DIKU, University of Copenhagen, Copenhagen, Denmark
2Aalborg University, Aalborg, Denmark
3Ecole des Mines de Nantes, Nantes, France
{julia,brunel,hstuart}@diku.dk, rrh@cs.aau.dk, Gilles.Muller@emn.fr
Research report 08/1/INFO, Ecole des Mines de Nantes July 4, 2008
Abstract
Although a number of approaches to finding bugs in systems code have been proposed, bugs still remain to be found. Current approaches have emphasized scalability more than usability, and as a result it is difficult to relate the results to particular patterns found in the source code and to control the tools to be able to find specific kinds of bugs.
In this paper, we propose a declarative approach based on a control-flow based program search engine. Our approach is WYSIWIB (What You See Is Where It Bugs), since the programmer is able to express specifications for protocol and bug finding using a syntax that is close to that of ordinary C code. Search specifications, called semantic matches, can be easily tailored so as to either eliminate false positives or catch more potential bugs. We introduce our approach by describing three case studies which have allowed us to find 395 bugs.
1.
Introduction
In recent years, a multitude of approaches have been pro-posed to scanning systems code for API protocols and bugs in their usage [3, 4, 6, 8]. A goal of these approaches has been to be highly scalable, and by using techniques such as model checking, statistics, and data mining, it has been pos-sible to apply these approaches to software of millions of lines of code such as the Linux kernel. Some of these tools have furthermore been successfully commercialized [2]. A weakness of these efforts, however, is in the lack of user interaction with the protocol-finding and bug-finding strate-gies. Protocols are detected using complex heuristics that the user has little control over [3, 6]. Automata-based languages have been proposed for describing code patterns that consti-tute bugs [3], but these specifications are difficult to relate to the code structure. Both of these features make it difficult for the user to understand why something is considered to be part of a protocol or bug, or is overlooked, and thus to identify the inevitable false positives and false negatives.
Based on an extensive study of Linux code, we have observed that many of the API protocols used by Linux code follow a common pattern, related to the purpose of the protocol, such as error handling or managing the allocation of memory. It is thus our belief that taking such patterns into account in the protocol finding and bug finding processes can ease the process of checking the results and make it possible to consider protocols that occur very rarely, and thus are often overlooked by statistics-based approaches. Existing tools, however, either provide no mechanism for the user to influence the protocol-finding or bug-finding process, or only provide mechanisms that are disassociated from the code structure, making it difficult to interpret the results at bug-checking time.
In this paper, we propose a “WYSIWIB” (What You See Is Where It Bugs) approach to protocol and bug finding in Linux code, based on the following steps: 1) describe a class of protocols generically, and apply this description to the Linux source code to collect a set of protocols, 2) instantiate a collection of descriptions of various possible bug patterns for the detected protocols, and 3) apply these descriptions to the Linux source code to collect possible protocol violations. This approach directly exploits the user’s knowledge of the source code and guides the validation of the reported bugs based on information explicit in the specification. Our proach is furthermore complementary to statistics-based ap-proaches, in that it considers how to describe what to search for, while statistics-based approaches consider how to select from the things that are found.
Concretely, we have implemented our approach as col-lection of tools based on the Coccinelle transformation en-gine [7]. A key feature of Coccinelle is that specifications are written using a language that is very close to C code, thus easing specification development.
The contributions of this work are:
•We propose a framework for finding protocols in Linux
code, iteratively refining them, and using them to find bugs. This framework chiefly builds on the Coccinelle system, but provides some new complementary tools.
•We present three case studies illustrating the use of our
approach for finding protocols and bugs. Two of these in-volve general-purpose classes of protocols. One of them was inspired by a bug fix that was submitted to Linux, illustrating the adaptability of our approach.
•Our case studies find over 3500 potential protocols, with
estimated false positive rates ranging from 2% to 55%. Based on these protocols, we have used our framework to find 395 bugs that we have validated.
The rest of this paper is organized as follows. Section 2 reviews the aspects of Coccinelle that are necessary to under-stand the rest of the paper. Section 3 describes our protocol-finding and bug-protocol-finding framework. Sections 4 through 6 each present a case study, illustrating the processing of var-ious kinds of common protocols. Section 7 surveys some of the current limitations of our approach. Finally, Section 8 describes related work and Section 9 concludes.
2.
Coccinelle
Coccinelle is a tool for performing control-flow based pro-gram searches and transformations in C code [7]. It provides a language, SmPL, for specifying searches and transforma-tions and an engine for performing them. In this paper, we write SmPL code for defining semantic matches, which are used for code searching. We present SmPL in terms of a sim-ple semantic match inspired by the case study reported in Section 5.
The semantic match shown in Figure 1 detects cases where a value allocated using the Linux netlink memory
allocation function nlmsg new is deallocated using the
generic deallocation function kfree skb. Such a
deallo-cation is undesirable, because the netlink library defines its
own deallocation functionnlmsg free. The semantic match
consists of two rules, the first named bad kfree and written in SmPL, and the second with no name written using the SmPL interface to Python. Each rule begins with the dec-laration of a collection of metavariables, and then follows with either a C-code based pattern for specifying a match in the case of a SmPL rule, or ordinary Python code in the case of a Python rule. The notation is based on the Linux patch syntax, in that the code patterns have the structure of ordinary C code. In the rest of this section, we describe each of these rules in more detail, and give a brief tour of some of the other features of SmPL.
The rule bad kfree defines three metavariables: x and E, which represent arbitrary expressions, and p, which rep-resents an arbitrary position in the source program. Once bound, a metavariable must have the same value within the current control-flow path, and thus, for example, the
1 @bad kfree exists@ 2 expression x,E; 3 position p; 4 @@ 5 6 x= nlmsg_new(...) 7 ... when != x = E 8 kfree_skb@p(x); 9 10 @ script:python @ 11 x<< bad kfree.x; 12 p<< bad kfree.p; 13 @@
14 print "line: %s x: %s" % (p[0].line,x)
Figure 1: A semantic match searching for certain uses ofkfree -skb
rences of x on lines 6, 7, and 8 must all match the same expression. The code pattern in the body of the rule consists of essentially C code mixed with some operators to raise the level of abstraction, so that a single semantic match can ap-ply to many code sites. This semantic match uses the oper-ator “...” to represent a sequence of terms. In line 8 this represents a sequence of expressions in the argument list
ofnlmsg new and in line 9 this represents an arbitrary
se-quence of statements reachable from code matching the call
tonlmsg new along any control-flow path. By default such
a sequence of statements is quantified over all paths, by the
annotationexists next to the rule name indicates that for
this rule there need exist only one. Many of the remaining features of SmPL are devoted to expressing constraints on
these sequences, using the operation when. This rule uses
when (line 7) to indicate that there should be no
reassign-ment of x before reaching the call tokfree skb.
Python rules do not perform any matching against the source program, but may inherit metavariables from other rules, using the notation rule.metaname, and do some pro-cessing of their values. We only use Python for printing out information about the found protocols and bugs. In this ex-ample, the Python rule inherits the expression metavariable
xholding the allocated value and the position metavariable
holding the position of the call tokfree skb. It prints the
line on which the call to kfree skb occurs and the text
associated with the expression x. The Python interface is a new feature as compared to earlier work on Coccinelle and has been essential to managing the results of our semantic matches. We often use Python to print out information in the form expected by an emacs mode that we have developed,
based on the emacsorg mode, to quickly find and validate
reported bug sites.
In the more general case, a semantic match can consist of any number of rules, each of which can inherit metavari-ables from any previous ones. A rule only applies when the pattern matches completely. A rule is applied once for each possible set of values of the inherited metavariables. Besides “...”, SmPL provides nests, <...pattern ...>,
and disjunctions,(pattern1| . . . |patternn). A nest matches
a sequence, like “...”, but additionally can match zero or
more occurrences of pattern within the matched sequence.
A disjunction matches any of the patterns pattern1 through
patternn. The remaining SmPL operators describe further
constraints on the sequences matched by “...” or a nest. By default such a sequence is the shortest path between code matching the patterns before and after the sequence
oper-ator. The annotationwhen any removes this shortest path
restriction, allowing any number of instances of such code to occur within the path as well. Finally, by default, the uni-versal quantification over paths does not require the com-plete pattern to appear on control-flow paths that end in error handling code (identified, in accordance with typical Linux programming style, as any code that has the form of a
con-ditional ending in a return). The operatorwhen strict
re-quires full universal quantification without this relaxation.
Convention Coccinelle includes “...” as an operator in
the language, but this notation is also convenient for showing where code is omitted in examples. We will by convention reserve “...” for the Coccinelle operator and use [...] to represent omitted code. Furthermore, we frequently use [...] in Python rules, rather than showing the Python code. In such rules, the significant part is the list of inherited metavariables, which indicates what will be printed out.
3.
The bug-finding process
There are many sources of information for finding bugs. One can study the bug reports of others, notice a suspicious coding pattern while doing some other work on the code, or learn from sources such as code comments, newsgroups, or research papers about coding protocols that programmers may sometimes overlook. The problem then is to turn this awareness of the potential for bugs into actual bug detection. Typically, bug finding depends highly on chance, as the person who is aware of the protocol must be looking at the specific code containing the bug and have the protocol in mind at that time. The goal of this work is to enable a programmer who becomes aware of a potential pattern of bugs in protocol usage to easily search for instances of this pattern throughout the code base, and to explore variants of the pattern as they become apparent.
To motivate our choice of methodology, we begin with a story drawn from our experience in finding and fixing bugs
in Linux code. In December 2007, a patch,1shown in
Fig-ure 2, was submitted to Linux. This patch was based on the
observation that the functionnetif rx could free its
argu-ment, and that thus it was not safe to refer to its argument af-ter calling the function. The developer had found and fixed the problem in one file. We saw this patch and wondered whether there could be other calls to the same function with the same property. A semantic match for detecting such calls
1d30f53aeb31d453a5230f526bea592af07944564 in the git repository
http://git.kernel.org/git/?p=linux/kernel/git/torvalds/ linux-2.6.git;a=summary. All subsequent git codes refer to this repository.
is shown in Figure 3a. It is similar in structure to the seman-tic match of Figure 1, except for the use of a disjunction on lines 8-12. This disjunction causes the position metavariable p used on line 11 only to record the positions of references to skb that do not match the first pattern, i.e., are not on the left hand side of an assignment.
--- a/drivers/net/smc911x.c +++ b/drivers/net/smc911x.c
@@ -1299,9 +1299,9 @@ smc911x_rx_dma_irq(int dma, void *data) PRINT_PKT(skb->data, skb->len);
dev->last_rx = jiffies;
skb->protocol = eth_type_trans(skb, dev); - netif_rx(skb);
dev->stats.rx_packets++; dev->stats.rx_bytes += skb->len; + netif_rx(skb);
spin_lock_irqsave(&lp->lock, flags);
pkts = (SMC_GET_RX_FIFO_INF() & RX_FIFO_INF_RXSUSED_) >> 16;
Figure 2: A standard patch addressing one instance of thenetif -rx problem 1 @r exists@ 2 expression skb,e,e1; 3 position p; 4 @@ 5 6 netif_rx(skb); 7 ... when != skb = e 8 ( 9 skb = e1 10 | 11 skb@p 12 ) 13 @ script:python @ 14 skb << r.skb; 15 p << r.p; 16 @@ 17 [...] (a) 1 @r exists@ 2 expression skb,e,e1; 3 position p; 4 @@ 5 6 ( 7 netif_rx(skb); 8 | 9 netif_rx_ni(skb); 10 ) 11 ... when != skb = e 12 ( 13 skb = e1 14 | 15 skb@p 16 ) 17 18 @ script:python @ 19 skb << r.skb; 20 p << r.p; 21 @@ 22 [...] (b)
Figure 3: The original (a) and extended (b) semantic matches for findingnetif rx problems
This semantic match found some potential bugs. In the process of validating them, however, we found that the
func-tionnetif rx ni also had the same property. We thus
aug-mented the semantic match as shown in Figure 3b to allow it to match calls to either function. The resulting semantic match found 5 occurrences of this pattern, all of which have been acknowledged as bugs by the Linux developers. So far, our corrections for 4 of these bugs have been accepted into
the Linux kernel.2
This episode clearly highlights how a flexible searching tool such as Coccinelle can find bug patterns more efficiently
2Git codes 299f590f26da9764f20e905879f0090552ff2e86,
505a41d43c24345f3fa77ddab152d1f82dd8264d, and 9b3efc0133a807070dbd21254102995b65969965.
and completely than a human programmer. But still, it does not go far enough. Rather than accidentally finding another function that follows the same protocol as one that caused a bug, we would like to be able to find all of the functions that follow that protocol, and then create a bug finding rule for each of them. Indeed, it can be useful to iterate this pro-cess, instantiating a collection of semantic match templates according to a set of protocols, where each semantic match template either expresses a bug finding rule or collects more information. We explore this approach with respect to the netif rx example in Section 6.
Figure 4 illustrates the use of a framework that we have developed for using Coccinelle in an iterated protocol find-ing and bug findfind-ing process. This framework involves four
tools: Search, Instantiate, MultiSearch, and
Make-BugReport. Search, MultiSearch, and MakeBugReport
use Coccinelle in various ways, while Instantiate is a
separate tool. We describe these tools below:
MakeBugReport MultiSearch Instantiate
....
Instantiate....
Collected Info Bug ReportBugSM1' BugSM1'' BugSM1''' ProtSM1' ProtSM1'' ProtSM1''' Instantiate Instantiate Collected Info Search ProtSM Linux Linux Linux BugSMTemp3 BugSMTemp2 BugSMTemp1 ProtSMTemp1
Figure 4: Protocol and bug-finding process
Search The protocol and bug finding process begins when
the programmer has an idea of a certain kind of function or collection of functions whose usage protocol may be error prone. He expresses this idea as a semantic match that expresses various properties of the kind of code he is interested in and uses Python to print relevant information about the matched terms. Figure 5 illustrates such a semantic match, which detects any pair of functions f and g. The Python code prints information about these functions in the
format expected by theInstantiate tool. The first field of
this output is a tag that characterizes this match. A semantic match may use multiple such tags to separate various kinds of matched code into categories, as done in the case study in Section 4. The remainder of the output is a sequence of key-value pairs. By convention, we write the key in capital letters. The value is typically some part of the matched code, often the name of a matched function that was found to have
some property with respect to the protocol. For the semantic match in Figure 5, the output might contain:
protocol: START: atomic_dec_and_test, FINISH: spin_unlock_bh protocol: START: list_add_tail, FINISH: spin_unlock_bh protocol: START: read_lock_bh, FINISH: read_unlock_bh [...] 1 @ r @ 2 identifier f,g; 3 @@ 4 5 f(...) 6 ... 7 g(...) 8 9 @ script:python@ 10 f << r.f; 11 g << r.g; 12 @@
13 print "protocol: START: %s, FINISH: %s" % (f,g)
Figure 5: A protocol-finding semantic match, suitable for starting the protocol finding and bug finding process
After having developed the protocol-finding semantic
match, the programmer gives it to theSearch tool, which
uses Coccinelle to apply it to each file of the Linux kernel. The results are collected in a single output file. The pro-grammer may inspect this result to assess the accuracy of the protocol-finding semantic match. If it contains entries that the programmer knows do not correspond to valid pro-tocols or it is missing some propro-tocols that the programmer is otherwise aware of, then he can refine the semantic match to eliminate these false positives and false negatives.
Instantiate Having obtained information about a
collec-tion of protocols from the initial protocol-finding semantic match, the programmer then considers what kinds of bugs are relevant or what other information might be needed to find bugs. For each kind of bug or other needed information, he writes a semantic match template, which is parameter-ized by the various keys used in reporting the result of the
previous step. He then applies the toolInstantiate to the
semantic match template, the result of the initial protocol-finding semantic match, and a tag. The result is a collection of semantic matches, one for each element of the result of the previous step that is associated with the given tag.
A semantic match template that is used to search for more information should print output in the form illustrated in Figure 5. A semantic match template that is used to search for bugs should print output in the form recognized by our emacs interface, so that the bugs can be easily validated. An example of a semantic match template that searches for more information is shown in Figure 6. It finds functions h that are
called at least once, as indicated by the+ on the nest
brack-ets, after a call to the previously identified functionFINISH
and before the previously identified functionSTART. This
se-mantic match template would be instantiated with respect to
each of the pairs of functions identified bySearch.
1 @ r @ 2 identifier h; 3 @@ 4 5 FINISH(...) 6 <+... h(...) ...+> 7 START(...) 8 9 @ script:python@ 10 h << r.h; 12 @@
13 print "protocol: FN1: START FN2: FINISH EXTRA: %s" % h
Figure 6: A protocol-finding semantic match, suitable for starting the protocol finding and bug finding process
MultiSearch and MakeBugReport MultiSearch is used
to search for further information based on a collection of
in-stantiated semantic match templates, whileMakeBugReport
is used to search for bugs.MultiSearch takes as input a
collection of semantic matches produced byInstantiate,
uses Coccinelle to apply each of them to the Linux ker-nel, and collects the results in a form suitable for passing
to Instantiate again. MakeBugReport does essentially
the same, but collects the result into a bug report for further processing with emacs. In either case, examining the results may cause the programmer to refine the corresponding se-mantic match template or make him aware of new kinds of bugs that are relevant to the protocol, for which new seman-tic match templates can be developed.
The next three sections illustrate the use of this process on three case studies, each illustrating a different strategy for finding protocols and bugs. The first case study tries to find protocols by studying function definitions, while the second considers function call sites. The former can be more accu-rate, because it can analyze the function’s precise behavior, but it is not always possible, e.g., in software that depends on libraries for which the source code is not available. The
third case study is based on thenetif rx example, and
il-lustrates how our approach makes it possible to easily search for specific kinds of bugs as the programmer becomes aware of them. All of the code snippets used to illustrate these case studies have been selected using semantic matches. The bugs we have identified have not yet been validated by the Linux developers. However, our assessment of the number of bugs is based on careful study of the code building on previous experience obtained for patches we have submitted and had
accepted, as listed at the Coccinelle web site.3 All of our
experiments are based on a snapshot of Linux dated March
11, 20074 and were run on an HP ProLiant server with two
3GHz quad-core Xeon processors and 16GB memory.
3http://www.emn.fr/x-info/coccinelle/
4.
Case Study 1: Detecting Inconsistent
Error Checks
The C programming language does not provide any built-in exception handling mechanism, and thus applications must define their own protocols for detecting and handling excep-tional conditions. In Linux, pointer-typed functions typically
return either NULL, a value constructed with ERR PTR,5
or both to indicate failure. Code using such functions must then correspondingly follow one of three protocols before
deref-erencing the result: 1) testing the value forNULL, 2) testing
the value forERR PTR using the function IS ERR, or 3)
per-forming both tests. Choosing the wrong protocol amounts to performing either inappropriate tests or insufficient tests and can lead to invalid pointer dereferences that can crash the Linux kernel. In this section, we consider how to clas-sify functions in terms of the kinds of error values they may return and how to detect various kinds of bugs in their use.
arch block crypto drivers fs include init ipc kernel lib mm net
samples scripts security sound
usr virt 0 500 1000 1500 2000 # of functions
functions returning NULL functions returning ERR_PTR

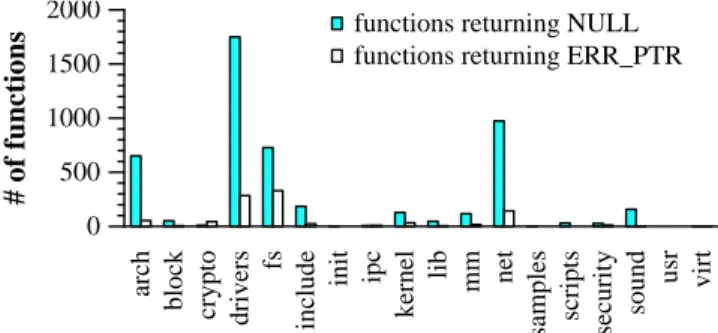

Figure 7: The use ofNULL and ERR PTR in the Linux kernel by directory
4.1 Protocol detection
We detect instances of the above protocols by examining function definitions to infer the usage protocols that they im-ply. Our goal is to write a protocol finding semantic match that identifies functions in the following categories:
Cate-gory 1) Functions that indicate an error by returningNULL;
Category 2) Functions that indicate an error by returning a
value created usingERR PTR; Category 3) Functions that
in-dicate an error by returning eitherNULL or ERR PTR.
To give an overview of the strategies used by our proto-col finding semantic match, we consider the Linux functions simple alloc urb and clk get shown in Figure 8. Rele-vant code is highlighted in italics. As illustrated by lines 7,
16, and 23, a function may explicitly returnNULL, ERR PTR,
or a pointer created using&, or it may store such values in
some variable and then return the value of that variable. Of-ten, however, the return value is derived from a more com-plex expression, typically a function call, about which we have no direct information. Nevertheless, it may be possi-ble to infer some information about such an expression from
5For conciseness, we subsequently refer to “a value constructed with
ERR PTR” as just “ERR PTR”.
the ways in which its value is used. For example, in line 9,
the conditional test implies that the variableurb is NULL at
the point of thereturn, and in line 14, the dereference of
urb means that its value can subsequently be assumed to be a valid pointer. These observations allow us to conclude that
the functionsimple alloc urb in Figure 8a is a category 1
function. Similar observations allow us to identify category
2 and 3 functions. For the functionclk get, however, we
do not have enough information to classify the function, due to the function call in line 22. In this case, we consider the function to be unknown.
1 static struct urb *simple_alloc_urb ( 2 struct usb_device *udev,
3 int pipe, unsigned long bytes) 4 {
5 struct urb *urb; 6
7 if (bytes < 0) return NULL; // explicit null 8 urb = usb_alloc_urb (0, GFP_KERNEL); 9 if (!urb) return urb; // null inferred from test 10 ...
11 if (!urb->transfer_buffer) { 12 usb_free_urb (urb); 13 urb = NULL;
14 } else memset (urb->transfer buffer, 0, bytes); 15 // null or valid pointer inferred from assignment or dereference 16 return urb;
17 } 18
19 struct clk *clk_get(struct device *dev, const char *id) 20 {
21 if (clk_functions.clk_get) 22 return clk functions.clk get(dev, id); 23 return ERR PTR(-ENOSYS); 24 }
(b)
Figure 8: Functions illustrating various ways of returning er-ror codes. These functions are defined indrivers/usb/misc/ usbtest.c and arch/powerpc/kernel/clock.c, respectively
We now consider how to write a semantic match that expresses these intuitions. This semantic match is used in the role of “ProtSM” in Figure 4. The semantic match is in four phases, as shown in Figures 9 to 12.
Phase 1: making information explicit As illustrated on
line 9 of Figure 8, it is possible to determine whether
var-ious variables are NULL or ERR PTR from the conditional
tests that appear in the function. To avoid having to sub-sequently consider many special cases, this initial phase makes such information explicit, by introducing correspond-ing assignments under such conditional tests. For example,
line 9 ofsimple alloc urb becomes if (!urb) { urb
= NULL; return urb; }.
Figure 9 shows the transformation rule for NULL tests.
There is a similar rule forIS ERR tests. These rules make
use of the transformation features of Coccinelle, where lines
that are annotated with - are removed and lines that are
annotated with+ are added. These rules furthermore make
use of a feature of Coccinelle known as an isomorphism [7], i.e., a collection of terms having different forms but essentially the same meaning. Here we take advantage of
built-in isomorphisms that convertE == NULL to NULL == E and !E, interchange the arguments of && and ||, and interchange the conditional branches. Nevertheless, SmPL cannot express arbitrary repetitions of operators, and so the
pattern does not match cases where the NULL or IS ERR
test is deeply nested within the test expression. Still, we have been able to classify almost 3000 functions into the categories 1, 2, and 3 despite this limitation.
1 @t1 using "likely.iso" disable add_parens @ 2 expression *E; 3 identifier def0.f; 4 statement S1, S2; 5 @@ 6 7 f(...) { 8 <... 9 (
10 if ((E == NULL | E == NULL&&...)) 11 + { 12 + E = NULL; 13 S1 14 + } 15 else S2 16 |
17 if ((E != NULL | E != NULL||...)) S1 18 + else E = NULL;
19 ) 20 ...> 21 }
Figure 9: MakingNULL values explicit
Phase 2: detecting returns of NULL and ERR PTR The
second phase detects functions that somewhere returnNULL,
ERR PTR, or both. The rule for the NULL case, shown in Figure 10, checks that a function contains either an explicit
return ofNULL (line 9) or an assignment of some expression
toNULL followed by a return of that expression (lines 11-14).
It does not handle arbitrary levels of aliasing, but this rarely occurs intraprocedurally in Linux code.
1 @returns null exists@ 2 identifier def0.f,fld; 3 expression E, E1; 4 @@ 5 6 f(...) { 7 ... when any 8 ( 9 return NULL; 10 | 11 E = NULL; 12 ... when != ( E = E1 | E->fld ) 13 return E; 14 ) 15 }
Figure 10: Detecting returns ofNULL and ERR PTR
Phase 3: detecting unknown return values This phase
de-tects cases where the return value is derived from an
expres-sion that is notNULL, ERR PTR or an explicit pointer, and that
is never dereferenced. We have no information about such expressions, and so such a function must be in the category unknown. The rules implementing this phase are shown in
Figure 11. The first rule uses the position metavariable p to mark the locations of all of the assignments where the
as-signed value is eitherNULL, ERR PTR or an explicit pointer
(line 9). The second rule detects returns where the argument has been assigned, but not by one of the assignments de-tected in the first rule, or has not been assigned at all, as would be the case of an explicit function call. In either case,
awhen clause checks that the returned value is not
derefer-enced, and is thus not known to be a valid pointer.
1 @a depends on !returns null || !returns errptr @ 2 position p; 3 identifier def0.f; 4 expression E,E1; 5 @@ 6 7 f(...) { 8 <...
9 ( E@p = ERR_PTR(...) | E@p = NULL | E@p = &E1 ) 10 ...>
11 } 12
13 @b depends on !returns null || !returns errptr exists@ 14 identifier def0.f, fld; 15 expression E,E1,E2; 16 position p, p1, p2 != a.p; 17 @@ 18 19 f@p(...) { 20 ( 21 ... when any 22 E@p2 = E1 23 ... when != ( E = E2 | E->fld ) 24 return@p1 E; 25 | 26 ... when != ( E = E2 | E->fld ) 27 return@p1 E; 28 ) 29 }
Figure 11: Detecting unknown return values
Phase 4: classifying the functions At this point, we have
collected enough information to classify the functions. The
rulecat1, shown in Figure 12 considers a function to be in
category 1 if every path through the function ends with
ei-ther a return ofNULL, a return of a pointer created with &
or a return that was not classified as unknown by phase 3.
A second rule,notcat1, which is not shown, ensures that
there is not another definition of the function that returns an
unknown value, as may occur if#ifdef is used to provide
multiple definitions of the function within a single file. Fi-nally, a Python rule prints out the name of any function that
satisfiescat1 and does not satisfy notcat1, indicating that
the function is in category 1. A similar Python rule, which is not shown, indicates that the function is unknown if it
satis-fiesnotcat1.
Similar rules identify functions in category 2. Category 3 functions are those that were found to somewhere return NULL and to somewhere return ERR PTR in phase 2. Other pointer-typed functions are considered unknown.
Experimental results Figure 13 shows the result of
apply-ingSearch to the above semantic match, in terms of the
1 @cat1 depends on returns null && !returns errptr@ 2 position p, p2 != b.p1; 3 identifier def0.f; 4 expression E; 5 @@ 6 7 f@p(...) { 8 ... when strict
9 ( return NULL; | return &E; | return@p2 E; ) 10 }
11
12 @ script:python depends on cat1 && !notcat1@ 13 f << def0.f;
14 @@
15 print "category1: FN:%s" % f
Figure 12: Classifying the functions
each category. Due to time constraints, we have not been able to verify all of these results. Instead, we have randomly selected 50 functions from each category and studied its definition to determine the validity of the classification. As shown in Figure 13, we find very few false positives. All of the false positives derive from the inadequate interpretation of conditionals. In the case of categories 1 and 2, the false positives are typically in cases where the return value can actually be unknown. All of the category 3 false positives are actually in category 2, since the values involved in the
conditional tests imply that a return value ofNULL is
impos-sible.
classified validated false positives category 1 2394 50 1 category 2 480 50 2 category 3 100 50 4 unknown 6940 N/A N/A
Figure 13: Results of classifying pointer-typed functions
Approaches that are based on data mining or statistics infer protocols from frequently occurring patterns of usage [3, 6]. Figure 14 shows that many of the functions that we have classified are directly called only a few times. Some functions are indicated as being called 0 times because they are only used as the value of a function pointer.
0 1 2 3 4 5 6 7 8 9 10-19 20-29 30-247 # of calls (n) 0 200 400 600 800 1000 # of functions with n calls
Figure 14: Call frequency for the categorized functions within the Linux kernel source code
4.2 Bug detection
As noted at the beginning of the section, performing inappro-priate tests and performing insufficient tests are both unde-sirable. We thus write bug-finding semantic match templates
for each of these cases, and instantiate them with respect to the functions identified in the protocol-finding phase.
Inappropriate tests Figure 15 shows a semantic match
template for detecting inappropriate tests for each possible
function,FN, in category 1. The rule match detects the case
where an expression x is assigned the result of calling aFN
(line 6) and then tested usingIS ERR (line 8). This check,
however, is not sufficient, because there may be some other value of this expression that can reach the test, via another execution path, and it might be legitimate to test this other
value forIS ERR. The second rule detects an initialization
of x that is at a different position from any one matched in the first rule (line 15), as required by the constraint on the position metavariable p1 (line 12). Finally, the Python code, which prints the result, is triggered only if the first rule matches and the second one does not (line 19). Another pair of rules, which is not shown, considers the case where
the call appears explicitly in the argument of theIS ERR
test. The semantic match template for category 2 functions
is similar, but checks for various kinds ofNULL tests rather
than anIS ERR test.
1 @match exists@ 2 expression x, E; 3 position p1,p2; 4 @@ 5 6 x@p1 = FN(...) 7 ... when != x = E 8 IS_ERR(x@p2) 9
10 @other match exists@ 11 expression match.x, E1, E2; 12 position p1!=match.p1,match.p2; 13 @@ 14 15 x@p1 = E1 16 ... when != x = E2 17 IS_ERR(x@p2) 18
19 @ script:python depends on !other match@ 20 p1 << match.p1;
21 p2 << match.p2; 22 @@
23 [...]
Figure 15: Template for detecting inappropriate tests
Figure 16 shows the result of applyingMakeBugReport
to this semantic match template, in terms of the number of potential bug sites found and the number of false positives. We consider a potential bug site to be a single function call for which there is at least one inappropriate test. 28 potential bug sites are reported in all. There is only one false positive, which is due to a limitation in Coccinelle’s treatment of variable declarations that initialize more than one variable.
reported sites bugs false positives category 1 2 2 0 category 2 26 25 1
Figure 17 shows an example of a bug found with the semantic match template for category 2 functions. This
code comes from the function aaci probe in the file
sound/arm/aaci.c. When the call toaaci init card (line
1) returnsERR PTR, control jumps to the out label (line 4).
There the result of the call is tested again, this time for being non-NULL (line 8). This test succeeds, because an ERR PTR
value is always different fromNULL. The subsequent
deref-erence to access thecard field (line 9), will then crash the
kernel, becauseaaci is an invalid pointer.
1 aaci = aaci_init_card(dev); 2 if (IS_ERR(aaci)) 3 ret = PTR_ERR(aaci); 4 goto out; 5 6 [...] 7 out: 8 if (aaci) 9 snd_card_free(aaci->card);
Figure 17: An inappropriate test found with the template for cate-gory 2 functions
Insufficient tests Figures 18 to 20 show extracts of a
se-mantic match template for detecting calls to category 1
func-tions where there is noNULL test before dereferencing the
result. The rules for categories 2 and 3 are similar. The se-mantic match proceeds in three phases.
The first phase, as in the protocol-finding semantic match, reorganizes the code to simplify the subsequent analysis. Here, the reorganization transforms tests by breaking apart conjunctions and disjunctions, as shown for conjunctions in conditionals in Figure 18.
1 @and depends on def0 using "../likely.iso" disable and_comm @ 2 position xtesta.p;
3 expression E1, E2; 4 statement S1, S2; 5 @@
6
7 - if@p (E1 && E2) S1 8 + if (E1) { if (E2) S1 }
Figure 18: Phase 1: Reorganization of conditional tests
The second phase detects cases where a dereference is known to be safe. This can be because the dereference is
guarded by a test of the expression for NULL (e.g., by a
conditional or loop test), or because there is a conditional
that tests the expression forNULL and then either updates the
expression to some other value or aborts in some way (e.g., a return or panic, but also a break or continue). Position variables are used to remember the terms that are matched in these cases. Figure 19 shows a simplified version of the rule protected that collects in the metavariable p the positions
of dereferences protected by an enclosing NULL test (the
full rule also considers while and for loops and conditional expressions). The rules updated and aborts, which are not shown, match the remaining conditions.
1 @protected using "../likely.iso" @ 2 expression def0.x; 3 identifier fld; 4 position p; 5 statement S; 6 @@ 7
8 if ((x != NULL | x != NULL &&...)) {<... x@p->fld ...>} else S
Figure 19: Phase 2: Detecting dereferences protected by an enclos-ing conditional
Finally, the third phase, shown in Figure 20, detects and prints the potential bug sites. Starting from an assignment of some expression x to the result of a call to the category 1
functionFN (line 12), the rule finds any subsequent
derefer-ence of the returned value that is not preceded by a reassign-ment of x and that is not at a position identified by protected.
The search furthermore stops at a call toBUG ON that tests for
NULL, as this aborts the kernel, and at the conditionals identi-fied by the unprotected and aborts rules. Finally, the Python code prints a bug report for each pair of a call to the category 1 function and an identified dereference.

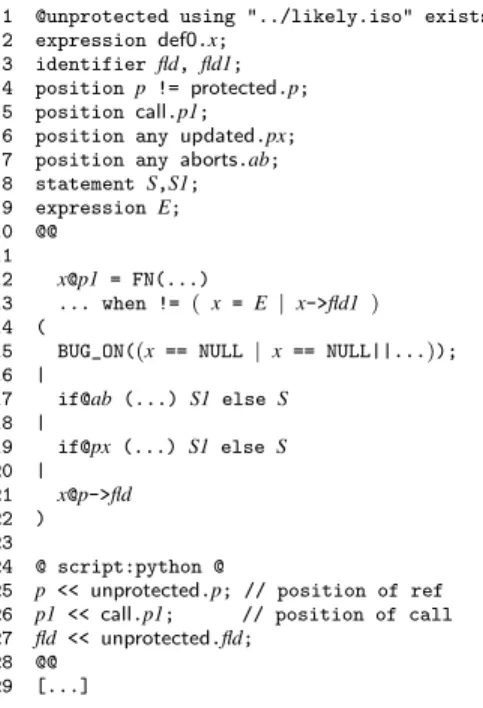

1 @unprotected using "../likely.iso" exists@ 2 expression def0.x;
3 identifier fld, fld1; 4 position p != protected.p; 5 position call.p1; 6 position any updated.px; 7 position any aborts.ab; 8 statement S,S1; 9 expression E; 10 @@ 11 12 x@p1 = FN(...) 13 ... when != ( x = E | x->fld1 ) 14 (
15 BUG_ON((x == NULL | x == NULL||...)); 16 | 17 if@ab (...) S1 else S 18 | 19 if@px (...) S1 else S 20 | 21 x@p->fld 22 ) 23 24 @ script:python @
25 p << unprotected.p; // position of ref 26 p1 << call.p1; // position of call 27 fld << unprotected.fld;
28 @@ 29 [...]
Figure 20: Phase 3: Detecting unprotected dereferences
Figure 21 shows the result of applyingMakeBugReport
to this semantic match template, in terms of the number of potential bug sites found and the number of false positives. We consider a potential bug site to be a single function call for which there are one or more dereferences of the result without a previous required check. 535 potential bugs are reported in all, of which over 90% are for category 1 func-tions. For category 1, we have verified 250 potential bug sites, due to time limitations. For the other categories, we have verified all reported bugs. In all there are 42 false posi-tives, with again most being for category 1. The reasons for
the false positives vary. The most common are that a deref-erence occurred at the destination of a goto, causing the se-mantic match not to detect that it was protected by a prior NULL test, and that the NULL test was present, but embedded in the definition of some other called function. The former issue could be addressed by enhancing the semantic match to check whether code at the destination of a goto is only reachable from code where the test has been performed. Ad-dressing the latter issue in general would require an interpro-cedural analysis.
reported validated bugs false sites sites positives category 1 496 250 215 35 category 2 20 20 16 4 category 3 19 19 16 3
Figure 21: Insufficient tests bugs
Figure 22 shows an example of a typical bug found with the semantic match template for category 1 functions. This
code calls the functionalloc ctrl packet (line 1), which
defined in the same file, calls the generic memory allocation
functionkzalloc and returns NULL if the memory allocation
fails. In this case, the dereference in line 5 will crash the kernel. 1 ver_packet = alloc_ctrl_packet( 2 sizeof(struct ipw_setup_get_version_query_packet), 3 ADDR_SETUP_PROT, TL_PROTOCOLID_SETUP, 4 TL_SETUP_SIGNO_GET_VERSION_QRY); 5 ver_packet->header.length = 6 sizeof(struct tl_setup_get_version_qry);
Figure 22: An insufficient tests bug in the function ipw send setup packet in the file drivers/char/pcmcia/ipwireless/ hardware.c
5.
Case Study 2: Detecting Allocation and
Deallocation Functions
Linux code contains many functions that allocate and decate resources. Often these are wrappers around generic
allo-cation functions, such askmalloc, that additionally perform
service-specific initializations. Such functions may also be used to manage reference counts. The goal of this case study is to detect functions that allocate and deallocate resources, and bugs in their usage.
5.1 Protocol detection
We consider allocation and deallocation of resources that are represented as pointer values. Allocation and deallocation of such resources are carried out by function calls. The chal-lenge is to distinguish allocation and deallocation functions from functions that manipulate the data in other ways, such as accessing its fields or storing it more permanently, e.g., in a global variable. In this case study, we try to characterize a pair of allocation and deallocation functions based on how they are used.
Our strategy is based on the following observations. When a function calls an allocation function, it typically tests the returned resource for validity and then saves or deallocates this result. In particular, when an error occurs in such a function, the function typically deallocates the re-source before returning. Indeed, deallocation must be done if the resource is only stored in a local variable. This pat-tern is illustrated by the code fragment shown in Figure 23.
Line 10 uses the functionalloc tty driver to allocate a
tty driver resource, and the result is stored in the local
variabledrv. The result is checked for validity in the next
line. The result remains in a local variable until the condi-tional on line 14, which checks for an error condition. If an
error has occurred, the conditional frees the resourcedrv on
line 15 using the functionput tty driver and returns an
error value,-1.
1 static int capinc_tty_init(void) 2 {
3 struct tty driver *drv; 4 5 if (capi_ttyminors > CAPINC_MAX_PORTS) 6 capi_ttyminors = CAPINC_MAX_PORTS; 7 if (capi_ttyminors <= 0) 8 capi_ttyminors = CAPINC_NR_PORTS; 9
10 drv = alloc tty driver(capi ttyminors); 11 if (!drv)
12 return -ENOMEM;
13 ... // initializations of various fields of dev 14 if (tty register driver(drv)){
15 put tty driver(drv);
16 printk(KERN_ERR "Couldn’t register capi_nc driver\n"); 17 return -1;
18 }
19 capinc_tty_driver = drv; 20 return 0;
21 }
Figure 23: Extract of drivers/isdn/capi/capi.c. Code relevant to the allocation-deallocation pattern is shown in italics.
A semantic match based on these observations is shown in Figure 24. In this semantic match, the metavariable E represents the local variable that contains the allocated value, the metavariable f represents the allocation function, and the metavariable g represents the deallocation function. The metavariable f is specified not to be one of the basic memory
allocation functions,kmalloc, kzalloc, kcalloc (line 2),
because it is well-known that memory allocated with these
functions should be deallocated usingkfree. Lines 9-13 of
the semantic match establish the pattern of an allocation. These lines check for a local variable declaration (line 9), then any subsequent assignment of that variable to the result of a call to a function f (line 11), and finally a test whether the
initialized value of the local variable isNULL (line 13), which
is assumed to be a validity test on the result. Lines 18-25 of the semantic match search for the pattern of a deallocation under an error condition. This has the form of a conditional (line 18) containing a call to a function g (line 22) that takes the local variable as some argument, followed by a return (line 24), with no intervening use of the local variable
(line 23). The pattern furthermore specifies that within the conditional and before the call to the deallocation function, the local variable cannot be updated (line 19) stored in the value of some other expression (line 20), or passed to another function (line 21). The latter condition serves to avoid the case where this other function stores the value in some more permanent way, such as adding it to a global queue. Finally, the same conditions are placed on the code between the allocation code and the deallocation code. Any other code, however, can appear, including other conditionals (line 17).
1 @alloc exists@
2 identifier E,f != { kmalloc,kcalloc,kzalloc },g,h1,h2; 3 expression E1,E2; 4 int ret!=0; 5 type T; 6 statement S; 7 @@ 8 9 T *E; 10 ... when any 11 E = f(...); 12 ... when != E 13 if (E == NULL) S
14 ... when != ( E = E1; | E1 = E; | h1(...,E,...) ) 15 when any
16 if (...) {
17 ... when != ( E = E2; | E2 = E; | h2(...,E,...) ) 18 g(...,E,...); 19 ... when != E 20 return ret; 21 } 23 24 @ script:python @ 25 f << alloc.f; // identifier 26 g << alloc.g; // identifier 27 @@ 28 [...]
Figure 24: A simplified semantic match for detecting allocation-deallocation protocols
This semantic match finds 376 pairs of allocation and deallocation functions, but it overlooks a number of others that do not match the specified code patterns in some way. For example, an allocation can be described, as specified by this semantic match, in three separate statements (declara-tion, alloca(declara-tion, and validation) but some of these steps can also be merged, i.e., the allocation can be part of the dec-laration, or it can appear in the test expression of the con-ditional performing the validation. Furthermore, the test ex-pression of this conditional can be more complicated, using
the boolean operators&& and ||. We can also allow for a
subsequent test usingIS ERR, which has the form of a
func-tion call but is known not to save its argument. Finally, in the deallocation part, the function g may return a value, and the entire function may return a non-integer value, such as NULL, or no result at all.
Our complete semantic match addressing the above is-sues is about 20 lines longer than the one shown. It finds 602 pairs of allocation and deallocation functions, including all of the ones found by the simplified version. We have stud-ied 50 randomly selected pairs of identifstud-ied allocation and deallocation functions and found that 37 represent valid
pro-tocols and 13 are false positives. The most common reason for a false positive is that the function identified as an allo-cation function performs an access rather than an alloallo-cation, and so the last function that uses the accessed data within an error path is inappropriately identified as a deallocation function.
Even the generalized semantic match is not able to de-tect all allocation/deallocation protocols, because some such functions may never be used in the context required by the semantic match. For example, an allocation function may al-ways be used in a context where its result is immediately stored in a structure field or it may never be used in a
func-tion that needs to handle an error. TheNULL test on the
re-sult of the allocation function might always be omitted, or it might be expressed in a more convoluted way that is not de-tected by the semantic match. All of these constraints were built into the semantic match to try to reduce the number of false positives while still finding many protocols. Neverthe-less, the programmer could experiment with relaxing them.
This semantic match has focused on allocation functions that return pointer-typed values where failure of the
alloca-tion is represented as NULL. It could easily be adapted to
the case where the allocation function returnsERR PTR to
indicate failure, or where the allocated information is repre-sented as an integer rather than a pointer.
5.2 Bug detection
The bugs we search for have the form of a call to an alloca-tion funcalloca-tion with no subsequent call to a deallocaalloca-tion func-tion. As in the protocol-finding semantic match, we focus on values stored in local variables and error-handling code, to reduce the number of false positives.
Searching for missing deallocations A simplified version
of the bug-finding semantic match template is shown in Fig-ure 25. It follows the protocol-finding semantic match quite closely, except that the calls to the deallocation function are replaced by constraints that no call to the deallocation func-tion appears. Finally, as compared to the protocol-detecting semantic match, we also remove the constraint that the value is not passed to another function, as our goal now is to find as many bugs as possible.
The semantic match template from which this simplified version has been constructed finds some bugs, as shown in the first line of Figure 26, but it also finds about as many false positives. In some cases, the value is passed to an intermediate functions that either saves or deallocates it. In particular, many Linux services define a cleanup function that deallocates a number of resources that the service may have allocated. In other cases, the deallocation is under a
conditional that is more complex that theNULL test checked
for in the rule in Figure 24.
To address this issue, we can exploit the ease of modify-ing SmPL code to create more constrained semantic match templates that match fewer bugs, but also fewer false
posi-1 @bug exists@ 2 type T; 3 identifier E; 4 expression E1,E2; 5 statement S,S1,S2; 6 int ret != 0; 7 position a,p; 8 @@ 9 10 T *E; 11 ... when any 12 E = ALLOC@a(...); 13 ... when != E 14 if (E == NULL) S 15 ... when any 16 when !=( E = E1 | E1 = E | FREE(...,E,...) ) 17 when != if (E != NULL) { ... FREE(...,E,...) ... } 18 (
19 if (E == NULL) S1 else S2 20 |
21 if (...) {
22 ... when != ( E = E2 | E2 = E | FREE(...,E,...) ) 23 when != if (E != NULL) { ... FREE(...,E,...) ... } 24 return@p ret; 25 } 26 ) 27 28 @ script:python @ 29 a << bug.a; 30 p << bug.p; 31 @@ 32 [...]
Figure 25: A simplified template for detecting missing dealloca-tions
reported validated bugs false sites sites positives Full detection 470 180 81 99 Subsequent deallocation
required 158 100 50 50 Allocated data not
passed to an intervening function
189 61 36 25 Both restrictions 76 43 27 15
Figure 26: Missing deallocation bugs
tives. One can then concentrate on a smaller, simpler bug re-port in which the matched code has more commonality thus making the bugs easier to verify. After having thoroughly studied these simpler bug reports, one can return to the orig-inal bug report and consider the remaining cases, having gained more experience about the structure of the affected code. We have considered three variants on the semantic match of Figure 24: one where we require that there is a deallocation of the same value after the conditional in which a bug seems to occur, one in which we reintroduce the con-straint that the value is not passed to any function between the allcation and the conditional in which the bug seems to occur, and one that combines the two. Other variants are pos-sible.
Figure 26 also shows the result of projecting the infor-mation about bugs and false obtained for the full semantic match template onto the bug reports generated by the more restricted versions. The first constraint has no significant im-pact on the ratio of bugs to false positives, but imposing the
second constraint or combining the two substantially reduces the number of false positives, while still making it possible to find some bugs.
A special case Finally, we have created an extremely
con-strained semantic match template, which was motivated by our study of the original reported bugs. In some cases, a specific allocation function and deallocation function are de-fined for a particular type of value. The allocation function
may, for example, allocate memory usingkmalloc and
ini-tialize some fields, but in some cases the deallocation does nothing specific at all, and simply calls a generic
dealloca-tion funcdealloca-tion such askfree. Because the effect is the same,
code may use the generic function rather than the specific one. This, however, represents a breaking of the abstraction boundary, and can lead to problems later, if is becomes nec-essary to augment the deallocation function. We have thus written a semantic match to find deallocation functions that simply call some other function with the same argument, and then a semantic match to correct the bug by replacing calls to these functions by calls to the specific variant that corre-sponds to the allocation function that is used. In this case,
we use the toolMultiSearch to iterate the protocol-finding
process. The semantic match template identifying the rele-vant deallocation functions is shown in Figure 27. The se-mantic match template finding the bugs is a generalization of the semantic match used to present Coccinelle in Section 2. This semantic match template can furthermore potentially find bugs that the previously presented ones do not, because it does not restrict the search for the deallocation function to error conditions. 1 @r@ 2 identifier f,x; 3 type T; 4 @@ 5 FREE(T x) { f(x); } 6 9 @ script:python @ 10 f<< r.f; 11 @@
12 print "oneline: AL:ALLOC FR:FREE FN:%s" % f
Figure 27: A template for detecting a deallocation function that simply calls another deallocation function
The semantic match template detecting deallocation func-tions that simply call some other function on the same argument detected 18 such deallocation functions, asso-ciated with in all 24 allocation functions. Bugs are re-ported in the use of three of the deallocation functions, framebuffer release, nlmsg free, and vfree, for a to-tal of 27 bug reports, all but two of which are in the use of nlmsg free. The bug in the use of vfree is a false
posi-tive, as it is part of a conditional that tests whethervfree
orkfree should be used. Checking these bugs took only a
few minutes. These results clearly show the benefits of being able to create semantic matches that check for very specific
conditions, as there is the potential for a high rate of found bugs and validation of these bugs can be very easy.
6.
Case Study 3: Bug detection inspired by
the netif example
The third case study is motivated by the example presented in Section 3. The essential feature of the bug that was
origi-nally found was that the functionnetif rx could free its
ar-gument, and that thus it was not safe to refer to its argument after calling the function. Because use after free is a gen-eral problem, we write a semantic match to find functions that possibly or definitely free some argument, and then a semantic match template to find calls to such function that are followed by a dereference of that argument.
The number of bugs and false positives found are sum-marized in Figure 28. Most of the false positives are where
the identified functionFN decrements a reference count and
possibly frees its argument. At some calls to such a function FN, the referece count is known to be greater than 1, and thus the decrement cannot cause the value to be freed.
reported validated bugs false sites sites positives guaranteed free 10 10 5 5 possible free 22 22 9 13
Figure 28: Reference after call to a freeing function
7.
Current Limitations
Coccinelle was originally designed for performing program transformations. Although our approach has found a large number of bugs in Linux code, our case studies have also re-vealed some limitations of Coccinelle for protocol and bug finding. These limitations include the lack of an interproce-dural analysis, the lack of a dataflow analysis, the inability to interpret arbitrarily complex conditional texts, and the need to make some kinds of inferred infermation explicit in the code. As a result, semantic matches can be complex. Fur-thermore, they tend to become more complex as they are refined, to eliminate false negatives and false positives.
Some of these limitations may be essential for transfor-mation, where the user would like to retain very tight con-trol over the conditions under which the transformation takes place. For protocol and bug finding, however, it may be use-ful to consider whether a weaker coupling between the code fragments in the semantic match and the elements of the matched code could make the approach easier to use while maintaining or reducing the rate of false positives.
8.
Related Work
Engler et al. [3] initiated the idea of using a checker that is neither sound nor complete to provide the scalability needed to find bugs in systems code. Enlger et al. also proposed [4] to search for protocols in the form of pairs of functions that
occur together frequently. The former is based on checking rules expressed as automata, that have a structure quite dif-ferent from C code. The latter tends to find a very large num-ber of candidate protocols, on which statistics are used to se-lect the most likely. There is no opportunity for the user to interject his understanding of the code structure. Later work uses automata to characterize the behaviors of typical classes of protocols, and then the user can participate in assigning specific functions to roles in such an automaton [5]. But the specifications remain distant from the source code.
Li and Zhou use data mining to collect sets of terms that often occur together, and thus identify a number of complex protocols in Linux and other open source systems [6]. Ra-manathan et al. show that including path sensitivity in this process significantly improves precision [8]. Coccinelle se-mantic matches also take into account control-flow paths. While the protocols we have detected in the case studies in this paper involve essentially only two operations, more complex protocols could be detected by writing more com-plex semantic matches. In contrast to a data mining based approach, in our approach the programmer must be aware of the basic structure of the protocol, but we can exploit this property to ease the protocol and bug validation process.
Weimer and Necula [10] propose an approach similar to that of Engler et al. [4], but they focus on protocols and bugs that occur in error paths, which gives them both a much smaller set of potential protocols and a much smaller set of false positives. In our second case study, we have also found it useful to exploit the kinds of code that occur in error paths. Our use of error paths is also tailored via the SmPL code to the class of protocol being considered, rather than following a fixed strategy as in Weimer and Necula’s work.
The Static Driver Verifier (SDV) [1], developed at Mi-crosoft, uses model checking to prove that certain bugs do not occur in systems code. Specifications amount to au-tomata describing invalid behaviors. These auau-tomata are ex-pressed in a C-like notation, but do not follow the structure of the code to be processed. Because SDV gives a guaran-tee of correctness, rather than just finding potential bugs, it is more expensive than the aforementioned approaches. It is thus better suited to being applied to individual drivers rather than to an entire operating system.
In previous work [9], we have used Coccinelle to re-express the bug-finding automata presented in the work of Engler et al. [3]. That paper did not consider protocol find-ing. Furthermore, it only considered a few very generic
func-tions, such askmalloc and kfree, for which there appear
to be few remaining usage errors in Linux today.
9.
Conclusion and Future Work
In this paper, we have presented a framework for searching for protocols and bugs in Linux code. A principal goal of this framework is to allow users to quickly and easily interject their understanding of the code structure into the protocol
and bug finding process. Our framework is based on the use of the Coccinelle transformation tool that provides a speci-fication language that is close to C code. We have comple-mented Coccinelle with a collection of tools for managing a series of searches that allow a uniform approach to protocol and bug finding, based on strategies encoded by the user.
Coccinelle is unique among the tools used for protocol and bug finding that we know of in that it supports program transformation. This makes it possible to specify not only how to find bugs but also how to fix them. For some of our examples, such as replacing the use of a generic deallocation function by a specific one, the change is very systematic and creating a semantic patch is straightforward. More work is necessary, however, to identify larger classes of bugs that can be fixed automatically.
Availability The source code for the semantic matches
used in our experiments is available at the following URL:
http://www.diku.dk/~julia/bugs
References
[1] BALL, T., BOUNIMOVA, E., COOK, B., LEVIN, V., LICHTENBERG, J., MCGARVEY, C., ONDRUSEK, B., RAJAMANI, S. K.,ANDUSTUNER, A. Thorough static analysis of device drivers. In EuroSys 2006 (Apr. 2006), pp. 73–85.
[2] Coverity. http://www.coverity.com/, 2008.
[3] ENGLER, D. R., CHELF, B., CHOU, A.,ANDHALLEM, S. Checking system rules using system-specific, programmer-written compiler extensions. In SOSP (Oct. 2000), pp. 1–16. [4] ENGLER, D. R., CHEN, D. Y., CHOU, A.,ANDCHELF, B. Bugs as deviant behavior: A general approach to inferring errors in systems code. In SOSP (Oct. 2001), pp. 57–72. [5] KREMENEK, T., TWOHEY, P., BACK, G., NG, A.,AND
ENGLER, D. From uncertainty to belief: Inferring the specification within. In OSDI (Nov. 2006), pp. 161–176. [6] LI, Z.,ANDZHOU, Y. PR-Miner: automatically extracting
implicit programming rules and detecting violations in large software code. In ESEC/FSE (2005), pp. 306–315.
[7] PADIOLEAU, Y., LAWALL, J., HANSEN, R. R., AND
MULLER, G. Documenting and automating collateral evolutions in Linux device drivers. In Eurosys 2008 (Mar. 2008), pp. 247–260.
[8] RAMANATHAN, M. K., GRAMA, A.,ANDJAGANNATHAN, S. Path-sensitive inference of function precedence protocols. In ICSE (2007), pp. 240–250.
[9] STUART, H., HANSEN, R. R., LAWALL, J., ANDERSEN, J., PADIOLEAU, Y.,ANDMULLER, G. Towards easing the diagnosis of bugs in OS code. In PLOS (Oct. 2007). [10] WEIMER, W., AND NECULA, G. C. Mining temporal
specifications for error detection. In TACAS (Apr. 2005), pp. 461–476.
