1ère STI 2D – thème santé – Fiche méthode- Physique chimie (Mme Charre) Dresser un tableau de mesures :
grandeur +(unité) 0 5 10 15 20
grandeur +(unité) 1 2 3 4 5
Tracer un graphe :

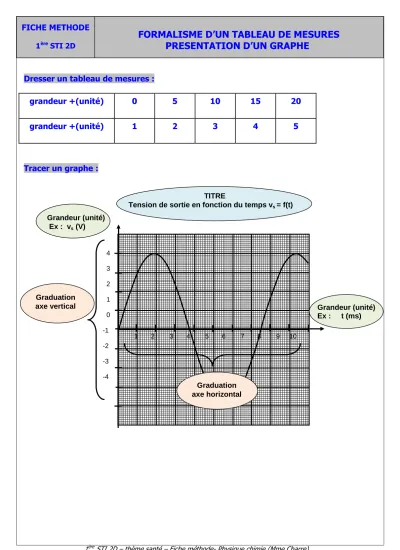

FORMALISME D’UN TABLEAU DE MESURES PRESENTATION D’UN GRAPHE
FICHE METHODE 1ère STI 2D
TITRE
Tension de sortie en fonction du temps vs = f(t)
4 3 2 1 0 -1 -2 -3 -4
1 2 3 4 5 6 7 8 9 10
Graduation axe horizontal Graduation
axe vertical Grandeur (unité)
Ex : t (ms) Grandeur (unité)
Ex : vs (V)
