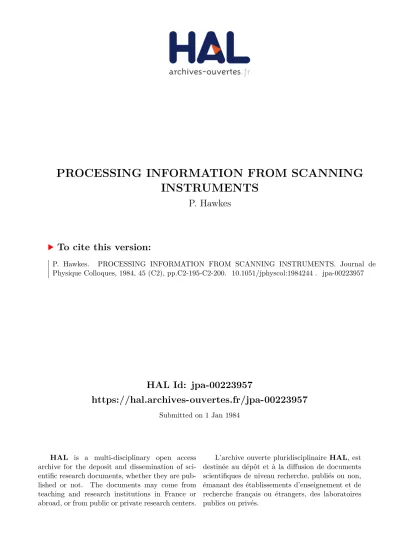

HAL Id: jpa-00223957

https://hal.archives-ouvertes.fr/jpa-00223957

Submitted on 1 Jan 1984

HAL is a multi-disciplinary open access archive for the deposit and dissemination of sci- entific research documents, whether they are pub- lished or not. The documents may come from teaching and research institutions in France or abroad, or from public or private research centers.

L’archive ouverte pluridisciplinaire HAL, est destinée au dépôt et à la diffusion de documents scientifiques de niveau recherche, publiés ou non, émanant des établissements d’enseignement et de recherche français ou étrangers, des laboratoires publics ou privés.

PROCESSING INFORMATION FROM SCANNING INSTRUMENTS

P. Hawkes

To cite this version:

P. Hawkes. PROCESSING INFORMATION FROM SCANNING INSTRUMENTS. Journal de

Physique Colloques, 1984, 45 (C2), pp.C2-195-C2-200. �10.1051/jphyscol:1984244�. �jpa-00223957�

(2)

Colloque C2, supplément au n°2, Tome 45, février 198* page C2-195

PROCESSING INFORMATION FROM SCANNING INSTRUMENTS

P.W. Hawkes

Laboratoire d'Optique Electronique du C.N.R.S., 29, rue Jeanne Marvig, BP 4347, 31065 Toulouse Cedex, France

Résumé - Les tendances actuelles et quelques développements possibles dans le traitement des signaux provenant du MEB et du STEM sont analysés succinctement.

Abstract - Current trends and future possibilities in the processing of SEM and STEM signals are briefly surveyed.

I - EARLIER WORK

Digital processing of the image created by fixed-beam instruments suffers from the handicap that a time-consuming and expensive step separates images from computer : photographic recording and processing followed by digitization (and of course quan- tization). Strong though the arguments for digital processing may be, the proponents of optical methods can always retort that their channel is capacious and accepts a two-dimensional brightness distribution as input, two very attractive features. With the advent of scanning electron microscopes in the mid 1960 s, however, the inter- mediate step evaporated and by 1968 papers describing image analysis of SEM pictures had begun to appear - indeed the first volume of the Scanning Electron Microscopy series contains a paper entitled "Computer Processing of SEM Images" (51). The rea- son is obvious : all scanning microscopes generate sequential signals, which are then used to write an image, usually on a CRT screen. It is thus comparatively easy to intercept this signal and modify it before allowing it to be displayed or, more ambitiously, to store it in computer memory and perform complex measurements or other operations on it before releasing it to a visual display device.

The first decade of SEM image processing was largely devoted to image analysis and simple types of image enhancement, essentially the matching of the image contrast range to that of the eye by expanding or contracting it as necessary and adjusting the mean brightness level. Image analysis reached a high level of sophistication, encouraged by the proliferation of SEM signals, and was routinely applied to many practical problems from fields as far apart as neurological disease and the minera- logy of coals. For the latter purpose, a specialized unit was designed at United States Steel (23, 29-31) which manipulates the signals generated by backscattered electrons, secondaries, transmitted electrons when possible and an energy-dispersive X-ray detector. Image features can be recognized by thresholding or topology after which the chemical and geometrical characteristics of the various regions pinpointed in the pattern recognition step can be tabulated or displayed. SEM image analysis needs a much more detailed review than can be given here, for so many specialized techniques have been developed in different fields that we are obliged to be unfairly selective. A generous, though still invidious, list was given in (17); before turning to the STEM, we just mention that the work on directionality in SEM images, a good example of the development of a technique for the needs of a very specialized field of study, has been surveyed not only in Scanning Electron Microscopy (50) but also in a recent book (42). Another elegant application is topographical surveying using

Article published online by EDP Sciences and available at http://dx.doi.org/10.1051/jphyscol:1984244

(3)

C2-196 JOURNAL DE PHYSIQUE

an automatic focusing unit (22). This first decade also saw the arrival of commercial STEMS, both dedicated (VGhstruments and the short-lived Siemens ST 100 F) and as modifications to conventional TEMs. All the techniques already devised for the SEM are of course applicable here, provided that the signals in question are available, but some fundamentally new methods were added to these. In particular, the peculiar mode of image formation in the STEM, whereby a diffraction pattern of the pixel under the beam at any instant is created in the detector plane and subsequently sampled and/or integrated, has been a rich source of ideas. From the very beginning, the STEM detector was divided into a central disc and a surrounding ring, which collect to a good approximation an elastic dark-field image (ring) and an inelastic-plus-un- scattered bright-field image (disc), with the possibility of further electron energy

subdivision by means of an energy analyser. In 1974, however, Dekkers and de Lang (7) made a highly original and ingenious suggestion, namely, that the detector should be divided into two semi-circular discs; by simple arithmetic operations on the re- sulting signals, some features of the specimen phase distribution would be mapped into signal variations that can be visualized directly. In the same year, Rose (35) also proposed subdivision of the detector to combat the aberrations of the probe- forming lens anda host of suggestions followed, reviewed in (15). All these proposals arise from a feature of the STEM that has no convenient analogue in the CTEM, namely the possibility of forming any desined weighted superposition of the current at each point of the far-field diffraction pattern of each individual pixel. When the earlier suggestions were made it was assumed that the weighted superposition would in Drac- tice be achieved by altering the detector geometry but not its response, so that the weights would be zero or (conventionally) unity. In recent years, however, the arrival of framestore memory and commercial systems for exploiting it has made it feasible to store the intensity distribution of the diffraction pattern from each pixel as it is generated and to perform one (or even several) weighted superpositions with arbitrary weights and of course geometries (46). This degree of flexibility makes it reasonable to contemplate using much more elaborate detector designs, such as the optimum detector proposed by Huiser and van Toorn (24), and the multiple seg- ment geometries that hitherto seemed rather extravagant (since the segment pattern would vary with the operating conditions). The difference between the two situations is not unlike that between optical and digital processing : by using a detector of specific geometry, however complicated, we gain in speed and ease of operation but lose in flexibility; by measuring the entire diffraction pattern from each pixel, we have have almost total flexibility but must be wealcby enough to buy the neces- sary storage units and peripherals. For further information on these points, see (2, 8-11, 20, 21, 25-28, 33, 38, 40, 43-45, 47, 49).

I1 - RECENT DEVELOPMENTS

2.1. Architecture

The last paragraph has taken us beyond the "earlier studies" for the use of frame- stores and the performance of complex operations on-line are distinctly more recent developments. There are a number of good accounts of the benefits of this newer hardware(See list at end of §I) and at least one system specifically intended for use with scanning electron microscopes is available cormnercially (from Toltec Computer Ltd). Many processing operations require Large matrix transforms, and spe- cial purpose arrayprocessors are clearly attractivewhenmany suchtransforms have to be rerformed

,

in iterative processing schemes for example. It is not quite so ob- vious what the large vector ~aachines, the CRAYs and thecybers (not to mention their imminent Japanese rivals), have to offer. The only wcrk in electron microscopy even remotely relevant is that of Arnot

et

( I ) , who used not a vector machine but a fast parallel processor (the ICL "DAP") to speed up tasks involving frequent, large, two-dimensional Fouriertransforms. Nevertheless, it is clear that image processing is a task well-adapted to the architecture of the vector machines. It is easy to adapt the size of the digitized image to the preferred lengthof the yectors (the ef- ficiency of such machines is acutely dependent on the match between the number of operations that can be performed in parallel on a particular computer and the sizes of the blocks of input data that are to be processed in parallel). There is no lack of calculations in which there is relatively little input-output (very wasteful com- pared with the actual computing) from among which we may cite :

(4)

languages, FORTRAN especially, can be run with relatively little modification on vector machines, sadly retrograde though this seems to specialists in comparative (computer) linguistics : "The history of the development of parallel programming languages would appear to be repeating many of the mistakes which occured in the development of sequential languages. Many of the e~isting~arallel languages have not benefited from advances which have been made in programming language design and implementation techniques" writes Perrott gloomily (32) ; he goes on to observe that

"most programmers and researchers using these machines [vector and array processors]

are expected to tackle a task on a machine of the latest hardware technology using a comparatively inferior software tool" and concludes "it is now possible to design a language which can exploit parallelism in the algorithm for the solution of a pro- blem. In this way the user will befreed from the peculiarities of a parallelising compiler or a hardware-dominated syntax". We have quoted this paper at some length for it seems reasonable to anticipate that at least some image processing tasks will be confided to vector machines in the next few years and the question of transferring languagessuch as SEWER (39), SPIDER (12), IMAGIC (18), or EM (19) (not to mention the eighty-odd other image-processing languages listed in (34)) will arise. It would be a great benefit to the user and, surely, to the general efficiency of the combination of language and machine if the versions transferred were written in a language such as that evoked by Perrott, intimately adapted to the nature of the computer architec- ture.

2.2. Coding

We have already mentioned briefly the use of digital framestores for short-term ima- ge storage but as Burge has pointed out (3), the problem of multiple-access long- term storage hasby no means been solved and is likely to become a major impediment to the marriage between microscope and computer (already "joined together"). Hitherto, comparison between micrographs obtained in different laboratories has been made on the basis of published pictures or on individual collaboration. It would clearly be advantageous if institutions with commoninterests could deposit their images in a database, which would be consulted in the same way as literature searches are made in bibliographic bases, for example. Neverthelss, it is (at present) unthinkable that images, or even just the most interesting regions of images, should be stored in any quantity as raw arrays of typically eight-bit numbers. The problem of effi- cient coding has long been studied for one-dimensional signals and in recent years this has been extended to two-dimensional (and multi-dimensional) arrays. Of the various approaches to such coding, we mention two types : orthogonal transform coding and vector quantization. The principle of orthogonal transform coding is easy to state, less easy to put into practice : given a two-dimensional array (or set of arrays), can we find a reversible matrix transformation such that the elements of the resulting array are all uncorrelated ? In other words, given that the original array contains much redundant information, how can we retain only significant data and jettison the rest ?Theformal solution to this question isknown : for an N x X pic- ture array f, the expansion coefficients F (u, v),

will be uncorrelated if the set of N' matrices @(U7V) are the eigenmatrices of the autocorrelation function(matri~) of f, which we denote by R :

(A proof of this is to be found in (36, 85.1).)Efficient this may be but convenient it certainly is not, for unlike the Fourier and related transform matrices, the expansion here is performed in terms of matrices the elements of which are a function of those of f : R is determined by f and the set @(u,v) by R. Before coding any ima- ge using this "Karhunen-Lohve" transform, the @(u,v) would have to be found and worse, anyone consulting a database in which the images were so coded would have to know

(5)

C2-198 JOURNAL DE PHYSIQUE

the N' 4(U'V) for each before being able to examine them.

Fortunately, there are other orthogonal transforms that are only marginally less ef- ficient at image compression than the Karhunen-~osve transform and have fixed trans- formmatricesand fast algorithms. The one that is closest to the Karhunen-Lobve in performance is the discrete cosine transform, which has various attractive properties.

Both Karhunen-LoSve and discrete cosine image coding have been tested on electron microscope images. We refer to (4-6, 37, 52) for further details. A wasteful aspect of these coding methods can be eliminated and improve them still further : there is no need to use the same number of bits for every pixel. This idea is also exploited in "error-free" compression, where (unlike the transform methods) no information, however unimportant is discarded but shorter binary code words are allocated to the

grey levels that occur more often in the picture. Once again we refer to (36) for details of this and the associated use of Huffman codes, or shift codes. The other procedure for storing images compactly to which we draw attention is vector quanti- zation (13, 14). Here, instead of quantizing the grey levels of individual pixels, an ordered set of i samples (an i-component vector) is mapped into one of a finite set of vectors. Thus instead of handling individual pixels, we nowtreat whole families of grey-level values as a single (vector) quantity. Each of these output vectors has a name, in the form ofas short a binary word as possible, and it is these that are stored. At first sight, this is not particularly attractive, since the codebook re- quired to decipher the picture might easily be huge. Recently, the notion of lattice quantizers to impose a pattern on the coding step has been introduced (13) and this appears to offer a means of "circumventing the need for a code book". Gersho conclu- des that "the subject of vector quantization is becoming increasingly important and a deeper understanding of the structural properties should play an important role in future studies of complexity, algorithm design and performance capabilities" (14).

2.3. Recursive methods

We have had occasion to mention the redundancy of much of the information in a typi- cal image : in a landscape, for example, areas of blue sky or road, or walls or fields (at low resolution) might be essentially uniform, or such that a small region is typical of a larger one

-

a flock of sheep say. Mutatis mutandis, the same may well be true of an electron micrograph whence the success of transform coding methods.

This notion also underlies one class of methods of restoring images degraded by noise and by the effect of a non-uniform transfer function. These methods are recursive, in the sense that information from adjoining pixels is assumed to be correlated to some extent and the grey-level values of pixels already acquired are used to correct each new value as it arrives. These techniques were originally developed for tempo- ral signals, in which the notions of past (acquired), present (arriving now) and future have their obvious everyday meanings. When we move from the temporal to the spatial domain, however, the situation becomes more confused. If we consider a signal from a scanning microscope, then the temporal sequence is of course respected but the nearest neighbours of any given point are not only the points just acquired

-

there will be three points in the line above at least as near as the two points just acquired in the same line. It is important to incorporate into the recursion the fact that the picture statistics are truly two-dimensional. For this reason, recur- sive schemes that operate line by line rather than point by point have been propo- sed, which implies that adequate buffer storage must be available. Once the notion of point recursion has been abandoned, the division into past and future likewise becomes artificial and there is no reason why the correction should not be perfor- med in a homogeneous fashion, using all the four (or even eight) nearest neigh- bours of each ~oint, as in relaxation methods of solving ~artial differential equa- tions. These methods have an extensive literature. They have some features that make them attractive for electron image processing, among which the fact that regions of any shape can be used is not the least interesting : jagged edges, even holes, are harmless though it is of course essential to operate in real space if such irregu- larities are present. Generally speaking, the methods are more efficient in recipro- cal space but real space formulae are just as easy to derive. There is however an extra degree of complexity in electron microscopy, namely, the fact that at high resolution, the image intensity may well be the sum of two terms, each containing a transfer function and a specimen transparency function. It is not difficult to extend

(6)

clear to what extent, and more important, with what accuracy, these parameters can be estimated, by methods such as those used by Suresh and Shenoi (48) to obtain transfer function parameters.Nevertheless, it is probably possible to avoid the problem by me- thods such as those used in Wiener-Schiske filtering of focal series of TEM micro- graph ( 16).

111

-

CONCLUDING REMARKS

The hardware and software of scanning signal manipulation have now reached a high degree of sophistication, as the following papers in this volume demonstrate convin- cingly. Let us hope that it will not be long before the speculations in the foregoing section are overtaken by reality.

REFERENCES

1. N.R. Arnot, G.G. Wilkinson and R.E. Burge : Comput. Phys. Commun.

6,

455-457

(1982)

2. E.D. Boyes, B.J. Muggridge, M.J. Goringe, J.L. Hutchison and B. Catlow : in Elec- tronMicroscopy and Analysis 1981 (M.J. Goringe, ed.), 119-122. Institute of Physics Bristol 1982

3. R.E. Burge : Proc. Roy. 14icrosc. Soc.

IS,

267-269 (1980)

4. R.E. Burge and A.F. Clark : in Electron Microscopy and Analysis 1981 (M.J. Goringe, ed.), 315-319. Institute of Physics, Bristol 1982

5. R.E. Burge and J.K. W u : Ultramicroscopy

7,

169-180 (1981)

6. R.E. Burge, M.T. Browne, P. Charalambous, A. Clark and J.K. Wu : J. Microsc.

127,

47-60 (1982)

7. N.H. Dekkers and H. de Lang : Optik

41,

452-456 (1974)

8. G. Egle, M. Mast, M. Kijhl and G. Wagner : in Plectron Microscopy 1982, vol. 1, 539-540. DGEM. Frankfurt 1982.

9. A . Engel, F. Christen and B. Michel : Ultramicroscopy

7,

45-54 (1981)

10. S.J. Erasmus : J. ~licrosc. 127, 29-37 (1982)

1 1 . S. J. Erasmus and K.C.A. smith: in E t (M.J.

Gorinze. e d . ) . 115-118. Institute of Phvsics. Bristol I982

12. J. Frank,

ran him kin

and H. Dowse : ~1t;amic;oscop~

5,

343-358 (1981) 13. A. Cersho : IEEE Trans. IT-25, 373-380 (1979)

14. A. Gersho : IEEE Trans. IT-z, 157-166 (1982)

15. P.W. Hawkes : Scanning Electron Microscopy, Part I, 93-98 (1980)

16. P.W. Hawkes : in Electron Microscopy and Analysis 1981 (M.J. Goringe, ed.), 325- 328. Institute of Physics, Bristol 1982

17. P.W. Hawkes : J. Microsc. Spectrosc. Electron. 7, 57-76 (1982) 18. M. van Heel and W. Keegstra : Ultramicroscopy

-

7 7 113-130 (1981) 19. R. Hegerl and A. Altbauer, Ultramicroscopy

2,

109-116 (1982)

20. K-H Herrmann : in Electron Microscopy 1982, vol. 1, 131-139. DGEM, Frankfurt 1982 21. K-H Herrmann and D. Krahl : J. Microsc. )27, 17-28 (1982)

22. D.M. Holburn and K.C.A. Smith : J. Microsc. 127,93-103 (1982)

23. F. E. Huggins, D .A. Kosmack, G.P

.

Huf £man and R.3. Lee : Scanning Electron Micros- copy, Part I, 531-540 (1980)

24. A.M.J. Huiser and P. van Toorn : J. Phys. D g , 747-755 (1982) 25. A.V. Jones : J. Microsc. Spectrosc. Electron.

5,

595-609 (1980)

26. A.V. Jones and K.C.A. Smith : Scanning Electron Microscopy, Part I, 13-26 (1978).

27. A.V. Jones and B.M. Unitt : Scanning Electron Microscopy, Part I, 113-124 (1980) 28. A.V. Jones and B.M. Unitt : J. Microsc.

127,

61-68 (1982)

29. J.F. Kelly, R.J. Lee and S. Lentz : Scanning Electron Microscopy, Part I, 311-322 (1980)

30. R.J. Lee and J.F. Kelly : Scanning Electron Microscopy, Part I, 303-310 (1980) 31. A.K. Moza, L.G. Austin and G.G. Johnson : Scanning Electron Microscopy, Part I,

473-476 and 472 (1979)

32. R.H. Perrott : Comput. P h y ~ . Commun. 26, 267-275 (1982) 33. T.J. Pitt: J. Microsc.

127,

85-91 (198n

34. K. Preston : Prog. Pattern Recognition

1,

123-148 (1981) 35. H. Rose : O p t i k g , 416-436 (1974)

(7)

C2-200 JOURNAL

DE

PHYSIQUE

36. A. Rosenfeld and A.C. Kak : Digital Picture Processing (2nd ed.) Academic, New York and London 1982.

37. M.H.Savoji and R.E. Burge : in Electron Microscopy 1982, vol. 1, 509-510. DGEM, Frankfurt 1982

38. W.O. Saxton and T.L. Koch : J. Microsc.

127

69-83 (1982)

39. W.O. Saxton, T.J. Pitt and M. Horner : Ultramicroscopy

6,

343-354 (1979) 40. A.J. Skarnulis : J. Microsc.

127,

39-46 (1982)

41. A.J. Skarnulis, D.L. Wild, G.R. Anstis, C.J. Humphreys and J.C.H. Spence, in Electron Microscopy and Analysis 1981 (M.J. Goringe

,

ed.), 347-350. Institute of Physics, Bristol 1982

42. P. Smart and N.K. Tovey :

ElectronMicroscoEy

Clarendon, Oxford 1982

K.C.A. Smith : in Electron Microscopy and Analysis 1981 (M.J. Goringe, ed.), 109- 112. Institute of Physics, Bristol 1982

K.C.A. Smith : J. Microsc.

127,

3-16 (1982)

K.C.A. Smith : in Electron Microscopy 1982, vol. 1, 123-130. DGEM, Frankfurt 1982 K.C.A. Smith and S.J. Erasmus : J. Microsc.

127,

RPI-2 (1982)

M. Strahm and J.H. Butler : Rev. Sci.Instrum.~, 840-848 (1981) B.R. Suresh and B.A. Shenoi : IEEE Trans. C A S - 3 307-319 (1981)

A.C. Terrell and J.C. Barker : in Electron Microscopy 1982, vol. 1, 541-542. DGEM, Frankfurt 1982

N.K.Tovey and K.Y. Wong : Scanning Electron Microscopy, Part I, 381-392 (1978) E.W. White, H.A. McKinstry and G.G. Johnson : Scanning Electron Microscopy, 95-

103 (1968)

J.K.Wu and R.E. Burge : Comput. Graph. Im. Proc.

19,

392-400 (1982)
