Hydrological modelling for meso-scale catchments using

globally available data

A. Gafurov, J. Götzinger, A. Bárdossy

To cite this version:

A. Gafurov, J. Götzinger, A. Bárdossy. Hydrological modelling for meso-scale catchments using glob-ally available data. Hydrology and Earth System Sciences Discussions, European Geosciences Union, 2006, 3 (4), pp.2209-2242. �hal-00298752�

(2)

HESSD

3, 2209–2242, 2006 Hydrological modelling using globally available data A. Gafurov et al. Title Page Abstract Introduction Conclusions References Tables Figures J I J I Back Close

Full Screen / Esc

Printer-friendly Version

Interactive Discussion Hydrol. Earth Syst. Sci. Discuss., 3, 2209–2242, 2006

www.hydrol-earth-syst-sci-discuss.net/3/2209/2006/ © Author(s) 2006. This work is licensed

under a Creative Commons License.

Hydrology and Earth System Sciences Discussions

Papers published in Hydrology and Earth System Sciences Discussions are under open-access review for the journal Hydrology and Earth System Sciences

Hydrological modelling for meso-scale

catchments using globally available data

A. Gafurov, J. G ¨otzinger, and A. B ´ardossy

Institute of Hydraulic Engineering, Department of Hydrology and Geohydrology, University of

Stuttgart, Pfaffenwaldring 61, 70550 Stuttgart, Germany

Received: 20 April 2006 – Accepted: 28 April 2006 – Published: 11 August 2006 Correspondence to: A. Gafurov (abror.gafurov@iws.uni-stuttgart.de)

(3)

HESSD

Full Screen / Esc

Interactive Discussion

Abstract

This study focuses on modelling water balances for catchments with limited data avail-ability. The objective was to use globally available data for water balance modelling of meso-scale catchments. The study is carried out in two catchments; one having enough data for the performance check of the model and the other with very few data 5

for model validation. Globally available meteorological and geographical data is used for the basic model inputs. Dissaggregation of the global data, both spatially and tem-porally, was conducted to distribute the available data across the watershed and to attain higher resolution input data for the model. In addition, a glacier module was de-veloped for the regions covered by glaciers. The HBV-IWS model dede-veloped at the In-10

stitute of Hydraulic Engineering at the University of Stuttgart is applied. The outcomes of the modelling provide noteworthy results for both catchments that can be used in water resources planning and management issues. Moreover, the research presents the potential for modelling water balances using predominantly globally available data and proposes appropriate disaggregation methods for global data usage.

15

1 Introduction

Water has been identified as one of the key issues in reaching the Millennium Devel-opment Goals (UNDP, 2003). With water availability issues increasing, these goals can only be achieved by improving the management of water resources. Good man-agement is central for the sustainable use of water resources around the world. The 20

most problematic regions in terms of water availability are found in the Savannah and Steppe zone due to high evaporative demands and land degradation (Falkenmark, 2005). Many tools are currently being developed for the assessment of the effects of changing climate and land use on water resources (Alcamo et al., 2003). Hydrological models are such tools, supporting water resources management and planning issues. 25

They have recently been used to assess regional discharges and also climate change 2210

(4)

HESSD

Full Screen / Esc

Interactive Discussion issues. Performance of these models depends on the availability of input data.

Un-fortunately, in many regions of the world very few locally-derived data are available which prevents the use of complex hydrological models. Among other regions, Africa, Central Asia and South-East Asia are known as data sparse regions where the ground based observation network is declining (Schertzer et al., 2002). Unavailability of re-5

quired data for modelling has lead to the IAHS PUB initiative focusing on hydrological modelling in areas with few available data or data in lower resolution. (Sivapalan et al., 2003). The challenge is modelling water balances for data limited conditions. This paper presents a method to model daily river discharges in meso-scale catchments using globally available data.

10

In the past, there have been considerable advances in archiving historical data glob-ally and even simulating or reanalysing them for the whole world. Interpolated monthly values of precipitation from 1986 on are available worldwide at a spatial resolution of 1◦from the Global Precipitation Climatology Centre (GPCC) (Rudolf et al., 2003). Daily precipitation simulations (reanalyses) are available worldwide from the National Centre 15

for Environmental Prediction (NCEP) on a Gaussian grid system (Kalnay, et al., 1996). Unfortunately the bias in those datasets is too large to be used in hydrological models. In order to eliminate large bias in datasets the first initiative would be to combine the two data sources to create a time series with small bias and a realistic daily distribution that is suitable as input for hydrological models with daily time steps. Daily observed 20

temperature station data are globally available from the Global Historical Climatology Network (GHCN) (Nelson and Burtis, 1995).

The data mentioned above are those primarily adopted in this study. A lapse rate method is introduced to interpolate the station data with consideration of the respective catchment topography. This methodology has been applied in two test catchments: 25

The Neckar catchment in south Germany, for which there is very detailed observation data available and where the interpolated temperature data can be compared against observations, and the Chirchik catchment in Uzbekistan where more detailed input data are lacking.

(5)

HESSD

Full Screen / Esc

Interactive Discussion Using the disaggregated and interpolated data the model is ultimately run with daily

resolution but calibrated against monthly observations. A comparison of observed and modelled daily discharge in the Neckar basin show that the distribution of discharges can be very well reproduced and monthly modelled discharges in both catchments show that the modelling method is a good tool for the aforementioned problem. The 5

HBV-IWS model is used in this study and also enhanced for the Chirchik basin accord-ing to its geography and climate conditions.

2 Study area

The Neckar basin in Germany and the Chirchik basin in Uzbekistan are the study areas in this research. The Neckar basin extends from latitude 47◦400N to 49◦500N 10

and longitude 7◦500E to 10◦300E (Fig. 1). The area of the basin covers approximately 14 000 km2. The elevation in the catchment varies from 1030 m a.s.l. at its source in the Swabian Alb mountains to 245 m a.s.l. at the catchment outlet. Average annual precipitation is 950 mm, ranging from 750 mm in the lower part to 1600 mm close to Swabian Alb and the average daily temperature is 8.7◦C. Short period snowfalls occur 15

in winter, but do not persist very long.

The Chirchik basin extends from latitude 40◦100N to 42◦00N and longitude 70◦100E to 72◦300E (Fig. 2). The area of the basin covers 15 300 km2. Elevation in this catch-ment ranges from over 4000 m a.s.l. at the mountain ridges in the eastern part of the catchment to 400 m a.s.l. at the confluence of the Chirchik with the Syrdarya. 20

The catchment is principally located in eastern Uzbekistan, however small parts of it belong to Kazakhstan and Kyrgyzstan. Average long term precipitation is approxi-mately 350 mm/year. The temperatures vary greatly from summer to winter. The mean monthly temperature in summer exceeds 20◦C, whereas it is sometimes below –12◦C in winter. Heavy snowfall occurs in winter especially in the upper mountainous region 25

of Chirchik and this is the source of the aforementioned glaciers. The Chirchik River discharge comprises both rainfall and snowmelt. Snowfall occurs in winter and rainfall

(6)

HESSD

Full Screen / Esc

Interactive Discussion mainly in spring and in autumn. There is almost no precipitation in summer.

3 Data collection

One objective of this research is to assess the reliability of the model with the use of globally available data for water balance modelling in meso-scale catchments. For hy-drological modelling, the meteorological data (precipitation and temperature) are most 5

important. Interpolated monthly precipitation data from 1986 on were obtained from the GPCC, which is offered by the German Weather Service (DWD) for the whole globe with a spatial resolution of 1◦. Daily precipitation simulations (reanalyses) are obtained from NCEP in a Gaussian grid (T62 with 94×192 points for the globe surface – ap-proximately 1.88◦×1.92◦ grid cells). The two data sources were combined to create 10

a daily distribution time series to be used as input for the model. The GPCC data is interpolated monthly observed data and has a fine spatial resolution and NCEP data derives from the reanalysis of historical data and has a daily temporal resolution. New daily precipitation data was created from GPCC and NCEP adopting the variability of the NCEP time series. The following method is used for disaggregation:

15

P_dis = Pnd

×P_g

P_nm (1)

Where:

P_dis– disaggregated precipitation, P_nd – daily NCEP precipitation, P_g – monthly GPCC precipitation, P_nm – aggregated monthly NCEP precipitation, P_nm was obtained by aggregating daily data to monthly taking the arithmetic mean monthly value. This 20

calculation was conducted for each 1 km2grid cell over the whole Neckar and Chirchik Basins. The resulting precipitation data have a daily temporal resolution and a spatial resolution of 1000 m.

Daily temperature data for this study was available from the GHCN through KNMI (Royal Netherlands Meteorological Institute). The GHCN provides observed historical 25

(7)

HESSD

Full Screen / Esc

Interactive Discussion station data with a daily time step and some observations for Chirchik and Neckar were

available. A lapse rate method is used to interpolate the station data for other regions. The lapse rate for both catchments was estimated using the available station data and topography. For the Neckar basin, a 7.8◦C per 1000 m lapse rate was found to be most appropriate to estimate the temperature in other regions. The lapse rate estimation for 5

the Chirchik basin based on available short term temperature data showed that 6.8◦C per 1000 m is most appropriate for the temperature interpolation at other sites in the Chirchik basin. Figures 3 and 4 are examples of temperature comparison at Neckar basin.

For temperature, the simple lapse rate method worked well for interpolated data. The 10

interpolation of precipitation data is much more complex because topography plays a more significant role. More details regarding the precipitation interpolation in the Chirchik basin can be found in Sect. 7.

The Digital Elevation Model (DEM) that was used for the respective model setup of the catchments and was available from the United States Geological Survey (USGS) 15

has a spatial resolution of 80 m.

The land use map (LANDSAT93) of Baden-W ¨urttemberg was used for the Neckar basin. Land use information for the Chirchik basin was unavailable however the whole upper Chirchik is assumed to be agricultural fields, based on the author’s experience of the region. Although this does not offer very accurate information, it is assumed to 20

be acceptable for the model.

A soil map for the Neckar catchment (B ¨UK200; scale 1:200 000) was used to identify dominant soil types in the catchment. A soil map for Chirchik basin was available from the Scientific Information Centre (SIC), Interstate Commission for Water Coordination (ICWC), with a scale of 1:200 000.

25

(8)

HESSD

Full Screen / Esc

4 HBV-IWS model

The HBV-IWS model, developed at the Department of Hydraulic Engineering of the University of Stuttgart was applied. It is based on the HBV model from the Swedish Meteorological and Hydrological Institute (SMHI) after Bergstr ¨om (1995). It is a semi-distributed, conceptual hydrological model with precipitation, air temperature, esti-5

mated potential evapotranspiration, soil information and land use input data require-ments. The HBV-IWS model consists of a snow module, a soil moisture and runoff generation routine, an evapotranspiration routine and a discharge response routine.

The snow model uses the degree day method to quantify snowmelt and snow accu-mulation. The concept is as follows:

10

MELT= Min(Snow;C_melt× (T − T T )) Snow= Snow-MELT if T > T T Snow= Snow+P MELT= 0 if T < T T (2) MELT : amount of snowmelt per day [mm/day]

SNOW : snow accumulation [mm]

T : air temperature [◦C]

T T : threshold tempoerature [◦C]

C_melt : degree day factor [mm/◦C/day]

In the soil moisture and runoff generation routine the precipitation is divided into 15

two parts; one reduces the soil moisture deficit and the other becomes the effective precipitation, which contributes to runoff generation. New rainfall first contributes to soil moisture and only when the field capacity of the soil is reached, does all water contribute to direct runoff.

The evapotranspiration module calculates actual evapotranspiration from the perma-20

(9)

HESSD

Full Screen / Esc

Interactive Discussion nent wilting point of the soil, the soil moisture of the previous time step and the

poten-tial evapotranspiration. Potenpoten-tial evapotranspiration of the region has to be calculated outside of the model and can be done using many available methods. Actual evapo-transpiration is equal to potential evapoevapo-transpiration if the soil moisture is larger than the permanent wilting point. Elsewhere it changes according to the following formula: 5

E T_A= P E_A× SM

P W P (3)

where:

SM – soil moisture, P W P – permanent wilting point, E T_A– actual evapotranspiration,

P E_A– potential evapotranspiration

The discharge response routine uses two storage compartments (reservoirs) and 10

these compartments intend to describe the discharge behaviour of a catchment as di-rect runoff and groundwater outflow. Figure 4 gives an overview of the storage concept of the HBV-IWS model. More information about HBV-IWS can be found in Hundecha and B ´ardossy (2004).

5 Model setup

15

HBV-IWS has two versions; a “grid based” and a “lumped” version. The “lumped” version is used in this study, dividing the study area into elevation bands with certain horizons. These elevation bands are the primary hydrological units and water balances are calculated for each. As a first step, the DEM was aggregated into a 1000 m spa-tial resolution from an 80 m spaspa-tial resolution using an ArcGIS desktop mapping tool 20

to decrease the number of cells within the catchment. Further, all input parameters were calculated for each cell in the catchment based on their geographic locations and elevations. Potential evapotranspiration is an input to HBV-IWS and has to be esti-mated outside the model. The Hargreaves-Samani method (Hargreaves and Samani, 1985), developed at the Utah State University, was chosen for estimation of evapotran-25

spiration, which is based on almost universally available data. Using this method, the 2216

(10)

HESSD

Full Screen / Esc

Interactive Discussion potential evapotranspiration is estimated for each cell of the catchment according to its

geographic location.

In the next step, both catchments were subdivided into elevation bands (Neckar – 100 m horizons and Chirchik – 200 m horizons). Once all the parameters for each square grid were prepared, they were averaged for each sub catchment and for each 5

zone (elevation band). Next, water balance calculations were carried out for each zone. The Neckar basin was subdivided into 59 subcatchments according to the gauging sta-tion availability whereas the Chirchik basin was subdivided into only 9 subcatchments due to the fewer gauging stations in the region. When the model is calibrated, it com-putes the runoff of each subcatchment and passes it to the next downstream gauging 10

station. Elevations in the Chirchik basin exceed 4000 m a.s.l.; in most cases glaciers exist above 3700 m a.s.l. in this region. For the regions above 3700 m a.s.l., a glacier module (described below) is therefore introduced.

6 Calibration of the model for the Neckar Basin

The HBV-IWS model was calibrated using 11 parameters through an automatic opti-15

mization algorithm called simulated annealing. The optimization was set up based on the accumulated flows of one month. The period from 1 January 1986 to 31 December 1994 was used for calibration to obtain parameter sets for each sub catchment in the Neckar basin. The model produced daily discharge values, but accumulated monthly discharges were compared against monthly observed data.

20

The correlation and explained variance are calculated to judge the performance of the model. During the first calibration, the explained variance was not good enough for small catchments whereas correlations of these catchments were acceptable. This means that the modelled and observed discharge curves have a similar shape but that the quantity of water in those discharges do not match. The reason for this is a 25

scarceness of the data. For small catchments there is almost no variability in precipita-tion since one grid of the grid based precipitaprecipita-tion distribuprecipita-tion is much bigger than some

(11)

HESSD

Full Screen / Esc

Interactive Discussion small catchments and this is also why precipitation is evenly distributed for some

catch-ments. The performance of the model for larger catchments with a larger watershed area was reasonably good for the first run of the model. As a second step, in order to eliminate major errors from minor sub catchments the optimization was set to only 5 stations for large watershed areas. The calibration showed acceptable results for 5

the Neckar basin. The performance of small catchments also suggests that the model works well enough, but that the input precipitation information is not able to represent the heterogeneity of the catchment as expected.

Monthly means give relatively reliable results. They are satisfactory, both in terms of distribution and timing. Daily discharges also give a useful result in terms of distribution 10

but the time of occurrence is not as pleasing. Daily flow distributions can be modelled using this method. Figure 8 is an example of daily modelled discharge plotted against daily observed discharge.

In addition, duration curves of modelled and observed discharges are compared. Duration curves provide information about the statistical distribution of flows.

15

Figure 9 shows a realistic daily flow duration curve. There is a difference in low flow periods in the figure. This is due to the fact that the Neckar is a highly modified river and many stretches of the river are controlled to assure minimum water level for transportation purposes.

This is why the model output shows the discharge as it was in its natural state and 20

therefore lower than the observed discharge. Comparisons of standard deviations also show how the results can be used for water management and planning purposes. Ta-ble 1 shows statistical moments computed using the daily discharges from five gauging stations for the calibration period.

7 Model calibration for the Chirchik Basin

25

The Chirchik catchment has a very different climatic and geographic situation to the Neckar basin. The elevation alone differs more than 3 times between Chirchik and

(12)

HESSD

Full Screen / Esc

Interactive Discussion Neckar basin. Discharge in the Chirchik River is much larger in summer, when no

rainfall occurs, than in winter. To be able to compute the discharge in the river for the summer season, long term snow and glacier melt has to be calculated which dominates the river flow in the summer.

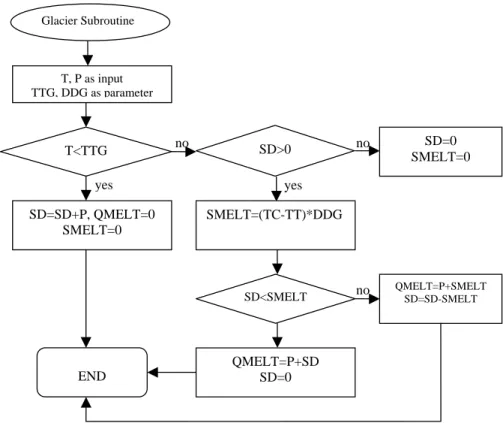

To handle the different climatic and geographical conditions, the HBV-IWS hydrolog-5

ical model was modified to include a simulation for glacial behaviour. A glacier subrou-tine concept based on the degree day method was added. The whole Chirchik basin was subdivided into 17 elevation bands, whereby the 16th and 17th band are assumed to be covered by glaciers and the glacier module is only used in these regions. The concept of the modified HBV-IWS model and the flowchart of the glacier subroutine are 10

given in Figs. 10 and 11.

Two additional parameters are added for calibrating the glacier module; the threshold temperature for glaciers and the degree day factor for glaciers. During the calibration, the objective function was set to a monthly scale.

First results of the calibration for Chirchik showed an underestimation of modelled 15

discharges compared to observation. The reason for this was found to be the underes-timation of rainfall data from the disaggregation of GPCC global data. This is reason-able since GPCC only provides two data points for whole 15 300 km2 Chirchik basin, with its catchment relief is very heterogeneous with many deep valleys. This is why it is correct to assume that the rainfall distribution among the catchment is not similar 20

to the observations. These data may have been observed from a lower region where less rainfall occurrences are recorded and taken as a representative of the surrounding area where totally different and much more rain could occur. For these reasons, the global data is found to have underestimated the rainfall data for this high mountainous region. This could easily be seen from the model output (Fig. 12).

25

As can be seen from the graphs above, the correlation of observed and modelled discharge is relatively good. This shows that the flow dynamics are computed correctly but that there is bias that is assumed to be caused by the rainfall data. In order to check the bias, observed precipitation data at the Kyzilcha station (2085 m a.s.l.) was

(13)

HESSD

Full Screen / Esc

Interactive Discussion compared with the global data that was used in this study and the comparison provided

a possible explanation for the model’s underestimation of discharge (Fig. 13).

Figure 13 clearly shows that the rainfall data is underestimated by the global data service centres for very high mountainous regions and, in turn, why the model under-estimates the discharge.

5

To get the more realistic distribution of rainfall data for a catchment like the Chirchik basin, a physical relationship for precipitation amount as a function of elevation could be investigated. The lapse rate method describes the temperature very well since a physical law behind temperature and elevation exists. Here, the lapse rate method is tested for precipitation estimation at higher regions and compared with the available 10

observed data. Since there is no standard lapse rate given for the precipitation, it was estimated using observed data obtained from globally available KNMI data. Using these station data at different elevations, a logarithmic relationship between elevation and precipitation was found and this change of precipitation was used as a rainfall lapse rate for the correction of rainfall data for the upper Chirchik basin at each grid 15

cell. The concept of lapse rate estimation for the region is illustrated in Fig. 14.

In Fig. 14, the relationship between precipitation and elevation is weaker than be-tween temperature and elevation. This is due to the topography and the location of the observation stations. The Chirchik basin consists of many deep valleys and therefore data precipitation data from a particular observation point correspond to only the very 20

local weather. In contrast, point temperature measurements are representative for a slightly larger surrounding area. Some points in Fig. 14 are located in a location where the rainfall is affected by the wind direction. Accordingly, the rainfall amount differs from the location to location. The logarithmic relationship is assumed to assess the lapse rate more precisely. Using this rate, precipitation was re-distributed for the whole 25

catchment area and was applied to the model. The model was then calibrated again without no further modification. Model performance with corrected precipitation was relatively good. Correlation of the observed and modelled discharge was high and the efficiency was also satisfactory. Results with the corrected rainfall data are illustrated

(14)

HESSD

Full Screen / Esc

Interactive Discussion in Figs. 15 and 16. They support the lapse rate method used for rainfall estimation in

this study.

Daily observed discharge data was not available for Chirchik basin and therefore monthly average discharge values were used in the calibration. The model computes daily discharges and accumulated monthly values are compared against observed 5

data. Daily flow duration curves are not compared against daily observed discharge values since the observed data is not available. However, since the model computed daily discharges, it was still possible to plot flow duration curves of monthly discharge values. These show very good results and may be employed in water resources plan-ning and management issues. The example given in Fig. 17 is the duration curve of 10

monthly modelled discharge plotted against monthly observed data for the calibration period at the Chatkal station.

Since a good result for the monthly flow duration curve is achieved, it can be as-sumed that a reliable daily duration curve can be achieved, which can be used for management and planning issues. The type of information computed above is of great 15

significance in planning issues. For example, one could simply read off river character-istics from the plot e.g., when the flow is above or below a certain value.

8 Conclusions

Model results for the Neckar basin are very good considering the coarse data that was used in this research. Freely offered global data is based on grid cells and for 20

small catchments, spatial variability may not necessarily be incorporated. This is why model performance for small sub catchments may not be as good as expected; due to precipitation uncertainty in small catchments. However, when modelling larger scales, global data are more realistic and the model has a relatively good performance. This was confirmed when the optimization was set to five main gauging stations with a large 25

drainage area. In addition, model performance increased with the increase of drainage area.

(15)

HESSD

Full Screen / Esc

Interactive Discussion Disaggregated precipitation data for the Chirchik basin resulted in underestimation

due to uncertainties in the global data used for this region, particularly on account of the high elevations. The data from global databases was more successful in low-lying re-gions where observation stations were available. Using disaggregated data, the model correlated observed and modelled discharges very well, however there was volume 5

bias attributable to the rainfall underestimation. The lapse rate law for precipitation was also found to be suitable for such a region since the model calibration with corrected rainfall data gave very good results. In general, it can be said that the amount of rainfall increases with elevation.

Using this model, flow duration curves of the measured daily discharges can be 10

reproduced accurately enough for management purposes. It would even be possible to use daily modelled discharges for many purposes since the duration curves of daily discharge in the Neckar basin gave good results. Given that the monthly duration flow duration curves proved to be relatively good in Chirchik basin, it is appropriate to assume that daily flow distributions also give reliable results. Using this method 15

of modelling, daily distributions can be modelled, even if the exact timing is not very good. It is difficult to assume the discharge for a specific time span using this method, but overall daily distributions can be achieved accurately. For monthly scale modelling, the model is relatively good for both flow distribution and time representation. The study not only gives useful results for water resources management and planning issues but 20

also shows the potential to model water balances in catchments where only globally available data is obtainable. Availability of more local observations in the catchments improves simulations and reliability significantly.

References

Alcamo, J., D ¨oll, P., Heinrichs, T., Kaspar, F., Lehner, B., R ¨osch, T., and Siebert, S.:

Develop-25

ment and testing of the WaterGAP 2 global model of water use and availability, Hydrol. Sci. J., 48(3), 317–337, 2003.

(16)

HESSD

Full Screen / Esc

Interactive Discussion Alcamo, J., Heinrichs, T., and R ¨osch, T.: World Water in 2025 – Global Modelling and scenario

analysis for the World Commission on Water for the 21st Century, Center for Environmental Systems Research, University of Kassel, Germany, 2000.

Falkenmark, M. and Lannerstad, M.: Consumptive water use to feed humanity – curing a blind spot, Hydrol. Earth Syst. Sci., 9, 15–28, 2005.

5

Hundecha, Y. and B ´ardossy, A.: Modeling on the effect of land use changes on the runoff

gen-eration of a river basin through parameter regionalization of a watershed model, J. Hydrol., 292, 281–295, 2003.

Hargreaves, G. H. and Samani, Z. A.: Reference Crop Evapotranspiration from Temperature, Agricultural Engineering Department, Utah State University, Logan, 1985.

10

Lehner, B., Henrichs, T., D ¨oll, P., and Alcamo, J.: EuroWasser – Model-based assessment of European water resources and hydrology in the face of global change, Kassel World Water Series 5, Center for Environmental Systems Research, University of Kassel, 2001.

Nelson, T. R. and Burtis, M.: The Global Historical Climatology Network – GHCN, Oak Ridge National Laboratory, 1995.

15

Rudolf, B., Fuchs, T., Schneider, U., and Meyer-Christoffer, A.: Introduction of the Global Pre-cipitation Climatology Centre (GPCC), Deutscher Wetterdienst, Offenbach a.M., Germany, 2003.

Sivapalan, M., Takeuchi, K., Franks, S. W., Gupta, V. K., Karambiri, H., Lakshmi, V., Liang, X., McDonell, J. J., Mendiondo, E. M., O’Connell, P. E., Oki, T., Pomeroy, J. W., Shertzer,

20

D., Uhlenbrook, S., and Zehe, E.: IAHS Decade on Predictions in Ungauged Basins (PUB), 2003–2012: Shaping an exciting future for the hydrological sciences, Hydrol. Sci. J., 48(6), 857–880, 2003.

United States Geological Survey (USGS): Shuttle Radar Topography Mission (SRTM), 2003. UNDP: Human Development Report 2003, Millennium Development Goals: A compact among

25

(17)

HESSD

Full Screen / Esc

Table 1. Statistical moments of observed and modelled discharges of 5 selected gauging

stations in (m3/s).

Gauging Stations Mean StDev Drainage Area (km2)

Obs Mod Obs Mod

Plochingen–Fils 51.83 59.25 48.89 39.53 3723 Vaihingen–Enz 20.72 12.67 18.00 7.80 1653 Elpershofen–Jagst 17.51 19.53 20.88 20.36 1810 Kocherstetten–Kocher 24.80 24.98 28.56 17.34 1930 Heidelberg–Neckar 239.93 211.13 166.11 131.67 13 300 2224

(18)

HESSD

Full Screen / Esc

Printer-friendly Version Interactive Discussion Value 78 - 192 192,1 - 263 263,1 - 325 325,1 - 384 384,1 - 439 439,1 - 488 488,1 - 542 542,1 - 609 609,1 - 674 674,1 - 738 738,1 - 827 827,1 - 1.022

(19)

HESSD

Full Screen / Esc

Printer-friendly Version Interactive Discussion Legend rivers Charvak 731 - 1.312 1.312,1 - 1.676 1.676,1 - 1.979 1.979,1 - 2.254 2.254,1 - 2.524 2.524,1 - 2.798 2.798,1 - 3.073 3.073,1 - 3.347 3.347,1 - 3.645 3.645,1 - 4.376

Fig. 2. Chirchik basin elevation map in Uzbekistan in m a.s.l.

(20)

HESSD

Full Screen / Esc

Printer-friendly Version Interactive Discussion -30 -20 -10 0 10 20 30 0 30 60 90 120 150 180 210 240 270 300 330 360 Days Temperature in °C Observed at Rottweil Calculated Rottweil Fig. 3. Comparison of observed and calculated daily temperature at Rottweil station.

(21)

HESSD

Full Screen / Esc

Printer-friendly Version Interactive Discussion -10 -5 0 5 10 15 20 1 2 3 4 5 6 7 8 9 10 11 12

Month

Temperature °C Calculated Rottweil Observed Rottweill

Fig. 4. Comparison of observed and calculated monthly temperature at Rottweil station.

(22)

HESSD

Full Screen / Esc

EGU

SM - soil moisture, PWP - permanent wilting point, ET_A - actual evapotranspiration, PE_A- potential evapotranspiration

The discharge response routine uses two storage compartments (reservoirs) and these compartments intend to describe the discharge behaviour of a catchment as direct runoff and groundwater outflow. Figure 4 gives an overview of the storage concept of the HBV-IWS model. More information about HBV-IWS can be found in Hundecha and Bárdossy (2004).

5. Model Setup

HBV-IWS has two versions; a ‘grid based’ and a ‘lumped’ version. The “lumped” version is used in this study, dividing the study area into elevation bands with certain horizons. These elevation bands are the primary hydrological units and water balances are calculated for each. As a first step, the DEM was aggregated into a 1000 meter spatial resolution from an 80 meter spatial resolution using an ArcGIS desktop mapping tool to decrease the number of cells within the catchment. Further, all input parameters were calculated for each cell in the catchment based on their geographic locations and elevations. Potential evapotranspiration is an input to HBV-IWS and has to be estimated outside the model. The Hargreaves-Samani method (Hargreaves and Samani, 1985), developed at the Utah State University, was chosen for estimation of evapotranspiration, which is based on almost universally

where:

1

S , S₂ : water level in the upper and lower reservoirs [mm],

1

k , k_perc, k₂ : storage constants for upper reservoir, percolation between reservoirs and lower reservoirsrespectively

0

Q, Q₁, Q₂, Q_perc: discharge components[m³/s]

A : catchment area [km²]

86.4 : scaling factor from mm to m³/s [(s mm km²)/(m³d)]

Maxbas : calibration parameter

⎪⎩ ⎪ ⎨ ⎧ − ⋅ = ) ( 1 0 1 0 0 L S k Q S1<L 4 . 86 1 1 1 1 A S k Q = ⋅ ⋅ 4 . 86 1 1 A S k Q perc perc = ⋅ ⋅ 4 . 86 1 2 2 2 A S k Q = ⋅ ⋅

(

t,Maxbas

) (

Q0 Q1 Q2

)

f Q_tot = ⋅ + + L S1> (4) (5) (6) (7) (8) 2 Q perc Q 1 Q 0 Q

Fig. 5; Illustration of HBV discharge response routine

Fig. 5. Illustration of HBV discharge response routine.

(23)

HESSD

Full Screen / Esc

Printer-friendly Version Interactive Discussion 0 30 60 90 120 150

Jan-86 Jan-87 Jan-88 Jan-89 Jan-90 Jan-91 Jan-92 Jan-93 Jan-94

Time D is c har ge [ m ³/ s ] modeled observed

Fig. 6. Monthly discharge comparison at Untergriesheim (calibration period).

(24)

HESSD

Full Screen / Esc

Jan-95 Jan-96 Jan-97 Jan-98 Jan-99

Time D isch a rg e [ m ³/ s ] modeled observed

(25)

HESSD

Full Screen / Esc

Printer-friendly Version Interactive Discussion 0 100 200 300 400 500 600 0 500 1000 1500 2000 2500 3000 Time Discharge (m³/s) mod obs

Fig. 8. Comparison of modeled and observed daily discharge at Untergrisheim-Jagst.

(26)

HESSD

Full Screen / Esc

Printer-friendly Version Interactive Discussion 0 250 500 750 1000 1250 1500 0 50 100 150 200 250 300 350 Days Discharge [m³/s] modeled observed

(27)

HESSD

Full Screen / Esc

Printer-friendly Version Interactive Discussion 2

Q

perc

Q

1

Q

0

Q

g

Q

Glasier

Subroutine

Fig. 10. Illustration of storage compartments in the modified version of HBV Model.

Q_g – water coming from glacier melt, Q₀– water leaving from upper outlet of upper reservoir,

Q₁ – water leaving from lower outlet of upper reservoir, Q_perc– water percolating from upper

reservoir to lower reservoir, Q₂– water leaving from lower reservoir.

(28)

HESSD

Full Screen / Esc

Printer-friendly Version Interactive Discussion T, P as input TTG, DDG as parameter T<TTG yes SD=SD+P, QMELT=0 SMELT=0 no SD>0 yes SMELT=(TC-TT)*DDG no SD=0 SMELT=0 SD<SMELT QMELT=P+SD SD=0 no QMELT=P+SMELT SD=SD-SMELT END Glacier Subroutine

Fig. 11. Flowchart of the Glacier subroutine in HBV-IWS Model.

T – actual temperature [◦C], P – precipitation [mm], TTG - threshold temperature for glacier [◦C],

DDG –degree day factor for glacier [mm/◦C/day], SD – snow depth [mm], QMELT – discharge

(29)

HESSD

Full Screen / Esc

Jan-91 Feb-92 Mar-93 Apr-94 May-95

Time

Discharge [m³/s]

modeled observed

Fig. 12. Comparison of observed and modeled monthly discharge at Mullalla-Pskem without

precipitation correction.

(30)

HESSD

Full Screen / Esc

Printer-friendly Version Interactive Discussion 0 30 60 90 120 150 1 2 3 4 5 6 7 8 9 10 11 12 Months Precipitation [mm] global observed

Fig. 13. Observed and modeled monthly precipitation comparison at Kyzilcha meteo-station

(31)

HESSD

Full Screen / Esc

Printer-friendly Version Interactive Discussion y = 161.51Ln(x) - 644.16 0 100 200 300 400 500 600 700 800 900 0 500 1000 1500 2000 2500 Elevation [m.a.s.l] Precipitation [mm]

Fig. 14. Precipitation vs elevation relationship.

(32)
