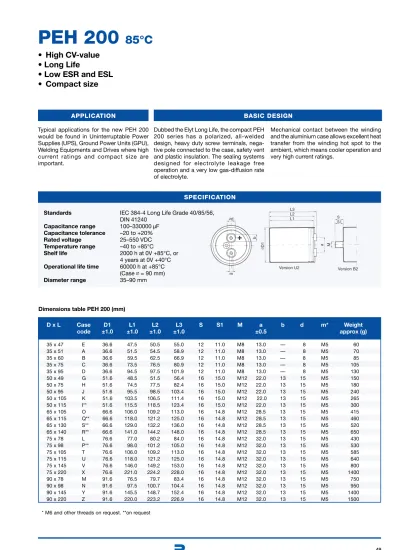

APPLICATION BASIC DESIGN Typical applications for the new PEH 200
would be found in Uninterruptable Power Supplies (UPS), Ground Power Units (GPU), Welding Equipments and Drives where high current ratings and compact size are important.
Dubbed the Elyt Long Life, the compact PEH 200 series has a polarized, all-welded design, heavy duty screw terminals, nega- tive pole connected to the case, safety vent and plastic insulation. The sealing systems designed for electrolyte leakage free operation and a very low gas-diffusion rate of electrolyte.
Mechanical contact between the winding and the aluminium case allows excellent heat transfer from the winding hot spot to the ambient, which means cooler operation and very high current ratings.
Standards IEC 384-4 Long Life Grade 40/85/56, DIN 41240
Capacitance range 100–330000 µF Capacitance tolerance –20 to +20%
Rated voltage 25–550 VDC
Temperature range –40 to +85°C
Shelf life 2000 h at 0V +85°C, or 4 years at 0V +40°C Operational life time 60000 h at +85°C
(Case ∅ = 90 mm) Diameter range 35–90 mm
SPECIFICATION
Dimensions table PEH 200 (mm)
D x L Case D1 L1 L2 L3 S S1 M a b d m* Weight
code ±1.0 ±1.0 ±1.0 ±1.0 ±0.5 approx (g)
35 x 47 E 36.6 47.5 50.5 55.0 12 11.0 M8 13.0 — 8 M5 60
35 x 51 A 36.6 51.5 54.5 58.9 12 11.0 M8 13.0 — 8 M5 70
35 x 60 B 36.6 59.5 62.5 66.9 12 11.0 M8 13.0 — 8 M5 85
35 x 75 C 36.6 73.5 76.5 80.9 12 11.0 M8 13.0 — 8 M5 105
35 x 95 D 36.6 94.5 97.5 101.9 12 11.0 M8 13.0 — 8 M5 130
50 x 49 G 51.6 48.5 51.5 56.4 16 15.0 M12 22.0 13 15 M5 150
50 x 75 H 51.6 74.5 77.5 82.4 16 15.0 M12 22.0 13 15 M5 180
50 x 95 J 51.6 95.5 98.5 103.4 16 15.0 M12 22.0 13 15 M5 240
50 x 105 K 51.6 103.5 106.5 111.4 16 15.0 M12 22.0 13 15 M5 265
50 x 115 I** 51.6 115.5 118.5 123.4 16 15.0 M12 22.0 13 15 M5 300
65 x 105 O 66.6 106.0 109.2 113.0 16 14.8 M12 28.5 13 15 M5 415
65 x 115 Q** 66.6 118.0 121.2 125.0 16 14.8 M12 28.5 13 15 M5 460
65 x 130 S** 66.6 129.0 132.2 136.0 16 14.8 M12 28.5 13 15 M5 520
65 x 140 R** 66.6 141.0 144.2 148.0 16 14.8 M12 28.5 13 15 M5 650
75 x 78 L 76.6 77.0 80.2 84.0 16 14.8 M12 32.0 13 15 M5 430
75 x 98 P** 76.6 98.0 101.2 105.0 16 14.8 M12 32.0 13 15 M5 530
75 x 105 T 76.6 106.0 109.2 113.0 16 14.8 M12 32.0 13 15 M5 585
75 x 115 U 76.6 118.0 121.2 125.0 16 14.8 M12 32.0 13 15 M5 640
75 x 145 V 76.6 146.0 149.2 153.0 16 14.8 M12 32.0 13 15 M5 800
75 x 220 X 76.6 221.0 224.2 228.0 16 14.8 M12 32.0 13 15 M5 1400
90 x 78 M 91.6 76.5 79.7 83.4 16 14.8 M12 32.0 13 15 M5 750
90 x 98 N 91.6 97.5 100.7 104.4 16 14.8 M12 32.0 13 15 M5 950
90 x 145 Y 91.6 145.5 148.7 152.4 16 14.8 M12 32.0 13 15 M5 1400
90 x 220 Z 91.6 220.0 223.2 226.9 16 14.8 M12 32.0 13 15 M5 1500
* M6 and other threads on request. **on request
15000 35 x 51 A 11.9 28.7 19.0 25 21 12 PEH200HA5150M
22000 35 x 75 C 15.2 34.3 24.4 17 14 12 PEH200HC5220M
33000 35 x 95 D 17.8 38.0 28.1 12 10 12 PEH200HD5330M
47000 50 x 75 H 20.2 43.3 30.1 11 10 16 PEH200HH5470M
68000 50 x 95 J 23.4 47.4 34.6 8 7 16 PEH200HJ5680M
100000 50 x 105 K 23.9 46.1 34.7 7 7 16 PEH200HK6100M
150000 65 x 105 O 26.3 50.0 37.2 7 7 16 PEH200HO6150M
220000 75 x 105 T 35.0 63.6 49.5 5 5 17 PEH200HT6220M
330000 75 x 145 V 40.0 73.1 56.9 4 4 17 PEH200HV6330M
6800 35 x 51 A 9.9 27.2 18.1 33 25 12 PEH200KA4680M
10000 35 x 60 B 12.0 31.5 21.4 23 18 12 PEH200KB5100M
15000 35 x 75 C 14.6 36.1 25.5 16 12 12 PEH200KC5150M
22000 35 x 95 D 17.1 39.8 29.2 12 9 12 PEH200KD5220M
33000 50 x 75 H 18.9 41.1 28.8 11 9 16 PEH200KH5330M
47000 50 x 95 J 22.1 46.3 33.6 8 7 16 PEH200KJ5470M
68000 65 x 105 O 25.2 49.9 35.6 7 7 16 PEH200KO5680M
100000 65 x 105 O 24.9 46.3 36.9 8 8 16 PEH200KO6100M
150000 75 x 115 U 35.7 67.7 51.2 5 4 17 PEH200KU6150M
220000 75 x 145 V 34.4 62.3 48.9 5 5 17 PEH200KV6220M
4700 35 x 51 A 9.0 26.8 18.0 32 21 12 PEH200MA4470M
6800 35 x 75 C 11.5 32.7 23.5 21 14 12 PEH200MC4680M
10000 35 x 95 D 13.6 36.0 27.0 15 10 12 PEH200MD5100M
15000 50 x 75 H 16.1 37.3 26.5 14 11 16 PEH200MH5150M
22000 50 x 95 J 19.0 42.0 30.9 10 8 16 PEH200MJ5220M
33000 65 x 105 O 22.8 45.9 34.8 10 8 16 PEH200MO5330M
47000 65 x 105 O 21.8 42.7 32.0 10 9 16 PEH200MO5470M
68000 75 x 115 U 31.5 61.3 46.8 6 5 17 PEH200MU5680M
100000 75 x 145 V 34.3 62.2 50.3 5 5 17 PEH200MV6100M
1500 35 x 51 A 5.7 18.0 12.1 92 63 12 PEH200PA4150M
2200 35 x 60 B 7.0 21.3 14.7 63 44 12 PEH200PB4220M
3300 35 x 75 C 8.7 25.0 17.8 43 30 12 PEH200PC4330M
4700 35 x 95 D 10.3 28.9 21.1 31 21 12 PEH200PD4470M
6800 50 x 75 H 12.7 30.4 21.5 33 27 16 PEH200PH4680M
10000 50 x 95 J 15.3 34.7 25.6 23 19 16 PEH200PJ5100M
15000 50 x 105 K 17.3 37.6 27.9 17 14 16 PEH200PK5150M
22000 65 x 105 O 19.3 38.7 30.1 15 13 16 PEH200PO5220M
33000 75 x 105 T 26.3 53.0 39.8 10 8 17 PEH200PT5330M
47000 75 x 145 V 30.8 60.5 47.3 7 6 17 PEH200PV5470M
330 35 x 51 A 2.2 13.5 8.7 330 170 12 PEH200SA3330M
470 35 x 60 B 2.7 15.9 10.6 240 120 12 PEH200SB3470M
680 35 x 75 C 3.4 18.7 13.0 160 84 12 PEH200SC3680M
1000 35 x 95 D 4.1 21.2 15.6 110 58 12 PEH200SD4100M
1000 50 x 49 G 4.3 20.7 12.6 120 69 16 PEH200SG4100M
1500 50 x 75 H 5.9 28.7 19.5 78 42 16 PEH200SH4150M
2200 50 x 95 J 7.3 32.5 23.2 54 29 16 PEH200SJ4220M
3300 65 x 105 O 10.0 39.8 29.4 38 22 16 PEH200SO4330M
3300 75 x 78 L 10.5 43.8 29.6 38 22 17 PEH200SL4330M
4700 65 x 105 O 11.3 38.2 27.2 29 18 16 PEH200SO4470M
* Maximum values. ** 2 m/s forced air, studmounted on 3°C/W aluminium chassis.
Items marked in bold, are available on short lead-times
ARTICLE TABLE PEH 200 (85°C)
CR D x L Case IRAC* IRAC* IRAC* ESR* ESR* LESL Article
code 85°C 50°C 40°C 20°C 20°C Approx. code
** 1st block
100 Hz 10 kHz 10 kHz 100 Hz 100 kHz
µF mm A A A mΩΩΩΩΩ mΩΩΩΩΩ nH
25 VDC (UR )
40 VDC (UR )
63 VDC (UR )
100 VDC (UR )
250 VDC (UR )
4700 90 x 78 M 12.7 44.2 30.4 30 18 16 PEH200SM4470M
6800 75 x 105 T 14.7 51.5 36.5 20 12 17 PEH200ST4680M
6800 90 x 98 N 15.8 52.1 37.3 21 13 16 PEH200SN4680M
10000 75 x 145 V 18.0 59.0 44.0 14 9 17 PEH200SV5100M
12000 75 x 145 V 18.8 58.6 43.6 14 9 17 PEH200SV512AM
15000 75 x 220 X 20.6 61.6 49.2 10 6 17 PEH200SX5150M
15000 90 x 145 Y 21.8 60.1 45.5 12 8 16 PEH200SY5150M
220 35 x 51 A 2.0 13.7 8.8 360 170 12 PEH200UA3220M
330 35 x 60 B 2.6 16.6 11.0 240 110 12 PEH200UB3330M
470 35 x 75 C 3.2 19.3 13.4 170 79 12 PEH200UC3470M
680 35 x 95 D 3.8 21.9 16.0 120 55 12 PEH200UD3680M
680 50 x 49 G 4.0 20.7 12.6 130 66 16 PEH200UG3680M
1000 50 x 75 H 5.5 28.8 19.5 85 41 16 PEH200UH4100M
1500 50 x 95 J 6.8 32.9 23.4 57 28 16 PEH200UJ4150M
2200 65 x 105 O 9.4 39.8 29.2 41 21 16 PEH200UO4220M
2200 75 x 78 L 9.8 43.5 29.4 41 21 17 PEH200UL4220M
3300 65 x 105 O 10.9 38.6 27.5 31 17 16 PEH200UO4330M
3300 90 x 78 M 13.1 54.0 37.0 28 15 16 PEH200UM4330M
4700 75 x 115 U 14.5 54.7 39.5 20 11 17 PEH200UU4470M
4700 90 x 98 N 15.0 51.3 36.7 22 13 16 PEH200UN4470M
6800 75 x 145 V 16.8 57.0 42.3 15 8 17 PEH200UV4680M
10000 75 x 220 X 19.4 60.8 48.5 11 7 17 PEH200UX5100M
10000 90 x 145 Y 23.3 75.2 56.9 11 6 16 PEH200UY5100M
15000 90 x 220 Z 27.3 79.8 64.4 8 5 16 PEH200UZ515AM
220 35 x 51 A 2.1 14.6 9.3 330 150 12 PEH200XA3220M
330 35 x 75 C 2.7 17.0 12.0 220 97 12 PEH200XC3330M
470 35 x 95 D 3.3 19.1 14.2 150 69 12 PEH200XD3470M
470 50 x 49 G 3.6 20.9 12.8 160 78 16 PEH200XG3470M
680 50 x 75 H 4.7 26.8 18.4 110 51 16 PEH200XH3680M
1000 50 x 95 J 5.9 31.7 22.8 76 35 16 PEH200XJ4100M
1500 50 x 105 K 7.1 34.1 24.7 52 25 16 PEH200XK4150M
2200 65 x 105 O 9.6 36.7 26.1 38 20 16 PEH200XO4220M
2200 75 x 78 L 10.0 42.7 28.8 38 20 17 PEH200XL4220M
3300 75 x 105 T 12.8 52.5 37.4 25 13 17 PEH200XT4330M
3300 90 x 78 M 13.3 52.6 36.0 26 14 16 PEH200XM4330M
4700 75 x 145 V 15.2 57.6 43.9 19 11 17 PEH200XV4470M
4700 90 x 98 N 16.6 62.4 44.4 19 10 16 PEH200XN4470M
6800 90 x 145 Y 20.9 74.8 57.2 14 8 16 PEH200XY4680M
6800 75 x 220 X 17.4 58.9 47.0 14 8 17 PEH200XX4680M
220 35 x 51 A 2.2 11.4 9.6 310 130 12 PEH200VA3220M
330 35 x 75 C 2.8 14.3 12.6 210 90 12 PEH200VC3330M
470 35 x 95 D 3.4 16.5 14.8 140 63 12 PEH200VD3470M
470 50 x 49 G 3.7 15.0 12.7 150 73 16 PEH200VG3470M
680 50 x 75 H 4.9 21.2 18.3 110 55 16 PEH200VH3680M
1000 50 x 95 J 5.9 24.2 21.3 76 38 16 PEH200VJ4100M
1500 65 x 105 O 9.1 49.1 35.1 53 27 16 PEH200VO415AQ
1500 75 x 78 L 8.8 34.0 29.0 52 27 17 PEH200VL4150M
2200 65 x 105 O 9.6 29.1 25.6 39 21 16 PEH200VO4220M
2200 90 x 78 M 11.8 44.1 37.1 36 19 16 PEH200VM4220M
3300 65 x 105 O 11.0 30.5 26.7 29 16 16 PEH200VO433AM
3300 75 x 115 U 13.8 52.0 45.7 22 10 17 PEH200VU433AQ
3300 90 x 98 N 14.9 52.8 45.2 25 13 16 PEH200VN4330M
* Maximum values. ** 2 m/s forced air, studmounted on 3°C/W aluminium chassis. Items marked in bold, are available on short lead-times 350 VDC (UR )
385 VDC (UR )
400 VDC (UR )
3300 75 x 105 T 13.0 41.5 36.3 26 14 17 PEH200VT4330M
4700 75 x 145 V 15.6 57.0 42.5 18 10 17 PEH200VV447AM
6800 75 x 220 X 17.6 51.2 47.7 13 8 17 PEH200VX4680M
6800 90 x 145 Y 21.4 64.1 56.8 13 7 16 PEH200VY4680M
10000 90 x 220 Z 24.7 69.2 64.0 9 5 16 PEH200VZ5100M
150 35 x 51 A 1.8 12.1 7.8 400 170 12 PEH200OA3150M
220 35 x 75 C 2.3 14.3 10.3 270 110 12 PEH200OC3220M
330 35 x 95 D 2.9 16.3 12.3 180 76 12 PEH200OD3330M
330 50 x 49 G 3.2 20.4 12.6 190 80 16 PEH200OG3330M
470 50 x 75 H 4.2 24.8 17.0 140 62 16 PEH200OH3470M
680 50 x 95 J 5.1 28.1 20.4 96 44 16 PEH200OJ3680M
1000 50 x 105 K 6.3 32.0 23.2 67 31 16 PEH200OK4100M
1500 65 x 105 O 8.8 38.9 28.4 47 23 16 PEH200OO4150M
1500 75 x 78 L 9.1 42.3 28.5 47 23 17 PEH200OL4150M
2200 75 x 105 T 11.5 51.6 37.0 32 16 17 PEH200OT4220M
2200 90 x 78 M 12.2 52.7 36.0 33 17 16 PEH200OM4220M
2700 65 x 105 O 12.4 57.3 40.1 24 10 16 PEH200OO427AM
3300 75 x 145 V 14.0 57.5 43.7 22 11 17 PEH200OV4330M
3300 90 x 98 N 15.4 61.9 44.0 22 12 16 PEH200ON4330M
4700 75 x 220 X 15.7 57.6 46.8 16 8 17 PEH200OX4470M
4700 90 x 145 Y 18.2 62.2 47.5 17 9 16 PEH200OY4470M
8200 90 x220 Z 23.8 77.3 63.1 10 5 16 PEH200OZ4820M
150 35 x 51 A 2.0 14.6 9.3 350 150 12 PEH200YA3150M
220 35 x 75 C 2.5 16.8 11.9 240 99 12 PEH200YC3220M
330 35 x 95 D 3.1 19.4 14.5 160 66 12 PEH200YD3330M
330 50 x 49 G 3.5 20.8 12.7 170 75 16 PEH200YG3330M
470 50 x 75 H 4.5 25.5 17.5 120 58 16 PEH200YH3470M
680 50 x 95 J 5.5 28.8 20.8 86 41 16 PEH200YJ3680M
1000 50 x 105 K 6.7 32.7 23.6 60 29 16 PEH200YK4100M
1500 65 x 105 O 9.3 39.2 28.2 43 22 16 PEH200YO4150M
1500 75 x 78 L 9.6 42.3 28.5 43 22 17 PEH200YL4150M
1800 65 x 105 O 10.6 47.8 34.0 43 22 17 PEH200YO418AM
2200 75 x 105 T 12.1 50.1 35.6 29 15 17 PEH200YT4220M
2200 90 x 78 M 12.7 52.4 35.8 30 16 16 PEH200YM4220M
3300 75 x 115 U 14.2 52.5 37.7 30 16 17 PEH200YU433CM
3300 75 x 145 V 14.7 57.3 43.7 20 10 17 PEH200YV4330M
3300 90 x 98 N 16.1 61.9 43.9 21 11 16 PEH200YN4330M
4700 75 x 145 V 17.9 68.3 50.4 14 7 17 PEH200YV447BM
4700 75 x 220 X 16.8 59.3 47.6 14 8 17 PEH200YX4470M
4700 90 x 145 Y 18.9 61.4 46.9 16 9 16 PEH200YY4470M
6000 75 x 220 X 18.5 60.5 47.8 12 7 17 PEH200YX460BQ
8200 90 x 220 Z 24.9 77.7 63.4 10 5 16 PEH200YZ4820M
100 35 x 51 A 1.5 6.1 3.9 1000 590 12 PEH200ZA3100M
150 35 x 60 B 1.9 7.5 4.9 670 390 12 PEH200ZB3150M
220 35 x 75 C 2.3 8.4 5.8 505 310 12 PEH200ZC3220M
220 50 x 49 G 2.5 10.1 6.1 520 320 12 PEH200ZG3220M
330 35 x 95 D 2.9 10.7 7.7 300 180 12 PEH200ZD3330M
470 50 x 75 H 4.2 15.8 10.5 220 130 16 PEH200ZH3470M
680 50 x 95 J 5.1 18.4 12.8 150 90 16 PEH200ZJ3680M
1000 65 x 105 O 6.8 21.4 15.5 130 79 16 PEH200ZO4100M
1500 75 x 105 T 9.2 29.8 21.0 82 52 17 PEH200ZT4150M
1800 65 x 105 O 10.6 40.9 28.2 94 29 16 PEH200ZO418HM
2200 75 x 145 V 11.1 33.7 25.1 58 38 17 PEH200ZV4220M
3300 75 x 220 X 12.8 36.5 29.0 38 25 17 PEH200ZX4330M
* Maximum values. ** 2 m/s forced air, studmounted on 3°C/W aluminium chassis. Items marked in bold, are available on short lead-times ARTICLE TABLE PEH 200 (85°C)
CR D x L Case IRAC* IRAC* IRAC* ESR* ESR* LESL Article
code 85°C 50°C 40°C 20°C 20°C Approx. code
** 1st block
100 Hz 10 kHz 10 kHz 100 Hz 100 kHz
µF mm A A A mΩΩΩΩΩ mΩΩΩΩΩ nH
400 VDC (UR )
420 VDC (UR )
450 VDC (UR )
500 VDC (UR )
R
* Maximum values. ** 2 m/s forced air, studmounted on 3°C/W aluminium chassis.
3300 90 x 145 Y 15.7 46.9 35.4 38 24 16 PEH200ZY4330M
5600 90 X 220 Z 19.6 53.4 42.6 25 17 16 PEH200ZZ4560M
680 65 x 105 O 6.6 21.1 15.4 160 110 16 PEH200TO3680M
1000 65 x 105 O 8.0 25.2 17.9 120 76 16 PEH200TO4100M
1200 90 x 78 M 10.2 33.7 22.6 97 63 16 PEH200TM412AM
1200 75 x 105 T 9.5 30.5 21.6 96 62 17 PEH200TT4120M
1500 75 x 145 V 10.6 32.3 24.4 77 49 17 PEH200TV4150M
1800 75 x 145 V 11.6 35.3 26.3 66 42 17 PEH200TV4180M
2200 75 x 220 X 11.1 29.4 24.1 65 45 17 PEH200TX4220M
2700 75 x 220 X 13.4 37.8 30.1 45 29 17 PEH200TX4270M
2700 90 x 145 Y 15.7 44.4 33.7 47 30 16 PEH200TY4270M
550 VDC (UR )
ESR as a function of ambient temperature (Ta) at f = 100 kHz. k = RESR (Ta)/RESR (20°C) The capacitance vs ambient temperature
(Ta) at f = 100 Hz
-55 -40 -20 0 20 40 60 80 100 Ta(C) k
1.3
10 V 160 V 1.1
1.2
1.0
0.9
0.8
0.7
0.6
0.5
10-63 V 100 V
250-450 V 250 V -450 V
16-63 V
10 V 160 V
100 V
-55 -40 -20 0 20 40 60 80 100
Ta(C) k
102
2 101
100
10-1
1 1
2
UR ≤ 63 VDC Curve 1: Ø ≥ 65 mm Curve 2: Ø <65 mm
-55 -40 -20 0 20 40 60 80 100
Ta(C) k
102
2 101
100
10-1 1
1 2
UR > 63 VDC Curve 1: Ø > 65 mm Curve 2: Ø =50 mm Curve 3: Ø =35 mm
3 3
TECHNICAL DATA PEH 200 (85°C)
Increased over-voltage capability
Most power electronics applications of today will be exposed to over-voltages, like transients on the mains. Even when using a mains filter, the electrolytic capacitors could be exposed to current pulses that can over-charge the capacitors. The over-charging causes over- voltages and heat dissipation in the capacitors. This is why Evox Rifa has introduced a new method to define the capacitors capability to withstand a sequence of over-charging pulses.
Test Method
The capacitors are tested according to the multi-pulse test procedure. Each test pulse, every 90 seconds, consists of twice the charge of the capacitor, Q = 2xCRxUR. See example below for the PEH200, 550 VDC capacitors.
Example:
Article: PEH200TY4270M UR: 550 Volt
CR: 2700µF Case: 90 x 145 mm
-200 0 200 400 600 800 1000 1200 1400 1600 1800 2000
-2000 -1000 0 1000 2000 3000 4000 5000 6000
time( s) I(A)
-100 100 300 500 700 900
U(V)
Test Pulse
U(V) I(A)
RELIABILITY
The failure rate is derived from our periodic test results. The failure rate (λR) is therefore only given at test temperature for life tests.
An estimation is also given at 60°C. The expected failure rate for this capacitor range is based on our periodic test results for capacitors with structural similarity.
Ta Failure rate per hour 85°C 1 x 10-6
60°C 1 x 10-7
Failure rate per hour for catastrophic plus parametric failures.
OPERATIONAL DATA Please see operational lifetime section, page 57.
Rth – short form table versus chassis area and air speed
STUDMOUNTED CLIPMOUNTED
D x L Case Rthhs = 3°C/W Rthhs = 2°C/W Rthhs = 3°C/W Rthhs = 2°C/W
code (0.5 m/s) (0.5 m/s) (2.0 m/s) (2.0 m/s) (0.5 m/s) (2.0 m/s)
35 x 47 E 5.6 5.3 4.5 4.4 11.9 8.3
35 x 51 A 5.6 5.3 4.5 4.4 10.6 7.4
35 x 60 B 5.4 5.1 4.4 4.3 9.8 7.0
35 x 75 C 5.3 5.1 4.4 4.3 9.2 6.7
35 x 95 D 5.3 5.1 4.4 4.3 8.9 6.7
50 x 49 G 3.3 2.9 2.8 2.5 6.7 4.5
50 x 75 H 3.6 3.3 2.8 2.7 6.3 4.4
50 x 95 J 3.4 3.2 2.7 2.6 5.8 4.2
50 x 105 K 3.4 3.2 2.7 2.6 5.8 4.2
50 x 115 I 3.4 3.2 2.7 2.6 5.8 4.2
65 x 105 O 2.6 2.4 2.1 2.0 4.2 3.1
65 x 115 Q 2.6 2.4 2.1 2.0 4.2 3.1
65 x 130 S 2.6 2.4 2.1 2.0 4.2 3.1
65 x 140 R 2.6 2.4 2.1 2.0 4.2 3.1
75 x 78 L 2.3 2.0 1.8 1.7 4.1 2.7
75 x 98 P 2.3 2.0 1.8 1.7 4.0 2.7
75 x 105 T 2.3 2.1 1.7 1.6 3.7 2.6
75 x 115 U 2.2 2.0 1.6 1.5 3.5 2.5
75 x 145 V 2.2 2.0 1.6 1.5 3.4 2.5
75 x 220 X 2.3 2.1 2.0 1.9 3.4 2.6
90 x 78 M 1.9 1.7 1.6 1.4 3.4 2.2
90 x 98 N 1.9 1.7 1.5 1.4 3.1 2.1
90 x 145 Y 1.8 1.6 1.5 1.4 2.7 1.9
90 x 220 Z 1.9 1.7 1.6 1.5 2.7 2.0
1st block (pos 1–13) 2nd block (pos 14–20)
P E H 2 0 0 K U 6 1 5 0 M B 2
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Capacitance tolerances:
Pos. 13: M: -20 to +20% Pos. 14-15: B2 = with bottom stud
U2 = without bottom stud ORDERING INFORMATION
Quantities and weights
CASE CODE A B C D E G H I J K L M N O P R Q S T U V X Y Z
Weight approx (g) 70 85 105 130 60 150 180 300 240 265 430 750 950 415 530 650 460 520 585 640 800 1400 1400 1500 Standard box quantity 42 42 42 42 42 20 20 20 20 20 9 6 6 12 9 12 12 12 9 9 9 9 6 6 Mounting position
The capacitor can be mounted upright or inclined to a horizontal position.
Clamp fixing
Clips must be ordered seperately. See
“Accessories”.
Stud fixing
Nylon cap nut must be ordered separately.
For the stud fixing insulated version the outer insulation serves as lock washer.
See “Accessories”. Max tightening torque:
M8: 3 Nm M12: 8 Nm. Max chassis thickness 5 mm. Mounting hole: See “Accessories”.
Screw terminals
M5 x 10 according to DIN 41.248. Max tightening torque: 2.5 Nm. Must be ordered separately: See “Accessories”. Recommen- ded max connector thickness with delivered screw: 4 mm. M6 thread on request.
MECHANICAL DATA
Insulation can
PEH200 is supplied with a polypropylene insulation can, thickness 0.8 mm. Voltage proof of the insulation sleeve:
≥ 4000 VDC.
PVC shrink sleeve only on request.
