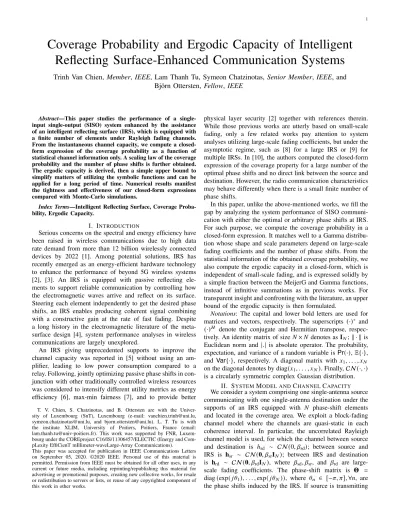

Coverage Probability and Ergodic Capacity of Intelligent

Reflecting Surface-Enhanced Communication Systems

Trinh Van Chien, Member, IEEE, Lam Thanh Tu, Symeon Chatzinotas, Senior Member, IEEE, and

Bj¨orn Ottersten, Fellow, IEEE

Abstract—This paper studies the performance of a single-input single-output (SISO) system enhanced by the assistance of an intelligent reflecting surface (IRS), which is equipped with a finite number of elements under Rayleigh fading channels. From the instantaneous channel capacity, we compute a closed-form expression of the coverage probability as a function of statistical channel information only. A scaling law of the coverage probability and the number of phase shifts is further obtained. The ergodic capacity is derived, then a simple upper bound to simplify matters of utilizing the symbolic functions and can be applied for a long period of time. Numerical results manifest the tightness and effectiveness of our closed-form expressions compared with Monte-Carlo simulations.

Index Terms—Intelligent Reflecting Surface, Coverage Proba-bility, Ergodic Capacity.

I. INTRODUCTION

Serious concerns on the spectral and energy efficiency have been raised in wireless communications due to high data rate demand from more than 12 billion wirelessly connected devices by 2022 [1]. Among potential solutions, IRS has recently emerged as an energy-efficient hardware technology to enhance the performance of beyond 5G wireless systems [2], [3]. An IRS is equipped with passive reflecting ele-ments to support reliable communication by controlling how the electromagnetic waves arrive and reflect on its surface. Steering each element independently to get the desired phase shifts, an IRS enables producing coherent signal combining with a constructive gain at the rate of fast fading. Despite a long history in the electromagnetic literature of the meta-surface design [4], system performance analyses in wireless communications are largely unexplored.

An IRS giving unprecedented supports to improve the channel capacity was reported in [5] without using an am-plifier, leading to low power consumption compared to a relay. Following, jointly optimizing passive phase shifts in con-junction with other traditionally controlled wireless resources was considered to intensify different utility metrics as energy efficiency [6], max-min fairness [7], and to provide better

T. V. Chien, S. Chatzinotas, and B. Ottersten are with the Univer-sity of Luxembourg (SnT), Luxembourg (e-mail: vanchien.trinh@uni.lu, symeon.chatzinotas@uni.lu, and bjorn.ottersten@uni.lu). L. T. Tu is with the institute XLIM, University of Poitiers, Poitiers, France (email: lam.thanh.tu@univ-poitiers.fr). This work was supported by FNR, Luxem-bourg under the COREproject C16/IS/11306457/ELECTIC (Energy and Com-pLexity EffiCienT mIllimeter-waveLarge-Array Communications).

This paper was accepted for publication in IEEE Communications Letters on September 05, 2020. ©2020 IEEE. Personal use of this material is permitted. Permission from IEEE must be obtained for all other uses, in any current or future media, including reprinting/republishing this material for advertising or promotional purposes, creating new collective works, for resale or redistribution to servers or lists, or reuse of any copyrighted component of this work in other works.

physical layer security [2] together with references therein. While those previous works are utterly based on small-scale fading, only a few related works pay attention to system analyses utilizing large-scale fading coefficients, but under the asymptotic regime, such as [8] for a large IRS or [9] for multiple IRSs. In [10], the authors computed the closed-form expression of the coverage property for a large number of the optimal phase shifts and no direct link between the source and destination. However, the radio communication characteristics may behave differently when there is a small finite number of phase shifts.

In this paper, unlike the above-mentioned works, we fill the gap by analyzing the system performance of SISO communi-cation with either the optimal or arbitrary phase shifts at IRS. For such purpose, we compute the coverage probability in a closed-form expression. It matches well to a Gamma distribu-tion whose shape and scale parameters depend on large-scale fading coefficients and the number of phase shifts. From the statistical information of the obtained coverage probability, we also compute the ergodic capacity in a closed-form, which is independent of small-scale fading, and is expressed solidly by a simple fraction between the MeijerG and Gamma functions, instead of infinitive summations as in previous works. For transparent insight and confronting with the literature, an upper bound of the ergodic capacity is then formulated.

Notations: The capital and lower bold letters are used for matrices and vectors, respectively. The superscripts (·)∗ and (·)𝐻

denote the conjugate and Hermitian transpose, respec-tively. An identity matrix of size 𝑁 × 𝑁 denotes as I𝑁; k · k is Euclidean norm and |.| is absolute operator. The probability, expectation, and variance of a random variable is Pr(·), E{·}, and Var{·}, respectively. A diagonal matrix with 𝑥1, . . . , 𝑥𝑁 on the diagonal denotes bydiag(𝑥1, . . . , 𝑥𝑁). Finally, CN (·, ·) is a circularly symmetric complex Gaussian distribution.

II. SYSTEMMODEL ANDCHANNELCAPACITY

(2)

an information symbol 𝑠 with E{|𝑠|2} = 1 and assuming first-order reflection from IRS only, the received complex baseband signal at destination is 𝑟= √ 𝜌h𝐻 srΘΘΘhrd𝑠+ √ 𝜌 ℎsd𝑠+ ˜𝑛, (1) where 𝜌 is the transmit power allocated by source to the information symbol and𝑛˜∼ CN (0, 𝜎2) is additive noise. By exploiting the similar methodology as in [5, Sec. III-B], we obtain the channel capacity as in Lemma 1.

Lemma 1. By assuming coherent combination, for arbitrary phase shifts, the instantaneous channel capacity [b/s/Hz] is formulated as 𝑅𝑎 =log2  1 + 𝜌 𝜎2 ℎsd+ h 𝐻 srΘΘΘhrd 2 , (2)

and for the optimal phase shifts, where 𝜃𝑛 = arg(ℎsd) − arg( [hsr]𝑛) − arg( [hrd]𝑛), ∀𝑛, the instantaneous channel ca-pacity [b/s/Hz] is formulated as 𝑅𝑜=log2  1 + 𝜌 𝜎2  |ℎsd| + 𝑁 ∑︁ 𝑛=1 | [hsr]𝑛| | [hrd]𝑛| 2 , (3) where [hsr]𝑛 and [hrd]𝑛 are the 𝑛-th element ofhsr and hrd.

The channel capacities in Lemma 1 are the function of instantaneous channels varying upon coherence intervals. We hereafter use those results to obtain the coverage probability and ergodic capacity expressed by statistical information only.

III. COVERAGEPROBABILITY ANDERGODICCAPACITY

This section first derives the coverage probability and er-godic capacity in closed-form expressions. An upper bound of the latter is further obtained by using Jensen’s inequality and computing the moments of non-Gaussian random variables.1 A. Coverage Probability Analysis

From the channel capacities presented in (2) and (3), we now consider the coverage probability of the network, which is defined either for the arbitrary or optimal phase shifts as 𝑃𝑎 = 1 − Pr(𝑅𝑎 < 𝜉), and 𝑃𝑜 = 1 − Pr (𝑅𝑜< 𝜉) , where 𝜉 [b/s/Hz] is the required threshold information rate. By setting 𝑧= 𝜎2 2𝜉− 1 /𝜌, we recast each coverage probability to an equivalent signal-to-noise ratio (SNR) requirement:

𝑃𝑎=1 − Pr  sd+ h 𝐻 srΘΘΘhrd 2 < 𝑧  , (4) 𝑃𝑜=1 − Pr   |ℎsd| + 𝑁 ∑︁ 𝑛=1 | [hsr]𝑛| | [hrd]𝑛| 2 < 𝑧  . (5) In this paper, the moment-matching method is used to manip-ulate the coverage probabilities in (4) and (5).

Theorem 1. For arbitrary phase shifts, the coverage proba-bility in(4) is computed as

𝑃𝑎 = Γ (𝑘𝑎, 𝑧/𝑤𝑎) /Γ (𝑘𝑎) , (6) 1This paper treats the phase shifts as deterministic parameters when

computing the closed-form expressions, thus our framework can be extended to practical IRS constraints such as IRS with discrete phase shifts and/or coupled reflection amplitude and phase shifts.

where Γ(𝑚, 𝑛) = ∫𝑛∞𝑡𝑚−1exp(−𝑡)𝑑𝑡 is the upper incomplete Gamma function, and Γ(𝑥) =∫∞

0 𝑡 𝑥−1

exp(−𝑡)𝑑𝑡 is the Gamma function. The shape parameter 𝑘𝑎 and scale parameter 𝑤𝑎are

𝑘𝑎 = ( 𝛽sd+ 𝑁 𝛽sr𝛽rd)2 ( 𝛽sd+ 𝑁 𝛽sr𝛽rd)2+ 2𝑁 𝛽2sr𝛽2 rd , 𝑤𝑎= 𝛽sd+ 𝑁 𝛽sr𝛽rd+ 2𝑁 𝛽2 sr𝛽2rd 𝛽sd+ 𝑁 𝛽sr𝛽rd . (7)

For the optimal phase shifts, the coverage probability in (5) is computed as

𝑃𝑜= Γ 𝑘𝑜, √

𝑧/𝑤𝑜 /Γ(𝑘𝑜), (8) where the shape parameter 𝑘𝑜 and scale parameter 𝑤𝑜 are

𝑘𝑜= √ 𝛽sd𝜋+ 2𝑁 𝑘 𝑤2 4𝛽sd+4𝑁 𝑘 𝑤2− 𝛽sd𝜋 ,𝑤𝑜= 4𝛽sd+ 4𝑁 𝑘 𝑤2− 𝛽sd𝜋 2 √𝛽sd𝜋+2𝑁 𝑘 𝑤 , (9) with 𝑘 = 𝜋2/(16 − 𝜋2) and 𝑤 = (4 − 𝜋2/4)𝛽 sr𝛽rd/𝜋. Proof. The proof is available in Appendix A and B for the case of arbitrary and the optimal phase shifts, respectively.  Theorem 1 gives the closed-form expressions of the cov-erage probabilities, which are only the function of large-scale fading coefficients. For a different selection of the phase shifts, it shows that the shape and scale parameters converge to the different points at an asymptotic regime. As 𝑁 → ∞, we mathematically obtain

𝑘𝑎→ 1, 𝑤𝑎→ 𝑁 𝛽sr𝛽rd, (10) 𝑘𝑜→ 4𝑁

2

𝑘2𝑤2, 𝑤𝑜→ 1. (11) Considering a large IRS with many phase shifts, the coverage probabilities can be approximated as in Corollary 1.

Corollary 1. As 𝑁 → ∞, the closed-form expression of the coverage probability for the arbitrary and optimal phase shifts respectively holds that

𝑃𝑎→ 1 − 𝑧 𝑁 𝛽sr𝛽rd , 𝑃𝑜 → 1 − √ 𝑧 𝑁2𝑘2𝑤2 . (12) Proof. For arbitrary phase shifts, the closed-form expression of the coverage probability in (6) is recast as

𝑃𝑎=1 − 1 Γ (𝑘𝑎) 𝛾(𝑘𝑎, 𝑧/𝑤𝑎) = 1 − (𝑧/𝑤𝑎) 𝑘𝑎 𝑘𝑎Γ (𝑘𝑎) ∞ ∑︁ 𝑡=0 (−𝑧/𝑤𝑎) 𝑡 (𝑘𝑎+ 𝑡) 𝑡! , (13) where 𝛾 (𝑚, 𝑛) = ∫𝑛 0 𝑡 𝑚−1

exp(−𝑡)𝑑𝑡 is the lower incomplete gamma function. 𝑁 → ∞ leads to1/𝑤𝑎 → 0 and therefore, the summation only 𝑡 =0 is remained while the high orders, i.e. 𝑡 ≥1, ∀𝑡, can be neglected. Mathematically, we obtain the following approximation 𝑃𝑎 → 1 − (𝑧/𝑤𝑎) 𝑘𝑎 𝑘2𝑎Γ (𝑘𝑎) . (14)

Utilizing the asymptotic property (10) into (14), we obtain 𝑃𝑎 as in the corollary.

For the optimal phase shifts, the closed-form expression of the coverage probability is first reformulated as

(3)

then the following series of the inequalities are constructed as 𝛾 𝑘𝑜, √ 𝑧/𝑤𝑜  < ∫ √ 𝑧/𝑤𝑜 0 √ 𝑧/𝑤𝑜 𝑘𝑜−1 exp −√𝑧/𝑤𝑜  𝑑 𝑡 = √ 𝑧/𝑤𝑜 𝑘𝑜− 1 − √ 𝑧/𝑤𝑜 ∫ 𝑘𝑜−1 √ 𝑧/𝑤𝑜 √ 𝑧/𝑤𝑜 𝑘𝑜−1 exp −√𝑧/𝑤𝑜  𝑑 𝑡 < √ 𝑧/𝑤𝑜 𝑘𝑜− 1 − √ 𝑧/𝑤𝑜 ∫ 𝑘𝑜−1 √ 𝑧/𝑤𝑜 𝑡𝑘𝑜−1 exp (−𝑡) 𝑑𝑡 < √ 𝑧/𝑤𝑜 𝑘𝑜− 1 − √ 𝑧/𝑤𝑜 Γ (𝑘𝑜) , (16) where all the inequalities hold due to the monotonic increase of the function 𝑓 (𝑧) = √𝑧/𝑤𝑜

𝑘𝑜−1

exp −√𝑧/𝑤𝑜

as 𝑘𝑜 is sufficiently large. We rewrite (16) to an equivalent form as

1 Γ (𝑘𝑜) 𝛾 𝑘𝑜, √ 𝑧/𝑤𝑜  < √ 𝑧/𝑤𝑜 𝑘𝑜− 1 − √ 𝑧/𝑤𝑜 , (17) and the approximation is obtained as in the corollary by utilizing the asymptotic property in (11).  For a given SNR, Corollary 1 demonstrates that the coverage probability scales up with 𝑁2and 𝑁 for the case of optimal and arbitrary phase shifts, respectively. Furthermore, the coverage probabilities converge to one as the number of phase shifts goes without bound.

B. Ergodic Capacity

We now investigate the ergodic capacity, which is indepen-dent of small-scale fading on a long timescale. From Lemma 1, we first formulate the ergodic capacity with either arbitrary or the optimal phase shifts from the definition as

¯ 𝑅𝑎= E n log2  1 + 𝜌 𝜎2 ℎsd+ h 𝐻 srΘΘΘhrd 2 o , (18) ¯ 𝑅𝑜 = E n log2  1 + 𝜌 𝜎2  |ℎsd| + 𝑁 ∑︁ 𝑛=1 | [hsr]𝑛|| [hrd]𝑛| 2 o , (19) One naive approach to evaluate the ergodic capacities in (18) and (19) is averaging over many different instantaneous chan-nel realizations, but it requires high computational complexity and especially being burdensome with a large IRS array. Overcoming this issue, we compute the ergodic capacity in closed form.

Theorem 2. For arbitrary phase shifts, the ergodic capacity [b/s/Hz] is ¯ 𝑅𝑎 = 1 Γ(𝑘𝑎) ln(2) 𝐺3,1 2,3  𝜎2 𝜌 𝑤𝑎 0, 1 0, 0, 𝑘𝑎  , (20) where 𝐺𝑚, 𝑛 𝑝 , 𝑞  𝑧 𝑎1, . . . , 𝑎𝑝 𝑏1, . . . , 𝑏𝑞

is the MeijerG function [11, (9.301)]. Besides, for the optimal phase shifts, the ergodic capacity [b/s/Hz] is ¯ 𝑅𝑜= 2𝑘𝑜−1/2 Γ(𝑘𝑜) ln(2) 1 √ 2𝜋 𝐺5,1 3,5  𝜎2 4𝜌𝑤2 𝑜 0,12,1 0, 0,12,𝑘𝑜 2 , 𝑘𝑜+1 2  . (21)

Proof. For arbitrary phase shifts, the ergodic capacity in (18) is expressed as ¯ 𝑅𝑎 = ∫ ∞ 0 log2(1 + 𝑎𝑧) 𝑓𝑋(𝑧)𝑑𝑧 = 1 ln 2 ∫ ∞ 0 ln(1 + 𝑎𝑧) 𝑓𝑋(𝑧)𝑑𝑧, (22) where 𝑋 is defined in Appendix A and 𝑓𝑋(𝑧) is its probability density function (PDF). By a change of variable 𝑡 = 𝑎𝑧, 𝑎 = 𝜌/𝜎2 and applying the integration by parts, (22) is equivalent to as ¯ 𝑅𝑎 = 1 ln 2 ∫ ∞ 0 1 1 + 𝑡 (1 − 𝐹𝑋(𝑡/𝑎)) 𝑑𝑡 = 1 Γ (𝑘𝑎) ln 2 ∫ ∞ 0 1 1 + 𝑡𝐺 2,0 1,2  𝑡 𝜎2 𝜌 𝑤𝑎 1 0, 𝑘𝑎  𝑑 𝑡 , (23)

where 𝐹𝑋(·) is the cumulative distribution function (CDF) of variable 𝑋. The last equality of (23) is obtained by an equivalence between the incomplete Gamma function and MeijerG function, i.e., Γ(𝑘𝑎, 𝛾 𝑧/𝑤𝑎) = 𝐺

2,0 1,2  𝛾 𝑧/𝑤𝑎 1 0, 𝑘𝑎  , with 𝛾 = 𝜎2/𝜌 in our framework. After that, we obtain the result as shown in the theorem by computing the last integral in (23). Utilizing the above main steps, the ergodic capacity in (19) is computed for the optimal phase-shifts as

¯ 𝑅𝑜= 1 Γ(𝑘𝑜) ln 2 ∫ ∞ 0 1 1 + 𝑧Γ  𝑘𝑜, √ 𝑧𝜎 √ 𝜌 𝑤𝑜  𝑑 𝑧 = 1 Γ(𝑘𝑜) ln 2 ∫ ∞ 0 1 1 + 𝑧𝐺 2,0 1,2  √ 𝑧𝜎 √ 𝜌 𝑤𝑜 1 0, 𝑘𝑜  𝑑 𝑧, (24)

then computing the last integral in (24), the ergodic capacity in case of the optimal phase shifts is obtained in the theorem.  The results in Theorem 2 scale down the matters and are effectively used over many coherence intervals. To compare with previous works, we observe that the ergodic capacity in (18) and (19) has the inherent concavity regarding the SNR level. An upper bound is therefore obtained by Jensen’s inequality together with the seminal results (27) and (37) in the appendix as ¯ 𝑅𝑎≤ log2  1 + 𝜌 𝜎2E n ℎsd+ h 𝐻 srΘΘΘhrd 2o  =log2  1 + 𝜌 𝜎2 ( 𝛽sd+ 𝑁 𝛽sr𝛽rd)  , (25) ¯ 𝑅𝑜≤ log2  1 + 𝜌 𝜎2E n  |ℎsd| + 𝑁 ∑︁ 𝑛=1 | [hsr]𝑛|| [hrd]𝑛| 2o  =log21 + 𝜌 𝜎2  𝛽sd+ 𝑁 𝑘 𝑤2+ 𝑁2𝑘2𝑤2+ 𝑁 𝑘 𝑤 √︁ 𝛽sd𝜋   . (26) The upper bound for arbitrary phase shifts is scaling up with 𝑁, while that is 𝑁2 in case of the optimal phase shifts. Even though these bounds on the ergodic capacity are established for a limited number of elements at IRS, they align with the power scaling law in the literature [5], [12]. To the end, Remark 1 addresses an extension of the proposed framework in this paper to other propagation channels with different communication scenarios.

(4)

bound are obtained for uncorrelated Rayleigh fading channels, which are tractable and matched well with rich-scattering propagation environments [13]. The analysis based on the moment-matching method can be easily extended to other fading channels, for example spatially correlated fading [14], where the moments of random variables (up to the forth order) are bounded. Moreover, by exploiting a linear beamforming technique, the framework in this paper can be extended to multi-antenna and/or multi-user scenarios.

IV. NUMERICALRESULTS

All above analyses are numerically verified by using the setup in [5], where the locations are mapped into a Cartesian coordinate system. Particularly, source is located at (0, 0) and IRS is at (40, 10). The large-scale-fading coefficients [dB] are modeled, similar to [14], [15], by 𝛽𝜇 = 𝐺𝑡 + 𝐺𝑟 + 10𝜈𝜇log

10(𝑑𝜇/1m) − 30 + 𝑧𝜇, where 𝜇 ∈ {sd, sr, rd}; 𝐺𝑡 = 3.2 dBi and 𝐺𝑟 = 1.3 dBi are the antenna gain at the transmitter and receiver, respectively; 𝑑𝜇 is the distance between transmitter and receiver, while 𝜈𝜇 is the path loss exponent, i.e., 𝜈sd= 𝜈sr= 𝜈rd=3.76; the shadow fading is 𝑧𝜇 with the concrete setting clarified subsequently. The system uses 10 MHz bandwidth. The noise variance is −94 dBm corresponds to the noise figure10 dB. The transmit power of source is10 dBm and for the arbitrary phase shifts, the phase of each phase-shift element follows a uniform distribution. For comparison, a system without the assistance of IRS is included as a benchmark.

Fig. 1 plots the coverage probability versus different required information rates, where destination’s location is (60, 0), while shadow fading is 𝑧𝜇 = 0 and the number of phase shifts is 𝑁 = 800. The optimal phase shifts provide significantly better the coverage probability than a random phase-shift selection, especially when 𝜉 <4 [b/s/Hz]. Besides, the correctness of the closed-form expressions obtained in Theorem 1 can be observed as they overlap with Monte-Carlo simulations for all tested values. In this setting, an IRS with random phase shifts does not give any support to the system and gives the same performance as a traditional SISO system since the randomness may add up waveforms either constructively or destructively.

Fig. 2 displays the channel capacity [b/s/Hz] for the sce-nario, where the 𝑥−coordinate of destination is uniformly located in the range [50, 200] and the shadow fading follows a Gaussian distribution with zero mean and standard derivation 4 dB. The closed-form expressions in Theorem 2 coincide with numerical simulations. Moreover, utilizing an IRS with random phase shifts always gives the same channel capacity as a traditional SISO system regardless the number of phase shifts. Finally, the superior improvement is obtained by uti-lizing the optimal phase shifts instead of an arbitrary set (up to2.7×). The improvement becomes widely when integrating more reflecting elements.

V. CONCLUSION

This paper has used an incomplete Gamma distribution and statistical information of Rayleigh channels to derive the closed-form expression of the coverage probability for IRS-enhanced communication with either the optimal or arbitrary

Fig. 1: The coverage probability versus the required informa-tion rate [b/s/Hz].

Fig. 2: The channel capacity [b/s/Hz] versus the number of phase shifts.

phase shifts. We have further derived the ergodic capacity in a closed form based on a MeijerG function and found an upper bound with simple arithmetic operators only. While all the obtained closed-form expressions coincide with Monte-Carlo simulations, the asymptotic analysis and the upper bound on channel capacity unveil the scaling law of the number of phase shifts at IRS.

APPENDIX

A. Proof of Theorem 1 for Arbitrary Phase Shifts Let us define 𝑋 = ℎsd+ hsr𝐻ΘΘΘhrd

2

, then its mean is obtained by the independence of channels as

E { 𝑋 } = E n |ℎsd|2 o + En h 𝐻 srΘΘΘhrd 2o = 𝛽sd+ 𝑁 𝛽sr𝛽rd, (27) which is obtained due to the circular symmetry properties. We now compute E{|𝑋 |2} as

(5)

by the independence of the channels, and the last expectation of (28) is computed as E |𝑑|2 = E        kΘΘΘhrdk4 h𝐻 srΘΘΘhrd kΘΘΘhrdk h𝐻 rdΘΘΘ 𝐻 hsr kΘΘΘhrdk 2       . (29) Let us define 𝑧 = h𝐻 srΘΘΘhrd/kΘΘΘhrdk, then 𝑧 ∼ CN (0, 𝛽sr) and (29) is manipulated as E |𝑑|2 = E kΘΘΘhrdk4|𝑧|4 (𝑎) = E kΘΘΘhrdk4 E |𝑧|4 (𝑏) = 𝑁 (𝑁 +1) 𝛽2rd2𝛽2sr= (2𝑁2+ 2𝑁) 𝛽2rd𝛽 2 sr, (30) where (𝑎) is obtained by the fact that ΘΘΘhrdand 𝑧 are indepen-dent; (𝑏) is obtained by the facts that ΘΘΘhrd ∼ CN (0, 𝛽rdI𝑁) and the use of [17, Lemma 9] to compute the forth moment of symmetric complex Gaussian random variables. Combining the results of (28)-(30), we obtain

E{| 𝑋 |2} = 2𝛽2sd+ 4𝑁 𝛽sd𝛽sr𝛽rd+ (2𝑁2+ 2𝑁) 𝛽2 rd𝛽

2

sr. (31) By utilizing the identity Var {𝑋 } = E{|𝑋 |2} − |E{𝑋}|2together with the results in (27) and (31), we obtain

Var {𝑋 } = 𝛽2sd+ 2𝑁 𝛽sd𝛽sr𝛽rd+ (𝑁2+ 2𝑁) 𝛽2

sr𝛽2rd. (32) We now use the moment-matching method to match the CDF of 𝑋 to a Gamma distribution with the shape and scale parameters are computed as 𝑘𝑎 = (E{𝑋 })

2

Var{𝑋 }, 𝑤𝑎= Var{𝑋 }

E {𝑋 } . Then by exploiting (27) and (32) into these equations, we obtain the result as shown in the theorem.

B. Proof of Theorem 1 for the Optimal Phase Shifts

From the optimal channel capacity in (3), we first define 𝐴 = |ℎsd| and 𝐵𝑛 = | [hsr]𝑛| | [hrd]𝑛| , ∀𝑛. Variable 𝐴 fol-lows Rayleigh distribution with mean √𝛽sd𝜋/2 and variance (4 − 𝜋) 𝛽sd/4, thus E{𝐴2} =Var{ 𝐴} + (E{𝐴})2 = 𝛽sd. Notice that | [hsr]𝑛| and | [hrd]𝑛| also follow Rayleigh distribution with CDF and PDF as 𝐹[h 𝛼]𝑛(𝑧) = 1−exp  −𝑧 2 𝛽𝛼  , 𝑓[h 𝛼]𝑛(𝑧) = 2𝑧 𝛽𝛼 exp−𝑧 2 𝛽𝛼  , (33) where 𝛼 ∈ {sr, rd}. The CDF of 𝐵𝑛, denoted by 𝐹𝐵𝑛(𝑧), is

𝐹𝐵𝑛(𝑧) =Pr(𝐵𝑛< 𝑧) =Pr  | [hsr]𝑛| < 𝑧 | [hrd]𝑛| = 𝑧 𝑣  = ∫ ∞ 0 𝐹[h sr]𝑛(𝑧/𝑣) 𝑓[hrd]𝑛=𝑣(𝑣)𝑑𝑣 = 1 − 2𝑧 √ 𝛽sr𝛽rd 𝐾1  2𝑧 √ 𝛽sr𝛽rd  , (34) where 𝐾𝑛(·) is the modified Bessel function of the second kind with 𝑛-th order. The PDF of 𝐵𝑛 is then computed as

𝑓𝐵𝑛(𝑧) = 𝑑𝐹𝐵𝑛(𝑧) 𝑑 𝑧 = 2𝑧 𝛽sr𝛽rd  𝐾2  2𝑧 √ 𝛽sr𝛽rd  + 𝐾0  2𝑧 √ 𝛽sr𝛽rd  −√ 2 𝛽sr𝛽rd 𝐾1  2𝑧 √ 𝛽sr𝛽rd  , (35)

thanks to [11, (8.486.11)]. By utilizing the PDF expression in (35), we can compute the statistical information of 𝐵𝑛 as

E{𝐵𝑛} = 𝜋 √︁

𝛽sr𝛽rd/4, Var{𝐵𝑛} =

1 − 𝜋2/16𝛽sr𝛽rd. (36) Let us deploy the moment-matching method such that 𝐵𝑛 is matched to a Gamma distribution, for which the shape

parameter 𝑘 and the scale parameter 𝑤 satisfy 𝑘 𝑤 = E{𝐵𝑛} and 𝑘 𝑤2 =Var{𝐵𝑛}. Subsequently, we obtain those parameters as shown in the theorem. We now define 𝐶 = 𝐴 +Í𝑁

𝑛=1𝐵𝑛, which has mean and second moment are computed as

E{𝐶 } = √ 𝜋 𝛽𝑠 𝑑 2 + 𝑁 𝑘 𝑤, E{𝐶 2} = 𝛽 sd+ 𝑁 𝑘 𝑤 (𝑤 + 𝑁 𝑘 𝑤 + √︁ 𝛽sd𝜋), (37) and its variance is computed as

Var{𝐶} = E{𝐶2} − (E{𝐶})2= 𝛽sd+ 𝑁 𝑘 𝑤2− 𝛽sd𝜋/4. (38) Let us match random variable 𝐶 to a Gamma distribution whose the shape and scale parameters are defined as in (9). By introducing a new random variable 𝐷 = 𝐶2, then the CDF of 𝐷 can be directly drawn from 𝐶 as 𝐹𝐷(𝑥) = 𝐹𝐶

√ 𝑥 and we close the proof here.

REFERENCES

[1] C. V. N. Index, “Cisco visual networking index: Global mobile data traffic forecast update, 2017-2022 white paper,” Cisco: San Jose, CA, USA, 2019.

[2] Q. Wu and R. Zhang, “Towards smart and reconfigurable environment: Intelligent reflecting surface aided wireless network,” IEEE Commun. Mag., vol. 58, no. 1, pp. 106–112, January 2020.

[3] N. Rajatheva, I. Atzeni, E. Bjornson, A. Bourdoux, S. Buzzi, J.-B. Dore, S. Erkucuk, M. Fuentes, K. Guan, Y. Hu et al., “White paper on broadband connectivity in 6G,” arXiv preprint arXiv:2004.14247, 2020.

[4] D. M. Pozar, S. D. Targonski, and H. Syrigos, “Design of millimeter wave microstrip reflectarrays,” IEEE Trans. Antennas Propag., vol. 45, no. 2, pp. 287–296, 1997.

[5] Q. Wu and R. Zhang, “Intelligent reflecting surface enhanced wireless network via joint active and passive beamforming,” IEEE Trans. Wireless Commun., vol. 18, no. 11, pp. 5394–5409, 2019.

[6] C. Huang, A. Zappone, G. C. Alexandropoulos, M. Debbah, and C. Yuen, “Reconfigurable intelligent surfaces for energy efficiency in wireless communication,” IEEE Trans. Wireless Commun., vol. 18, no. 8, pp. 4157–4170, 2019.

[7] H. Xie, J. Xu, and Y.-F. Liu, “Max-min fairness in IRS-aided multi-cell MISO systems via joint transmit and reflective beamforming,” in Proc. IEEE ICC, 2020.

[8] M. Jung, W. Saad, Y. Jang, G. Kong, and S. Choi, “Reliability analysis of large intelligent surfaces (LISs): Rate distribution and outage prob-ability,” IEEE Wireless Commun. Lett., vol. 8, no. 6, pp. 1662–1666, 2019.

[9] C. Guo, Y. Cui, F. Yang, and L. Ding, “Outage probability analysis and minimization in intelligent reflecting surface-assisted MISO systems,” IEEE Commun. Lett., 2020.

[10] L. Yang, Y. Yang, M. O. Hasna, and M.-S. Alouini, “Coverage, prob-ability of SNR gain, and DOR analysis of RIS-Aided communication systems,” IEEE Wireless Communications Letters, 2020.

[11] I. Gradshteyn and I. Ryzhik, Table of Integrals, Series, and Products. Academic Press, 2007.

[12] Y. Han, W. Tang, S. Jin, C.-K. Wen, and X. Ma, “Large intelli-gent surface-assisted wireless communication exploiting statistical CSI,” IEEE Trans. Veh. Technol., vol. 68, no. 8, pp. 8238–8242, 2019. [13] Q. Wu and R. Zhang, “Joint active and passive beamforming

opti-mization for intelligent reflecting surface assisted SWIPT under QoS constraints,” IEEE J. Sel. Areas Commun., 2020.

[14] Q. Nadeem, A. Kammoun, A. Chaaban, M. Debbah, and M. Alouini, “Asymptotic max-min SINR analysis of reconfigurable intelligent sur-face assisted MISO systems,” IEEE Trans. Wireless Commun., 2020, early access.

[15] E. Bj¨ornson, ¨O. ¨Ozdogan, and E. G. Larsson, “Intelligent reflecting surface versus decode-and-forward: How large surfaces are needed to beat relaying?” IEEE Wireless Commun. Lett., vol. 9, no. 2, pp. 244– 248, 2019.

[16] A. M. Tulino and S. Verd´u, “Random matrix theory and wireless commu-nications,” Foundations and Trends in Communications and Information Theory, vol. 1, no. 1, pp. 1–182, 2004.
