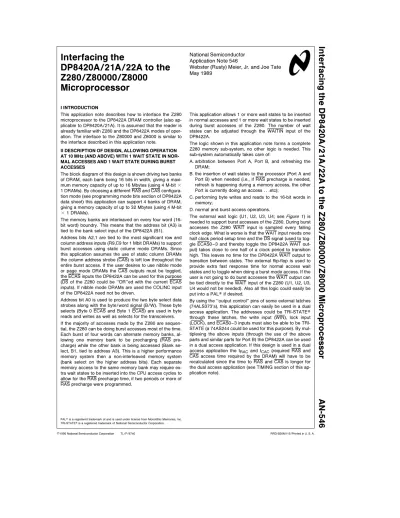

DP8420A/21A/22A to the Z280/Z80000/Z8000

TL/F/9740

Interfacing the DP8420A/21A/22A to the Z280/Z80000/Z8000 Microprocessor AN-546

National Semiconductor Application Note 546

Webster (Rusty) Meier, Jr. and Joe Tate May 1989

Interfacing the

DP8420A/21A/22A to the Z280/Z80000/Z8000

Microprocessor

I INTRODUCTION

This application note describes how to interface the Z280 microprocessor to the DP8422A DRAM controller (also ap- plicable to DP8420A/21A). It is assumed that the reader is already familiar with Z280 and the DP8422A modes of oper- ation. The interface to the Z80000 and Z8000 is similar to the interface described in this application note.

II DESCRIPTION OF DESIGN, ALLOWING OPERATION AT 10 MHz (AND ABOVE) WITH 1 WAIT STATE IN NOR- MAL ACCESSES AND 1 WAIT STATE DURING BURST ACCESSES

The block diagram of this design is shown driving two banks of DRAM, each bank being 16 bits in width, giving a maxi- mum memory capacity of up to 16 Mbytes (using 4 M-bit^c 1 DRAMs). By choosing a different RAS and CAS configura- tion mode (see programming mode bits section of DP8422A data sheet) this application can support 4 banks of DRAM, giving a memory capacity of up to 32 Mbytes (using 4 M-bit c1 DRAMs).

The memory banks are interleaved on every four word (16- bit word) boundry. This means that the address bit (A3) is tied to the bank select input of the DP8422A (B1).

Address bits A2,1 are tied to the most significant row and column address inputs (R9,C9 for 1 Mbit DRAMs) to support burst accesses using static column mode DRAMs. Since this application assumes the use of static column DRAMs the column address strobe (CAS) is left low throughout the entire burst access. If the user desires to use nibble mode or page mode DRAMs the CAS outputs must be toggled, the ECAS inputs the DP8422A can be used for this purpose (DS of the Z280 could be ‘‘OR’’ed with the current ECAS inputs). If nibble mode DRAMs are used the COLINC input of the DP8422A need not be driven.

Address bit A0 is used to produce the two byte select data strobes along with the byte/word signal (B/W). These byte selects (Byte 0 ECAS and Byte 1 ECAS) are used in byte reads and writes as well as selects for the transceivers.

If the majority of accesses made by the Z280 are sequen- tial, the Z280 can be doing burst accesses most of the time.

Each burst of four words can alternate memory banks, al- lowing one memory bank to be precharging (RAS pre- charge) while the other bank is being accessed (Bank se- lect, B1, tied to address A3). This is a higher performance memory system then a non-interleaved memory system (bank select on the higher address bits). Each separate memory access to the same memory bank may require ex- tra wait states to be inserted into the CPU access cycles to allow for the RAS precharge time, if two periods or more of RAS precharge were programmed.

This application allows 1 or more wait states to be inserted in normal accesses and 1 or more wait states to be inserted during burst accesses of the Z280. The number of wait states can be adjusted through the WAITIN input of the DP8422A.

The logic shown in this application note forms a complete Z280 memory sub-system, no other logic is needed. This sub-system automatically takes care of:

A. arbitration between Port A, Port B, and refreshing the DRAM;

B. the insertion of wait states to the processor (Port A and Port B) when needed (i.e., if RAS precharge is needed, refresh is happening during a memory access, the other Port is currently doing an access . . .etc);

C. performing byte writes and reads to the 16-bit words in memory;

D. normal and burst access operations.

The external wait logic (U1, U2, U3, U4; seeFigure 1 ) is needed to support burst accesses of the Z280. During burst accesses the Z280 WAIT input is sampled every falling clock edge. What is worse is that the WAIT input needs one half clock period setup time and the DS signal (used to tog- gle ECAS0 – 3 and thereby toggle the DP8422A WAIT out- put) takes close to one half of a clock period to transition high. This leaves no time for the DP8422A WAIT output to transition between states. The external flip-flop is used to provide extra fast response time for normal access wait states and to toggle when doing a burst mode access. If the user is not going to do burst accesses the WAIT output can be tied directly to the WAIT input of the Z280 (U1, U2, U3, U4 would not be needed). Also all this logic could easily be put into a PALÉif desired.

By using the ‘‘output control’’ pins of some external latches (74ALS373’s), this application can easily be used in a dual access application. The addresses could be TRI-STATEÉ through these latches, the write input (WIN), lock input (LOCK), and ECAS0 – 3 inputs must also be able to be TRI- STATE (a 74AS244 could be used for this purpose). By mul- tiplexing the above inputs (through the use of the above parts and similar parts for Port B) the DP8422A can be used in a dual access application. If this design is used in a dual access application the tRACand tCAC(required RAS and CAS access time required by the DRAM) will have to be recalculated since the time to RAS and CAS is longer for the dual access application (see TIMING section of this ap- plication note).

PALÉis a registered trademark of and is used under license from Monolithic Memories, Inc.

TRI-STATEÉis a registered trademark of National Semiconductor Corporation.

C1995 National Semiconductor Corporation RRD-B30M115/Printed in U. S. A.

III Z280 DESIGN, 10 MHz WITH 1 WAIT STATE DURING NORMAL ACCESSES AND 1 WAIT STATE DURING BURST ACCESSES, PROGRAMMING MODE BITS

Programming

Description Bits

R0^e0 RAS low two clocks, RAS precharge R1^e1 of two clocks, this setup

will only guarantee 93.5 ns RAS precharge (at 10 MHz) from refresh RAS high to access RAS low. If more RAS precharge is desired the user should program three periods of RAS precharge.

R2^e0 DTACK one half is chosen. DTACK R3^e1 low first rising CLK edge

after access RAS is low.

R4^e0 No WAIT states during burst accesses R5^e0

R6^e0 If WAITIN^e0, add one clock to DTACK. WAITIN may be tied high or low in this application depending upon the number of wait states the user desires to insert into the access.

R7^e1 Select DTACK

R8^e1 Non-interleaved Mode R9^eX

C0^eX Select based upon the input C1^eX ‘‘DELCLK’’ frequency. Example: if the C2^eX input clock frequency is 10 MHz then

choose C0,1,2^e1,0,1 (divide by five, this will give a frequency of 2 MHz).

C3^eX

C4^e0 RAS groups selected by ‘‘B1’’. This C5^e0 mode allows two RAS outputs to go C6^e1 low during an access, and allows byte

writing in 16- or 32-bit words.

C7^e1 Column address setup time of 0 ns C8^e1 Row address hold time of 15 ns C9^e1 Delay CAS during write accesses to

one clock after RAS transitions low B0^e0 Latches latch on ALE input low

B1^e0 Access mode 0

ECAS0^e0 CASn not extended beyond RASn 0^eProgram with low voltage level

1^eProgram with high voltage level

X^eProgram with either high or low voltage level (don’t care condition)

IV Z280 TIMING CALCULATIONS FOR DESIGN AT 10 MHz WITH 1 WAIT STATE DURING NORMAL ACCESSES AND 1 WAIT STATE DURING BURST ACCESSES

1. Minimum ALE high setup time to CLOCK high if using the on-chip latches and more then one RAS bank (DP8422A- 20 needs 29 ns,Ý301b):

100 ns (one clock period)^b20 ns (AS valid maximum delay,^Ý3 of Z280 data sheet)^b11 ns (74ALS04B max delay)^e69 ns

2A. Minimum address setup time to ALE low (DP8422A-20 needs 3 ns,^Ý306):

25 ns (address setup to AS high,^Ý20 Z280 data sheet) a1 ns (74ALS04B min delay)^e26 ns

2B. Minimum address hold time to ALE low (DP8422A-20 needs 10 ns,^Ý305):

20 ns (address hold from AS high,Ý22 of Z280 data sheet)^a1 ns (74ALS04B min delay)^e21 ns 2C. Minimum address setup to CLOCK high (DP8422A-20

needs bank address setup to CLOCK of 20 ns,^Ý303):

100 ns (one clock period)^b20 ns (max clock to ad- dress valid, Z280 data sheet^Ý2)^e80 ns

3. Minimum CS setup time to clock high (DP8422A-20 needs 14 ns,Ý300): 80 ns (Ý2C above)^b22 ns (max 74ALS138 decoder)^e58 ns

4. Determining tRACduring a normal access (RAS access time needed by the DRAM):

250 ns (two and one half clock periods to do the ac- cess) ^b32 ns (CLK to RAS low max, DP8422A-20 Ý307)^b30 ns (Z280 data setup time,Ý9)^b10 ns (74ALS245A max delay)^e178 ns

Therefore the tRACof the DRAM must be 178 ns or less. (One can see that if zero wait states would have been programmed the t_RACwould have been 84 ns (us- ing DP8422A-25, has faster CLK to RAS low of 26 ns) 184 – 100 (one clock)).

5. Determining t_CACduring a normal access (CAS access time) and column address access time needed by the DRAM:

250 ns^b 89 ns (CLK to CAS low on DP8422A-20, Ý308a)^b30 ns^b10 ns^e121 ns

Therefore the tCAC of the DRAM must be 121 ns or less.

6. Determining the column address access time needed during a static column mode burst access:

20 ns (two clocks to do the access, Ex. mid T3 to mid TBW to mid T4)^b35 ns (DS high, Z280 parameterÝ8) b 43 ns (COLINC asserted to address outputs of DP8420A-20 incremented,^Ý27)^b30 ns (Z280 data setup time,Ý9)^b10 ns (74ALS245A max delay)^e82 ns

Therefore the column address access time of the DRAM must be 82 ns or less. (One can see that if zero wait states would have been programmed the column address access time would have been less then 0 ns (82^b100 (one clock))).

7. Maximum time to DTACK one half low (74ALS374 D type flip-flop needs 10 ns setup to CLK):

100 ns (One clock, mid T2 in mid TW)^b33 ns (DTACK one half low from CLK high on DP8422A-20,Ý18)^b12 ns (max delay on 74ALS02^e55 ns

8. Minimum WAIT setup time to CLK low (Z280 WAIT input needs 50 ns,^Ý14):

100 ns (one clock period)^b16 ns (74ALS374 max de- lay)^b14 ns (74ALS08 max delay)^e70 ns

9. Minimum RAS precharge (DP8422A programmed with 2 clock periods of RAS precharge):

Since the AREQ input of the DP8422A will go high from DS and IE both being high the AREQ high setup to clock rising edge (DP8422A parameterÝ29b, 19 ns) parameter is violated. This means that the rising clock edge following AREQ high may or may not be counted.

2

Since that first rising clock edge could be counted, and would give less RAS precharge time, we must assume this condition in the calculation of the minimum RAS precharge. Therefore:

200 ns (2 clock periods)^b50 ns (half clock period before both IE and DS transition high)^b35 ns (IE and DS high, Z280 parameters Ý8 andÝ19) ^b5.5 ns (74AS08 max delay)^b16 ns (DP8422A RAS high to RAS low difference parameter^Ý50)^e93.5 ns

Therefore, the user should guarantee that the DRAM he is using needs a RAS precharge time of 93.5 ns or less. If more RAS precharge time is needed the user should program the DP8422A with 3 periods of RAS precharge (R0, R1) during programming.

Note:Calculations can be performed for different frequencies and/or differ- ent combinations of wait states by substatuting the appropriate values into the above equations.

TL/F/9740 – 1

*The user may want to gate CS (‘‘OR’’ Gate) with the signals that produce OE to the DRAMs and EN to the transceivers

FIGURE 1. 10 MHz Z280 Design (Z-bus Interface), 1 Wait State in Normal Accesses, 1 Wait State in Burst Accesses

TL/F/9740 – 2

FIGURE 2. Z280 Access Cycles and Refresh (1 Wait State during Normal Access Cycles)

3

AN-546 Interfacing the DP8420A/21A/22A to the Z280/Z80000/Z8000 Microprocessor

TL/D/9740 – 4

FIGURE 3. Z280 Burst Access Cycle (1 Wait State in Normal and Burst Accesses) DRAM Speed vs Processor Speed (DRAM Speed

References the RAS Access Time, tRAC, of the DRAM.

Using DP8422A-25 Timing Specifications)

TL/D/9740 – 5
