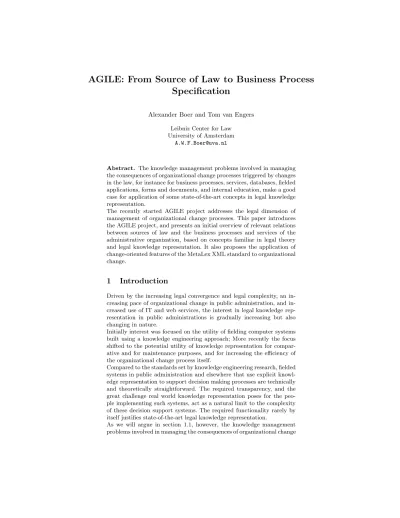

AGILE: From Source of Law to Business Process Specification
Alexander Boer and Tom van Engers
Leibniz Center for Law University of Amsterdam
A.W.F.Boer@uva.nl
Abstract. The knowledge management problems involved in managing the consequences of organizational change processes triggered by changes in the law, for instance for business processes, services, databases, fielded applications, forms and documents, and internal education, make a good case for application of some state-of-the-art concepts in legal knowledge representation.
The recently started AGILE project addresses the legal dimension of management of organizational change processes. This paper introduces the AGILE project, and presents an initial overview of relevant relations between sources of law and the business processes and services of the administrative organization, based on concepts familiar in legal theory and legal knowledge representation. It also proposes the application of change-oriented features of the MetaLex XML standard to organizational change.
1 Introduction
Driven by the increasing legal convergence and legal complexity, an in- creasing pace of organizational change in public administration, and in- creased use of IT and web services, the interest in legal knowledge rep- resentation in public administrations is gradually increasing but also changing in nature.
Initially interest was focused on the utility of fielding computer systems built using a knowledge engineering approach; More recently the focus shifted to the potential utility of knowledge representation for compar- ative and for maintenance purposes, and for increasing the efficiency of the organizational change process itself.
Compared to the standards set by knowledge engineering research, fielded systems in public administration and elsewhere that use explicit knowl- edge representation to support decision making processes are technically and theoretically straightforward. The required transparency, and the great challenge real world knowledge representation poses for the peo- ple implementing such systems, act as a natural limit to the complexity of these decision support systems. The required functionality rarely by itself justifies state-of-the-art legal knowledge representation.
As we will argue in section 1.1, however, the knowledge management problems involved in managing the consequences of organizational change
processes triggered by changes in the law, for business processes, services, databases, fielded applications, forms and documents, internal education, etc, make a considerably better case for some state-of-the-art concepts in legal knowledge representation.
The recently started AGILE project, introduced in section 2, addresses management of institutional change, sometimes driven by changing leg- islation and sometimes by environmental factors.
Section 3 presents an initial overview of relevant relations between sources of law and the business processes and services of the administrative orga- nization, based on concepts familiar in legal theory and legal knowledge representation. This account is a first, tentative step towards a design method that should help organizations to adapt to new or changing leg- islation.
1.1 Background
Inside public administrations, and on the interfaces between them, ICT and Internet have a large impact. Some decision making processes are nowadays assisted by computer applications, and others are more or less autonomously performed by the computer.
At the same time, service-oriented architectures are becoming the promi- nent paradigm for building enterprise information systems, also in admin- istrative agencies. Service-orientation leads to new network arrangements between administrative agencies for sharing data, etc. This development in itself leads to attention for the adaptability and accountability issues that arise (cf. [9]).
The services in question are in an administrative setting often implemen- tations of public legal acts, performed by public legal personalities, based in formal legislation. Legislation gives administrative organizations pub- lic personality, defines what the core functions of public organizations are, and what services they provide. It guides how the organization subdivides itself into administrative units, how it organizes business processes inside the organization, and eventually how the functions of the organization are realized by civil servants and computer systems.
Business process design and design of specialized computer systems are both usually based on explicitmodels in various modeling languages of what the business process or computer application should achieve. These models are supposedly used as a specification of the objectives of an organizational change process or application development process. When legislation changes, these models are updated, and the organization’s structures and computer programs have to be changed to conform to the models.
In the past these changes were conceived of as temporary interruptions of long periods of everything staying the same. This was certainly the case when the adaptation of existing systems was still considered a frightening prospect: things did change but the changes where carefully orchestrated to not impact existing procedures, network arrangements with other or- ganizations, and computer systems. But as the perceived capacity of organizations to organize change processes increases, and the number of
fielded computer applications increases, so does the pace of change in legislation directly affecting existing computer applications.
Tax legislation is for instance changed every year, leading to continuous adaptation of relevant computer applications for next year and the years after that, while the legislation of the present year and previous years is still being applied. In the business process design literature, awareness of this phenomenon has led to a new conception of the organization as an entity that is constantly in the process of changing: the organization is constantly conceptualizing and comparing what it is and what it is becoming.
Attention for knowledge representation of sources of law is very often triggered by such administrative change processes driven by new legis- lation and other sources of law, such as case law and internal written policies.
The change processes triggered by the legal system are increasingly ex- pensive, especially if they involve changes in ICT infrastructure. Knowl- edge representation is seen as a means to potentially reduce costs and increase efficiency through increased control over the knowledge dimen- sion of the change process. Our past work for the Dutch Tax and Customs Administration (DTCA; cf. for instance [4]) was for instance clearly re- lated to the hugechange process triggered by the complete overhaul of the Dutch income tax law in 2001. TheJuridisch Loket (cf. [15]) project onpro bonolegal assistance, and theDURP project on spatial planning (cf. [3]) were for instance also driven by an overhaul of legislation.
These trends have led to the AGILE project, described in the next section of this paper.
2 The AGILE Project
In the AGILE project (acronym for Advanced Governance of Informa- tion services through Legal Engineering) we aim at developing a design method, distributed service architecture and supporting tools that en- able organizations – administrative and otherwise – to orchestrate their legal information services in a networked environment.
At issue is the adaptivity of ICT infrastructure, of business processes, and of data and knowledge within the organization, given changing legal demands and constraints.
The AGILE project started in the second half of 2008 and will last for four years. The project will use knowledge representation technology developed within the semantic web community, OWL DL, as a starting point, but will extend it where necessary with elements specific for the legal domain or the objectives of the project.
The primary purpose of modeling implementation of legislation in OWL is to account for that implementation, to validate it, and to simulate new service arrangements. Deployment of OWL-based services is not in- tended: actual technical implementation has to take into account the existing technical infrastructure of an organization, and modernizing in- frastructure is not the focus of the project.
Complex Adaptive Systems Based on complex adaptive systems (CAS) theory, the project will develop a service modeling and design method that should help organizations to adapt to new or changing leg- islation. The essence of CAS theory is the study of systems built of individual agents (being persons, business units, or organizations) that are capable of adapting as they interact with each other and with an en- vironment, in order to understand how the individual affects system-level responses.
The proposed method should take the resilience of existing systems, dependencies on the environment, and the unpredictability of change processes explicitly into account (cf. generally [9]). The objective of this part of the project is to improve the adaptability of ICT infrastructure, of business processes, and of knowledge in the organization.
The underlying premise is that simply determining future needs and re- quirements is not the right approach, due to the inherent unpredictability of a complex environment and the fact that there are already many work- ing (social and information) systems in place which can not and should not be ignored.
The simulation architecture and tools are out of scope of this paper.
Pilot studies Results from the research tracks discussed will be tested in the context of two actual business cases. One at the Dutch Immigration and Naturalisation Service (IND) and one at the Dutch Tax and Customs Administration (DTCA).
In both organizations, timely and efficient adaptation to changing leg- islation, case law, and patterns of behaviour accommodating or evading law in the relevant environment is seen as an important organizational objective, whose realization is causing problems.
3 Legal Concepts in Agile
Of specific relevance to a world dominated by written declarations and decisions, databases, web services, and changing sources of law is an ac- count of formal acts, and of the act of providing evidence for a legally relevant proposition. In this account the concepts developed in the Met- aLex standardization effort, presented next, play an important role.
Formal legal acts are characterized by 1) the requirement that one in- tends to bring about a certain institutional change, and 2) that this intent is communicated in writing, i.e. the institutional change isrepresented.
Both the act of legislating and the various paper or software-based acts of adminstrative organizations have this nature.
The relation between sources of law and the business processes and ser- vices of the administrative organization will be explained in terms of the institutionalization and formalization of normative order (cf. [10, 2]).
The notion of services – which usually has no direct counterpart in the relevant sources of law – will be explained in terms of Hohfeld’s directed jural relationships (cf. [8]). Both the constitutive rule (cf. generally [11]) and Hohfeld’s categories (cf. for instance [12]) are mainstays in legal knowledge representation and legal philosophical logic.
MetaLex To implement traceability from knowledge representation to sources of law, the AGILE project will build on the results of our work on MetaLex XML (cf. for instance [6, 5, 2]).
MetaLex serves as a common document format, processing model, and metadata set for software development. In addition, the MetaLex CEN committee defines a single jurisdiction-neutral and transparent uniform resource identifier (URI) based open, persistent, globally unique, memo- rizable, meaningful, even to some extent “guessable” naming convention for legislative resources, that can be used productively in OWL modeling.
MetaLex and the MetaLex naming convention strictly distinguish the source of law as a published work from its set of expressions over time, and the expression from its various manifestations, and the various lo- catable items that exemplify these manifestations, as recommended by the Functional Requirements for Bibliographic Records (FRBR; cf. [13]).
MetaLex extends the FRBR with a detailed but jurisdiction-independent model of the lifecycle of sources of law, that models the source of law as a succession of consolidated versions in force, and optionallyex tunc consolidations to capture the possibility of correction (errata corrige) or annulment after the fact of modifications by a constitutional court.
In the MetaLex metadata set, represented in an OWL ontology, the realizes property between expressions and works represents the con- nection between the two ontological levels at which documents exist that are of relevance to their real world use. The source of law on the expres- sion level for instancecitesother rules on the work level, while the legal rules we represent are necessarily identified by theirrepresentationin ex- pressions. A citation(text fragment)wapplies to (concept)Cshould for instance be read aseach legal rule that is represented by an expression- level text fragment that realizes work fragment w applies to C. This representation technique, an implementation of the idea of ontological stratification (cf. [7, 14, 2]), will play an important role in the AGILE project.
In current organizational practice the management of changing sources of law (particularly at the levels below formal law) is a notable weak point, andex tunc change is often never heard of.
Institutions and Rules The primary purpose of legal knowledge representation for the administrative organization is to keep track of how it implements law in its organizational structure, business processes, data structures, business rules, and resource allocation practices. On the other hand the administrative organization has a number of good reasons to keep specifications relating to these ontologically distinct from their legal abstractions.
Firstly, there is often a mismatch between the conceptualization of the acts performed as found in the sources of law and the more practical conceptualization within the organization, even if there is a consider- able overlap in terms. Law is not the only source of design requirements and constraints, and the implementation of well-defined decision making procedures and software support requires additional commitments.
Secondly, the concurrent use of different regimes within an organization, or of alternative procedures for performing the same legal act (for real or
for simulation), make such an identification tricky. While the organiza- tion may for instance use the vocabulary of the law to structure it’s data structures, it will inevitably be confronted with changes in that vocab- ulary, and the question which data can beregrounded in the new legal vocabulary.
Thirdly, straightforward legal rules are often in practice implemented as formal acts, creating a confusion between proposition and formal repre- sentations of such a proposition. For immigration, the proposition that someone is married may for instance be legally relevant; In the implemen- tation of this criterion this however for instance becomes the proposition that someone has supplied a marriage certificate.
Since marriages may end, such a proposition is obviously not an essential quality of a person: the correct way to represent such a proposition is as a participation in a (time-limited) marriage. Moreover, if the organization for instance adds another condition that the marriage certificate must be less than one year old, and a procedure may take more than one year, a service requester may in fact be required to supply a marriage certificate multiple times. A certificate may in fact be still valid at the moment of decision making, while the marriage is not at the point in time in existence.
The administrative organization is conceived of as an implementation of a legal institution. Institutions can be conceptualized as abstract social systems with a well-defined interface with an environment. The struc- tures of the legal institution are defined by the institutional facts that make up the institution, and its mechanisms of change are the constitu- tive rules – found in the relevant sources of law – that specify what brute actconstitutes, or counts as, an institutional act. The administrative or- ganization must at leastimplementeach of the relevant institutional acts it is supposed to perform in brute reality in a business process and ad- vertise it as a service to the relevant agents. Conversely, it recognizes a limited number of ways in which agents in the environment can perform the acts that count as a request for the performance of a service.
Relevant patterns in logical propositions describing the functions of le- gal rules revolve around the notions ofconstitutivenessandapplicability.
The legal rules represented by the source of law appeal to two separate realities – institutional reality and brute reality – and perform a map- ping from brute reality – the ontological substratum – into institutional reality – the ontological superstratum. The substratum has an existence independent of the rules, while the superstratum is supervenient on the substratum and exists by virtue of social recognition of the rules of the institution.
Applicability plays a central role as soon as the logical proposition and the legal rule are separated. The law frequently does so: A special class of legal rules,applicability rules, constrains the applicability of other rules, or make the application of one legal rule conditional on the application of another legal rule.
The institutional interpretation however tells us little about the functions of law for its users. To explain these functions, we have to appeal to planning and plan recognition. In the AGILE project this aspect is filled in withagent simulation.
In some cases such an explanation is straightforward. The analysis of nor- mative rules in terms of normative positions and obligation, i.e. deontic logic, is such a straightforward abstract theory of behaviour, based on the expectation that people generally avoid the circumstances in which they are liable to be punished. To explain the normalizing effect of other rules one must ascribe intentions and preferences to agents: People generally intentionally try to bring about or avoid certain legal facts.
The principal aim of Hohfeld’s work (in [8]) was to clarifyjural relation- ships between parties. Hohfeld’s relationships distinguish between the (legal) competence (or power, ability) and incompetence to play a cer- tain agent role, and therefore to cause a certain change of position, and between the obligation to cause a certain change of position or the ab- sence of such an obligation, and most importantly, between the one who acts and the one who predicts the actions of another. In essence we are dealing with the ability of one agent to infer:
1. that another agent has theability orinabilityto change his (in this case legal) position in relevant ways, and
2. that the other agent has apreference for changing or not changing it.
Business process specifications represent an intention to use one’s (le- gal) abilities in a predictable manner. Services publicly advertise this intention, so that it creates an ability (to change their legal position) of prospective clients. These clients use this ability by requesting a service.
Of central importance is the adoption of agent roles: the client becomes a client by requesting a service and – thereby – adopting a well-defined role, while the employee of the administrative organization adopts an agent role in an associated business process. Agent simulation as a tool for impact analysis and exploration of design options assumes the devel- opment of prototypical agents representing both the organization itself and its relevant environment.
4 Discussion
The discussed elements are all found in legal knowledge representation.
A deviation from mainstream legal knowledge representation is found in the rigorous ontological stratification (cf. [7, 14]) of legal entities and organizational entities we consider for AGILE. Although legal knowledge representation literature discusses the “counts-as” or constitutive rules (cf. for instance [1, 11]), it usually considers them just one type of rule, among other (notably normative) ones, instead of applying the concept throughout.
Acknowledgements
AGILE is a Jacquard project funded by the Netherlands Organisation for Scientific Research (NWO). In the AGILE project, The Leibniz Center for Law of the University of Amsterdam cooperates with the Technical University of Delft, which has experience in the application of CAS the- ory to organizations. The IND and two companies, O&I and BeInformed, provide matching effort to the project.
References
1. G. Boella and L. W. N. van der Torre. Regulative and constitutive norms in normative multiagent systems. InProceedings of the 9th International Conference on the Principles of Knowledge Represen- tation and Reasoning, Whistler (CA), 2004.
2. A. Boer.Legal Theory, Sources of Law, & the Semantic Web. Fron- tiers in Artificial Intelligence and Applications 195. IOS Press, 2009.
To appear.
3. A. Boer, T. van Engers, R. Peters, and R. Winkels. Separating law from geography in gis-based egovernment services. Artificial Intelligence & Law, 15(1):49–76, February 2007.
4. A. Boer, T. van Engers, and R. Winkels. Using Ontologies for Com- paring and Harmonizing Legislation. InProceedings of the Interna- tional Conference on Artificial Intelligence and Law (ICAIL), Edin- burgh (UK), 2003. ACM Press.
5. A. Boer, F. Vitali, and E. de Maat. CEN Workshop Agreement on MetaLex XML, an open XML Interchange Format for Legal and Legislative Resources (CWA 15710). Technical report, European Committee for Standardization (CEN), 2006.
6. A. Boer, R. Winkels, and F. Vitali. Metalex XML and the Le- gal Knowledge Interchange Format. In G. Sartor, P. Casanovas, N. Casellas, and R. Rubino, editors, Computational Models of the Law, volume LNCS 4884 ofLecture Notes in Artificial Intelligence.
Springer, 2008.
7. S. Borgo, N. Guarino, and C. Masolo. Stratified ontologies: The case of physical objects. In Proceedings of the ECAI-96 Workshop on Ontological Engineering, 1996.
8. W. Hohfeld. Fundamental Legal Conceptions as Applied in Legal Reasoning. Yale University Press, 1919. Edited by W.W. Cook, fourth printing, 1966.
9. M. Janssen. Adaptability and accountability of information architec- tures in interorganizational networks. InICEGOV ’07: Proceedings of the 1st international conference on Theory and practice of elec- tronic governance, pages 57–64, New York, NY, USA, 2007. ACM.
10. N. MacCormick. Norms, institutions, and institutional facts. Law and Philosophy, 17(3):301–345, 1998.
11. T. Mazzarese. Towards the semantics of “constitutive” in judicial reasoning. Ratio Iuris, 12:252–262, 1999.
12. G. Sartor. Fundamental legal concepts: A formal and teleological characterisation. Technical report, European University Institute, Florence / Cirsfid, University of Bologna, 2006.
13. K. G. Saur. Functional requirements for bibliographic records.
UBCIM Publications - IFLA Section on Cataloguing, 19, 1998.
14. B. Smith. An essay in formal ontology. Grazer Philosophische Stu- dien, 6:39–62, 1978.
15. T. van Engers, R. Winkels, A. Boer, and E. de Maat. Knowl- edge management and the dutch legal aid service counter. In J. J. Schreinemakers and T. van Engers, editors,Advances in Knowl- edge Management, volume IV, W¨urzburg, 2006. Ergon Verlag.
