Copyright 1995 by Dallas Semiconductor Corporation.

All Rights Reserved. For important information regarding patents and other intellectual property rights, please refer to Dallas Semiconductor data books.

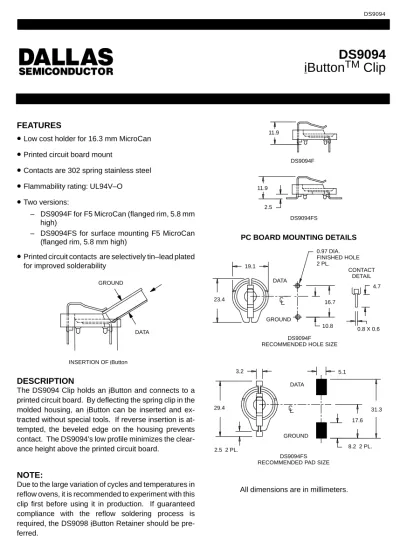

DS9094 iButton TM Clip

DS9094

040197 1/1

FEATURES

•

Low cost holder for 16.3 mm MicroCan

•

Printed circuit board mount

•

Contacts are 302 spring stainless steel

•

Flammability rating: UL94V–O

•

Two versions:

– DS9094F for F5 MicroCan (flanged rim, 5.8 mm high)

– DS9094FS for surface mounting F5 MicroCan (flanged rim, 5.8 mm high)

•

Printed circuit contacts are selectively tin–lead plated for improved solderability

GROUND

DATA

INSERTION OF iButton

DESCRIPTION

The DS9094 Clip holds an iButton and connects to a printed circuit board. By deflecting the spring clip in the molded housing, an iButton can be inserted and ex- tracted without special tools. If reverse insertion is at- tempted, the beveled edge on the housing prevents contact. The DS9094’s low profile minimizes the clear- ance height above the printed circuit board.

NOTE:

Due to the large variation of cycles and temperatures in reflow ovens, it is recommended to experiment with this clip first before using it in production. If guaranteed compliance with the reflow soldering process is required, the DS9098 iButton Retainer should be pre- ferred.

DS9094FS DS9094F

PC BOARD MOUNTING DETAILS

DS9094F RECOMMENDED HOLE SIZE

DS9094FS RECOMMENDED PAD SIZE

GROUND DATA 11.9

2.5 11.9

19.1

23.4 16.7

0.97 DIA.

FINISHED HOLE 2 PL.

10.8

5.1

17.6 31.3

8.2 2 PL.

DATA

GROUND 29.4

CONTACT DETAIL

4.7

0.8 X 0.6

3.2

2.5 2 PL.

All dimensions are in millimeters.
