IBMMAE 3 - Machine Elements

(1)

IBMMAE 3 - Machine Elements

2020-2021

1

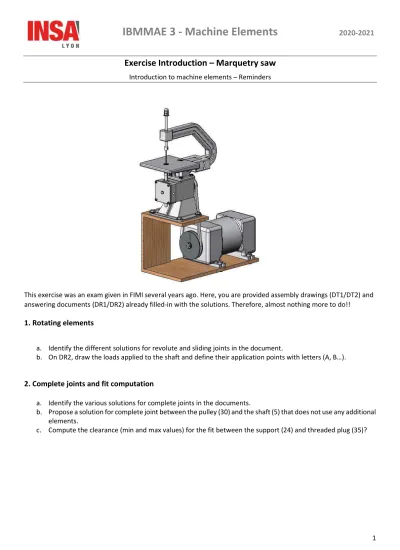

Exercise Introduction – Marquetry saw

Introduction to machine elements – Reminders

This exercise was an exam given in FIMI several years ago. Here, you are provided assembly drawings (DT1/DT2) and answering documents (DR1/DR2) already filled-in with the solutions. Therefore, almost nothing more to do!!

1. Rotating elements

a. Identify the different solutions for revolute and sliding joints in the document.

b. On DR2, draw the loads applied to the shaft and define their application points with letters (A, B…).

2. Complete joints and fit computation

a. Identify the various solutions for complete joints in the documents.

b. Propose a solution for complete joint between the pulley (30) and the shaft (5) that does not use any additional elements.

c. Compute the clearance (min and max values) for the fit between the support (24) and threaded plug (35)?
