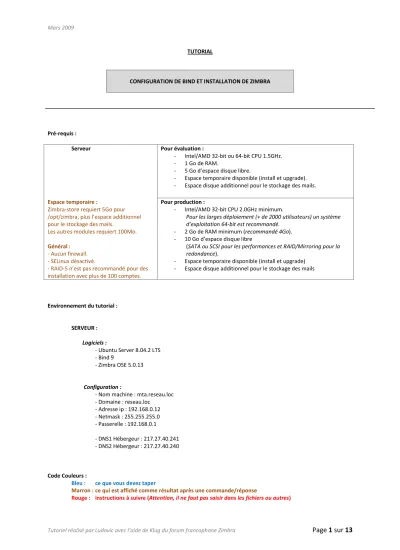

TUTORIAL CONFIGURATION DE BIND ET INSTALLATION DE ZIMBRA

(1)

TUTORIAL

CONFIGURATION DE BIND ET INSTALLATION DE ZIMBRA

Pré-requis :

Serveur Pour évaluation :

- Intel/AMD 32-bit ou 64-bit CPU 1.5GHz.

- 1 Go de RAM.

- 5 Go d’espace disque libre.

- Espace temporaire disponible (install et upgrade).

- Espace disque additionnel pour le stockage des mails.

Espace temporaire :

Zimbra-store requiert 5Go pour /opt/zimbra, plus l’espace additionnel pour le stockage des mails.

Les autres modules requiert 100Mo.

Général : - Aucun firewall.

- SELinux désactivé.

- RAID-5 n’est pas recommandé pour des installation avec plus de 100 comptes.

Pour production :

- Intel/AMD 32-bit CPU 2.0GHz minimum.

Pour les larges déploiement (+ de 2000 utilisateurs) un système d’exploitation 64-bit est recommandé.

- 2 Go de RAM minimum (recommandé 4Go).

- 10 Go d’espace disque libre

(SATA ou SCSI pour les performances et RAID/Mirroring pour la redondance).

- Espace temporaire disponible (install et upgrade) - Espace disque additionnel pour le stockage des mails

Environnement du tutorial :

SERVEUR : Logiciels :

- Ubuntu Server 8.04.2 LTS - Bind 9

- Zimbra OSE 5.0.13

Configuration :

- Nom machine : mta.reseau.loc - Domaine : reseau.loc

- Adresse ip : 192.168.0.12 - Netmask : 255.255.255.0 - Passerelle : 192.168.0.1 - DNS1 Hébergeur : 217.27.40.241 - DNS2 Hébergeur : 217.27.40.240

Code Couleurs :

Bleu : ce que vous devez taper

Marron : ce qui est affiché comme résultat après une commande/réponse

Rouge : instructions à suivre (Attention, il ne faut pas saisir dans les fichiers ou autres)

(2)

INSTALLATION DE BIND9

root@mta:~# apt-get install bind9

Lecture des listes de paquets... Fait Construction de l'arbre des dÃ©pendances Lecture des informations d'Ã©tat... Fait Paquets suggÃ©rÃ©sÂ :

bind9-doc resolvconf

Les NOUVEAUX paquets suivants seront installÃ©sÂ : bind9

0 mis Ã jour, 1 nouvellement installÃ©s, 0 Ã enlever et 6 non mis Ã jour.

Il est nÃ©cessaire de prendre 268ko dans les archives.

AprÃ¨s cette opÃ©ration, 762ko d'espace disque supplÃ©mentaires seront utilisÃ©s.

RÃ©ception deÂ : 1 http://fr.archive.ubuntu.com hardy-updates/main bind9 1:9.4.2.dfsg.P2-2ubuntu0.1 [268kB]

268ko rÃ©ceptionnÃ©s en 1s (208ko/s)

SÃ©lection du paquet bind9 prÃ©cÃ©demment dÃ©sÃ©lectionnÃ©.

(Lecture de la base de donnÃ©es... 15336 fichiers et rÃ©pertoires dÃ©jÃ installÃ©s.) DÃ©paquetage de bind9 (Ã partir de .../bind9_1%3a9.4.2.dfsg.P2-2ubuntu0.1_i386.deb) ...

ParamÃ©trage de bind9 (1:9.4.2.dfsg.P2-2ubuntu0.1) ...

Adding group `bind' (GID 114) ...

Done.

Adding system user `bind' (UID 105) ...

Adding new user `bind' (UID 105) with group `bind' ...

Not creating home directory `/var/cache/bind'.

wrote key file "/etc/bind/rndc.key"

Reloading AppArmor profiles : done.

* Starting domain name service... bind OK ]

CONFIGURATION DU /ETC/HOSTS

root@mta:~# cd /etc root@mta:/etc# more hosts root@mta:/etc# vi hosts

AVANT MODIFICATION APRES MODIFICATION

127.0.0.1 localhost 127.0.1.1 mta

# The following lines are desirable for IPv6 capable hosts

::1 ip6-localhost ip6-loopback fe00::0 ip6-localnet

ff00::0 ip6-mcastprefix ff02::1 ip6-allnodes ff02::2 ip6-allrouters ff02::3 ip6-allhosts

127.0.0.1 localhost

#127.0.1.1 mta

192.168.0.12 mta.reseau.loc mta

# The following lines are desirable for IPv6 capable hosts

::1 ip6-localhost ip6-loopback fe00::0 ip6-localnet

ff00::0 ip6-mcastprefix ff02::1 ip6-allnodes ff02::2 ip6-allrouters ff02::3 ip6-allhosts

CONFIGURATION DU /ETC/RESOLV.CONF

root@mta:/etc# more resolv.conf root@mta:/etc# vi resolv.conf

AVANT MODIFICATION APRES MODIFICATION nameserver 212.27.40.240

nameserver 212.27.40.241

search reseau.loc nameserver 127.0.0.1

(3)

CONFIGURATION DES FICHIERS DANS LE /ETC/BIND

Réalisation d’une sauvegarde des fichiers root@mta:/etc# cd bind root@mta:/etc/bind# mkdir save root@mta:/etc/bind# cp * save/

CONFIGURATION DU /ETC/BIND/NAMED.CONF

CONFIGURATION AVANT CONFIGURATION APRES

include "/etc/bind/named.conf.options";

// prime the server with knowledge of the root servers zone "." {

type hint;

file "/etc/bind/db.root";

};

zone "localhost" { type master;

file "/etc/bind/db.local";

};

zone "127.in-addr.arpa" { type master;

file "/etc/bind/db.127";

};

include "/etc/bind/named.conf.local";

include "/etc/bind/named.conf.options";

// prime the server with knowledge of the root servers zone "." {

type hint;

file "/etc/bind/db.root";

};

zone "localhost" { type master;

file "/etc/bind/db.local";

};

include "/etc/bind/named.conf.local";

//ajout des liens vers le fichier de configuration du domaine reseau.loc zone "reseau.loc" {

type master;

file "/etc/bind/zones/reseau.loc.hosts";

};

//ajout des liens vers le fichier de configuration du reverse pour le LAN zone "0.168.192.in-addr.arpa" {

type master;

file "/etc/bind/zones/rev.192.168.0.in-addr.arpa";

};

CONFIGURATION DU FICHIER /ETC/BIND/NAMED.CONF.OPTIONS root@mta:/etc/bind# vi named.conf.options

options {

directory "/var/cache/bind";

query-source address * port 53;

forwarders { //ajout des DNS de Free pour qu’ils soient interrogé pour les domaines non internes à reseau.loc 217.27.40.240;

217.27.40.241;

};

auth-nxdomain no; # conform to RFC1035 listen-on-v6 { any; };

};

(4)

CREATION DU FICHIER DE ZONE

root@mta:/etc/bind# mkdir zones root@mta:/etc/bind# cd zones

root@mta:/etc/bind/zones# vi reseau.loc.hosts

$ttl 86400

@ IN SOA mta.reseau.loc. mail.reseau.loc. (

2008061801

21600

3600

604800

86400 )

;ENREGISTREMENT "A" DNS <-> IP CLASSIQUES @ IN NS mail.reseau.loc. IN MX 10 mail.reseau.loc. IN A 192.168.0.12 mail IN A 192.168.0.12 mta IN A 192.168.0.12 ;ENREGISTREMENT MESSAGERIE reseau.loc. IN MX 10 mta CREATION DU FICHIER DE REVERSE DNS root@mta:/etc/bind/zones# vi rev.192.168.0.in-addr.arpa @ IN SOA reseau.loc. admin.reseau.loc. ( 2006081401;

28800;

604800;

86400);

IN NS mta.reseau.loc.

12 IN PTR mta.reseau.loc.

REDEMARRAGE DE BIND

root@mta:/etc/bind/zones# /etc/init.d/bind9 restart

* Stopping domain name service... bind [ OK ] * Starting domain name service... bind [ OK ] root@mta:/etc/bind/zones#

(5)

VERIFICATION VIA DIG & NSLOOKUP

root@mta:/etc/bind/zones# dig mx reseau.loc

; <<>> DiG 9.4.2-P2 <<>> mx reseau.loc

;; global options: printcmd

;; Got answer:

;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 53399

;; flags: qr aa rd ra; QUERY: 1, ANSWER: 2, AUTHORITY: 1, ADDITIONAL: 2

;; QUESTION SECTION:

;reseau.loc. IN MX

;; ANSWER SECTION:

reseau.loc. 86400 IN MX 10 mail.reseau.loc.

reseau.loc. 86400 IN MX 10 mta.reseau.loc.

;; AUTHORITY SECTION:

reseau.loc. 86400 IN NS mail.reseau.loc.

;; ADDITIONAL SECTION:

mail.reseau.loc. 86400 IN A 192.168.0.12 mta.reseau.loc. 86400 IN A 192.168.0.12

;; Query time: 1 msec

;; SERVER: 192.168.0.12#53(192.168.0.12)

;; WHEN: Tue Mar 3 12:25:44 2009

;; MSG SIZE rcvd: 115

root@mta:/etc/bind/zones# dig a mail.reseau.loc

; <<>> DiG 9.4.2-P2 <<>> a mail.reseau.loc

;; global options: printcmd

;; Got answer:

;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 23440

;; flags: qr aa rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 1, ADDITIONAL: 0

;; QUESTION SECTION:

;mail.reseau.loc. IN A

;; ANSWER SECTION:

mail.reseau.loc. 86400 IN A 192.168.0.12

;; AUTHORITY SECTION:

reseau.loc. 86400 IN NS mail.reseau.loc.

;; Query time: 1 msec

;; SERVER: 192.168.0.12#53(192.168.0.12)

;; WHEN: Tue Mar 3 12:27:06 2009

;; MSG SIZE rcvd: 63

root@mta:/etc/bind/zones# nslookup reseau.loc Server: 192.168.0.12

Address: 192.168.0.12#53 Name: reseau.loc

Address: 192.168.0.12

(6)

INSTALLATION DE ZIMBRA

Version de Zimbra : 5.0.13 OSE Taille de l’archive : ~340 Mo

Site de téléchargement : Zimbra Site Officiel - http://www.zimbra.com/community/downloads.html

Récupération de Zimbra - Via le site officiel.

- Avec la méthode wget :

root@mta:~# wget http://h.yimg.com/lo/downloads/5.0.13_GA/zcs-5.0.13_GA_2791.UBUNTU8.20090206174622.tgz --12:32:35-- http://h.yimg.com/lo/downloads/5.0.13_GA/zcs-5.0.13_GA_2791.UBUNTU8.20090206174622.tgz => `zcs-5.0.13_GA_2791.UBUNTU8.20090206174622.tgz'

Resolving h.yimg.com... 4.23.50.124, 207.123.34.126, 206.33.34.126 Connecting to h.yimg.com|4.23.50.124|:80... failed: Connection timed out.

Connecting to h.yimg.com|207.123.34.126|:80... connected.

HTTP request sent, awaiting response... 200 OK Length: 348 065 711 (332M) [binary/octet-stream]

100%[=====================================================================================================

================================>] 348 065 711 253.60K/s ETA 00:00

12:58:56 (245.09 KB/s) - `zcs-5.0.13_GA_2791.UBUNTU8.20090206174622.tgz' saved [348065711/348065711]

Décompression de l’archive

root@mta:~# tar xzf zcs-5.0.13_GA_2791.UBUNTU8.20090206174622.tgz root@mta:~# mv zcs-5.0.13_GA_2791.UBUNTU8.20090206174622 zcs

Préparation des librairies nécessaires à Zimbra

root@mta:~/zcs# apt-get install libpcre3 libgmp3c2 libstdc++5 libltdl3 fetchmail curl sysstat Lecture des listes de paquets... Fait

Construction de l'arbre des dÃ©pendances Lecture des informations d'Ã©tat... Fait

Les paquets supplÃ©mentaires suivants seront installÃ©sÂ : gcc-3.3-base

Les NOUVEAUX paquets suivants seront installÃ©sÂ : gcc-3.3-base libgmp3c2 libltdl3 libpcre3 libstdc++5

0 mis Ã jour, 5 nouvellement installÃ©s, 0 Ã enlever et 6 non mis Ã jour.

Il est nÃ©cessaire de prendre 1267ko dans les archives.

AprÃ¨s cette opÃ©ration, 2458ko d'espace disque supplÃ©mentaires seront utilisÃ©s.

Souhaitez-vous continuer [O/n]Â ? O ici, répondre « O »

RÃ©ception deÂ : 1 http://fr.archive.ubuntu.com hardy-updates/universe gcc-3.3-base 1:3.3.6-15ubuntu6 [151kB]

RÃ©ception deÂ : 2 http://fr.archive.ubuntu.com hardy/main libgmp3c2 2:4.2.2+dfsg-1ubuntu2 [436kB]

RÃ©ception deÂ : 3 http://fr.archive.ubuntu.com hardy/main libltdl3 1.5.26-1ubuntu1 [178kB]

RÃ©ception deÂ : 4 http://fr.archive.ubuntu.com hardy-updates/main libpcre3 7.4-1ubuntu2.1 [206kB]

RÃ©ception deÂ : 5 http://fr.archive.ubuntu.com hardy-updates/universe libstdc++5 1:3.3.6-15ubuntu6 [296kB]

1267ko rÃ©ceptionnÃ©s en 10s (123ko/s)

SÃ©lection du paquet gcc-3.3-base prÃ©cÃ©demment dÃ©sÃ©lectionnÃ©.

(Lecture de la base de donnÃ©es... 15377 fichiers et rÃ©pertoires dÃ©jÃ installÃ©s.)

DÃ©paquetage de gcc-3.3-base (Ã partir de .../gcc-3.3-base_1%3a3.3.6-15ubuntu6_i386.deb) ...

SÃ©lection du paquet libgmp3c2 prÃ©cÃ©demment dÃ©sÃ©lectionnÃ©.

DÃ©paquetage de libgmp3c2 (Ã partir de .../libgmp3c2_2%3a4.2.2+dfsg-1ubuntu2_i386.deb) ...

SÃ©lection du paquet libltdl3 prÃ©cÃ©demment dÃ©sÃ©lectionnÃ©.

DÃ©paquetage de libltdl3 (Ã partir de .../libltdl3_1.5.26-1ubuntu1_i386.deb) ...

SÃ©lection du paquet libpcre3 prÃ©cÃ©demment dÃ©sÃ©lectionnÃ©.

DÃ©paquetage de libpcre3 (Ã partir de .../libpcre3_7.4-1ubuntu2.1_i386.deb) ...

SÃ©lection du paquet libstdc++5 prÃ©cÃ©demment dÃ©sÃ©lectionnÃ©.

DÃ©paquetage de libstdc++5 (Ã partir de .../libstdc++5_1%3a3.3.6-15ubuntu6_i386.deb) ...

(7)

ParamÃ©trage de gcc-3.3-base (1:3.3.6-15ubuntu6) ...

ParamÃ©trage de libgmp3c2 (2:4.2.2+dfsg-1ubuntu2) ...

ParamÃ©trage de libltdl3 (1.5.26-1ubuntu1) ...

ParamÃ©trage de libpcre3 (7.4-1ubuntu2.1) ...

ParamÃ©trage de libstdc++5 (1:3.3.6-15ubuntu6) ...

Processing triggers for libc6 ...

ldconfig deferred processing now taking place

Début de l’installation root@mta:~# cd zcs root@mta:~/zcs# ./install.sh

Operations logged to /tmp/install.log.4679 Checking for existing installation...

zimbra-ldap...NOT FOUND zimbra-logger...NOT FOUND zimbra-mta...NOT FOUND zimbra-snmp...NOT FOUND zimbra-store...NOT FOUND zimbra-apache...NOT FOUND zimbra-spell...NOT FOUND zimbra-proxy...NOT FOUND zimbra-archiving...NOT FOUND zimbra-convertd...NOT FOUND zimbra-cluster...NOT FOUND zimbra-core...NOT FOUND

PLEASE READ THIS AGREEMENT CAREFULLY BEFORE USING THE SOFTWARE.

ZIMBRA, INC. ("ZIMBRA") WILL ONLY LICENSE THIS SOFTWARE TO YOU IF YOU FIRST ACCEPT THE TERMS OF THIS AGREEMENT. BY DOWNLOADING OR INSTALLING THE SOFTWARE, OR USING THE PRODUCT, YOU ARE CONSENTING TO BE BOUND BY THIS AGREEMENT. IF YOU DO NOT AGREE TO ALL OF THE TERMS OF THIS

AGREEMENT, THEN DO NOT DOWNLOAD, INSTALL OR USE THE PRODUCT.

License Terms for the Zimbra Collaboration Suite:

http://www.zimbra.com/license/zimbra_public_eula_2.1.html Press Return to continue ici, presser la touche ENTER

Checking for prerequisites...

FOUND: NPTL

FOUND: sudo-1.6.9p10-1ubuntu3.3 FOUND: libidn11-1.1-1

FOUND: libpcre3-7.4-1ubuntu2.1

FOUND: libgmp3c2-2:4.2.2+dfsg-1ubuntu2 FOUND: libexpat1-2.0.1-0ubuntu1 FOUND: libstdc++6-4.2.4-1ubuntu3 FOUND: libstdc++5-1:3.3.6-15ubuntu6 FOUND: libltdl3-1.5.26-1ubuntu1 Checking for suggested prerequisites...

FOUND: perl-5.8.8 Prerequisite check complete.

Checking for installable packages Found zimbra-core

Found zimbra-ldap

(8)

Found zimbra-logger Found zimbra-mta Found zimbra-snmp Found zimbra-store Found zimbra-apache Found zimbra-spell Found zimbra-proxy

Select the packages to install

Install zimbra-ldap [Y]] Y Install zimbra-logger [Y] Y Install zimbra-mta [Y] Y Install zimbra-snmp [Y] Y Install zimbra-store [Y] Y Install zimbra-apache [Y] Y Install zimbra-spell [Y] Y

Install zimbra-proxy [N] N ici nous mettons NON car nous n’allons pas l’utiliser.

Checking required space for zimbra-core checking space for zimbra-store

Installing:

zimbra-core zimbra-ldap zimbra-logger zimbra-mta zimbra-snmp zimbra-store zimbra-apache zimbra-spell

The system will be modified. Continue? [N] Y

Removing /opt/zimbra

Removing zimbra crontab entry...done.

done.

Cleaning up zimbra init scripts...done.

Cleaning up /etc/ld.so.conf...done.

Cleaning up /etc/security/limits.conf...done.

Finished removing Zimbra Collaboration Suite.

Installing packages

zimbra-core...zimbra-core_5.0.13_GA_2791.UBUNTU8_i386.deb...done zimbra-ldap...zimbra-ldap_5.0.13_GA_2791.UBUNTU8_i386.deb...done zimbra-logger...zimbra-logger_5.0.13_GA_2791.UBUNTU8_i386.deb...done zimbra-mta...zimbra-mta_5.0.13_GA_2791.UBUNTU8_i386.deb...done zimbra-snmp...zimbra-snmp_5.0.13_GA_2791.UBUNTU8_i386.deb...done zimbra-store...zimbra-store_5.0.13_GA_2791.UBUNTU8_i386.deb...done zimbra-apache...zimbra-apache_5.0.13_GA_2791.UBUNTU8_i386.deb...done zimbra-spell...zimbra-spell_5.0.13_GA_2791.UBUNTU8_i386.deb...done Operations logged to /tmp/zmsetup.03032009-143512.log

Setting defaults...

DNS ERROR resolving MX for mta.reseau.loc

It is suggested that the domain name have an MX record configured in DNS Change domain name? [Yes] Yes ici, répondre YES

Create Domain: [mta.reseau.loc] reseau.loc ici, entrer le nom du domaine MX: mta.reseau.loc (192.168.0.12)

MX: mail.reseau.loc (192.168.0.12)

(9)

Interface: 192.168.0.12 Interface: 127.0.0.1 done.

Checking for port conflicts Main menu

1) Common Configuration:

2) zimbra-ldap: Enabled 3) zimbra-store: Enabled +Create Admin User: yes

+Admin user to create: admin@reseau.loc

******* +Admin Password UNSET +Enable automated spam training: yes

+Spam training user: spam.8mdrl4hudb@reseau.loc +Non-spam(Ham) training user: ham.vp9zcdek5k@reseau.loc +Global Documents Account: wiki@reseau.loc

+SMTP host: mta.reseau.loc

+Web server HTTP port: 80

+Web server HTTPS port: 443

+Web server mode: http +IMAP server port: 143

+IMAP server SSL port: 993

+POP server port: 110

+POP server SSL port: 995

+Use spell check server: yes +Spell server URL: http://mta.reseau.loc:7780/aspell.php +Configure store for use with reverse mail proxy: FALSE +Configure store for use with reverse web proxy: FALSE 4) zimbra-mta: Enabled 5) zimbra-snmp: Enabled 6) zimbra-logger: Enabled 7) zimbra-spell: Enabled 8) Default Class of Service Configuration: r) Start servers after configuration yes s) Save config to file x) Expand menu q) Quit Address unconfigured (**) items (? - help) 3 ici, entrer le chiffre correspondant au menu zimbra-store Store configuration 1) Status: Enabled 2) Create Admin User: yes 3) Admin user to create: admin@reseau.loc ** 4) Admin Password UNSET 5) Enable automated spam training: yes 6) Spam training user: spam.8mdrl4hudb@reseau.loc 7) Non-spam(Ham) training user: ham.vp9zcdek5k@reseau.loc 8) Global Documents Account: wiki@reseau.loc 9) SMTP host: mta.reseau.loc 10) Web server HTTP port: 80

11) Web server HTTPS port: 443

12) Web server mode: http 13) IMAP server port: 143

14) IMAP server SSL port: 993

15) POP server port: 110

16) POP server SSL port: 995 17) Use spell check server: yes

18) Spell server URL: http://mta.reseau.loc:7780/aspell.php

(10)

19) Configure store for use with reverse mail proxy: FALSE 20) Configure store for use with reverse web proxy: FALSE

Select, or 'r' for previous menu [r]4 ici, entrer le chiffre correspondant à la configuration de l’admin password Password for admin@reseau.loc (min 6 characters): [qLjNJZQV2Z] taper un mot de passe

Store configuration

1) Status: Enabled 2) Create Admin User: yes

3) Admin user to create: admin@reseau.loc 4) Admin Password set

5) Enable automated spam training: yes

6) Spam training user: spam.8mdrl4hudb@reseau.loc 7) Non-spam(Ham) training user: ham.vp9zcdek5k@reseau.loc 8) Global Documents Account: wiki@reseau.loc

9) SMTP host: mta.reseau.loc

10) Web server HTTP port: 80

11) Web server HTTPS port: 443

12) Web server mode: http 13) IMAP server port: 143

14) IMAP server SSL port: 993

15) POP server port: 110

16) POP server SSL port: 995 17) Use spell check server: yes

18) Spell server URL: http://mta.reseau.loc:7780/aspell.php 19) Configure store for use with reverse mail proxy: FALSE

20) Configure store for use with reverse web proxy: FALSE Select, or 'r' for previous menu [r] r

Main menu

1) Common Configuration:

2) zimbra-ldap: Enabled 3) zimbra-store: Enabled 4) zimbra-mta: Enabled 5) zimbra-snmp: Enabled 6) zimbra-logger: Enabled 7) zimbra-spell: Enabled 8) Default Class of Service Configuration:

r) Start servers after configuration yes s) Save config to file

x) Expand menu q) Quit

*** CONFIGURATION COMPLETE - press 'a' to apply

Select from menu, or press 'a' to apply config (? - help)a ici, presser a pour appliquer les modifications Save configuration data to a file? [Yes] Yes

ici, entrer Yes pour enregistrer la configuration dans un fichier Save config in file: [/opt/zimbra/config.8514]

Saving config in /opt/zimbra/config.8514...done.

The system will be modified - continue? [No] Yesici, entrer Yes pour appliquer la configuration au system Operations logged to /tmp/zmsetup.03032009-143512.log

Setting local config values...

Setting up CA...done.

Deploying CA to /opt/zimbra/conf/ca ...done.

Creating SSL certificate...done.

Installing mailboxd SSL certificates...done.

Initializing ldap...done.

Setting replication password...done.

Setting Postfix password...done.

Setting amavis password...done.

(11)

Setting nginx password...done.

Saving CA in ldap ...done.

Creating server entry for mta.reseau.loc...done.

Saving SSL Certificate in ldap ...done.

Setting spell check URL...done.

Setting service ports on mta.reseau.loc...done.

Adding mta.reseau.loc to zimbraMailHostPool in default COS...done.

Installing skins...

beach bones waves sky bare lavender zmail hotrod yahoo steel lemongrass sand done.

Setting zimbraFeatureIMEnabled=FALSE...done.

Setting zimbraFeatureTasksEnabled=TRUE...done.

Setting zimbraFeatureBriefcasesEnabled=TRUE...done.

Setting zimbraFeatureNotebookEnabled=TRUE...done.

Setting MTA auth host...done.

Setting TimeZone Preference...done.

Creating domain reseau.loc...done.

Creating user admin@reseau.loc...done.

Creating postmaster alias...done.

Creating user wiki@reseau.loc...done.

Creating user spam.8mdrl4hudb@reseau.loc...done.

Creating user ham.vp9zcdek5k@reseau.loc...done.

Setting spam training accounts...done.

Initializing store sql database...done.

Setting zimbraSmtpHostname for mta.reseau.loc...done.

Initializing logger sql database...done.

Initializing mta config...done.

Configuring SNMP...done.

Setting services on mta.reseau.loc...done.

Setting up syslog.conf...done.

You have the option of notifying Zimbra of your installation.

This helps us to track the uptake of the Zimbra Collaboration Suite.

The only information that will be transmitted is:

The VERSION of zcs installed (5.0.13_GA_2791_UBUNTU8) The ADMIN EMAIL ADDRESS created (admin@reseau.loc)

Notify Zimbra of your installation? [Yes]Yes ici, entrer Yes pour informer ou No

Notifying Zimbra of installation via ttp://www.zimbra.com/cgibin/notify.cgi?VER=5.0.13_GA_2791_UBUNTU8&MAIL=admin@reseau.loc

Notification complete

Starting servers...done.

Checking for deprecated zimlets...done.

Installing common zimlets...

com_zimbra_ymemoticons...done.

com_zimbra_email...done.

com_zimbra_phone...done.

com_zimbra_bulkprovision...done.

com_zimbra_cert_manager...done.

com_zimbra_date...done.

com_zimbra_local...done.

(12)

com_zimbra_url...done.

Finished installing common zimlets.

Initializing Documents...done.

Restarting mailboxd...done.

Setting up zimbra crontab...done.

Moving /tmp/zmsetup.03032009-143512.log to /opt/zimbra/log

Configuration complete - press return to exit ici, presser la touche ENTER

Accès à l’interface d’administration

Ouvrir un navigateur

Dans la barre d’adresse taper : https://192.168.0.12:7071 Accepter le certificat ou ajouter une exception si nécessaire.

Créer maintenant les comptes utilisateurs, groupes, etc…

(13)

Accès à l’interface d’administration

Ouvrir un navigateur

Dans la barre d’adresse taper : http://192.168.0.12

Ressources utiles :

Site officiel de Zimbra - http://www.zimbra.com/buzz/index.fr.html

Forum de la communauté Zimbra Francophone - http://www.zimbrafr.org/forum/

Documentation Zimbra - http://www.zimbra.com/community/documentation.html

Guide d’administration de Zimbra - http://files.zimbra.com/website/docs/Zimbra%20OS%20Admin%20Guide.pdf
