Interstitial gas effect on vibrated granular columns

Javier Pastenes, Jean-Christophe Géminard, Francisco Melo

To cite this version:

Javier Pastenes, Jean-Christophe Géminard, Francisco Melo. Interstitial gas effect on vibrated

gran-ular columns. 2014. �hal-00999226�

(2)

Javier C. Pastenes †, Jean-Christophe G´eminard, and Francisco Melo†∗

2

†Departamento de F´ısica Universidad de Santiago de Chile, Avenida Ecuador 3493, 9170124 Estaci´on Central, Santiago, Chile.

‡Laboratoire de Physique, Ecole Normale Sup´erieure de Lyon,

Universit´e de Lyon, CNRS, UMR 5672, 46 All´ee d’Italie, F-69007 Lyon, France.

3

(Dated: June 4, 2014)

4

Vibrated granular materials have been intensively used to investigate particle segregation,

convec-5

tion and heaping. We report on the behavior of a column of heavy grains bouncing on an oscillating

6

solid surface. Measurements indicate that, for weak effects of the interstitial gas, the temporal

vari-7

ations of the pressure at the base of the column are satisfactorily described by considering that the

8

column, in spite of the observed dilation, behaves like a porous solid. In addition, direct observation

9

of the column dynamics shows that the grains of the upper and lower surfaces are in free fall in the

10

gravitational field and that the dilation is due to a small delay between their takeoff times.

11

PACS numbers: 45.70.Mg, 45.70.Qj, 81.20.Ev.

12

I. INTRODUCTION

13

The rapid compression of a relatively loose pile of sand

14

or of snow may require a high pressure to drive the

15

flow of the interstitial fluid between the solid particles,

16

grains or flakes. The effect, together with the elastic

17

and frictional resistance, contributes to the pressure to

18

overcome to compress the material. Interestingly, due

19

to this drainage effect, snowboarding and sandboarding

20

benefit from a significant lift force and therefore from a

21

significant reduction of the friction at large slip velocity

22

if the medium is loose enough [1]. Indeed, viscous forces

23

are prone to be at play when a gas is evacuated through

24

a wide variety of porous materials frequently found in

25

common life and industrial applications [2]. From

phys-26

ical viewpoint the influence of interstitial viscous forces

27

on non-cohesive granular materials has generated

long-28

lasting debate due mainly to the difficulties introduced

29

by the complex rheology of unconsolidated porous media,

30

and by the sensibility of the response to the conditions

31

imposed at the boundary surfaces. Booming sand [3, 4]

32

and the jets resulting from the impact of a solid object

33

onto the surface of a loosely packed granular bed [5–7]

34

are subtle manifestations of the coupling of the

mechan-35

ical response of granular matter with the dynamics of

36

the interstitial fluid. Heaping, granular convection and

37

size segregation under vibration [8–10] are a few other

38

examples of phenomena in which the internal viscous

39

forces drive, at least partially, the motion of the grains

40

and, thus likely, changes in the external shape of the

sys-41

tem [11, 12].

42

In the same way, in thin layers of non-cohesive powders

43

submitted to repeated pats, granular droplets appear as

44

a result of the interplay between the air flow through the

45

material, which leads the droplets to grow, and the

sta-46

bility of the granular slopes, which limits their size [13].

47

∗francisco.melo@usach.cl

In a previous work, we reported on the formation and

48

on the, even more striking, upward motion of millimetric

49

droplets on an incline subjected to vertical vibration [14].

50

We later showed that the viscous drag, which is of the

51

order of the droplet weight, is responsible for the droplet

52

formation while the gas pressure at the droplet base

pro-53

vides an effective horizontal acceleration whose

cumula-54

tive effect is an upward displacement of the center of mass

55

after each cycle of the vibration [15]. Interestingly, the

56

experiments revealed that the droplets move only if the

57

maximum acceleration of the substrate is larger than a

58

threshold which we associated, in a first qualitative

ap-59

proach, to a characteristic dilation.

60

In the present report, we focus on the gas pressure and

61

dilation in a simplified geometry, i.e. a cylindrical

gran-62

ular column subjected to vertical vibration. We limit the

63

study to the regime of low viscous friction by using

par-64

ticles of relatively large size and low frequency of

vibra-65

tion. The main aim of the study is to provide insight into

66

the mechanisms that lead the column to dilate. First, we

67

show that a classical Darcy’s law accounts for the

dynam-68

ics of the gas pressure at a column base. Interestingly, the

69

agreement of our measurements with early predictions

70

obtained by assuming a rigid porous medium [16, 17],

71

indicates that, for sufficiently tall columns, the porosity

72

changes associated with the column dilation have

neg-73

ligible effects. However, even in this limit, a significant

74

overall dilation of the column is observed. From the

addi-75

tional detailed analysis of the system dynamics, we

con-76

clude that the granular column not only does not dilate

77

along its whole height but also that, indeed, the

dila-78

tion only involves the grains of the lower and upper

sur-79

faces, which experience slightly delayed free falls. Our

80

results provide a more quantitative way to assess the

81

dilation effects and the role they play in the

instabili-82

ties observed in related systems, such as those mentioned

83

hereinabove.

(3)

2

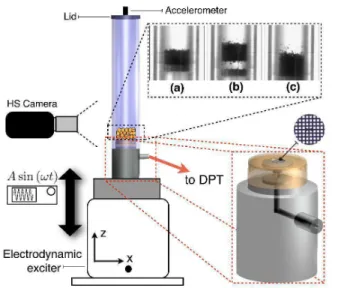

FIG. 1. (Color online) Sketch of the experimental device – The grains inside lye inside a cylindrical container vibrated vertically. The resulting pressure variations in the gap be-tween the substrate and the bottom surface of the column, ∆P , is monitored by means of a differential pressure trans-ducer (DPT) while a high-speed camera is used to observe the dynamics of the column from the side. Bottom-right in-set: Details of the L-shaped tube connecting the gap to the DPT and of the grid at the surface of the mount. Top-right inset: Typical images from the camera (a) Initial contact be-tween the column and the substrate, previous to take-off (b) Large gap underneath the column in flight (c) Sudden land-ing of the column [Steel grains, d = 745 µm, h0 = 5.7 mm,

f = 15 Hz and Γ = 2.6].

II. EXPERIMENTAL SETUP AND PROTOCOL

85

The experiment consists in monitoring the dynamics

86

and the pressure at the base of a granular material placed

87

inside a vertically vibrated cylindrical vessel.

88

The container is made of a transparent Plexiglass tube

89

(Height: 46 mm; Inner radius: 10 mm), glued to a rigid

90

metallic mount (aluminum alloy) as sketched in Fig. 1.

91

It is filled with steel beads [diameter d = (465 ± 73) µm

92

and density ρs= (7.4 ± 0.2) 10

3 kg·m−3] up to an initial

93

height, h0, ranging from 2.5 mm and 18 mm at rest. The

94

inner diameter of the container is more than 20 times the

95

grain diameter, which insures that the finite-size effects

96

due to the lateral wall are negligible. The lid at the top

97

leaves the air enter freely in the tube. An internal

L-98

shaped pipe, drilled in the mount (radius rp = 1 mm),

99

makes it possible to measure the pressure of the gas

un-100

derneath the column. At one end, a grid (45 µm,

usu-101

ally used for Transmission Electron Microscopy) avoids

102

that the grains enter inside the tube while insuring the

103

continuity of the gas pressure. At the other end, the

104

tube is connected to a differential pressure transducer

105

(DPT, Omega, PX277) through a non-torsional hose,

106

which avoids pressure variations due to the deformations.

107

We checked that the response time of the transducer is

108

shorter than 1 ms. Thus, the configuration achieves

mea-109

surement of the pressure difference, ∆P , with an

accu-110

racy of about 2 Pa in the range ±124 Pa.

111

The whole is vibrated vertically using an

electrody-112

namic exciter (Labworks, MT-160) fed with a sinusoidal

113

current of frequency, f , in the range 15 to 50 Hz. The

114

acceleration of the container, γ(t), is monitored by means

115

of a charge accelerometer, placed at the top, its axis

116

aligned with the vertical. From the signal, γ(t), we

de-117

termine, to within 0.01, the dimensionless acceleration

118

Γ ≡ max (γ)/g = Aω2/g, where A stands for the

am-119

plitude of the vibration and g for the magnitude of the

120

acceleration due to gravity (ω ≡ 2π f ). In the present

121

study, Γ is chosen within the range from 1 to 4.

122

The dynamics of the granular material is observed from

123

the side by means of High Speed (HS) video camera.

124

The resolution of the images is of 256×256 px2

together

125

with an acquisition rate of 1200 fps. The heights, z0and

126

z1, of the free surface and of the bottom of the column,

127

respectively, are obtained with a resolution of 0.2 mm by

128

elementary image analysis.

129

III. EXPERIMENTAL RESULTS

130

A. General description

131

For given vibration frequency f and dimensionless

ac-132

celeration Γ, we report on the dynamics of the granular

133

column and on the temporal evolution of the pressure

134

∆P in the steady state (Fig. 2).

135 136

First, the dynamics of the column is mainly

charac-137

terized by the vertical positions, z0(t) and z1(t), of its

138

upper and lower surfaces (Fig. 2a). One observes that,

139

on the one hand, the column periodically looses contact

140

with the substrate, which is better illustrated by

display-141

ing the gap, s(t) ≡ z1(t) − z(t), i.e. the vertical size of

142

the region free of grains between the substrate and the

143

column (Fig. 2b). On the other hand, the column

period-144

ically dilates, which is clearly revealed by reporting the

145

column height, h(t) ≡ z0(t) − z1(t) (Fig. 2c). The signal

146

from the accelerometer exhibits a significant noise after

147

the gap has vanished until the dilated column recovers

148

its initial height (Fig. 2d) A complex temporal evolution

149

of the pressure ∆P (t) results from the dynamics of the

150

grains (Fig. 2e).

151

In next section III B, we interpret qualitatively the

152

behavior of the system. In section III C, we discuss

153

thoroughly the temporal behavior of the pressure signal,

154

∆P (t), whereas section III D is devoted to the dynamics

155

of the granular column.

156

B. Qualitative understanding

157

Let us first assume that the column sits at rest on the

158

substrate and that the pressure inside is in equilibrium

(4)

FIG. 2. (Color online) Evolution of column characteristics and of the pressure as a function of phase ωt – (a) Vertical positions of the substrate z (continuous line), of the upper sur-face z0(full squares) and of the lower surface z1(open squares)

vs. phase ωt. Dashed-dotted line: h0+ z is a guide for the

eye. Red (light gray) thick line and Blue (dark gray) dashed line: free fall of the upper and lower surface respectively. The parabolas have curvature -g. (b) Gap s(t) ≡ z1(t) − z(t) –

In region I (blue), the column is not in contact with the sub-strate. (c) Column height h(t) ≡ z0(t) − z1(t) – The column

exhibits a significant dilation in regions I (blue) and II (yel-low). Straight line: linear increase of h. (d) Acceleration γ(t) – The significant noisy vibration in region II (yellow) is due to the collapse of the column onto the substrate. Red (light gray) circle: γ = −1. (e) Pressure ∆P – In region I (blue), while the column takes off and dilates, ∆P decreases, reaches a minimum and increases again. In region II (yellow), ∆P continues to increase while the column, in contact with the substrate, settles back. In a last phase, in region III (red), ∆P decreases while the column seats at rest on the substrate. [h0= 5.7 mm, f = 15 Hz and Γ = 1.81].

with the outer pressure. Provided that the typical

veloc-160

ity associated with the vibration Aω is smaller than the

161

speed of sound in air, the vibration does not induce any

162

significant variation of the pressure, ∆P , if the grains do

163

not move. This stage lasts as long as the weight of the

col-164

umn insures the contact with the substrate, i.e. as long

165

as the downward acceleration of the substrate does not

166

exceed the acceleration due to gravity. In other words,

167

nothing happens as long as −γ(t) < g or, equivalently,

168

γ/g > −1.

169

1. Take-off and flight

170

When γ/g . −1, the acceleration due to gravity does

171

not insure the contact anymore and the column starts to

172

take off. The system enters region I in Fig. 2. However,

173

the column, as a whole, does not experience a free flight.

174

Indeed, the take-off requires the opening of a gap between

175

the column and the substrate, which corresponds to an

176

increase of the volume of the gas in the gap region and,

177

thus, induces a decrease of the local pressure (Fig. 2e,

178

region I). In turn, the column is subjected to a pressure

179

force which partially impedes the opening of the gap.

180

However, it is interesting to notice that, provided that

181

the viscous drag on individual grains is negligible [18],

182

the grains of the free surface are almost free to move and

183

to take off at γ/g = −1 whereas, by contrast, the grains

184

at the bottom are constrained by the column above. As

185

a consequence, the column starts to dilate (Fig. 2c,

re-186

gion I)

187

In order to understand why the pressure ∆P exhibits a

188

minimum during the column flight above the substrate,

189

one must remark that the pressure difference between the

190

upper and bottom surfaces induces a gas flow through the

191

column which is indeed permeable. The pressure

evolu-192

tion is thus the result of the competition between the

193

volume expansion, due to the opening of the gap, which

194

leads to a decrease of ∆P and the inflow, due to the

per-195

meability of the column, which leads to a relaxation of

196

∆P toward the equilibrium with the outside pressure. In

197

our experimental conditions, the observation of a

min-198

imum in ∆P reveals that the characteristic relaxation

199

time, τris of the order of the flight duration (itself of the

200

order of 1/f in the reported example).

201

2. Sudden landing

202

Due to its fall in the gravity field and to the vertical

vi-203

bration of the container, the lower surface of the column

204

enters again in contact with the substrate. The system

205

enters region II in Fig. 2. The height h(t) of the column

206

then rapidly recovers its initial value h0 (Fig. 2c). This

207

collapse of the column produces the noise seen in the

208

signal from the accelerometer (Fig. 2d). Provided that

209

the pressure relaxation time, τr, associated with the gas

210

transport in the column, is larger than the typical

col-211

lision time, τc, the pressure, ∆P , still increases as long

212

as the height of the column decreases (Fig. 2d). As a

(5)

4

consequence, the maximum of ∆P is not reached at the

214

collision time but later on, close to the end of the column

215

collapse.

216

3. Relaxation

217

Finally, after the collapse, the column sits at rest on

218

the substrate. The system enters the region III in Fig. 2.

219

However, the pressure of the gas in the column is initially

220

larger than the outer pressure. It relaxes continuously,

221

with a characteristic time τr, toward the outside

pres-222

sure because of the resulting gas flow through the grains

223

(Fig. 2e) until the next take-off (Sec. III B 1).

224

C. Pressure pattern, ∆P (t)

225

Here, we introduce a theoretical framework to support

226

the qualitative description proposed in Sec. III B.

227

1. Take-off and flight

228

In a first simplified approach, we consider that the

col-229

umn moves as a whole and we neglect the dilation and

230

the possible grain convection. If the inner pressure is

ini-231

tially in equilibrium with the outer pressure, the column

232

takes off when the downward acceleration of the substrate

233

equals that of the gravity, thus for γ = −g. The column

234

is subsequently flying.

235

In flight, the column is submitted the gravity and to the

236

force associated with ∆P . Denoting zG(t) the altitude of

237

the column center of mass, G, we write:

238 d2 zG dt2 = −g + 1 ρh0 ∆P (t). (1) 239

This equation explicitly couples the dynamics of the

col-240

umn with the overpressure ∆P . However, note that the

241

gas pressure alters the dynamics only if ∆P is of the

or-242

der of ρgh0, the stress applied by the column onto the

243

substrate at rest.

244

Now, in order to account for the pressure variations

in-245

duced by the column dynamics, we consider that ∆P

246

induces a gas flow through the grains. The

instan-247

taneous flow-rate is approximately given by a Darcy

248

law, q = −(κ/η)∇P , where η is the gas viscosity and

249

κ the permeability given by the Ergun relation, κ =

250

ψ3

d2

/[150(1 − ψ)2

], where ψ is the porosity [18].

As-251

suming further that the gas is incompressible, we

esti-252

mate that the variation of the gap s(t) between the

col-253

umn and the substrate is only permitted by the gas flow,

254

which imposes that ds/dt = q, with q = (κ/η)(∆P /h0)

255

from the Darcy law applied to our configuration. We

256 thus have: 257 d∆P dt = h0 η κ ds dt. (2) 258

Thus, combining the equations governing the motion of

259

the column (Eq. 1) and the pressure variations (Eq. 2)

260

and taking into account that, in absence of dilation, zG =

261 h0/2 + s + z, we write: 262 d2 ˜ s dφ2 + 1 ˜ φκ d˜s dφ = sin(φ + φ0) − 1 Γ, (3) 263

where ˜s ≡ s/A, φ ≡ ωt and φ0≡ωt0= arcsin 1/Γ, t0

be-264

ing the time of the take-off [i.e. γ(t0) = −g]. The

param-265

eter ˜φκ≡ωκρ/η is a relaxation time expressed in units of

266

the vibration period. Eq. (3) was first obtained by Kroll

267

for a porous oscillating piston in his pioneering works [16]

268

and it is referred to as the Kroll’s model. Eq. (3) has an

269

analytic solution which is written [10]:

270 ∆P (φ) = − ρgh0 1 + ˜φ2 κ hp Γ21 (sin φ − ˜φ κcos φ) + ˜φκsin φ − ˜φ 2 κ+ cos φ + ˜φκ( p Γ21 + ˜φ κ) e −˜φ φκ −1i. (4)

The relaxation time ˜φκis the characteristic time needed

271

by the column to reach the regime governed by the air

272

viscosity. For small fluid viscosity η, large density ρ of the

273

material the grains are made of, or large grain diameter

274

d (the porosity scales like d2), the effect of air is tiny and

275

this time can be large in comparison with the period of

276

the vibration. In the limit ˜φκ≫1, the pressure difference

277

∆P (φ) in Eq. (4) exhibits the minimum:

278 ∆Pmin ρgh0 = − 1 ˜ φκ " arccos 2 Γ2 −1  −2pΓ21 # (5) 279

Interestingly, ∆Pmin depends on one single adjustable

280

parameter, ˜φκ, provided that the acceleration Γ and

281

the weight ρgh0 (per unit area) of the column are

282

known.

283

In Fig. 3a, we report ∆Pmin/(ρsgh0) as a function of

284

Γ for various column height h0 (As the porosity ψ and,

285

thus the density of the column ρ = (1 − ψ) ρs, are a

pri-286

ori unknown, we normalized the data using the density

287

of steel ρs). First, we observe an excellent collapse of the

288

data on a master curve, except for the thinnest column

289

at large acceleration (h0 = 2.1 mm and Γ > 2.5). When

290

the column is too thin and the acceleration too large, the

291

grains do not bounce as a whole but rather form a gaseous

292

phase and, then, the model fails in describing the

pres-293

sure pattern, ∆P (t). Except for the thinnest column, the

294

interpolation of the experimental data with Eq. (5) leads

295

to ˜φκ= (14.6 ± 0.1) and, thus, to ψ ≃ 0.51 (we consider

296

the viscosity of air η = 18.6 10−6 Pa s). The porosity is

297

found to be greater than the porosity of a random loose

298

packing, which is acceptable for a column flying almost

299

freely, not compacted by gravity. The dependence on

fre-300

quency of ∆Pmin at constant Γ constitutes an additional

301

clue that the model is acceptable (Fig. 3b). Note finally

(6)

FIG. 3. (Color online) Normalized minimum gap-pressure, ∆Pmin/(ρsgh0): (a) dependence on acceleration Γ at constant

frequency f = 15 Hz. (b) dependence on frequency at con-stant acceleration Γ = 2.16 Hz. Solid line: fit from Eq. (5) with ˜φκ= 14.6 ± 0.1, which leads to ψ ≃ 0.51.

that the model remains valid even if the characteristic

303

(normalized) time ˜φκ is not much larger than the unity.

304

Nevertheless, the rather large value of ˜φκ indicates that

305

the viscosity almost does not alter the trajectory of the

306

column that should nearly experience a free flight. The

307

assumption will be discussed in Sec. III D.

308

2. Layer at rest

309

After the column-substrate collision, the column

col-310

lapses and then sits at rest on the solid surface, the

in-311

ner pressure being initially larger than the outer pressure

312

(Fig. 2e, left of region III). We observe that ∆P slowly

313

relaxes towards 0. However, our crude model cannot

ac-314

count for this relaxation as ∆P is expected to vanish

315

when the column moves with the substrate (Darcy law,

316

Sec. III C 1). We previously assumed that the

compress-317

ibility of the gas could be neglected when the grains are

318

in motion (Sec. III C 1), but we must take it into account

319

to describe the relaxation of ∆P when the column is at

320

rest.

321

Considering the Darcy law and the adiabatic pressure

322

variation due to the associated gas flow in a granular

323

column of porosity ψ, we write the diffusion coefficient

324

D = αP0κ/[η(1 − ψ)], where P0 stands for the outside

325

pressure and α = 1.4 for the adiabatic constant for dry

326

air. The typical relaxation time in a column of height

327

h0 is τ = h20/D. In our experimental conditions, taking

328

ψ = 0.58 for the column sitting at rest on the substrate,

329

we estimate D ≃ 3 m2

/s. For h0 = 5.7 mm, we thus

330

get τ ∼ 10 µs, much shorter than the time observed

331

experimentally.

332

In order to recover the experimental relaxation time,

333

one must take into account that the column sits above a

334

pressurized cavity and that the relaxation time is rather

335

due to the escape of the gas trapped underneath. We

es-336

timate that the total volume of the L-shaped pipe drilled

337

in the tube mount and of the hose connecting the latter

338

to the pressure transducer, vconn. ∼ 2 cm

3. Assuming

339

that the gas escapes only through a cylinder of length h0

340

and radius rp within the column, we expect the

result-341

ing characteristic time τ = ηh0vconn./(πr 2

pαP0κ) to be

342

about 30 ms for h0 = 5.7 mm. This estimate is of the

343

order of the typical relaxation time, of about 5 ms, which

344

is observed experimentally (Fig. 2a). Assuming that the

345

gas escapes only through a tube of radius rp obviously

346

leads to an overestimate but the agreement validates the

347

proposed mechanism of relaxation.

348

3. Discussion of the pressure pattern

349

We have seen that the pressure pattern is reasonably

350

described by considering two different regimes. In

re-351

gion I, after take-off, the decrease of the pressure, ∆P ,

352

and its minimum are recovered by using a Darcy law,

353

while neglecting the compressibility of the gas and the

354

dilation of the column. In region III, the relaxation of

355

the pressure requires the compressibility of the gas to be

356

considered.

357

In this framework, the evolution of ∆P while the

col-358

umn settles back onto the substrate (Fig. 2, region II)

359

would require to take both the dilation of the column

360

and the compressibility of the gas into consideration.

361

We mention here that, in this regime, a horizontal front

362

separates a column of grains sitting at rest on the

sub-363

strate from the grains above that are still in motion. The

364

description proposed in Sec. III C 1 should remain valid

365

when applied to the grains in motion. This argument

366

at least explains the continuity of the pressure evolution

367

when the column hits the substrate. Indeed, there is no

368

discontinuity of the velocity at the beginning of the

con-369

tact. In addition, after the contact, the height of the

370

column of grains that are still in motion decreases which

371

explains that the contribution of the grain motion to the

372

pressure variation d∆P/dt (Eq. 2) decreases. At the same

373

time, the pressure relaxes towards the outer pressure as

374

explained previously in Sec. III C 2. As a result of the

375

two effects, the pressure reaches a maximum somewhere

376

in the region II (Fig. 2), before the column completely

377

collapsed and remains sitting at rest on the substrate.

378

At this stage we compare the pressure pattern to

for-379

mer works by Gutman [17]. Indeed, Gutman extended

(7)

6

the simplified Kroll’s model to account for the gas

com-381

pressibility upon the gas flow through a porous layer and

382

performed pressure measurements beneath the vibrated

383

layer. Although Gutman did not consider the

possibil-384

ity of layer dilation on his model, the calculated pattern

385

contains the main features we observed experimentally

386

(compare Fig. 2 to Fig. 2 in Ref. [17]). The main feature

387

attributed to compressibility effects is that the decay of

388

the air pressure in the column after the collision takes a

389

finite time, so that when the column takes off in the next

390

cycle the gas pressure in the opening gap is above

atmo-391

spheric. The effect is not significant in our experimental

392

conditions [19].

393

Finally, we point out that the measurements of ∆P

394

during the take-off, and direct measurements of the

sub-395

sequent flight time, indicate that the trajectory of the

396

column is not different from that of a porous solid (for

397

Γ < 3)[20, 21]. One can thus wonder how it is then

possi-398

ble to understand that this result is compatible with the

399

observation of a significant dilation. The question will be

400

answered in the next section, in which we even propose

401

a dilation mechanism.

402

D. Layer Dilation

403

In Fig. 2c, one observes that the column dilates

dur-404

ing its flight (region I). The dilation of the column can

405

be accounted for, by considering that the behavior of

406

the grains at the upper and lower surfaces differs

qual-407

itatively from that of the grains in the bulk of the

col-408

umn. Indeed, at the surface, the grains, in addition to

409

the mechanical solid contact with their neighbors below

410

and above, are submitted to gravity and to the friction

411

with air which is small and, negligible in our

experimen-412

tal conditions.

413

Consider the grains of the first layer at the top of the

414

column. We observe experimentally that they experience

415

a free fall, z0(t) (Fig. 2a). To account for this observation,

416

we note that the friction of air has negligible effect on

iso-417

lated grains or, at least, an effect much smaller than that

418

on a dense column. As a result, at γ = −1, the grains

419

of the free surface take off and detach from the dense

420

column below whose trajectory, governed by Eq. (4), is

421

always below that expected for a free fall. As a

conse-422

quence, z0= A sin (ωt0) + A ω cos (ωt0) (t − t0) − 1 2g (t −

423

t0)2 where, we remind, t0 is the time at take-off.

424

Interestingly, we observe in Fig. 2c that h increases

lin-425

early with time t. The height h being defined as the

426

difference between the altitude z0 of the upper and z1

427

lower surfaces, we conclude that the grains at the

bot-428

tom also experience a parabolic flight with the same

429

acceleration, thus a free fall. This conclusion is

sup-430

ported by the direct observation of the free fall in Fig. 2a,

431

where both (upper and lower) parabolas have curvature

432

-g. The observed linear increase of h with time thus

re-433

sults from the fact that the free falls of the grains at

434

the upper and lower surfaces do not have the same

ini-435

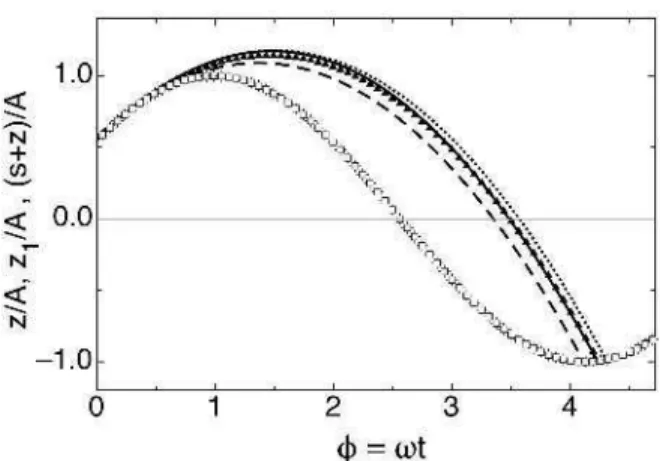

FIG. 4. Trajectory of the column bottom layer: Dimension-less free fall motion model, z1/A, for different time delays

(dotted line: δt = 1 ms, small N : δt = 3 ms, dashed line: δt = 5 ms) and Eq. (1) trajectory estimation, s+z (solid black line). Open crossed squares: z/A. [Γ = 1.81 and f = 15 Hz].

tial conditions. Taking t1 as the origin of the free fall of

436

the lower layer we can assume that the initial position

437

and velocity are those of the substrate at time t1, i.e.

438

z1 = A sin (ωt1) + A ω cos (ωt1) (t − t1) − 1

2g (t − t1)2.

439

Doing so, we expect a linear increase of h with the

veloc-440 ity: 441 dh dt = 1 2A r 1 − 1 Γ2ω 2 δt2 (6) 442

where we define δt = t1−t0, the delay between the origins

443

of the free falls of the lower and upper surfaces. From

444

the experimental slope, we get δt = (4.7 ± 0.2) ms.

445

It is then particularly interesting to discuss the physical

446

origin of the delay. We already observed that the grains of

447

the lower surface experience a free fall. One must however

448

notice that the grains can be in free fall only if their

449

motion is not frustrated. Note that, when they take off,

450

their position and velocity are limited by the solid surface

451

below and the grains above. Their velocity is oriented

452

upwards and their acceleration equals the acceleration

453

due to gravity only if their trajectory does not intersect

454

the trajectory of the grains above. In Fig. 4, we report

455

the trajectory of the bottom layer, z1(t), in free fall for

456

several values of δt (taking t1= t0+δt), and the altitude,

457

z(t) + s(t), estimated from the solution of Eq. (1) (black

458

line in Fig. 4). We observe that for small δt, z1> z + s,

459

which means that the motion of the grains of the bottom

460

surface is limited by the motion of the grains above (δt =

461

1 ms, dotted line in Fig. 4). On the contrary, for large

462

enough δt, z1< z + s at all time until the collision with

463

the substrate. The grains can experience a free fall (δt =

464

5 ms, dashed line in Fig. 4). For intermediate values of

465

δt, the trajectories, z1 and s + z, cross each other at a

466

time which compares with the collision time (δt = 3 ms,

467

small triangles in Fig. 4). The grains can experience a

468

trajectory very similar to a free fall until it collides with

(8)

substrate. From the latter simple observation, one can

470

deduce that a delay of, at least, 3 ms is necessary for the

471

grains of the lower surface to fall freely and that 5 ms is

472

clearly an overestimate of δt.

473

Thus, the simple argument above gives a reasonable

474

range, 3 to 5 ms, for the experimental delay δt = 4.7 ms,

475

which validates the potential mechanism proposed to

ac-476

count for the dilation. In summary, the grains of the

477

two free surfaces of the column experience free falls, the

478

take-off of the lower grains being delayed by the presence

479

of the dense column above which experience a

trajec-480

tory governed by the interplay between the acceleration

481

of gravity and the friction with the gaseous phase.

482

E. Conclusion

483

In conclusion, we observed the bouncing of a porous

484

column of grains and measured the resulting variation

485

of the pressure underneath. When interaction between

486

the column and the gas are weak, because of the size

487

and weight of the grains, the pressure is reasonably

ac-488

counted for by considering the column as a porous solid,

489

thus neglecting the column dilation. The latter is

satis-490

factorily explained by considering that the grains of the

491

upper and lower surfaces experience a free falls. In this

492

framework, the dilation only results from a delay between

493

the departure times and not from any pressure profile

494

within the column that would repel the grains from one

495

another.

496

ACKNOWLEDGMENTS

497

The authors acknowledge the financial support from

498

the contracts ANR-09-BLAN-0389-01/Conicyt-011 and

499

CNRS-Conicyt-PCCI12016.

500

[1] Q. Wu, Y. Andreopoulos, and S. Weinbaum, Physical

501

Review Letters 93, 19, 194501, (2004).

502

[2] See for instance, F. J. Muzzio, T. Shinbrot and B. J.

503

Glasser, Powder Technology 124, 1, (2002).

504

[3] R. A. Bagnold, The Physics of Blown Sand and Desert

505

Dunes. (Methuen, London, 1954).

506

[4] B. Andreotti, L. Bonneau, and E. Cl´ement, Geophys.

507

Res. Lett., 35, L08306, (2008).

508

[5] S. T. Thoroddsen and A. Q. Shen, Phys. Fluids, 13, 4,

509

(2001).

510

[6] D. Lohse, R. Rauhe, R. Bergmann and D. Van Der Meer,

511

Nature, 432, 689, (2004).

512

[7] S. Deboeuf, P. Gondret and M. Rabaud, Phys. Rev. E,

513

79, 041306, (2009).

514

[8] C. Laroche, S. Douady and S. Fauve, J. Phys. (Paris),

515

50, 699, (1989).

516

[9] P. Evesque and J. Rajchenbach, Physical Review Letters

517

62, 44, (1989).

518

[10] L.I. Reyes, I. S´anchez, G. Guti´errez, Physica A. 358, 466,

519

(2005).

520

[11] H. K. Pak and R. P. Behringer, Physical Review Letters

521

71, 1832, (1993).

522

[12] H. K. Pak, E. Van Doorn, and R. P. Behringer, Physical

523

Review Letters 74, 4643, (1995).

524

[13] J. Duran, Physical Review Letters 87, 254301, (2001).

525

[14] L. Caballero and F. Melo, Physical Review Letters 93,

526

258001, (2004).

527

[15] J. C. Pastenes, J.-C. G´eminard and F. Melo, Phys. Rev.

528

E 88, 012201 (2013).

529

[16] W. Kroll, Forsch. auf der Geb. des Ing. 20, 2, (1854).

530

[17] R. G. Gutman, Trans. Instn. Chem. Engrs, 54, 174-183,

531

(1976).

532

[18] See for instance, R.M. Nedderman, Statics and

Kinemat-533

ics of Granular Materials, (Cambridge Univ. Press 1992).

534

[19] Compressibility effect can be neglected if τD/τS << 1,

535

where τS is the time during which the column sits on the

536

vibrating surface and τD= hhi 2

/D, with D ≡ κ/ψηχ the

537

relevant diffusion coefficient and χ the gas

compressibil-538

ity. Note that τS is a decreasing function of both f and

539

Γ. In our experimental conditions, for values of Γ . 3,

540

compressibility effects become significant for Γ & 100 Hz.

541

[20] Notice that this result remains accurate for values of

542

Γ . 3. Above this value, the flight time begins to deviate

543

from the prediction of the inelastic ball model.

Indepen-544

dent work indicates that this effect develops if the sitting

545

time of the column on the vibrating plate becomes of the

546

order of the collision time [21].

547

[21] J.M. Pastor, D. Maza, I. Zuriguel, A. Garcimart´ın and

548

J.-F. Boudet, Physica D, 232, 128135, (2007).

Figure

FIG. 1. (Color online) Sketch of the experimental device – The grains inside lye inside a cylindrical container vibrated vertically
FIG. 3. (Color online) Normalized minimum gap-pressure,
FIG. 4. Trajectory of the column bottom layer: Dimension- Dimension-less free fall motion model, z 1 /A, for different time delays (dotted line: δt = 1 ms, small N : δt = 3 ms, dashed line:

Références

Documents relatifs

The documents may come from teaching and research institutions in France or abroad, or from public or private research centers.. L’archive ouverte pluridisciplinaire HAL, est

The shift remains negligible, as the poten- tial does not present a long range part, and as the satellite is well separated from the main line for the present

Furthermore, this comparison enables us to estimate the macroscopic yield stress based on the cohesive contacts between grains, which bridges the gap between continuous and

interactions in the extended packing motif (though some C sp2 -H …  interactions were present.) In the case of 1, however, the near planar arrangement of the pyridine rings lead

Laser-induced fluorescence of Ba ⫹ ions trapped and mass-selected in a Fourier transform ion cyclotron resonance mass spectrometer.

[OII] flux limited redshift surveys, baryonic acoustic oscillation, and emission line galaxy target selection Future large spectroscopic surveys that aim for a precise measurement

The usage of the given excitation method in gas flow system at relatively low gas flow speeds enables to produce the high average power denaity put into the gas by both

Moreover, the full interaction plot indicates that a slight positive interaction effect exists between citral and (Z)-ligustilide (average antifungal score of 8.2), thus
