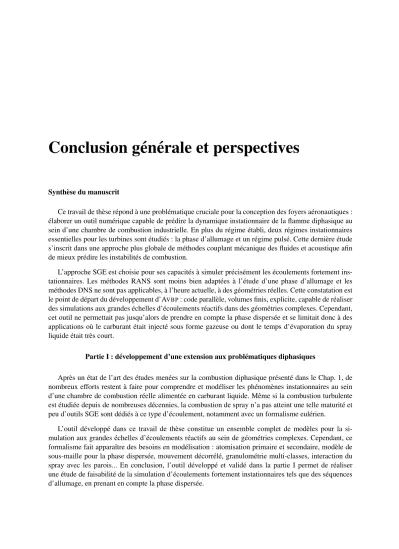

Conclusion g´en´erale et perspectives

Conclusion g´en´erale et perspectives

Synth`ese du manuscrit

Ce travail de th`ese r´epond `a une probl´ematique cruciale pour la conception des foyers a´eronautiques : ´elaborer un outil num´erique capable de pr´edire la dynamique instationnaire de la flamme diphasique au sein d’une chambre de combustion industrielle. En plus du r´egime ´etabli, deux r´egimes instationnaires essentielles pour les turbines sont ´etudi´es : la phase d’allumage et un r´egime puls´e. Cette derni`ere ´etude s’inscrit dans une approche plus globale de m´ethodes couplant m´ecanique des fluides et acoustique afin de mieux pr´edire les instabilit´es de combustion.

L’approche SGE est choisie pour ses capacit´es `a simuler pr´ecis´ement les ´ecoulements fortement ins-tationnaires. Les m´ethodes RANS sont moins bien adapt´ees `a l’´etude d’une phase d’allumage et les m´ethodes DNS ne sont pas applicables, `a l’heure actuelle, `a des g´eom´etries r´eelles. Cette constatation est le point de d´epart du d´eveloppement d’AVBP: code parall`ele, volumes finis, explicite, capable de r´ealiser

des simulations aux grandes ´echelles d’´ecoulements r´eactifs dans des g´eom´etries complexes. Cependant, cet outil ne permettait pas jusqu’alors de prendre en compte la phase dispers´ee et se limitait donc `a des applications o`u le carburant ´etait inject´e sous forme gazeuse ou dont le temps d’´evaporation du spray liquide ´etait tr`es court.

Partie I : d´eveloppement d’une extension aux probl´ematiques diphasiques

Apr`es un ´etat de l’art des ´etudes men´ees sur la combustion diphasique pr´esent´e dans le Chap. 1, de nombreux efforts restent `a faire pour comprendre et mod´eliser les ph´enom`enes instationnaires au sein d’une chambre de combustion r´eelle aliment´ee en carburant liquide. Mˆeme si la combustion turbulente est ´etudi´ee depuis de nombreuses d´ecennies, la combustion de spray n’a pas atteint une telle maturit´e et peu d’outils SGE sont d´edi´es `a ce type d’´ecoulement, notamment avec un formalisme eul´erien.

L’outil d´evelopp´e dans ce travail de th`ese constitue un ensemble complet de mod`eles pour la si-mulation aux grandes ´echelles d’´ecoulements r´eactifs au sein de g´eom´etries complexes. Cependant, ce formalisme fait apparaˆıtre des besoins en mod´elisation : atomisation primaire et secondaire, mod`ele de sous-maille pour la phase dispers´ee, mouvement d´ecorr´el´e, granulom´etrie multi-classes, interaction du spray avec les parois... En conclusion, l’outil d´evelopp´e et valid´e dans la partie I permet de r´ealiser une ´etude de faisabilit´e de la simulation d’´ecoulements fortement instationnaires tels que des s´equences d’allumage, en prenant en compte la phase dispers´ee.

CONCLUSION GEN´ ERALE ET PERSPECTIVES´

Partie II : application du solveur LES diphasique `a une chambre industrielle

Le Chap. 6 pr´esente une ´etude SGE `a froid et `a chaud d’un foyer r´eel. L’´etude `a froid porte sur la dis-persion et l’´evaporation d’un spray et met en ´evidence l’influence de la dynamique de la phase porteuse sur le mouvement des petites gouttes. Le processus d’´evaporation produit du carburant gazeux principa-lement dans les zones o`u la dynamique de la phase porteuse maintient les gouttes et augmente leur temps de r´esidence. Le lien entre dynamique des deux phases, ´evaporation et m´elange est ainsi d´etaill´e. L’´etude `a chaud permet de d´eterminer les m´ecanismes de stabilisation de la flamme diphasique. Les r´esultats ins-tantan´es montrent l’importance du processus d’´evaporation dans la structure partiellement pr´em´elang´ee de la flamme, tandis que les r´esultats moyenn´es montrent l’influence de l’´evaporation sur les diagrammes de fraction de m´elange et valident les r´esultats par comparaison avec le code RANS N3S-NATUR.

La phase d’allumage est un enjeu crucial pour la conception des foyers de demain et demeure une probl´ematique scientifique importante. Sa simulation num´erique pose de nombreux probl`emes notam-ment du fait des tr`es faibles ´echelles de temps. Le code AVBPest explicite et poss`ede un pas de temps li´e au CFL de l’ordre du dixi`eme de microseconde ce qui en fait un outil appropri´e pour cette probl´ematique. Le Chap. 7 pr´esente les premiers r´esultats d’allumage obtenus en g´eom´etrie r´eelle en prenant en compte la dispersion et l’´evaporation de la phase dispers´ee. Les ´etapes d’un allumage r´eussi sont pr´esent´ees : la naissance d’un noyau sph´erique empli de gaz chauds autour de la bougie et la propagation de cette flamme sph´erique `a l’ensemble du brˆuleur pour finalement atteindre une position stable proche de l’in-jection liquide. Ce r´esultat d´emontre la faisabilit´e de l’outil LES `a ce type d’applications et sert de base `a des ´etudes plus quantitatives.

Le Chap. 8 s’int´eresse `a une autre probl´ematique industrielle forte li´ee au d´eveloppement de mo-teurs moins polluants de type LPP : la pr´ediction pr´ecise des instabilit´es de combustion. Bien que de nombreuses publications exp´erimentales et num´eriques sur le sujet sont disponibles dans la litt´erature, son ´etude SGE en contexte diphasique est une ´etape suppl´ementaire dans la compr´ehension physique des interactions spray/flamme/acoustique. Les r´esultats obtenus dans cette th`ese montrent la relation flamme/acoustique mais ´egalement spray/acoustique. De plus, le m´elange est perturb´e `a la fois par la dynamique de la phase porteuse et par le processus d’´evaporation, tous deux influenc´es par la perturba-tion sinuso¨ıdale. Cette interacperturba-tion ´etait ´egalement visible dans l’´etude de l’allumage, le d´epˆot d’´energie produisant une onde acoustique se propageant au sein du foyer et influenc¸ant la dynamique de la flamme de spray.

Bilan

Ce travail de th`ese apporte des ´el´ements suppl´ementaires pour la compr´ehension des ph´enom`enes mis en jeu dans une flamme diphasique turbulente et leurs interactions. La simulation aux grandes ´echelles am´eliore la compr´ehension des ph´enom`enes instationnaires et permet d’appr´ehender les mod`eles `a mettre en oeuvre pour mieux capturer la physique. Les mod`eles existants, dont une validation a ´et´e pr´esent´ee, ont permis d’expliquer la naissance et la stabilisation d’une flamme de spray, ainsi que sa r´eponse `a une perturbation acoustique.

Conclusion g´en´erale et perspectives Perspectives

Dans le formalisme eul´erien pr´esent´e dans ce travail de th`ese, de nombreuses hypoth`eses simplifi-catrices ont ´et´e prises en compte et m´eritent des ´etudes plus approfondies. La prise en compte du ca-ract`ere polydisperse de la phase dispers´ee est une ´etape suppl´ementaire indispensable et a fait l’objet, en formalisme eul´erien, d’un travail de th`ese par Mossa [63] qui a conduit `a une ´equation de transport suppl´ementaire d’une variable li´ee au diam`etre moyen et `a la densit´e de surface de l’interface. Les inter-actions particule-particule et particule-paroi sont ´egalement `a prendre en compte et de nombreux mod`eles disponibles dans la litt´erature en approche lagrangienne doivent ˆetre adapt´es au formalisme eul´erien et pris en compte dans le solveur SGE. Les mod`eles d´evelopp´es pour mod´eliser le mouvement d´ecorr´el´e doivent ˆetre valid´es sur une configuration industrielle. Les mod`eles de sous-maille doivent ˆetre appro-fondis pour une application industrielle [81]. L’´etude pr´ecise de l’atomisation primaire a conduit, en formalisme lagrangien, `a des mod`eles qui doivent ˆetre adapt´es en formalisme eul´erien pour d´eterminer avec pr´ecision la granulom´etrie initiale du spray. La probl´ematique de l’allumage de la chambre de com-bustion annulaire compl`ete, c’est-`a-dire de la propagation du front de flamme du secteur pilote vers les autres secteurs, reste ´egalement `a ´etudier [7].

CONCLUSION GEN´ ERALE ET PERSPECTIVES´
