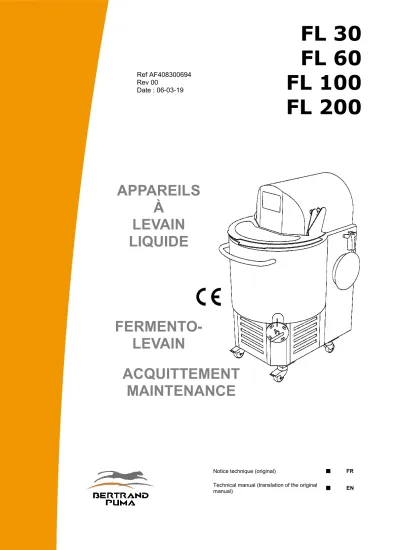

Acquittement de la maintenance FermentoLevain FL30/60/100/200
Ref AF408300694 Rev 00
Date : 06-03-19
APPAREILS À
LEVAIN LIQUIDE
FERMENTO- LEVAIN
Notice technique (original) FR
Technical manual (translation of the original
manual) EN
FL 30 FL 60 FL 100 FL 200
ACQUITTEMENT
MAINTENANCE
Acquittement de la maintenance FermentoLevain FL30/60/100/200
1. PRÉSENTATION
Après 4050 heures de fonctionnement, l’appareil affiche une clé à molette symbolisant la main- tenance à effectuer (voir feuille de l’entretien semestrielle page 18 de la notice d’utilisation).
Lorsque le technicien a terminé ses opérations , il faut faire disparaître la clé à molette de l’é- cran du FermentoLevain par l’accès au mode usine.
Couper la tension au sectionneur « OFF ».
Enlever la porte du coffret électrique et faire un pont entre les bornes 8 et F.
Mettre le sectionneur sur « ON ».
2. MODE OPERATOIRE
A
Acquittement de la maintenance FermentoLevain FL30/60/100/200
B
Le menu suivant (barré en rouge) apparaît.Cliquer sur l’onglet « Maintenance »
C
Appuyer de façon continue sur le bouton « Acquitter la maintenance ».Le bouton va passer du orange au vert lorsque l’opération est terminée.
Acquittement de la maintenance FermentoLevain FL30/60/100/200
D
La clé à molette a disparu.
Enlever le pont entre les bornes 8 et F puis refermer le coffret électrique.
Mettre le sectionneur sur « OFF ». Attendre 10s minimum.
Mettre le sectionneur sur « ON ».
Fin de procédure.
Acquittement de la maintenance FermentoLevain FL30/60/100/200
Acquittement de la maintenance FermentoLevain FL30/60/100/200
Acquittement de la maintenance FermentoLevain FL30/60/100/200
Acquittement de la maintenance FermentoLevain FL30/60/100/200
Acknowledgment of FermentoLevain Maintenance FL30/60/100/200
Ref AF408300694 Rev 00
Date : 06-03-19
APPAREILS À
LEVAIN LIQUIDE
FERMENTO- LEVAIN
Notice technique (original) FR
Technical manual (translation of the original
manual) EN
FL 30 FL 60 FL 100 FL 200
ACKNOWLEDG- MENT OF FERMEN-
TO-LEVAIN
Acknowledgment of FermentoLevain Maintenance FL30/60/100/200
1. PRESENTATION
After 4050 hours of operation, the device displays an adjustable wrench symbolizing the mainte- nance to be performed (see the half-yearly maintenance sheet on page 18 of the operating in- structions).
When the technician has completed his operations, you must remove the wrench from the Fer- mentoLevain screen by entering the factory mode.
Switch off the voltage at the OFF switch.
Remove the electrical box door and put a wire between terminals 8 and F.
Set the disconnect switch to "ON".
2. INSTRUCTION
A
Acknowledgment of FermentoLevain Maintenance FL30/60/100/200
B
The next menu (crossed out in red) appears.Click on the "Maintenance" tab
C
Press and hold the "Acknowledge Maintenance" button.The button will change from orange to green when the operation is complete.
Acknowledgment of FermentoLevain Maintenance FL30/60/100/200
D
The adjustable wrench has disappeared.
Remove the wire between terminals 8 and F and close the electrical box.
Set the disconnector to "OFF".
Wait 10s minimum.
Set the disconnect switch to "ON".
End of procedure.
