Annexes

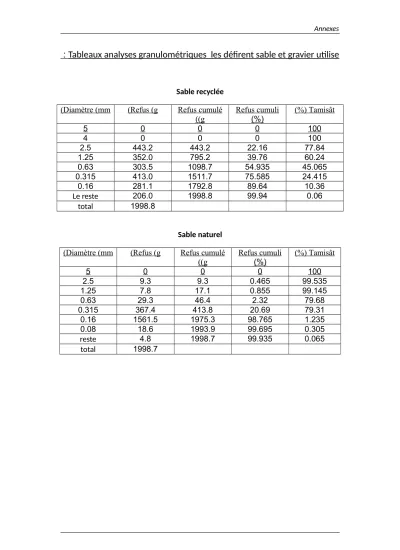

Tableaux analyses granulométriques les défirent sable et gravier utilise :
Sable recyclée
Tamisât (%)
Refus cumuli )
% ( Refus cumulé
(g ( Refus (g
( Diamètre (mm (
100 0
0 0
5
100 0
0 0
4
77.84 22.16
443.2 443.2
2.5
60.24 39.76
795.2 352.0
1.25
45.065 54.935
1098.7 303.5
0.63
24.415 75.585
1511.7 413.0
0.315
10.36 89.64
1792.8 281.1
0.16
0.06 99.94
1998.8 206.0
Le reste
1998.8 total
Sable naturel
Tamisât (%)
Refus cumuli )
% ( Refus cumulé
(g ( Refus (g
( Diamètre (mm (
100 0
0 0
5
99.535 0.465
9.3 9.3
2.5
99.145 0.855
17.1 7.8
1.25
79.68 2.32
46.4 29.3
0.63
79.31 20.69
413.8 367.4
0.315
1.235 98.765
1975.3 1561.5
0.16
0.305 99.695
1993.9 18.6
0.08
0.065 99.935
1998.7 reste 4.8
1998.7 total
Annexes
Gravier naturel 3/8
Tamisât (%) Tamisât
cumulé(%) Refus cumuli (
g) Refus (g)
Diameter (mm)
96.8 3.2
96.1 96.1
8
77.19 22.81
684.3 588.2
6.3
50.54 49.46
1483.8 799.5
5
33.55 66.45
1993.6 509.8
4
15.91 84.09
2522.9 529.3
3.15
0.04 99.96
2998.7 475.8
Le reste
Gravier naturel 8/15
Tamisât (%) Tamisât
cumulé(%)
Refus cumuli ( g) Refus (g)
Diamètre (mm)
93.518 6.482
324.1 324.1
16
56.51 43.49
2174.5 1850.4
12.5
25.64 74.36
3718 1543.5
10
6.112 93.89
4694.4 976.4
8
0.02 99.98
4998.9 304.5
Le reste
Annexes
Gravier recyclé3/8
Tamisât (%) Tamisât
cumulé(%) Refus cumuli (
g) Refus (g)
Diameter (mm)
99.95 0.05
1.7 1.7
8
99.37 0.633
19 17.3
6.3
81.62 18.38
551.5 532.5
5
47.83 52.17
1565.2 1013.7
4
16.48 83.52
2505.5 940.3
3.15
0.22
99.78 2993.5
488.0 Le reste
Gravier recyclé3/15
Tamisât (%) Tamisât
cumulé(%)
Refus cumuli ( g) Refus (g)
Diamètre (mm)
99.57 0.43
21.5 21.5
16
81.72 18.28
913.8 892.3
12.5
52.47 47.53
2376.4 1462.6
10
31.02 68.98
3449 1072.6
8
0.02 99.98
4999 1550.0
Le reste
Annexes
