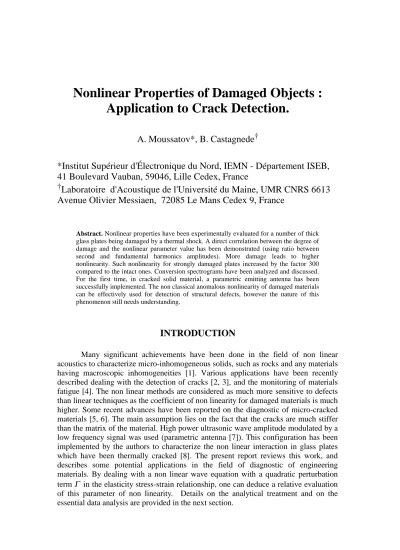

Nonlinear Properties of Damaged Objects : Application to Crack Detection.
A. Moussatov*, B. Castagnede †
*Institut Supérieur d'Électronique du Nord, IEMN - Département ISEB, 41 Boulevard Vauban, 59046, Lille Cedex, France
† Laboratoire d'Acoustique de l'Université du Maine, UMR CNRS 6613 Avenue Olivier Messiaen, 72085 Le Mans Cedex 9, France
Abstract. Nonlinear properties have been experimentally evaluated for a number of thick glass plates being damaged by a thermal shock. A direct correlation between the degree of damage and the nonlinear parameter value has been demonstrated (using ratio between second and fundamental harmonics amplitudes). More damage leads to higher nonlinearity. Such nonlinearity for strongly damaged plates increased by the factor 300 compared to the intact ones. Conversion spectrograms have been analyzed and discussed.
For the first time, in cracked solid material, a parametric emitting antenna has been successfully implemented. The non classical anomalous nonlinearity of damaged materials can be effectively used for detection of structural defects, however the nature of this phenomenon still needs understanding.
INTRODUCTION
Many significant achievements have been done in the field of non linear
acoustics to characterize micro-inhomogeneous solids, such as rocks and any materials
having macroscopic inhomogeneities [1]. Various applications have been recently
described dealing with the detection of cracks [2, 3], and the monitoring of materials
fatigue [4]. The non linear methods are considered as much more sensitive to defects
than linear techniques as the coefficient of non linearity for damaged materials is much
higher. Some recent advances have been reported on the diagnostic of micro-cracked
materials [5, 6]. The main assumption lies on the fact that the cracks are much stiffer
than the matrix of the material. High power ultrasonic wave amplitude modulated by a
low frequency signal was used (parametric antenna [7]). This configuration has been
implemented by the authors to characterize the non linear interaction in glass plates
which have been thermally cracked [8]. The present report reviews this work, and
describes some potential applications in the field of diagnostic of engineering
materials. By dealing with a non linear wave equation with a quadratic perturbation
term Γ in the elasticity stress-strain relationship, one can deduce a relative evaluation
of this parameter of non linearity. Details on the analytical treatment and on the
essential data analysis are provided in the next section.
QUADRATIC COEFFICIENT OF NONLINEARITY
The usual description of the non linear behaviour of a damaged material is done by adding a supplementary term in the linear Hooke's law as written in the form :
σ = M
0ε 1 + Γ ε , with ε = ∂ ∂ u x = u ,x , (1)
where σ and ε denotes respectively the applied mechanical stress and strain due to the ultrasonic field, with u standing for the 1D displacement field along coordinate axis x.
The Γ parameter stands for the quadratic coefficient of non linearity, while M 0 is the mechanical rigidity of the material along the x direction. For undamaged glass the Γ parameter has a value close to 2, but for cracked glass plates with damages having macroscopic size, this parameter should be significantly higher. In equation (1), the perturbation term is much smaller than one ( Γ ε << 1) for undamaged glass plates, because the strain produced by ultrasonic piezoelectric transducers is generally weak, in the range between 10 -6 to 10 -5 . Accordingly, only in the case where the Γ parameter is high, let say around 10 2 -10 3 , will the corrective term Γ ε becomes significant. By using the equation of motion, written in the standard form, ρ ∂ ∂t
2u
2= ∂ σ
∂x , where ρ stands for the mass density of the solid, the non linear wave equation is then derived in the form :
ρ ∂ ∂t
2u
2= M
0∂
2u
∂ x
21 + 2 Γ ∂u ∂x . (2)
In this equation, M
0ρ is the speed of ultrasound c along the x direction. One then seek for solutions with plane waves propagating in the x direction, by using the successive approximations method limited to the fundamental wave u (1) and its second harmonic u (2) , eq. (2) being rewritten u ,
(2)tt = c
2u ,
(2)xx + 2 Γ u ,
(1)xx u ,
(1)x . The formal relation between the amplitude A 1 of the fundamental wave (at frequency ω ) and A 2 of its second harmonic (at 2 ω) takes finally the following form (see [8] for further details) :
20 log Γ
DΓ
V= A
2V
– A
1V– A
2D– A
1D, (3)
where all the above spectral amplitudes (both on fundamental and second harmonic
waves) are expressed in dB. This procedure is also available to determine the ratio of
the coefficients of non linearity for two plates having different level of damages, i.e. to
rank the amount of observed damages.
EXPERIMENTAL PROCEDURES AND RESULTS
The coefficient of non linearity has been obtained with the experimental set-up which is described on Fig. 1. It is a standard configuration with a pump wave generated by a piezoelectric transducer at 100 kHz with adequate power electronics.
This pump wave is low frequency amplitude modulated, in the range of a few kHz.
The transmitted signal is then probed with a different ultrasonic transducer which is properly mounted on the opposite edge of the plate. Rectangular 18 mm thick glass plates have been used. Some of the plates were damaged through a thermal process.
The received continuous acoustical waves were captured at the same time on a LeCroy oscilloscope and on a FFT vector signal analyzer.
30
-50 -40 -30 -20 -10 0 10 20
500
0 100 200 300 400
FFT spectrum with modulation
dB
kHz
15
-45 -40 -30 -20 -10 0 10
500
0 100 200 300 400
FFT spectrum with modulation
dB
kHz
a)
b)
2 1 3 4
5
6
7
8
9
IEEE 488 bus
Wave Generator Power
amplifier Glass plate
Oscilloscope
FFT analyzer
Computer Receiver
Preamplifier
Transmitter
