Preliminary approach for crypt detection in Inflammatory Bowel Disease

Bassem Ben Cheikh

_{, Philippe Bertheau}

_{, Daniel Racoceanu}

3 _{INSERM, U1146, Laboratoire d’Imagerie Biom´edicale, F-75013, Paris, France.}

4 _{Saint-Louis Hospital, Department of Pathology, APHP, and University Paris Diderot USPC, Paris, France} ∗ _{bassem.bencheikh@lib.upmc.fr.}

Abstract - Crypt architecture is one of the most signif-icant histological features used for the examination of colorectal biopsy specimens enabling clinical decisions in the investigation of Inflammatory Bowel Diseases. How-ever, the architecture modelling remains a challenging problem leading to variability in reporting and subjectiv-ity in pathological examination. In this context, intesti-nal gland detection represent a necessary step before a clinical study of their architecture. This work presents a graph-based technique describing spatial relationships over sparse structures for crypt detection using morpho-logical mesh filtering operators.

Index Terms - Image Processing, Medical Informatics, Microscopy.

I. INTRODUCTION

Inflammatory Bowel Diseases (IBDs) are characterized by chronic inflammation of the gastrointestinal tract, princi-pally the colon and small intestine. The routine diagnosis of an IBD is based on biopsy; where a tissue is removed from the suspected organ and examined by the pathologist under a microscope. A biopsy of an affected colon tissue may show abnormalities in its histological structure. The morphological features of the intestinal glands are signifi-cant indicators for the severity of the disease. In order to introduce these morphological features, gland detection is a necessary step ahead. For this purpose, most of the ex-isting methods use replicated classifications of color [1], texture [2], or graph [3] features. In this work, we present a new graph-based technique and morphological mesh fil-tering transformations for intestinal gland detection. Sec-tion 2 presents an overview of our method and secSec-tion 3 presents the results and the limitations of this approach.

II. MATERIALS AND METHODS

One of the most distinctive properties of a gland is that they usually exhibit a closed shape structure surrounded by a layer of epithelial cell nuclei. Compared to the con-nective tissue, the inner area of an intestinal gland doesn’t contain nuclei, being composed of cytoplasm, goblet cells,

(a) (b)

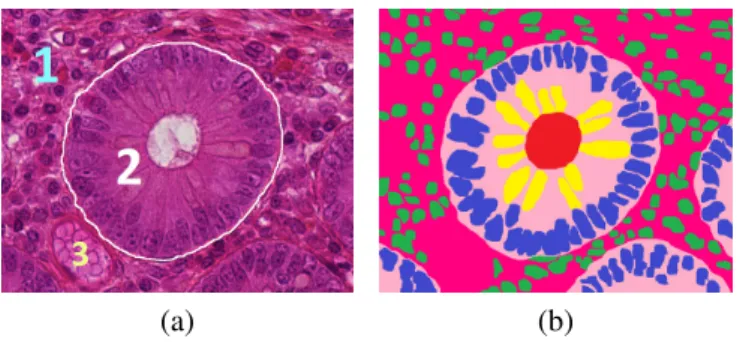

Figure 1: (a.1) connective tissue, (a.2) crypt and (a.3) blood vessel. (b) Red: lumen. Yellow: goblet cells. Blue: epithe-lial cell nuclei. Green: immune system cell nuclei. Pink: cytoplasm. Purple: stroma.

and lumen (fig 1). Based on these observations, we pro-pose a novel graph approach to distinguish the structure of an intestinal gland from the rest of the tissue. For this pur-pose, a biopsy tissue image is first decomposed into sets of points, associated to different tissue components. Further-more, we use their distribution characteristics in order to determine the locations of gland structures.

II.1. Image decomposition

One of the most widely used routine-stains in histopathol-ogy is the Hematoxylin and Eosin (H&E). In a typical im-age of a H&E-stained colorectal tissue, there are mainly three colour groups of pixels. The nucleus pixels have dark purple colour, whereas the cytoplasm and stroma pixels have varying degrees of pink, and lumen pixels are white. Hence, the pixels of an image are quantized into three clus-ters with the k-means algorithm.

II.2. Node identification

In order to set up nodes to lead the graph reconstruction, we need first to translate the color class information to node information. For this purpose, a grid is placed on the re-sulting segmented image. For each grid entry we calculate the ratio of pixels belonging to a color class to the size of the grid entry. If this ratio is higher than a threshold then a node is set within the grid entry.
