Critical hardening rate model for predicting path-dependent
ductile fracture
Stephane J. Marcadet · Dirk Mohr
Received: 6 January 2016 / Accepted: 14 June 2016 / Published online: 29 June 2016 © Springer Science+Business Media Dordrecht 2016
Abstract A new phenomenological framework for
predicting ductile fracture after non-proportional load-ing paths is proposed, implemented into FE soft-ware and validated experimentally for a limited set of monotonic and reverse loading conditions. Assuming that ductile fracture initiation is imminent with the for-mation of a shear band, a shear localization criterion in terms of the elastoplastic tangent matrix is sufficient from a theoretical point of view to predict ductile frac-ture after proportional and non-proportional loading. As a computationally efficient alternative to analyz-ing the acoustic tensor, a phenomenological criterion is proposed which expresses the equivalent hardening rate at the onset of fracture as a function of the stress triaxiality and the Lode angle parameter. The math-ematical form of the criterion is chosen such that it reduces to the Hosford–Coulomb criterion for propor-tional loading. The proposed framework implies that the plasticity model is responsible for the effect of load-ing history on ductile fracture. Important non-isotropic hardening features such as the Bauschinger effect, transient softening and hardening stagnation must be
S. J. Marcadet
Impact and Crashworthiness Laboratory, Department of Mechanical Engineering, Massachusetts Institute of Technology, Cambridge, MA, USA
D. Mohr (
B
)Department of Mechanical and Process Engineering, Swiss Federal Institute of Technology (ETH), Zurich, Switzerland e-mail: dmohr@ethz.ch
taken into account by the plasticity model formula-tion to obtain reasonable fracture predicformula-tions after non-proportional loading histories. A new comprehensive plasticity model taking the above effects into account is thus an important byproduct of this work. In addi-tion, compression–tension and reverse-shear experi-ments are performed on specimens extracted from dual-phase steel sheets to validate the proposed plasticity and fracture model.
Keywords Ductile fracture· Localization · Hardening rate· Reverse loading · Reverse shear · Hosford–Coulomb
1 Introduction
Since the pioneering work ofGurson (1977), porous plasticity models have received considerable attention because of their sound micromechanical basis and abil-ity to predict fracture in many applications. Inspired by the early work of McClintock (1968) and Rice and Tracey(1969), Gurson-type of models have been developed to provide a mathematical description of the nucleation, growth and coalescence of voids in solids. It is undisputed that these mechanisms are relevant at high stress triaxialities such as encountered in front of crack tips (e.g. Needleman and Tvergaard 1987). In crack-free sheet materials, the stress state is usually close to plane stress and hence the void growth driving stress triaxiality is usually below the theoretical
maxi-mum value of 2/3. Even inside a localized neck where three-dimensional stress states develop, the stress tri-axiality seldom exceeds values of 0.8. Consequently, there is limited void growth in a statistically homoge-neous sense in sheet specimens prior to fracture initi-ation. This conclusion is partially supported by exper-imental observations ofGhahremaninezhad and Ravi-Chandar(2012, 2013) from micrographs taken at dif-ferent stages during tension and shear experiments on aluminum alloy 6061-T6, and the synchrotron X-ray laminography observations ofMorgeneyer et al.(2014) for aluminum alloy 2198.
At the macroscopic level, there is also growing evi-dence that the stress–strain response of sheet metal can be predicted with high accuracy up to the point of frac-ture initiation using non-porous plasticity models. The decrease in the force level that is observed in the post-necking range can usually be described without intro-ducing damage into the material model. However, as shown byDunand and Mohr(2010),Sung et al.(2010),
Tardif and Kyriakides(2012) andMohr and Marcadet
(2015), a careful identification of the large strain hard-ening response of non-porous models through inverse procedures is required. Despite the physically sound formulation of Gurson models, it is very difficult to find experimental evidence that justifies their application to sheet metal as far as the description of the elasto-plastic material response is concerned. It is reemphasized that this statement is made with regard to the plasticity of
sheet metal only.
An ad-hoc approach to predicting ductile fracture with porous plasticity models is to assume that frac-ture initiates when the computed porosity reaches a critical value. A more physical approach would be to assume that the porous plasticity model provides an accurate description of the effect of porosity on the material’s load carrying capacity which implies that ductile fracture is predicted “naturally”. In other words, the solution of a boundary value problem will fea-ture zones of plastic localization (e.g. dilatational shear bands) that will eventually cause the loss of load car-rying capacity of the structure at hand. The study of
Besson et al.(2003) of slant fracture nicely illustrates this approach. Such simulation models can be supple-mented with coalescence criteria (see review by Ben-zerga and Leblond 2010) to account for localization events at the mesoscale. Note that the latter may even occur before macroscopic localization (Tekoglu et al. 2015).
Recent experimental evidence regarding ductile fracture at low stress triaxialities (e.g. Barsoum and Faleskog 2007; Mohr and Henn 2007; Haltom et al. 2013;Mohr and Marcadet 2015) is not in good agree-ment with the trends predicted by conventional Gur-son models. The qualitative differences are mostly due to the fact that conventional Gurson models do not predict shear localization at low stress triaxialities (at reasonable magnitudes of strain). So-called shear-modified Gurson models have thus been developed to capture the localization at low stress triaxialities. An example is the work by Nahshon and Hutchin-son(2008) who added a shear term to the void vol-ume evolution law of the GTN model (Tvergaard and Needleman 1984) and demonstrated the importance of this modification in their predictions of shear local-ization.Danas and Ponte Castañeda(2012) used non-linear homogenization to come up with a porous plas-ticity model that accounts for void shape changes (that are characteristic for shear loading). Their analy-sis also shows the loss of ellipticity at low stress triaxialities.
When using porous plasticity (e.g. Gurson 1977;
Gologanu et al. 1993; Benzerga and Besson 2001;
Monchiet et al. 2008) the evolution law for the void vol-ume fraction (and other possible microstructural state variables) is loading path sensitive and failure pre-dictions with microstructurally-informed coalescence criteria (e.g. Thomason 1985;Pardoen and Hutchin-son 2000; Benzerga 2002; Tekoglu et al. 2015) are then loading path dependent. However, given the lim-ited benefits of Gurson type of models as far as pre-dicting the elasto-plastic response of sheet metal is concerned, the combination of non-porous plastic-ity models with damage indicator models provides an attractive framework for predicting loading path dependent fracture initiation in industrial practice. Dif-ferent from porous plasticity and coalescence mod-els, damage indicator models often have no physi-cal basis and are at most physics-inspired. The dam-age indicator is a dimensionless scalar variable that evolves as a function of the stress state and plastic deformation,
d D= d¯εp
¯εpr f [η, ¯θ]
. (1)
It is initially zero while fracture is assumed to occur when D= 1. The heart of these models is the
weight-ing function¯εprf [η, ¯θ], which provides the strain to frac-ture for proportional loading as a function of the stress triaxialityη and the Lode angle parameter ¯θ.Bao and Wierzbicki(2004) provide a comprehensive overview on different stress-state dependent damage indicator models including weighting functions based on the works ofMcClintock(1968),Rice and Tracey(1969),
LeRoy et al.(1981),Cockcroft and Latham(1968),Oh et al.(1979),Brozzo et al.(1972) andClift et al.(1990). More recent representatives of this class of models are the modified Mohr–Coulomb model byBai and Wierzbicki(2010) and the micro-mechanically moti-vated Hosford–Coulomb model byMohr and Marcadet
(2015). Even though the latter has been derived from a localization criterion for proportional loading only, it gives satisfactory results for both proportional and non-proportional loading paths (Bai 2008;Papasidero et al. 2015;Marcadet and Mohr 2015). The main shortcom-ing of damage indicator models is the lack of physical arguments justifying their validity for non-proportional loading paths. Even though the variable D is often called damage and Eq. (1) is referred to as damage accumulation rule, it is emphasized that D has no direct physical meaning (unlike the damage variable used in continuum damage mechanics). Instead, it may be more appropriate to view the damage indicator framework as a heuristic mathematical model for predicting path dependent fracture initiation.
The main objective of the present paper is to pro-vide a mechanism-inspired model for predicting duc-tile fracture initiation under proportional and non-proportional loading. An important byproduct of this work is an advanced plasticity model which accounts for direction-dependent Lankford ratios, the Baus-chinger effect, work hardening stagnation and quasi-permanent softening. The proposed model is vali-dated using experimental data for two advanced high strength steels for proportional monotonic experi-ments, compression–tension experiments and reverse shear experiments.
2 Plasticity model
In view of predicting the large deformation and frac-ture response for non-proportional loading paths, a finite strain plasticity model formulation is presented that accounts for (i) loading direction dependent Lank-ford ratios, (ii) the early yield after load reversal
(Bauschinger effect), (iii) the high hardening rate in the elasto-plastic transition regime resulting from load reversal (transient hardening), (iv) permanent soften-ing, and (v) work hardening stagnation.Barlat et al.
(2011) proposed an anisotropic hardening model based on homogeneous yield functions to describe these effects. As discussed in the review papers byChaboche
(2008) and Eggertsen and Mattiasson (2010; 2011), combinations of linear and non-linear hardening rules can account for the Bauschinger effect, transient hard-ening and permanent softhard-ening, while further model enrichments are necessary to account for hardening stagnation (e.g.Yoshida and Uemori 2002). To account for all five effects (i)–(v),Marcadet and Mohr(2015) proposed combining the plasticity models of Mohr et al.(2010) with the non-linear hardening models of
Chaboche(2008) andYoshida and Uemori(2002) type of hardening stagnation.
In the sequel, the model by Marcadet and Mohr
(2015) is reformulated to simplify the associated mate-rial model parameter identification procedure. In par-ticular, the hardening laws are formulated such that that the model parameters describing the material’s response to monotonic loading do not need to be read-justed when calibrating the parameters that account for reverse loading effects. The model ingredients are chosen in view of modeling Advanced High Strength Steels (AHSS). The particular choice of the yield func-tion and flow rule would need to be revisited before applying the model to non-ferrous metals such as alu-minum or HCP materials. Also, further extensions of the back stress evolution rules are expected to be in order to describe the material behavior for severely non-proportional loading path changes (e.g. tension along the rolling direction followed by tension along the transverse direction).
2.1 Yield function and flow rule
To define the pressure-independent yield surface, we introduce the tensorξ as a measure of the difference between the deviatoric Cauchy stress and a deviatoric back stress tensor X,
ξ = dev (σ) − X. (2)
For most advanced high strength steel sheets, the monotonic axial stress–strain response is isotropic in
the plane of the sheet (e.g.Mohr et al. 2010). Conse-quently, the von Mises equivalent stress definition is employed ¯ξ = 3 2ξ : ξ = 3 2 ˜ξ (3)
to define the yield surface,
f = ¯ξ − ki so= 0, (4)
with ki sodenoting the isotropic deformation resistance.
In (3), ˜ξ denotes the stress vector with the components ˜ξ = {ξ11, ξ22, ξ33, √ 2ξ12, √ 2ξ13, √ 2ξ23}T. (5)
In the case of mildly direction-dependent Lankford ratios, we follow the recommendations ofStoughton
(2002),Cvitanic et al.(2008) andMohr et al.(2010) and employ a non-associated flow rule with a Hill’48 flow potential function,
dεp= dλ
G: ξ
ξ : G : ξ, (6)
with the plastic multiplier dλ and the positive-definite fourth-order tensor G. When adopting vector notation for the stress arguments, G can be represented by the symmetric matrix ˜G = ⎡ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎣ 1 G12 − (1 + G12) 0 0 0 G12 G22 − (G22+ G12) 0 0 0 − (1 + G12) − (G22+ G12) 1 + 2G12+ G22 0 0 0 0 0 0 G44/2 0 0 0 0 0 0 1.5 0 0 0 0 0 0 1.5 ⎤ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎦ . (7) such that ¯ξ2 H ill = ξ : G : ξ = ˜ξ · ˜G˜ξ. (8)
The von Mises definition is adopted to define the equiv-alent plastic strain, i.e.
d¯εp= 2 3dε p: dεp. (9) 2.2 Hardening laws
The hardening laws are chosen based on the Com-bined Chaboche-Yoshida (CCY) model proposed by
Marcadet and Mohr (2015). An attempt is made to simplify the model parameter identification by intro-ducing a function B that describes the material harden-ing response for monotonic uniaxial tension along the rolling direction. For this special case, the yield condi-tion reads
σ11= ki so+ kki n= B (10)
with ki sodenoting the isotropic deformation resistance
as introduced in Eq. (4), and kki n denoting the back
stress.
In most plasticity models, established analytical forms (Holomon, Swift, Voce, power law, exponen-tial function, etc) are used to parametrize the isotropic hardening law
ki so= ki so[¯εp]. (11)
The special feature of the current model is that a para-metric form is used to describe B as a function of the equivalent plastic strain. In particular, we approximate the monotonic stress–strain response through a com-bined Swift–Voce law,
B= wA ε0+ ¯εp n + (1 − w) Y0+ Q 1− e−bV¯εp , (12) with the Swift parameters{A, ε0, n}, the Voce
parame-ters{Y0, Q, bV}, and the weighting factor 0 ≤ w ≤ 1.
Both the Swift and the Voce form can be well-fitted to the stress–strain curves measured up to the point of necking in uniaxial tension experiments. However, the Voce hardening law usually underestimates the strain hardening at large strains, while the opposite holds true for the Swift law. The combined Swift–Voce law fea-tures an additional weighting factor as parameter which can be conveniently identified through inverse
analy-sis of the specimen response in the post-necking range (e.g.Mohr and Marcadet 2015;Gu and Mohr 2015). The repartition of the effective hardening response into isotropic and kinematic hardening will then be described through additional constitutive equations.
For general 3D settings, ki soand kki nwill serve as
internal variables of the constitutive model. For nota-tional convenience, we also introduce the sum of ki so
and kki nas dependent variable,
k= ki so+ kki n. (13)
The initial configuration of the material is then charac-terized through the initial condition
@¯εp= 0 : k = ki so
= B0:= wAεn0+ (1 − w) Y0and kki n= 0. (14)
For arbitrary three-dimensional loading, the stress B defines a bounding limit for k,
k≤ B, (15) while the evolution of k is expressed through the dif-ferential equation
dk= Sd B+ γβ(B − k) d ¯εp
(16) where S∈ [0, 1] is an additional internal variable asso-ciated with hardening stagnation. For loading paths without any hardening stagnation (e.g. monotonic uni-axial tension), we have S = 1 at all times, and con-sequently dk = d B and k = B. In the case where work hardening stagnation occurs, the strict inequality
k < B holds true. The recovery term γβ(B − k) d ¯εp
allows the variable k to converge towards B whenever the material deformed outside the hardening stagnation regime (S= 1).
There is experimental evidence that the hardening of rolled steel sheets after loading reversals must be mostly kinematic to accurately describe the Bauschinger effect (Yoshida and Uemori 2002). However, when introducing complex evolution laws in the constitutive equations, special attention is required with regards to thermodynamic constraints. For these reasons, the repartition between isotropic and kinematic hardening is prescribed through the equation
dki so= 0 if kki n< ϕki so dk 1+ϕ if kki n= ϕki so (17)
with the model parameterϕ ≥ 0; this particular form of the evolution law ensures that kki n≤ ϕki sois always
fulfilled. According to (17), the apparent strain harden-ing under uniaxial tension (evolution of B) is entirely due to kinematic hardening, until B= (1 + ϕ)B0.
2.3 Evolution of the back stress tensor
2.3.1 General form of the back stress evolution equations
The evolution rules for the back stress tensors will be a combination of terms inspired by the classicPrager
(1956) andArmstrong and Frederick(1966) formula-tions: dx= 2 3H dεp+ γ 2 3kdεp− xdλ . (18) The first term of the right hand side of (18) represents linear kinematic hardening. Under proportional load-ing, it is macroscopically equivalent to isotropic hard-ening with a tangent modulus H . The second term of the right hand side is motivated by the dynamic recov-ery in theArmstrong and Frederick(1966) formula-tion. After loading reversal, the back stress tensor is expected to remain within a sphere of radius k in the deviatoric stress space. The particular feature of our evolution laws is that the radius of the bounding sphere may evolve. This feature mimics the behavior of two surface models (e.g. Dafalias and Popov 1976). For monotonic loading, the back stress evolution is only due to the first right hand side term. After loading reversal, the back stress contribution of the first term is neg-ligibly small as compared to the second term during the transition phase until the backstress approaches the sphere boundary.
2.3.2 Evolution law for permanent softening
In order to account for permanent softening and harden-ing stagnation, we make use of two back stress tensors,
X= α + β. (19)
The evolution rule for the back stress tensorβ accounts for permanent softening (Fig.1a) and kinematic hard-ening at large strains (Fig.1b); it is defined through the differential equation
dβ = 2 3 dkβ d¯εp dεp+ Sγβ 2 3kβdεp− βdλ . (20)
As mentioned above, the proposed evolution rule is a combination of terms inspired by the classic Prager
(1956) andArmstrong and Frederick (1966) formu-lations. However, different from Prager’s linear kine-matic hardening rule which makes use of a constant modulus, the hardening modulus dkβ/d ¯εpof the Prager
term (first term of the right hand side) is bounded by the evolution of the variable kki n. Formally, this
non-linearity is introduced through the constraint
dkβ d¯εp = min Cβ,dkki n dλ (21) which typically becomes active at large strains and for large values of Cβ. Similarly, different from Armstrong–Frederick‘s kinematic hardening rule which makes use of a constant radius, the radius of the bound-ing surface for the back stress evolution is controlled by the variable kβ. Note that the Armstrong–Frederick recovery effect on the back stress evolution (second term on the right hand side of Eq.20) is interrupted during work hardening stagnation.
2.3.3 Evolution law for Bauschinger effect
Analogously to the evolution equations of the back stress β, we define the hardening law for α to rep-resent the Bauschinger effect and transient hardening (Fig.1c), dα = 2 3 dkα d¯εp dεp+ γα 2 3kαdε p− αdλ (22) with the model parameterγα and the coupling con-straint
dkα = dkki n− dkβ. (23)
As discussed inMarcadet and Mohr(2015), the evolu-tion ofα is not affected by hardening stagnation.
2.4 Work hardening stagnation
As for the CCY model (Marcadet and Mohr 2015), the constitutive equations for the evolution rule of S are inspired by the work ofYoshida and Uemori(2002). Work hardening stagnation (Fig.1d) is activated as a
function of the loading history. Firstly, the strain-like measure ω is introduced to characterize the loading path, dω = 2 3 ξ 3 2ξ : ξ dλ. (24) The distance of ¯ω to a point q is then defined as
¯ω = 2 3(ω − q) : (ω − q). (25) and limited to ¯ω − r ≤ 0. (26)
When ¯ω = r and (ω − q) : dω > 0, r and q are updated according to
dq= (1 − h) · dω (27)
dr = h(ω − q)
¯ω : dω. (28)
The internal variable S is then defined as
S[ω, q, r] =
if(ω − q) : dω ≥ 0 then r¯ω
if(ω − q) : dω < 0 then 0 (29)
The variable S corresponds to the ratio of the distance ofω to q when ¯ω increases. It is set to zero when it decreases. This means that the hardening is deactivated in case of reverse loading and progressively reactivated at large strains after reversal.
2.5 Thermodynamic constraints
The starting point of our considerations is the free energy imbalance (e.g.Gurtin et al. 2013) of the form
˙ψ ≤ σ : ˙ε (30)
The free energy is limited to an elastic partψe
ψ = ψe, (31)
which must be positive, i.e.
ψe ≥ 0. (32)
Assuming the quadratic elastic strain energy potential:
ψe = 1 2 C: (ε − εp) : (ε − εp) (33)
along with the elastic constitutive equation: σ = ∂(ε − ε∂ψ
p)
Fig. 1 Illustration of the effects of selected kinematic hardening model parameters for a DP600 steel:
a permanent softening parameter Cβ, b parameter γβ, c Bauschinger parameterγα, d stagnation parameter h. The default parameters areγα= 180, Cb= 220 MPa, h = 0.4 and γb= 9
the free energy imbalance may be substituted by the requirement of nonnegative rate of plastic dissipation,
˙dp= σ : ˙εp≥ 0. (35)
Combining Eqs. (2), (6), (19) and (35), we obtain the rate of plastic dissipation
˙dp= (α + β + ξ) : ˙εp= ¯ξ H ill˙λ+ ≥0 (α + β) : G : ξ ¯ξH ill ˙λ. (36) The first term is unconditionally nonnegative. However,
(α + β) : G : ξ may become negative. The non-zero
dissipation condition requires that
− (α + β) : G : ξ ≤ ¯ξ2H ill. (37)
The left hand side of (36) is bound by − (α + β) : G : ξ ≤ |(α + β) : G : ξ|
= ˜G˜α + ˜β· ˜ξ
≤ ˜G˜α + ˜β˜ξ ≤ λ max ˜α + ˜β˜ξ (38)
while a lower bound for the right hand side term in (36) reads
¯ξ2
H ill = ˜G˜ξ · ˜ξ ≥ λmin˜ξ 2
(39) withλmaxandλmin denoting the largest and smallest
positive eigenvalues of the symmetric ˜G matrix. Com-bining the above inequalities leads to the constraint
λmax ˜α + ˜β ≤ λmin˜ξ (40)
Inserting the bounds provided by the kinematic and isotropic hardening laws, we obtain
λmax 2 3kki n≤ λmin 2 3ki so (41)
This constraint means that the sum of the back stresses is bounded by the current isotropic yield surface. It is readily fulfilled if the model parameterϕ [see Eq. (17)] is chosen such that
ϕ ≤ λmin
λmax
3
2. (42)
3 Critical hardening rate fracture initiation model We are concerned with predicting the instant of duc-tile fracture initiation in structural applications such as sheet metal forming or the crush loading of thin-walled structures. The applicability of our model will be lim-ited to materials and structural applications where a shear band forms prior to the formation of a crack. Furthermore, it will be assumed that the deformation accumulated within a shear band prior to fracture is not relevant for assessing the structural performance. In other words, there is no need to model the post shear-localization response. At the length and time scales of interest, it shall be reasonable to assume that the for-mation of a crack is imminent with the forfor-mation of a shear localization band. We emphasize that the physics of shear localization and fracture are fundamentally different. However, with the above working assump-tions in place, we will no longer carefully differentiate between shear localization and fracture. It will actu-ally be postulated that shear localization is the govern-ing mechanism leadgovern-ing to ductile fracture, which is the basis for to the development of a “mechanism-inspired” ductile fracture initiation model.
The results from a notched tension experiment on a TRIP780 steel (Fig.2) illustrate the above working assumption. After accumulating an equivalent plastic strain of 0.18 up to the force maximum (Fig. 2a), a through-thickness neck develops at the specimen cen-ter. Within this neck, the deformation increases further up to strains of 0.47, before a slant shear band forms (blue solid triangle) and the specimen fractures (black solid triangle). At the structural level, the displacement up to the force maximum is 1.55 mm, another 0.55 mm displacement increment is accumulated during neck-ing until fracture initiates at uf = 2.10 mm; the
dis-placement increment between the instant of shear local-ization and fracture is almost zero at the scale of the macroscopic displacement recordings. It was only in a specimen from an experiment interrupted at a displace-ment of 0.99uf (blue solid triangle in Fig.2a), where
we could detect some evidence of an emerging shear band of a width a few microns (order of grain size).
Even though the modeling assumption is expected to hold true for many engineering materials, it is noted
(a) (b) Fracture Necking Shear band 500µm Thickness direcon Tensile direcon
Fig. 2 a Force-displacement response of a flat notched tension specimen extracted from a 1.4 mm thick TRIP780 steel sheet, the insert shows the evolution of the equivalent plastic strain at the specimen center as a function of the stress triaxiality, b micrograph of a longitudinal cut through the fractured NT20 specimen
that it does not apply to materials such as superplastic metals or metallic glasses. For example, the formation of intense localized shear bands is the main deforma-tion mechanism in metallic glasses for accommodating substantial inelastic strains at low homologous temper-atures without fracturing (e.g. Anand and Su 2005). For the sake of simplicity, we will also limit our atten-tion to the formulaatten-tion of an isotropic fracture initi-ation model. The developments below would need to be repeated on the basis of the anisotropic Hosford– Coulomb model (Gu and Mohr 2015) in the case of materials that exhibit a pronounced anisotropic frac-ture response. Note that the complexity of the plas-ticity model (Sect.2) remains almost unchanged when extending the model from isotropic to anisotropic plas-tic flow. Consequently, the mild anisotropy in the Lank-ford ratios is taken into account. As far as the fracture modeling is concerned, the model complexity increases significantly from the isotropic to the anisotropic for-mulation. Consequently, we recommend neglecting the effect of anisotropy on the fracture initiation except
in the case of severely anisotropic materials (e.g. alu-minum extrusions).
3.1 Mechanism-based modeling
Assuming that the initiation of ductile fracture, i.e. the formation of macroscopic cracks in metals is imminent with the onset of localization, the onset of ductile fracture can be predicted through an infi-nite band-type of localization analysis (Rice 1976). For a material obeying the incremental stress–strain relationship
dσ = L : dε, (43)
Rice(1976) showed that the condition for localization in a planar band reads
det[Li j klnknl] = 0 (44)
with n denoting the unit normal vector to the localiza-tion band.Rice(1976) has also shown that the above bifurcation condition describes the loss of ellipticity of the governing field equation. It is worth noting that Rice’s criterion remains valid irrespective of the load-ing history. The loadload-ing history effect on the onset of shear localization is solely described by the
plastic-ity model which provides the evolution of the elasto-plastic tangent matrix L (fourth-order tensor) and the stress tensor σ (which enters into the corresponding finite strain formulation, see Mear and Hutchinson 1985). In engineering practice, the above approach is seldom used due to the high computational costs asso-ciated with solving equation (44) and its incompatibil-ity with non-porous plasticincompatibil-ity models (when predicting localization at low stress triaxialities).
3.2 Phenomenological modeling for proportional loading
As an alternative to bifurcation analysis, engineers often use fracture initiation criteria that provide the
equivalent plastic strain to fracture as a function of the stress state,
¯εpr f = ¯ε
pr
f [η, ¯θ]. (45)
The existence of a fracture envelope can be justified for proportional loading in stress space. Mohr and Mar-cadet(2015) have shown that any envelope in stress space can be transformed into the form of (45) for mate-rials featuring isotropic hardening only. For example, the Hosford–Coulomb model in principal stress space {σI, σI I, σI I I} reads
¯σH F+ c(σI + σI I I) = b (46)
with the isotropic (Hosford 1972) scalar measure of the deviatoric stress tensor,
¯σH F = 1 2 (σI− σI I)a+ (σI I− σI I I)a +(σI− σI I I)a 1 a (47) and the model parameters{a, b, c}. Using coordinate transformations, the same criterion may be expressed in terms of the stress triaxiality, Lode parameter and Mises equivalent stress. In the modified Haigh–Westergaard
space{η, ¯θ, ¯σ }, we have, ¯σ = ¯σf[η, ¯θ] = b 1 2(( f1− f2)a+ ( f2− f3)a+ ( f1− f3)a) 1 a + c(2η + f 1+ f3) . (48)
with the Lode angle parameter dependent functions
f1[ ¯θ] = 2 3cos π 6(1 − ¯θ) , f2[ ¯θ] = 2 3cos π 6(3 + ¯θ) , f3[ ¯θ] = − 2 3cos π 6(1 + ¯θ) (49) For a Levy–von Mises material with isotropic hard-ening, a third representation of the Hosford–Coulomb criterion in the mixed stress–strain space{η, ¯θ, ¯εp} is
readily obtained when using the inverse isotropic hard-ening law, ¯εp = k−1[ ¯σ], to substitute the von Mises
equivalent stress by the equivalent plastic strain, ¯εpr f = k−1 ¯σf[η, ¯θ] . (50)
In the latest coordinate frame transformation, we made use of the bijectivity of the isotropic hardening law ¯σ = k[¯εp].
The bijectivity of the hardening law allows us not only to substitute the equivalent von Mises stress through the equivalent plastic strain, but we can even express the fracture criterion in terms of a critical hard-ening rate, A fourth representation of the Hosford– Coulomb model can be given in the mixed hardening
rate & stress state space{η, ¯θ, d ¯σ /d ¯εp},
d¯σ d¯εp pr f = dk d¯εp k−1 ¯σf[η, ¯θ] . (51) All four representations of the Hosford–Coulomb cri-terion have been visualized for plane stress conditions in Fig.3for a power law material
k[¯εp] = A(ε0+ ¯εp)n. (52)
with the Swift parameters A= 1100 MPa, ε0= 0.02
and n = 0.2, and the Hosford–Coulomb parameters
a = 1.5, b = 1000 MPa and c = 0.1. It is
reempha-sized that all four representations are fully equivalent and predict the same instant of fracture initiation for a given proportional loading path in stress space (under plane stress conditions).
3.3 Phenomenological modeling for non-proportional loading
As discussed in the introduction, we seek for a mech-anism-based alternative to the heuristic damage indica-tor modeling framework to predict ductile fracture ini-tiation for proportional and non-proportional loading paths. Aside from the lack of physical arguments sup-porting the particular mathematical form of the dam-age indicator framework, we also found a strong coun-terexample: experiments suggest an increase in the total strain to fracture after shear reversal (see Sect.4.3.2). This is in contradiction with the prediction of damage indicator models which are insensitive to the effect of loading direction reversal for pure shear.
Fig. 3 Representation of the Hosford–Coulomb criterion for a power law material with plane stress condition in the following spaces a first and second in-plane stress components b modified
Haigh–Westergaard space c mixed strain-stress state space d mixed hardening rate-stress state space. The initial Von Mises yield envelope (solid black line) and Hosford–Coulomb fracture locus (solid blue line) are shown
Inspired by the fact that Rice’s (1976) localization criterion in terms of the tangent modulus L naturally incorporates the effect of the loading history, we pro-pose a phenomenological derivative of Rice’s model by postulating that ductile fracture initiates when the hard-ening rate d¯σ/d ¯ε reaches a critical value for a given stress state{η, ¯θ}. d¯σ d¯ε f = g[η, ¯θ]. (53)
Note that different from (51), we omit the superscript ‘pr’, i.e. criterion (53) is proposed to predict ductile fracture for both proportional and non-proportional loading paths. We also note that d¯ε defines the von Mises equivalent strain increment of the total strain tensor,
d¯ε =
2
3dε : dε. (54) Similarly to Rice’s localization criterion, the depen-dence on loading history of ductile fracture initiation is inherited from the plasticity model.
For materials exhibiting isotropic hardening only, the proposed model would reduce to a simple stress based criterion. This simple form for modeling the effect of loading history has been advocated by
Stoughton and Yoon(2011). However, for materials exhibiting non-linear kinematic hardening (such as Bauschinger effect or permanent softening), the above model will immediately predict a history effect on duc-tile fracture.
This plasticity model effect is shown schematically in Fig.4and will be elaborated further in the subsequent sections dealing with real materials. The stress–strain relation is shown for monotonic and reverse loading after an equivalent plastic strain of 0.45. A constant stress state is assumed even after loading reversal (e.g. shear reversal). Fracture under monotonic loading is assumed to initiate at an equivalent plastic strain of 1. Figure4illustrates the effect of plasticity on the strain
Fig. 4 Effect of plasticity on the prediction of fracture under reverse loading for the Hosford–Coulomb model as a function of the choice of critical quantity at fracture
to fracture depending on the choice of critical quantity at fracture:
• von Mises stress, corresponding to Eq. (48), in green,
• equivalent plastic strain, corresponding to Eq. (50), in blue, and
• hardening rate, corresponding to Eq. (53), in red. Note that all three models would yield the same strain to fracture when using an isotropic hardening model, while significant differences are observed for the model with kinematic hardening.
As far as the parametric form of g[η, ¯θ] is concerned, we suggest using (51) as evaluated for a power law hardening model with n= 0.1,
g[η, ¯θ] = HU T 1 2(( f1− f2) a+ ( f 2− f3)a+ ( f1− f3)a) 1 a + c(2η + f 1+ f3) 1+ c !1 n−1 (55)
The proposed critical hardening rate model therefore features three model parameters: the critical hardening modulus HU T for uniaxial tension, the friction
coeffi-cient c, and the Hosford exponent a. It is emphasized that (55) is merely a fitting function which has been chosen such that the critical hardening model inher-its the capabilities of the Hosford–Coulomb model for proportional loading. A rigorous derivation of g[η, ¯θ] from the localization problem posed by (44) is a major undertaking which is deferred to future research.
3.4 Extended formulation
An important underlying assumption in the proposed ductile fracture model is that the fracture initiation is imminent with the onset of localization. There are a few exceptions where this assumption does not hold true. Consider for example a material in which Lüders’ bands form (e.g.Hall 1970). In that case, localization bands occur temporarily, but cease rapidly as the hard-ening rate picks up. For such a material, the hardhard-ening rate right after initial yield is close to zero or even neg-ative; the proposed model would predict fracture at this stage of loading even though significantly higher strains are attained in reality. A similar situation is encountered when PLC bands form in aluminum alloys (e.g. Benal-lal et al. 2006) or during work hardening stagnation after loading reversal in DP steels.
The common feature of these special cases is that the localization is stabilized rapidly due to the mater-ial’s remaining hardening potential. Localization corre-sponds to a catastrophic event (i.e. fracture initiation), if there is no more hardening stabilization possible under continued monotonic loading along the current loading path. The failure criterion therefore must state that frac-ture occurs at an instant tf if the localization criterion
(53) is satisfied, and provided that the hardening mod-ulus would not increase if the loading continued along the same strain path. Denoting the hardening modulus
H at an instant tf after loading along a specific strain
pathε[t] from the initial configuration (t = 0) to the current configuration(t = tf) as H ε[tf] := d¯σ d¯ε tf (56) the fracture criterion is formally rewritten as
max t≥tf H ε[tf] + ˙ε[tf](t − tf) ≤ g η[tf], ¯θ[tf] . (57) It is noted that the loading path assumed in (57) is only one possible post-localization scenario. As for prop-agating instabilities (e.g. Kyriakides 2001), the for-mation of a crack after the onset of localization also depends on the kinematic restrictions imposed by the surrounding material. In other words, different from the onset of localization, fracture initiation is expected to depend on the non-local conditions. It is also noted that the above model is not suitable for predicting fracture in the hardening stagnation regime after loading reversal.
3.5 Comment on the model sensitivity
At first sight, the formulation of a fracture initiation model in terms of the hardening rate appears to be more sensitive to experimental inaccuracies than models that are directly formulated in terms of strains. It is therefore worth emphasizing that the conversion from strains to hardening rates is only done computationally, i.e. the identification of the model parameters{a, HU T, c} is
based on the measured strains to fracture for different stress states. Possible experimental uncertainties in the measurement of stress–strain curve slopes therefore do not enter the model parameter identification process.
The same applies to inaccuracies in the calibrated plasticity model. Even if the plasticity model provides only a poor approximation of the material’s large defor-mation response, these plasticity model inaccuracies will not affect the model predictions of the strain to fracture for proportional loading. However, the model predictions for non-proportional loading depend on the slope accuracy of the plasticity model. In other words, in order to benefit from the model’s ability to estimate of the strains to fracture after complex loading histo-ries, it is necessary to use an adequate plasticity model. For instance, the increase in ductility after reverse shear loading is only possible if a plasticity model with non-linear kinematic hardening or hardening stagnation is employed.
4 Experiments 4.1 Materials
The proposed plasticity and fracture models are vali-dated based on the experimental data for two different materials: 1.0 mm thick DP780 steel sheets provided by US Steel, and 1.4 mm thick DP590 steel sheets pro-vided by ArcelorMittal.
4.2 Specimens
In an attempt to obtain a comprehensive characteri-zation of the plastic and fracture response of advanced high strength steels, the following types of experiments have been performed:
(a) Monotonic uniaxial tension (UT): tensile speci-mens with a 10 mm wide gage section (Fig. 5)

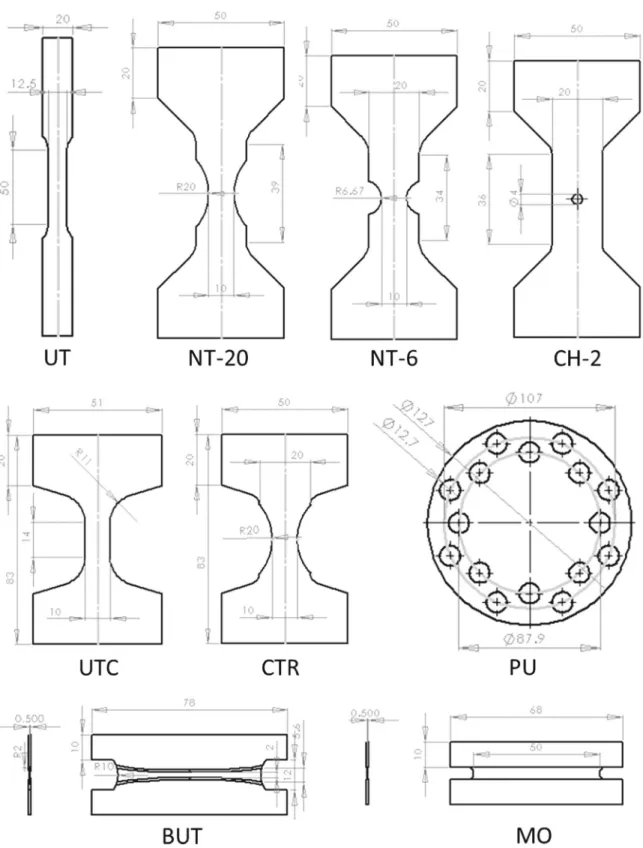

Fig. 5 Drawings of all specimens employed: flat dogbone spec-imen for uniaxial tension (UT), tension specspec-imens with dif-ferent notch radii (NT20, NT6), central hole tension specimen (CH2), uniaxial tension–compression specimen (UTC), notched
compression–tension specimen (CTR), punch specimen (PU), butterfly fracture specimen (BUT), and Mohr–Owald specimen (MO)
are positioned into a universal testing machine and loaded at a constant cross-head velocity of 2 mm/min. In addition to the axial strain, the width strain is measured using planar Digital Image Cor-relation (DIC);
(b) Monotonic notched tension (NT): the minimum gage section width of all notched specimens was 10 mm (Fig.5), while the notch radii were either 20 mm (NT-20) or 6.67 mm (NT-6). The notched specimens were loaded at constant cross-head velocity of 0.5 mm/min all the way to fracture. The relative axial shoulder displacements were mea-sured using 17 and 15 mm long DIC extensometers for the NT-6 and NT-20 specimens, respectively. In addition, a local relative displacement has been measured using a 2 mm long virtual extensometer at the specimen center;
(c) Monotonic central hole tension (CH): the employed tensile specimens were 20 mm wide and featured a 4 mm diameter hole at the gage section center; as for the NT specimens, a global relative displacement has been measured using a 20 mm long axial virtual extensometer;
(d) Monotonic punch experiments (PU): the disc spec-imen is clamped onto a 100 mm diameter die and subjected to out-of-plane loading using a 44.5 mm diameter hemispherical punch (Dunand and Mohr 2010); the specimen is loaded all the way to fracture at a punch velocity of 5 mm/min. The surface strains are measured in the apex region of the punched specimen using stereo DIC.
(e) Uniaxial tension–compression experiments (UTC): the specimens are first loaded up to an axial strain of 0.1 or 0.2 under uniaxial tension, before load-ing direction reversal. A low friction anti-bucklload-ing device is employed to apply compression stain increment of up to 0.15 before buckling failure. The axial strains are monitored in these experiments using a 12 mm long virtual extensometer;
(f) Notched compression–tension experiments (CTR): notched specimens (Fig.5) with the same gage sec-tion dimensions as the NT-20 specimens are first subject to compressive strains of up to -0.13, before removing the anti-buckling device and loading the specimen all the way to fracture under tension; the global and local axial DIC extensometer lengths are 12 and 2 mm, respectively.
(g) Reverse shear plasticity experiments (MO): tangen-tial loading is applied onto a rectangular specimen
(Fig.5), while keeping the vertical force zero (Mohr and Oswald 2008). The strains are measured within the 5 mm high and 50 mm long gage section using planar DIC. To avoid any plastic deformation in the gripping areas and to reduce the required tangen-tial forces, the gage section thickness is reduced to 0.5 mm using conventional milling. Fracture initi-ates near the gage section edges which limits the validity of the experiments to equivalent strain lev-els of about 0.3 for monotonic loading; the exper-iment are performed in a tangential displacement-control mode at a constant velocity of 0.2 mm/min; (h) Reverse shear fracture experiments (BUT): in close analogy with the shear plasticity experiments, tan-gential loads are applied to a butterfly-shaped spec-imen (Fig.5,Dunand and Mohr 2011). Different from the MO specimen, fracture initiates near the specimen center where the stress state is close to pure shear. The relative tangential and normal dis-placement of the specimen shoulders is monitored using planar DIC. All experiments are performed a constant tangential velocity of about 0.2 mm/min, while keeping the normal force zero.
4.3 Details on experimental procedures
The experimental procedures for experiment types (a)– (f) have been described in detail inDunand and Mohr
(2010),Mohr and Marcadet(2015) andMarcadet and Mohr(2015). We therefore limit our detailed descrip-tion to the experimental procedures for the reverse shear experiments which have not been reported previously. All shear tests are performed on a custom-made Instron dual actuator system (Fig.6). The boundary conditions and the alignment are well controlled by the high pressure grips. The vertical actuator controls the vertical load applied to the top of the specimen. The horizontal actuator is under displacement control.
4.3.1 Reverse shear plasticity experiments
The high width to height ratio of the MO specimen ensures that the shear stress field is approximately uni-form within the specimen gage section; it can there-fore be calculated based on the force measurements at the specimen boundaries. After machining the spec-imens, a random speckle pattern is applied onto the gage section surface. A digital camera equipped with
Fig. 6 Dual actuator system
Nikon 105 mm 1:1 macro lenses monitored the central part of the gage section at a frame rate of 1 Hz. The tangential displacement is applied at a constant hori-zontal actuator speed of 0.5 mm/min. The experiments are aborted as soon as small cracks become visible by eye in the gage section corners. The reader is referred to
Mohr and Oswald(2008) for details on the stress–strain curve extraction. An example equivalent stress versus equivalent plastic strain curve for the DP780 material for an MO experiment with loading reversal at a strain of about 0.09 is shown in Fig.7. In the same figure, we also show the stress–strain curve from a tension– compression experiment (UTC specimen) with load-ing reversal at the same equivalent plastic strain (solid dots). The remarkable agreement of both curves is seen as a partial validation of the reverse loading testing techniques. Furthermore, it illustrates that significantly larger strains could be achieved with the MO specimen (before the formation of corner cracks) than in a UTC specimen (which fails due to buckling).
4.3.2 Reverse shear fracture experiments
As mentioned above, the MO specimen fails because of strain concentrations at the gage section corners and is thus not suitable for measuring the strain to frac-ture for pure shear. Instead, the butterfly (BUT) spec-imen (Fig.5) introduced byDunand and Mohr(2011) is used. It features slightly curved specimen shoulders
Fig. 7 Comparison of the stress–strain response of DP780 steel in an experiment with loading reversal at an equivalent plas-tic strain of 0.1. The solid curve has been determined from a Mohr–Oswald shear experiment, while the dotted curve has been obtained from a uniaxial experiment with tension followed by compression
which generate significantly larger strains at the speci-men center than at the free gage section boundaries. As a result, fracture initiates near the gage section center where pure shear conditions prevail.1
A velocity of 0.5 mm/min is applied to the hori-zontal actuator, while keeping the vertical force zero. The horizontal and vertical relative displacementsu andv of the specimen shoulders is measured using an DIC extensometer at an acquisition frequency of 1 Hz. Due to the heterogeneity of the mechanical fields, the equivalent plastic strain evolution at the specimen center is extracted from a finite element simulation of the experiment. Following the modeling guidelines of
Dunand and Mohr(2011), we made use of a solid ele-ment mesh with four first-order eleele-ments along the half-thickness of the specimen gage section (i.e. an element size of about 0.06 mm). The instant of loading reversal in reverse loading experiment is then also determined after computing the strain evolution for a monotonic experiment.
4.4 Overview on experiments performed
The same battery of monotonic experiments has been completed for both materials:
1This statement holds true for most engineering materials tested
so far. However, it is important to verify the validity of this assumption for each experiment performed.
• Uniaxial tension (UT) for three different loading directions
• Central hole and notched tension (CH, NT20 and NT6) along the rolling direction
• Punch (PU) experiment
• Mohr–Oswald (MO) and butterfly (BUT) shear with the rolling direction parallel to the vertical axis For the DP590 steel, the effect of loading direction reversal has been characterized using
• Reverse Mohr–Oswald (MO) shear plasticity exper-iments with loading reversal at an equivalent plastic strain of 0.1 and 0.2;
• Reverse butterfly (BUT) shear fracture experiments with loading reversal at an equivalent plastic strain of 0.25 and 0.50;
For the DP780 steel, a more extensive experimental program has been performed to investigate the effect of loading direction reversal:
• Uniaxial tension–compression (UTC) experiments with loading direction reversal at an equivalent plastic strain of 0.05 and 0.1;
• Notched compression–tension (CTR) experiments with loading direction reversal at an equivalent plastic strain of 0.05, 0.10, 0.15 and 0.20;
We intentionally chose nearly isotropic AHSS sheet materials to defer the investigation of the possible com-bined effect of initial anisotropy and loading direction reversal to future work. In our fracture testing pro-gram, we do not consider different specimen orien-tations and perform all experiments along the rolling direction only. Consequently, the conclusions drawn from this study will be only be validated experimentally through rolling direction data. The main purpose of the performed experiments is to serve as basis for mater-ial model identification and model validation. We omit a separate discussion of the experimental observations per se in the present section. Instead, the experimental results are introduced in the next section on the model application and validation.
From a mechanistic point of view, it is noted that through thickness necking was observed in specimens (a)–(c) and (e)–(f). The final fracture surfaces are slant, i.e. oriented at an angle of about 45◦with respect to the sheet thickness direction.
Table 1 Lankford ratios
r0(–) r45(–) r90(–)
DP590 0.98 0.84 1.13
DP780 0.78 0.96 0.77
5 Application and validation
The newly-proposed plasticity and fracture models are applied to describe the large deformation response of the DP780 and DP590 dual phase steels. It is empha-sized that the material is nearly isotropic in its initial state, i.e. the axial stress–strain response is direction-independent and the Lankford ratios are also only mildly direction dependent (Table1). The use of an associated (isotropic) flow rule would yield almost the same results for the above materials. The fracture model is fully isotropic for monotonic loading, i.e. the pos-sible effect of initial anisotropy is neglected. How-ever, both the plasticity and fracture models account for the effects of deformation-induced anisotropy which is represented by the evolution of the back stress tensors.
5.1 Plasticity model parameter identification
The proposed plasticity model features the following material parameters:
• anisotropic flow potential parameters {G12, G22,
G44}
• Swift–Voce parameters {ε0, A, n, Y0, Q, bV, w}
• kinematic hardening parameters {Cβ, γα, γβ}
• hardening stagnation parameter h
As mentioned above, the great advantage of the model over our earlier formulation (Marcadet and Mohr 2015) is that these parameters can be identified sequentially.
5.1.1 Monotonic loading
Firstly, the flow potential parameters{G12, G22, G44}
are determined from the Lankford coefficients,
G12= − r0 1+ r0, G22= r0 r90 1+ r90 1+ r0, and G44= 1+ 2r45 r90 r0+ r90 1+ r0 . (58)
Table 2 Swift–Voce model
parameters Y0(MPa) Q (MPa) bV(–) A (MPa) ε0(–) n (–) w (–)
DP590 345.9 335.8 24.9 1031.0 0.0013 0.2 0.73
DP780 614.0 270.0 32.2 1170.0 3.1 10−5 0.11 0.79
Then, the Swift parameters{ε0, A, n}, and the Voce
parameters {Y0, Q, b} are independently determined
from a fit to the measured true stress versus plastic strain curve for uniaxial tension along the rolling direction.
Finally, the parameter w is determined through inverse analysis; it is chosen such that the predicted load-displacement response for the NT20 specimen matches the experimental result. During this optimiza-tion, the parameters for reverse loading are set to dummy values (e.g. Cβ = 0, γα = 100, γβ = 100,
h= 0) since they have a negligible effect on the
simu-lation results. The final set of parameters for monotonic loading is given in Table2.
5.1.2 Reverse loading
In the proposed plasticity model, the effects of the para-meters for reverse loading are nearly independent, and do not affect the response of the model under propor-tional loading conditions. The dimensionless parame-terγα controls the rate of transient hardening in the Bauschinger phase. The dimensionless parameter h controls the finite strain increment during which work hardening stagnation takes place. The parameter Cβ controls the strength reduction related to permanent softening, while the dimensionless parameterγβ con-trols the rate of strain hardening after the end of the work hardening stagnation phase. The effect of each model parameter is illustrated in Fig.1.
The von Mises stress versus equivalent plastic strain relation is numerically evaluated using a single ele-ment simulation. The boundary conditions are such that the element is under simple shear (or uniax-ial tension); loading reversal is applied at the cor-responding equivalent plastic strain as obtained with the MO experiments (or UTC experiments). The predicted stress–strain response is then compared to the experimental response. The parameters x = {Cβ, γα, γβ, h} are determined such as to minimize
the difference between the experimentally-measured and numerically-predicted curves. The error function is expressed as
Table 3 Kinematic hardening and stagnation parameters Cβ(MPa) γα(–) γβ(–) h (–) DP590 51.3 74.8 2.1 0.49 DP780 231.6 65.2 6.0 0.64 I[x] = " # # # $ 2 % j=1 Mj % m=1 & σS I M j [εmE X P] σE X P j [εmE X P] − 1 '2 (59)
where the subscript j = 1, 2 differentiates among the stress–strain curves for different levels of pre-strain;
Mj denotes the total of experimental data points used
for the computation of the residual for the experiment j . This inverse identification procedure has been per-formed using a Nelder–Mead optimization algorithm (Matlab) in conjunction with Abaqus. For the DP590 steel, the MO experiments have been used to identify the parameters{Cβ, γα, γβ, h}, while the UTC exper-iments have been used for the DP780 steel. The final model parameters are listed in Table3. The correspond-ing comparison of the numerical (solid red) and exper-imental (dashed black) curves are shown in Fig.8a for the DP590 steel, and in Fig.8b for the DP780 steel. It is reemphasized that the model response for monotonic loading remained approximately unchanged after iden-tifying the kinematic hardening and stagnation parame-ters, which is seen as a significant simplification of the complex and tedious process of the parameter identifi-cation of our previous CCY plasticity model (Marcadet and Mohr 2015).
A validation of the identified plasticity model para-meters is given in Figs.9and10for the DP780 steel, where we simulated the butterfly shear experiments with loading reversal and the notched compression– tension experiments for different levels of pre-strain.
5.2 Fracture model parameter identification
The critical hardening rate model set of parameters {a, HU T, c} is identified from the monotonic fracture
Fig. 8 Comparison of the von Mises stress versus equivalent plastic strain curves after loading reversal for experimental data (black dotted line) and the prediction of the model after cali-bration (red solid line) for: a reverse shear on a MO specimen extracted from DP590, and b tension–compression loading of a DP780 UTC specimen
experiments for five different stress states: NT6, NT20, CH, BUT and PU. In all experiments, the instant of fracture initiation is determined through a sudden force drop. This instant always coincided with the emergence of a clearly visible (by eye) macroscopic crack. From the simulation of each experiment, we extract the load-ing path to fracture, i.e. the evolution of the equiva-lent plastic strain, the hardening rate, the stress triax-iality and the Lode angle parameter until the instant of fracture initiation. The loading paths to fracture are shown as solid black lines in the equivalent plastic strain versus stress triaxiality plane in Fig.11a (DP590 steel) and Fig. 11b (DP780 steel). Even though the experiments are highly repeatable (the measured
force-Fig. 9 Comparison of the experimental (dotted) and predicted (solid) force-displacement curves for experiments on BUT spec-imens extracted from DP780 steel: a monotonic shear, b shear reversal at an equivalent plastic strain of 0.25, c shear reversal at an equivalent plastic strain of 0.50
Fig. 10 Comparison of the experimental (dotted) and predicted (solid) force-displacement curves and local strain evolutions for experiments on CTR specimens extracted from DP780 steel: a monotonic tension, and load reversal after compression up to an equivalent plastic strain of b 0.05, c 0.10, d 0.15 and e 0.20
displacement curves of repeated experiments lied on top of each other), the computed loading paths to frac-ture include uncertainties related to the DIC displace-ment measuredisplace-ment and the plasticity model approxi-mation. The fracture displacement measurement uncer-tainty of about 10μm equates to a fracture strain uncer-tainty of about 0.03. The unceruncer-tainty related to the accu-racy of the plasticity model is expected to be 0.05 in the reported fracture strains (estimated based on the surface strain comparison shown in Fig.8). Using a
basic Matlab script, the strains to fracture are calcu-lated according to the critical hardening rate model for all given monotonic loading paths, and the para-meters{a, HU T, c} are identified numerically through
residual minimization (taking all five experiments into account). The corresponding instants of fracture initi-ation as predicted using the model parameters given in Table4are shown as solid black dots in Fig.11. Note that the three-parameter model provides a good fit (less than 3 % error) for all five calibration experiments.
(a) (b) BUT CH PU NT20 NT6 Exp. Model Model Exp. BUT CH PU NT20 NT6
Fig. 11 Calibration of the critical hardening rate model using the results from monotonic experiments on a DP590 steel, and b DP780 steel. The ends of the solid lines correspond to the instant of fracture initiation in the experiments, while the solid dots are the model predictions after calibration
Table 4 Critical hardening model parameters
HU T(MPa) a (–) c (–)
DP590 146.3 1.89 0.005
DP780 143.1 1.77 0.022
5.3 Critical hardening rate model validation
The predictive capabilities of the critical hardening rate model are evaluated using the experimental data for fracture initiation after reverse loading (Fig.12).
For the DP780 steel (Fig.12a), the computed loading paths for the compression–tension experiments (CTR) are shown as solid blue lines; the end of each curve cor-responds to the instant in the simulation, where fracture
(a) (b) BUT BUT_25 BUT_50 CH NT20 PU NT6
Fig. 12 Model validation for reverse loading experiments: a compression followed by tension experiments on DP780 b shear reversal experiments on DP590. The ends of the solid lines correspond to the instant of fracture initiation in the exper-iments, while the solid dots are the model predictions. Note that none of the blue curves has been used for model calibration. Also note that the compression part of the loading path before load reversal is not shown in a
initiated in the experiment. The instants of fracture ini-tiation predicted by the critical hardening model are highlighted by the solid dots. Note that the predicted strains to fracture coincide with those obtained exper-imentally for two levels of pre-strain (10, CTR-15). We reemphasize that the blue dots are true predic-tions and that no additional parameter was introduced in the fracture model to account for the effect of loading reversal.
For the DP590 steel, the model performance is evalu-ated for butterfly shear experiments with loading direc-tion reversal at an equivalent plastic strain of 0.25 and 0.50 (Fig. 12b). As for the DP780 steel, we observe
good agreement of the predicted fracture strains (solid dots) and the end points of the loading paths to fracture. Overall, the error in the fracture strain predictions of the critical hardening rate model is less than 8 % for all validation experiments. Note that the critical hardening rate model clearly captures the pronounced increase in ductility due to the shearing direction reversal, which is seen as a major improvement over state of the art damage indicator models.
The general trend is that loading direction rever-sal increases the strain to fracture. This is due to the increase in hardening rate associated with the transient behavior after loading direction reversal. As far as the stress state sensitivity is concerned, we do not expect any qualitative change related to loading direction reversal, i.e. the same qualitative features of the frac-ture strain versus stress triaxiality plot shown in Fig.3c will also be found after loading direction reversal. 6 Conclusions
It is assumed that the onset of ductile fracture in a poly-crystalline material is imminent with the formation of a localization band. As a phenomenological alternative to Rice’s (1976) localization analysis, it is proposed that localization (and hence ductile fracture) occurs when the effective hardening rate reaches a critical value that is a function of the stress triaxiality and the Lode para-meter. According to this approach, the path dependency of ductile fracture is only due to plasticity. To pro-vide an accurate description of the finite strain plas-ticity of DP steels, a new phenomenological plasplas-ticity model is proposed which accounts for the Bauschinger effect, hardening stagnation, permanent softening and non-associated anisotropic plastic flow. The plasticity model is formulated such that its response to monotonic loading remains unaffected when changing the kine-matic hardening parameters.
All three parameters of the Hosford–Coulomb based critical hardening rate model are identified from basic monotonic fracture experiments on DP590 and DP780 steel for different stress states (notched tension, cen-tral hole tension, punch, butterfly shear). Subsequently, the effect of loading direction reversal at finite strains on the fracture initiation in advanced high strength steels is characterized experimentally through notched compression–tension experiments and reversed butter-fly shear experiments. It is shown that the critical hard-ening rate model provides reasonable predictions of the
strain to fracture for all experiments with loading direc-tion reversal. Different from damage indicator mod-els (e.g.Bai and Wierzbicki 2010;Mohr and Marcadet 2015), the new modeling approach can predict the sig-nificant increase in ductility due to reverse shearing. Acknowledgments The partial financial support of MIT Indus-trial Fracture Consortium is gratefully acknowledged. Special thanks are due to Prof. Tomasz Wierzbicki (MIT) and Dr. Tom Stoughton (GM) for valuable discussions.
References
Anand L, Su C (2005) A theory for amorphous viscoplastic materials undergoing finite deformations, with application to metallic glasses. J Mech Phys Solids 53:1362–1396 Armstrong PJ, Frederick CO (1966) A mathematical
representa-tion of the multiaxial bauschinger effect. G.E.G.B, Report RD/B/N 731
Bai Y (2008) Effect of loading history on necking fracture frac-ture. PhD Thesis. Massachusetts Institute of Technology, Department of Mechanical Engineering, Cambridge USA Bai Y, Wierzbicki T (2010) Application of the extended
Coulomb–Mohr model to ductile fracture. Int J Fract 161:1– 20
Bao Y, Wierzbicki T (2004) On fracture locus in the equivalent strain and stresstriaxiality space. Int J Mech Sci 46(1):81–98 Barlat F, Gracio JJ, Lee MG, Rauch EF, Vincze G (2011) An alternative to kinematic hardening in classical plasticity. Int J Plast 27:1309–1327
Barsoum I, Faleskog J (2007) Rupture mechanisms in com-bined tension and shear—experiments. Int J Solids Struct 44(6):1768–1786
Benallal A, Berstad T, Børvikb T, Clausenb AH, Hopperstad OS (2006) Dynamic strain aging and related instabilities: experimental, theoretical and numerical aspects. Eur J Mech A Solids 25:397–424
Benzerga AA (2002) Micromechanics of coalescence in ductile fracture. J Mech Phys Solids 50:1331–1362
Benzerga AA, Besson J (2001) Plastic potentials for anisotropic porous solids. Eur J Mech 20A:397–434
Benzerga AA, Leblond JB (2010) Ductile fracture by void growth to coalescence. Adv Appl Mech 44:169–305
Besson J, Steglich D, Brocks W (2003) Modeling of plane strain ductile rupture. Int J Plast 19(10):1517–1541
Brozzo P, Deluca B, Rendina R (1972) A new method for the pre-diction of formability in metal sheets, sheet material form-ing and formability. In: Proceedform-ings of the 7th biennial con-ference of the IDDRG
Chaboche JL (2008) A review of some plasticity and viscoplas-ticity constitutive theories. Int J Plast 24(10):1642–1693 Clift SE, Hartley P, Sturgess CEN, Rowe GW (1990) Fracture
prediction in plastic deformation processes. Int J Mech Sci 32:1–17
Cockcroft MG, Latham DJ (1968) Ductility and the workability of metals. J Inst Met 96:33–39
Cvitanic V, Vlak F, Lozina Z (2008) A finite element formulation based on non-associated plasticity for sheet metal forming. Int J Plast 24:646–687
