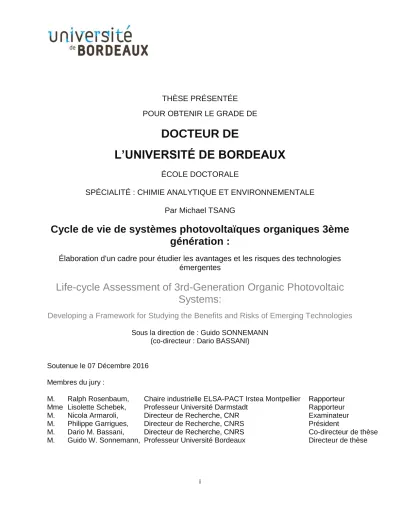

THÈSE PRÉSENTÉE POUR OBTENIR LE GRADE DE
DOCTEUR DE
L’UNIVERSITÉ DE BORDEAUX
ÉCOLE DOCTORALE
SPÉCIALITÉ : CHIMIE ANALYTIQUE ET ENVIRONNEMENTALE Par Michael TSANG
Cycle de vie de systèmes photovoltaïques organiques 3ème génération :
Élaboration d'un cadre pour étudier les avantages et les risques des technologies émergentes
Life-cycle Assessment of 3rd-Generation Organic Photovoltaic Systems:
Developing a Framework for Studying the Benefits and Risks of Emerging Technologies
Sous la direction de : Guido SONNEMANN (co-directeur : Dario BASSANI)
Soutenue le 07 Décembre 2016 Membres du jury :
M. Ralph Rosenbaum, Chaire industrielle ELSA-PACT Irstea Montpellier Rapporteur Mme Lisolette Schebek, Professeur Université Darmstadt Rapporteur M. Nicola Armaroli, Directeur de Recherche, CNR Examinateur M. Philippe Garrigues, Directeur de Recherche, CNRS Président
M. Dario M. Bassani, Directeur de Recherche, CNRS Co-directeur de thèse M. Guido W. Sonnemann, Professeur Université Bordeaux Directeur de thèse
pour étudier les avantages et les risques des technologies émergentes
Résumé :
Les systèmes photovoltaïques organiques sont des technologies émergentes présentant de forts potentiels d’économie de ressources et de réduction des impacts sur l'environnement et la santé humaine par rapport aux dispositifs photovoltaïques conventionnels. La méthode de l’analyse du cycle de vie est appliquée afin d'évaluer la façon dont les différents procédés de fabrication, les caractéristiques des dispositifs, la phase d’utilisation et les scénarios de fin de vie des cellules photovoltaïques organiques influent sur ces avantages potentiels. Les impacts de cette technologie émergente sont comparés aux technologies conventionnelles à base de silicium pour établir un référentiel de performance des technologies photovoltaïques.En outre, les effets potentiels sur la santé humaine de l'utilisation de nanomatériaux dans les cellules photovoltaïques organiques ont été spécifiquement étudiés ; et la pertinence de l’analyse du cycle de vie pour évaluer cette catégorie d’impact a été examinée. Ainsi, un nouveau modèle d'évaluation de l'impact sur le cycle de vie est présenté afin de quantifier les dangers potentiels posés par les nanomatériaux. Enfin, ces impacts potentiels sont comparés aux avantages des cellules photovoltaïques organiques sur les cellules à base de silicium.
Mots clés :
l’analyse du cycle de vie, photovoltaïques organiques, nanomatériaux fabriqués, l'evaluation des risques, l'exposition, énergie renouvelableTitle : Life-cycle Assessment of 3rd-Generation Organic
Photovoltaic Systems: Developing a Framework for
Studying the Benefits and Risks of Emerging Technologies
Abstract :
Organic photovoltaics present an emerging technology with significant potential for increasing the resource efficiencies and reducing the environmental and human health hazards of photovoltaic devices. The discipline of life-cycle assessment is applied to assess how various prospective manufacturing routes, device characteristics, uses and disposal options of organic photovoltaics influences these potential advantages. The results of this assessment are further compared to silicon based photovoltaics as a benchmark for performance. A deeper look is given to the potential human health impacts of the use of engineered nanomaterials in organic photovoltaics and the appropriateness of life-cycle assessment to evaluate this impact criteria. A newly developed life-cycle impact assessment model is presented to demonstrate whether the use of and potential hazards posed by engineered nanomaterials outweighs any of the resource efficiencies and advantages organic photovoltaics possess over silicon photovoltaics.Keywords :
Life-Cycle Assessment, Organic Photovoltaics, Engineered Nanomaterials, Risk Assessment, Characterization Factor, Indoor Occupational Exposure, Monte Carlo Analysis, Sustainable Production, Eco-Design, Renewable Energy, Life-Cycle Impact Assessment, production durable, éco-conception,Institut des Sciences Moléculaires
