ANALYSIS OF αs FROM THE REALIZATION OF
QUARK-HADRON DUALITY
A. COURTOY∗
IFPA, AGO Department, Universite de Liege Liege, Belgium.
INFN-LNF, Frascati, Italy. aurore.courtoy@ulg.ac.be
SIMONETTA LIUTI
Department of Physics, University of Virginia, 382 McCormick Rd. Charlottesville, VA 22904, USA
sl4y@virginia.edu
Received Day Month Year Revised Day Month Year
We present an analysis of the role of the running coupling constant at the intersection of perturbative and nonperturbative QCD in the context of the quark-hadron duality `a la Bloom-Gilman. Our framework will be the unpolarized structure function of the proton in the resonance region. We suggest that the realization of duality is related to the inclusion of nonperturbative effects at the level of the coupling constant. The outcome of our analysis is a smooth transition from perturbative to nonperturbative QCD physics, embodied in the running of the coupling constant at intermediate scales.
Keywords: Keyword1; keyword2; keyword3. PACS numbers: 11.25.Hf, 123.1K
1. Introduction
QCD, the theory of strong interactions, which color singlets are the hadrons, is formulated in terms of quarks and gluons. The underlying paradox is that, so far, the physicists have failed to describe hadrons within QCD, due to the property of confinement. On the other hand, hadron phenomenology is rich, while our current understanding prevents us from unveiling the hadron structure. Actually, at moder-ate energy scales, QCD tells us that asymptotic freedom and confinement properties meet. Then the partonic description develops into the hadronic representation. The realization of this development from a perturbative to a nonperturbative description is still obscure. Various models of parton dynamics at low energies, mimicking QCD, ∗Speaker.
have been proposed, and they have led the way toward improvements in the under-standing of hadron phenomenology. The other way round, purely phenomenological and perturbative approaches have been pursued as well. For example, we know that Deep Inelastic processes allow us to look with a good resolution inside the hadron and to resolve the very short distances, i.e. small configurations of quarks and glu-ons. At such short distances, one singles out a hard scattering process described through Perturbative QCD (pQCD). The large distance part of the process, i.e. the Parton Distribution Functions (PDFs), reflects how the quarks and gluons are dis-tributed inside the target. PDFs have been evaluated within models, which validity is restricted to moderate energies, as well as parametrized from higher energy data, providing a complementary description.
Although, as we have just explained, the perturbative stage of a hard collision is distinct from the nonperturbative regime characterizing the hadron structure, early experimental observations suggest that, in specific kinematical regimes, both the perturbative and nonperturbative stages arise almost ubiquitously, in the sense that the nonperturbative description follows the perturbative one. There exists, in Deep Inelastic processes, a dual description between low-energy and high-energy behavior of a same observable, i.e. the unpolarized structure functions. Bloom and Gilman observed a connection between the structure function νW2(ν, Q2) in the nucleon resonance region and that in the deep inelastic continuum [1, 2]. The reso-nance structure function was found to be equivalent to the deep inelastic one, when averaged over the same range in the scaling variable. This concept is known as parton-hadron duality: the resonances are not a separate entity but are an intrin-sic part of the scaling behavior of νW2. The meaning of duality is more intriguing when the equality between resonances and scaling happens at a same scale. It can be understood as a natural continuation of the perturbative to the nonperturbative representation.
In this contribution to the proceedings, we study the Bloom-Gilman duality from a purely pertubative point of view, by analysing the scaling behavior of the resonances at the same low-Q2, high-x values as the F2 data from JLab. We start from the analysis of Ref. [3], where the implications of parton-hadron duality are explored in the large x region of inclusive electron proton scattering experiments.
Our study leads to an analysis of the role of the running coupling constant in the infrared region in tuning the experimental data [3, 4]. The new approach on the freezing of the running coupling constant is outlined in Ref. [5].
2. Quark-Hadron Duality in Electron-Proton Scattering
Bloom–Gilman duality implies a one-to-one correspondence between the behav-ior of the structure function, F2, for unpolarized electron proton scattering in the resonance region, and in the pQCD regulated scaling region. In Deep Inelastic Scat-tering (DIS), the relevant kinematical variables are the Bjorken scaling variable, x = Q2/2M ν with M being the proton mass and ν the energy transfer in the lab
system, the four-momentum transfer, Q2, and the invariant mass for the proton, P , for the virtual photon, q, and for the system, W2= (P + q)2= Q2(1 − x) /x + M2. For large values of Bjorken x ≥ 0.5, and Q2 in the multi-GeV2 region, the cross section is dominated by resonance formation, i.e. W2 ≤ 5 GeV2. While it is impossible to reconstruct the detailed structure of the proton resonances, these remarkably follow the pQCD predictions when averaged over the resonance region. Bloom–Gilman duality was observed at the inception of QCD, its theoretical formulation through the OPE followed the emergence of QCD as the theory of the strong interactions. In the framework of structure functions, the OPE is an expansion in twist. The OPE formulation of quark-hadron duality [6] suggests that the higher-twist contributions to the scaling structure function would either be small or cancel otherwise duality would be strongly violated. However, the role of the higher-twist terms is still unclear since they would otherwise be expected to dominate the cross section at x → 1.
To answer the question of the nature of a dual description, two complementary approaches have been adopted. The first is the nonperturbative model’s view on the scaling of the structure functions at low-energies ; the second approach consists in a purely perturbative analysis from pQCD evolution. Although Bloom-Gilman duality has been known for years, quantitative analyses could be attempted only more recently, having at disposal the extensive, high precision data from Jeffer-son Lab [7, 8]. Perturbative QCD-based studies [3, 4, 9], have been presented that include higher-twist contributions or, more generally, the evidence for nonpertur-bative inserts, which are required to achieve a fully quantitative fit, especially at large-x. It is the second approach that we will follow here.
A quantitative definition of duality is accomplished by comparing limited inter-vals (integrated in Bjorken-x over the entire resonance region, namely global duality) defined according to the experimental data. Hence, we analyse the scaling results as a theoretical counterpart, or an output of pQCD, in the same kinematical intervals and at the same scale Q2as the data for F
2. It is easily realized that the ratio, Rexp/th(Q2) = Rxmax xmin dx F exp 2 (x, Q 2) Rxmax xmin dx F th 2 (x, Q2) , (1)
is equal to 1 if duality is fulfilled. In the present analysis, we use, for Fexp
2 , the data from JLab (Hall C, E94110) [8] reanalyzed (binning in Q2and x) as explained in [10] as well as the SLAC data [11].
In our analysis, we use different order expansions:
• the expansion in αsis performed here to next-to-leading-order in αs, • the expansion in twist includes here leading-twist PDFs,
• the expansion in logarithms is considered, here, to all logarithms for the expansion of αs.
The definition of the scaling structure function in Eq. (1) relies on the fact that the pQCD evaluation is very well constrained in the region of interest (x & 0.2)
despite it does not correspond directly to measured data. Fth
2 is an input that once fed into the evolution equations determines the structure functions behavior at much larger Q2, F2N S(x, Q2) = xq(x, Q2) +αs 4π
X
qZ
1 x dz BqNS(z)x z q x z, Q 2 , (2)where we have considered only the non-singlet (NS) contribution to F2 since only valence quarks distributions are relevant in our kinematics. The PDFs, q(x, Q2), are evolved to NLO to Q2 from the initial scale Q20 = 1GeV2. We have chosen the MSTW08 set to NLO as initial parametrization [12]. The function BNSq is the Wilson
coefficient function for quark-quark. As shown on Fig. 1, the ratio R is not 1 when considering only pQCD.
At finite Q2, the effects of the target and quark masses modify the identification of the Bjorken variable with the light-cone momentum fraction. For massless quarks, the parton light-cone fraction is given by the Nachtmann variable ξ,
ξ = 2x 1 + r with r = s 1 + 4x 2M2 Q2 . (3)
Theses corrections, due to the finite mass of the initial nucleon, called TMCs, are included directly in F2N S as [13], F2N S(T M C)(x, Q2) = x 2 ξ2γ3F ∞ 2 (ξ, Q 2 ) + 6x 3M2 Q2γ4 Z 1 ξ dξ0 ξ02F ∞ 2 (ξ0, Q 2 ), (4) where F∞
2 ≡ F2N S is the structure function in the absence of TMC.
TMCs move the ratio closer to unity, as represented by the open green diamonds in Fig. 1. At this stage, by including only TMCs and standard PDF parametriza-tions, we still observe a large discrepancy with the data.
One possible explanation for the apparent violation of duality is the lack of accuracy in the PDF parametrizations at large-x. Therefore, the behavior of the nucleon structure functions in the resonance region needs to be addressed in detail in order to be able to discuss theoretical predictions in the limit x → 1. Analyses [9] show that one is now able to unravel different sources of scaling violations affecting the structure functions, namely TMC (that we have discussed above), Large x Re-summation effects (LxR), and dynamical higher-twists, in addition to the standard NLO perturbative evolution. As a result, contrarily to what originally deduced in e.g. Ref. [14], a more pronounced role of the higher-twist terms is obtained, point-ing at the fact that duality, defined on the basis of a dominance of spoint-ingle parton scattering, i.e. suppression of final state interactions, could indeed be broken.
We here propose yet another interpretation of the apparent violation of duality, that does not invoke final state interactions directly. NLO pQCD evolution at large x is sensitive to Large x Resummation (LxR) effects. The consequence of LxR is a shift of the scale at which αs is calculated to lower values, with increasing z. This introduces a model dependence within the pQCD approach in that the
value of the QCD running coupling in the infrared region is regulated by LxR so to satisfy duality. In other words, LxR contains an additional freedom, gathered in the definition of the coupling constant, to tune the scaling structure functions, simultaneously suppressing the higher-twist effects. The higher-twist effects get, in fact, absorbed in the coupling’s infrared behavior.
3. Large-x Resummation
Quark-hadron duality can be understood as follows: the knowledge of perturba-tive QCD can be used to calculate nonperturbaperturba-tive QCD physics’observables [15]. However, when considering pQCD observables at low scales, we implicitly face an interpretation problem. Higher terms in the perturbative expansion of that observ-able need be taken into account, by definition. Rephrazing, it gives: we are trying to make up for the perturbative to nonperturbative QCD physics transition in our perturbative analysis. In the present approach, this phase transition is fully included in the interpretation of the role of the running coupling constant, at the scale of transition instead.
Let us further develop this idea. LxR arise formally from terms containing powers of ln(1 − z), z being the longitudinal variable in the evolution equations, that are present in the Wilson coefficient functions BNSq (z), in Eq. (2). To NLO and in the
MS scheme, the Wilson coefficient function for quarks reads, BNSq (z) = ˆ Pqq(0)(z) ln 1 − z z −3 2 + E.P. + , (5)
where E.P. means end points and [. . .]+ denotes the standard plus-prescription. The function ˆPqq(0)(z) is the LO splitting function for quark-quark. The logarithmic terms, i.e., ln(1 − z), in BNSq (z) become very large at large x values. They need to
be resummed to all orders in αs. Resummation was first introduced by linking this issue to the definition of the correct kinematical variable that determines the phase space for real gluon emission at large x. This was found to be fW2= Q2(1 − z)/z, instead of Q2[16]. As a result, the argument of the strong coupling constant becomes z-dependent [17], αs(Q2) → αs
Q2 (1−z)z .
In this procedure, however, an ambiguity is introduced, related to the need of continuing the value of αs for low values of its argument, i.e. for z → 1. Since the size of this ambiguity is of the same order as the higher-twist corrections, it has been considered, in a previous work [18], as a source of theoretical error or higher order effects. We propose an enlightening analysis from which one can draw αs for values of the scale in the infrared region. To do so, we investigate the effect induced by changing the argument of αs on the behavior of the ln(1 − z)-terms in the convolution Eq. (2). We resum those terms as
ln(1 − z) = 1 αs,LO(Q2) Z Q2 d ln Q2 αs,LO(Q 2(1 − z)) − α s,LO(Q 2) ≡ ln LxR ,(6)
including the complete z dependence of αs,LO( ˜W
2) to all logarithms.a To all logarithms, the convolution becomes
FN S,Resum 2 (x, Q 2) = xq(x, Q2) +αs 4π
X
qZ
1 x dz BResum NS (z) x z q x z, Q 2, (7) where, BResum NS = B q NS(z) − ˆP (0) qq (z) ln(1 − z) + ˆP (0) qq (z) lnLxR. (8) Using F(1),DIS2 in Eq. (1), the ratio R decreases substantially, even reaching values lower than 1. It is a consequence of the change of the argument of the running coupling constant. At fixed Q2, under integration over x < z < 1, the scale Q2× (1 − z)/z is shifted and can reach low values, where the running of the coupling constant starts blowing up. At that stage, our analysis requires nonperturbative information.
In the light of quark-hadron duality, it is necessary to prevent the evolution from enhancing the scaling contribution over the resonances. One possible way-out is to set a maximum value for the longitudinal momentum fraction, zmax, which defines a limit from which nonperturbative effects have to be accounted for. The functional form lnLxR is therefore slightly changed. Two distinct regions can be studied: the
“running” behavior in x < z < zmaxand the “steady” behavior zmax< z < 1. FN S,Resum 2 (x, zmax, Q 2) = xq(x, Q2) +αs 4π
X
q (Z
1 x dzhBNSq (z) − ˆPqq(0)(z) ln(1 − z)i +Z
zmax x dz ˆPqq(0)(z) lnLxR+ lnLxR, maxZ
1 zmax dz ˆPqq(0)(z) ) x zq x z, Q 2. (9) where the PDFs are included under the integral. Our definition of the maximum value for the argument of the running coupling follows from the realization of duality in the resonance region. The value zmax is reached atRexp/th(z max, Q 2 ) = Z xmax xmin dx Fexp 2 (x, Q 2) Z xmax xmin dx FN S,Resum 2 (x, zmax, Q2) = I exp IResum = 1 . (10)
The results are depicted by the red hexagons on Fig. 1.
4. The Running Coupling Constant from LxR
The direct consequence of the previous Section is that duality is realized, within our assumptions, by allowing αs to run from a minimal scale only. From that minimal
0 1 2 3 4 5 0.50 0.55 0.60 0.65 0.70 0.75 0.80 0.85 R d x F ex p 2 (x ,Q 2) R d x F th 2 (x ,Q 2)
x

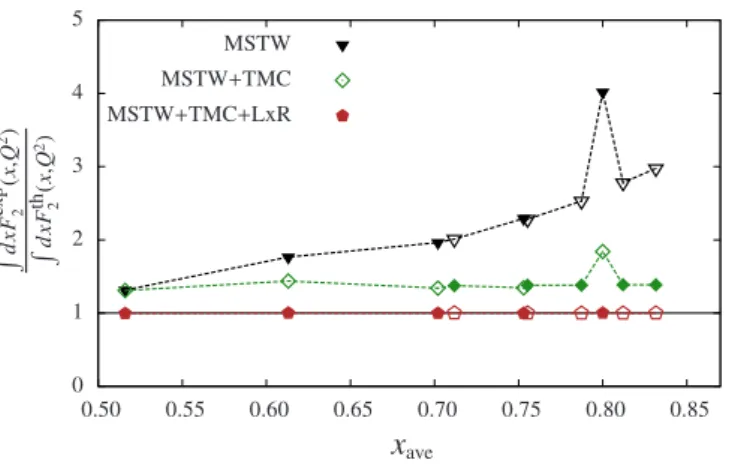

ave MSTW MSTW+TMC MSTW+TMC+LxRFig. 1. The ratio Rexp/th(x
ave, Q2) at fixed Q2, where the theoretical analysis have been
per-formed with QCD evolution for the MSTW08 PDF set (black triangle) and MSTW08 PDF set plus target mass corrections (green diamonds). The red hexagons represent Eq. (10). The legend is for JLab data, the opposite (open triangles, solid diamonds and open hexagons) correspond to SLAC data points.
scale downward to the real photon limit (scale=0GeV2), the coupling constant does not run, it is frozen. This feature is illustrated on Fig. 2. We show the behavior of αs,NLO(scale) in the MS scheme and for the same value of Λ used throughout this
paper. The theoretical errorband correspond to the extreme values of
αs,NLO Q2i(1 − zmax,i) zmax,i for i = 1, . . . 10 , (11)
i corresponds to the data points. Of course, we expect the transition from nonper-turbative to pernonper-turbative to occur at one unique scale. The discrepancy between the 10 values we have obtained has to be understood as the resulting error propagation. The grey area represents the approximate frozen value of the coupling constant,
0.13 ≤ αs,NLO(scale → 0GeV 2)
π ≤ 0.18 . (12)
In the figure we also report values from the extraction using polarized eP scat-tering data in Ref. [19, 20, 21, 22]. These values represent the first extraction of an effective coupling in the IR region that was obtained by analyzing the data rel-evant for the study of the GDH sum rule. To extract the coupling constant, the MS expression of the Bjorken sum rule up to the 5th order in alpha (calculated in the MS scheme) was used. In order to compare with our extraction using the F2p observable, the finite value for αs(0) found in [19, 20, 21] was rescaled in [22] assuming the validity of the commensurate scale relations [21] in the entire range of the scale entering the analysis. The agreement with our analysis which is totally independent, is impressive.
àà àà à à à à à à à à à à à ò ò ò ò ò ò
0.0
0.5
1.0
1.5
2.0
0.10
0.15
0.20
0.25
0.30
scale HGeV
2L
Α
H scale LΠ
Fig. 2. Extraction of αs. The blue dashed curve represents the exact NLO solution for the running
coupling constant in MS scheme. The solid blue curve represents the coupling constant obtained from our analysis using inclusive electron scattering data at large x. Owing to large x resummation, at lower values of the scale, αs = αs,NLO(min) is frozen as explained in the text. The grey area
represents the region where the freezing occurs for JLab data, while the hatched area corresponds the freezing region determined from SLAC data. This error band represents the theoretical uncer-tainty in our analysis. We also plot results extrapolated from the recent analysis of A. Deur: the red squares correspond to αsextracted from Hall B CLAS EG1b, with statistical uncertainties; the
orange triangles corresponds to Hall A E94010 / CLAS EG1a data, the uncertainty here contains both statistics and systematics.
5. Conclusions
We report an interesting observation that the values of the coupling from dif-ferent measurements/observables namely the GDH sum rule, and our large-x-DIS/resonance region based extractions, are in very good agreement with the values obtained from the extension of the commensurate scale relations [23, 24] to the IR region suggested in Ref. [20, 22]. The issue of the extension of the scheme/observable dependence to low values of the scale is what makes our new extraction interest-ing and open to further studies. While our conclusion ensues from a perturbative analysis, in the near future, we will explore the role of non-perturbative effective couplings as well.
The importance of finite couplings has been highlighted many times in the Liter-ature. Our analysis allows to extract from a fit [25] the nonperturbative parameters often present in the proposed functional forms for the running of αs, e.g., in Refs. [26, 27, 28].
