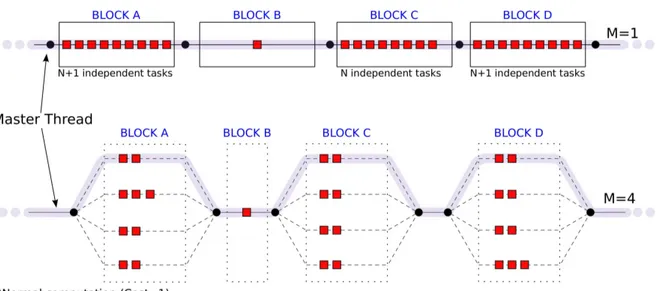

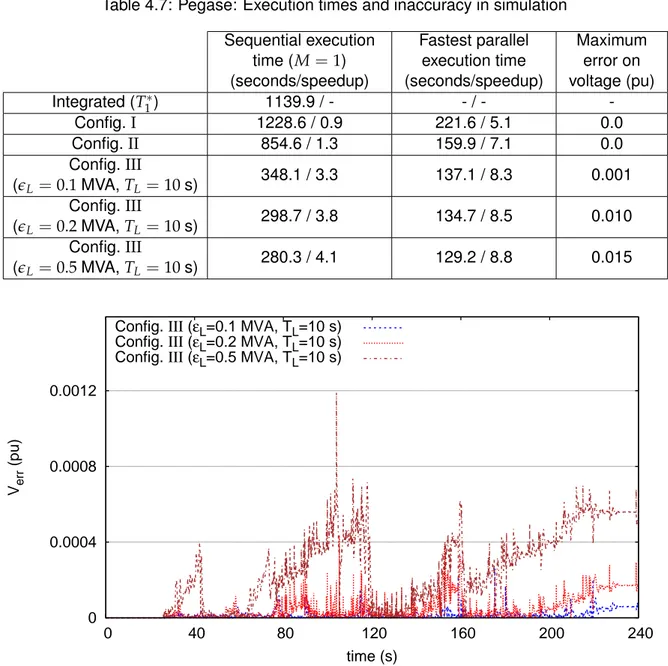

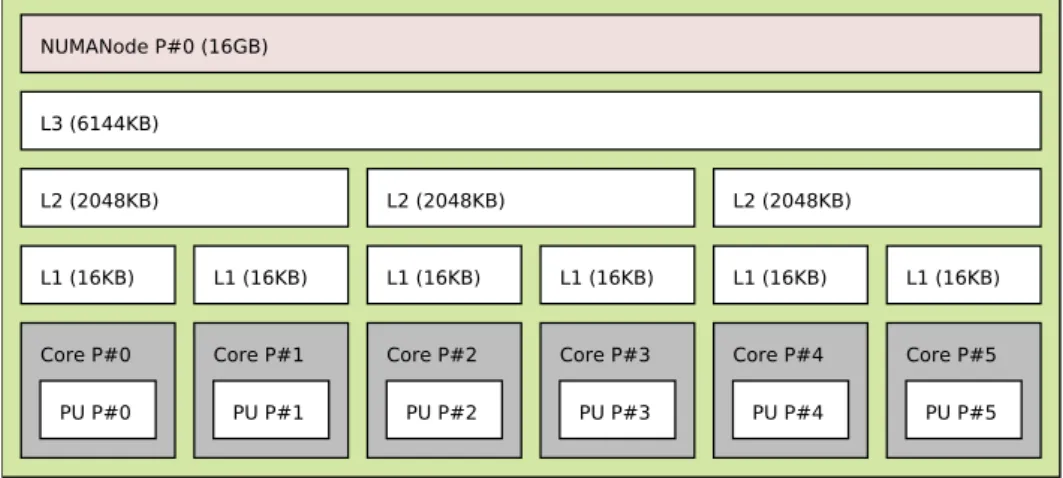

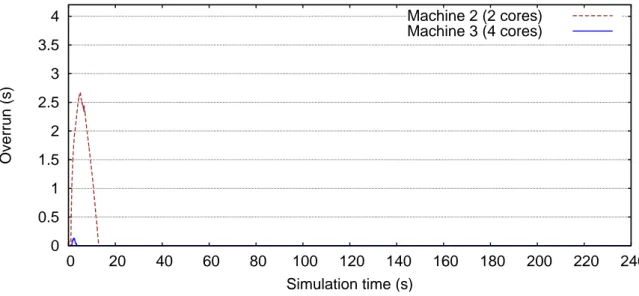

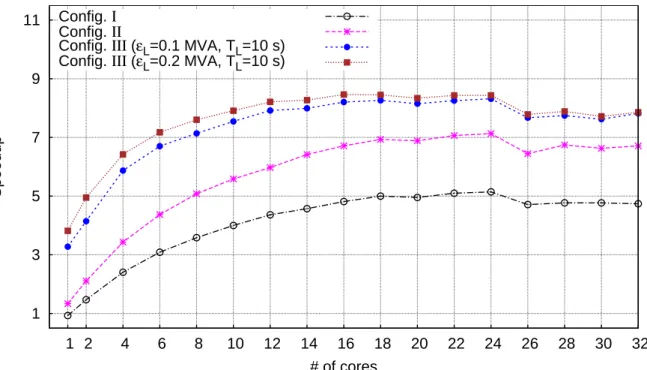

Time-domain simulation of large electric

power systems using domain-decomposition

and parallel processing methods

Petros Aristidou

Liège, Belgium, June 2015
