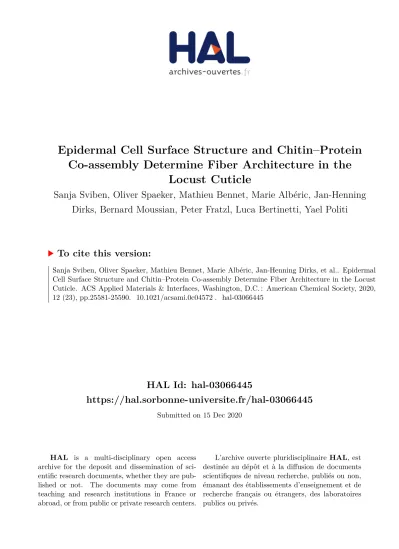

HAL Id: hal-03066445

https://hal.sorbonne-universite.fr/hal-03066445

Submitted on 15 Dec 2020

HAL is a multi-disciplinary open access

archive for the deposit and dissemination of sci-entific research documents, whether they are pub-lished or not. The documents may come from teaching and research institutions in France or abroad, or from public or private research centers.

L’archive ouverte pluridisciplinaire HAL, est destinée au dépôt et à la diffusion de documents scientifiques de niveau recherche, publiés ou non, émanant des établissements d’enseignement et de recherche français ou étrangers, des laboratoires publics ou privés.

Epidermal Cell Surface Structure and Chitin–Protein

Co-assembly Determine Fiber Architecture in the

Locust Cuticle

Sanja Sviben, Oliver Spaeker, Mathieu Bennet, Marie Albéric, Jan-Henning

Dirks, Bernard Moussian, Peter Fratzl, Luca Bertinetti, Yael Politi

To cite this version:

Sanja Sviben, Oliver Spaeker, Mathieu Bennet, Marie Albéric, Jan-Henning Dirks, et al.. Epidermal Cell Surface Structure and Chitin–Protein Co-assembly Determine Fiber Architecture in the Locust Cuticle. ACS Applied Materials & Interfaces, Washington, D.C. : American Chemical Society, 2020, 12 (23), pp.25581-25590. �10.1021/acsami.0c04572�. �hal-03066445�

(2)

Epidermal Cell Surface Structure and Chitin

−Protein Co-assembly

Determine Fiber Architecture in the Locust Cuticle

Sanja Sviben, Oliver Spaeker,

#

Mathieu Bennet,

#

Marie Albéric, Jan-Henning Dirks, Bernard Moussian,

Peter Fratzl, Luca Bertinetti,

*

and Yael Politi

*

Cite This:ACS Appl. Mater. Interfaces 2020, 12, 25581−25590 Read Online

ACCESS

Metrics & More Article Recommendations

*

sı Supporting Information ABSTRACT: The geometrical similarity of helicoidal fiber

arrangement in many biological fibrous extracellular matrices, such as bone, plant cell wall, or arthropod cuticle, to that of cholesteric liquid mesophases has led to the hypothesis that they may form passively through a mesophase precursor rather than by direct cellular control. In search of direct evidence to support or refute this hypothesis, here, we studied the process of cuticle formation in the tibia of the migratory locust, Locusta migratoria, where daily growth layers arise by the deposition of fiber arrangements alternating between unidirectional and helicoidal

structures. Using focused ion beam/scanning electron microscopy (FIB/SEM) volume imaging and scanning X-ray scattering, we show that the epidermal cells determine an initialfiber orientation, from which the final architecture emerges by the self-organized co-assembly of chitin and proteins. Fiber orientation in the locust cuticle is therefore determined by both active and passive processes.

KEYWORDS: extracellular matrices, liquid crystal, chitin, protein, microvilli

T

he orientation offibers in extracellular matrices (ECMs), skeletal and connective tissues strongly affects their physical properties, which in turn determines morphogenesis, cell adhesion, and functionality.1 Fiber orientation therefore needs to be spatially and temporally controlled by the tissue that produces the ECM (e.g., refs5−7). For many biological systems, it is however still unclear how the control overfiber orientation is achieved. Biological fibrous materials, such as bone, plant cell wall, and arthropod cuticle, are often described as liquid crystal (LC) analogues as they exhibit structural similarity to LC but are solid in their functional state.2 In unidirectionalfiber arrangement (analogous to aligned nematic LC), sheets made of parallelfibers are stacked on top of each other with the same orientation, whereas in the helicoidal arrangement, also termed twisted plywood or Bouligand structure (analogous to cholesteric, or chiral nematic LC), the orientation of thefibers in successive sheets is continuously rotating.2 Both types of fiber orientations can be found in arthropod cuticle made of α-chitin fibers embedded in a protein matrix. They are also present in plant cell wall made of cellulosefibers embedded in a mixed matrix of hemicellulose and lignin and in mineralized or unmineralized collagen-based tissues in vertebrates.2−4

Furthermore, many bio-macromolecules and biological crystals, among them hemicellulose, cellulose, chitin, collagen, and silk, have been demonstrated to form LC phases in vitro (reviewed in Mitov5). These observations have led to the

hypothesis that fibrous biological materials organize by molecular self-assembly via a liquid mesophase that sub-sequently solidifies by dehydration and cross-linking.2,6−8 Self-assembly is thought to be facilitated by matrix components such as hemicellulose in the case of plant cell wall or proteins in the arthropod cuticle.3The latter is supported by molecular genetics studies in several insect species showing cuticle with modified fiber organization, often with lethal phenotypes, following a genetic knockdown or silencing of certain cuticular proteins.9−13

In contrast, evidence for cell-directed fiber organization14 and for the transfer of mechanical stresses from the cytoskeleton into the ECM, as observed in fibroblast tissue culture,15 call the generality of the self-assembly hypothesis into question. In addition, although formation of chiral nematic phases of chitin nanocrystals is readily attained in vitro, the aligned nematic phase has only been achieved after application of external shearing forces to an initially chiral nematic suspension.16 Therefore, in an attempt to reconcile self-assembly and cellular control mechanisms for ECM

Received: March 10, 2020 Accepted: April 28, 2020 Published: April 28, 2020

Research Article www.acsami.org

© 2020 American Chemical Society

25581

https://dx.doi.org/10.1021/acsami.0c04572 ACS Appl. Mater. Interfaces 2020, 12, 25581−25590

This is an open access article published under a Creative Commons Attribution (CC-BY)

License, which permits unrestricted use, distribution and reproduction in any medium, provided the author and source are cited.

Downloaded via SORBONNE UNIV on December 15, 2020 at 08:26:14 (UTC).

(3)

deposition, Bouligand17 suggested that cell membranes could create strong boundary conditions that influence fiber organization and self-assembly. Neville18 suggested a two-model system with varying degrees of cellular control in the deposition of unidirectional and helicoidal architectures in insect cuticle. His suggestion was based on the observation that the unidirectional organization in insects is bilateral symmetric, while the helicoidal organization is bilateral asymmetric; the helicoidal twist is always left-handed. Here, we sought to understand how the variation in cellular control on fiber architecture is achieved. We studied the circadian clock regulated cuticle deposition in the locust,Locusta migratoria. In this species, endocuticle formation involves alternating deposition of nonlamellate layers of unidirectional fiber arrangement during the day and lamellate cuticle made of twisted plywood structure during the night (Figure 1).19 By means of two- (2D) and three-dimensional (3D) machine learning analysis of focused ion beam/scanning electron microscopy (FIB/SEM) volumes and high-resolution scanning X-ray scattering methodologies, we show that microvilli organization at the epidermal cell surface determines an initial fiber orientation from which chitin−protein co-assembly leads to thefinal fiber architecture in the locust cuticle.

RESULTS AND DISCUSSION

The innermost part of the procuticle of L. migratoria (Figure 1A), termed endocuticle, is deposited after ecdysis by a single layer of epidermal cells that secrete the cuticle’s components

into a 0.5−1 μm wide “assembly zone” (Figure 1B−F).20 Chitin is synthesized and secreted by a transmembrane enzyme, chitin synthase, located within“plaques” at the tips of microvilli emerging at the apical cell surface (Figure 1F), while cuticular proteins are proposed to be delivered to the assembly zone by vesicles.20We imaged the deposition zone in hind tibia cuticle of animals at different developmental stages (see theMethodssection) 2 or 3 days after ecdysis, collected during either the light or dark phase, in alternating 12/12 h cycle illumination conditions (hereafter termed Day or Night samples, respectively). In particular, we used FIB/SEM volume imaging to determine the spatial relationships of the microvilli with respect to each other (Figure 2), to thefibers within the assembly zone and within the cuticle (Figure 3), and to the cuticle surface (Figure 5). For segmentation and quantification, we implemented a three-dimensional machine learning algorithm based on a U-shaped, fully convolutional network (3D-FCN, see the Supporting Information for details) as proposed recently.21

Microvilli Organization. Cryofixed samples were prepared by high-pressure freezing (HPF) cross sections of tibiae from Day and Night specimens, followed byfixation, staining, and embedding using an automatic freeze-substitution (AFS) machine. Day and Night samples show differences in the microvilli structure and organization (Figures 2 and 3). In Night, we mainly observed individual microvilli structures, with close-to-circular cross section, containing a single plaque at their tips (Figures 2A,B and3A,B). In Day, the bases of 2−4

Figure 1.Cuticle deposition in L. migratoria. (A) Adult locust (AIDAsignstock.adobe.com, reprinted with permission). Inset showing a cross section of the hind tibia and the coordinate system used throughout: (z) longitudinal, (r) radial, and (t) transverse directions. Hind tibia of L. migratoria contains proximal (PRO) and distal (DIS) parts. Area marked in magenta, upper region of distal part, was sampled and analyzed in this study. (B) Confocal light scanning microscopy (CLSM) image of tibia cross section stained with Direct Yellow 96 stain showing the daily growth layers of chitinfibers in unidirectional and helicoidal fiber arrangements, leading to, respectively, alternating nonlamellate and lamellate layers. (C) CLSM tibia cross section double stained with 4′,6-diamidino-2-phenylindole (DAPI) (blue) and Nile red (green) showing the epidermal cell layer adjacent to the cuticle. Orange rectangle indicates similar area of the cross section imaged using FIB/SEM in (D). (D) FIB/SEM slice showing epidermal cells between the basal membrane (Bm) and the cuticle infifth instar. The nuclei are false colored in light blue and the pore canals are indicated with magenta arrowheads. (E) FIB/SEM slice showing the assembly zone between the cuticle (right) and the surface of the epidermal cell layer (left) infifth instar. Magenta arrowheads point to a pore canal; cell nuclei are false colored in light blue. The orange rectangle marks an area from which the micrograph shown in (F) is taken. (F) Magnification of the assembly zone in a region indicated in (E). The micrograph is obtained from a different depth in t direction than shown in (E). The microvillar structures on the apical cell surface, which end with bright contrast at the location of the presumably chitin synthesizing plaques (light blue arrowhead), can be seen, as well as the newly deposited cuticle (yellow asterisk). Cell interior is marked with blue asterisk.

(4)

microvilli, each containing a single plaque at its tip, are merged to form anisotropic ridges around 300 nm in length (Figures 2C,D,3D,E, andS1). The patterns observed in the microvilli structure and organization in Day and Night samples described here were consistent throughout different biological and technical replicates of the upper region of the distal part of hind tibia (see the Methods section) independent of the developmental stage of the analyzed animal.

To determine the microvilli organization over large areas (hundreds of microns), we prepared samples using chemical fixation methods and osmium staining followed by resin embedding. These samples are overstained and the images contain less details relative to cryofixed samples (Figure S2), facilitating automatic image analysis using two-dimensional neuronal networks (2D-FCN, see theSupporting Information

for details).22 In both Day and Night samples, cell surface

regions containing microvilli extend over several cells, but the spatial organization of the microvilli differs substantially between the two conditions (Figures S2 and 4C,D) in agreement with the results obtained from cryofixed samples. A comparison between the 3D Fourier transform (FT) of labeled volume of the microvilli in Day and Night datasets (Figure 4E−H) shows the differences in microvilli packing and organization. In Night samples, the organization is short-ranged, whereas in Day samples, we observe second-order correlations indicating a longer range order. Furthermore, the arrangement is highly anisotropic in Day samples, where the distance (dL) between the center of the ridges determined

from the FT is 140 nm laterally and 250 nm vertically (dV) but only slightly anisotropic in the Night samples (dL= 140 nm, dV

= 180 nm). During the de novo formation of the embryo cuticle in Drosophila melanogaster, the apical membrane of the epidermal cells forms morphologically similar ridges, the apical undulae. However, in this case, they are elongated over several microns.23

Orientation of Fibers in the Deposition Zone. The preservation of the assembly zone in cryofixed resin-embedded sections allowed determining the thickness and the orientation of the freshly depositedfibers in 3D within the assembly zone. Using FIB/SEM data, we determinedfiber-bundle thickness of around 20 nm. However, inspecting 100 nm thin sections using a transmitted electron detector (TED) in the FIB/SEM, we also observed thinnerfibers around 5 nm (Figure S3). In both Day and Night samples, thefibers/fiber bundles assume parallel orientation with respect to the cuticle and the cell surface. The fibers/fiber bundles are stacked in the radial direction, with a slight lateral shift, giving the false appearance of oblique fibers protruding from the microvilli toward the cuticle when viewed in 2D in the (rt) plane (Figure S3). We speculate that the microvilli are dynamic structures that move laterally in the (tz) plane while depositing the chitinfibers.

The fibers’ long axes in the Day samples are parallel to the microvilli ridges’ long axes (Figures 2C and 3F). In Night samples, we observe a narrow distribution offiber orientation around three dominant orientations that seem to reflect the packing pattern of the microvilli (Figures 2A and3C). In these samples, the dominant orientation of thefibers changes with the“depth” of the assembly zone, i.e., from the cell surface to the cuticle (Figure 5A,C), (with∼50° shift). We deduce from this observation that during the dark phase, the fibers are secreted to the assembly zone in discrete orientations (Figures 3C and5A,C). However, within the cuticle, the rotation angle between successive sheets is much smaller (in the order of 1°). This implies that the organization of thefibers to a helicoidal structure occurs via a self-assembly mechanism that includes reorientation and compactization of the fibers, where compactization refers to the process of fiber packing in the radial direction from the cell surface to the cuticle surface. In Day samples, as the fibers are deposited in their final orientation, compactization occurs without reorientation.

Microvilli Remodeling and the Appearance of Large Vesicles. In addition to the microvilli, in both Day and Night samples, we often observed large regions displaying different cell surface structures and a large number of vesicles (Figures 6

andS4−S6). These regions are at least as abundant as regions with microvilli. Occasionally, structures resembling the plaques in shape are present in these regions (Figure S6). This cell surface structure shows similarities to that found in kidney epithelial cells during remodeling of microvilli.24The assembly

Figure 2.FIB/SEM and reconstructed 3D volume of locust cuticle and apical surface of epidermal cells. (A) FIB/SEM slices of Night and (C)Day samples of cryofixed locust tibiae obtained from adult and fifth instar specimen, respectively, 2 days after ecdysis. Reconstruction of microvilli in Night (B) and Day (D) samples. Cyan arrowheads point to plaques at the tips of the microvilli. Orange rectangles in (A) and (C) indicate the regions for which 3D volume renderings are shown in (B) and (D), respectively. White dotted lines in (D) indicate merged microvilli structures.

ACS Applied Materials & Interfaces www.acsami.org Research Article

https://dx.doi.org/10.1021/acsami.0c04572 ACS Appl. Mater. Interfaces 2020, 12, 25581−25590

(5)

zone at this stage is narrower and highly stained such that the fibers cannot be discriminated (Figure S3B). We speculate that this stage may be related to vesicular protein secretion and potentially to the remodeling of the microvilli. Thus, our observations suggest an active cell surface with a temporal process with at least two timescales, one in which dynamic microvilli move laterally while depositing chitin fibers and a second stage in which the microvilli disappear and are replaced by vesicles.

Three-dimensional FIB/SEM is an excellent tool to characterize mesoscale structures like the apical cell surface and thefiber orientation; however, this technique is insensitive to the molecular structure and organization of the chitinfiber and associated proteins. To gain further insight into the chitin and protein molecular assemblies, we used scanning X-ray scattering. Hind tibia of animals reared in 12/12 h illumination cycle were rapidly frozen and thin sections (∼30 μm) were prepared using a cryo-microtome. The sections were air-dried and mounted on X-ray transparent silicon nitride membranes. The sections were scanned using a monochromatic focused X-ray beam (beam diameter∼1 μm), while 2D X-ray diffraction (XRD) patterns and X-rayfluorescence (XRF) were recorded concomitantly at each position. We used the (110) chitin reflection to localize the cuticle and the Zn XRF signal for the localization of the cells. The intersection of the two signals marks the location of the assembly zone (Figure S7).

Fiber Compactization. Small-angle X-ray scattering (SAXS) provides information about the spatial nanoscale

organization of the chitin−protein fibers within the assembly zone and within the cuticle in the section plane. The SAXS intensity was integrated radially and plotted as a function of the azimuth angle (Figure S8). The width of the peaks in this plot is related to the degree offiber alignment with respect to each other within the (rt) plane (as defined in Figure 1A). The SAXS peak width (full width at half-maximum (FWHM), in units of degrees,Figure S8) is mapped inFigure S7B,Dacross a tibia cross section in Night and Day samples, respectively. In both cases, the SAXS peak width at the assembly zone is broader than the peak width in regions within the cuticle bulk. This is supportive of a compactization process occurring after deposition as discussed above.

Chitin−Protein Co-assembly. X-ray diffraction (XRD) provides information about the molecular structure, the respective organization, and the interaction of chitin with the cuticular proteins.25,26 We have recently shown that co-ordering of chitin and proteins along the b-crystallographic direction of chitin, in the tarsal-tendon of the spider Cupiennius salei, gives rise to a shift in the (020) chitin reflection due to coherent scattering.26 In addition, protein-specific reflections with d-spacing equal to 0.47 nm, characteristic of intrasheet interstrand spacing in cross β-sheet motifs, were observed along the meridian in 2D fiber diffraction patterns of spider tendons. To best identify protein-related reflections in the locust tibia, we reared animals in 24 h light settings. In these conditions, the endocuticle is made only of unidirectional layers.19 The fiber diffraction profiles obtained from

longi-Figure 3.Microvilli structure andfiber deposition within the assembly zone. FIB/SEM images (A, D) obtained by reslicing the 3D datasets shown inFigure 2along (t) (top) and (z) (bottom) directions for Night (A) and Day (D) samples. The comparison shows that the microvilli have similar dimensions in (z) and (t) directions in the Night samples ((A) top and bottom), whereas they are elongated along the (z) direction in the Day samples ((D) top). The plaques are depicted in bright blue. (B, E) (zr) and (tr) plane views of resliced volumes. Only one plaque (bright blue arrowhead) is situated at the tips of each microvillus inNight samples (B), but two or three plaques are observed in the Day samples on top of microvilli merged along the (z) direction (E). (C, F) Three-dimensional volume rendering of the chitinfibers/fiber bundles (yellow) observed in the assembly zone and the apical cell surface inNight (C) and Day (F) samples. For simplicity, only half of the assembly zone thickness is shown. White dotted lines in (F) indicate merged microvilli structures.

(6)

tudinal sections (∼70 μm thick) of such samples show a shift in the (020) reflection of chitin as well as several protein-related reflections along the meridian at d = 0.47 nm (as observed in the spider tendon diffraction pattern) and at d = 0.43 nm (Figure S9). Interstrand spacing of 0.47 nm is common forβ-sheet structures as in amyloids, whereas spacing of 0.43 nm is common for the interstrand spacing in silks.27−29 Other unassigned reflections with d-spacings of 0.38 and 0.77 nm are observed along with additional reflections in the small-angle region with d-spacings of 1.5 and 3.4 nm (the latter already noted by Rudall et al. for the cuticle of various insect species30). Based on these results, we suggest that at least a large portion of the cuticular proteins contains cross-β structures, where the β-strand orientation is roughly perpendicular to the chitin fiber long axis in unidirectional cuticle. Although individual protein reflections are not visible in helicoidal cuticles due to their low intensity and overlap with chitin reflections, the presence of the ordered proteins is evident by apparent peak broadening of the chitin reflections as well as the shift in the (020) reflection.

Based on the structural information gained from unidirec-tional oriented cuticle, we used scanning X-ray diffraction to study the local chitin−protein molecular organization within

different cuticular layers as well as within the assembly zone. Here, we used cross sections of the tibia, such that thefiber orientation in unidirectional layers is parallel to the X-ray beam (similar to the SAXS experiment above). In this orientation, we identify an additional protein reflection with a d-spacing of 1.1 ± 0.05 nm (q = 5.5 nm−1). Reflections at these positions are

often assigned to intersheet spacing in stackingβ sheets when they are accompanied with orthogonal intrasheet reflections such as the ones observed here (d = 0.47 nm). This result is in good agreement with the previous prediction of a double layer of cross β-sheet stacking.26 Note that according to the theory,26 when coherent chitin/protein scattering occurs, a separate protein reflection is unexpected. That this reflection is observed suggests that not all of the proteins share a coherent interface with the chitin crystallites and/or that coherence occurs only along the chitin b-direction, while the proteins surround the chitin in all directions in theab plane.

The (020) reflection of chitin and the protein intersheet reflection were peak-fitted for each diffraction profile within the scanned region. Mapping the intensity of the (020) peak (Figure 7A) allows assigning regions of unidirectional organization (high peak intensity) produced during the day vs regions of helicoidal organization (low peak intensity) produced at night. The peak position of the (020) reflection is shifted in the cuticle to lower q values (q∼ 6.35 nm−1), with respect to pure chitin (q = 6.61 nm−1), as seen before in samples from locusts grown in all-day conditions. In the assembly zone, however, this reflection is closer (q ∼ 6.5 nm−1) to pure chitin (Figure 7C), suggesting that in this region the proteins and chitin are not co-ordered to produce a coherent diffraction interference. A map of the chitin to

Figure 4.Reconstruction and quantification of 3D FIB/SEM data of apical cell surface structures obtained from chemically fixed locust tibiae. (A, B) Volume rendering of the segmented apical protrusions at the surface of the epidermal cells (cyan) and the pore canals (magenta) inNight (A) and Day (B) samples offifth instar animals 2 days after ecdysis. (C, D)“Top-view” of the rendered volume of the segmented apical surface of the epidermal cells (cyan) and the lateral cell membrane (orange) in Night (C) and Day (D) samples. Note that the respective apical protrusion organization is continuous across multiple cells. (E, G) Three-dimensional Fourier transform (FT) of the segmented volumes representing the epidermal cell surfaces in Night (E) and Day (G) samples. (F, H) Azimuthal partial integration of the FT pattern in (E) and (F), respectively, in the meridional (light gray) and equatorial (dark gray) directions, showing increased isotropy and reduced long-range-order correlation of the apical protrusions in Night vs Day samples.

Figure 5.Fiber orientation in the assembly zone. Orientation color maps of thefibers in the assembly zone (entire volume) in Night (A) and Day (B) samples from datasets shown inFigures 2and3. (C, D) Fiber orientation (angle) vs assembly zone depth (d, nm) histograms showing the variation in fiber orientation as a function of their position within the assembly zone along the (r) direction from the cell surface (0 nm) to the cuticle (300 nm). The color (yellow, pink, blue, orange) arrowheads represent the respective dominant orientations in (A) and (B).

ACS Applied Materials & Interfaces www.acsami.org Research Article

https://dx.doi.org/10.1021/acsami.0c04572 ACS Appl. Mater. Interfaces 2020, 12, 25581−25590

(7)

protein ratio based on the integrated intensity of the protein peak at 5.5 nm−1and the (020) peak (Figure 7B), as well as the azimuthal integration of 2D patterns taken from the assembly zone (Figure S10), show that the intersheet protein peak has lower intensity in the assembly zone relative to the cuticle (in both unidirectional and helicoidal regions).

Increased protein diffraction in the cuticle accompanied with the (020) peak shift (Figure 7) suggests chitin−protein co-assembly. Thus, compactization, as observed from SAXS analysis, and co-alignment of chitin and protein, as judged from the XRD analysis, are localized, implying that co-assembly of the protein and chitin is the driving force forfiber

Figure 6.Apical surface of the epidermal cells in the absence of microvilli. (A) FIB/SEM slice at the cell surface showing irregular structures in a Day sample offifth instar animal 2 days after ecdysis. (B, C) Volume rendering of the 3D reconstructed FIB/SEM data represented in (A) in the (tz) plane. In (B), the cell surface is viewed from the outside of the cell. In (C), the cell surface is viewed from within the cell outward. Lateral cell membranes are depicted in orange. Individual structures depicted in (E)−(G) are marked with a white dashed line in both (B) and (C). (D) Three-dimensional FIB/SEM data resliced to show the (tr) and (zr) plane views. (E−G) Three-dimensional volume rendering of representative structures visible in (B) and (C). (E) Multivesicular body. (F) Elongated openings at the cell surface. (G) Vesicles presumably fusing with the apical cell membrane.

Figure 7.Scanning X-ray diffraction measurements of adult locust tibia cross sections 4 days after ecdysis. (A) Intensity variation of the (020) reflection allows identification of “Day” (high I(020)) and“Night” (low I(020)) regions. Exo marks the region of exocuticle, D marks Day regions, and

N marks Night regions. (B) Integrated intensity ratio between the chitin reflection (020) and the protein reflection (q ∼ 5.5 nm−1). The ratio is

increased in the assembly zone relative to the cuticle. (C) Peak position (q) of the (020) reflection. The q(020) position is shifted in the cuticle relative to the assembly zone.

(8)

reorientation. We note that the phase diagram of chitin in water is extensively explored and well characterized, including the helicoidal pitch dependence on pH, ionic strength, and crystallite size.31−33 Unfortunately, however, a direct correla-tion of our findings with the lyotropic behavior of chitin as determined from in vitro experiments in aqueous solutions is limited as the physicochemical conditions in the assembly zone are to date unknown and as the effect of chitin-binding proteins on chitin assembly has not been systematically addressed experimentally in vitro.

In summary, our results suggest that dynamic apical cell surface structures (microvilli) in the cuticular epidermal layer determine the boundary conditions forfiber self-assembly by secreting thefibers into the assembly zone in predetermined orientations. During the night, when a helicoidal fiber arrangement is formed, thefiber orientations in the assembly zone are discrete, mirroring the microvilli spatial organization, whereas when parallel fiber arrangement is produced during the day, thefiber orientation in the assembly zone is parallel to the elongated microvilli ridge structures. Thefinal orientation of the fibers is achieved by concomitant chitin−protein co-ordering and compactization of the cuticle, resulting in a stable helicoidal or unidirectional structure in the endocuticle. We note that the helicoidal organization could, theoretically, be produced by employing a similar cell surface structure as seen in light conditions and rotating the orientation of the ridges between deposition cycles to produce the rotated plywood structure. This is however not the case, since the apical cell surface structures differ significantly in microvilli morphology between light and dark conditions. This leads us to conclude varying levels of cellular control on the assembly process in line with Neville’s two-model system suggestion.18 Here, the unidirectional arrangement is under direct cellular control on fiber orientation, whereas the helicoidal structure is obtained away from the apical cell surface by self-assembly. Indeed, the aligned nematic organization of chitin is also unachievable in vitro without the application of external force.16Based on our X-ray data, we propose that chitin−protein co-assembly and protein−protein interactions are the driving forces for the process. Our results provide direct evidence for the self-assembly hypothesis put forward by Neville,18 Giraud-Guille, and Bouligand17,34based on the architecture of the cuticle in itsfinal form and its resemblance to liquid crystal geometries observed in vitro. The observations and the methodology presented here could be relevant for a variety of biological extracellular matrices where self-assembly and cell-controlled mechanistic questions are yet unresolved.

METHODS

First, fourth, andfifth instar specimen of L. migratoria were obtained from Reptilienkosmos (www.reptilienkosmos.de). The animals were reared in 12/12 h day/night cycle or in 24 h daylight and 36/26 or 36°C conditions, respectively. The light source was a Mini light strip light-emitting diode (LED) (Lucky Reptile) emitting a daylight spectrum at 200 lm. Day samples were obtained during the light phase of the illumination cycle, whereas Night samples were obtained during its dark phase.

FIB/SEM Sample Preparation. Chemical Fixation. Two bio-logical replicates of hind tibia of both fifth instar and adult L. migratoria were collected during the light and the dark phase of the illumination cycle 2 days after ecdysis. The entire hind tibia was submerged in 2.5% (w/v) glutaraldehyde and 2% (w/v) paraformal-dehyde in 0.1 M cacodylate buffer (pH 7.4) and incubated for 4 h at room temperature. Samples were washed five times for 10 min in

0.1 M cacodylate buffer and incubated for 2 h in 2% (w/v) osmium tetroxide. The samples were washed again in 0.1 M cacodylate buffer five times for 10 min each and dehydrated in a series of ascending concentrations of acetone (30, 50, 70, 90, 100% 2×) with 10 min for each step. Tissues were then infiltrated with Durcupan/Epon epoxy resin35and cured at 60°C for 48 h. Cross sections of the upper region

of distal part of hind tibia (see Figure 1A) were cut, polished (sandpaper (Grit 2000)), and coated with 5 nm carbon and 5 nm platinum and imaged using focused an ion beam/scanning electron microscope (FIB/SEM). In total, we acquired twoDay datasets from two fifth instar animals, two Day datasets from two adult stage animals, four Night datasets from twofifth instar animals, and three Night datasets from two adult stage animals.

Cryofixation. Two or three biological replicates of hind tibia of fourth and fifth instar and adult L. migratoria and one biological replicate of third instar were collected during the light and the dark photoperiod 2 or 3 days after ecdysis. For thefifth instar and adult specimens, we used a sharp razor blade to manually trim the upper region of the distal part of tibia (Figure 1A) into 100−200 μm thick cross sections. The thickness of the whole tibia of the fourth and third instar specimens was below 200μm. We therefore trimmed the length of the tibia tofit the sample carriers using a razor blade. Throughout this time, the samples were submerged in standard locust saline solution.36 The samples were immediately vitrified using a high-pressure freezing machine (HM100, Leica). Briefly, two sections were loaded into a cavity of a single B-type carrier and 20% dextran in standard locust saline solution was used as afiller and cryoprotectant. Samples were covered with aflat side of a second B-type carrier. Vitrified samples were freeze-substituted with a fixation and staining cocktail (1% osmium tetroxide, 0.1% uranyl acetate, 0.5% glutaraldehyde, 1.5% water) in acetone over 2 days at −85 °C using an automatic freeze-substitution machine (AFS2, Leica). The samples were brought to room temperature over 1 day and embedded as described above. Polymerized resin blocks were further polished using afine sandpaper (Grit 2000) to expose the cross sections for block-surface imaging. After coating the surface with carbon and platinum as described above, samples were imaged using FIB/SEM. In total, we acquired 1 Day dataset from 1 third instar animal, 2 Day datasets from 2 fourth instar animals, 7 Day datasets from 3fifth instar animals, 10 Day datasets from 3 adult specimens, 1 Night dataset from 1 third instar animal, 2 Night datasets from 2 fourth instar animals, 6 Night datasets from 3fifth instar animals, and 3 Night datasets from 2 adult specimens. The results and the trends observed in each of the samples were consistent with the main observations reported in the Results and Discussionsection.

In chemicallyfixed samples, the formed fibers in the assembly zone cannot be resolved due to excessive cross-linking leading to overstaining. We therefore used the geometry of the pore canals

(Figures S2 and 5) to determine the fiber orientation in the last

deposited layers: the pore canals are channels running throughout the cuticle containing cellular processes characterized by their almond shape cross section. When the pore canals pass through the lamellate helicoidal cuticle, the cross section shows a continuous rotation, which is absent in the nonlamellate unidirectional cuticle architecture.18

FIB/SEM Image Serial Imaging (Crossbeam 540, Zeiss). For chemically fixed datasets representing Night samples, 538 serial electron micrographs were acquired in rt plane with a voxel size (13.55× 13.55 × 17.5) nm3. For dataset representing chemicallyfixed

Day samples, 393 serial electron micrographs were acquired in rt plane with a voxel size (12.82× 12.82 × 17.5) nm3. In both cases, SEM imaging was performed at 2 kV acceleration voltage and 1 nA probe current using secondary electron detector, while slices were generated using the 300 pA FIB probe at a 30 kV accelerating voltage. For dataset representing cryofixed samples, the number of slices ranged from around 800 to 2270 and voxel size from (5.28× 5.28 × 10.5) nm3to (8.1× 8.1 × 21) nm3. In all cases, SEM imaging was

performed at 2 kV acceleration voltage and 1 nA probe current using secondary electron detector, while slices were generated using the 300 pA FIB probe at a 30 kV accelerating voltage.

ACS Applied Materials & Interfaces www.acsami.org Research Article

https://dx.doi.org/10.1021/acsami.0c04572 ACS Appl. Mater. Interfaces 2020, 12, 25581−25590

(9)

Transmission Electron Detector (TED) Imaging. TED imaging was performed inside the FIB/SEM chamber using a STEM4A detector. Thin sections (100 nm) of cryofixed samples were prepared using a Leica UC-6 microtome. The sections were mounted on copper grids and imaged with a 20 kV acceleration voltage and 300 pA probe current using high-resolution column mode.

FIB/SEM Image Analysis. Image stacks were aligned, cleared for curtaining artifacts,37 and denoised using the scikit-image python library (v.0.14.0). Segmentation was performed semiautomatically using a combination of Amira 3D (FEI) and a custom python code implementing state of the art 2D and 3D machine learning methods using Keras and GPU accelerated Tensorflow (see details in the Supporting Information).

The Drishti volume exploration and representation tool (v.2.6.5) was used for volume rendering.38Orientation maps and distributions were generated with Orientation J plugin of Fiji (http://bigwww.epfl.

ch/demo/orientation/). Three-dimensional FTs of the stack of the

labeled microvilli were calculated using scipy (v.1.3.0). Azimuthal averages of the 2D FTs were calculated using a custom script in python.

SAXS/Wide-Angle X-ray Scattering (WAXS) Sample Prep-aration. The distal tibia parts of L. migratoria adult animals reared in 12 h dark/12 h light cycle or 24 h light were severed from the animals 3, 5 or 14 days after ecdysis, respectively. Specimens were embedded in O.C.T. (VWR Chemicals, Radnor, PA) and rapidly frozen using liquid nitrogen in a silicon mold. The frozen blocks were sectioned using a HM 560 CryoStar Cryostat (Thermo Fisher Scientific, Waltham, MA) with Surgipath DB80 LX blades (Leica, Wetzlar, Germany) (sample−15 °C, blade −11 °C). For the 12 h dark/12 h light samples, cross sections of 20 and 30μm thickness were prepared for SAXS and WAXS measurements, respectively. In the case of the 24 h light samples, longitudinal sections of 70μm thickness were cut. The sections were thawed, rinsed with water, and transferred to a Si3N4membrane (Silson, Southam, U.K.) (3× 3 window array (each

(5× 5) mm2, 1μm thick), frame thickness 200 μm, (23.5 × 23.5)

mm2total size) for XRD/XRF measurement.

SAXS/XRD and XRF Mapping. Simultaneous X-rayfluorescence and scattering experiments were performed at the microXASX05LA beamline at the Swiss Light Source (SLS) synchrotron radiation facility (Paul Scherrer Institute, Villigen, Switzerland). The X-ray beam was defined to 15.2 keV (0.816 Å) using a Si(111) monochromator and focused to (1 × 1) μm2 using KB mirrors. XRD data were obtained using a 2D Dectris Eiger 9 M detector ((2070 × 2167) pixel2) in transmission geometry, and a single-element Si(Li) XRF detector (Ketek, Munich, Germany) was placed perpendicular to the beam. XRD data from 24 h day sample were obtained at the μSpot beamline at the synchrotron BESSY II (Helmholtz Center, Berlin, Germany). The X-ray energy of 15 keV (0.827 Å) was defined by a multilayered monochromator. The incident X-ray beam was defined by a toroidal mirror and a pinhole of 10 μm. WAXS data were collected using a large-area 2D detector (MarMosaic 225, Mar USA Evanston).

Calibration, integration background removal, and peak-fitting of the 2D diffraction patterns were performed using the software DPDAK.39 For plotting the data, OriginPro 2015 software and matplotlib library in Spyder 3.3.2 from the Anaconda package were used.40

Confocal Laser Scanning Microscopy (CLSM). Sections were fixed and sectioned as described above using a cryo-microtome. They were stained with Nile red and DAPI or with Direct Yellow 96 (Sigma-Aldrich) in standard locust saline solution for 1 h. Images were acquired using a SP-8 laser scanning confocal microscope (Leica) equipped with a 63× water immersion objective (NA = 1.2). A multiphoton laser with a wavelength of 780 nm was used for the excitation of DAPI and Direct Yellow 96, and the signal was recorded by a HyD detector with a bandpassfilter set to 400−480 and 540− 610 nm, respectively. For Nile red, a DPS S 561 laser emitting light of 561 nm was used for excitation together with a HyD detector with a bandpass filter of 570−620 nm for detection of the fluorescence signal.

ASSOCIATED CONTENT

*

sı Supporting Information

The Supporting Information is available free of charge at

https://pubs.acs.org/doi/10.1021/acsami.0c04572.

FIB/SEM slices of cryofixed locust tibiae (Figure S1); FIB/SEM slices of chemicallyfixed locust tibiae (Figure S2); TED micrographs (Figure S3); FIB/SEM slice series from regions in a Day sample from afifth instar animal 2 days after ecdysis lacking microvilli (Figure S4); segmentation of FIB/SEM data (Figure S5); FIB/ SEM data of epidermal cell apical surfaces in adult specimen and fifth instar sampled 2 days after ecdysis (Figure S6); scanning X-ray scattering andfluorescence results (Figure S7); SAXS peak azimuthal width (Figure S8); WAXS data of adult locust tibia (Figure S9); averaged azimuthally integrated X-ray diffraction data (Figure S10) (PDF)

AUTHOR INFORMATION

Corresponding Authors

Luca Bertinetti− Department of Biomaterials, Max Planck Institute of Colloids and Interfaces, 14476 Potsdam, Germany;

orcid.org/0000-0002-4666-9610; Email:luca.bertinetti@ mpikg.mpg.de

Yael Politi− Department of Biomaterials, Max Planck Institute of Colloids and Interfaces, 14476 Potsdam, Germany;

orcid.org/0000-0002-2872-8277; Email:yael.politi@ mpikg.mpg.de

Authors

Sanja Sviben− Department of Biomaterials, Max Planck Institute of Colloids and Interfaces, 14476 Potsdam, Germany Oliver Spaeker− Department of Biomaterials, Max Planck

Institute of Colloids and Interfaces, 14476 Potsdam, Germany Mathieu Bennet− Department of Biomaterials, Max Planck

Institute of Colloids and Interfaces, 14476 Potsdam, Germany Marie Albéric − Department of Biomaterials, Max Planck

Institute of Colloids and Interfaces, 14476 Potsdam, Germany; Laboratoire Chimie de la Matière Condensée de Paris, Sorbonne Université, UMR CNRS 7574, 75005 Paris, France;

orcid.org/0000-0002-5322-9904

Jan-Henning Dirks− Max Planck Institute for Intelligent Systems, 70569 Stuttgart, Germany; Biomimetics-Innovation-Centre, Hochschule BremenCity University of Applied Sciences, 28199 Bremen, Germany

Bernard Moussian− Institute of Biology Valrose, Université Côte d’Azur, CNRS, Inserm, 06108 Nice, France

Peter Fratzl− Department of Biomaterials, Max Planck Institute of Colloids and Interfaces, 14476 Potsdam, Germany Complete contact information is available at:

https://pubs.acs.org/10.1021/acsami.0c04572 Author Contributions

#O.S. and M.B. contributed equally to this work.

Funding

We are grateful to the Deutsche Forschungsgemeinschaft (DFG) forfinancial support within the project DI2015/2-1.

Notes

The authors declare no competingfinancial interest.

All data, code, and materials used are available upon request.

(10)

ACKNOWLEDGMENTS

We appreciate the help of Birgit Schonert from the Max Planck Institute of Colloids and Interfaces with sample preparation. We thank Prof. Thomas Stach (Humboldt University, Berlin), Drs. Katja Höflich and Holger Kropf (Helmholtz-Zentrum Berlin für Materialien und Energie, Berlin, Germany), and Dr. Igor Zlotnikov (B CUBE, Technical University Dresden, Dresden) for assistance with TEM and FIB/SEM imaging. Thank you to Sebastian Wieser, Lisa Schoop, and Romy Angermann for help with animal maintenance and sampling. We are grateful to Drs. Changhao Li and Stefan Siegel for beamtime assistance during the measurements at BESSY II, Helmholtz-Zentrum Berlin (HZB), Germany, and to Drs. Grolimund Daniel and Dario Ferreira Sanchez from the Swiss Light Source, Paul Scherrer Institute (PSI), Villigen, Switzer-land, for invaluable assistance during beamtime at the microXASX05LA beamline. We acknowledge HZB, Ger-many, and PSI, Villigen, Switzerland, for the allocation of synchrotron radiation beamtime at beamlinesμSpot at Bessy II and microXASX05LA of the SLS, respectively. A special thank you is given to Prof. Friedrich Barth, University of Vienna, Vienna, Austria, Prof. Nadine Nassif, Sorbonne Universités, CNRS, Paris, France, and Dr. Yoshiharu Nishiyama, University Grenoble Alpes, CNRS, CERMAV, Grenoble, France, for fruitful and inspiring discussions. Credits for the L. migratoria picture inFigure1A go to AIDAsign

-stock.adobe.com.

REFERENCES

(1) Dunlop, J. W. C. C.; Fratzl, P. Biological Composites. Annu. Rev. Mater. Res. 2010, 40, 1−24.

(2) Bouligand, Y. Twisted Fibrous Arrangements in Biological Materials and Cholesteric Mesophases. Tissue Cell 1972, 4, 189−217. (3) Neville, A. C. Biology of Fibrous Composites: Development beyond the Cell Membrane; Cambridge University Press: New York, NY, 1993. (4) Giraud-Guille, M. M.; Mosser, G.; Belamie, E. Liquid Crystallinity in Collagen Systems in Vitro and in Vivo. Curr. Opin. Colloid Interface Sci. 2008, 13, 303−313.

(5) Mitov, M. Cholesteric Liquid Crystals in Living Matter. Soft Matter 2017, 13, 4176−4209.

(6) Livolant, F.; Bouligand, Y. Liquid Crystalline Phases given by Helical Biological Polymers (DNA, PBLG and Xanthan). Columnar Textures. J. Phys. 1986, 47, 1813−1827.

(7) Neville, A. C. Chitin Orientation in Cuticle and Its Control. Advances in Insect Physiology; Academic Press, 1967; Vol. 4, pp 213− 286.

(8) Belamie, E.; Mosser, G.; Gobeaux, F.; Giraud-Guille, M. M. Possible Transient Liquid Crystal Phase during the Laying out of Connective Tissues: α-Chitin and Collagen as Models. J. Phys. Condens. Matter 2006, 18, S115−S129.

(9) Yu, R.; Liu, W.; Li, D.; Zhao, X.; Ding, G.; Zhang, M.; Ma, E.; Zhu, K. Y.; Li, S.; Moussian, B.; et al. Helicoidal Organization of Chitin in the Cuticle of the Migratory Locust Requires the Function of the Chitin Deacetylase2 Enzyme (LmCDA2).J. Biol. Chem. 2016, 291, 24352−24363.

(10) Luschnig, S.; Bätz, T.; Armbruster, K.; Krasnow, M. A. Serpentine and Vermiform Encode Matrix Proteins with Chitin Binding and Deacetylation Domains That Limit Tracheal Tube Length in Drosophila. Curr. Biol. 2006, 16, 186−194.

(11) Moussian, B.; Tång, E.; Tonning, A.; Helms, S.; Schwarz, H.; Nüsslein, C.; Uv, A. E. Drosophila Knickkopf and Retroactive Are Needed for Epithelial Tube Growth and Cuticle Differentiation through Their Specific Requirement for Chitin Filament Organ-ization. Development 2004, 163−171.

(12) Petkau, G.; Wingen, C.; Jussen, L. C. A.; Radtke, T.; Behr, M. Obstructor-A Is Required for Epithelial Extracellular Matrix

Dynamics, Exoskeleton Function, and Tubulogenesis. J. Biol. Chem. 2012, 287, 21396−21405.

(13) Noh, M. Y.; Kramer, K. J.; Muthukrishnan, S.; Kanost, M. R.; Beeman, R. W.; Arakane, Y. Two Major Cuticular Proteins Are Required for Assembly of Horizontal Laminae and Vertical Pore Canals in Rigid Cuticle of Tribolium castaneum. Insect Biochem. Mol. Biol. 2014, 53, 22−29.

(14) Park, D.; Wershof, E.; Boeing, S.; Labernadie, A.; Jenkins, R. P.; George, S.; Trepat, X.; Bates, P. A.; Sahai, E. Extracellular Matrix Anisotropy Is Determined by TFAP2C-Dependent Regulation of Cell Collisions. Nat. Mater. 2020, 19, 227−238.

(15) Kollmannsberger, P.; Bidan, C. M.; Dunlop, J. W. C.; Fratzl, P.; Vogel, V. Tensile Forces Drive a Reversible Fibroblast-to-Myofibroblast Transition during Tissue Growth in Engineered Clefts. Sci. Adv. 2018, 4, No. eaao4881.

(16) Belamie, E.; Davidson, P.; Giraud-Guille, M. M. Structure and Chirality of the Nematic Phase inα-Chitin Suspensions. J. Phys. Chem. B 2004, 108, 14991−15000.

(17) Bouligand, Y. Liquid Crystals and Biological Morphogenesis: Ancient and New Questions. C. R. Chim. 2008, 11, 281−296.

(18) Neville, A. C.; Luke, B. M. A Two-System Model for Chitin-Protein Complexes in Insect Cuticles. Tissue Cell 1969, 1, 689−707. (19) Neville, A. C. Circadian Organization of Chitin in Some Insect Skeletons. Q. J. Microsc. Sci. 1965, 106, 315−325.

(20) Moussian, B. Recent Advances in Understanding Mechanisms of Insect Cuticle Differentiation. Insect Biochem. Mol. Biol. 2010, 40, 363−375.

(21) Çiçek, Ö.; Abdulkadir, A.; Lienkamp, S. S.; Brox, T.; Ronneberger, O. 3D U-Net: Learning Dense Volumetric Segmenta-tion from Sparse AnnotaSegmenta-tion. In Medical Image Computing and Computer-Assisted InterventionMICCAI 2016; Ourselin, S.; Joskowicz, L.; Sabuncu, M. R.; Unal, G.; Wells, W., Eds.; Springer International Publishing: Cham, 2016; pp 424−432.

(22) Ronneberger, O.; Fischer, P.; Brox, T. U-Net: Convolutional Networks for Biomedical Image Segmentation. In Medical Image Computing and Computer-Assisted InterventionMICCAI 2015; Navab, N.; Hornegger, J.; Wells, W. M.; Frangi, A. F., Eds.; Springer International Publishing: Cham, 2015; pp 234−241.

(23) Moussian, B.; Seifarth, C.; Müller, U.; Berger, J.; Schwarz, H. Cuticle Differentiation during Drosophila Embryogenesis.Arthropod Struct. Dev. 2006, 35, 137−152.

(24) Gorelik, J.; Shevchuk, A. I.; Frolenkov, G. I.; Diakonov, I. A.; Richardson, G. P.; Vodyanoy, I.; Edwards, C. R. W.; Klenerman, D.; Korchev, Y. E. Dynamic Assembly of Surface Structures in Living Cells. Proc. Natl. Acad. Sci. U.S.A. 2003, 100, 5819−5822.

(25) Blackwell, J.; Weih, M. A. Structure of Chitin-Protein Complexes: Ovipositor of the Ichneumon Fly Megarhyssa. J. Mol. Biol. 1980, 137, 49−60.

(26) Valverde Serrano, C.; Leemreize, H.; Bar-on, B.; Barth, F. G.; Fratzl, P.; Zolotoyabko, E.; Politi, Y.; Valverde, C.; Leemreize, H.; Bar-on, B.; et al. Ordering of Protein and Water Molecules at Their Interfaces with Chitin Nano-Crystals.J. Struct. Biol. 2016, 193, 124− 131.

(27) Tsuchiya, K.; Ishii, T.; Masunaga, H.; Numata, K. Spider Dragline Silk Composite Films Doped with Linear and Telechelic Polyalanine: Effect of Polyalanine on the Structure and Mechanical Properties. Sci. Rep. 2018, No. 3654.

(28) Sampath, S.; Isdebski, T.; Jenkins, J. E.; Ayon, J. V.; Henning, R. W.; Orgel, J. P. R. O.; Yarger, J. L.; Antipoa, O. X-ray Diffraction Study of Nanocrystalline and Amorphous Structure within Major and Minor Ampullate Dragline Spider Silks. Soft Matter 2012, 8, 6713− 6722.

(29) Ling, S.; Li, C.; Adamcik, J.; Shao, Z.; Chen, X.; Mezzenga, R. Modulating Materials by Orthogonally Orientedβ-Strands: Compo-sites of Amyloid and Silk Fibroin Fibrils. Adv. Mater. 2014, 26, 4569− 4574.

(30) Rudall, K. M. The Chitin/Protein Complexes of Insect Cuticles. Advances in Insect Physiology; Academic Press, 1963; Vol. 1, pp 257−313.

ACS Applied Materials & Interfaces www.acsami.org Research Article

https://dx.doi.org/10.1021/acsami.0c04572 ACS Appl. Mater. Interfaces 2020, 12, 25581−25590

(11)

(31) Murray, S. B.; Neville, A. C. The Role of PH, Temperature and Nucleation in the Formation of Cholesteric Liquid Crystal Spherulites from Chitin and Chitosan.Int. J. Biol. Macromol. 1998, 22, 137−144. (32) Belamie, E.; Mosser, G.; Gobeaux, F.; Giraud-Guille, M. M. Possible Transient Liquid Crystal Phase during the Laying out of Connective Tissues: α-Chitin and Collagen as Models. J. Phys.: Condens. Matter 2006, 18, S115.

(33) Narkevicius, A.; Steiner, L. M.; Parker, R. M.; Ogawa, Y.; Frka-petesic, B.; Vignolini, S. Controlling the Self-Assembly Behavior of Aqueous Chitin Nanocrystal Suspensions. Biomacromolecules 2019, 2830.

(34) Giraud-Guille, M.-M. Plywood Structures in Nature. Curr. Opin. Solid State Mater. Sci. 1998, 3, 221−227.

(35) Matsko, N.; Mueller, M. AFM of Biological Material Embedded in Epoxy Resin. J. Struct. Biol. 2004, 146, 334−343.

(36) Spong, K. E.; Mazzetti, T. R.; Robertson, R. M. Activity Dependence of Spreading Depression in the Locust CNS. J. Exp. Biol. 2016, 219, 626−630.

(37) Münch, B.; Trtik, P.; Marone, F.; Stampanoni, M. Stripe and Ring Artifact Removal with Combined Wavelet - Fourier Filtering. Opt. Express 2009, 17, 8567−8859.

(38) Limaye, A. InDrishti: A Volume Exploration and Presentation Tool, Proceedings of SPIE 8506, Developments in X-Ray Tomog-raphy VIII, 85060X, 2012.

(39) Benecke, G.; Wagermaier, W.; Schwartzkopf, C.; Li, M.; Flucke, G.; Hoerth, R.; Zizak, I.; Burghammer, M.; Metwalli, E.; Müller-Buschbaum, P.; Trebbin, M.; et al. DPDAK - A Customizable Software for Fast Reduction and Analysis of Large X-Ray Scattering Data Sets: Applications of the New DPDAK Package to Small Angle X-Ray Scattering and Grazing-Incidence Small Angle X-Ray Scattering. J. Appl. Crystallogr. 2014, 47, 1797−1803.

(40) Anaconda, Computer Software; Anaconda Software Distribu-tion, 2014.

Figure

Figure 5. Fiber orientation in the assembly zone. Orientation color maps of the fibers in the assembly zone (entire volume) in Night (A) and Day (B) samples from datasets shown in Figures 2 and 3
Figure 7. Scanning X-ray diffraction measurements of adult locust tibia cross sections 4 days after ecdysis

Références

Documents relatifs

Les investigations menées sur le terrain ont montré que les mouvements de populations féminines d’un endroit à un autre à la recherche d’un mieux-être,

Our method still requires a large amount of annotated data, but we expect that interactive segmentation methods based on our current results may result in faster data annotation

The image stack was then projected on the (Y, Z) plane and successive images were subsequently shifted along Y to reproduce the theoretical inclination angle of 36° as

Table S1 and Figure S2: Temperature dependence of layer spacing d of compound 10/10 determined from the 2D X-ray measurements (solid squares) and tilt angle τ obs observed from the

Left panel: Some miRNA mimics as well as the negative control have no effect on the JAK/STAT3 signaling pathway, therefore a « normal » luciferase activity was measured in

Pour cela, les entrées du modèle sont modulées puis les résultats de simulation analysés afin de définir une plage de variation de la vitesse du véhicule au cours de la

In the first section we introduce hyperk¨ ahler manifolds and we present the known examples. A fundamental result is Theorem 2.3, which relates the study of hyperk¨ ahler manifolds

This framework aims at bringing together the regulated enterprises for elaborating (1) a systemic risk management approach tailored to IT service systems and
