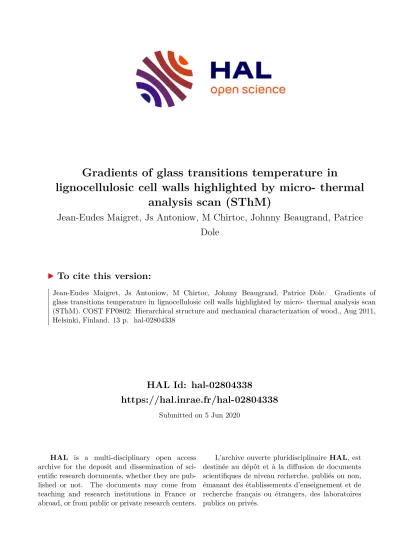

Gradients of glass transitions temperature in lignocellulosic cell walls highlighted by micro- thermal analysis scan (SThM)

HAL Id: hal-02804338

https://hal.inrae.fr/hal-02804338

Submitted on 5 Jun 2020

HAL is a multi-disciplinary open access archive for the deposit and dissemination of sci- entific research documents, whether they are pub- lished or not. The documents may come from teaching and research institutions in France or abroad, or from public or private research centers.

L’archive ouverte pluridisciplinaire HAL, est destinée au dépôt et à la diffusion de documents scientifiques de niveau recherche, publiés ou non, émanant des établissements d’enseignement et de recherche français ou étrangers, des laboratoires publics ou privés.

Gradients of glass transitions temperature in

lignocellulosic cell walls highlighted by micro- thermal analysis scan (SThM)

Jean-Eudes Maigret, Js Antoniow, M Chirtoc, Johnny Beaugrand, Patrice Dole

To cite this version:

Jean-Eudes Maigret, Js Antoniow, M Chirtoc, Johnny Beaugrand, Patrice Dole. Gradients of

glass transitions temperature in lignocellulosic cell walls highlighted by micro- thermal analysis scan

(SThM). COST FP0802: Hierarchical structure and mechanical characterization of wood., Aug 2011,

Helsinki, Finland. 13 p. �hal-02804338�

GRESPI

Gradients of Glass Transitions Temperature in

Lignocellulosic Cell Walls Highlighted by Micro-Thermal Analysis Scan (SThM)

Jean-Eudes MAIGRET ^a , Jean Stéphane ANTONIOW ^b , Mihai CHIRTOC ^b , Johnny BEAUGRAND ^a , Patrice DOLE ^a.

a INRA - URCA, UMR 614 FARE, 2 esplanade Roland Garros, 51100 Reims

b GRESPI-ECATHERM EA 4301, URCA, UFR Sciences, BP 1039, 51687 Reims

636 nm

0.00 nm

COST FP0802, Helsinki

24 ^th August 2011 100x100 µm

¹

500 µm

GRESPI

I - Experimental Set Up

II - µ-TMA Mode (µ-Thermo-mecanometry) III - Scanning Mode

IV - Mapping of a plant cell wall Conclusions / perspectives

Summary

2

GRESPI

Transition vitreuse

Fusion

Etat fondu

Transition vitreuse

Fusion

Etat fondu

Tg

Glassy State Rubbery State

The mechanical properties depend strongly on the state of mobility of the molecular chains

I- Experimental Set Up

The Glass Transition

“Hard and brittle” “Soft and stiff”

Mobility

3

Stress Natural fibers

Heat Water

Mecanical stress

Modification of => the mobility of the chains

=> Tg

GRESPI

0 50 100 150 200 250

20 40 60 80 100

Theoretical Approach

m%

P I S1 S2 S3

Lignin

Hémicellulose

Cellulose

Tg of anhydrous wood polymers

[1] Tg _[1]

[1] Popa V.I., Hemicelluloses, In: Polysaccharides in Medicinal Applications, 1996, 107-124.

heterogeneous repartition of polymers in the cell wall

+

Different range of T _g

Gradients of T _g

4

GRESPI

Resistive Wollaston tip : Pt _0.9 Rh _0.1 wire

 = 5 m, L = 200 m

SThM = AFM + Resistive Wollaston Tip

Alternating Current

direct current

Electrical measurement : P ₁

Topo

636 nm

0.00 nm

4,44 mW 4,58 mW

Measure of

: the thermal conductivity the thermal diffusivity

Poplar 100x100 µm ² T = 120°C

Flux

[2] Pollock, H.M., and Hammiche, A., J. Phys. D: Appl. Phys. 34(9), R23, (2001).

[3] Wang, C., Thermochimica Acta, 423, 89, (2004).

Glue Mirror

5

GRESPI

II- µ-TMA Mode

-Tests on PLA samples (Tg = 58°C) -

6 PLA

40 °C

55 °C

The probe sinks in the sample at a temperature comparable to the Tg of the PLA.

80 °C

-0,4 -0,35 -0,3 -0,25 -0,2 -0,15 -0,1 -0,05 0

0,00 0,50 1,00 1,50

'pla40°c cte 'pla50°c cte

'pla55°c cte 'pla80°c cte

Série3 Série4

z (µm)

t (mn)

40°C 50°C

55°C

80°C

GRESPI

Local Thermal Analysis on a Poplar Cell Wall

z displacement of the thermal probe

Cell Wall LR White Resin

5

3 4

2 1 Glass Transition

Zone

T ≈ 100 °C T

(p) ≈ 90 °C

Resin Rubbery State Glassy State

X 5

z (µm )

50 µm

3600 nm

15 µm

Cell Wall (Topographic images, v

= 20 µm.s

, room HR)

20 40 60 80 100 120 140 160

Temperature (°C)

7

GRESPI

III- Scanning Mode

Influence of Scan Speed on the Local Temperature

Topography Thermal Flux

T _probe = 80°C, V _scan decreasing

Best compromise between spatial resolution / sensitivity : v = 20 – 50 µm.s ^-1

A

8

GRESPI

Topography and thermal signatures versus temperature (v = 20 µm.s ^-1 )

Analysis of a PET Sample

5 1 2 3

4

6

H eat F lo w (W .g

) T (°C) Differential Scanning Calorymetry

9

1 2

0 3 4

5 6

Thermal Flux (mW)

Temperature Setpoint (°C)

20 70 80 90 120 250

z displacement (µm)

20 70 80 90 120 250

Temperature Setpoint (°C)

1

3

5

0 T

Tg

recrystallization Melting

T _probe (°C) Calibration curve

T

( °C)

2

3

4

5

0 1 6

GRESPI

30 °C 75 °C 110 °C 180 °C

Glass transition zone Rubbery State Fluid zone Glassy State

IV - Mapping of a plant cell wall Influence of Temperature

Size of images : 5 µm x 5 µm; Scan speed: 20 µm/s

T o p o g rap h y T h er mal F lu x

10

GRESPI

Spatial Distribution of Surface T _g on a Double Cell Wall of Poplar

The resolution of the probe limites the identification of the T _g of the different sublayers

11

Surface profile

Resin Cell wall

Cell wall Resin

0 1 2 3

Glass transition area

Mi ddl e lamel la

Tg

= 70°C Temperature (°C)

z d isp lac eme n t (µm)

GRESPI

=> Measure at a lower scale : use of nanoscale sensors (to come)

=> Improved modeling parameters affecting the measurement

(in progress)

- Thermal expansion of the probe - Influence of adhesion

- ...

Conclusions / Perspectives

12

www.bruker.com

2.5 µm

=> The feasibility of mapping a plant cell wall has been demonstrated.

=> The resolution of the Wollaston

tip is too low to discriminate the T _g

of the different sublayers.

GRESPI

Acknowledgements

This work has been financially supported within the framework of the State-to-Country Contract MATOREN.
