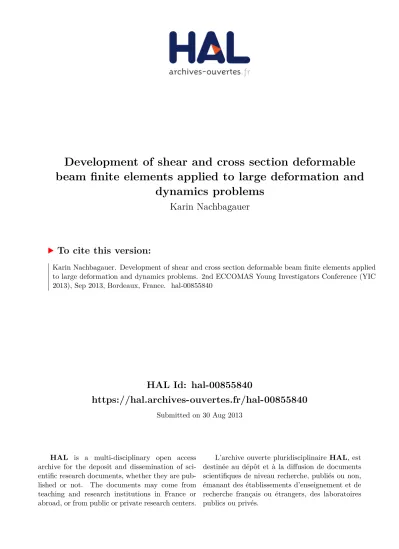

HAL Id: hal-00855840
https://hal.archives-ouvertes.fr/hal-00855840
Submitted on 30 Aug 2013
HAL
is a multi-disciplinary open access archive for the deposit and dissemination of sci- entific research documents, whether they are pub- lished or not. The documents may come from teaching and research institutions in France or abroad, or from public or private research centers.
L’archive ouverte pluridisciplinaire
HAL, estdestinée au dépôt et à la diffusion de documents scientifiques de niveau recherche, publiés ou non, émanant des établissements d’enseignement et de recherche français ou étrangers, des laboratoires publics ou privés.
Development of shear and cross section deformable beam finite elements applied to large deformation and
dynamics problems
Karin Nachbagauer
To cite this version:
Karin Nachbagauer. Development of shear and cross section deformable beam finite elements applied
to large deformation and dynamics problems. 2nd ECCOMAS Young Investigators Conference (YIC
2013), Sep 2013, Bordeaux, France. �hal-00855840�
2–6September 2013, Bordeaux, France
Development of shear and cross section deformable beam finite elements applied to large deformation and dynamics problems
Karin Nachbagauer
a,∗aUpper Austria University of Applied Sciences Stelzhamerstr. 23
4600 Wels
∗karin.nachbagauer@fh-wels.at
Abstract. In this paper, beam finite elements based on the absolute nodal coordinate formulation (ANCF) are presented, in which the orientation of the cross section is parameterized by means of slope vectors only. Resulting, no singularities due to an angle parameter occur and the mass matrix is advantageously constant. A continuum mechanics as well as a structural mechanics based formulation for the elastic forces are investigated. Static as well as dynamic examples show accuracy and high order convergence of the presented beam finite elements.
Keywords: Multibody System Dynamics; Beam Finite Elements; Absolute Nodal Coordinate Formulation.
1 INTRODUCTION
The absolute nodal coordinate formulation (ANCF) has been developed for the modeling of large deformations in multibody dynamics problems by Shabana [14, 15]. In contrast to classical nonlinear beam finite elements in literature, the ANCF does not use rotational degrees of freedom and therefore does not necessarily suffer from singularities emerging from angular parameterizations. Compared to the classical formulation, in which the mass matrix is not constant with respect to the generalized coordinates, ANCF elements generally lead to a constant mass matrix, which is advantageous in dynamic analysis.
In the present approach, a linear and a quadratic ANCF beam finite elements are presented, in which the orienta- tion of the cross section is parameterized by means of slope vectors. The elements serve as the three-dimensional generalization of existing planar shear deformable ANCF beam finite elements presented in [12]. Since the nodal vector of degrees of freedom includes the displacement vector and the two transversal slope vectors only, the ele- ments belong to the group of so-called ”gradient deficient” elements. The latter elements are alternatives to so-called
”fully-parameterized” elements, in which the nodal coordinates are based on three slope vectors, representing the position gradient, see e. g. [5, 6]. A similar choice of nodal coordinates has been presented by Kerkk¨anen et al. [7]
for a two-dimensional two-noded ANCF element and Garc´ıa-Vallejo et al. [4] presented a three-noded analogue.
The deformed geometry of the proposed ANCF beam finite elements is defined by position and two slope vectors in each node, see Fig. 1 for a sketch of the elements. The three nodes are chosen at the end points and at the midpoint of the beam axis. Since the slope vectorsr(i),η andr(i),ζ are no unit vectors, a cross section deformation is not prohibited.
In the two-noded linear element, the displacement along the beam axis is interpolated with linear shape functions, while the three-noded quadratic element uses quadratic shape functions for the displacement interpolation. The ori- entation of the cross section is interpolated linearly in both elements. The shape functions are chosen as the standard Lagrange polynomials presented by Zienkiewicz and Taylor [19, Eq.(8.18)].
The geometric description of the proposed ANCF beam finite elements, the precise definition of the degrees of freedom and a continuum mechanics as well as a structural mechanics based formulation for the elastic forces have been presented in a previous work [10]. The existing ANCF finite elements in the open literature showed signifi- cant problems regarding the formulation of elastic forces. Different approaches for the work of elastic forces are
2 K. Nachbagauer|Young Investigators Conference 2013
Figure 1: The geometric description of the elements is based on a position vectorr(i)and two slope vectorsr(i),η
andr(i),ζ in thei-th node. These vectors are defined on a scaled and straight reference element, given in coordinates (ξ, η, ζ).
presented and compared to the formulations in literature. A continuum mechanics based formulation is discussed and extended in order to avoid Poisson locking. In addition, a structural mechanics based formulation of the elastic forces is discussed, which includes a term accounting for cross section deformation, which is not considered in the classical theory. The decision, which formulation should be used for an application, depends on the utilized material law. Concerning the elastic forces, it has been already shown, that the structural mechanics based formulation is in accordance with well established nonlinear rod elements of Simo and Vu-Quoc [17].
The ANCF elements have been implemented in the framework of the multibody and finite element research code HOTINT1. Several static examples and an eigenfrequency analysis have been already performed and a compari- son to results provided in the literature have shown accuracy and high order convergence in static applications, see [9, 10]. In a further paper [11], the performance of the proposed beam finite element in dynamics is investigated in several stability examples. Complex buckling tests of e. g. Argyris [1] can be solved accurately and efficiently. For details on the dynamic analysis of the presented beam finite elements see [11].
The present paper shows an state-of-the-art review on different ANCF elements in literature and compare choice of degrees of freedom and the formulation for the elastic forces to the present approach, see Fig. 2 in the following section.
1.1 Overview of structural beam and continuum mechanics/solid beam finite elements
Here, a selection of different beam parameterizations is presented, see Fig. 2 for an overview of structural beam and continuum mechanics/solid beam finite elements. Figure 2(S1) shows the degrees of freedom of the classical structural beam finite element by Simo and Vu-Quoc [17].
The rotation is defined as the general mapping of local to global orientation by means ofΛ(ξ)∈SO(3)[17]. The parameterization of the rotationΛcould be e.g. Euler angles or Euler parameters.
The classical continuum mechanics based ANCF has been developed by Yakoub and Shabana [18] and Fig. 2(C1) shows the according nodal degrees of freedom. This so-called fully-parameterized element incorporates the full position gradient as nodal degrees of freedom.
In [3, 13], a solid beam finite element is presented which incorporates the position vectors of each of the eight nodes as degrees of freedom, see Fig. 2(C2). In order to avoid the locking phenomenon, the strain field is modified by a combination of an assumed natural strain method and an enhanced assumed strain method [3]. Figure 2(C) and (S) show the degrees of freedom of the proposed gradient deficient beam finite elements [8]. A solid continuum mechanics based formulation as well as a hybrid structural mechanics based formulation for ANCF beams are presented in Chapter 5.2.2 and 5.2.4 of [8] for the 2D and 3D beam formulations, respectively.
A hybrid formulation can also be found in the work of Betsch and Steinmann [2], which combines the modeling of [18] and the configuration space of [17], see Fig. 2(SC). The rotational parameterization with directors (12 coordinates) is reduced by a projection method and therefore only three degrees of freedom result for the rotation [2].
1http://www.hotint.org/
(C1) 2-noded fully-param.
ANCF beam 12 DOFs/node
[YS01]
(C2) [FR12]
8-noded solid beam 12 DOFs/node (S1)
[SVQ86a]
rotational beam 6 DOFs/node
ti( )= ( )x L xei
(SC)
d [BS02]
frame-indifferent beam with directors 6(12) DOFs/node
r,x
d3
r,h
r,z
r(1) r(3) r(4) r(2) t1
structural elements continuum/solidelements
d1 d2 t2
t3 moving frame basis
(C) Section 5.2.2 gradient deficient ANCF
beam with locking-free formulation 9 DOFs/node r,h
r,z
(S) Section 5.2.4 gradient deficient ANCF
beam including cross section deformation
9 DOFs/node
r,h
r,z
fixed reference frame basis
e1 e3 e2
Figure 2: Overview of a selection of structural beam and continuum mechanics/solid beam finite elements.
The obtained equations constraining the so-called directors can be avoided by incorporating a null space method.
2 CONCLUSIONS
In the present paper, improved beam formulations are presented, which are mainly used for flexible multibody dy- namics. A locking-free continuum mechanics based formulation as well as a structural mechanics based formulation including an correction term for shear and cross section deformation are presented. The performance of the pro- posed two- and three-dimensional finite beam elements is investigated by the analysis of several static and dynamic examples. In contrast to many previous investigations, a convergence analysis, coupled three-dimensional large deformation examples and buckling problems are studied here. A comparison to results provided in the literature, to analytical solutions, and to the solution found by commercial finite element software shows high accuracy and high order of convergence. Therefore the presented ANCF elements have high potential for large deformation three- dimensional structural problems. A comparison of the proposed formulation to approaches in literature is given and the advantages of the proposed elements are emphasized.
ACKNOWLEDGEMENT
K. Nachbagauer acknowledges support from the European Regional Development Fund and the government of Upper Austria via a Regio 13 project.
REFERENCES
[1] Argyris, J.H., Balmer, H., Doltsinis, J.St., Dunne, P.C., Haase, M., Kleiber, M., Malejannakis, G.A., Mlejenek, J.P., Muller, M., Scharpf, D.W.. Finite element method - The natural approach. Computer Methods in Applied Mechanics and Engineering, 17-18:1-106, 1979.
[2] Betsch, P., Steinmann, P.. Frame-indifferent beam finite elements based upon the geometrically exact beam theory Int. J.
Numer. Meth. Engng, 54:1775-1788, 2002.
[3] Frischkorn, J., Reese, S.. A novel solid-beam finite element for the simulation of nitinol stents. Proceedings of the ECCO- MAS 2012 European Congress on Computational Methods on Applied Sciences and Engineering, Vienna, Austria, ISBN:
978-3-9502481-9-7, 2012.
[4] Garc´ıa-Vallejo, D., Mikkola, A.M., Escalona, J.L.. A new locking-free shear deformable finite element based on absolute nodal coordinates. Journal of Nonlinear Dynamics, 50:249-264, 2007.
4 K. Nachbagauer|Young Investigators Conference 2013
[5] Gerstmayr, J., Matikainen, M.K.. Analysis of Stress and Strain in the Absolute Nodal Coordinate Formulation. Mechanics Based Design of Structures and Machines, 34:409-430, 2006.
[6] Gerstmayr, J., Matikainen, M.K., Mikkola, A.M.. A geometrically exact beam element based on the absolute nodal coor- dinate formulation. Journal of Multibody System Dynamics, 20:359-384, 2008.
[7] Kerkk¨anen, K.S., Sopanen, J.T., Mikkola, A.M.. A linear beam finite element based on the absolute nodal coordinate formulation. Journal of Mechanical Design, 127:621-630, 2005.
[8] Nachbagauer, K.. Development of shear and cross section deformable beam finite elements applied to large deformation and dynamics problems. Trauner Verlag, Schriftenreihe der Johannes Kepler Universitt Linz, Reihe C, Band 68, (146 pages), ISBN 978-3-99033-138-5, 2013.
[9] Nachbagauer, K., Gruber, P., Gerstmayr, J.. A 3D Shear Deformable Finite Element Based on the Absolute Nodal Coor- dinate Formulation. In J.C. Samin, P. Fisette (eds.): Proceedings of the Multibody Dynamics 2011, ECCOMAS Thematic Conference, Brussels, Belgium, 4-7 July 2011.
[10] Nachbagauer, K., Gruber, P., Gerstmayr, J.. Structural and Continuum Mechanics Approaches for a 3D Shear Deformable ANCF Beam Finite Element: Application to static and linearized dynamic examples. Journal for Computational and Nonlinear Dynamics, 8, No. 021004, DOI:10.1115/1.4006787, 2012.
[11] Nachbagauer, K., Gerstmayr, J.. Structural and Continuum Mechanics Approaches for a 3D Shear Deformable ANCF Beam Finite Element: Application to Buckling and Nonlinear Dynamic Examples. Special Issue of the Journal of Computational and Nonlinear Dynamics on Flexible Multibody Dynamics, accepted for publication, April 15th, 2013.
[12] Nachbagauer, K., Pechstein, A., Irschik, H., Gerstmayr, J.. A new locking-free formulation for planar, shear deformable, linear and quadratic beam finite elements based on the absolute nodal coordinate formulation. Multibody System Dynamics, 26, No. 3:245-263, 2011.
[13] Schwarze, M., Reese, S.. A reduced integration solid-shell finite element based on the EAS and the ANS concept - Geo- metrically linear problems. Int. J. Numer. Meth. Engng, 80:1322-1355, 2009.
[14] Shabana, A.A..Definition of the slopes and the finite element absolute nodal coordinate formulation. Multibody System Dynamics, 1, No. 3:339-348, 1997.
[15] Shabana, A.A.. Dynamics of Multibody Systems (3rd edn). New York: Cambridge University Press, 2005.
[16] Shabana, A.A., Yakoub, R.Y.. Three dimensional absolute nodal coordinate formulation for beam elements: Theory. ASME Journal of Mechanical Design, 123:606-613, 2001.
[17] Simo, J.C., Vu-Quoc, L.. A Three-Dimensional Finite-Strain Rod Model. Part II: Computational Aspects. Computer Meth- ods in Applied Mechanics and Engineering, 58:79-116, 1986.
[18] Yakoub, R.Y., Shabana, A.A.. Three dimensional absolute nodal coordinate formulation for beam elements: Implementa- tion and applications. ASME Journal of Mechanical Design, 123:614-621, 2001.
[19] Zienkiewicz, O.C., Taylor, R.L.. The Finite Element Method Fifth Edition Volume 1: The Basis. Butterworth and Heine- mann, Oxford, 2000.
