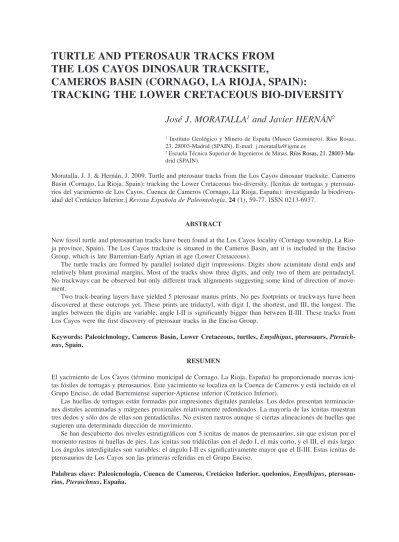

TURTLE AND PTEROSAUR TRACKS FROM
THE LOS CAYOS DINOSAUR TRACKSITE,
CAMEROS BASIN (CORNAGO, LA RIOJA, SPAIN):
TRACKING THE LOWER CRETACEOUS BIO-DIVERSITY
José J. MORATALLA
1and Javier HERNÁN
21 Instituto Geológico y Minero de España (Museo Geominero). Ríos Rosas, 23. 28003-Madrid (SPAIN). E-mail: j.moratalla@igme.es
2 Escuela Técnica Superior de Ingenieros de Minas. Ríos Rosas, 21. 28003-Ma-Ríos Rosas, 21. 28003-Ma-drid (SPAIN).
Moratalla, J. J. & Hernán, J. 2009. Turtle and pterosaur tracks from the Los Cayos dinosaur tracksite, Cameros Basin (Cornago, La Rioja, Spain): tracking the Lower Cretaceous bio-diversity. [Icnitas de tortugas y pterosau-rios del yacimiento de Los Cayos, Cuenca de Cameros (Cornago, La Rioja, España): investigando la biodivers-idad del Cretácico Inferior.] Revista Española de Paleontología, 24 (1), 59-77. ISSN 0213-6937.
ABSTRACT
New fossil turtle and pterosaurian tracks have been found at the Los Cayos locality (Cornago township, La Rio-ja province, Spain). The Los Cayos tracksite is situated in the Cameros Basin, ant it is included in the Enciso Group, which is late Barremian-Early Aptian in age (Lower Cretaceous).
The turtle tracks are formed by parallel isolated digit impressions. Digits show acuminate distal ends and relatively blunt proximal margins. Most of the tracks show three digits, and only two of them are pentadactyl. No trackways can be observed but only different track alignments suggesting some kind of direction of move-ment.
Two track-bearing layers have yielded 5 pterosaur manus prints. No pes footprints or trackways have been discovered at these outcrops yet. These prints are tridactyl, with digit I, the shortest, and III, the longest. The angles between the digits are variable: angle I-II is significantly bigger than between II-III. These tracks from Los Cayos were the first discovery of pterosaur tracks in the Enciso Group.
Keywords: Paleoichnology, Cameros Basin, Lower Cretaceous, turtles, Emydhipus, pterosaurs,
Pteraich-nus, Spain.
RESUMEN
El yacimiento de Los Cayos (término municipal de Cornago, La Rioja, España) ha proporcionado nuevas icni-tas fósiles de tortugas y pterosaurios. Este yacimiento se localiza en la Cuenca de Cameros y está incluido en el Grupo Enciso, de edad Barremiense superior-Aptiense inferior (Cretácico Inferior).
Las huellas de tortugas están formadas por impresiones digitales paralelas. Los dedos presentan terminacio-nes distales acuminadas y márgeterminacio-nes proximales relativamente redondeados. La mayoría de las icnitas muestran tres dedos y sólo dos de ellas son pentadáctilas. No existen rastros aunque sí ciertas alineaciones de huellas que sugieren una determinada dirección de movimiento.
Se han descubierto dos niveles estratigráficos con 5 icnitas de manos de pterosaurios, sin que existan por el momento rastros ni huellas de pies. Las icnitas son tridáctilas con el dedo I, el más corto, y el III, el más largo. Los ángulos interdigitales son variables: el ángulo I-II es significativamente mayor que el II-III. Estas icnitas de pterosaurios de Los Cayos son las primeras referidas en el Grupo Enciso.
Palabras clave: Paleoicnología, Cuenca de Cameros, Cretácico Inferior, quelonios, Emydhipus, pterosau-rios, Pteraichnus, España.
INTRODUCTION
The Los Cayos dinosaur tracksite is one of the most impressive localities in the European dinosaur track record. It is located in the eastern sector of the Cameros Basin (Cornago township, La Rioja province) (Moratalla & Sanz, 1997) (see Geological Setting for a more specific location). More than 150 dinosaur tracksites have been already identified in the Cameros region. Several ichnological sites, each one with several track-bearing layers, are known (Mo-ratalla, 2002). This is the case with the Los Cayos locality. In fact, the Los Cayos area has at least 6 dinosaur track outcrops named Los Cayos A, B, C, D, E and S. Although most of the outcrops show theropod tracks, some of them have yielded ornithopod footprints (Los Cayos D), and sauropod tracks (Los Cayos A and S). We describe herein a series of tiny turtle and pterosaurian tracks located in the same sedimentary levels as the dinosaur footprints. This assemblage sheds light on the bio-diversity of this Lower Cretaceous continental ecosystem. The nice pres-ervation, the number of tracks and trackways, and the ori-entation/disposition of the exposures make this dinosaur tracksite area an impressive “natural in situ museum” of Paleontology.
The first findings of turtle remains from the Span-ish Lower Cretaceous were publSpan-ished by Royo y Gómez (1918, 1921), who reported Helochelys? from Zaragoza province, and Trachyapsis (Dermatemydidae) from Buñol (Valencia province). Some chelonian fossil remains were cited by Jiménez (1987, 1995), and Jiménez et al. (1990). Most of the chelonian fossils come from some of the ba-sins around Cameros: Teruel and Valencia provinces, the Las Hoyas fossil site (Cuenca province) (Jiménez, 1995) and Uña locality, also in Cuenca province (Krebs, 1995). Murelaga (1997) has also cited findings from Vallipón site (Castellote, Teruel province). The Upper Cretaceous has yielded abundant turtle material from Laño (very near Vitoria city) (de Broin & Murelaga, 1999), and from Ar-muña (Segovia province) (Buscalioni & Martínez-Salano-va, 1990). More recent findings of turtle tracks and bones have been described from the Upper Jurassic of Asturias (northern Spain) (Garcia-Ramos et al., 2002; Avanzini et al., 2005). The bone material mainly consists of dermal plates, some of them very well preserved, and the tracks are mostly tridactyl, with parallel digit impressions.
Few turtle fossil remains have been described from the Cameros Basin. Those known include remains identified as Dermatemydidae from Salas de los Infantes (Burgos), Al-carama (La Rioja) (Palacios & Sánchez, 1885; Jiménez et al., 1990), the report of the genus Helochelys (Los Caños, Soria province) (Bataller, 1960) and some scattered and fragmented plates from Sol de la Pita 1 (Préjano) (Jiménez et al., 1990; Moratalla et al., 2001). Previously, Fuentes et al. (2003a) described a new turtle genus (Salasemys) from the Lower Cretaceous of Salas de los Infantes
(Bur-gos province, Western Cameros Sub-basin). Unfortunate-ly for the purpose of this paper, mainUnfortunate-ly isolated carapace plates form this material making it difficult to study and compare their autopodial characteristics. An isolated tri-dactyl print from Los Cayos A outcrop was described by Moratalla (1990), and the outcrop (Los Cayos C) we are describing in this paper was first mentioned by Moratalla (1993). After about ten years of field work and excavations, no more turtle prints had been discovered in the Cameros Basin until the description of a well preserved turtle track-way from the Valduérteles locality (Soria province) (Fuen-tes et al., 2003b) and some isolated tracks from Valdelavi-lla (also Soria province) (Fuentes et al., 2008). This fact suggests that, although the turtles were probably dwellers of river banks, streams, and also permanent or ephemeral lakes (abundant in these continental Lower Cretaceous ecosystems) the probability of preservation of their tracks, compared with those of dinosaurs, was relatively low.
Pterosaur fossil bones are relatively scarce in the Span-ish fossil record. Some scattered bone fragments were re-ported from the Laño fossil site (Burgos province) (Up-per Cretaceous) (Astibia et al., 1990; Pereda-Suberbiola et al., 1992; Pereda-Suberbiola & Astibia, 1993; Buffetaut, 1999). Some bones, mainly teeth, were reported from the Lower Cretaceous of Galve (Teruel province) (Cuenca-Bescós et al., 1994). A giant azhadarchid pterosaur was reported from the Upper Cretaceous of Valencia province (Company et al., 2001). Several outcrops with very well preserved pterosaur tracks, some of them even with skin impressions, were described and illustrated in García-Ra-mos et al. (2002). During recent years some Cameros Ba-sin outcrops have also yielded pterosaur bones. Fuentes & Meijide Calvo (1996) cited the first one from Soria prov-ince. Later, Moratalla et al. (2001) reported some scattered bone fragments from the Sol de la Pita 1 fossil site (Pré-jano, La Rioja province), and also some relatively well preserved bones from the Fuente Amarga locality (also at Préjano township) (Pérez-Lorente et al., 2001). Both ptero-saur sites belong to the Leza Fm. (Enciso Group, Lower Aptian in age). In contrast to this relatively scarce ptero-saur bone fossil record, the paleoichnological pteroptero-saur material is notably abundant. The first pterosaurian inter-pretation of these Cameros tracks was provided by Lock-ley et al. (1995), stressing limb posture, locomotion and distribution of this group of archosaurs. After that Meijide Calvo & Fuentes (1999) described some pterosaur tracks from Soria province and Pascual & Sanz (2000) described abundant pterosaur prints from the Oncala Group (mainly Huérteles Alloformation) also in Soria province. These last authors stressed on the presence of at least 17 tracksites with pterosaur foot and manus prints. So, the pterosaur tracks we describe herein are, until now, the only ones from the Enciso Group (Lower Aptian).
The aim of this paper is to describe and to interpret both the turtle and pterosaur tracks from the Los Cayos
locality, stressing the morphology and paleo-ecological sig-nificance. Also we review the evidence of other Came ros remains to explore the implication of the pterosaur tracks for understanding terrestrial locomotion and ecology.
GEOLOGICAL SETTING
The Cameros Basin is located in the north-westernmost part of the Iberian Range outcropping in the Spanish prov-inces of Burgos, Soria and La Rioja, and covering an area of about 8000 Km2.
Nowadays, the basin is a fold-and-thrust belt inverted during the Paleogene and early-middle Miocene (called the Cameros Massif or Unit), overthrusting the nearby Tertiary basins: the northern Ebro Basin, the southern Almazán Ba-sin and the western Duero BaBa-sin. The Paleozoic Demanda Massif also outcrops toward the north and overthrusts the Cameros Unit (Fig. 1a).
During the latest Jurassic and early Cretaceous, the Iberian Plate was in a highly extensive context related to the opening of the Bay of Biscay and the North Atlantic (Malod & Mauffret, 1990). This extensive regime gave rise to numerous Rift Systems developed mostly into the paleomargins of the Iberian Plate: the northern Iberian Margin (Peybernès, 1982; Vergés & García-Senz, 2001), the southern Iberian Margin (Vera, 2001) and the western Iberian Margin (Pinheiro et al., 1996; Alves et al., 2006). Moreover, the Mesozoic Iberian Rift System (MIRS) was developed in a more intraplate position which resulted in the creation of an intricate collection of rift basins and sub-basins: Maestrazgo, South Iberian, Cameros and Co-lumbretes (Salas et al., 2001). The Cameros Basin is one of the most remarkable because it represents an atypi-cal sedimentary record among the MIRS basins due to its insignificant marine influence, and its high subsidence and sedimentation rates (Mas et al., 1993). Moreover, it is also the only one in which a low- to very low-grade metamorphic events took place in part of the infill (Ba-rrenechea et al., 1995, 2001; Alonso et al., 1995). Lastly, this basin also exhibited an unusual structural style with no main border faults, being interpreted as an extension-al-ramp basin produced over a south-dipping ramp over a basement-involved and deep-horizontal fault (Mas et al., 1993; Guimerà et al., 1995).
The Cameros Basin (Fig. 1b) can be subdivided into two sub-basins with a quite distinct palaeogeographical, tectonic and stratigraphical settling, and termed Western and Eastern Cameros (Mas et al., 1993; Arribas et al., 2003; Salas et al., 2001). The Eastern Cameros sub-basin exhibits an exceptional sedimentary pile of deposits in the depocentral area (up to 9000-m-thick) with an impressive richness in vertebrate-track-bearing sites, mainly dinosaur-dominated ichnofaunas and to a lesser extent pterosaur-, bird- and turtle-footprints (Moratalla et al., 1997; Sanz et
al., 1997) and rare bones. On the other hand, the Western Cameros sub-basin, up to 3000 m-thick, contains abundant skeletal remains and less tracksites (Torcida, 1996, 2006).
The synrift-depositional infill consists of continental sediments deposited in alluvial and/or lacustrine systems with only minor marine incursions. The first scheme de-veloped in the Cameros Basin identifies five lithostrati-graphical Groups (Tera, Oncala, Urbión, Enciso and Oli-ván), which are reliable for ease of use and utility in the field (Tischer 1966a, 1966b; Beuther, 1966) (Fig. 2). Nev-ertheless, at the present time, the stratigraphical scheme is based on depositional sequences comprising a latest Jurassic-early Cretaceous megasequence limited by two major unconformities of regional extent at the base and the top (Tithonian and early Albian respectively). This synrift megasequence can be further subdivided into eight unconformity-bounded depositional sequences. Each se-quence displays an arrangement beginning at the base with siliciclastic-alluvial deposits which are overlain by carbonate-lacustrine deposits (Fig. 2) (Salas et al., 2001; Mas et al., 2002, 2003).
LOS CAYOS TRACKSITE: SEDIMENTOLOGICAL OVERVIEW
The Los Cayos tracksite is located in the Enciso Group (late Barremian-early Aptian) depositional sequence 7 (Fig. 1c). The Enciso Group, up to 1400-m-thick, was depos-ited only in the Eastern Cameros sub-basin and consists predominantly of siliciclastic- and/or carbonate-dominat-ed lacustrine and meandering-fluvial systems (Mas et al., 2002, 2003; Doublet et al., 2003). In the study area, the sedimentary record comprises a meter-cyclical alternation of siliciclastic and carbonate sequences marked by strong lateral facies changes (Moratalla et al., 2003).
The siliciclastic sequences are composed of lutite-domi-nated tabular bodies with some horizontal- to cross-bedded sandstones packages, sometimes displaying an evident up-ward-coarsening trend. The lutite units comprise mottled-structureless non-graded siltstones with intense to moderate bioturbation, and parallel- to ripple-laminated organic-rich siltstones and minor claystones (occasionally sandy) with moderate to sparse bioturbation. Some beds are topped by mudcracks and symmetrical ripples. The sandstone units consist of medium to fine-grained micaceous quartzarenites and (sub)arkoses. Massive bedding and horizontal lamina-tion predominate with rare cross-stratificalamina-tion. Mottling, moderate to intense bioturbation, mudcracks and ripples are common. The subordinate sheet-like and ribbon sand-stone bodies represent the clastic supply deposited by traction currents, and interpreted as sheetfloods, crevasse splays and/or channel-mouth bars. The lutites character-ize the fine-grained fraction deposited by fallout in inter-channel lows, in-inter-channel or adjacent standing-water bodies (Smith et al., 1989; Tye & Coleman 1989a, 1989b; Smith & Pérez-Arlucea, 1994; Pérez-Arlucea & Smith, 1999).
Figure 2. Stratigraphic framework of the Eastern Cameros sub-basin.
Figure 1. a, Location of the Cameros Basin. b, Geological map of the Cameros Basin. c, The Los Cayos area (Cornago, La Rioja
province) is situated inside the circle in the lower map. The footprint marks represent the main dinosaur tracksites of the Enciso Group.
The carbonate sequences comprise interbedded marl-stones and limemarl-stones, with minor sandy and marly lime-stones. The limestone occurs as organic-rich dark-tabular micrite beds with minor terrigenous and diverse proportions of ostracod- and mollusc-shells. Massive (homogeneous and non-graded) or vaguely laminated mudstone and wackestone are the most common limestones, although nodular beds can
occur also. Locally, mud-cracked and mottled beds can be very abundant. The low-degree of pedogenic development suggests weak reworking and short subaerial-exposure times. These units mainly represent low-energy and ramp-type carbonate-lacustrine environments (Platt & Wright, 1991) and, to a lesser extent, poorly developed palus-trine, mudflat and wetland settings (Alonso-Zarza, 2003).
To summarize, the study area is interpreted as deposited by north-eastward prograding-avulsion belts and lacustrine deltas/splays into the surrounding carbonate-lake system, developed during stages of non- to low-detrital input.
TURTLE TRACKS: Emydiphus sp.
Two layers with turtle tracks have been discovered at the Los Cayos locality: Los Cayos C and Los Cayos A described as follows:
LOS CAYOS C OUTCROP
The turtle track-bearing layer occurs at Los Cayos C (Cor-nago). It is a surface of about 13 m2 of a very fine green silt-stone. The outcrop shows 16 dinosaur footprints, although some of them do not indicate good preservation. The best-preserved specimens, forming a trackway (Fig. 3), are tridactyl in shape, with elongated digit impressions, parallel digital outlines, distal ends not too sharp, conspicuous pad impressions, and a relatively high length/width relationship (1.26). Moratalla (1993) named
this type of tracks Therangospodus. A revision of this ichnogenus throughout the Jurassic-Cretaceous boundary was carried out by Lockley et al. (1998), stressing on the wide extended presence of this kind of “narrow-foot” theropod trackmaker.
58 turtle tracks have been mapped at this outcrop (Fig. 3b). Although most of the tracks are isolated, one can observe sev-eral alignments suggesting some kind of direction of move-ment. The tracks are about 0.5-1.5 cm in length, and consist of parallel isolated digit impressions. These digital prints show acuminate distal ends and relatively blunt proximal margins. The digits are not connected in the proximal zone. Most of the tracks show three digits, although some have only two or even only one digit trace. Although the digits show a general well-defined straight shape, most of them are slightly curved, some-times with only the external digit or alternatively two or all of them curved (Fig. 4). The central digit is normally the longest one. However, sometimes one of the external digits could be about the same length as the central one. The separation of the digits is sometimes regular, that is, the distance is more or less the same between the central one and the other external digits. But the normal disposition shows a different separation between the two margins of the track. This fact is responsible for the asymmetric aspect of these tiny prints. The areas between the
Figure 3. Los Cayos C (Cornago, La Rioja province). a, photograph of the dinosaur trackway LCC-R1. b, map of the level with
digits are relatively smooth, that is, no impressions suggesting the presence of an interdigital web can be observed. The track alignments suggest some kind of direction of movement, and although they do not show a regular pattern the alignment sug-gests that they were produced by the same animal progressing on the substrate (Fig. 5).
LOS CAYOS A OUTCROP
A little slab of about 1 m2 shows several tiny prints shown in figure 6. The size, shape and general morphology of these tracks are similar to those described from Los Cayos C. Only some differences could be pointed out, although they are prob-ably more derived from preservation or substrate conditions. The most outstanding feature of the Los Cayos A turtle prints is that two of the tracks show the impression of 5 digits (Fig. 6). Al-though most of the digits show a relatively straight shape, some of them are slightly curved. Distal ends are mostly acuminate while proximal ends are, on the contrary, broadly expanded. No trackway pattern can be observed on the slab. However, most of the tracks are arranged in a similar direction suggesting that they could have been produced by the same trackmaker.
DISCUSSION OF TURTLE TRACKS
Similar material to that described from Los Cayos and interpreted as turtle tracks, is relatively scarce in the Meso-zoic fossil record (Fig. 7). The first finding was cited at Cerin (France) (Bernier et al., 1982, 1984). Although at first some of them were interpreted as produced by a “ricochet” pattern of locomotion caused by a hopping dinosaur, the morpho-logy, size, and trackway disposition suggests the possible turtle origin (Thulborn, 1989). After the description by Mo-ratalla (1990) of an isolated possible turtle track from Los Cayos A, and also a description of the slab we are studying here in the PhD Thesis by Moratalla (1993), few possible Mesozoic turtle tracks have been discovered from: the Mor-rison Fm. of Copper Canyon in Southern Utah (USA) (Fos-ter et al., 1999) (Fig. 7a), the Laramie/Arapahoe Fm. (Upper Cretaceous of Colorado) (Wright & Lockley, 2001) (Fig. 7b), the Upper Jurassic of Asturias coast (García Ramos et al., 2002), a trackway from the Cameros Basin (Fuentes et al., 2003b) (Fig. 7d), another turtle trackway from Cerin
(France) (Gaillard et al., 2003) (Fig. 7e) or relatively large turtles tracks from the Upper Cretaceous of Montana (Fioril-lo, 2005), tracks from Soria province (Fuentes et al., 2008), from Croatia (Mezga & Bajraktarevic, 2004) and Colora-do (USA) (Lockley et al., 2006; Lockley & Foster, 2006).
The Copper Canyon tracks (Fig. 7a) are relatively simi-lar to those from Los Cayos C. These simisimi-larities can be stressed based on tridactyl morphology, general size, and trackway or alignment configuration. However, some dif-ferences could be pointed out. Some of the Copper Can-yon prints show a tetradactyl form, and also, the proximal margin of the digits are connected by the rear outline of the print, showing a “heel-like” morphology. Wright & Lock-ley (2001) stressed the similarities between this Utah-ma-terial and the turtle tracks described from the Upper Cre-taceous of Colorado (Fig. 7b). In this last case, the tracks are shorter and wider, with 4-5 claw marks in a shallow depression. However, there are also tridactyl prints formed by isolated digit marks. A relatively well preserved turtle trackway has been described from Cerin (France) (Gaillard et al., 2003) (Fig. 7e). These tracks, interpreted as produced by a marine turtle, show significant differences with the Los Cayos prints related to print size, shape, and general morphology. Fiorillo (2005) describes a set of rounded turtle prints made probably by a relatively big animal on wet sediment. The tracks are deep, relatively rounded in shape, and without digit impressions. The differences be-tween these Montana turtle tracks and those from the Los Cayos locality we describe herein, suggest that the size and morphology of the trackmaker, and probably the loco-motion and sediment conditions were also quite different.
Some turtle tracks described by García Ramos et al. (2002) and Avanzini et al. (2005) from the Upper Jurassic of Asturias region (north Spain), show several similarities with the Los Cayos tracks described herein. These similari-ties are based on the general tridactyl track morphology, the presence of parallel digit marks, and the relative curved shape of the external digital impressions. On the contrary, the Asturian tracks are bigger, about 5-8 cm in length. The turtle trackway discovered in Valduérteles locality (Soria province) provides good material for comparison (Fig. 7d) (Fuentes et al., 2003b). The trackway consists of a series of 14 manus-pes sets. While the pes prints are tetradactyl with a heel-like rear area, the manus tracks are formed by three or four isolated digital impressions. These digi-tal marks show a sub-parallel disposition without a clear heel zone. The shape, size, and general disposition of these manus prints are relative similar to those of the Los Ca-yos C turtle tracks we describe herein. Although Fuentes et al. (2003b) named the Valduérteles trackway Emydhipus, neither consistent comparison with similar fossil prints or
with the osteological record has been made. Most of the diagnostic features proposed for Emydhipus are based on general trackway pattern and track morphology. The au-thors have identified this trackway as an “aquatic turtle”; but no more precise explanation about the “aquatic” term or taxa comparison was made. Based on the high similar-ity between the Los Cayos C prints and the Valduérteles trackway, we conclude that both print assemblages were made by a similar kind of trackmaker and, so, the turtle tracks from Los Cayos locality can be ascribed to the ich-notaxon Emydhipus.
The phalangeal formula of the turtles is 2-2-2-2-2 for Proganochelis and 2-3-3-3-3 for the modern turtles (Car-roll, 1988). The support of the autopodia on the substrate is in some way digitigrade for the manus and plantigrade for the feet. The lateral orientation of the manus during the locomotion could have resulted in the registration of only three or four digits (Bernier et al., 1982). If we con-sider that the Los Cayos C prints are mainly scrape marks, probably produced during buoyant activities (swimming or floating), the support of the autopodia would have been incomplete. This consideration is consistent with the ab-sence of complete tracks and also with the preab-sence of isolated digital impressions. So, the morphology of these prints does not allow a more precise identification based on Lower Cretaceous turtle groups (Jiménez, 1987, 1995; Jiménez et al., 1990) known from skeletal remains. In any case, the Los Cayos C outcrop is a good case of dinosaur and turtle track association on the same sedimentary lev-el. This fact suggests that both groups, mainly the dino-saurs, were relative abundant on these Lower Cretaceous landscapes, sharing the riverbanks and the margins of the small lakes where water was shallow and the substrate sometimes emergent. Future findings of both bones and tracks could provide new insights to help complete the framework of the Lower Cretaceous bio-diversity from the Cameros Basin.
PTEROSAUR TRACKS: Pteraichnus sp.
Both the Los Cayos A and C outcrops have yielded isolat-ed pterosaur manus prints (Fig. 8). The pterosaur tracks at Los Cayos A occur on a slab fragment of about 75 cm2. The slab is located in situ about 1 m below the main Los Cayos A dinosaur track-bearing layer. It consists of very fine sandstone. The slab contains 4 tracks. They are between 5-6 cm in maximum dimen-sion (Fig. 8a). Specimen LCA-PT04 shows only the impresdimen-sion of the central digit, and LCA-PT01 is altered by a small frac-ture making it difficult to see its three-dimensional form. The prints are shallow, about 0.5 cm deep, and tridactyl. The digits show blunt distal ends and high interdigital angles. The angle between the two lateral digits ranges between 65º and 135º. TheFigure 5. Map of the outcrop with turtle tracks from the Los Cayos C (Cornago, La Rioja province), showing some sequences of
tracks are clearly asymmetrical, with the medial digit the short-est one. The most elongated digit (the lateral one or digit III) is about 13% longer than the central one. The proximal track area shows a very broad and rounded outline. The different orienta-tion of the tracks suggests that they do not belong to a single trackway, with a definable direction of movement.
Los Cayos C has yielded only an isolated pterosaur manus impression (Fig. 8b). Although this print is more or less similar to those seen previously, some differences include digit I show-ing a blunt distal end, the central and the external digits beshow-ing deeper and showing conspicuous acuminate distal impressions. The central digit is relatively straight and V-shaped at the distal end whereas digit III shows a slight curve with a lateral orien-tation. The length of digits I and II is relatively similar. The an-gle between digit II and III is significantly narrower (39º) than the angle between digit I and II (92º): that is, the central digit is mostly oriented toward the external digit impression.
The general morphology of these tracks, with digit I (see the Fig. 8b) the shortest and digit III the longest, and the angulation between I-III digits suggest that these Los Cayos prints can be ascribed to the ichnogenus Pteraich-nus proposed by Stokes (1957). Although the name was proposed based on pterosaurian identification, not all the authors agree with this proposal (Padian & Olsen, 1984). However, recent works seem to stress on its pterosaurian affinity (Kubo, 2008).
Although the ichnocoenosis of the Cameros Basin is clearly dominated by dinosaur tracks, it has also yielded other pterosaur ichnofossils. They are mainly located in
Soria province within the Oncala Group (Tithonian-Ber-riasian in age). Pascual & Sanz (2000) reported up to 17 pterosaur track localities, most of them belonging to the Huérteles Alloformation. Most of the localities are clear-ly dominated by pterosaur manus prints. In fact, onclear-ly one tracksite (Los Tormos, Santa Cruz de Yanguas township) has yielded three pterosaur trackways (Fig. 9). These and other authors proposed diverse new Pteraichnus ichnospe-cies from these Oncala fossil sites: Pteraichnus palaciei-saenzi Pascual & Sanz, 2000, P. cidacoi Fuentes, 2001, P. manueli Meijide Calvo, 2001, and P. vetustior Meijide Fuentes, 2001. Due to the absence of an adequate ichno-species diagnosis and also an adequate indication of ho-lotype location or even a hoho-lotype designation, we con-clude, according to Billon-Bruyat & Mazin (2003), that all these Spanish Oncala ichnospecies are invalid and should be considered as nomina nuda.
Figure 10 represents a comparison between the mate-rial we study herein and other pterosaur ichnofossils. Some differences could be pointed out. Both Los Cayos A and C prints show a bigger angle between digits I and II (92º for LCC-PT1 and 74º for LCA-PT01). By contrast, the mean value for this angle in the Soria material ranges be-tween 39.22º and 43.9º. Only tracks from level VII of the Valdelavilla outcrop show a mean angular value of 81.4º (Pascual & Sanz, 2000). These values can be compared with the Pteraichnus material from other parts of the fos-Figure 6. Turtle tracks from Los Cayos A (Cornago, La Rioja province) with enlarged detail of pentadactyl track (left).
Figure 7. Prints attributed to turtles from the fossil record. a, turtle tracks from the Copper Canyon site (after Foster et al., 1999). b,
turtle tracks from Leydon Gulch locality (after Wright & Lockley, 2001). c, some of the turtle Los Cayos C specimens. d, turtle trackway from Valduérteles locality (Soria province) named Emydhipus by Fuentes et al. (2003b). e, Turtle trackway from Cerin (France) (after Gaillard et al., 2003).

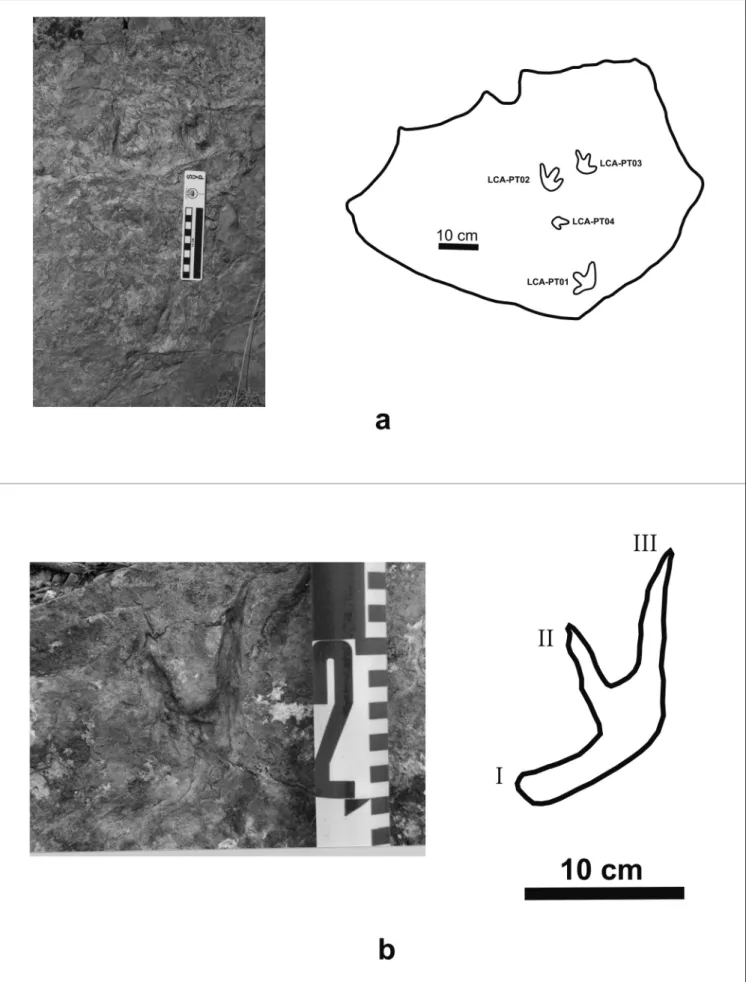

Figure 8. Pterosaur manus prints from the Los Cayos tracksite (Cornago, La Rioja province). a, photograph and map of the slab at
sil record. So, this angle for Pteraichnus stokesi, from the Sundance Formation, is about 20º, while for P. saltwash-ensis from the Summerville Formation is about 31º. Pur-beckopus Delair, 1963, a pterosaur track morphotype from the Lower Cretaceous of Dorset (England) shows a low I-II angle, about 19-20º (Wright et al., 1997). This angle is about 65º in the Pteraichnus-like manus prints from the North Horn Formation in Utah (Lockley, 1999). The same case occurs with the Pteraichnus tracks from Furnish Can-yon (Colorado), with the angles measuring about 60-70º (Lockley et al., 2001) (Fig. 11).
Although the Los Cayos pterosaur prints are mor-phologically similar to those described in the literature cited, the relatively high value for the I-II angle seems to be significant. The question is if this high angle depends on anatomical hand construction or on the stance on the substrate. Mazin et al. (1995) suggests that the relatively shortness of digit I is caused by a curved disposition of this digit during the step. This curvature could have two inter-esting consequences: 1) the short dimension of the digit I print, and 2) its external orientation, that is, the low
val-ue of the angle I-II. The pterosaur trackways show a low variation of the digit I-II angle, suggesting that the posi-tion of digit I during locomoposi-tion was relatively constant. This suggests that the differences among different ptero-saur trackways could be caused by differences in anatomy. If this interpretation is correct, the morphology of the Los Cayos pterosaur manus prints could be caused by differ-ent pterosaurs than those from the Oncala Group. Taking into account that the Oncala Group is dated as Tithonian-Berriasian and the Enciso Group is considered as Lower Aptian, implying an interval of about 20 my, it would be possible to consider different pterosaur faunas for each geological Group. Unfortunately, the scarcity of pterosaur fossil tracks in the Enciso Group does not allow a more precise identification and comparison. Pérez-Lorente et al. (2001) have reported pterosaur bones from Préjano town-ship (La Rioja) named Prejanopterus curvirrostra nomen nuda; however, there is not yet a formal description with an adequate list of characters in order to compare both the ichnological and the bone fossil records.
Despite the scarcity of pterosaur tracks in the Enciso Group, the whole Cameros fossil record has produced abundant pterosaur tracks during recent years. This fact suggests: 1) the pterosaurs had terrestrial locomotion ca-pabilities more developed that we had though before, and 2) they were relatively common in the continental Cameros ecosystems like the dinosaurs, crocodiles, turtles, lizards, and several kinds of fluvial/lacustrine fishes.
Pterosaur terrestrial locomotion has been thorough-ly debated in several papers, from the bipedal condition (Padian, 1983, 1984, 1985, 1987, 1988, 1991; Padian & Rayner, 1993; Paul, 1987) to the quadrupedal gait (Pen-nycuick, 1986; Wellnhofer & Vahldiek, 1986; Unwin, 1987, 1989, 1997; Wellnhofer, 1988, 1991; Lockley et al., 1995; Bennett, 1997; Mazin et al., 2003). Anatomi-cal construction, arm and hand anatomy, the disposition of the fingers, limb proportions, and the center of grav-ity located near the scapular girdle suggest that the ptero-saurs were obliged quadrupedal animals during terrestri-al locomotion (Lockley et terrestri-al., 1995). This quadrupedterrestri-al gait is also suggested by the great abundance of manus prints rather than pes prints in the ichnological record. In contrast, a bipedal gait would have been very unstable, mainly due to the forward location of the center of grav-ity. Moreover, the relatively short body length implies a quadrupedal trackway with the pes tracks typically situ-ated just anterior to the manus prints (Clark et al., 1998; Mazin et al., 2003; Li et al., 2006). Although the manus impressions are sometimes located well outside the pes prints, the pterosaur trackway evidence through the fos-sil record suggests that they were efficient ground walk-ers, with relatively constant stride lengths and a regular disposition of the tracks. Several pterosaur groups, such as the dsungaripteroids, seem to be well adapted for ter-restrial locomotion (Unwin, 1997).
Figure 9. Lower Cretaceous pterosaur trackway from the Los
Tormos tracksite (Santa Cruz de Yanguas, Soria province) described by Moratalla (1993) and Lockley
The Cameros Basin sediments represent, at least for the Oncala and Enciso Groups, fluvial-lacustrine environments with abundant fishes and other aquatic vertebrates and in-vertebrates. These paleo-environments were probably suit-able for the pterosaurs as living habitats particularly for fish-eating pterosaurs such as several Lower Cretaceous European genera like Doratorhynchus Seeley, 1875, Crio-rhynchus Owen, 1874, Ornithodesmus Seeley, 1887, and even Prejanopterus nomen nuda from the Cameros it-self. This was most likely the role of the pterosaurs in the Lower Cretaceous trophic chains and, some species could have played an important role in the dissemination of pha-nerogam seeds, and, in consequence, also in the evolution
and diversification of these plants during the Cretaceous (Wellnhofer, 1991).
Future pterosaur findings will be necessary in order to understand their bio-diversity, their locomotion, their reproduction habits, and also their precise role in the Ca-meros Basin ecosystems.
CONCLUSIONS
The discovery of pterosaur, turtle and dinosaur tracks on the same sedimentary levels suggests that these reptiles were significant components of the ancient fluvial-lacus-trine ecosystem of the Los Cayos fossil site.
Figure 11. Bivariant analysis of a sample of pterosaur manus prints. Ang I-II, angle between the axis of digits I and II. LI/Tw, ratio between the length of the digit I and the print width. 1, Pteraichnus stokesi (after Lockley et al., 1995) (see Figure 9d). 2, Pteraichnus stokesi (after Bennet, 1997) (see Figure 10d). 3, Pteraichnus saltwashensis (Stokes, 1957) (see Figure 10a). 4, Pteraichnus sp. from Valdelavilla (Soria province) (after Pascual & Sanz, 2000) (see Figure 10f). 5, Pteraichnus
palaciei-saenzi from Santa Cruz de Yanguas (Soria province) (after Pascual & Sanz, 2000) (see Figure 10e). 6, Pteraichnus
cf. saltwashensis (after Lockley et al., 1995) (see Figure 10b). 7, LCA-PT01 from the Los Cayos A (Cornago, La Rioja province) (see Figure 10h). 8, LCC-PT1 from the Los Cayos C (Cornago, La Rioja province) (see Figure 10g). Note that the Los Cayos specimens show digit I relatively longer and higher I-II angle.
Figure 10. Pterosaur manus prints. a, Pteraichnus saltwashensis (Stokes, 1957). b, Pteraichnus cf. saltwashensis (after Lockley et
al., 1995). c, Pteraichnus stokesi (after Bennet, 1997). d, Pteraichnus stokesi (after Lockley et al., 1995). e, Pteraichnus palaciei-saenzi from Santa Cruz de Yanguas (Soria province) (after Pascual & Sanz, 2000). f, Pteraichnus sp. from
Valdelavilla (Soria province) (after Pascual & Sanz, 2000). g, pterosaur track from the Los Cayos C (Cornago, La Rioja province) (LCC-PT1). h, pterosaur track from the Los Cayos A (Cornago, La Rioja province) ( LCA-PT01). Scale, 1 cm.
The turtle tracks from both Los Cayos A and C are identified as Emydhipus sp.
The pterosaur tracks from Los Cayos A and C are iden-tified as Pteraichnus sp. They comprise only hand prints with a relatively high angle between the digits I and II.
Both turtle and pterosaur prints represent the first find of these type of tracks in the Enciso Group of the Cameros Basin.
ACKNOWLEDGMENTS
We wish to thank Mr. Santiago Jiménez, director of the Mu-seo de Ciencias Naturales of Arnedo (La Rioja) for his help in the field work and also to many volunteers from several amateur associations from Préjano, Cornago and Arnedo towns (La Rioja).
This paper was supported by the project CGL2006-10380 of the Spanish Ministry of Science in order to study the Lower Cretaceous bio-diversity.
We wish to thank Martin G. Lockley and Matteo Belvedere for their comments, suggestions and the improvement of the text.
