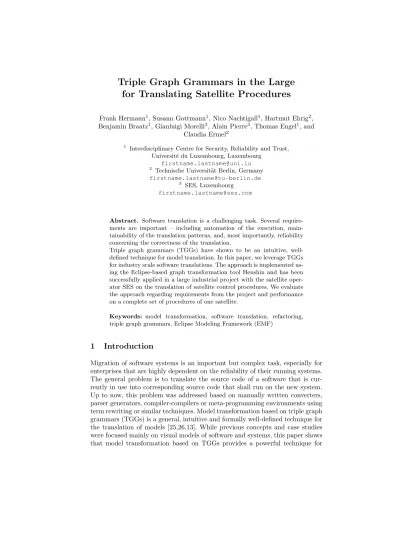

Triple Graph Grammars in the Large
for Translating Satellite Procedures
Frank Hermann1, Susann Gottmann1, Nico Nachtigall1, Hartmut Ehrig2, Benjamin Braatz1, Gianluigi Morelli3, Alain Pierre3, Thomas Engel1, and
Claudia Ermel2 1
Interdisciplinary Centre for Security, Reliability and Trust, Universit´e du Luxembourg, Luxembourg
2 Technische Universit¨at Berlin, Germany
3
SES, Luxembourg [email protected]
Abstract. Software translation is a challenging task. Several require-ments are important – including automation of the execution, main-tainability of the translation patterns, and, most importantly, reliability concerning the correctness of the translation.
Triple graph grammars (TGGs) have shown to be an intuitive, well-defined technique for model translation. In this paper, we leverage TGGs for industry scale software translations. The approach is implemented us-ing the Eclipse-based graph transformation tool Henshin and has been successfully applied in a large industrial project with the satellite oper-ator SES on the translation of satellite control procedures. We evaluate the approach regarding requirements from the project and performance on a complete set of procedures of one satellite.
Keywords: model transformation, software translation, refactoring, triple graph grammars, Eclipse Modeling Framework (EMF)
1
Introduction
software translation as well. Since software systems are on average much larger than visual models, we provide a general technique for efficiency improvement and show its applicability within a large scale industrial project.
The general idea of TGGs is to specify a language of integrated models. Such an integrated model consists of a model of the source domain, a model of the target domain, and explicit correspondence structures in the middle component. The source and target models in the present scenario are abstract syntax trees of source code. The operational rules for executing the translation are gener-ated from the specified TGG and executed via the graph transformation tool Henshin [7]. TGGs are equivalent to a restricted class of plain graph transfor-mation systems [8,13]. This restriction ensures the existence of the explicit cor-respondence structures and formal properties concerning correctness and com-pleteness [14]. In this paper, we use rather simple and intuitive but non-trivial translation patterns. The full translation contains several more complex ones, e.g., for the reordering and regrouping of blocks. Translation strategies that are solely based on finding and replacing words (like e.g. Awk4) will fail due to the highly context-sensitive structural dependencies in the source code.
Within the research project PIL2SPELL with the industrial partner SES (Soci´et´e Europ´eenne des Satellites), we developed the general approach for soft-ware translation in this paper. SES is operating a fleet of 56 satellites manu-factured by different vendors that often use their own proprietary programming language for automated operational satellite procedures. In order to reduce the high complexity and efforts during operation caused by this heterogeneity, SES developed the open source satellite language SPELL [27] (Satellite Procedure Execution Language & Library), which is nowadays used by more and more op-erators and may become a standard in this domain. The main aim of the project was to provide a fully automated translation of existing satellite control proce-dures written in PIL (Procedure Intermediate Language) of the satellite manu-facturer ASTRIUM into satellite control procedures in SPELL.5 Since the PIL
procedures are already validated, the translation has to ensure a very high level of reliability in terms of fidelity, precision and correctness in order to minimise the efforts for revalidation. In our first contribution of this paper we propose and validate the use of TGGs for software translation in the PIL2SPELL project. Since the PIL2SPELL project is an industrial application of rather large size (more than 200 translation rules were specified), a technique was needed to im-prove the efficiency of the TGG rewriting method and tool. Hence, the second contribution of this paper is a general approach for improving efficiency of graph transformation systems applied to leverage TGGs for software translations in in-dustry and we evaluate the implementation in Henshin [7]. The corresponding technical report [16] for this paper provides full technical details on the formal constructions and full proofs.
Sec. 2 introduces our running example, Sec. 3 presents the general concept and Sec. 4 describes the applied TGG techniques. Thereafter, Sec. 5 presents
4
Awk Community: http://awk.info/
5
1 SELECT
2 CASE ($BATT = "HIGH")
3 CHECKTM(TEMP_C1)
4 CHECKTM(VOLT_D2 = 4)
5 ENDCASE
6 CASE ($BATT = "LOW") 7 SEND SWITCH_B1_B2 8 CHECKTM(VOLT3 = 5) 9 ENDSEND 10 ENDCASE 11 ENDSELECT 1 if (BATT == ’HIGH’): 2 GetTM(’T TEMP_C1’)
3 Verify([[’T VOLT_D2’, eq, 4]]) 4 elif (BATT == ’LOW’):
5 Send(command = ’C SWITCH_B1_B2’,
6 verify = [[’T VOLT3’, eq, 5]])
7 #ENDIF
Fig. 1. Procedure written in PIL (left) and translated procedure in SPELL (right)
results for improving the efficiency and scalability, and Sec. 6 evaluates the approach. Sec. 7 discusses related work and Sec. 8 provides a conclusion and discusses aspects of future work.
2
Case Study PIL2SPELL
We illustrate the methodology for software translation on some details of the project PIL2SPELL. Fig. 1 presents a simplified PIL procedure for battery maintenance and its translation in SPELL. Structures of the form SELECT-CASE-ENDSELECT are translated into structures of the form if-elif-#ENDIF. SEND instructions (lines 7-9) for sending telecommands to the satellite are mapped to corresponding Send statements with the same command-id as argument prefixed with a C (lines 5-6). Instructions for checking telemetry values (PIL instruction CHECKTM) are handled in three ways:
1. CHECKTM(X) (line 3): parameter checks without condition are used to retrieve and display a telemetry value from the satellite. They are translated into GetTM statements, where prefix T is added to the parameter (line 2). 2. CHECKTM(X = Y) (line 4): parameter checks with additional condition are used
to verify telemetry values and are mapped to Verify statements with a corresponding condition (line 3).
3. CHECKTM(X = Y) (line 8): parameter checks within a SEND instruction are translated into a verify argument of the corresponding Send statement
(line 6). △
Fig. 2. Concept for software translation
reordering of information motivates to perform a separation of concerns by split-ting the translation into parsing, translation and serialisation instead of using an integrated approach, where some of the phases are merged.
3
Concept for Software Translation
:Send :string_LST_Elem
entryS=C SWITCH_B1_B2 ::sendEntry_LST_Elem :atom square_brackets=true ::testlist_comp entryS=T VOLT3 :test_Or_star_exp_LST_Elem eq:atom atom_name=eq :test_Or_star_exp_LST_Elem ::atom :integer value=5 verifyL entry te st _Or _sta r_ exp next_exp en try :string_LST_Elem :Send_PIL :TCId SWITCH_B1_B2:TcIdentifier nameTC=SWITCH_B1_B2 :CheckTM_List :CheckTM :TMCond VOLT3:TMId nameF=VOLT3 :Comparator symb== :unsigned_integer value=5 tcID checkTM_list nameT checkTM checkTMCond tmId co mp ar ato r formula command te st list_ co m p next en try nu mb er
Fig. 3. Fragment of source AST (left) and target AST (right)
(translation) is performed using a triple graph grammar (TGG), which is pre-sented in detail in Sec. 4. Note that TGGs can be fully encoded as plain graph transformations [13]. The initialisation phase is used to extend the given AST of the source language with additional structures that simplify the specification of the translation rules in Phase 2. The refactoring phase refines the resulting AST in order to satisfy certain coding guidelines required in the target domain. These refactorings are specified by compact GT rules that also delete substructures. Employing a TGG for the refactoring phase instead would drastically increase the amount of rules.
To reduce the complexity of the translation rules, the initialisation phase is used to pre-process information and to create additional helper structures that store this information locally in the source AST. In our case study, the initialisa-tion rules are used, e.g., to compute a global numbering for the subcomponents of a satellite procedure that are needed in SPELL. Moreover, we create explicit pointers from complex instructions to their subcomponents (see, e.g. Ex. 2).
As TGGs are non-deleting, the source model is preserved completely during the translation. The translation markers ensure that each element is translated exactly once. At each translation step, a substructure of the given AST is trans-lated and trace links are created. The resulting fragments in the target domain are connected according to the tree structure of the input AST. These properties help to ensure that the resulting output graph has a tree structure and is in fact an AST.
4
Triple Graph Grammars with Henshin
(GS mS = G oosG GC mC tG// GT) mT (HS = H m HC sH oo tH //HT) graph morphism L m tr // R n G t //H Step (formal) (PO) Step (example) Fig. 4. Triple graph morphism and transformation step
and target graphs, respectively, together with two mappings (graph morphisms) sG∶ GC→ GSand tG∶ GC→ GT. The two mappings in G specify a correspondence
relation between elements of GS and elements of GT.
Triple graphs are related by triple graph morphisms m ∶ G → H [25,10] consisting of three graph morphisms that preserve the associated correspon-dences (i.e., left diagrams in Fig. 4 commute). Triple graphs are typed over a triple type graph TG and attributed according to [10]. For a triple type graph TG= (TGS ← TGC→ TGT), we use L(TG), L(TGS), and L(TGT) to denote the classes of all graphs typed over TG, TGS, and TGT, respectively.
A triple graph grammar TGG= (TG, S, TR) consists of a triple type graph TG, a triple start graph S and a set TR of triple rules, and generates the triple graph language of consistently integrated models L(TGG) ⊆ L(TG) with con-sistent source and target languages L(TGG)S = {GS ∣ (GS ← GC → GT) ∈
L(TGG)} and L(TGG)T = {GT ∣ (GS ← GC → GT) ∈ L(TGG)}. TGC
differ-entiates the possible types of correspondences.
A triple rule specifies how a given consistently integrated model can be ex-tended simultaneously on all three components yielding again a consistently inte-grated model. It is non-deleting and therefore, can be formalised as an inclusion from triple graph L (left hand side) to triple graph R (right hand side), repre-sented by tr∶ L ↪ R with tr = (trS, trC, trT). Applying a triple rule tr means to
find a match morphism m∶ L → G and to perform a triple graph transformation step G=tr ,m====⇒ H yielding triple graph H defined by the gluing construction6 in Fig. 4 where the occurrence of L in G is replaced by the occurrence of R in H and glued to the remaining graph elements) [26]. Moreover, triple rules can be extended by application conditions for restricting their application to specific matches [13].
The operational forward translation rules for executing forward model trans-formations are derived automatically [13] from the TGG. A forward translation rule trFT and its original triple rule tr differ only on the source component:
elements (nodes, edges or attributes) created by tr become elements that are preserved and marked as “translated” by the forward translation rule.
Example 2 (Operational Triple Rules). Fig. 5 shows screenshots (tool Hen-shin [7]) of some generated forward translation rules of the TGG for PIL2SPELL
6
Fig. 5. Forward translation rules (generated by Henshin)
in short notation. Left- and right-hand side of a rule are depicted in one triple graph and the elements to be created have the label⟨++⟩. Translation attributes are indicated by label ⟨tr⟩. The depicted rules are typical operational rules of average rule size. Rule (1) translates an existing Instruction LST Elem node into its corresponding stmt LST Elem node. Both node types are containers for specific instructions and statements. Rules (2) and (3) depend on rule (1) as they use the stmt LST Elem nodes as context.
Note that the node type SEND verify LST Elem is created in the initialisation phase as helper structure and used to mark exactly those CheckTM elements that handle a telemetry condition (TMCond). The remaining CheckTM elements of a SEND instruction are translated to GetTM statements outside the scope of the
SPELL Send statement. △
A forward translation sequence (GS, G 0=
tr∗ FT
====⇒ Gn, GT) is given by an input
source model GS, a transformation sequence G0= tr∗
FT
====⇒ Gnobtained by executing
the forward translation rules TRFT on G0 = (GS ← ∅ → ∅), and the resulting
target model GT obtained as restriction to the target component of triple graph Gn= (GS ← GC → GT). A model transformation based on forward translation
rules MT∶ L(TGS) ⇛ L(TGT) consists of all forward translation sequences. Note that a given source model GS may correspond to different target models
GT. In order to ensure unique results, we presented in [13] how to use the
automated conflict analysis engine of AGG for checking functional behaviour of model transformations.
5
Leveraging TGGs for Software Translations in Industry
As described in the previous section, the basic execution algorithm for forward translations based on TGGs does not use any kind of pre-defined order on rules. For medium and large scale projects, the application of rules in a non-deterministic way would result in poor efficiency. In this section, we present a general approach for graph transformation systems, with which we leverage TGGs for larger software translations. This concerns grammars containing more than 200 rules, like the manually specified rules for the PIL2SPELL project that were derived from a document of correspondence patterns (small corresponding source code fragments). The approach is orthogonal to the analysis and reduc-tion of conflicts via filter NACs for TGGs [13]. Both approaches can be combined - the second one improves the rules directly while the first provides a structuring technique on them.shows a partial order that we linearise to a complete order. Finally, we apply this grouping and ordering technique to the set of forward translation rules.
In order to group the rules of a given rule set R, their sequential depen-dencies and conflicts are represented by a dependency-conflict graph DCG(R) containing the rules as nodes and rule dependencies/conflicts as edges. A pair of rules(r1, r2) is in conflict if there exists a critical pair for (r1, r2) [9], i.e., there
are two parallel dependent transformation steps t1= G0= r1
==⇒ G1, t2= G0= r2 ==⇒ G2.
A pair of rules (r1, r2) is sequentially dependent if there is a transformation
sequence t= (t1; t2) = G0 = r1 ==⇒ G1=
r2
==⇒ G2, where t2 sequentially depends on t1
(produce-use or forbid-create dependency). Note that the order is relevant for sequential dependencies. Both concepts can be analysed statically using the tool AGG [28]. The graph DCG(R) may contain cycles. These cycles are used to de-fine non-overlapping clusters of rules leading to the acyclic dependency-conflict cluster graph CLGDC(R). By N(G) we denote the set of nodes of a graph G.
Definition 1 (Dependency-Conflict Cluster Graph). Let R be a set of rules, then we define:
– dependency-conflict graph DCG(R) with nodes N(DCG(R)) = R and edges EDCG = {(r → r′) ∣ (r, r′) is a sequentially dependent pair } ∪ {(r → r′),
(r′→ r) ∣ ∃ a critical pair for (r, r′)},
– for r ∈ R the dependency-conflict cluster [r]DC = {r} ∪ {r′∈ R ∣ ∃ a path
(r → . . . r′. . .→ r) in DCG(R)},
– dependency-conflict cluster graph CLGDC(R) with
nodes N(CLGDC(R)) = {c ∣ c = [r]DC∧ r ∈ R} and
edges E= {(c → c′) ∣ ∃ r ∈ c, r′∈ c′∶ (r → r′) in DCG(R)}. △
A DC-Layered Transformation System (DC-LTS) linearises the partial order on clusters of a given CLGDC(R) to a complete order where each cluster
be-comes a layer and the sequential order of the layers respects the dependencies between the clusters. Formally, a layered transformation system LTS = (R, S) consists of a set of rules R and a sequence S= (Si)i∈I of subsets of R as layers.
Given a graph G, then an execution of LTS is performed by applying each layer consecutively according to the sequence S, where the rules in each layer Si are
applied exhaustively.
Definition 2 (DC-Layered Transformation System). Let CLGDC(R) be
the derived dependency-conflict cluster graph for R, then LTS = (R, S) with S = (Si)i∈I is a DC-layered transformation system, if the following conditions
hold
1. S is a permutation of the clusters in N(CLGDC(R)) (cluster compatibility)
2. ∀ edges (a → b) in CLGDC(R)∶ a = Sk∧ b = Sl⇒ k < l (sequential order) △
terminated sequences via R (i.e., no more rules are applicable) can be performed via LTS .Each rule only depends on rules in a preceding layer and rules in the same layer. The input-output relation IOTS of a transformation system TS
contains all pairs (GI, GO) with a terminated transformation sequence GI ⇒∗
GO via TS .
Theorem 1 (Completeness of DC-LTS). Let R be a set of rules and LTS be a DC -layered transformation system for R, then: IOR= IOLTS, i.e.
(∃ terminated (G0⇒=∗Gn) via R) ⇔ (∃ terminated (G0⇒=∗Gn) via LTS). △
Proof (Idea). The proof (see [16]) uses the general results of completeness of critical pairs and the local Church-Rosser Theorem to stepwise shift the steps in s for obtaining sequence s′that respects the order in S. Using the construction of
S, this ensures by induction that there is no rule in a cluster Siwhich depends on
a rule in cluster Sjwith j> i. We obtain that s′can be divided into subsequences
s′
i for each cluster Si. Since for each rule of a cluster, the cluster also contains
all conflicting rules, we can again apply completeness of critical pairs and the local Church-Rosser Theorem and show by contraposition that an extending step in any subsequence implies an extended step in the original sequence s, which
contradicts the precondition that s is terminated. ◻
A DC-LTS can reduce the effort for backtracking. By Thm. 2 below, func-tional behaviour of the layers eliminates the need for backtracking of transfor-mation steps that are not in the current layer. A transfortransfor-mation system TS has functional behaviour, if IOTS is right unique, i.e. for each input graph, there is
at most one output graph up to isomorphism. A layer Si of an LTS = (R, S)
has functional behaviour, if the induced transformation system with rules Sihas
functional behaviour, which can be analysed statically with the tool AGG [13,28]. Theorem 2 (Reduction of Backtracking). Let LTS be a DC -layered trans-formation system, where each layer has functional behaviour. Then, there is no need to backtrack already completed layers during the computation of a termi-nated sequence G0⇒=∗Gnvia LTS . Moreover, LTS has functional behaviour. △
Proof. Assume we backtrack already completed layers, then we will obtain the same output graphs for these layers due to functional behaviour and thus, we derive the same input graph for the current layer. LTS = (R, S) has functional behaviour, because each layer has functional behaviour and the layers are
exe-cuted via the fixed sequence S. ◻
The effect of Thm. 2 is that the effort for checking functional behaviour of the whole system is reduced to the analysis of each layer separately. Note that application conditions for rules are an appropriate method to ensure functional behaviour [13]. Our approach can be combined with the generation of filter NACs [13], which eliminates some types of rule conflicts, but not all.
s= (GS, G0⇒∗Gn, GT) is a model transformation sequence via MT } for a model
transformation MT .
Definition 3 (DC-optimised Model Transformation). Let LTS = (TRFT, S) be a DC-layered transformation system for the forward
transla-tion rules TRFT of a TGG with induced model transformation MT . The
DC-optimised model transformation MTLTS∶ L(TGS) ⇛ L(TGT) is obtained from
MT by restriction to the LTS -compatible model transformation sequences, i.e., TRAFOS(MTLTS) = {s ∈ TRAFOS(MT ) ∣ s = (GS, G′0 = tr∗ FT ====⇒ G′ n, G T) and G′ 0= tr∗ FT ====⇒ G′
n is a transformation sequence via LTS}. △
By Thm. 3 below, we show that the execution of the DC-LTS does not affect the existing results for TGGs concerning the notion of correctness and completeness (see Def. 4 below according to [13]).
Definition 4 (Correctness and Completeness). A model transformation MT is correct, if for each MT -sequence (GS, G0⇒∗Gn, GT) there is a triple
graph G = (GS ← GC → GT) ∈ L(TGG). It is called complete, if for each GS∈ L(TGG)S, there is an MT -sequence(GS, G0⇒∗Gn, GT). △
Theorem 3 (Correctness and Completeness). Each DC-optimised model transformation MTLTS∶ L(TGS) ⇛ L(TGT) is correct and complete. △
Proof. By Thm. 1 in [13], we know that model transformations MT based on for-ward translation rules are correct and complete. By Thm. 1, we derive that MT and MTLTS have the same input/output relation and thus, MTLTS is correct
and complete. ◻
6
Evaluation
Fig. 6 shows the evaluation of the efficiency improvement using a standard con-sumer laptop (CPU: i7-2860QM, RAM: 8GB, Java: 1.7U25, OS: 64-bit version of Windows 7) for translating all control procedures (202 files, 199,853 lines of code (LOC)) that were developed by ASTRIUM for the satellite ASTRA 1N. The construction of the dependency conflict clusters is performed once statically for the TGG and thus, not contained in the execution times. The left chart shows the translation via the TGG without efficiency improvement for the smallest 126 files7(<50KB) – file no. 127 reached a timeout of 10 hours. The amount of nodes of an AST graph is on average about 4 times the amount of LOC of the file. The execution of the DC-layered TGG (right chart) is faster (approximately 100 times as fast for graphs with 4,000 nodes) - mainly due to the massively reduced amount of rule match computations at each step. Fig. 6 shows the execution times for translating each input file separately. The effective translation of the full set of files at SES is performed by distributing the files to eight parallel Java
7
Fig. 6. Measurements for satellite ASTRA 1N (logarithmic scale) using Henshin Table 1. Evaluation of requirements
Requirement Evaluation Syntactical correctness
and completeness
Ensured for Phase 2 of the AST conversion by Thm. 3; TGGs simplify the guarantee of a resulting tree structure Precision/fidelity,
minimal efforts for revalidation
TGG rules are obtained from DSL mapping document that was specified by domain experts containing pairs of cor-responding source and target code fragments
Complete automation Yes: no user interaction, no manual editing of output files. Maintainability - Visual and intuitive GUI for TGG rules
- No complex control structures for execution
- Automated check of rule dependencies with AGG [28] Readability - The output source code in SPELL is well aligned
- Output is compliant with SPELL coding guidelines - All header entries and comments are generated adequately Efficiency, scalability - Metamodels of generated Xtext plugins: >140 types
- Rules: 484 (TGG: 249, initialisation + refactoring: 235), - Internal XML representation: ∼50,000 LOC (lines of code) - Benchmark: ∼5:00 min. for satellite Astra 1N (see Fig. 6) Direct savings 1–2 man years per satellite (estimated by SES, compared to
manual conversion and validation)
threads (four physical cores). This leads to an additional average speed up factor of three such that the translation for one satellite takes about five minutes. SES appreciated the obtained speed as it is largely above what is needed for practical use.
SES and was successfully assessed and validated by SES and the satellite man-ufacturer ASTRIUM. According to Thm. 3, the translation ensures syntactical correctness and completeness for Phase 2 of the AST conversion via the TGG. TGGs simplify the challenge to ensure that the resulting graph of the model transformation forms an AST. The source model is always preserved and the execution ensures that elements are translated exactly once. This reduces the challenge of checking that the rules translate each path or subtree of the source AST into a path or subtree in the target graph attached to the corresponding parent node. The size of the TGG, the processed input files and the correspond-ing execution times in Table 1 show that the presented approach is applicable for large scale applications. Currently, the following six satellites are running on the generated control procedures: Astra-1M, Astra-1N, Astra-2E, Astra-2F, Astra-3B, and SES-6. Moreover, SES is validating two further TGG-translators for the satellite control languages of the satellite manufacturers THALES and BOEING.
7
Related Work
Other solutions for software translation include manually writing a converter, using a compiler-compiler or meta-programming based on term rewriting or sim-ilar techniques. In fact, a fully manual rewrite in the target language, using the source language artefact only as a reference, is also feasible in some situations and even has been the preferred approach for the mission-critical satellite control procedures at SES, before the approach presented in this paper has been taken into account.
Compiler-compilers or parser generators, such as ANTLR [24], can be used to generate a parser based on the grammar of a source language. Then, the generation of the target language has to be programmed either in annotation to the source grammar or by traversing the generated abstract syntax tree. In both cases, only the source language can be specified in an adequate way by its grammar, while the target language is implicit in the manually written code.
Source transformation systems based on term rewriting include the DMS system [2], TXL [4], the Rascal language [19] and the Spoofax language work-bench [18] with the Stratego/XT engine [3]. Using these systems is quite similar to our approach, which can be seen, e. g., in the Extract-Analyze-Synthesise (EASY) Paradigm for Rascal [20]. Both, the source and the target language, are specified in some form of grammar formalism and the transformation between the languages is given by a set of transformation rules, where all the above-mentioned systems use some sorts of rewriting rules, which are specified in a textual syntax.
can also be visual languages implemented by EMF-based tools like the Graphical Modeling Framework (GMF). This provides for a seamless integration of hetero-geneous languages. Moreover, the basic language definitions – Xtext grammars, XSD files, GMF projects – and the resulting plugins are reusable for all transla-tion, refactoring and model transformation projects involving the same language. The textual programming of a specific term rewriting language has quite a steep learning curve [5], while we experienced that the visual specification of pattern-based graph transformation rules on EMF models provides more in-tuitive access. Our division of the conversion by graph transformation into the three phases – initialisation, forward translation based on triple graph grammars, and refactoring of the result – yields a separation of concerns that additionally helps in keeping the solution comprehensible. Our example from Sec. 4 already shows non-trivial structural differences between the abstract syntax structures of source and target language. In our industrial case study, the visual represen-tation provided a more intuitive access to those structural differences than a textual, tree-oriented representation.
Several performance improvements for TGGs have been proposed for re-stricted kinds of TGGs using dependency information on nodes only [22,11]. The present paper provides a general technique for arbitrary TGGs and yields a layered transformation system, where functional input/output behaviour avoids the need for backtracking of already executed layers. We use the general notion of rule conflicts and dependencies - in particular, we take into account dependen-cies on edges, attributes and application conditions. We are confident that the existing approaches can be integrated in the new one by applying them locally to each layer.
Regarding performance of model transformations in general, M´esz´aros et al. [23] have proposed manual and automatic optimizations based on overlap-ping of matches. Specifically for Henshin, Tichy et al. [29] have identified several “bad smells”, i. e., features of transformation rules that possibly result in poor transformation performance and should be avoided if possible. During the de-velopment of the PIL2SPELL translation, in addition to our dependency-based strategy, we followed the guidelines from [29].
8
Conclusion
Regarding the Henshin tool, work is in progress to implement the critical pair analysis directly instead of using AGG. The performance results achieved by our proposed approach shall be further evaluated by making use of recently developed benchmarks [17,1].
In future work, we will employ the rich formal foundation of TGGs and apply them for the synchronisation between source code and possible visualisations of software. We also plan to apply graph transformation techniques for analysing test coverage and generating valid test cases.
Acknowledgments. This project is part of the Efficient Automation of Satellite Operations (EASO) project supported by the European Space Agency (ESA)8. Supported by the Fonds National de la Recherche,
Luxembourg (3968135, 4895603).
