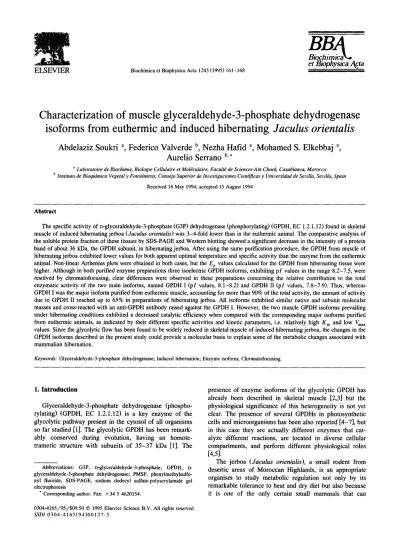

ELSEVIER Biochimica et Biophysica Acta 1243 (1995) 161-168
BB Biochi ~mic~a
et Biophysica A~ta
Characterization of muscle glyceraldehyde-3-phosphate dehydrogenase isoforms from euthermic and induced hibernating Jaculus orientalis
Abdelaziz Soukri a, Federico Valverde b, Nezha Hafid a, Mohamed S. Elkebbaj a,
Aurelio Serrano b,,
a Laboratoire de Biochimie, Biologie Cellulaire et Mol~culaire, Facult~ de Sciences-Ain Chock, Casablanca, Morocco b Instituto de Bioqulmica Vegetaly FotoMntesis, Consejo Superior de lnvestigaciones Ciendficas y Universidad de Sevilla, Sevilla, Spain
Received 18 May 1994; accepted 15 August 1994
Abstract
The specific activity of o-glyceraldehyde-3-phosphate (G3P) dehydrogenase (phosphorylating) (GPDH, EC 1.2.1.12) found in skeletal muscle of induced hibernating jerboa (Jaculus orientalis) was 3-4-fold lower than in the euthermic animal. The comparative analysis of the soluble protein fraction of these tissues by SDS-PAGE and Western blotting showed a significant decrease in the intensity of a protein band of about 36 kDa, the GPDH subunit, in hibernating jerboa. After using the same purification procedure, the GPDH from muscle of hibernating jerboa exhibited lower values for both apparent optimal temperature and specific activity than the enzyme from the euthermic animal. Non-linear Arrhenius plots were obtained in both cases, but the E~ values calculated for the GPDH from hibernating tissue were higher. Although in both purified enzyme preparations three isoelectric GPDH isoforms, exhibiting p I values in the range 8.2-7.5, were resolved by chromatofoeusing, clear differences were observed in these preparations concerning the relative contribution to the total enzymatic activity of the two main isoforms, named GPDH I (pI values, 8.1-8.2) and GPDH II (pI values, 7.8-7.9). Thus, whereas GPDH I was the major isoform purified from euthermic muscle, accounting for more than 90% of the total activity, the amount of activity due to GPDH II reached up to 65% in preparations of hibernating jerboa. All isoforms exhibited similar native and subunit molecular masses and cross-reacted with an anti-GPDH antibody raised against the GPDH I. However, the two muscle GPDH isoforms prevailing under hibernating conditions exhibited a decreased catalytic efficiency when compared with the corresponding major isoforms purified from euthermic animals, as indicated by their different specific activities and kinetic parameters, i.e. relatively high K m and low Vma ~ values. Since the glycolytic flow has been found to be widely reduced in skeletal muscle of induced hibernating jerboa, the changes in the GPDH isoforms described in the present study could provide a molecular basis to explain some of the metabolic changes associated with mammalian hibernation.
Keywords: Glyceraldehyde-3-phosphate dehydrogenase; Induced hibernation; Enzyme isoform; Chromatofocusing
1. Introduction
Glyceraldehyde-3-phosphate dehydrogenase (phospho- rylating) (GPDH, EC 1.2.1.12) is a key enzyme of the glycolytic pathway present in the cytosol of all organisms so far studied [1]. The glycolytic G P D H has been remark- ably conserved during evolution, having an homote- trameric structure with subunits of 3 5 - 3 7 kDa [1]. The
Abbreviations: G3P, D-glyceraldehyde-3-phosphate; GPDH, D- glyceraldehyde-3-phosphate dehydrogenase; PMSF, phenylmethylsulfo- nyl fluoride; SDS-PAGE, sodium dodecyl sulfate-polyacrylamide gel electrophoresis
* Corresponding author. Fax: +34 5 4620154.
0304-4165//95/$09.50 © 1995 Elsevier Science B.V. All rights reserved SSDI 0 3 0 4 - 4 1 6 5 ( 9 4 ) 0 0 1 3 7 - 5
presence of enzyme isoforms of the glycolytic G P D H has already been described in skeletal muscle [2,3] but the physiological significance of this heterogeneity is not yet clear. The presence o f several G P D H s in photosynthetic cells and microorganisms has been also reported [4-7], but in this case they are actually different enzymes that cat- alyze different reactions, are located in diverse cellular compartments, and perform different physiological roles [4,5].
The jerboa (Jaculus orientalis), a small rodent from
desertic areas o f Moroccan Highlands, is an appropriate
organism to study metabolic regulation not only by its
remarkable tolerance to heat and dry diet but also because
it is one of the only certain small m a m m a l s that can
162 A. Soukri et al. /Biochimica et Biophysica Acta 1243 (1995) 161-168
undergo hibernation [8]. During hibernation, which can be induced in the laboratory when artificially cooled, the body temperature of this animal decreases to 6-9°C [9]. The glycolytic flow has been found to be widely repressed during this resting state [9]. This finding is in agreement with the fact that in muscle the main function of glycolysis is to provide ATP and the metabolite pool for respiration.
GPDH is a glycolytic allosteric enzyme that could be subjected to metabolic regulation [1]. Therefore, to explore the molecular mechanisms of the regulatory processes associated with hibernation we decided to undergo a com- parative study of the GPDHs from skeletal muscle of euthermic and induced hibernating jerboas.
In this paper we report that crude extracts from skeletal muscle of hibernating jerboa exhibit, when compared with euthermic animal preparations, a decreased GPDH specific activity concomitant with a reduction of the 36 kDa-sub- unit protein band in both SDS-PAGE gels and Western blots. Three GPDH isoforms, readily resolved by column chromatofocusing, were demonstrated in both physio- logical situations after using the same purification proce- dure. The change of the relative contribution of the two main GPDH isoforms to the total activity in these purified preparations and their different kinetic parameters could explain the repression of glycolysis found in the skeletal muscle of induced hibernating jerboa.
2. Materials and methods
2.1. Preparation of biological material
Jerboas (Jaculus orientalis) were captured in the sub- desert Moroccan East Highlands and kept in captivity, in a pre-acclimated room (22 + 2°C) with food and water, for about 3 - 6 mth. When necessary, animals were forced to hibernate in the laboratory by artificially cooling [10].
Briefly, they were placed in darkness at 4°C during 2-3 wk; then, food was removed during 1 week. Young adult jerboas of both sexes, of about 6 months old and weighting 130-150 g, were decapitated and skeletal muscles were immediately removed and frozen.
2.2. Enzyme purification
Unless otherwise indicated all steps were performed at 4°C. Centrifugations were carried out at 20 000 × g for 45 min.
Step 1. 100 g of skeletal muscle were ground and homogenized using a Sorvall mixer in 25 mM Tris-HC1 buffer, pH 7.5, containing 2 mM EDTA, 10 mM 2-mer- captoethanol and protease inhibitors (2 mM PMSF, 2 mM benzamidine, and 5 mM e-amino-n-caproic acid) at a ratio of 3 m l / g of fresh tissue. The resulting homogenate was centrifuged and the supernatant (soluble protein fraction) considered as the crude extract.
Step 2. The supematant from step i was brought to 66%
( w / v ) saturation with solid ammonium sulfate. After 1 h at 4°C, the suspension was centrifuged and the supernatant was precipitated with ammonium sulfate to a final satura- tion of 88% (w/v). The final pellet after centrifugation was dissolved in 25 mM Tris-HCl, pH 7.5, containing 0.1 mM EDTA. The protein solution was dialysed twice against 1 liter of the same buffer and eventually centrifuged.
Step 3. The supernatant from step 2 was chromato- graphed on a Blue Sepharose CL-6B column (1 × 6 cm) equilibrated with 2 bed volumes of buffer A (25 mM Tris-HC1, pH 7.5, 2 mM EDTA and 10 mM 2-mercapto- ethanol). The column was washed with 3 bed volumes of buffer A and subsequently with 2 bed volumes of the same buffer adjusted to pH 8.6 (buffer B). The enzyme was eluted with buffer B containing 10 mM NAD + at a flow rate of 20 m l / h . 2-ml fractions containing GPDH activity were collected, concentrated and washed with buffer B by ultrafiltration on a Diaflo PM-10 Amicon membrane.
Step 4. The active pool was dialysed against 25 mM Tris-HC1 buffer, pH 9.8, containing 1 mM EDTA and 5 mM 2-mercaptoethanol (starting buffer). Column chro- matofocusing in the pH range 9.0 to 5.5 was performed in a Polybuffer Exchancher PBE-94 column (1 × 18 cm) equilibrated with starting buffer. After application of the concentrated enzyme solution (about 10 ml), the column was washed with 5 ml of starting buffer. The enzyme was eventually eluted at a flow rate of 12 m l / h by washing the column with 10 bed volumes of a 10-fold diluted mixture of Polybuffer 96/Polybuffer 74 (30/70, v / v ) adjusted to pH 5.5 with acetic acid. The pooled active fractions were concentrated and equilibrated in standard buffer supple- mented with 0.1 M NaCI by ultrafiltration as described above.
2.3. Determination of enzyme activity
Unless otherwise stated enzymatic activity in the oxida-
tive phosphorylation was determined spectrophotometri-
cally at 30°C by monitoring the appearance of NADH. The
1-ml reaction mixtures contained 0.1 M triethanolamine-
HC1 buffer (pH 8.9), 2 mM EDTA, 1 mM NAD ÷ and 2
mM o-G3P. Only initial rates were considered. Kinetic
parameters for NAD + and G3P were determined in the
conditions described by Ferdinand [11]. To determine opti-
mal pH, enzymatic activity was measured over a wide
range of pH (from 5 to 10) with different buffers (acetate,
imidazole, Tris and carbonate/bicarbonate) adjusted to the
same ionic strength than the standard reaction mixture. To
determine apparent optimal temperature, reactions were
carried out in a 5 to 65°C temperature range using a
thermostated cuvette holder connected with a refrigerated
bath circulator. One unit of enzyme is defined as the
amount which catalyzes the formation of 1 /zmol of
NADH per min under the conditions used. Protein was
determined by the method of Bradford [12]. Activity levels
in cell-free extracts were expressed as specific activity (mU/mg of protein).
2.4. Gel electrophoresis
Polyacrylamide gel electrophoresis in the presence of sodium dodecyl sulfate (SDS-PAGE) was carried out in 12% ( w / v ) acrylamide slab gels (Mini-Protean Bio-Rad, Richmond, CA, USA) according to Laemmli [13]. Proteins were stained with 0.2% (w/v) Coomassie brilliant blue R-250 in methanol/acetic acid/water (4:1:5) for 30 min at room temperature. Stained protein bands were analyzed and quantified with an analytical imaging instrument (Bio Image, Millipore, Ann Arbor, MI, USA).
(Sigma Chemical Co., St. Louis, MO, USA). Immunos- rained protein bands were quantified by the analytical imaging system above described.
2.6. Chemicals
NAD +, D-G3P diethyl acetal, PMSF, benzamidine, e- aminocaproic acid, imidazole, trietanolamine, Tris, Tricine, EDTA were purchased from Sigma Chemical Co. (St.
Louis, MO, USA). Blue Sepharose CL-6B, Polybuffer Exchanger PBE 94, Polybuffer 96 and Polybuffer 74 were obtained from Pharmacia Fine Chemicals (Uppsala, Swe- den). All other chemicals were of analytical grade.
2.5. Western blotting 3. Results and discussion
The GPDH protein was detected immunologically, in either cell-free extracts or purified preparations from eu- thermic and hibernating jerboas, after SDS-PAGE (12%
acrylamide) and subsequent transfer to nitrocellulose. After blocking in non-fat milk, membranes containing samples were exposed to a 1:250 dilution of a monospecific poly- clonal antibody raised in rabbit against the chromato- focusing resolved GPDH I isoform purified from skeletal muscle of euthermic jerboa. Detection of the GPDH pro- tein was performed with a 1:1000 dilution of a goat anti-rabbit IgG antibody-horseradish peroxidase conjugate
The specific activity level of GPDH found in soluble protein fractions from skeletal muscle of euthermic jerboas (about 1.5 U / m g of protein) was 3-4-fold higher than that measured in preparations from the same tissue of induced hibernating animals. A relevant differential feature of the SDS-PAGE protein patterns of these crude preparations was the marked reduction (about 3-fold) in hibernating tissue of a major protein band corresponding to a 36 kDa molecular mass (Fig. 1A, lanes a and b). This difference was even more evident in protein fractions corresponding to the 66-88% saturation range of ammonium sulfate (Fig.
Marker Marker
molecular molecular
masses a b c d e masses
(kDa) (kDa)
9 7 ~ . . . 1 1 6 ,--,-
6 6 8 4
4 5 ~ 5 8 . . . .
4 5
31 - -
. . . . . . . 3 6 . 5 . . . - -
2 6 . 6 - - -
21
a b
Fig. 1. A. Coomassie-stained SDS-PAGE electrophoretogram showing the protein patterns corresponding to preparations of skeletal muscle from euthermic and hibernating J. orientalis. Lanes a and d represent, respectively, crude extract and 66-88% ammonium sulfate protein fraction from euthermic animal.
Lanes b and e represent crude extract and ammonium sulfate protein fraction from hibernating animal. A similar amount of protein, about 50 g g , was
applied to each lane. Lane c corresponds to protein markers. The 36-kDa protein band, considered as the putative GPDH subunit, is indicated by the
arrows. B. Western-blot analysis of crude extracts of skeletal muscle of euthermic 0ane a) and hibernating (lane b) J. orientalis. Aliquots (about 50/~g of
protein) of cell extracts were subjected to SDS-PAGE and after electrophoretic transfer to nitrocellulose membrane, the Western-blot was developed as
indicated in the 'Materials and Methods' section. The arrow indicates the band corresponding to the 36 kDa GPDH subunit. The position and molecular
masses of the used prestained protein markers are also indicated.
164 A. Soukri et al. /Biochimica et Biophysica Acta 1243 (1995) 161-168
1.
"I" 0.8"
t) <
~,,
"6
0.4
0
00000~
0
i I I i i I I
2.9 3 3.1 3.2 3.3 3.4 3.5 3.6 3.7 l f r x l 0 a (K-l)
Fig. 2. Arrhenius plots of GPDH enzyme preparations purified from skeletal muscle of euthermic ( D ) and hibernating ( 0 ) J. orientalis. The arrows indicate changes in the slope of the plotted lines. The numbers adjacent to the plotted lines are the calculated apparent E a values in kcal/mol.
1A, lanes d and e). Since all glycolytic GPDHs so far studied are homotetrameric enzymes with 34-38 kDa sub- units [1] which are relatively abundant in muscle tissue where an intense glycolytic acitivity occurs, we initially assumed that the 36 kDa protein was the GPDH subunit.
Western blot analysis of these crude preparations using an
anti-GPDH antibody showed a 3-fold reduction of the immunostained 36-kDa band in hibernating tissue (Fig.
1B) demonstrating that this 36-kDa protein actually repre- sents the jerboa muscle GPDH subunit. Since, as shown in SDS-PAGE gels, most other protein bands remained sub- stantially unchanged in these crude extracts (see Fig. 1),
Table 1
Purification of GPDH isoforms from skeletal muscle of euthermic J. orientalis
Fraction Total protein Total act. Specific act. Purification factor Yield
(mg) (U) ( U / m g of protein) (fold) (%)
Crude extract 2571 3600 1,4 1
Ammonium sulfate (66-88%) 395 1700 4.3 3
Blue Sepharose CL-4B 67 1440 21.5 15
Chromatofocusing a
GPDH I (pl 8.12) 0.8 40.0 50.0 36
GPDH II (pl 7.80) 1.1 3.5 3.2 2
GPDH III ( p l 7.58) 0.5 0.4 0.8 -
100 47 40
a Only 180 U, about 8,4 mg of protein, were chromatofocused on the PBE 94 column.
Table 2
Purification of GPDH isoforms from skeletal muscle of hibernating J. orientalis
Fraction Total protein Total act. Specific act. Purification factor Yield
(rag) (U) ( U / r a g of protein) (fold) (%)
Crude extract
Ammonium sulfate (66-88%) Blue Sepharose CL-4B Chromatofocusing a GPDH I ( p l 8.15) GPDH II ( p l 7.85) GPDH III ( p l 7.55)
4000 1800 0.45 1 100
354 460 1.3 3 25
60 400 6.7 15 22
0.54 17.7 32.7 73
0.65 27.1 41.7 93
2.5 0.6 0.2 -
a Only 160 U, about 24 mg of protein, were chromatofocused on the PBE 94 column.
our results suggest a specific decrease in the amount of GPDH protein in the soluble protein fraction from hiber- nating animal. On the other hand, SDS-PAGE gels also showed changes in the amount of two other minor low- molecular mass proteins, namely the disappearance of a 26 kDa-protein and the appearance of a 22 kDa-protein, in crude muscle preparations of hibernating jerboa (see Fig.
1). In the same way it is significant to note that changes in levels of several blood proteins of similar low-molecular masses (in the range 20-27 kDa) are specifically associ- ated with hibernation in another mammalian hibernator [14]. Determining wether this is actually the case with the low-molecular mass proteins found in the skeletal muscle of jerboa needs further research work.
Additional information was obtained by purification and subsequent analytical chromatofocusing of GPDH purified from skeletal muscle from both euthermic and hibernating jerboas. Tables 1 and 2 present respectively typical purifi- cations from euthermic and hibernating animals. As previ- ously reported for other NAD÷-dependent GPDHs [15], dye-ligand chromatography on Blue Sepharose is a very effective purification step. Both GPDH preparations thus purified from euthermic and hibernating jerboas exhibited under SDS-PAGE a major 36 kDa band, the GPDH sub- unit, and a few minor protein contaminants (data not shown). Noteworthy, the GPDH preparation purified by dye-ligand chromatography from hibernating tissue exhib- ited a lower specific activity than the corresponding prepa- ration of euthermic tissue (see Tables 1 and 2). The effect of temperature on the enzymatic activity of these purified GPDH preparations has also been studied. Differences have been found in the apparent optimal temperature val- ues, being respectively about 35 and 45°C for hibernating and euthermic GPDH preparations. Fig. 2 shows the Ar- rhenius plots, in which the logarithm of enzyme activity is plotted versus reciprocal absolute temperature, of these two GPDH preparations. Slope changes were observed in both Arrhenius plots over the temperature range investi- gated. These slope changes occur in both plots at the same temperature values (see Fig. 2). However, the calculated apparent E a values for the GPDH from hibernating tissue, namely 2.38 and 6.84 kcal/mol above and below the discontinuity point at 15°C, were clearly higher than those calculated for the enzyme from euthermic tissue, namely 1.59 and 3.14 kcal/mol (see Fig. 2). Thus, these data suggest that the conformation of the GPDH from euther- mic tissue is more favourable to the enzymatic reaction than that of the same enzyme from hibernating tisssue. It has been reported that non-linear Arrhenius plots may be caused by temperature-induced conformational changes of soluble oligomeric enzymes [16].
The subsequent use of column chromatofocusing, a high-resolution technique of protein separation according to pI's [17,18], allowed us to separate in both preparations three GPDH isoforms which were named going from the most basic to the most acidic form, GPDH I (pI, 8.1-8.2),
<1
i--
I.- t.) 14J
N Z
0 0
83 g6 102 ~ I
~ 4 5
• -- I ~ . . . . ~ 3 6
20 40 60 80
FRACTION NUMBER
12
10
E
¢-¢ q
i/.1~
On"
en 2 O t/l If3
0
Fig. 3. Resolution by column chromatofocnsing of GPDH isoforms purified from skeletal muscle of euthermic J. orientalis. A sample containing about 8.4 mg of protein was applied to a Polybuffer Exchanger PBE 94 column (1 × 18 cm) and the enzyme was eluted by using a pH gradient ( O ) generated by 10 bed volumes of a 10-fold diluted mixture of Polybuffer 96/Polybuffer 74 (30/70, v / v ) adjusted with acetic acid to pH 5.5. One-ml fractions were collected. Absorbance at 280 nm and enzyme activity were measured. The photograph shows the Coomassie- stained SDS-PAGE electrophoretogram of the three activity peak frac- tions which have been marked with asterisks in the elution profile. The arrow indicates the 36-kDa protein band corresponding to the GPDH subunit. The positions and the molecular masses of the protein markers are also shown.
GPDH II (pl, 7.8-7.9) and GPDH III (pI, 7.5-7.6) fol- lowing the elution order under chromatofocusing (see Ta- bles 1 and 2). GPDH III was nevertheless a very minori- tary isoform, accounting for less than 2% of the total enzyme activity. Most significantly, whereas after chro- matofocusing of GPDH preparations from euthermic mus- cle the most basic form GPDH I clearly appeared as the single major isoform, accounting for more than 90% of the total activity (Fig. 3), this was not the case for preparations from hibernating animals, in which the amount of activity due to GPDH I was about 30% of the total and that of GPDH II reached up to 65% of the total activity (Fig. 4).
As it is also shown in Figs. 3 and 4, SDS-PAGE gels of the activity peak fraction corresponding to the isoform GPDH I always exhibited, both in euthermic and hibernat- ing preparations, only one protein band of about 36 kDa -the expected value for the enzyme subunit (1)- indicating a purification of the protein to electrophoretic homogene- ity. Concerning GPDH II isoform, the 36-kDa protein band (GPDH subunit) was also observed in SDS-PAGE, but sometimes co-purified together with a feeble minoritary protein band of either 22 kDa (in preparations of euthermic animals) or 11 kDa (in preparations of hibernating ani- mals) (data not shown). On the other hand, all isoforms of enzyme preparations from euthermic and hibernating tis- sues cross-reacted with a monospecific anti-GPDH anti- body raised against the GPDH I isoform, only one band of about 36 kDa being immunostained in Western blots (data not shown).
The comparison of kinetic parameters, obtained by sis-
tematic variation of substrates, of the two main muscle
166 A. Soukri et aL / Biochimica et Biophysica Acta 1243 (1995) 161-168
15
A
E lO ::) v
>.
I -
ILl
=E N z I,u
0 o
~b°°°d:°O°° ° ~ ° co o o o o o Oo q ~ o o ~ .
= g
F R A C T I O N N U M B E R
12
E
r . 8 o6 ' ~ o z z z ~ O ' r "
4 . ~ "
m n., 2 0
m <
0
